Good Sell Automatic Multi-head Weight Packing Equipment 14 Heads Multihead Weigher Fully Automatic 10 Heads Weighing and Pack

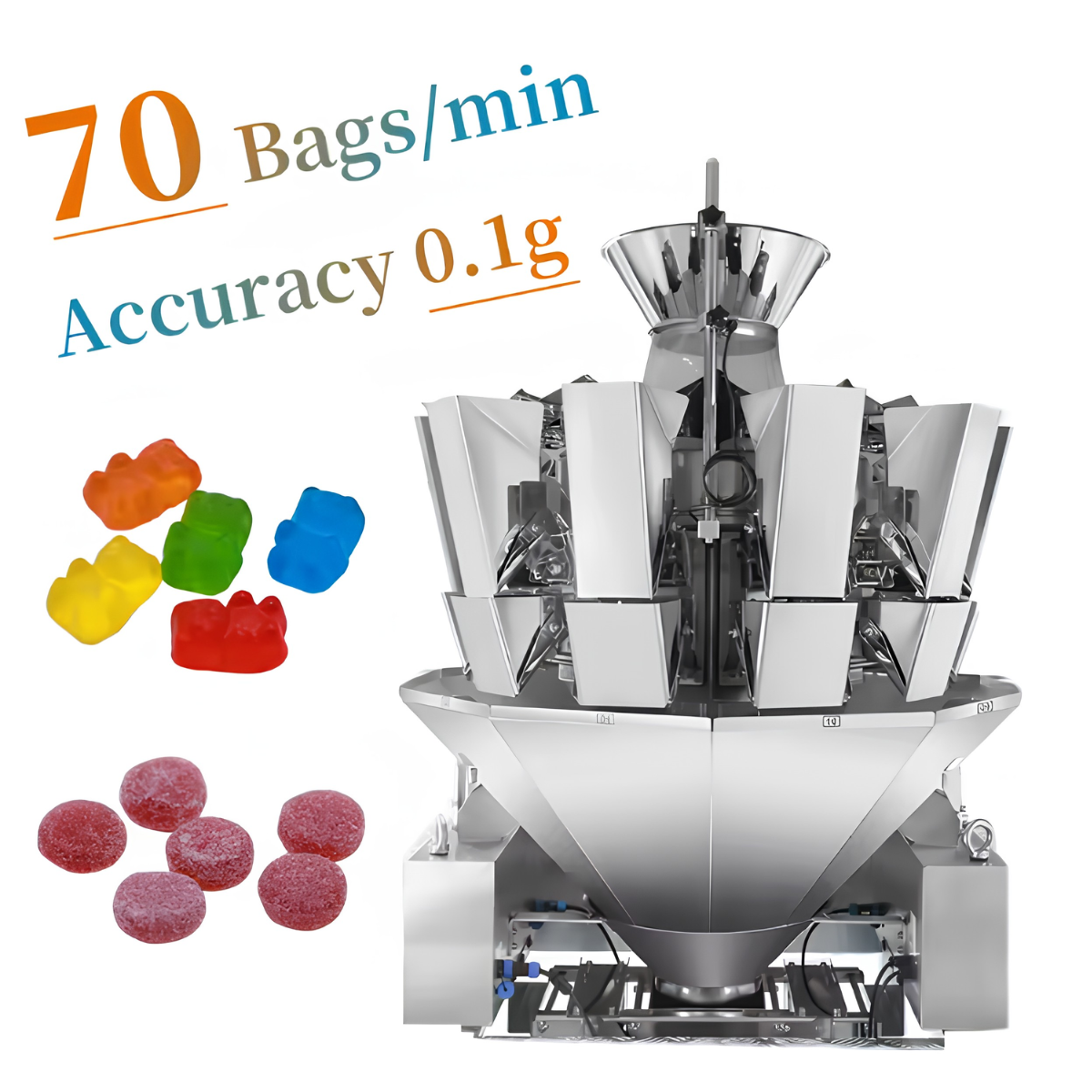

Automatic 14 Head Multihead Weigher Packing Machine for Snacks

High speed automatic multihead weighing and packing machine equipped with advanced 10 head and 14 head combination weighing technology for accurate filling and packaging of snacks, nuts, grains, dry fruits, candies, seeds, tea, and granule products with stable industrial performance.

The Automatic Multi-head Weigher Packing Machine is designed for high-speed automatic weighing, filling, and packaging of food and granule products. Equipped with advanced combination weighing technology, the machine ensures accurate weight control, fast production speed, and reliable packaging performance.

Suitable for:

Snacks Chips Mixed Nuts Dry Fruits Rice Tea Seeds Candy Coffee Beans Frozen Food Granules Pet Food

FEATURES AT A GLANCE

Advanced 10 Head / 14 Head Combination Weigher
High Speed Packaging Performance
Intelligent Weight Control System
PLC Touch Screen Operation

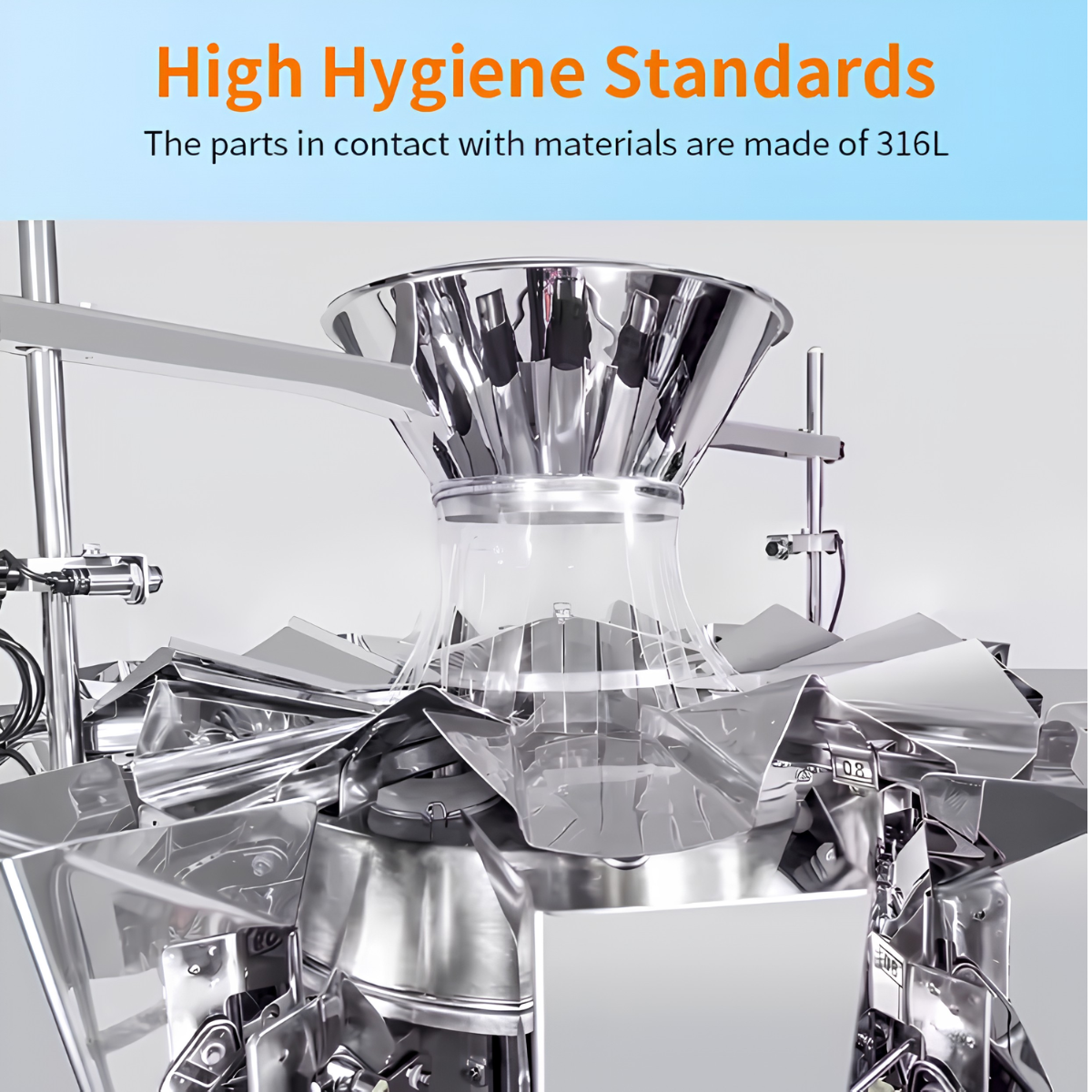

Stainless Steel Food Grade Structure
Automatic Filling & Sealing
Stable & Reliable Performance
Low Maintenance Cost

PRODUCT ELEVATIONS

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

TECHNICAL SPECIFICATION	ZH-A10	ZH-A14	ZH-A20
Model	ZH-A10	ZH-A14	ZH-A20
Weighing Range	10-2000g (Can multi-drop)
Max Weigh Speed	65 Bags/Min	120 bags/min	130bags/min

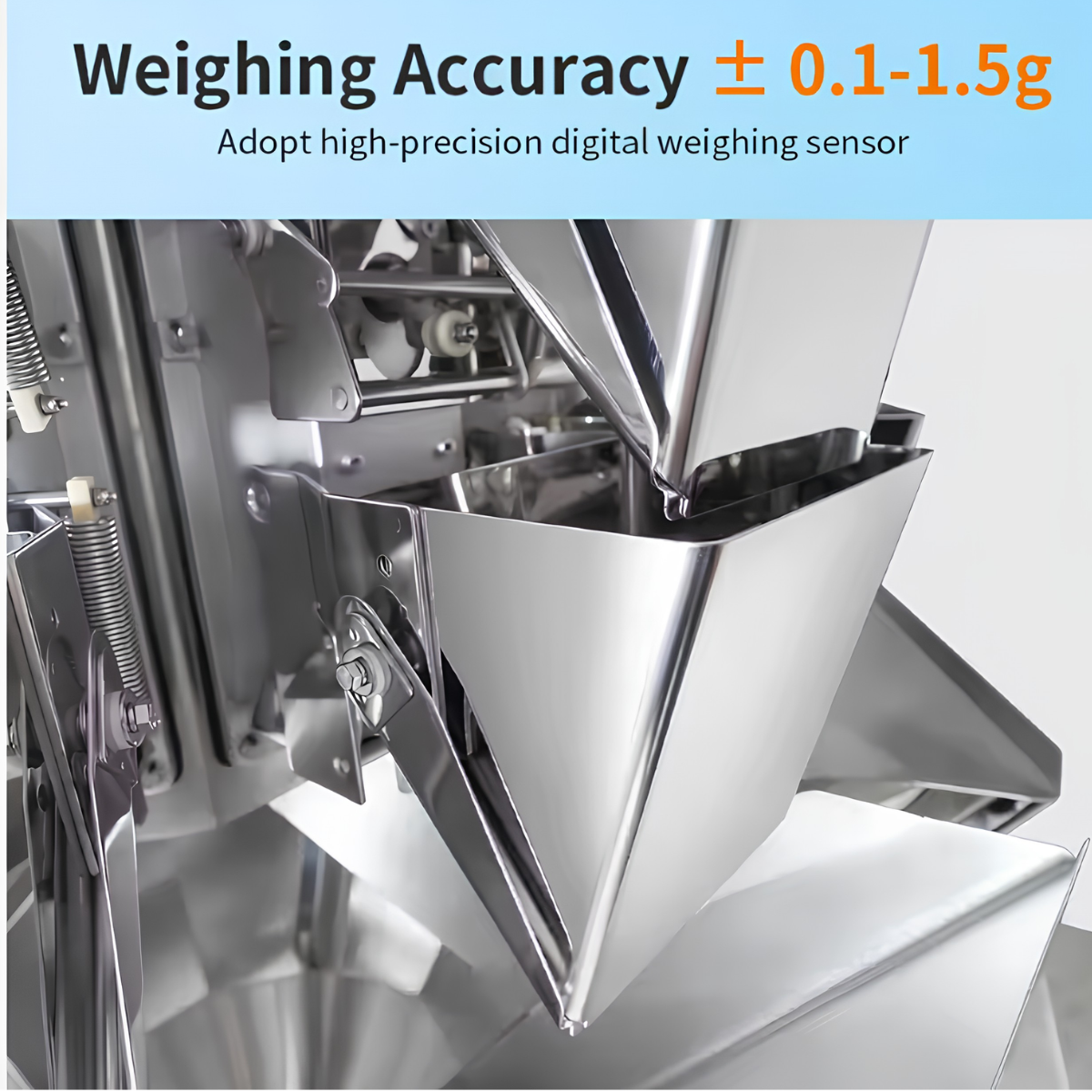

Accuracy	±0.1-1.5g
Hopper Volume(L)	0.5L/1.6L/2.5L/5L
Driver Method	Stepper Motor
Option	Timing Hopper/ Dimple Hopper/ Printer/Overweight Identifier / Rotary Top Cone
Interface	7"HMI/10"HMI
Power Parameter	220V/50/60HZ 1000W	220V/50/60HZ 1500W	220V/50/60HZ 2000W
Package Size(mm)	1650(L)X1120(W)X1150(H)	1750(L)X1200(W)X1240(H)	1650(L)X1650(W)X1500(H) 1460(L)X650(W)X1250(H)
Total Weight(Kg)	400	490	880

SALES AND SERVICE NETWORK

Frequently Asked Questions

What products can this multihead weigher packing machine handle?

This machine is suitable for a wide range of products including snacks, chips, mixed nuts, dry fruits, rice, tea, seeds, candies, coffee beans, frozen foods, granules, and pet food.

How does the 14-head combination weighing technology work?

The machine uses advanced combination weighing technology. Out of the 10 or 14 weighing heads, the system automatically calculates and combines the weights from multiple hoppers to find the combination closest to the target weight for accurate filling.

What is the weighing accuracy range of this machine?

The weighing accuracy is highly precise, within ±0.1g to 1.5g depending on the product type and portion volume.

Is the machine structure safe for packaging food?

Yes, the machine features a stainless steel food-grade structure, making it clean, hygienic, and compliant with standard food safety regulations.

Can the system be customized with additional options?

Yes, optional components can be added depending on your requirements, including timing hoppers, dimple hoppers, printers, overweight identifiers, and rotary top cones.

What operator interface does the machine use?

The machine utilizes an intuitive PLC control system with a user-friendly touch screen interface (available in both 7-inch and 10-inch HMI displays) for easy operation and monitoring.
