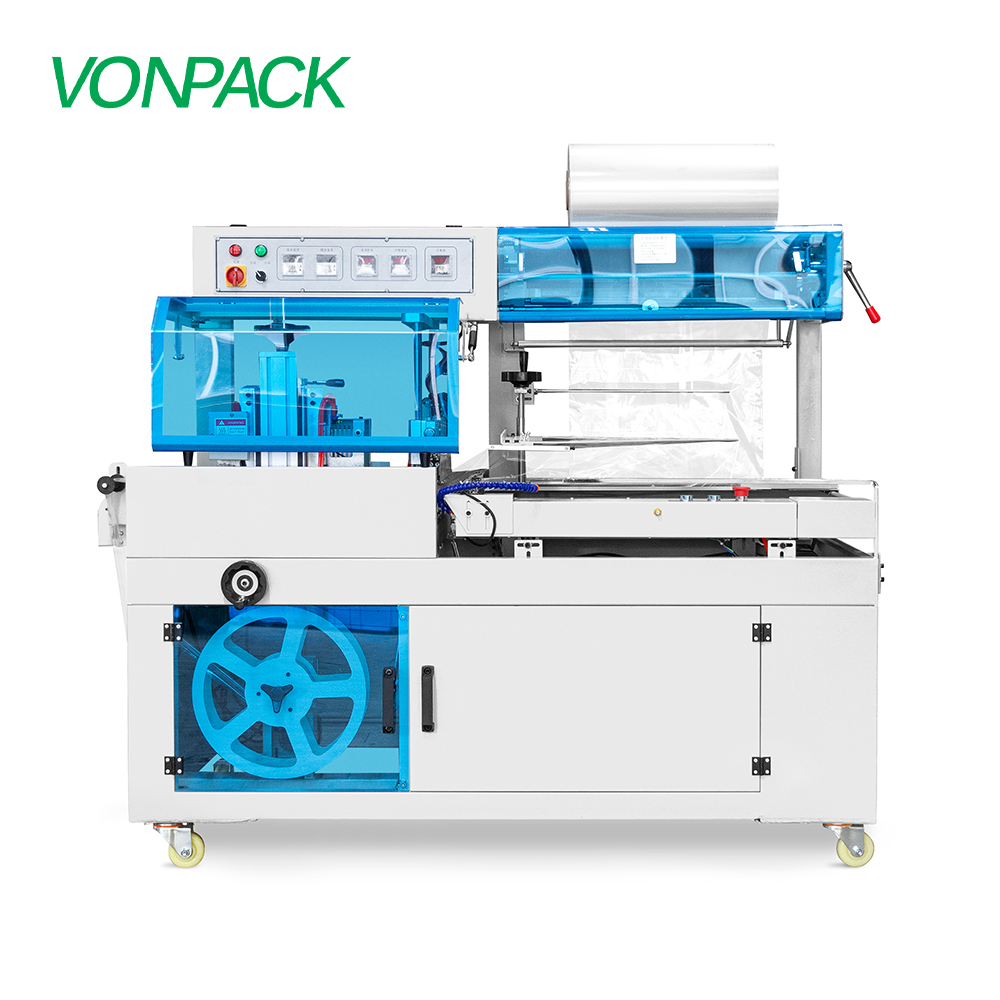

BF450 Automatic Side Sealer Thermal Shrinkable Film Heat Shrink Wrapping Machine Packaging Machine
BF450 Automatic Side Sealer Thermal Shrinkable Film Heat Shrink Wrapping Machine Packaging Machine
BF450 Automatic Side Sealer Thermal Shrinkable Film Heat Shrink Wrapping Machine Packaging Machine
BF450 Automatic Side Sealer Thermal Shrinkable Film Heat Shrink Wrapping Machine Packaging Machine
BF450 Automatic Side Sealer Thermal Shrinkable Film Heat Shrink Wrapping Machine Packaging Machine
1 / 5
BF450 Automatic Side Sealer Thermal Shrinkable Film Heat Shrink Wrapping Machine Packaging Machine
BF450 Automatic Side Sealer Thermal Shrinkable Film Heat Shrink Wrapping Machine Packaging Machine
BF450 Automatic Side Sealer Thermal Shrinkable Film Heat Shrink Wrapping Machine Packaging Machine
BF450 Automatic Side Sealer Thermal Shrinkable Film Heat Shrink Wrapping Machine Packaging Machine
BF450 Automatic Side Sealer Thermal Shrinkable Film Heat Shrink Wrapping Machine Packaging Machine

BF450 Automatic Side Sealer Thermal Shrinkable Film Heat Shrink Wrapping Machine Packaging Machine

Send Inquiry

Product Description

Product Description

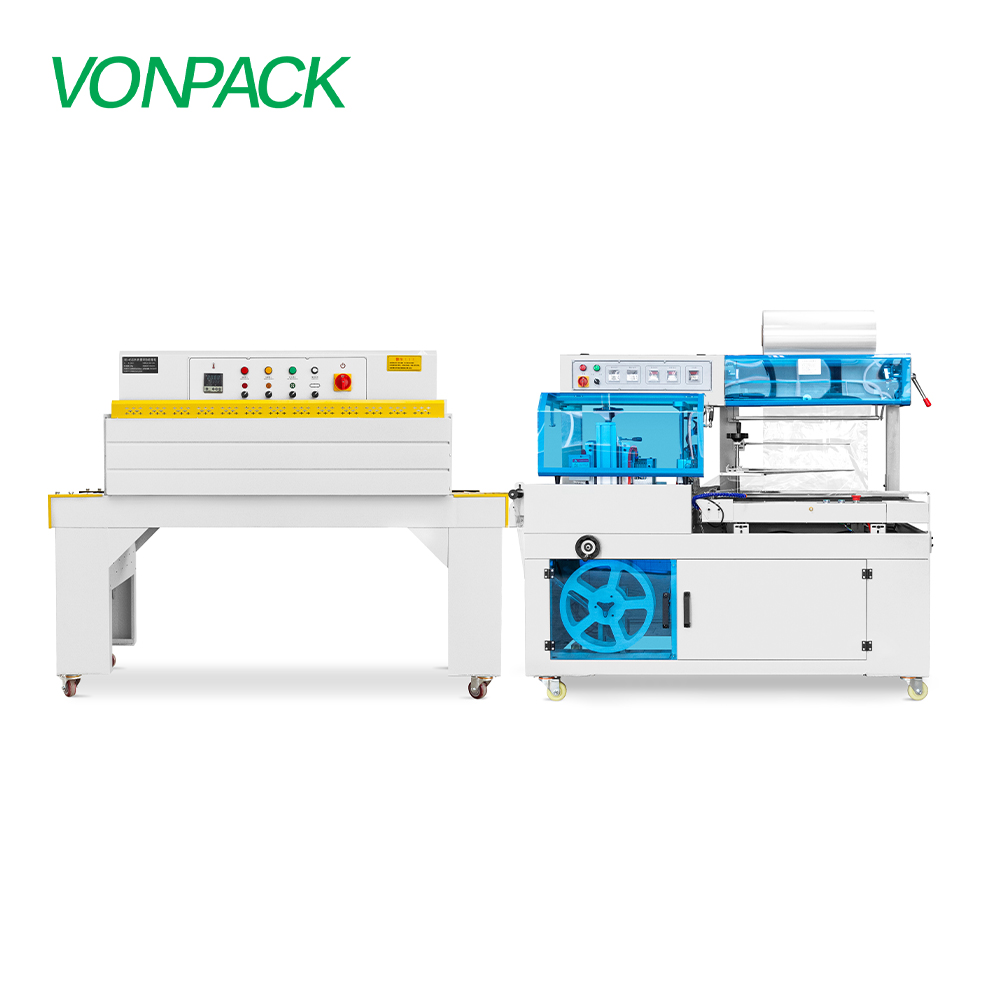

Product Image 1

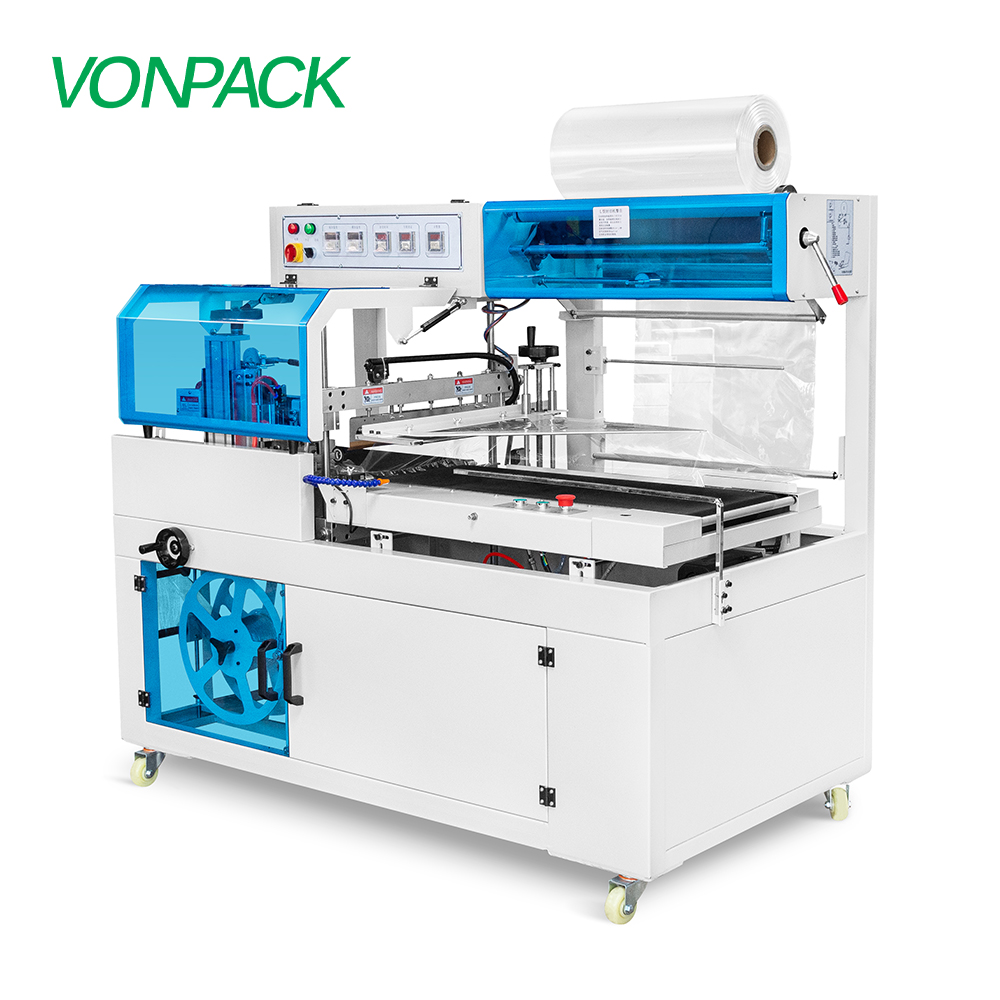

Product Image 2

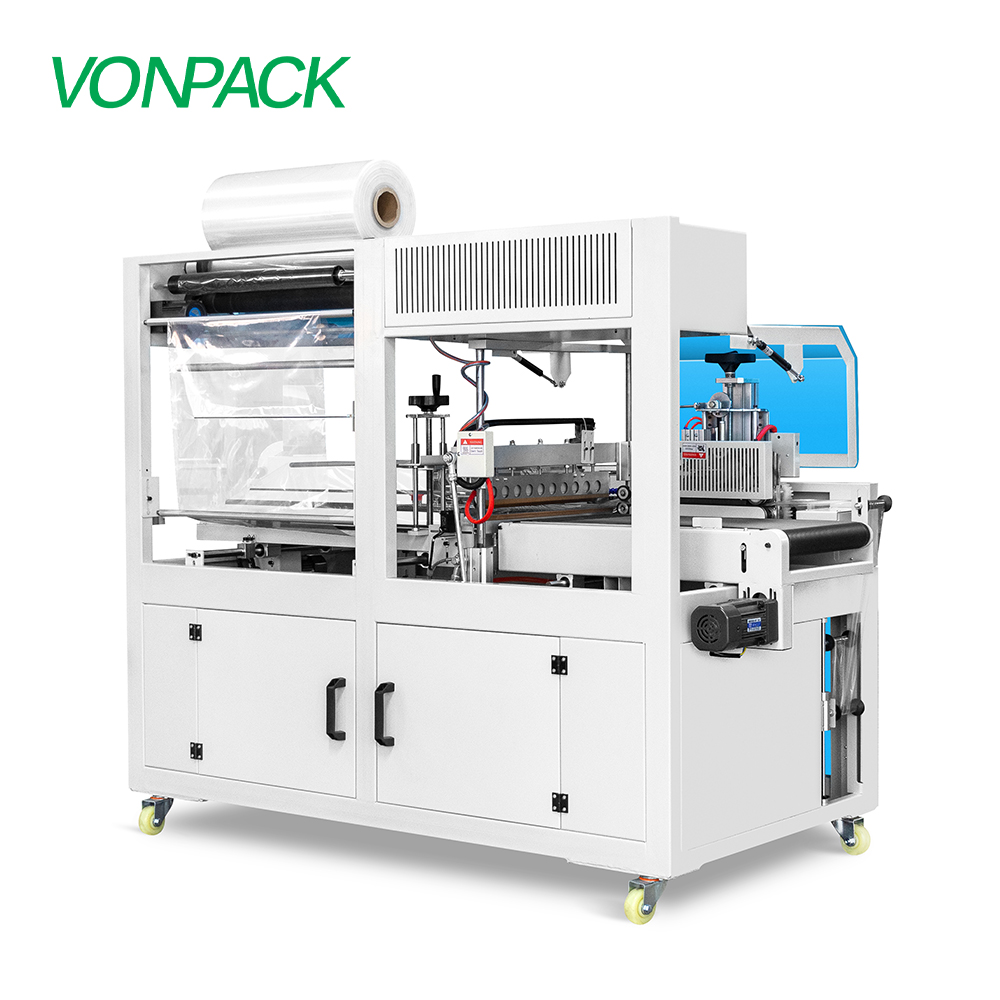

Product Image 3
Product Image 4

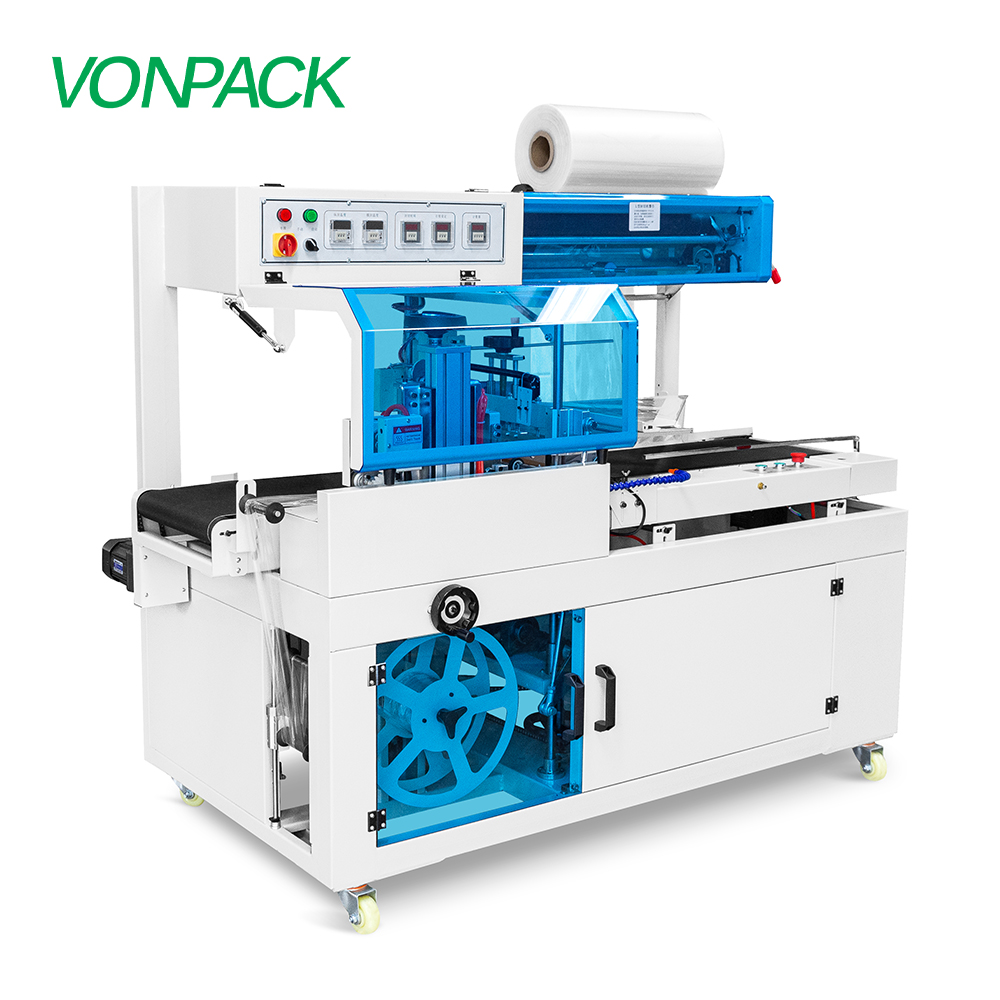

Product Image 5

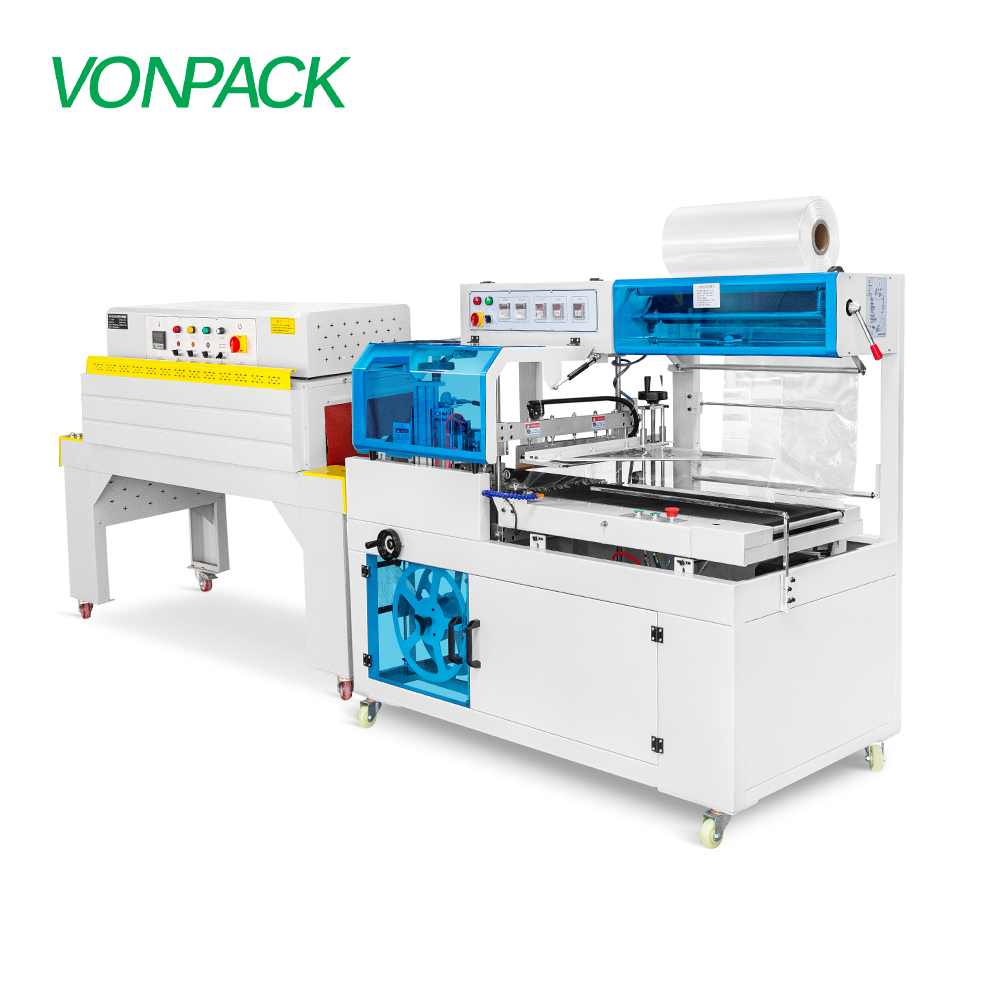

Product Image 6

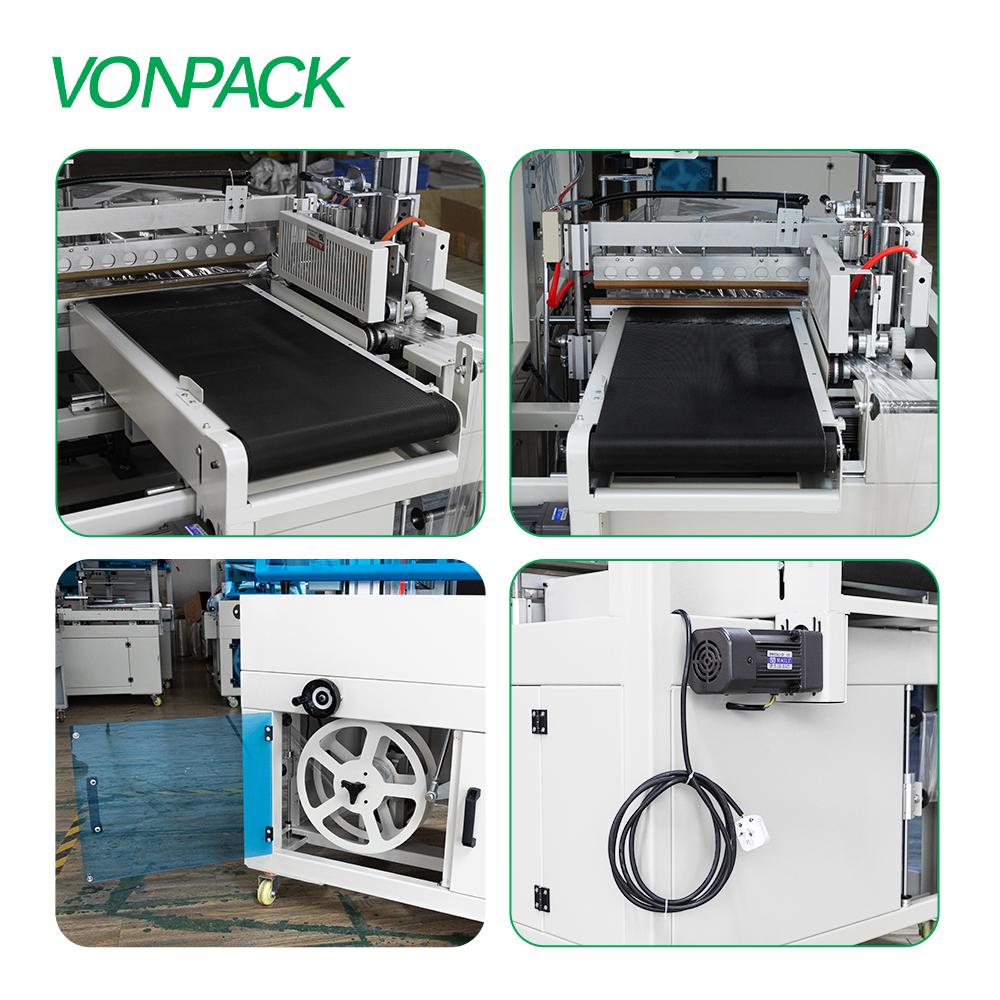

Product Image 7

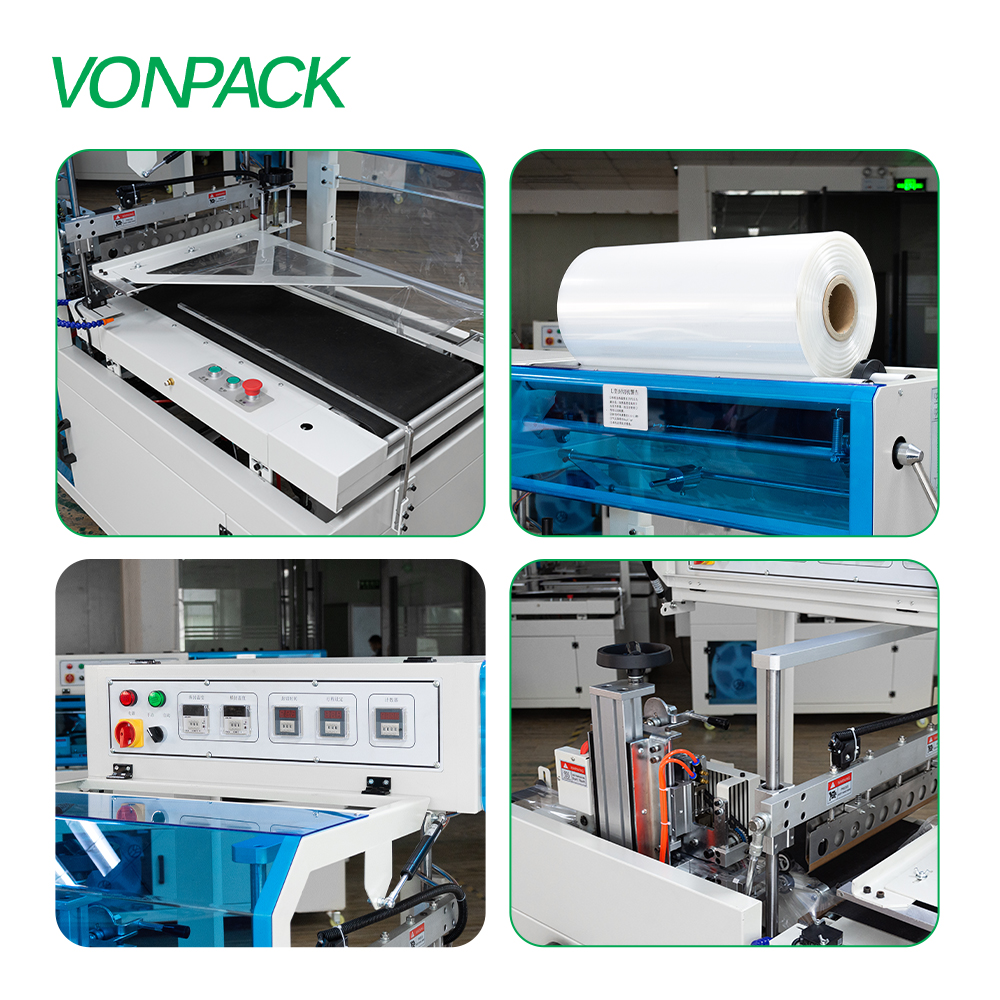

Product Image 8
Product Image 9
Product Image 10
Specification
Model BS-4522N Inner Circulation Model No BF450
Supply voltage 380V 60Hz Product Name Plastic Wrapping Machine
Heating power 10KW Voltage 220V 50/60Hz
Maximum Load 20KG Power 1.25KW
Channel size L1300×W450×H220(mm) Conveyor belt width 330mm
Applicable size ≤W300×H150(mm) Maximum packaging size W < 330, W+H < 350, H < 140mm
Speed 0～10m/min Maximum membrane width ≤W450×H320(mm)
Consume materials PVC/PP/POF (max 0.04mm=40microns) Packing Speed 20/min
Product size L1700×W710×H1320(mm) Working air pressure 0.5Mpa
Package size L1740×W740×H1280(mm) maximum payload 15-20kgs
CBM Volume 1.67CBM Knife size W450mm
Overall weight 205.5kg Machine size L1737 x W922 xH1442mm
Metal Pipe/Quartz Tube Metal Tube 1190mm×6 Package Size L2100xW1200xH1800mm
Fan Type Fan 150W×2 (Fan impeller) Weight 400kgs
Product Features
Detail Image 1
Detail Image 2
Detail Image 3
Detail Image 4
Detail Image 5
Frequently Asked Questions
What types of shrink films can this packaging machine use?
This machine supports standard wrapping materials including PVC, PP, and POF shrink films with a maximum thickness of 0.04mm (40 microns).
What is the maximum payload capacity of the conveyor system?
The inner circulation model supports a maximum loading weight of up to 20KG, ensuring stable and smooth conveying during the heating process.
What are the electrical requirements for this plastic wrapping machine?
The main oven unit runs on a 380V 60Hz power supply with a 10KW heating capacity, while the sealing unit works on a 220V 50/60Hz supply.
What is the maximum package size that can be processed?
The tunnel handles sizes up to W300 × H150 mm. The sealing unit accommodates maximum dimensions where width is less than 330mm, height is less than 140mm, and the sum of width and height is less than 350mm.
What type of heating element does the tunnel use?
It features a robust heating structure equipped with high-efficiency metal tubes (1190mm × 6 pieces) and dual 150W fans for optimal heat circulation.
