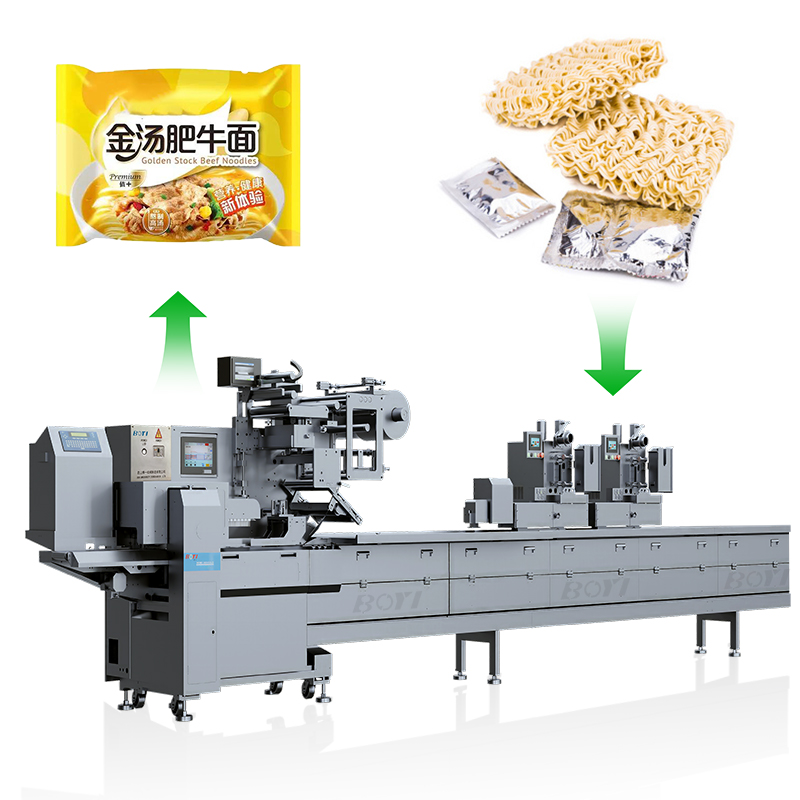

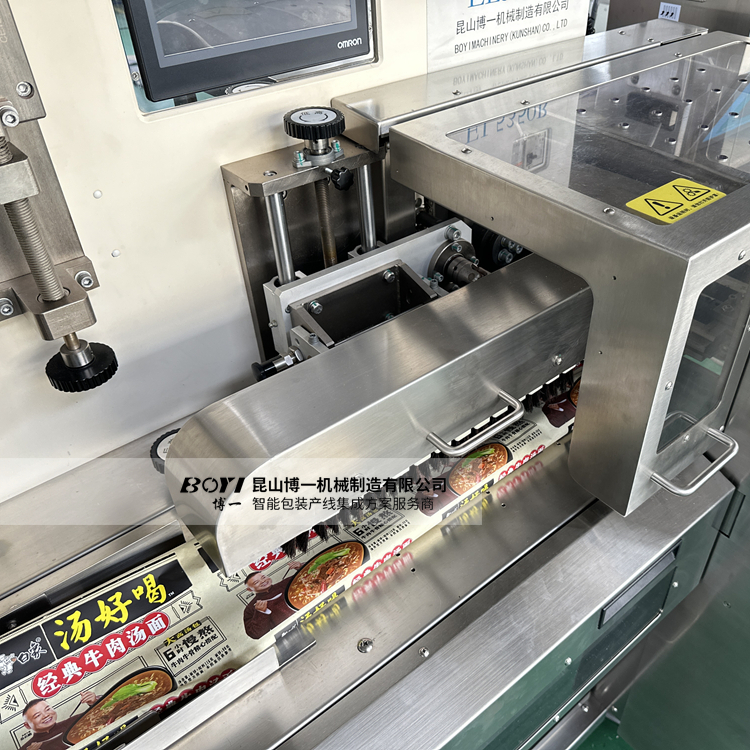

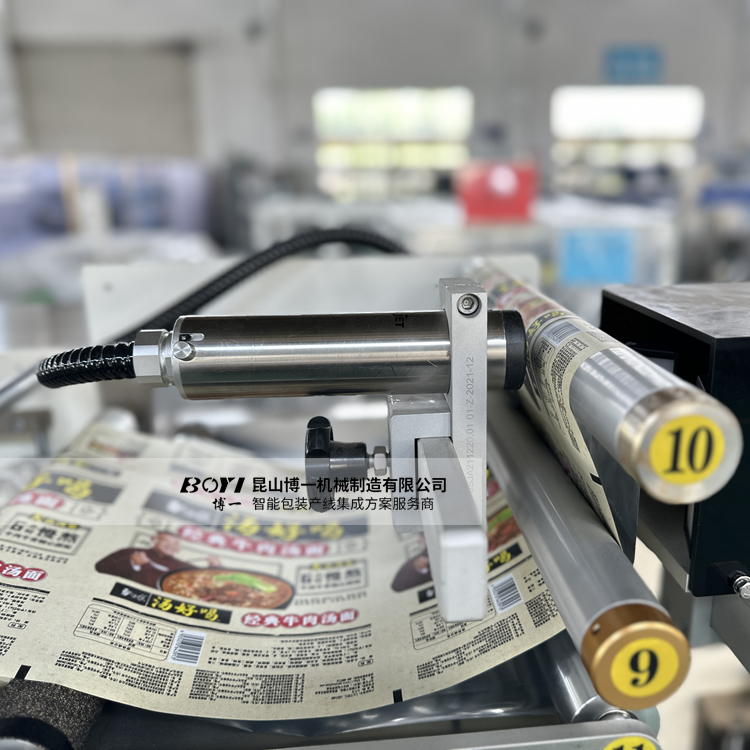

Boyi [EL5350RHS] 240 BPM High Speed Automatic Instant Noodle Packing Machine, Horizontal Flow Wrap Packaging Machine
Boyi [EL5350RHS] 240 BPM High Speed Automatic Instant Noodle Packing Machine, Horizontal Flow Wrap Packaging Machine
Boyi [EL5350RHS] 240 BPM High Speed Automatic Instant Noodle Packing Machine, Horizontal Flow Wrap Packaging Machine
Boyi [EL5350RHS] 240 BPM High Speed Automatic Instant Noodle Packing Machine, Horizontal Flow Wrap Packaging Machine
Boyi [EL5350RHS] 240 BPM High Speed Automatic Instant Noodle Packing Machine, Horizontal Flow Wrap Packaging Machine
1 / 5
Boyi [EL5350RHS] 240 BPM High Speed Automatic Instant Noodle Packing Machine, Horizontal Flow Wrap Packaging Machine
Boyi [EL5350RHS] 240 BPM High Speed Automatic Instant Noodle Packing Machine, Horizontal Flow Wrap Packaging Machine
Boyi [EL5350RHS] 240 BPM High Speed Automatic Instant Noodle Packing Machine, Horizontal Flow Wrap Packaging Machine
Boyi [EL5350RHS] 240 BPM High Speed Automatic Instant Noodle Packing Machine, Horizontal Flow Wrap Packaging Machine
Boyi [EL5350RHS] 240 BPM High Speed Automatic Instant Noodle Packing Machine, Horizontal Flow Wrap Packaging Machine

Boyi [EL5350RHS] 240 BPM High Speed Automatic Instant Noodle Packing Machine, Horizontal Flow Wrap Packaging Machine

Send Inquiry

Product Description

Product Features

All-stainless steel protective cover, meeting hygiene standards.
Seven servo motor controls, stable operation, simple operation, convenient maintenance, and low noise.
Integrated cantilever frame design, convenient for hygiene cleaning operations.
Adopting a user-friendly touch screen, supporting multi-language and text versions.
Equipped with an independent motion controller system as the core, with reserved expansion functions, allowing for synchronization with other equipment.
Using a rotating end sealing structure, ensuring better sealing during high-speed production, resulting in a better packaging effect.
Equipped with an empty machine running and anti-empty bag function, reducing packaging material waste. When the product is misaligned, the anti-cutting function and end sealing avoidance are activated to reduce waste.
PID automatic temperature control system, fast and accurate, with overheat and wire breakage alarm.
Equipped with a double-supply film inflatable shaft and an automatic film splicing device, enabling automatic film switching without stopping the machine during packaging material replacement.
Self-developed second-floor film supply system, ensuring the production area remains clean and tidy, reducing material handling (optional).

Technical Specifications

Product Name High-Speed Bagged Instant Noodle Packaging Machine Model EL5350R
Packing Speed 250 bags/min Size of Packaging Film (Max) 450mm * 300mm
Length of Cut 80 ~ 430mm Product Size (Max) 200 * 80mm
Power 7.5KW Weight 1200kg

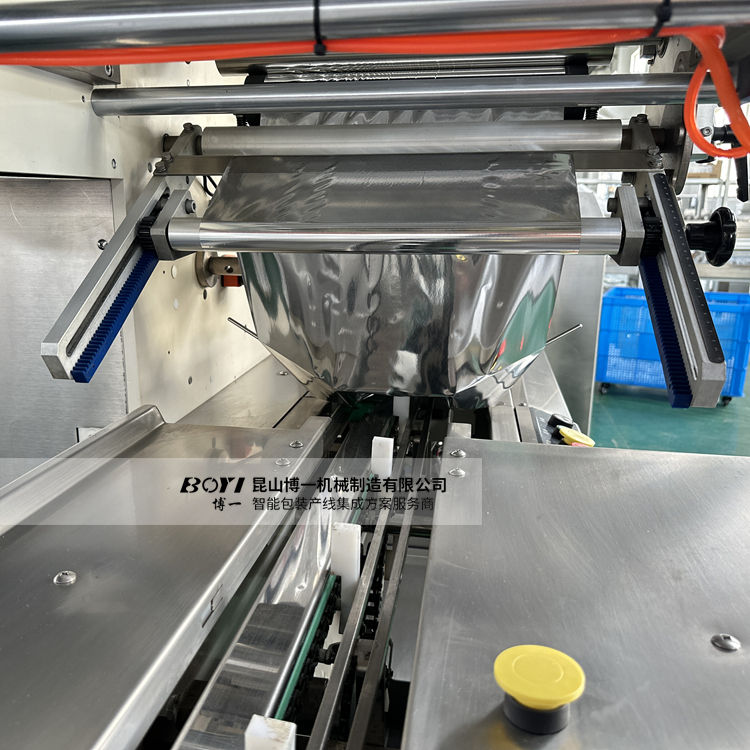

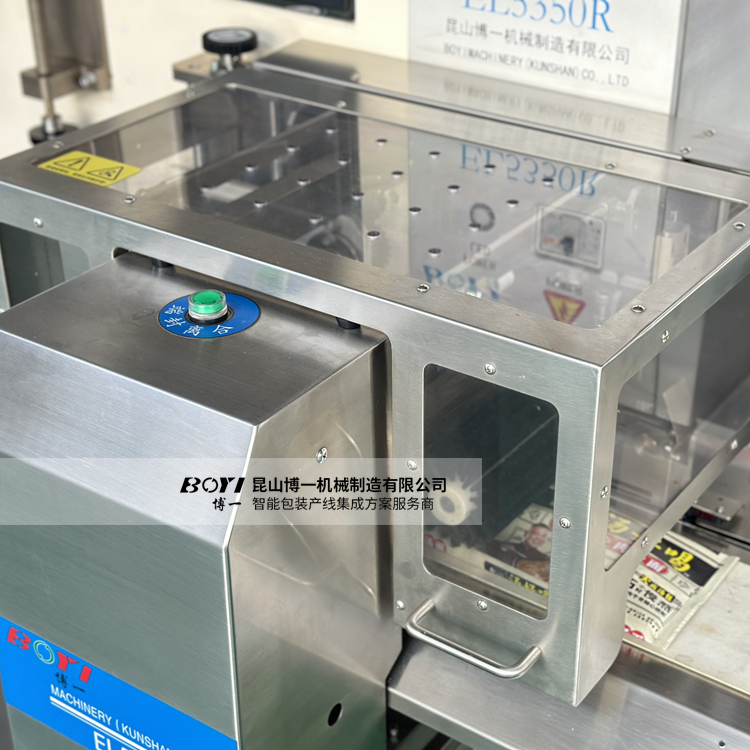

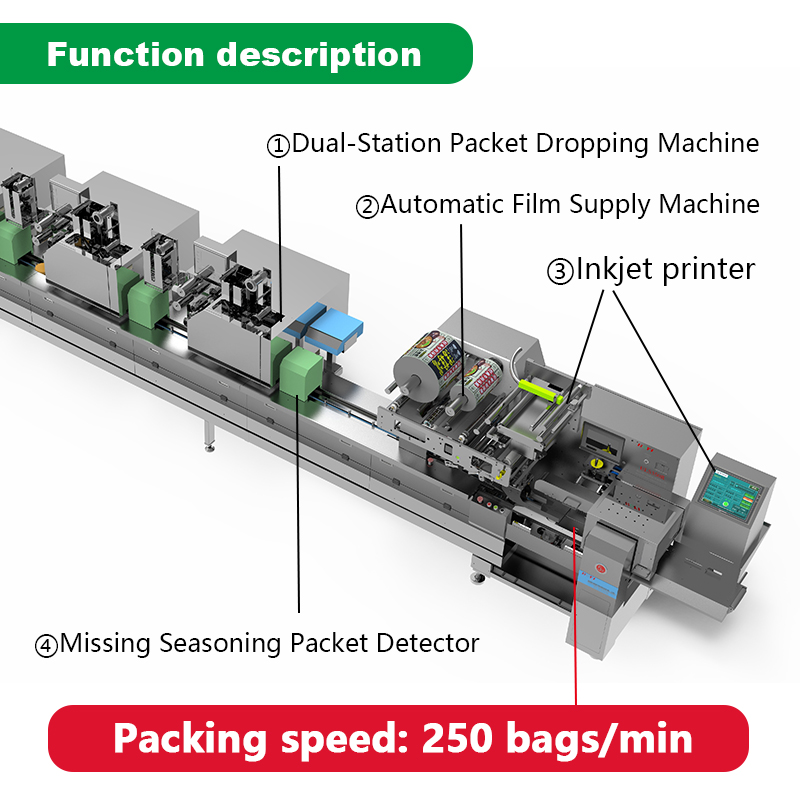

Packaging Machine Detail 1

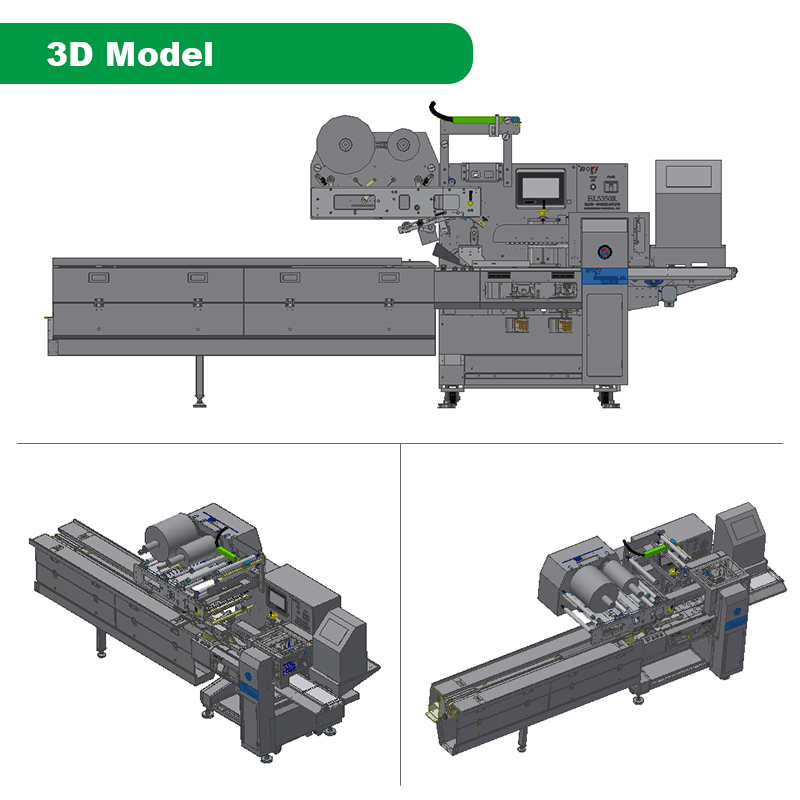

Packaging Machine Detail 2

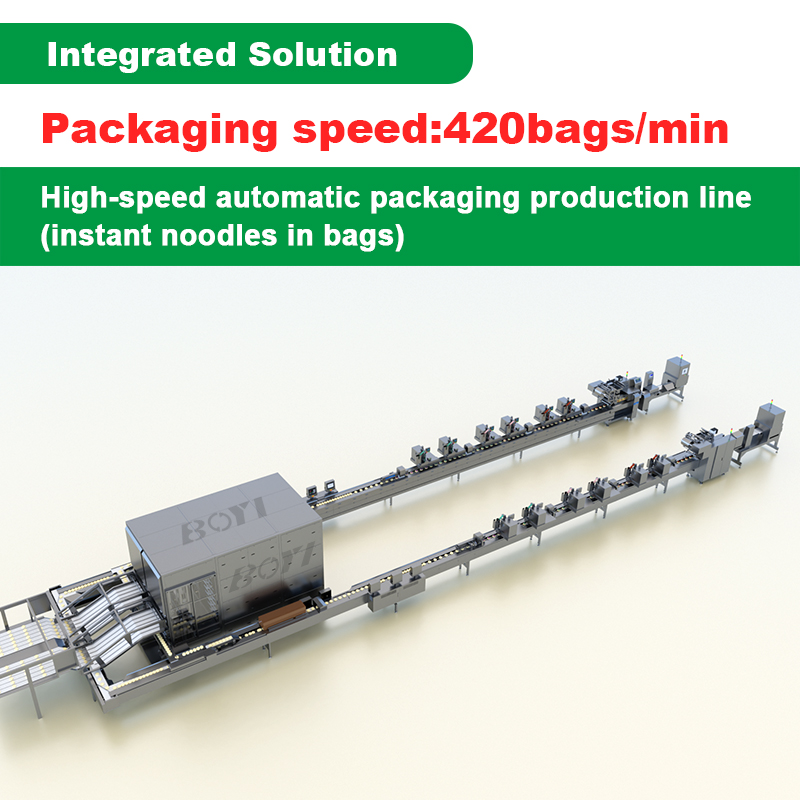

Packaging Machine Detail 3

Certificate

Certificate 1
Certificate 2
Certificate 3

Certificate Introduction

Company Introduction

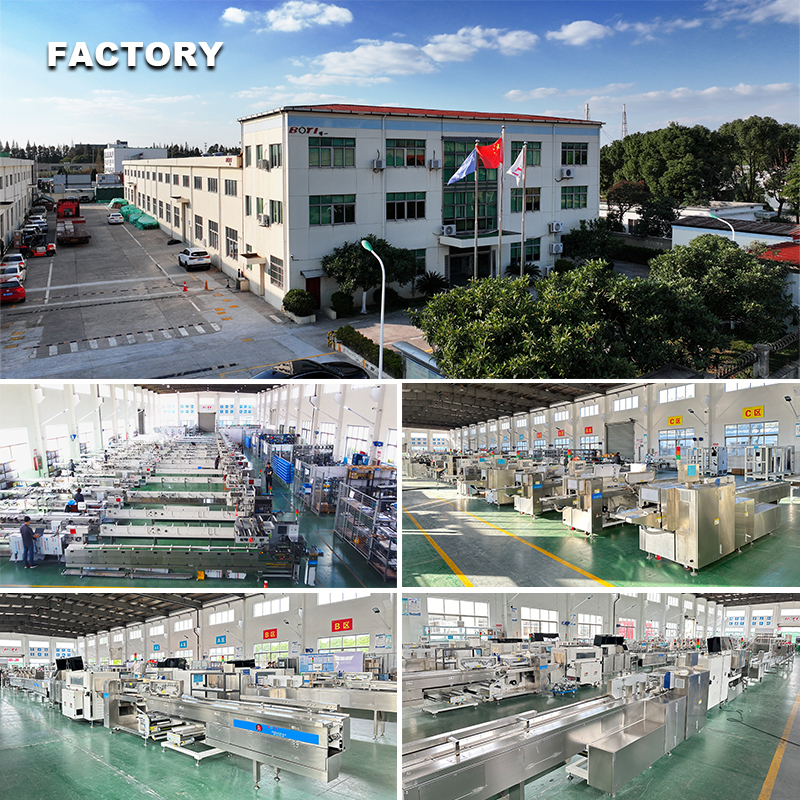

Company Facility

Our Services & Strength

With 15 years of experience in the research, development, and application of food packaging machinery, we take high-speed packaging machines as our core product and integrate cutting-edge technologies such as material sorting, safety inspection, appearance inspection, and packaging inspection to create a high-speed, efficient, safe, and hygienic production environment for you.

Packing & Shipping

Packing and Shipping Details

Frequently Asked Questions

What is the maximum packaging speed of this packaging machine?

The High-Speed Bagged Instant Noodle Packaging Machine (Model EL5350R) features a maximum packaging speed of up to 250 bags per minute, ensuring efficient high-volume production.

What materials are used for the safety protective cover?

The machine features an all-stainless steel protective cover that strictly meets international food hygiene and safety standards, making it easy to clean and sanitize.

How does the system prevent material and film waste?

The machine is equipped with an empty machine running prevention and anti-empty bag function. When a product is misaligned, the anti-cutting function and end sealing avoidance are automatically activated to minimize packaging material waste.

Does the film replacement process require stopping the machine?

No. The machine is designed with a double-supply film inflatable shaft and an automatic film splicing device, allowing for seamless automatic film switching without stopping the packaging line.

What kind of control system does the machine use?

It is controlled by seven independent servo motors and a dedicated motion controller system. Operations are easily managed via a user-friendly touch screen that supports multi-language configurations.

What are the power and space requirements for installation?

The system requires a power supply of 7.5KW and weighs 1200kg. It handles packaging films up to a maximum size of 450mm * 300mm and product sizes up to 200mm * 80mm.
