Product Description

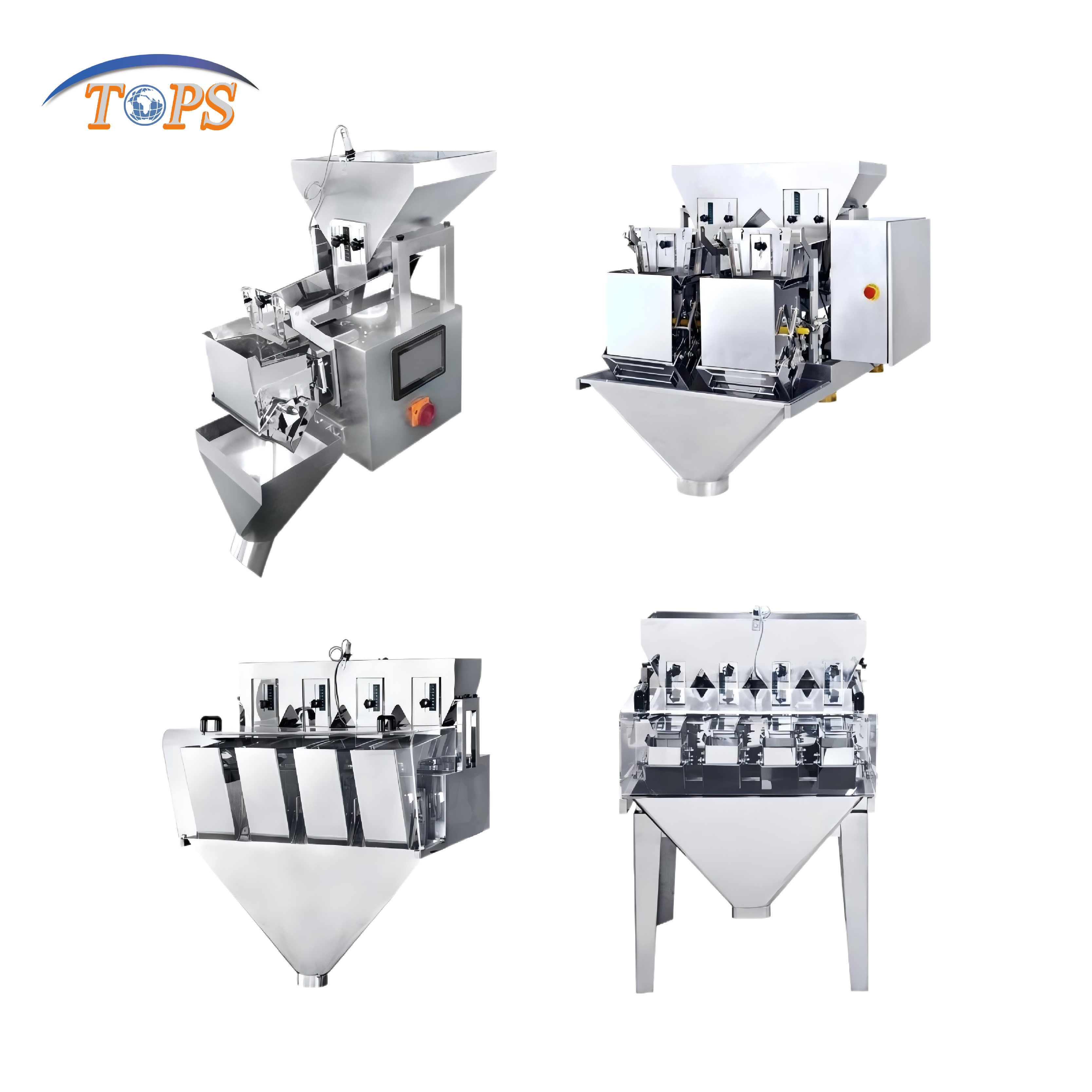

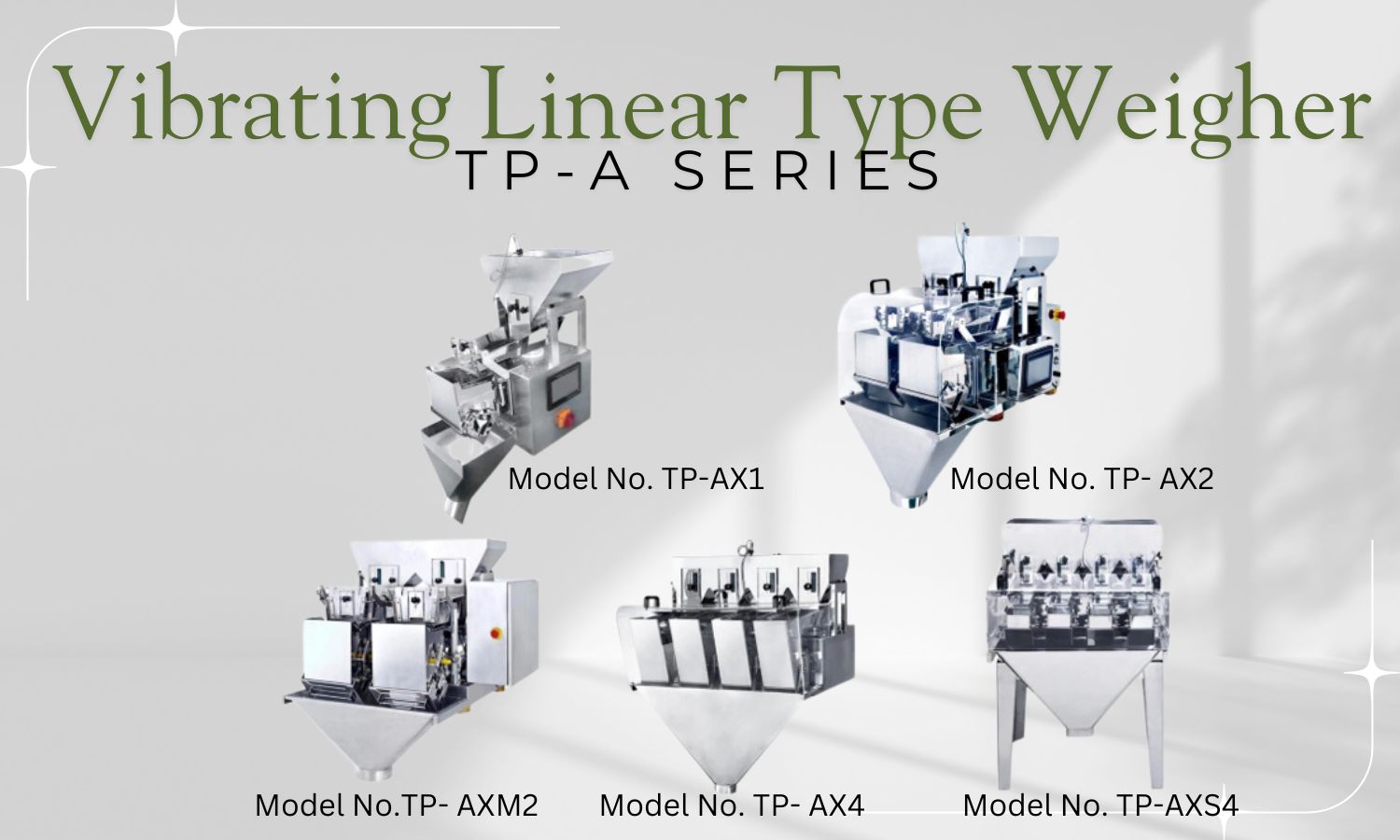

Linear Type Weigher

The Linear Type Weigher offers advantages such as high speed, high accuracy, long-term stable performance, favorable pricing, and excellent after-sales service. It is suitable for weighing sliced, rolled, or regularly shaped products, including sugar, salt, seeds, rice, sesame, glutamate, coffee beans, seasoning powders, and more.

Machine Detail 1
Machine Detail 2

Key Advantages & Features

1
The new highly integrated modular control system.
2
Automatic amplitude adjustment function for easier debugging.
3
Capable of weighing a variety of different materials simultaneously to achieve mixed-material packaging.
4
Parameters can be directly modified during operation based on production needs, making it easy to operate.
5
A 2-year guarantee, offering the longest quality assurance period in the industry.
6
Features a stepless vibration feeding system, ensuring more even material distribution and a larger weighing range.
Control System Interface

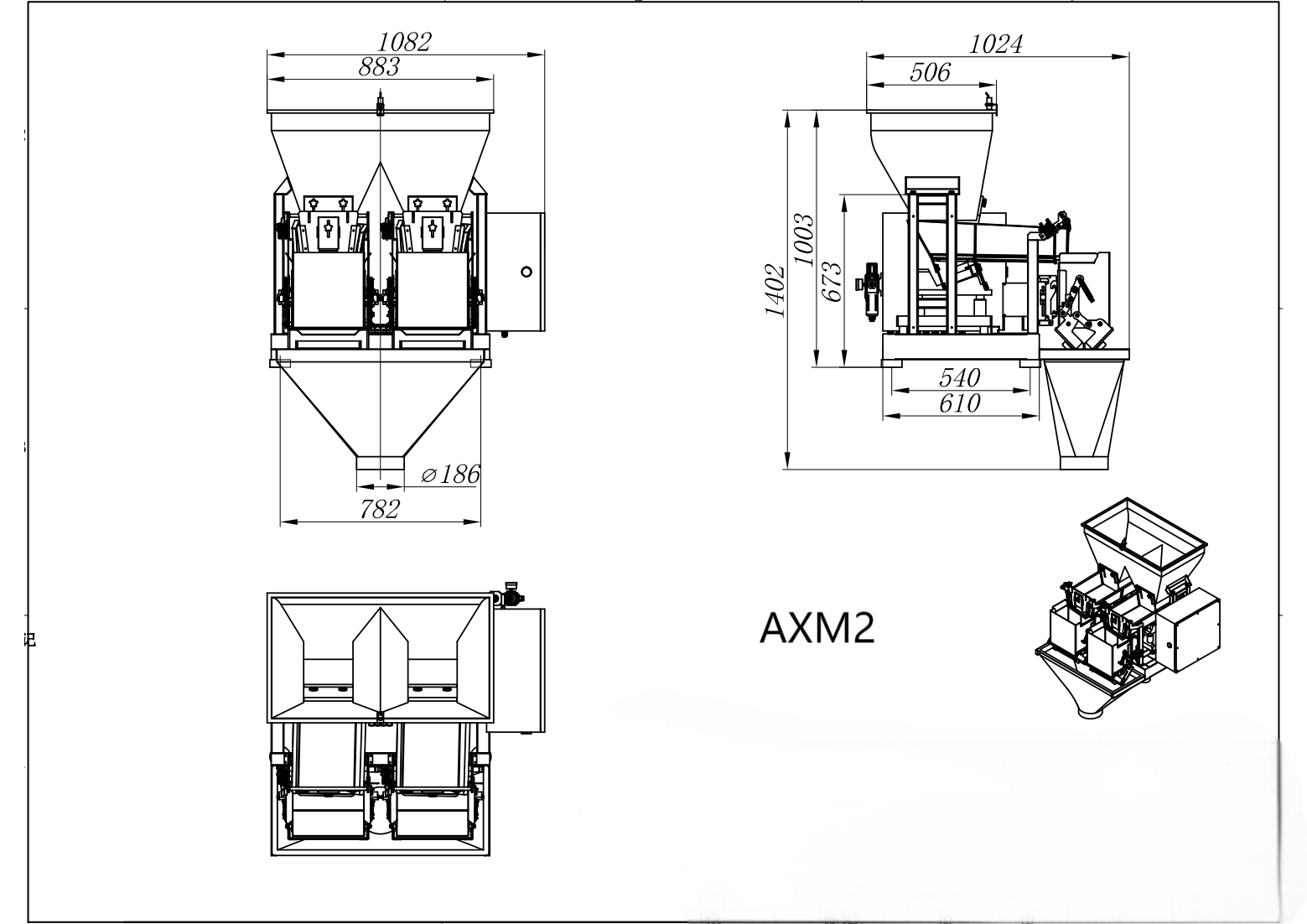

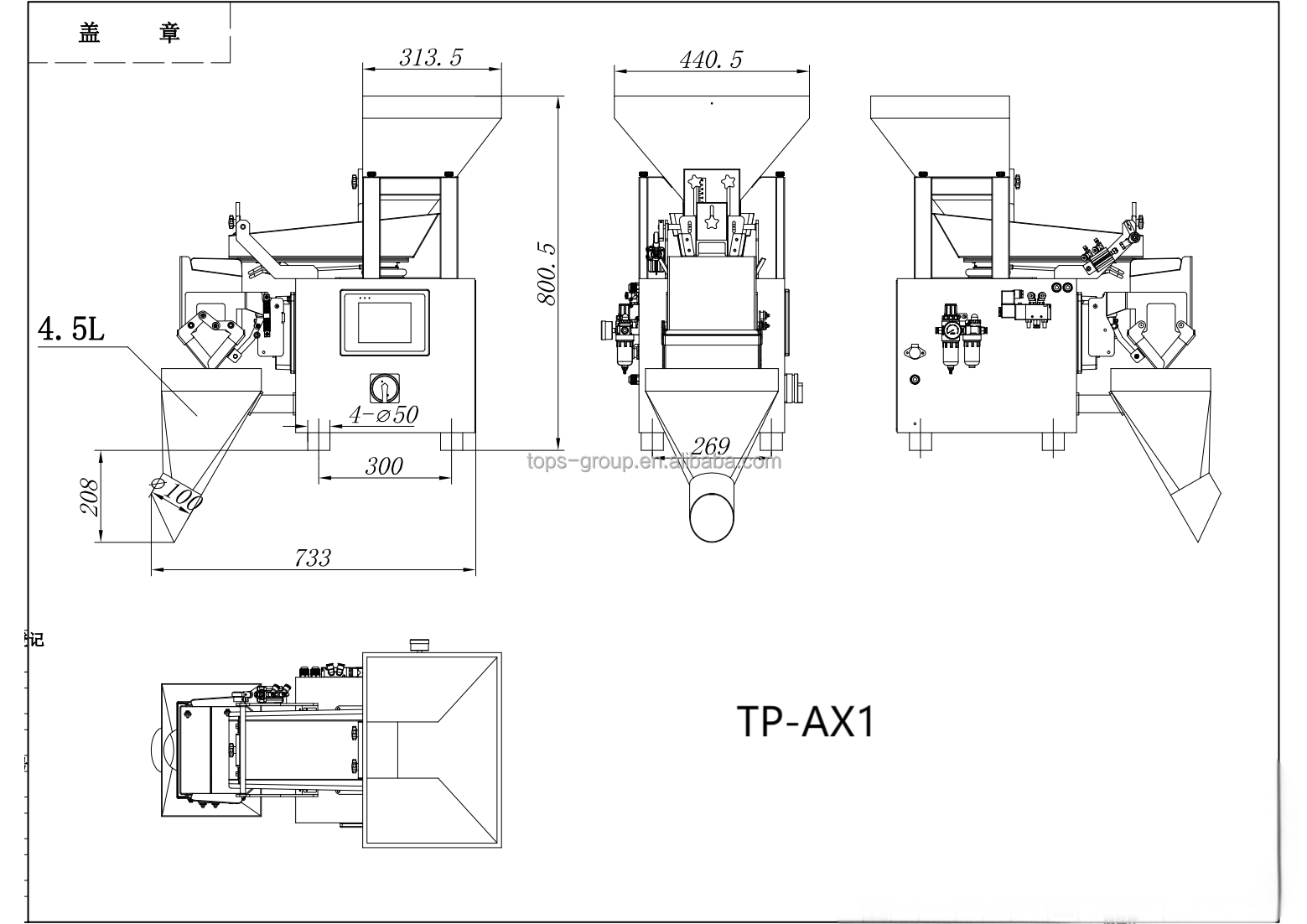

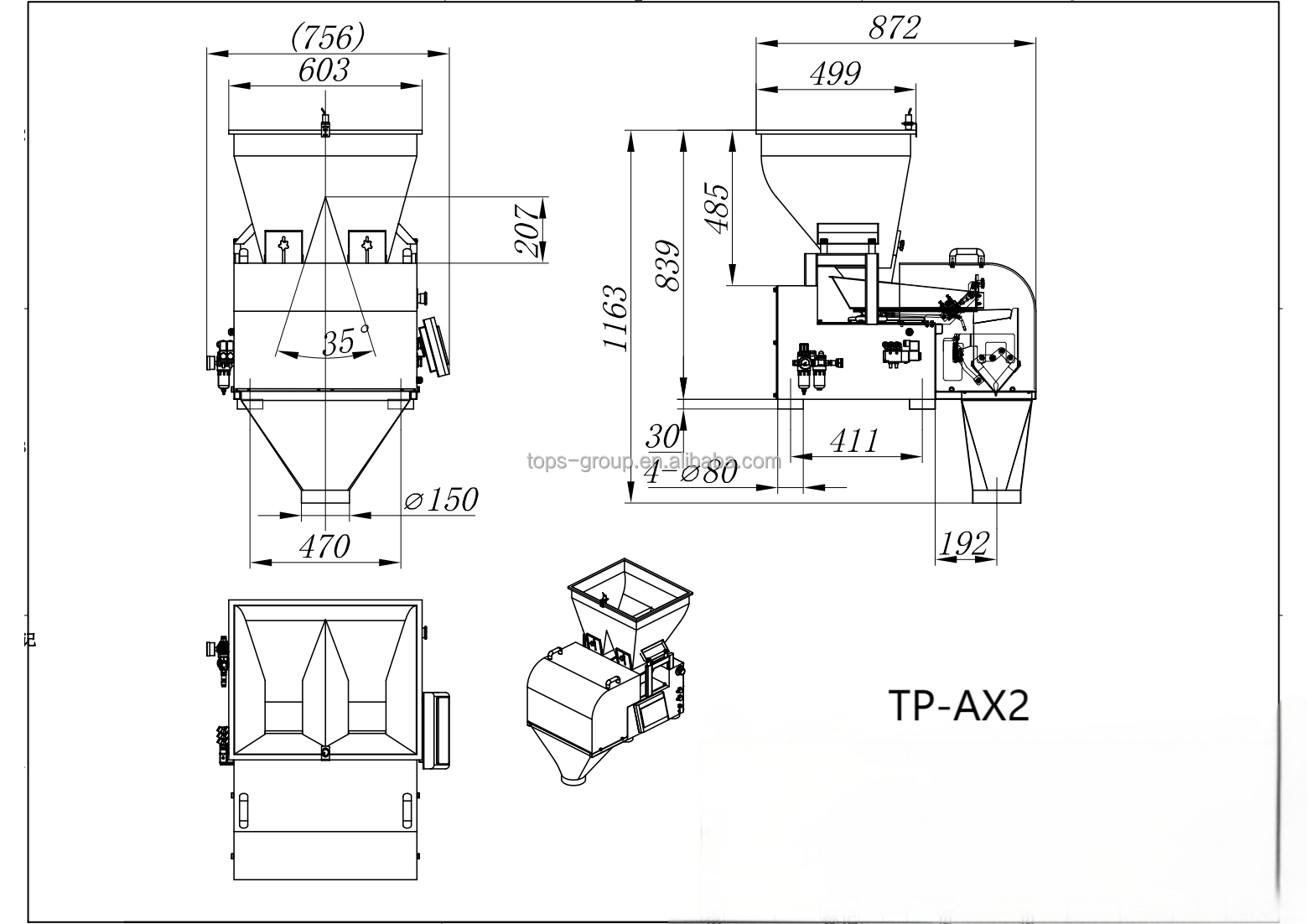

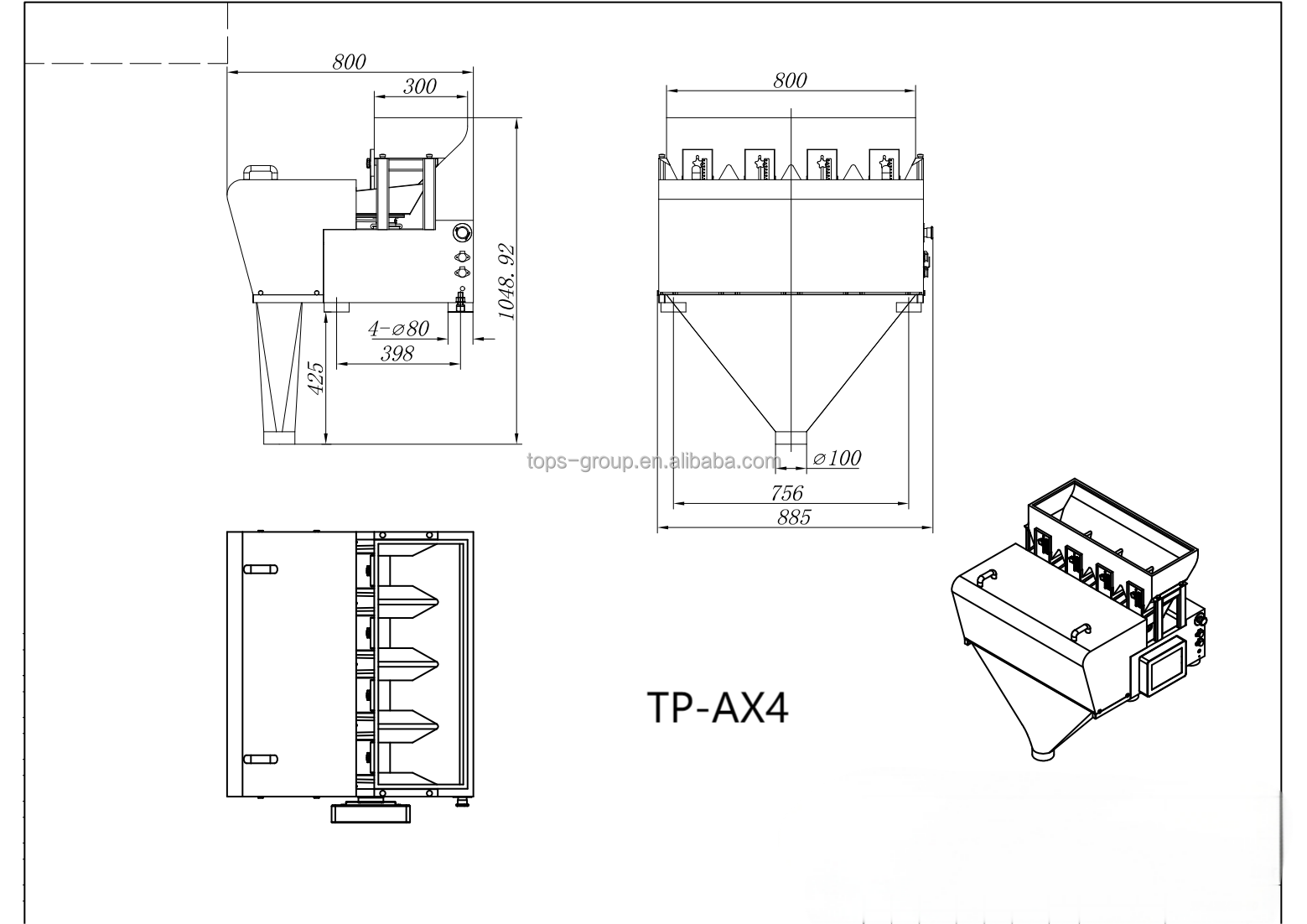

Dimensional Drawing

Technical Specifications

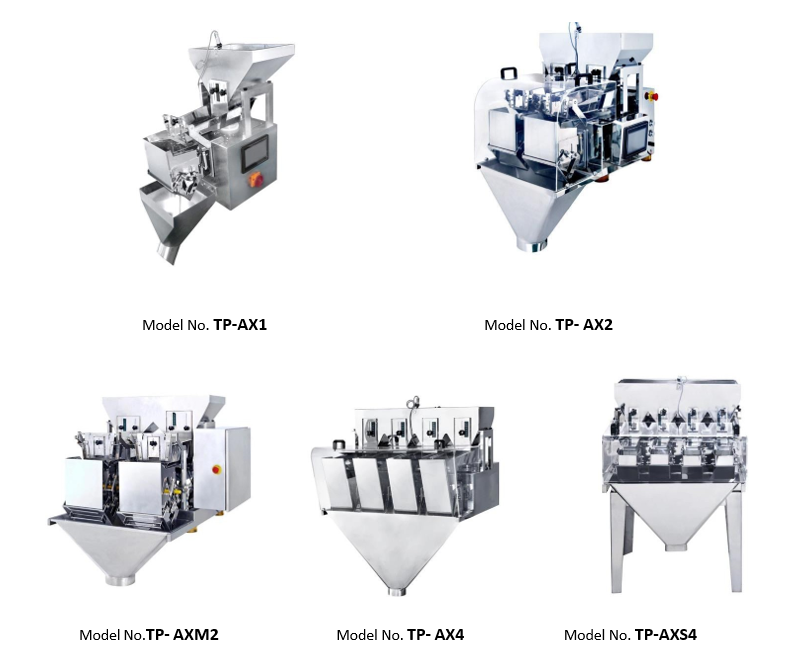

Model TP-AX1 TP-AX2 TP-AXM2 TP-AX4 TP-AXS4
Identify Code X1-2-1 X2-2-1 XM2-2-1 X4-2-1 XS4-2-1
Weighing Range 20-1000g 50-3000g 1000-12000g 50-2000g 5-300g
Max Speed 10-15P/M 30P/M 25P/M 55P/M 70P/M
Hopper Volume 4.5L 4.5L 15L 3L 0.5L
Storage Hopper Volume(L) 20 20 20 20 20
Max Mixing Products 1 2 2 4 4
Power 700W 1200W 1200W 1200W 1200W
Power Requirement 220V/50/60Hz/5A 220V/50/60Hz/6 A
Packing Dimension (mm) 860(L)*570(W)*920(H) 920(L)*800(W)*890(H) 1215(L)*1160(W)*1020(H) 1080(L)*1030(W)*820(H) 820(L)*800(W)*700(H)

Structural Details & Design

Machine Highlight 1
Machine Highlight 2
Detail 1
Detail 2
Detail 3

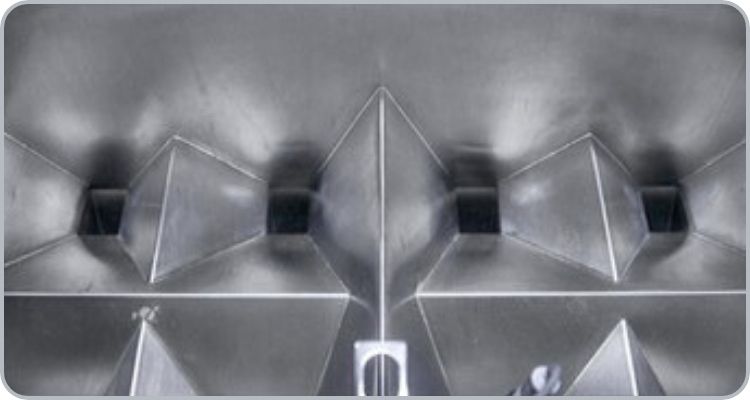

Stainless Steel
1. SS304/316 stainless steel for superior sanitation.
Round Corner
2. Round corner design with no burrs for safer operation and easier cleaning.

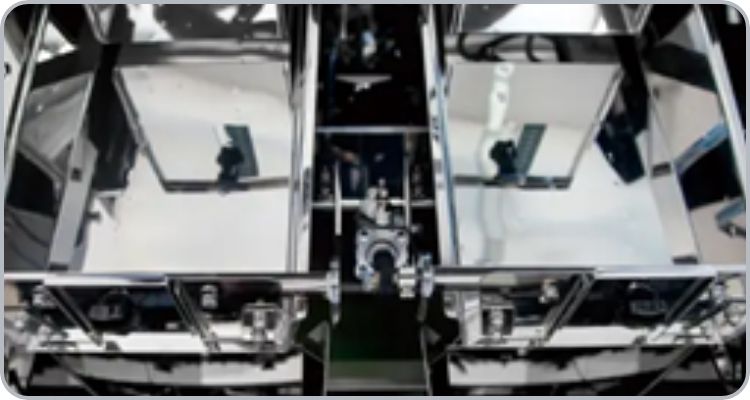

Contact Parts
3. Parts in contact with materials (stopper, discharge funnel, vibrator pan, weighing hopper, etc.).

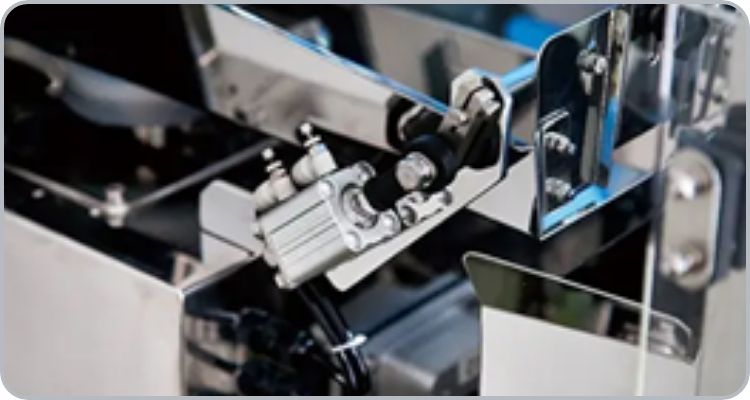

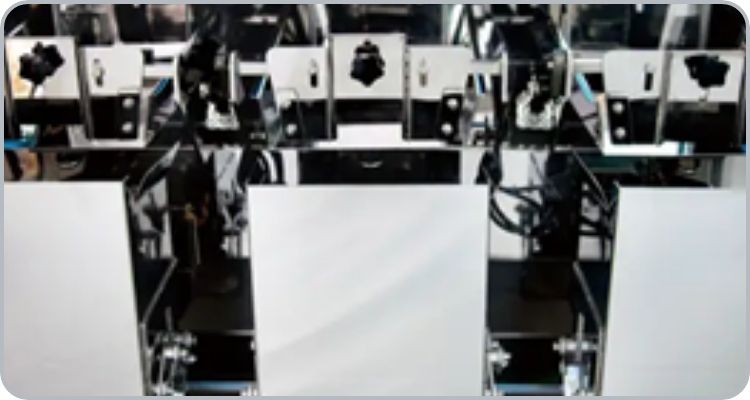

Pneumatic Gate
4. The discharge end of the vibration pan is equipped with a pneumatic gate for precise small-flow feeding.

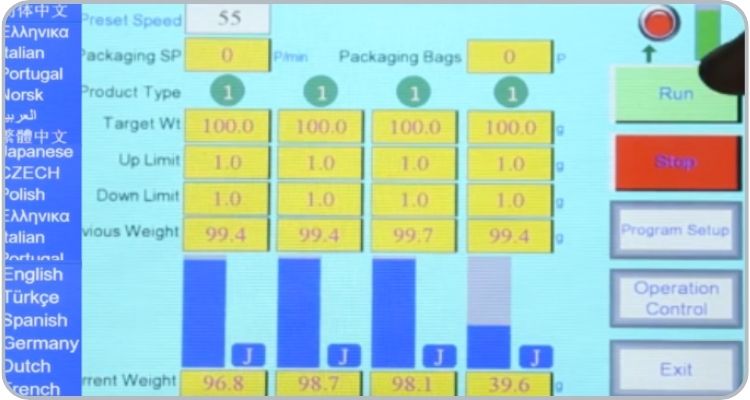

HMI Controller
5. 17 language options and an easy-to-use HMI. Specifications can be freely adjusted according to production requirements.

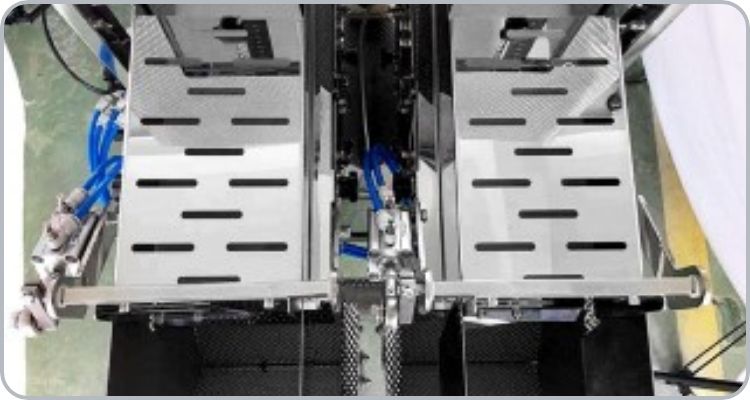

Patterned Plates
6. The material-contacting parts use decorative patterned plates to reduce the contact area with sticky materials.

Brand Component Configuration

Internal Components Structure
Order Item Brand Model
1 Touch screen Shanghai Kinco MT4404T-JW
2 Sensor Taiwan Fotek CDR-30X
3 Power switch Zhejiang Hengfu 9V1.5A/24V1.5A
4 Mainboard self made -
5 Module board self made -
6 Load cell Germany HBM SP5C3/8KG
7 Hopper bearing sleeve Germany IGUS JW-TY-19-C
8 Circuit breaker Zhejiang Delixi CDB6S 1P C type 10A/16A/25A

Manufacturing Gallery

Factory Assembly Detail
Assembly Part 1
Assembly Part 2
Assembly Part 3
Component 1
Component 2
Component 3
Production Process 1
Production Process 2
Production Process 3
Completed Weigher Machine
FAQ Icon Display

Frequently Asked Questions

What types of products are suitable for this Linear Type Weigher?
The Linear Type Weigher is ideal for weighing sliced, rolled, or regularly shaped products. Typical applications include sugar, salt, seeds, rice, sesame, glutamate, coffee beans, and seasoning powders.
What are the advantages of the modular control system?
The newly designed highly integrated modular control system improves overall operational stability, simplifies system maintenance, and allows for easier expansions or parameter adjustments during production.
Can this machine weigh different types of materials at the same time?
Yes, depending on the model (e.g., TP-AX2, TP-AX4), the machine is capable of weighing multiple different materials simultaneously to execute mixed-material packaging processes.
How long is the warranty period for this equipment?
We offer a 2-year guarantee on our linear type weighers, which represents the longest quality assurance and component coverage period within the packaging machinery industry.
How does the machine handle sticky or difficult materials?
All material-contacting surfaces feature decorative patterned plates, which effectively reduce the contact surface area and minimize sticky materials adhering to the vibrator pan and hoppers.
What safety and hygienic measures are implemented in the design?
The machine structure utilizes sanitary SS304/316 stainless steel and features a round-corner profile with no burrs. This ensures maximum protection for operators and allows for fast, hygienic washdowns.
