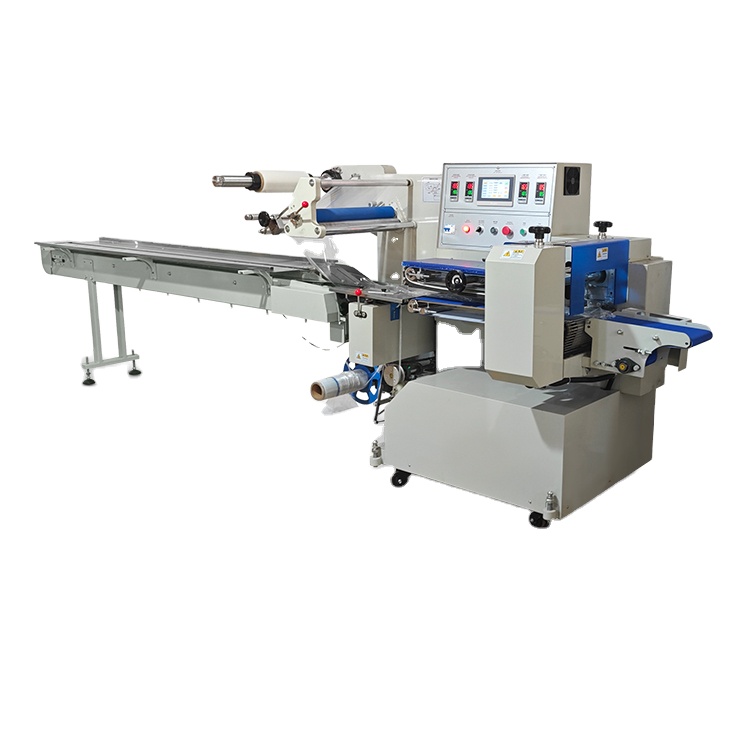

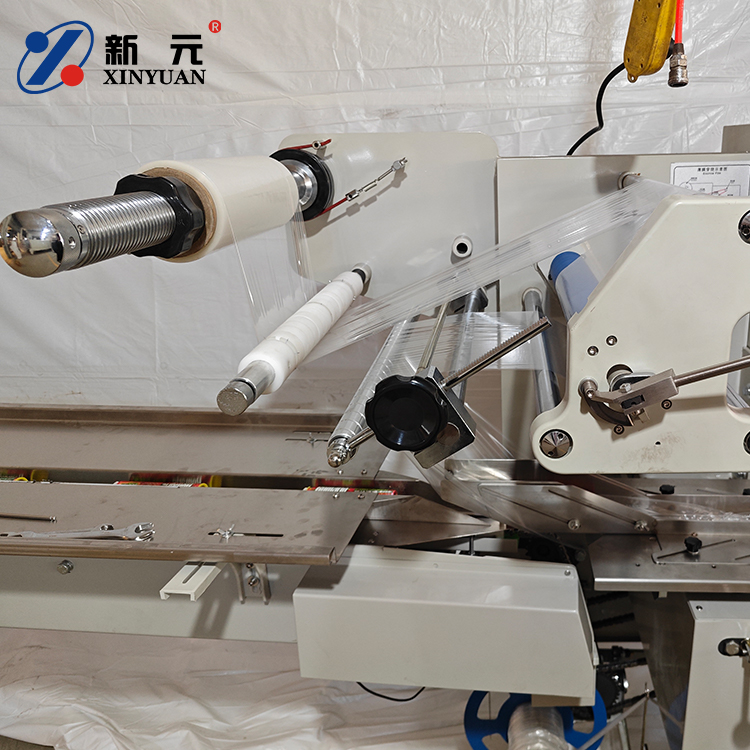

Flow Packing Machine Automatic High Speed Horizontal Rotary Wrap Machine
Flow Packing Machine Automatic High Speed Horizontal Rotary Wrap Machine
Flow Packing Machine Automatic High Speed Horizontal Rotary Wrap Machine
Flow Packing Machine Automatic High Speed Horizontal Rotary Wrap Machine
Flow Packing Machine Automatic High Speed Horizontal Rotary Wrap Machine
1 / 5
Flow Packing Machine Automatic High Speed Horizontal Rotary Wrap Machine
Flow Packing Machine Automatic High Speed Horizontal Rotary Wrap Machine
Flow Packing Machine Automatic High Speed Horizontal Rotary Wrap Machine
Flow Packing Machine Automatic High Speed Horizontal Rotary Wrap Machine
Flow Packing Machine Automatic High Speed Horizontal Rotary Wrap Machine

Flow Packing Machine Automatic High Speed Horizontal Rotary Wrap Machine

Send Inquiry

Product Description

Shrink Packaging Machine Overview
Shrink Packaging Machine Details
Packaging Machine Structure

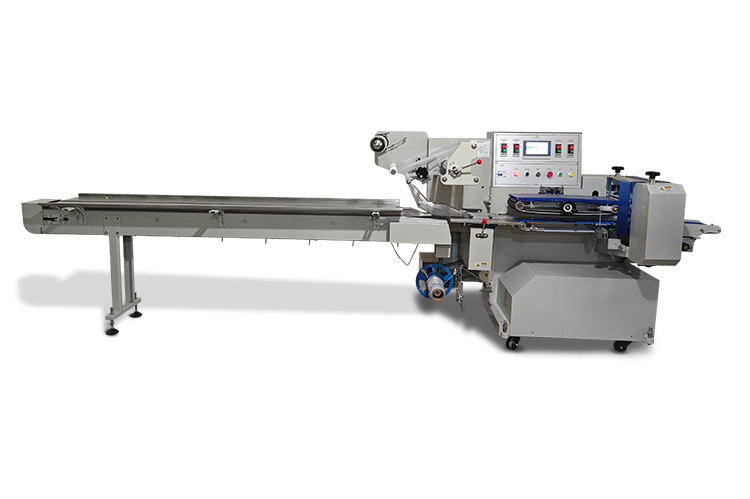

Automatic Shrink Wrapping Process

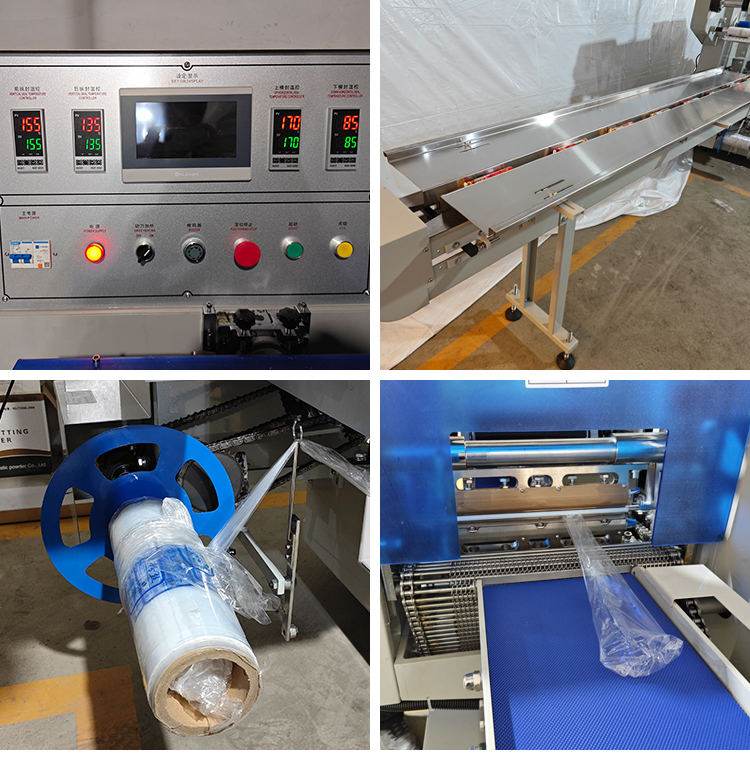

Packaging Line Configuration
📋 Technical Specifications
Model XY590-180
Max Film size ≤590mm
Packing size L: 150mm - 530mm;
W: 10mm - 200mm;
H: 65mm - 100mm
Packing speed 30 - 135 bags/min
Film type PVC; POF
Power consumption sealing machine: 4.75KW; shrink machine: 13.5KW
Power supply sealing machine: 220V, 50HZ/60HZ;
shrink machine: 380V, 50HZ/60HZ
Dimensions sealing machine: 4800 x 1080 x 1500mm
shrink machine: 2220 x 670 x 1670mm
Heating area 2220 * 230 * 195mm
sealing machine Weight 650kg
shrink machine Weight 320kg
Machine Volume After Packaging 2550 * 950 * 1700
= 4.12m³
Shrink Packaging Component Detail 1
Shrink Packaging Component Detail 2
Shrink Packaging Component Detail 3
Shrink Packaging Component Detail 4
Shrink Packaging Component Detail 5
Shrink Packaging Component Detail 6
Shrink Packaging Component Detail 7
Shrink Packaging Component Detail 8
Shrink Packaging Component Detail 9
Shrink Packaging Component Detail 10
Dimensions Blueprint
Quality Standard Certificate
❓ Frequently Asked Questions (FAQ)
What film materials are compatible with the XY590-180 packaging machine?
This model is specifically designed to work seamlessly with PVC and POF shrink films to deliver high-quality, professional sealing results.
What is the packaging speed of this machine?
The machine offers an adjustable packaging speed ranging from 30 to 135 bags per minute, depending on the product dimensions and film specifications.
What dimensions of products can this machine pack?
It supports product sizes with lengths from 150mm to 530mm, widths from 10mm to 200mm, and heights from 65mm to 100mm. The maximum compatible film size is ≤590mm.
What are the power requirements for the system?
The sealing machine requires a 220V (50HZ/60HZ) power supply with 4.75KW consumption. The shrink machine operates on a 380V (50HZ/60HZ) supply with 13.5KW consumption.
How heavy are the sealing and shrink machines?
The sealing machine has a weight of 650kg, and the shrink machine weighs 320kg. The total packaged volume is approximately 4.12m³ for secure transport.
Can this machine run continuously in industrial environments?
Yes, it features durable industrial-grade components and layout structures optimized for high-volume, reliable continuous sealing and shrinking processes.
