| Model | SD-M1000K | |
| Packaging speed(Bag/min) | 30-160bag/min | |
| Bag size(mm) | Length | 100-500mm |
| Width | 35-140mm | |
| Height | 5-60mm | |
| Power voltage(KW) | dual temperature control | 3.1KW |
| Main motor power(KW) | 1.7KW | |
| Heating power (KW) | dual temperature control | 1.4KW |
| Packaging film width (mm) | 90-400mm | |
| Machine weight(KG) | 350KG | |

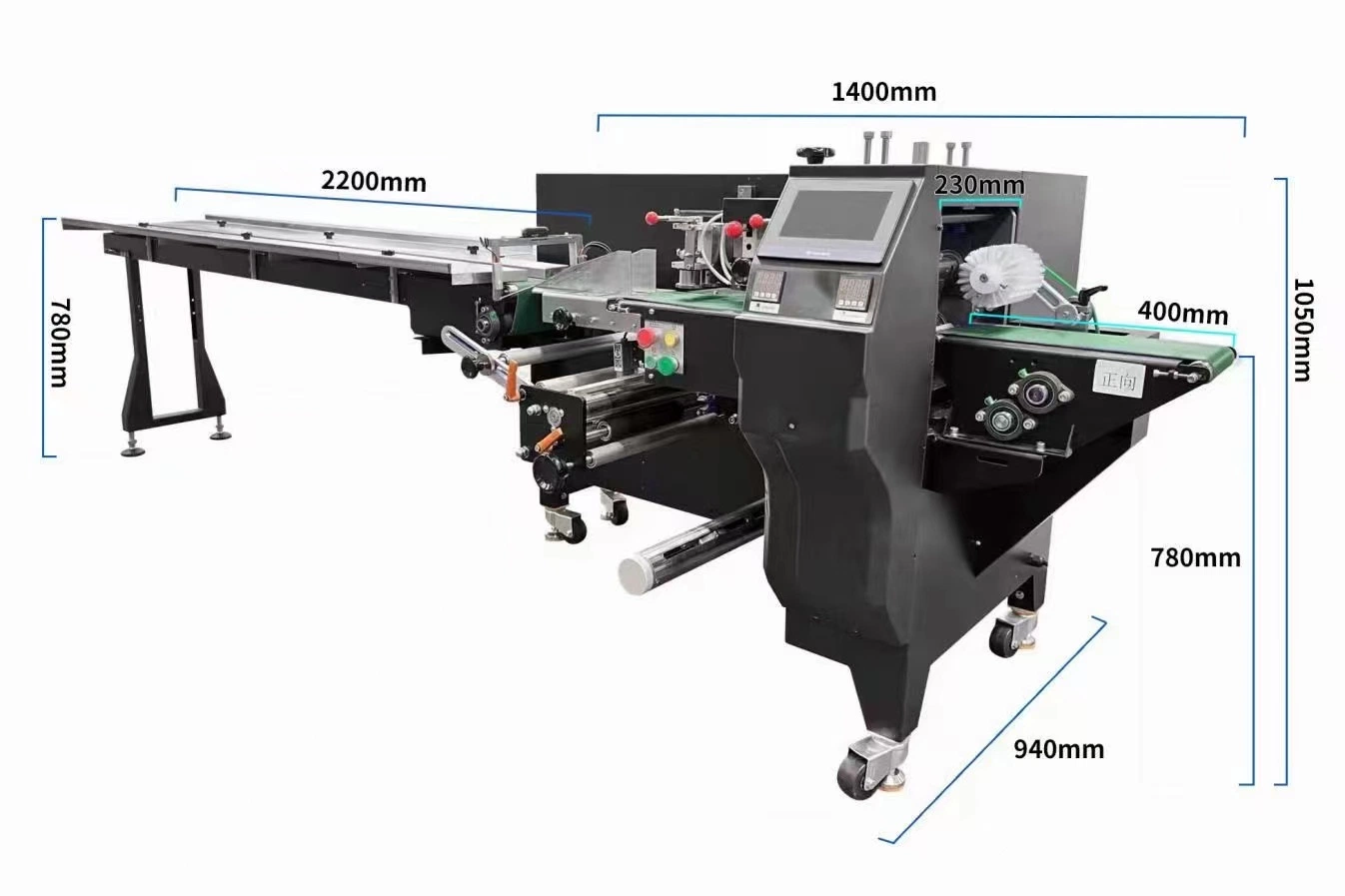

| Machine Dimensions (L×W×H) (mm) | 4200×950×1090mm | |
| Power type | 220V 50Hz | |
| Packaging film material | PP, CPP, PVC, PS, EVA, PET, PVDC+PVC, OPP/CPP etc. | |
The packaging speed of the SD-M1000K ranges from 30 to 160 bags per minute, depending on the material and dimensions of the product being wrapped.
It supports bags with a length of 100-500mm, a width of 35-140mm, and a height of 5-60mm.
The machine is compatible with a wide range of films, including PP, CPP, PVC, PS, EVA, PET, PVDC+PVC, OPP/CPP, and other heat-sealable laminated films.
The power supply requirement is 220V 50Hz. The total power voltage is 3.1KW, which includes a 1.7KW main motor power and a 1.4KW heating system featuring dual temperature control.
The machine comes standard with a fixed bag forming device. However, an adjustable bag forming device is available as an optional upgrade to suit different production needs.
The basic configuration features a rotary knife seal mechanism, a 132 center single pole single heating tube, and a 3-stripe thick tooth knife seat with a length of 180mm.
