LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
1 / 5
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump
LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump

LWT Customizable Full Automatic Film Shrink Wrapping Machine for Food Beverage Glass Packaging with Pump

Send Inquiry

Product Description

Product Description

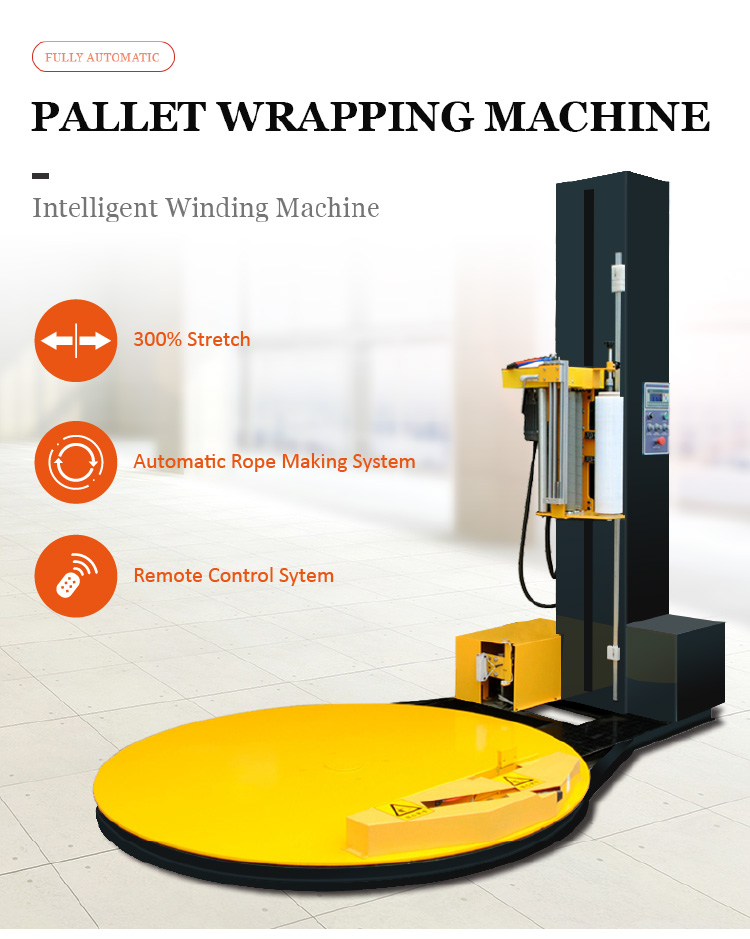

Pallet Wrapping Machine Main Performance
Main Performance Features
  • ✓PLC programmable control, winding program optional, various parameters adjustable
  • ✓Photoelectric switch automatically senses cargo height
  • ✓Pre-stretching automatic film feeding mechanism
  • ✓Rotary slow start, slow stop, automatic reset
  • ✓The top and bottom winding numbers are individually controlled
  • ✓Automatic, manual switchable, virtually no routine maintenance required
Turntable Drive System
  • ✓Turntable frequency control 0~12 rpm adjustable
  • ✓The turntable is automatically reset
  • ✓The turntable is made of pure steel and high wear-resistant material
Film Delivery System
  • ✓The membrane frame dynamic pre-stretching mechanism can pre-stretch up to 250%, reducing film consumption
  • ✓The rise and fall speeds of the membrane frame are respectively adjustable
  • ✓Film feed speed is adjustable; separate DC motor control
  • ✓The top and bottom winding numbers are individually controlled
  • ✓The film system follow-up mechanism, one pull
  • ✓The film frame is a pure cast aluminum frame, light and stable
  • ✓Use wear-resistant rubber roller for a long service life
  • ✓The lifting column features a stable and reliable single chain structure

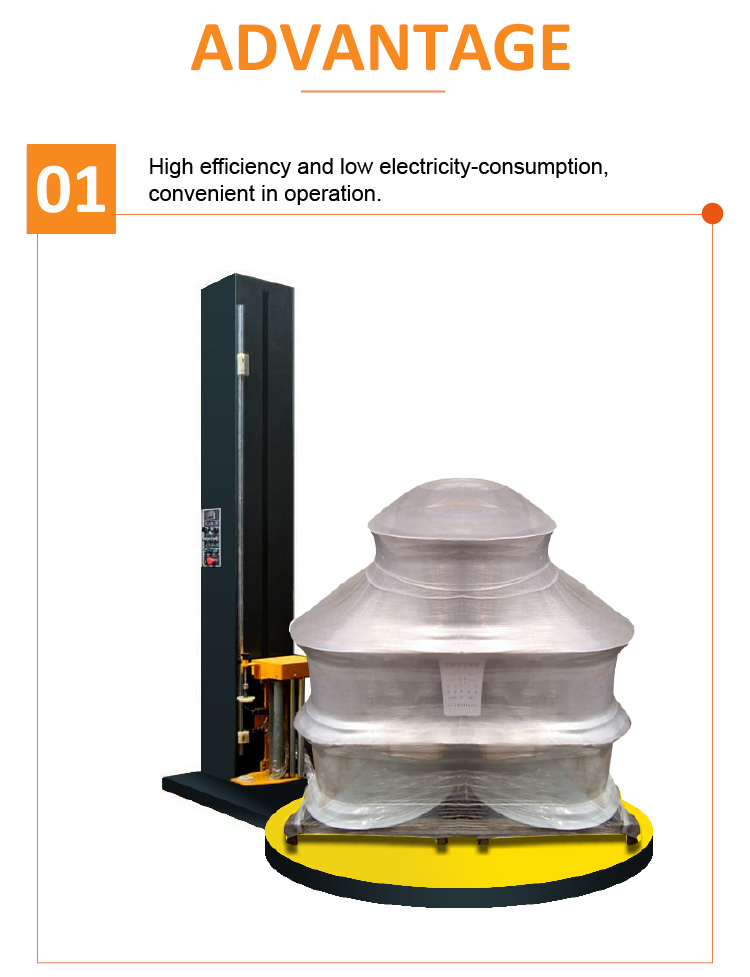

Product Detail View 1

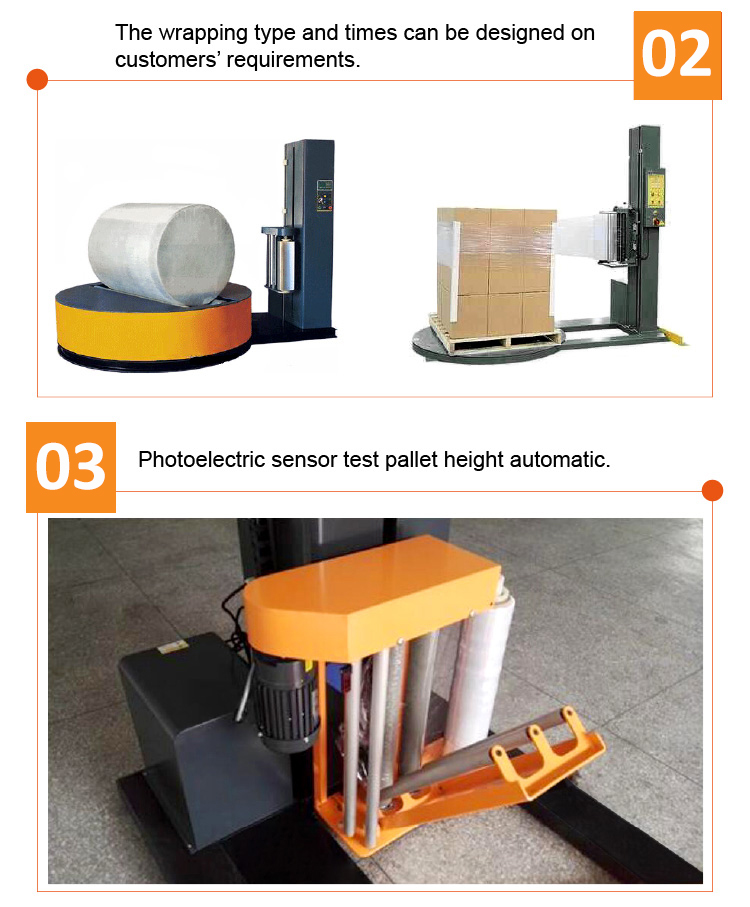

Product Detail View 2

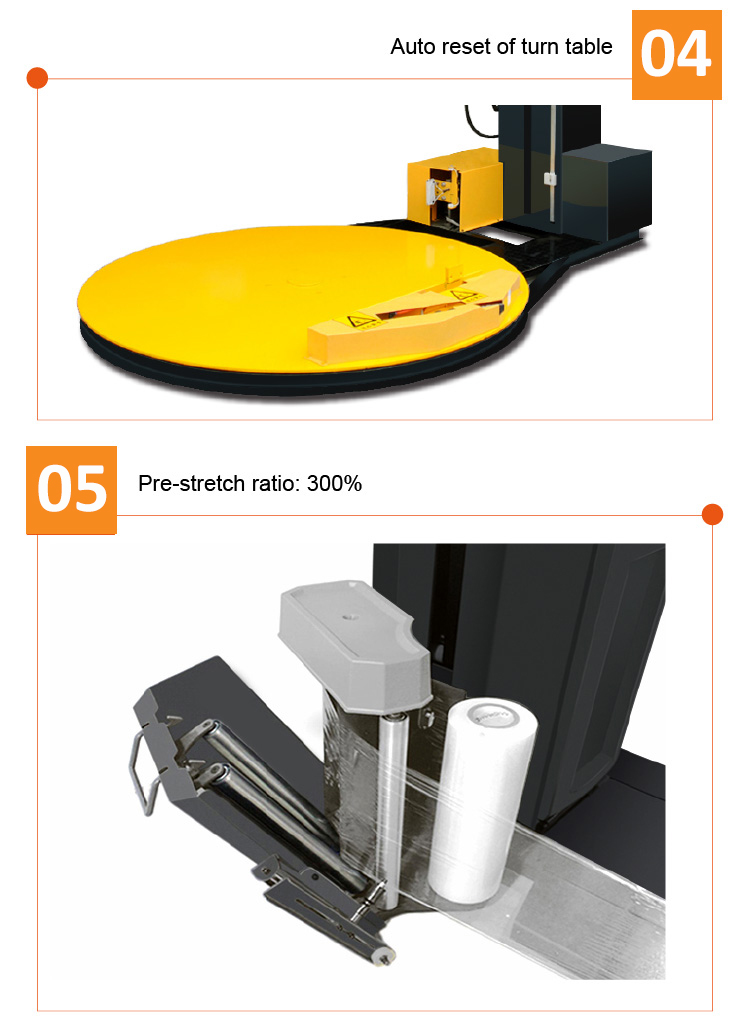

Product Detail View 3

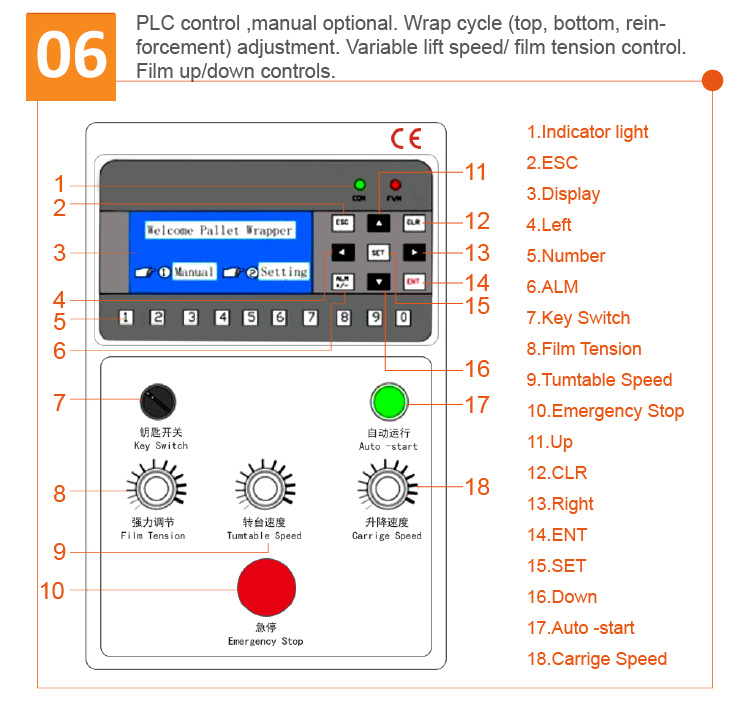

Product Detail View 4
Product Detail View 5

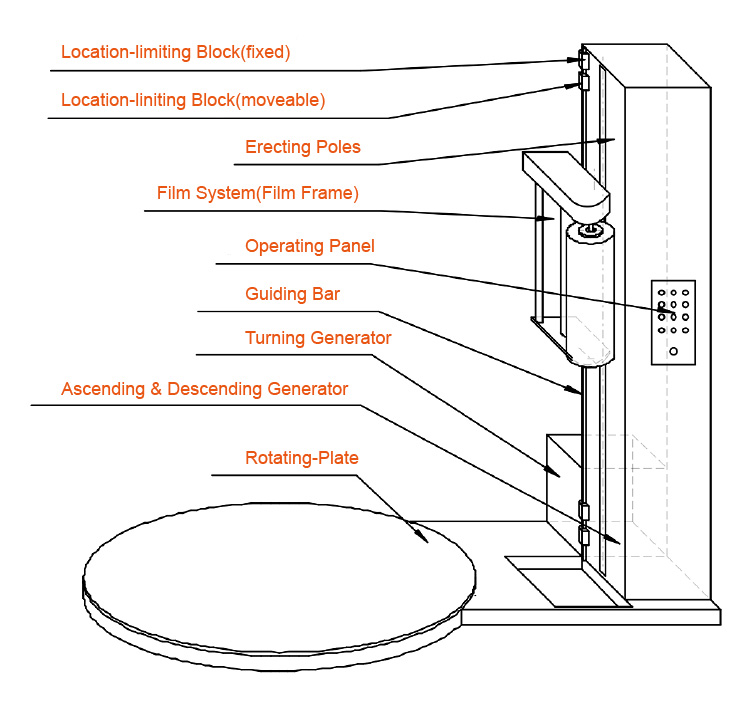

Product Detail View 6
Specification
Parameter Value / Detail
Packing size L1200xW1200xH2400mm
Max load 1500kg
Turntable size 1650mm (option 1800mm, 2000mm...)
Turntable height 80mm
Turntable speed 0-12 RPM
Voltage 220V/1phase - 50Hz
Wattage 1.32KW
Packing efficiency 20-40 pallet/h
Dimension L2625xW1650xH2750mm
Accessories Parameters
Name Brand
PLC Siemens
Touch screen Kunlun Tongtai, Taiwan
Turntable frequency converter Haily Danfoss, Denmark
Lifting and Frequency Converter Haily Danfoss, Denmark
Pre-pull drive Haily Danfoss, Denmark
Travel switch SCHNEIDER Schneider, France
Photoelectric switch Pegaft, Germany
Proximity switch Phoenix, Taiwan
Membrane frame lifting reducer Deli, China
Turntable reducer Taibang, Taiwan
Film frame pre-pull motor OT, China
Company Profile
Company overview map
Factory certification and honors

We have always adhered to the business philosophy of innovation leading development, quality winning the market, and customer service first. With the goal of becoming the world's leading canning automatic production Packing line solution expert, it is committed to guiding the Production Packaging line industry's machinery production standards and actively promoting the improvement of the canning & Packaging industry's mechanical automation level.

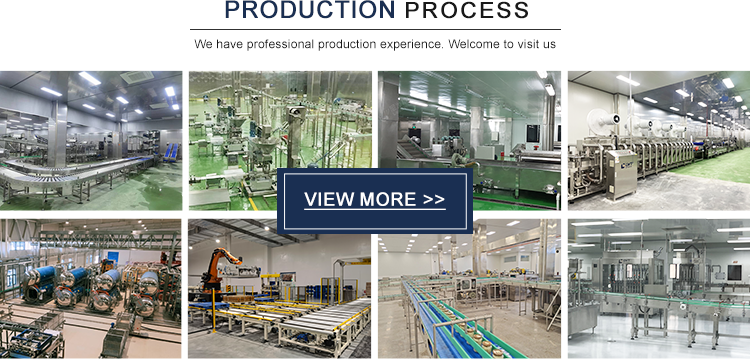

Production workshop
Production assembly line
Factory Facility View 1
Factory Facility View 2
Factory Facility View 3
Factory Facility View 4
FAQ
Q1 Who are we?
We are a professional manufacturer established in 2009. We sell our equipment to various global markets, including the Domestic Market (40.00%), Southeast Asia (12.00%), Africa (10.00%), Mid East (8.00%), North America (5.00%), Oceania (5.00%), South America (4.00%), South Asia (4.00%), Eastern Europe (3.00%), Eastern Asia (3.00%), Western Europe (2.00%), and Northern Europe (2.00%). There are total about 51-100 people in our office.
Q2 How can we guarantee quality?
We ensure quality through strict processes: always a pre-production sample before mass production, and always a final inspection before shipment.
Q3 What can you buy from us?
You can purchase Canned Food Production Lines, Vacuum Packaging Machines, Filling Lines, Packing Machines, and Palletizers.
Q4 Why should you buy from us and not from other suppliers?
We have over 10 years of experience in food processing machinery and packaging machine equipment. We have supplied machinery for major global corporations such as Coca-Cola, Pepsi, Nestle, Seven-Eleven, TOYOTA, and Unilever.
Q5 What delivery terms can we provide?
We accept various delivery terms including FOB, CFR, CIF, EXW, CIP, FCA, CPT, DDU, and Express Delivery.
Q6 What payment methods and currencies do we accept?
Accepted Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF.
Accepted Payment Types: T/T, L/C, Credit Card, PayPal, Western Union, and Cash.
