Machine Advantages

• PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, finished in one operation.
• Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
• Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
• External film releasing mechanism: simpler and easier installation of packing film.
• Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple.
• Close down type mechanism, defending powder into inside of machine.

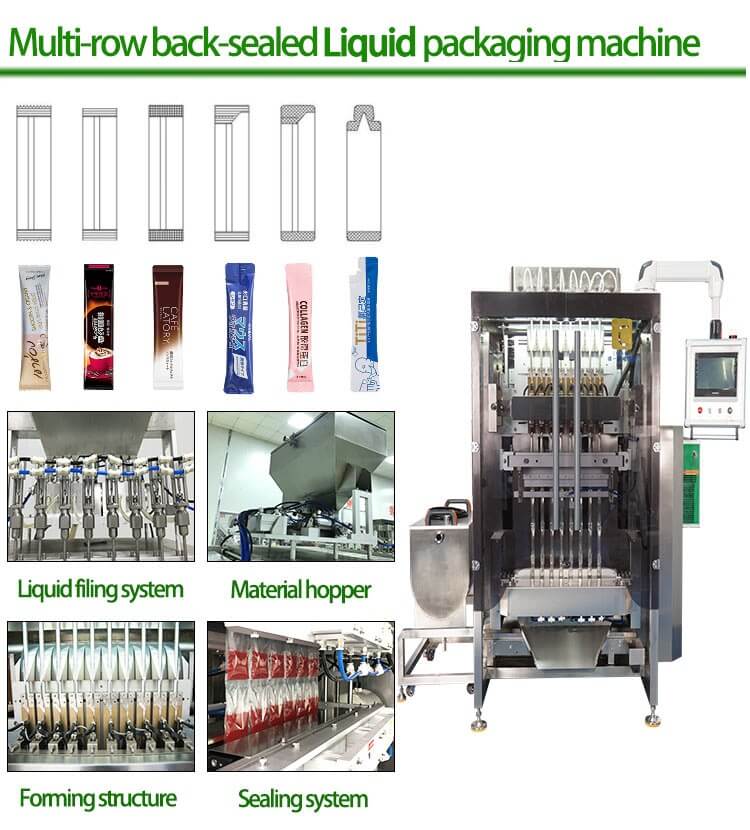

Bag Types

Technical Parameters

Applications

Suitable for filling and packing varieties of products:

This type of machine can make pillow bag and then finish the packing process. The main packager can be integrated with various filling systems, suitable for all kinds of products, such as powder, small granule, liquid, viscous liquid, paste, tablet, candy, solid, stick, large solid and irregular products.

Main Features

• Simple structure in linear type, easy in installation and maintenance.
• Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
• High pressure double crank to control the die opening and closing.
• Running in a high automatization and intellectualization, no pollution.
• Apply a linker to connect with the air conveyor, which can directly inline with filling machine.

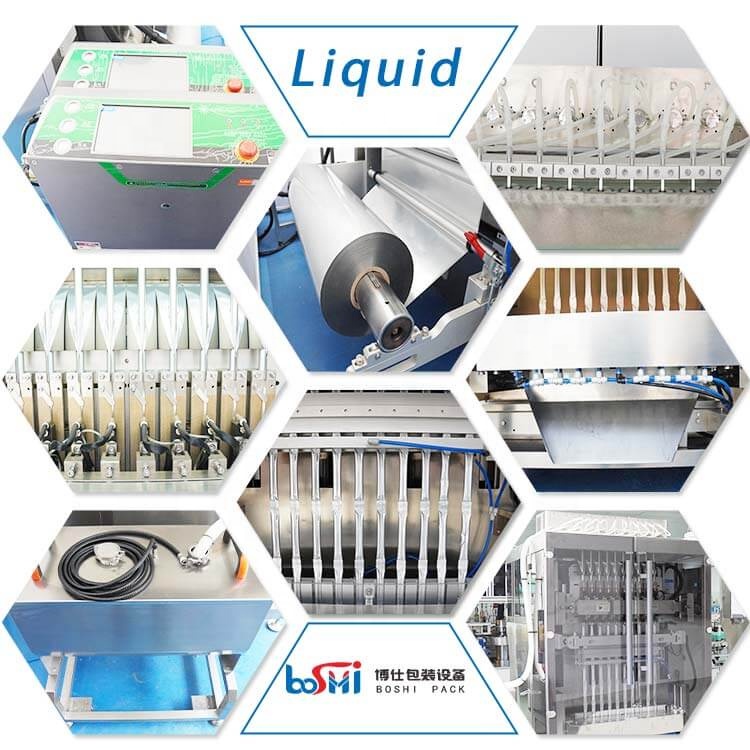

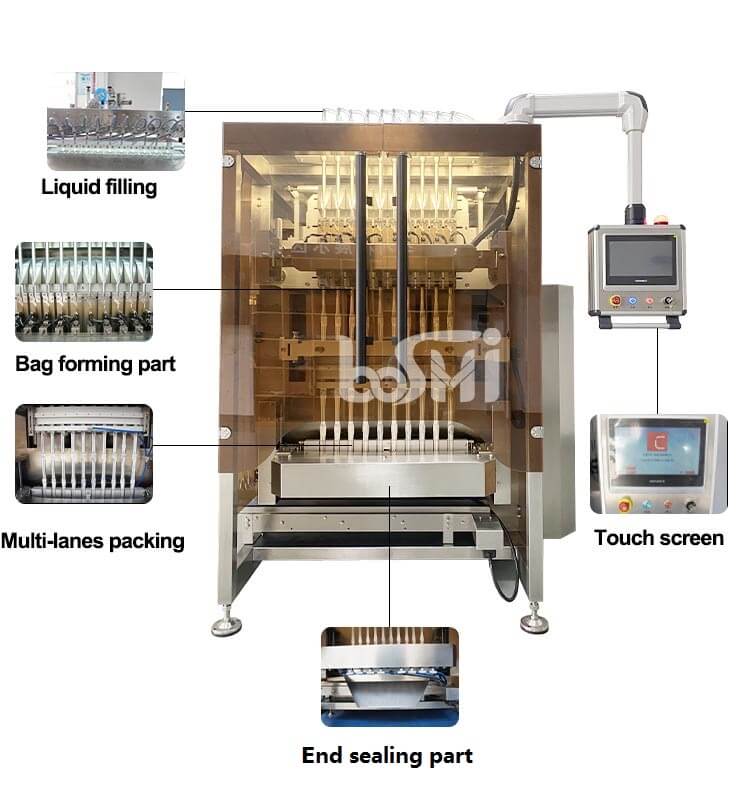

Machine Details

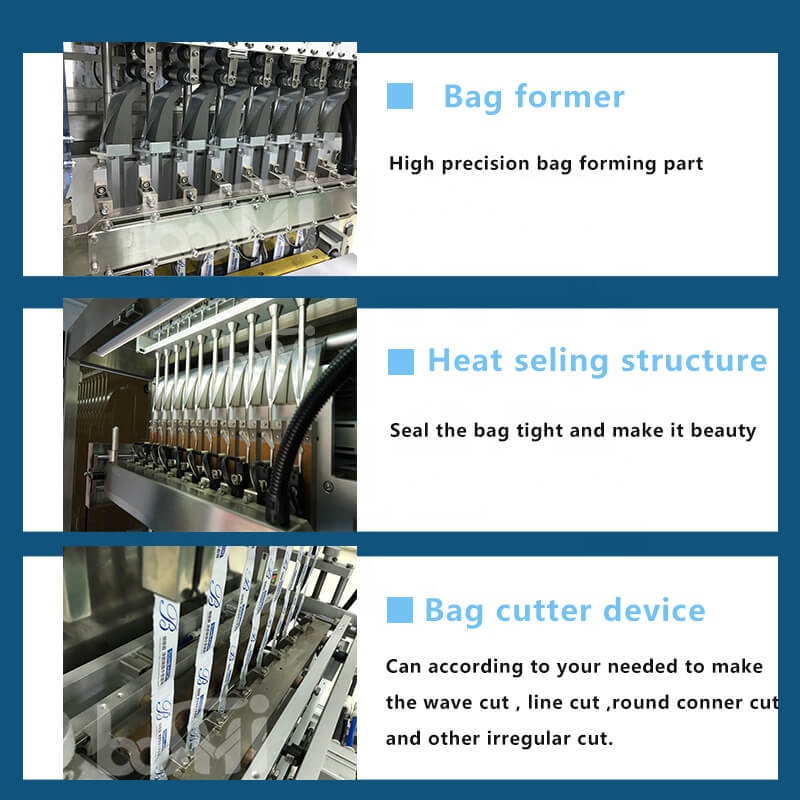

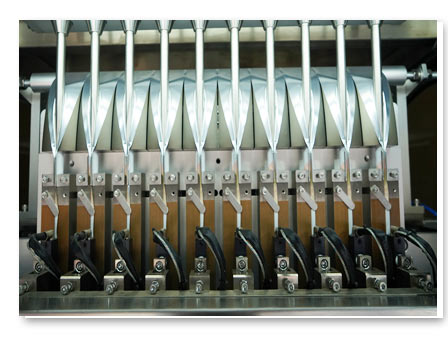

Forming bag structure

*We will according to your needed bag type to make different bag forming tubes.

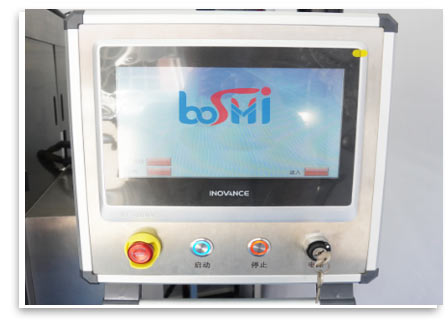

Touch screen

*Adjustment of bag deviation in the touch screen.

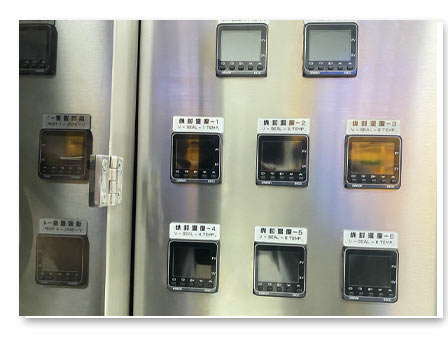

Temperature Table

*Monitor and adjust sealing temperature, also adjustable on the touch screen.

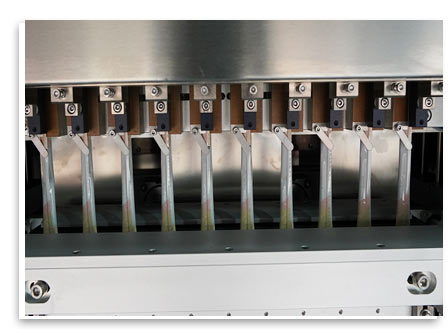

Heat sealing structure

*Use stable heating sealing the bag, make bags firm and beauty. It is suitable for many different film materials.

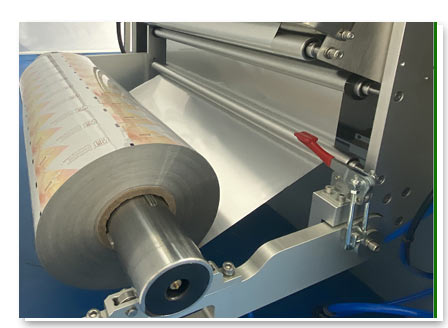

Feeding film structure

*Servo motor control the film feeding. The clamping film adopts the air-expansion shaft locking form, make it more convenient, fast and reliable for film replacement.

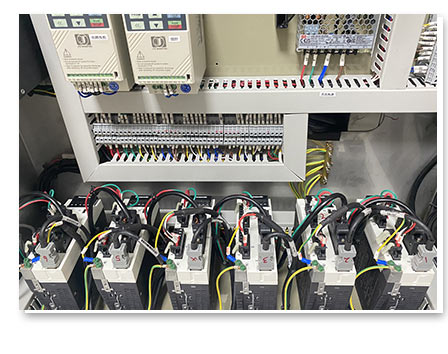

PLC & Electricity box

*Mitsubishi/ Siemens PLC control. With stable reliable high accuracy output. Panasonic servo motor driver pulling film.

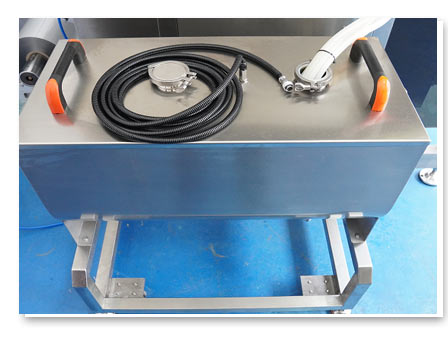

Material Hopper

*Materials will be fill in hopper. Hopper capacity can be customized. With smart sensor to detect the material filling situation.

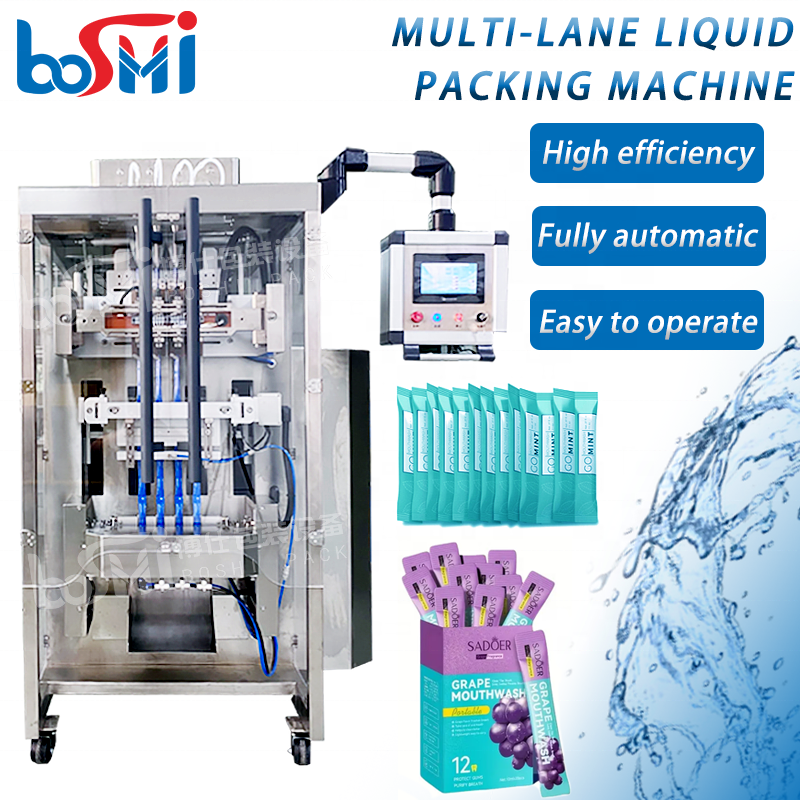

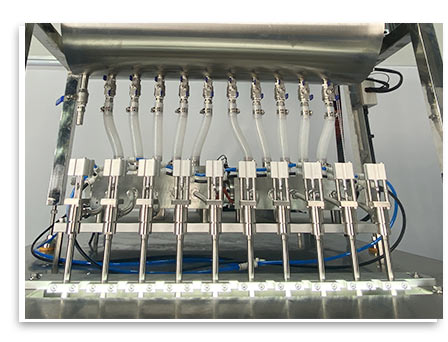

Multilane liquid filling tubes

*A servo motor control and adjusts the stroke of the pump body to adjust the material bag weight.

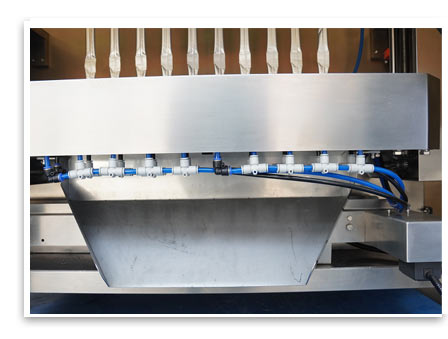

End Seal Cutter Area

*Constant temperature heat sealing cutter is used to seal the front and rear ends of packaging products.

Packaging Details

1. Injection of powder to be packed
2. Transport plastic film
3. Print date
4. Bag making and liquid filling
5. Complete packaging, cutting and conveying finished products

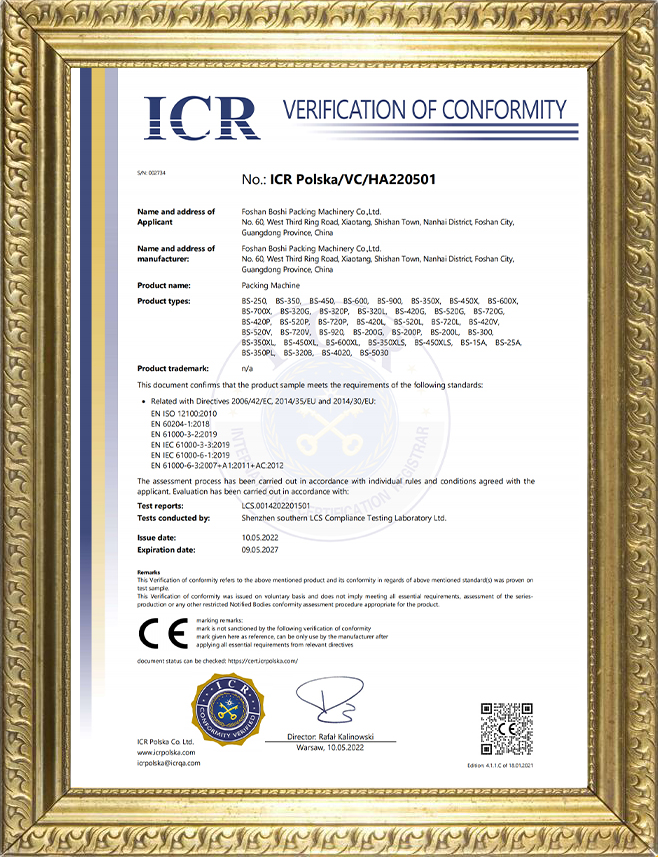

CE Certificates

Our Packaging Range

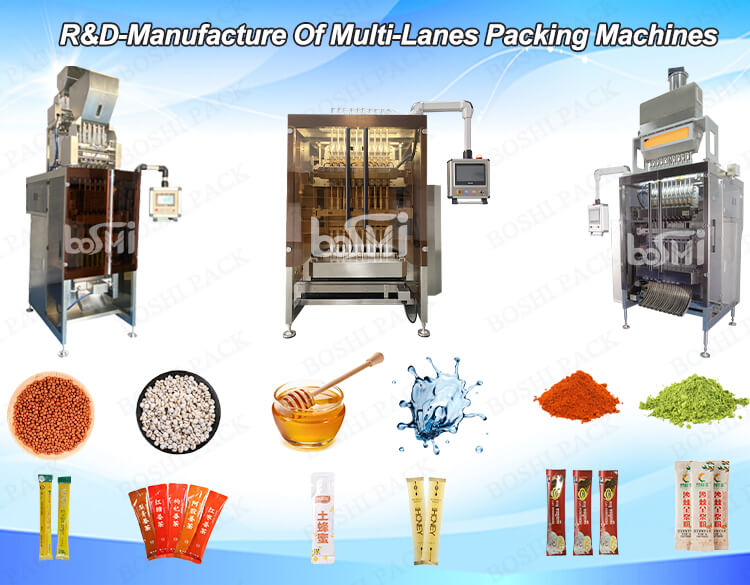

• Multi-lanes packing machine (For powder, liquid, granules product)
• Pillow packing machine (For food, commodities, hardware, toys, soft, loose, solid products packing)
• Granule packing machine (Multi-head weigher packing machine - For dry food, such as nuts, chips, candy. For frozen food, such as dumpling, chicken leg, fish, pork. For hardware screws. For vegetables, small fruits, etc.)
• Line weigher / Volumetric cup packing machine (For small granules like sugar, salt, rice, beans, nuts, grain)
• Powder packing machine (For coffee powder, milk powder, instant powder, flour, and etc.)
• Liquid packing machine (For sauce, jam, honey, juice, paste, jelly, oil, shampoo, and etc.)
• Extruder and packing machine (For play dough, clay, flour dough, light dough, gel, energy bar, etc. soft materials)
• Cling film packing machine (For vegetable, fruit, meat, fish)
• Shrink packing machine (For bottles, toys, books, plate, CDS, foods, commodities, and any other solid products)
