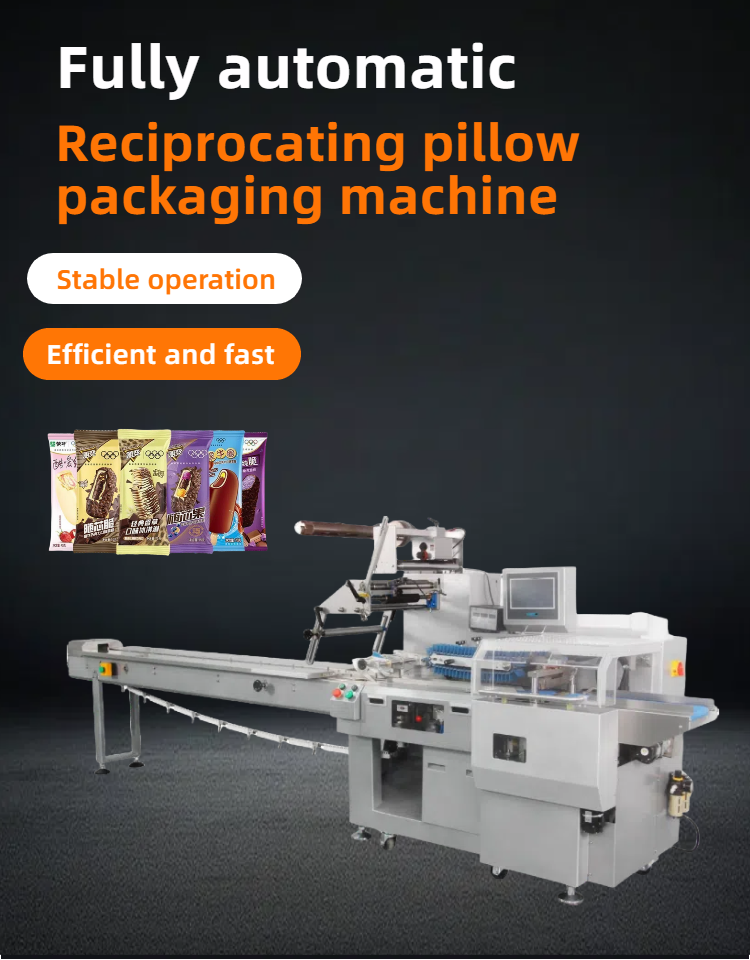

| Model | CS-480S (8 servos) |
| Packaging Film Width | 90-420mm |
| Packaging Specifications (Bags) | Length: 90-450mm, Width: 10-180mm, Height: 5-60mm |
| Packaging Speed | 30-120 bags/min (depending on product shape and size) |
| Compressed Air | 0.6-0.8 MPa, 15 L/min |
| Power Supply | 220V/50Hz/7.5kW |
| Packaging Film Materials | PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+CPP Composite |
| Weight | 700kg |
| Dimensions | 4188*918*1630mm (including tailstock) |

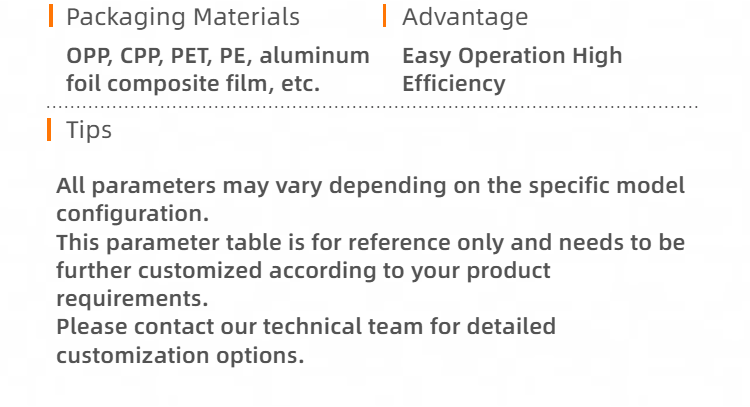

The machine is compatible with a wide range of film materials, including PP, PE, PVC, PS, EVA, PET, PVDC+PVC, and OPP+CPP composite films.
It can handle bags with lengths between 90-450mm, widths between 10-180mm, and heights between 5-60mm. The maximum compatible film width is 420mm.
The packaging speed ranges from 30 to 120 bags per minute. The exact speed depends on the shape, size, and material characteristics of the product being packaged.
You will need a standard 220V/50Hz power supply with a power rating of 7.5kW. For pneumatic operations, it requires compressed air at 0.6-0.8 MPa with a consumption flow of 15 L/min.
The 8-servo system provides precise motion control, ensuring accurate bag cutting, smooth film feeding, and optimized sealing tension. This leads to higher speeds, less waste, and minimal maintenance compared to mechanical drives.
