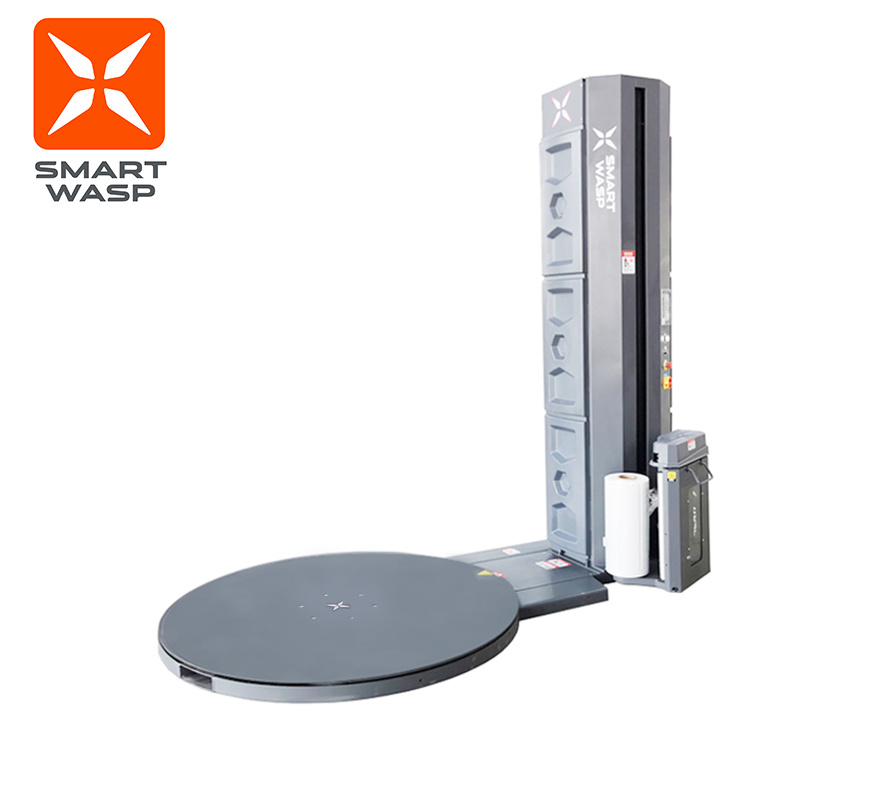

| Machine Specification (Smart Wasp X1) | Key Components & Brands | ||
|---|---|---|---|
| Maximum wrapping speed | 20-30 loads/hour (1x1.2x1.8 m 2 layer, NOT including loading/unloading) | Inverter | X-LINE |
| Maximum pallet size | 1.2*1.2 m | Position sensor | SICK (Germany) |
| Maximum Wrapping Height | 2400mm (for pallet height: 2300mm + 100mm over top) | PLC | SIEMENS |
| Turntable Speed | 0-13RPM (Adjustable) | Travel Switch | OMRON (Japan) |
| Turntable Size | 1650mm (1500mm/1800mm/2000mm optional) | Motor | GPG Taiwan |
| Machine Power | 1.5KW | Relay | OMRON (Japan) |
| Film Cut | Automatic (Mechanical type) | Touch screen | IoT Touch screen |
| Max Load Weight | 2000KG | Switch | Schneider |
| Standard Film Width | 500mm | Photoelectric sensor | Autonics |
| Constant Film Delivery | Standard Force | Terminal block | Weidmuller (Germany) |
| Standard Pre-Stretch | 250% | 24V power supply | OMRON |
| Film Capacity | 250mm Diameter | - | - |
| Drive system | Up & Down Drive system | - | - |
| Fix Film on Pallet | Manual | OPTIONAL FUNCTIONS | |
| Roping system | Optional | Ramp | Optional |
| Multi-layer function | Standard Equipped | Weighing scale | Optional |

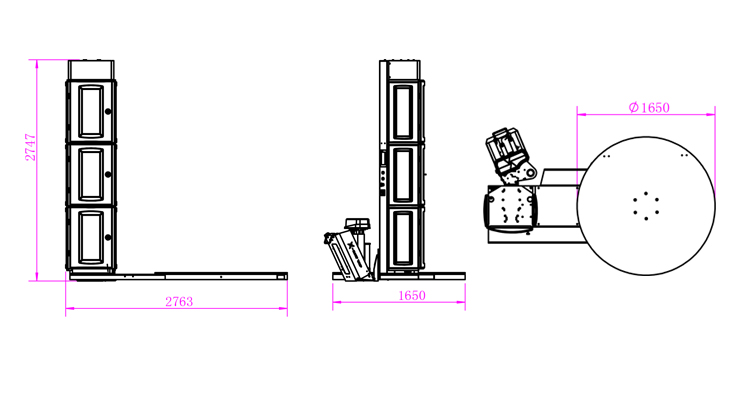

| Machine Size | 2.8*1.65*2.74m | Top pressure function | Optional |
| Machine weight | 680KG | - | - |
| Voltage | 110-240V/50HZ/60 HZ 3P | - | - |

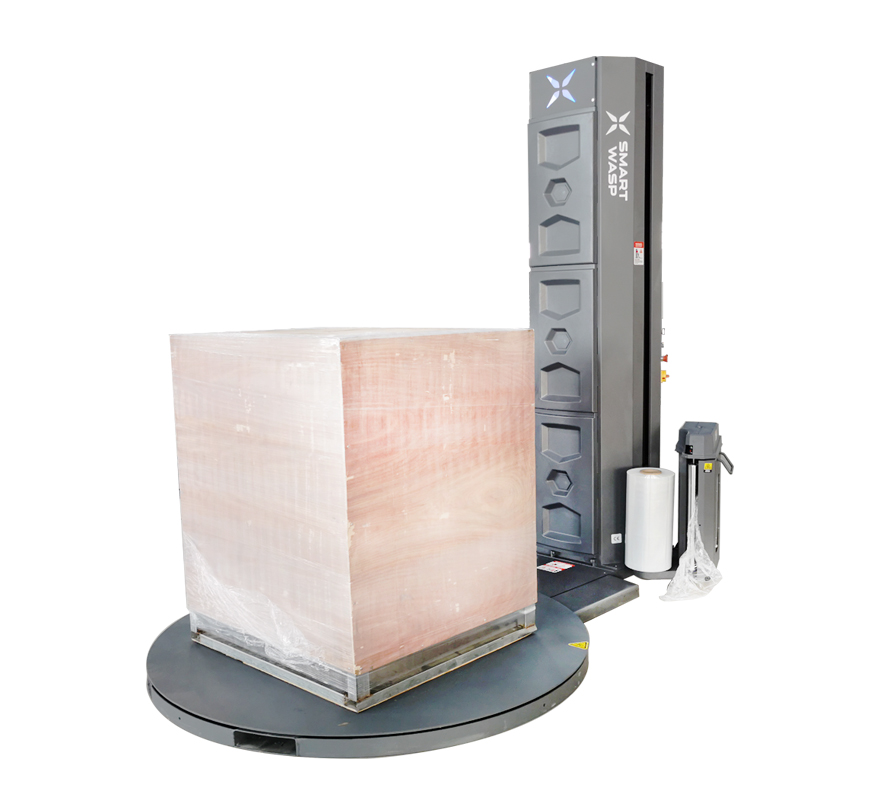

After finishing wrapping the pallet, the pallet stretch wrapper cuts the film automatically. There is no need for operators to cut the film manually with tools, ensuring safety and operational efficiency.

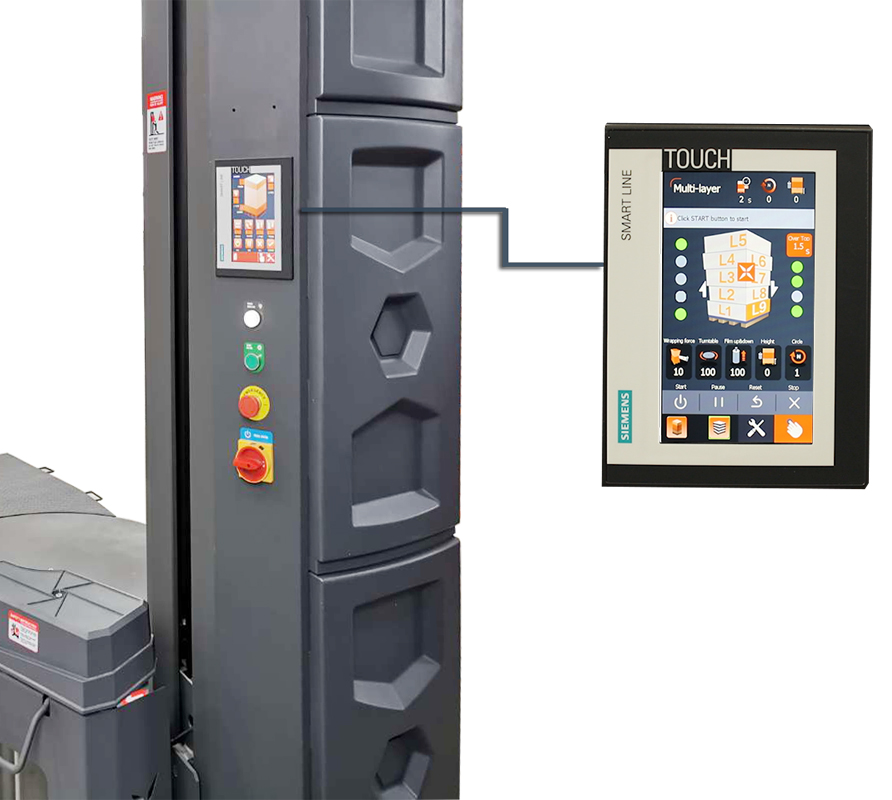

This function enables settings for different wrapping circles and wrapping forces at custom heights. Supports up to 9 programmable layers per pallet. Unlike standard machines with uniform bottom-to-top force, it allows dynamic reinforcing wraps during operation.

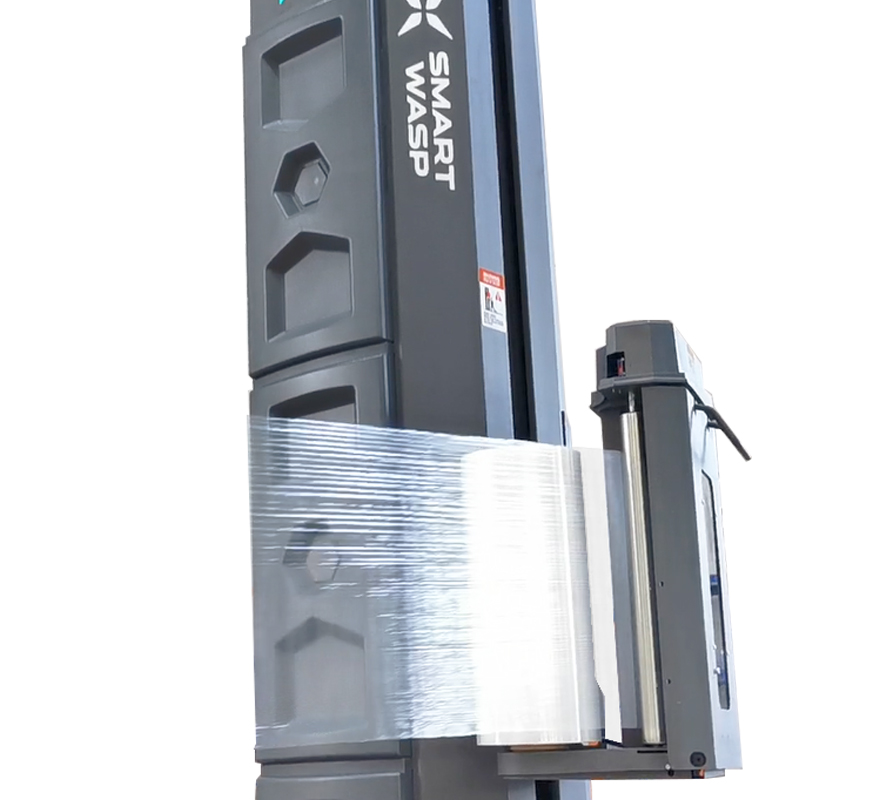

Equipped with a pre-stretch roller supporting up to a 380% pre-stretch rate. Maximize the value of every meter of stretch film with constant release force, fixed-point wrapping, and quantitative film usage.

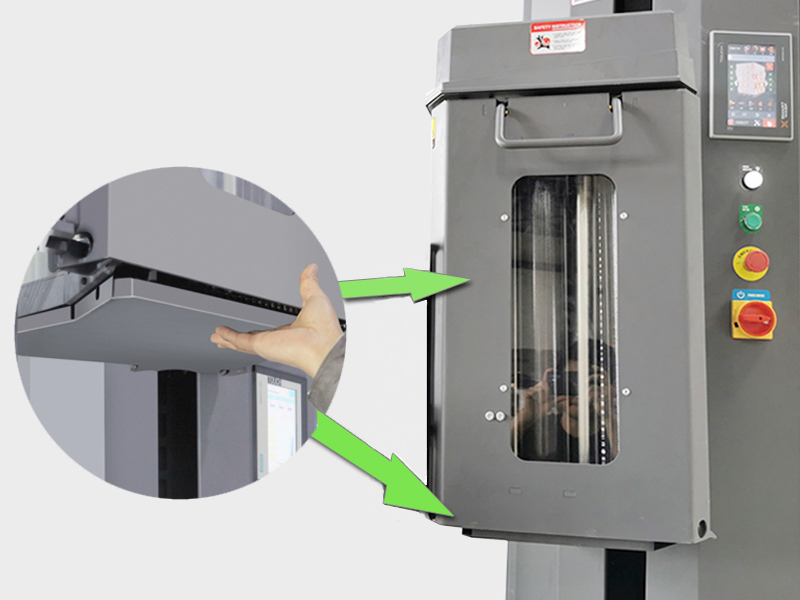

Features a safety device under the film carriage to protect operator limbs. A transparent inspection board permits easy issue detection. Includes an up-and-down belt deviation and damage alarm system to prevent accidental carriage drops.

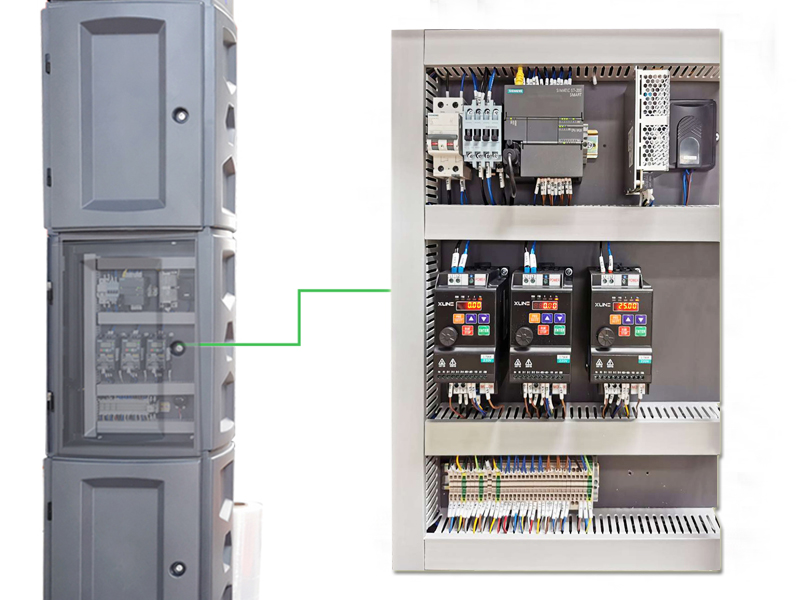

Built with industry-leading components: SIEMENS PLC, SICK proximity switches, AUTONICS photoelectric sensors, WEIDMULLER terminal blocks, X-LINE Inverters, and OMRON 24VDC power supplies.

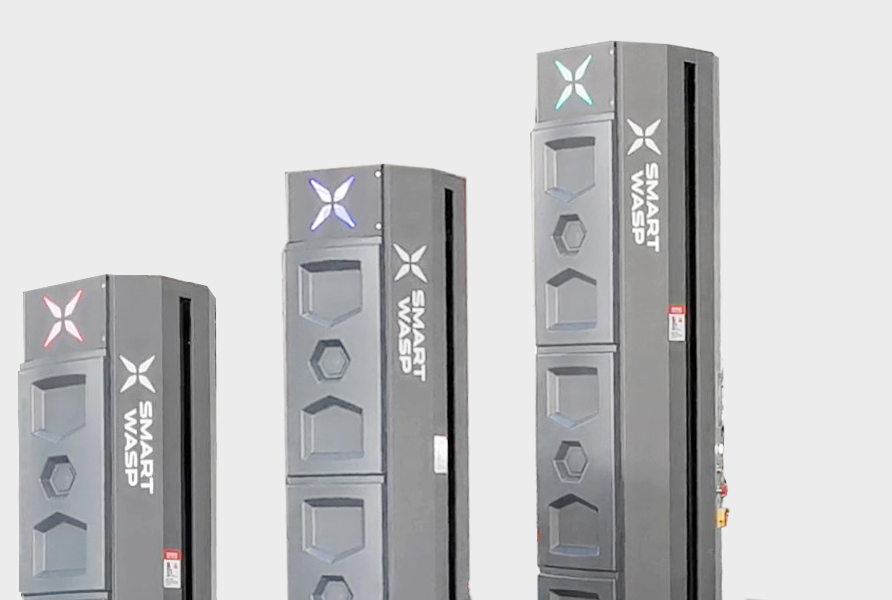

1. Built-in LED indicator on the machine: Ready (Blue), Working (Green), Alarm (Red).

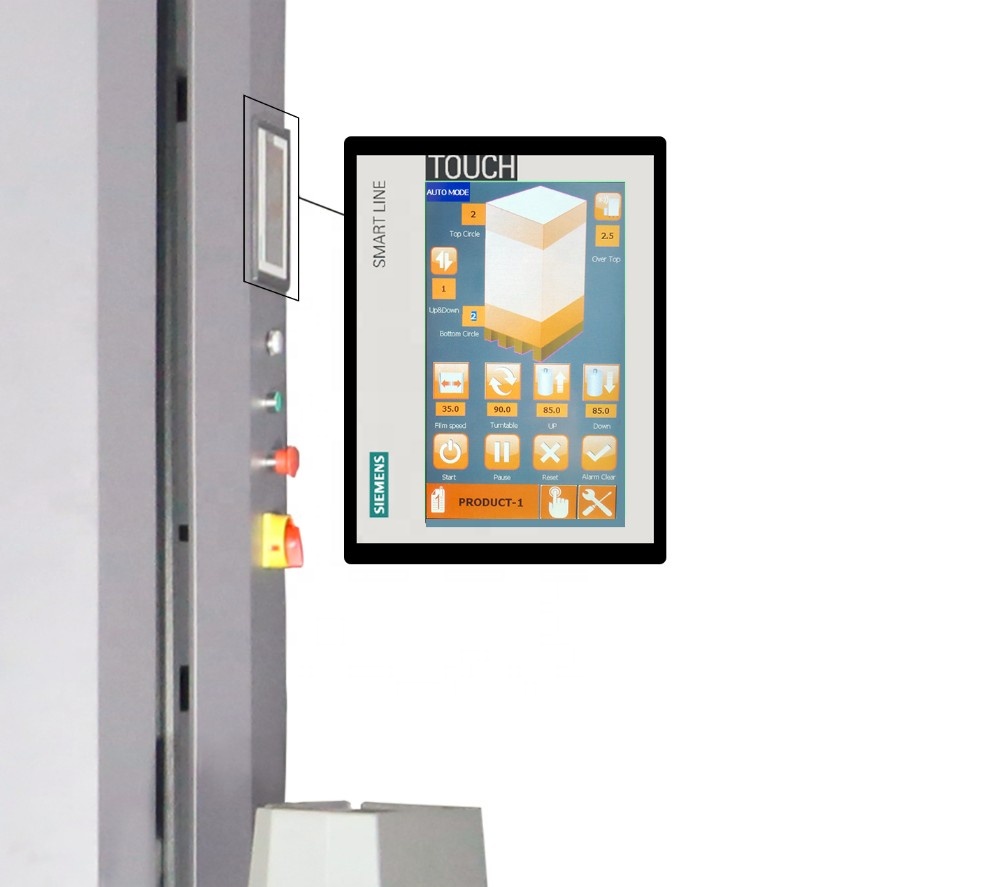

2. Interactive touch screen guidance for simple operations and fast troubleshooting in case of alarms.

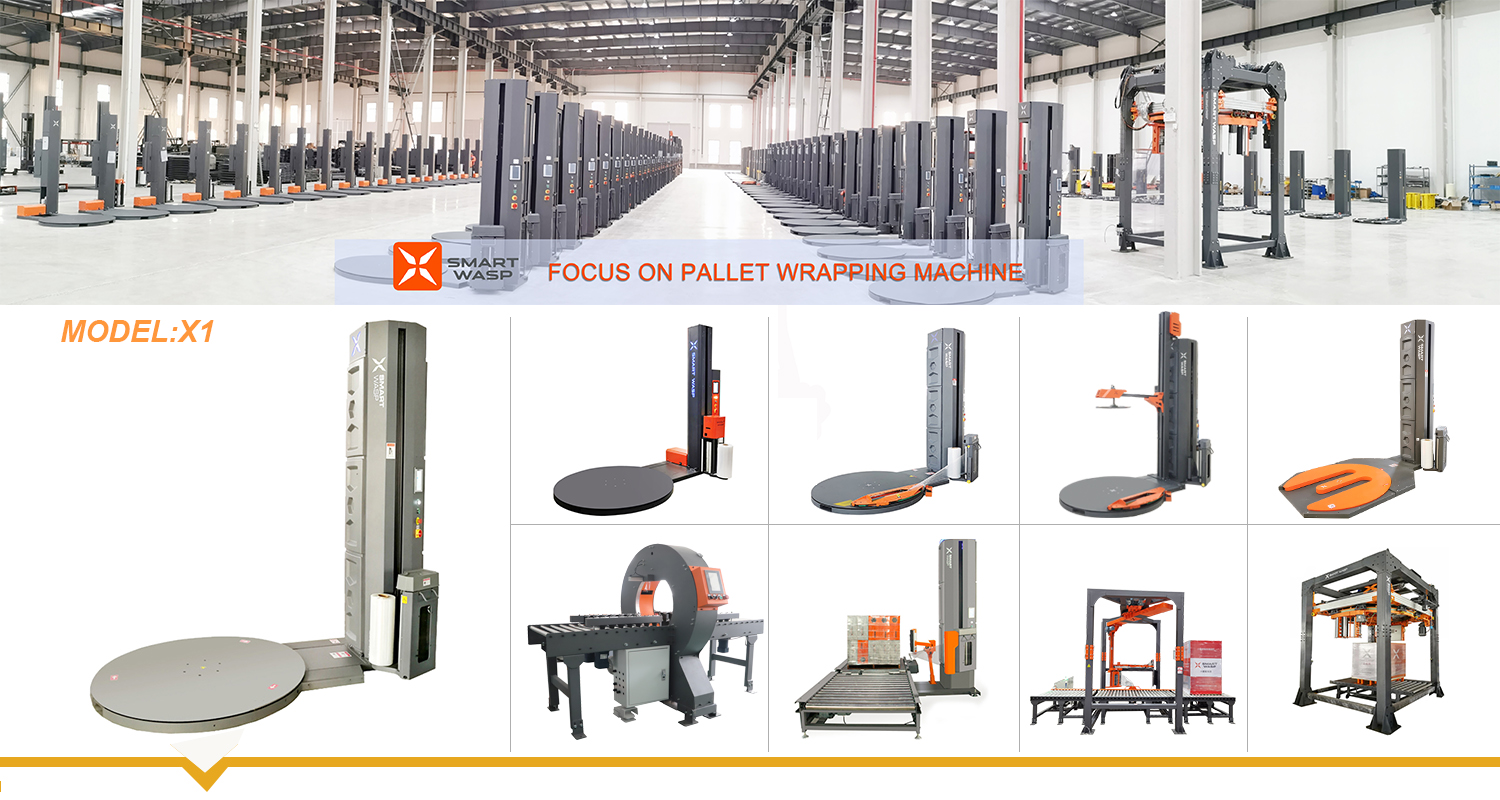

Standard machine series include: X0MS, X0PS, X1, X100, X3, X300, X5, and X500. Providing complete and customized wrapping solutions for diverse industries.

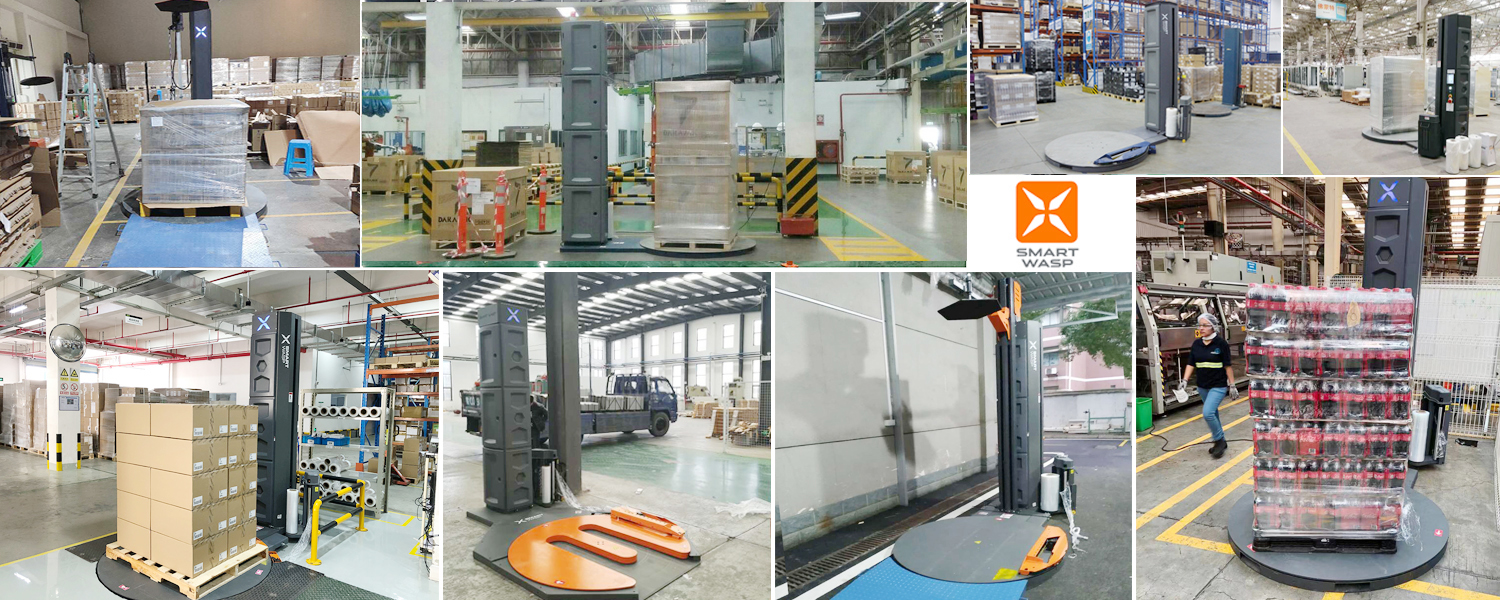

Proven automatic wrapping solutions implemented globally for companies like LG, Sharp, Heineken, and China Tobacco, backed by professional designs and extensive automation experience.
Ensuring machines are packaged safely. Suitable for global shipping in multiple container options.
| Shipping Type | 1 Set Machine / Crate (Size & Weight) | 2 Sets Machines / Crate (Size & Weight) | Mix Packing (FLC Shipping Only) |
|---|---|---|---|
| LCL Shipping | 2.98 x 1.8 x 0.9m 800KG |
2.98 x 1.8 x 0.95m 1500KG |
Turntable/crate, Carriage/crate, Tower/crate |
| Qty in 20 FT | 4 sets | 8 sets | 12 sets |
| Qty in 40 HQ | 8 sets | 16 sets | 24 sets |
Exhibitions attended annually across countries including Japan, Ukraine, Thailand, Malaysia, Germany, Poland, Mexico, and major professional events in China.
Time: 2024/6/23-25
Location: National Exhibition Convention Center (Shanghai), China
Time: 2024/7/18-22
Location: Qingdao Red Island International Convention Center, China
Time: 2024/10/26-29
Location: Shanghai New International Expo Center, China
The team features 210 staff members, including over 30 mechanical and electrical engineers. Professional international service support is active in regions like Ukraine, Thailand, Mexico, Malaysia, USA, Ireland, Poland, and Panama.

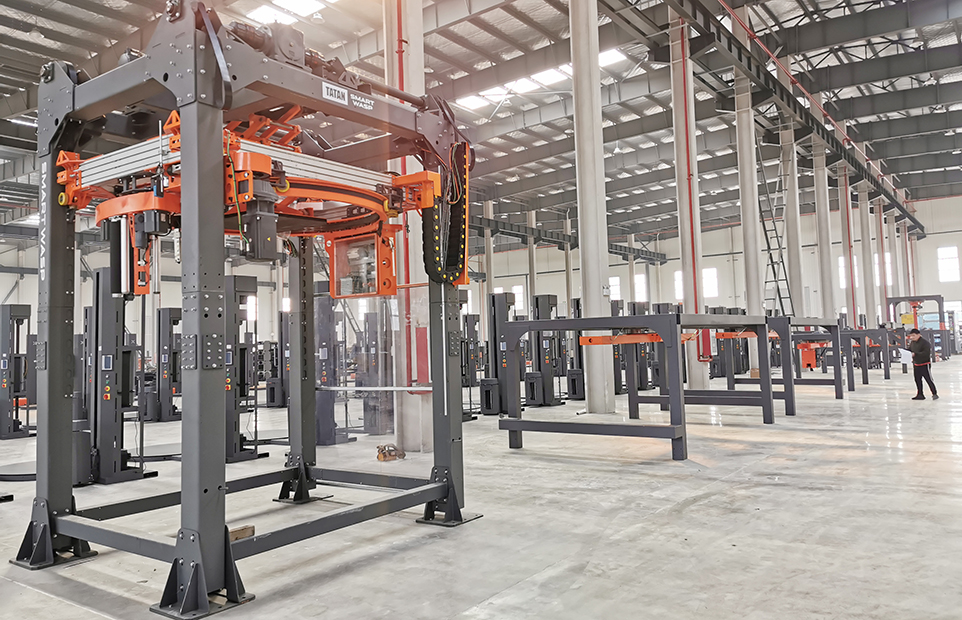

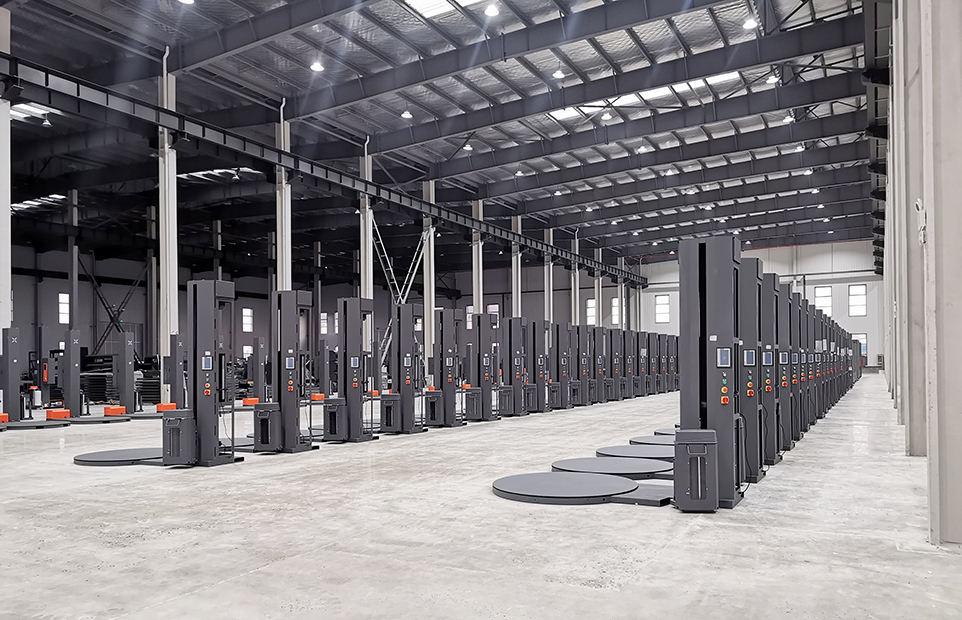

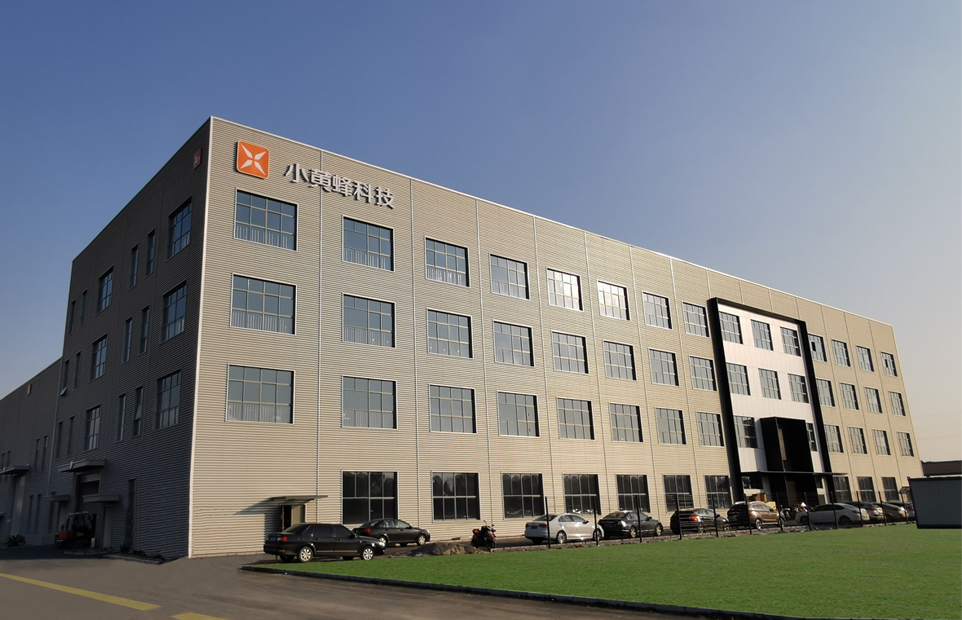

Specializing in the design, research, and manufacturing of intelligent pallet wrapping equipment and automated solutions. Operating from a modern 50-acre production plant, the high-speed ring wrapping and standard automatic models are widely utilized in over 60 countries by global enterprises.
