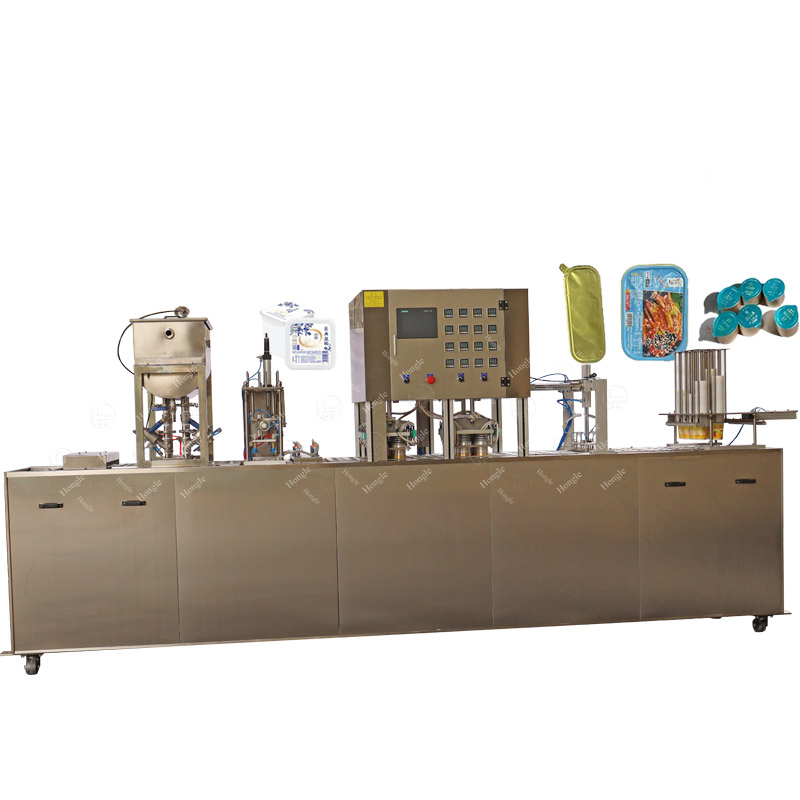

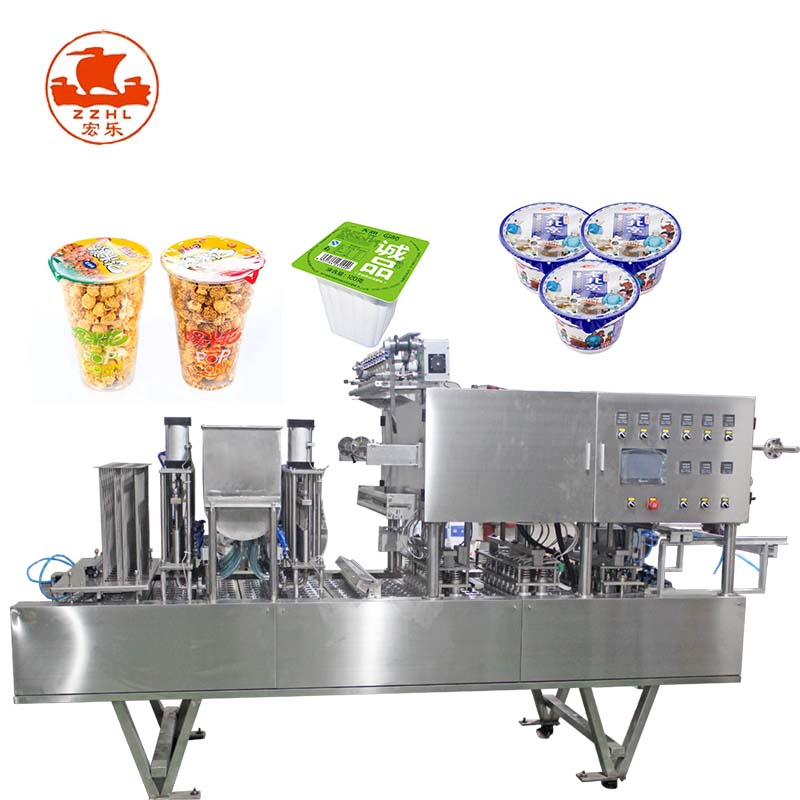

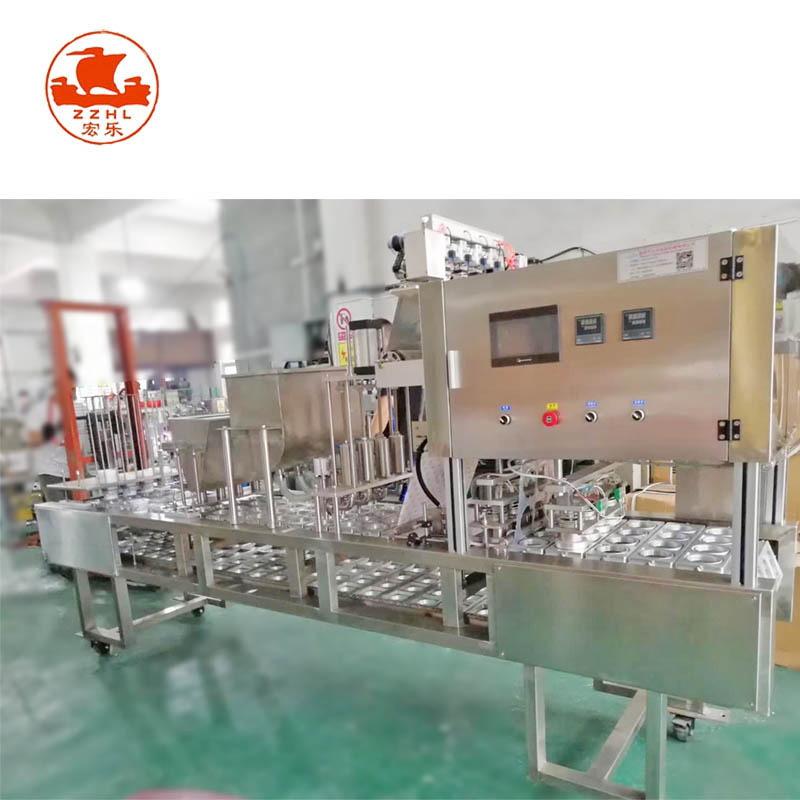

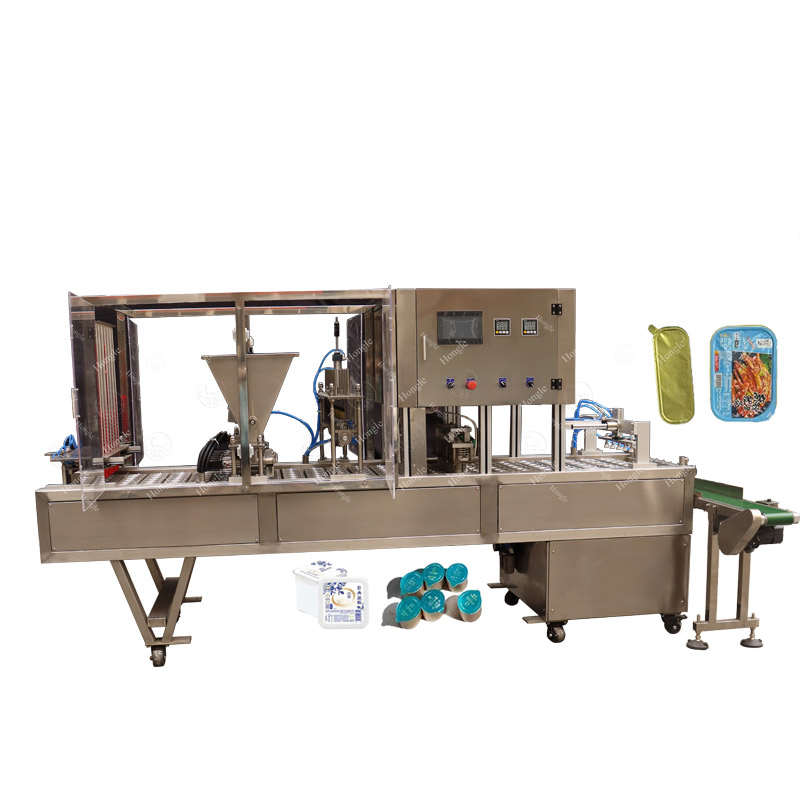

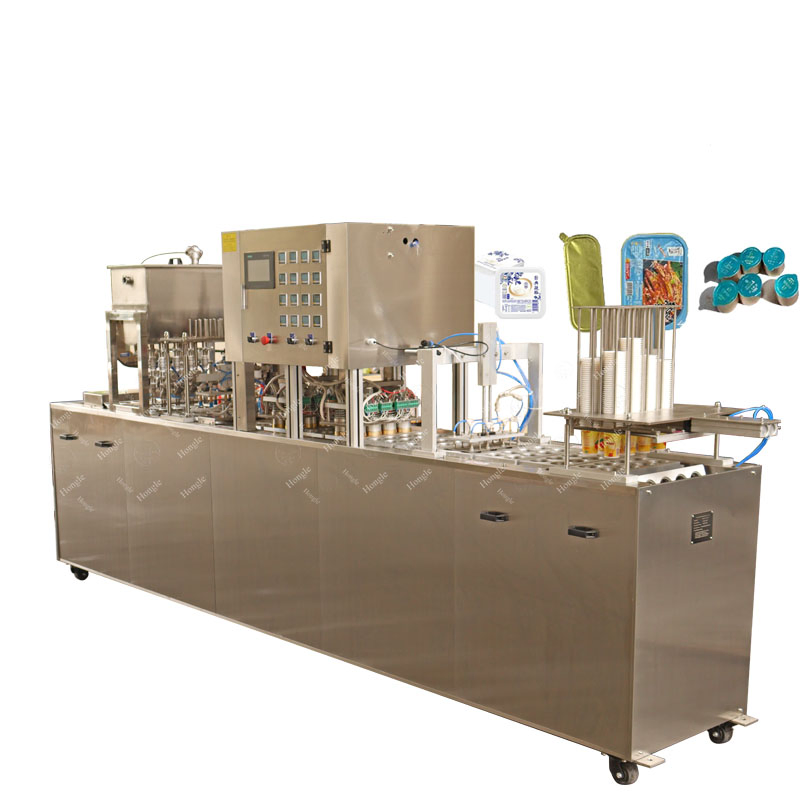

Automatic Jelly Juice Milk Meat Roll Film Cup Filling and Sealing Machine

Customization:	Available
After-sales Service:	Video Technical Support, Online Support
Warranty:	3 Years

Send Inquiry

Product Description

Overview
Product Parameters
Packaging & Shipping
Company Profile
Our Advantages
Exhibition
Customer Photos

Overview

Basic Info.

Model NO.

HLBG-4

Type

Volumetric Filling Machine

Automatic Grade

Automatic

Material Type

Liquid, Paste

Filling Valve Head

Multi-Head

Feed Cylinder Structure

Multi-Room Feeding

Dosing Device

Capacity Cup

Filling Principle

Pressure

Packaging Container Lifting Structure

Pneumatic Lifting

Structure

Linear

Packaging

Bottle

Packaging Material

Plastic

Product Name

Cup Filling and Sealing Machine Automatic

Function

Filling, Sealing

Name

Cup Vacuum Sealing Machine

Suitable

Food Beverage Machine

Weight

380

Size

305*90*165

Material

SUS304

Power

5kw

Transport Package

Standard Export Wooden Box

Specification

3000*850*1600mm

Trademark

OEM/ODM

Origin

China

Production Capacity

500 Sets/Month

Packaging & Delivery

Package Size

305.00cm * 90.00cm * 165.00cm

Package Gross Weight

380.000kg

Product Description

Product Application:

Cup filling and sealing machine have different specification sealing pump. We can design different machines as per client's requirements. It is suitable for filling and sealing any level drink and pasty products in different shapes and capability vessels. For example drink, water, milk, yogurt and so on.

Key Features:

The machine is made with beautiful stainless aluminum molding and with near bright outlook. All the contacting part which can touch the product of the machine is made by stainless steel; it can completely meet the hygienic standard.

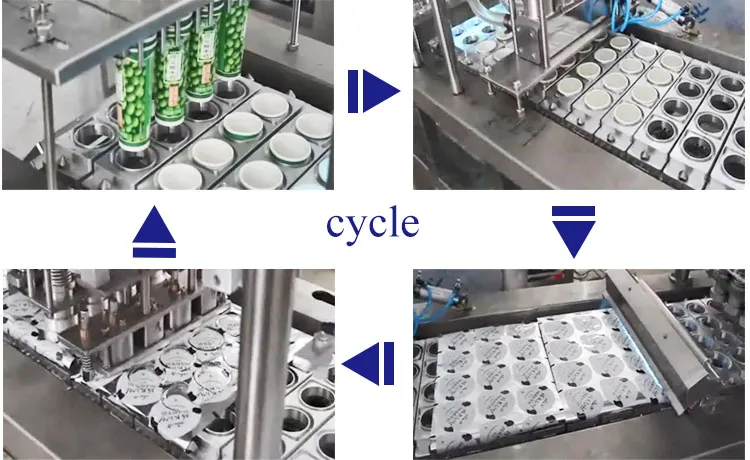

All the functions are worked on by machine. It is fully automatic from dropping the plastic vessel, filling, coding, sealing film, cutting film, producing the product to getting the scrap.
The machine is highly efficient and lets you have more economic benefit.
It has long life to use, simple adjustment, and easy maintenance.

Product Parameters

Model	Material	Voltage	Power	Capacity	Air consumption	Air pressure	Size
HLBG-2	SS304	220V/50HZ	1KW	1200-1500cups/h	0.6m³/s	0.5-0.8mpa	30005001600mm
HLBG-3	-	380V/50HZ	4KW	2000-2500pcs/h	-	-	30007001600mm
HLBG-4	-	380V/50HZ	5kw	3500-4000cups/h	-	-	30008501600mm
HLBG-6	-	380V/50HZ	7.5KW	5000-5500cups/h	-	-	300010501600mm
HLBG-8	-	380V/50HZ	9KW	6500-7000cups/h	-	-	300012501600mm
HLBG-10	-	380V/50HZ	12kw	9000-9500cups/h	-	-	300014001600mm

Detailed Specifications: Model HLBG-4

Model: HLBG-4

Voltage: 380V/50HZ

Power: 5KW

Capacity: 3750 cups/hour

Air consumption: 0.6m³/s

Air pressure: 0.5-0.8mpa

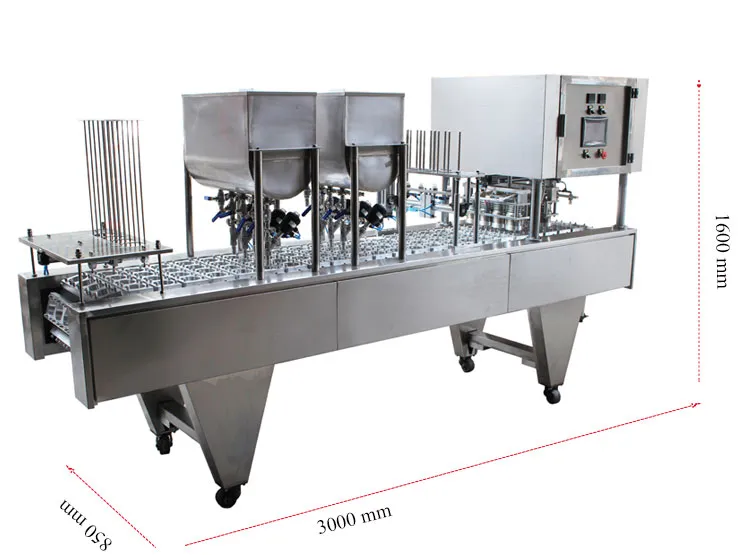

Size: 3000*850*1600mm

Material: SUS304

Conveyor belt: White

Features: Including feeding for powder (4 lines)

Suitable for cup specifications:

Height: 99mm, Upper diameter: 95mm, Bottom diameter: 66mm
Height: 99mm, Upper diameter: 96mm, Bottom diameter: 75mm

Please tell us your requirements, we can customize the machine according to your requirements.

Packaging & Shipping

Automatic Jelly Juice Milk Meat Roll Film Cup Filling and Sealing Machine Packaging

Company Profile

Established in 2011, we are a professional manufacturer engaged in the research, development, production, sale, and service of all kinds of food machinery and supporting machinery production lines, packaging machines, water treatment equipment, and extraction and concentration production equipment.

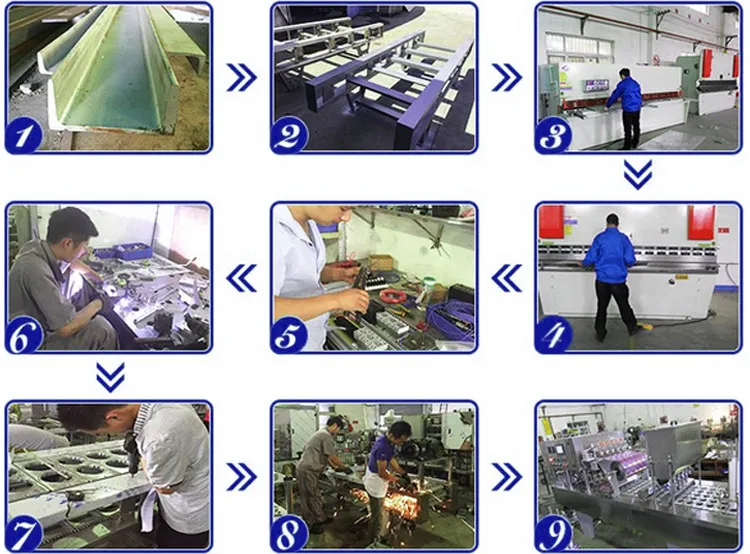

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our factory has introduced a series of advanced equipment including milling machines, drilling machines, shearing machines, and cutting machines. In addition, we have obtained CE certificates, using parts purchased from world-renowned manufacturers.

Selling well in all cities and provinces across the market, our products are also exported to clients in countries and regions such as Europe, North America, Southeast Asia, Africa, South America, and South Korea, receiving positive feedback from our customers. We provide overseas customers with excellent product after-sales service, including remote guidance and support. We also welcome OEM and ODM orders.

Our Advantages

Exhibition

Customer Photos

Frequently Asked Questions

What types of products can this cup filling and sealing machine process?

This machine is highly versatile and suitable for filling and sealing liquid and paste products of different viscosity levels, such as water, juice, milk, yogurt, jelly, and other similar beverages or food items.

Can the machine be customized for specific cup sizes and shapes?

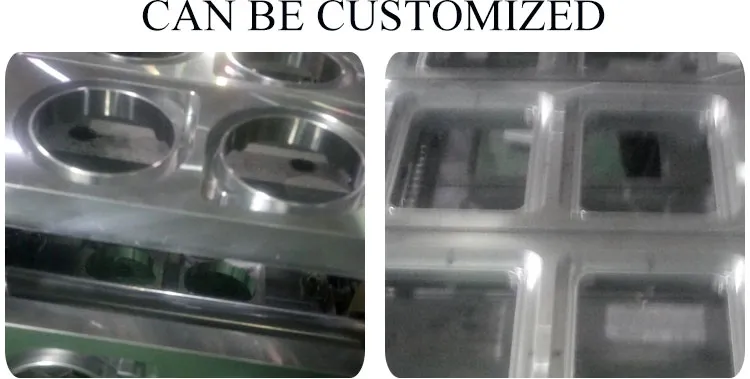

Yes, we offer custom design services. The filling and sealing components can be customized to match your specific container size (upper/bottom diameter, height) and vessel shapes based on your production requirements.

Is the machine construction compliant with food safety standards?

Absolutely. All parts that come into contact with the food products are built using high-grade SUS304 stainless steel. This meets strict international hygienic standards for food and beverage packaging machinery.

How automatic is the operation process?

The machine is fully automatic. It systematically controls the entire cycle: cup dropping, product filling, coding/printing, film sealing, precise film cutting, and the collection of leftover scrap film.

What is the production capacity range of these sealing machines?

Our machines range in capacity depending on the model. For instance, the HLBG-2 model offers 1,200 to 1,500 cups per hour, while high-capacity models like the HLBG-10 can reach up to 9,000 to 9,500 cups per hour.

What kind of utility support is required to operate the machine?

The system runs primarily on electricity (commonly 220V/50HZ or 380V/50HZ depending on model power requirements) and requires a stable pneumatic air source with working pressure between 0.5 to 0.8 MPa.
