| Parameter | Details / Values |
|---|---|
| Filling Head | 8 |
| Filling Volume | 100-1000ml |
| Filling Accuracy | 100-200ml ±1g; 201-500ml ±1.5g; 501-1000ml ±2g; Customized (varies according to material characteristics and volume) |
| Applicable Bottle Type | Round Bottle: Φ40-95mm, Height: 80-230mm; Tetragonal Bottle: Length/Width 40-95mm, Height 80-230mm; Customization Accepted |
| Production Capacity | 100ml ≥ 50bottles/min; 500ml ≥ 40bottles/min; 1000ml ≥ 25bottles/min (varies slightly depending on product characteristics) |
| Air Operated Resource | 0.6 ~ 0.8Mpa (dry and clean compressed air) |
| Power Supply | AC380V Three Phase 50Hz |
| Total Power | 2.5KW |
| Air Consumption | 200 L/min |
| Overall Dimensions (Main Machine) | 1795 × 1240 × 2068mm (L × W × H) |
| Overall Weight | 1100 KG |

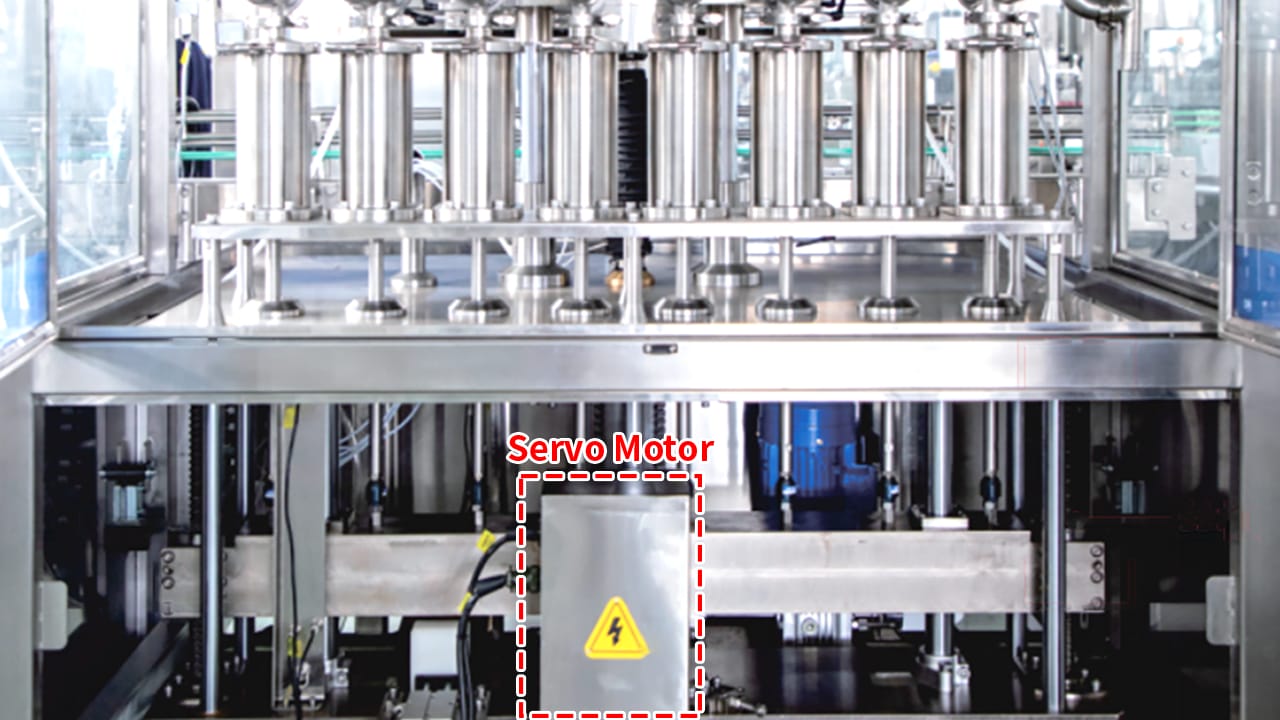

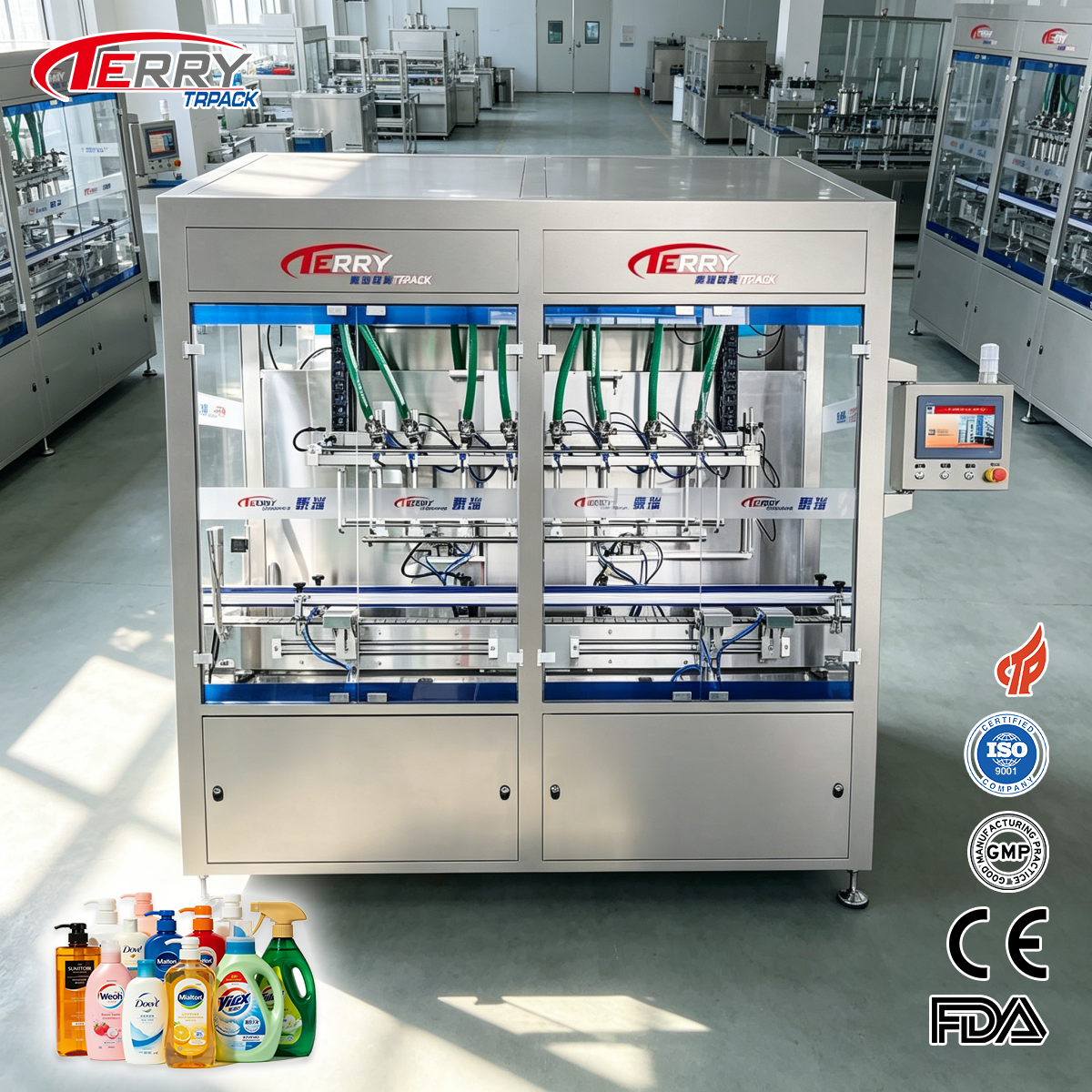

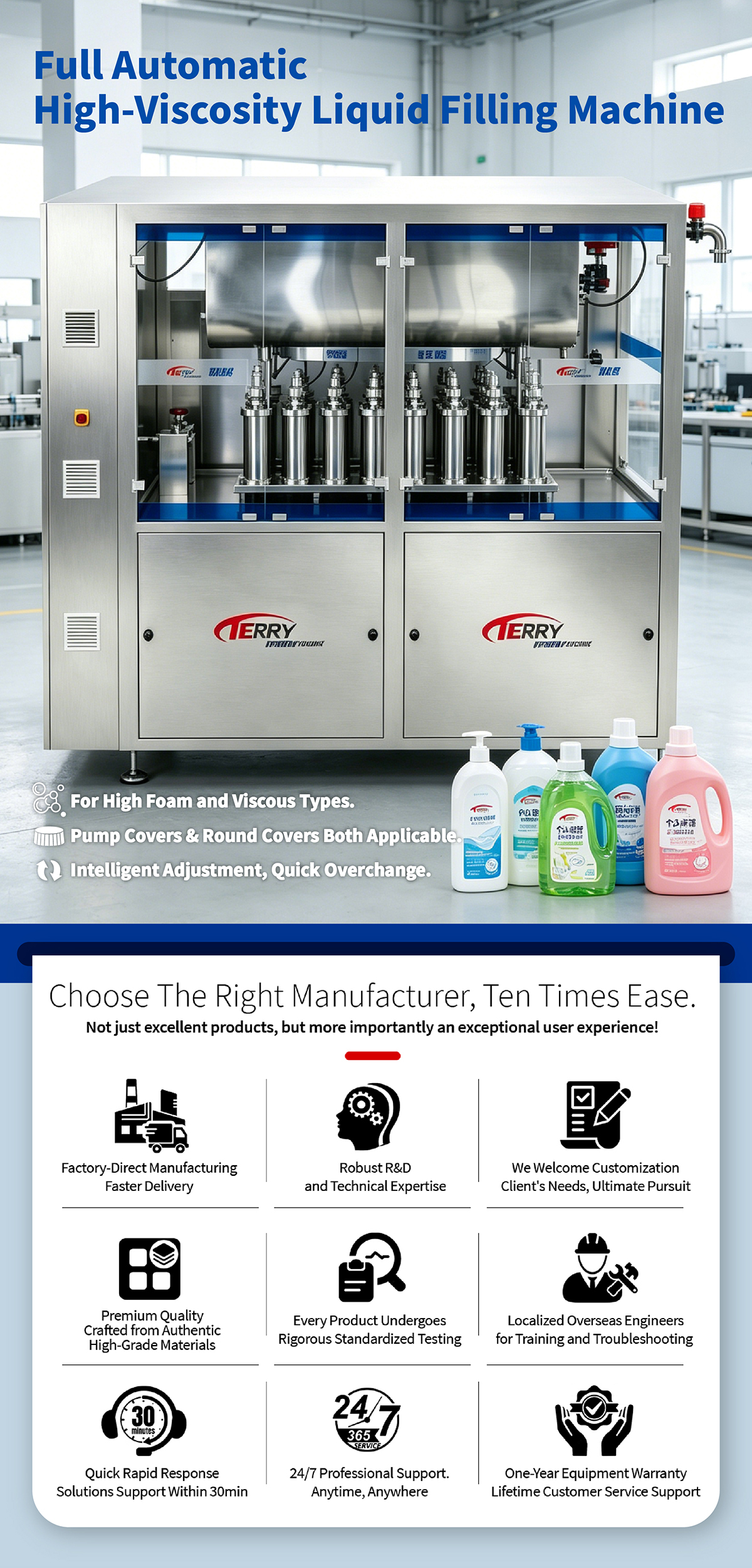

Utilizes servo motor filling for high precision and adjustable filling speed, enabling customized filling rates for different materials.

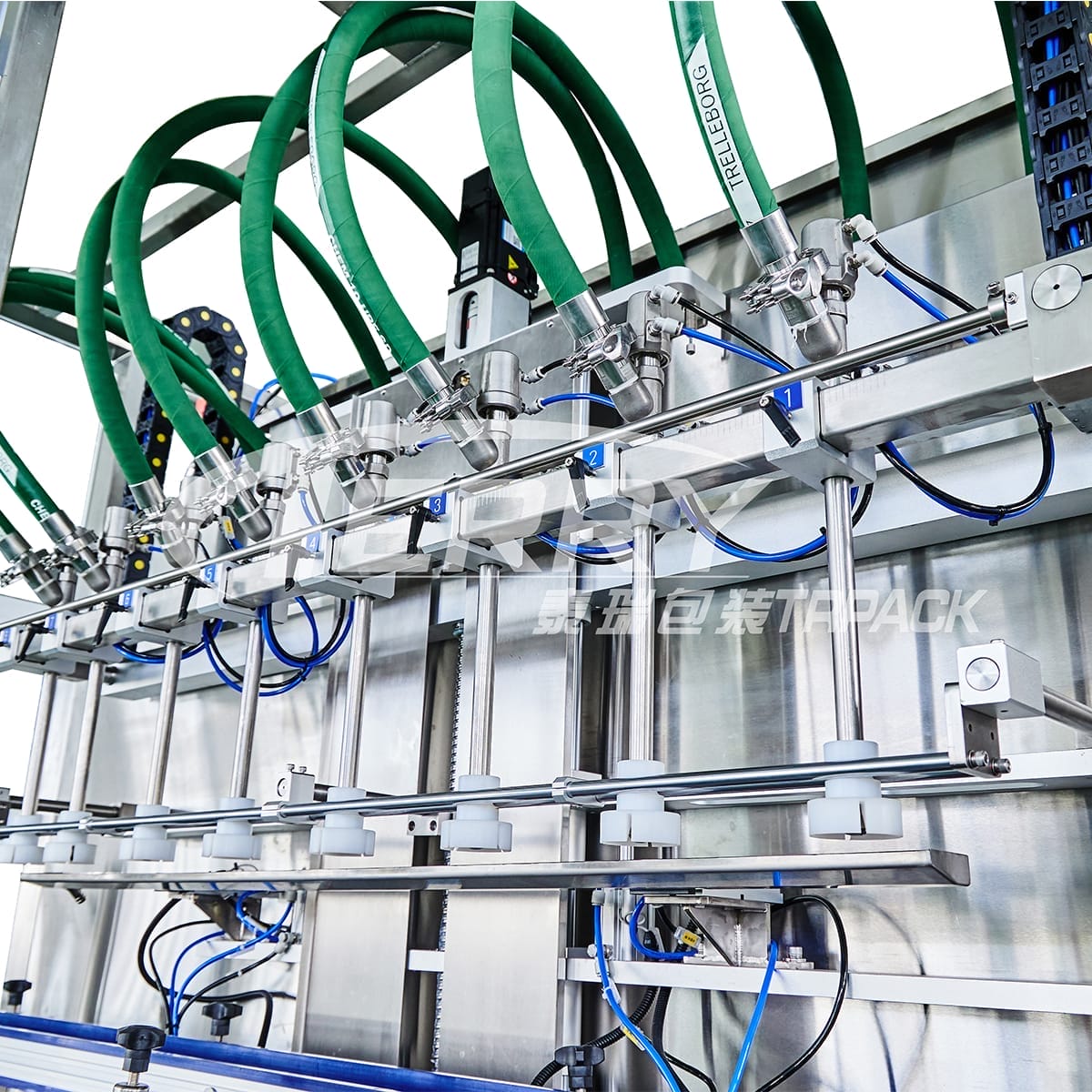

Features servo motor-controlled submerged filling heads: heads submerge into bottles, rising synchronously with liquid levels to prevent overflow of high-foam materials.

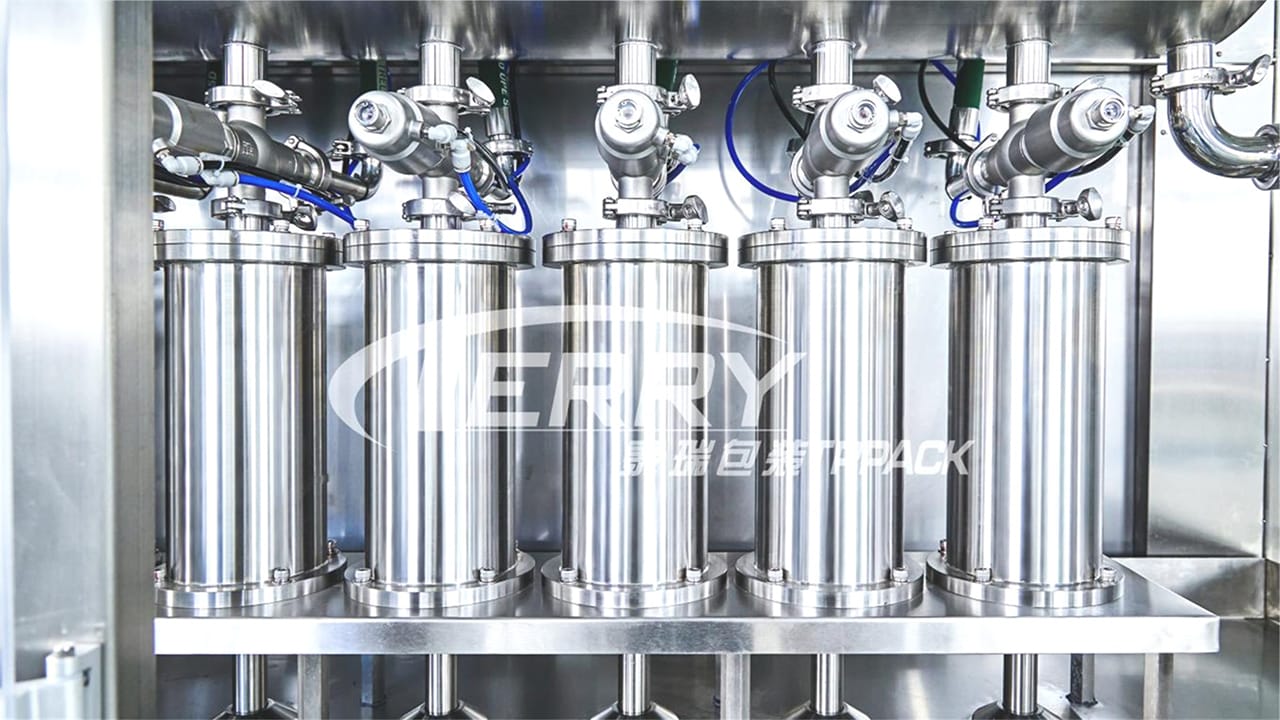

The filling unit features a demountable cylinder structure, enabling complete emptying of the material cylinder to prevent cross-contamination and facilitate seal ring replacement.

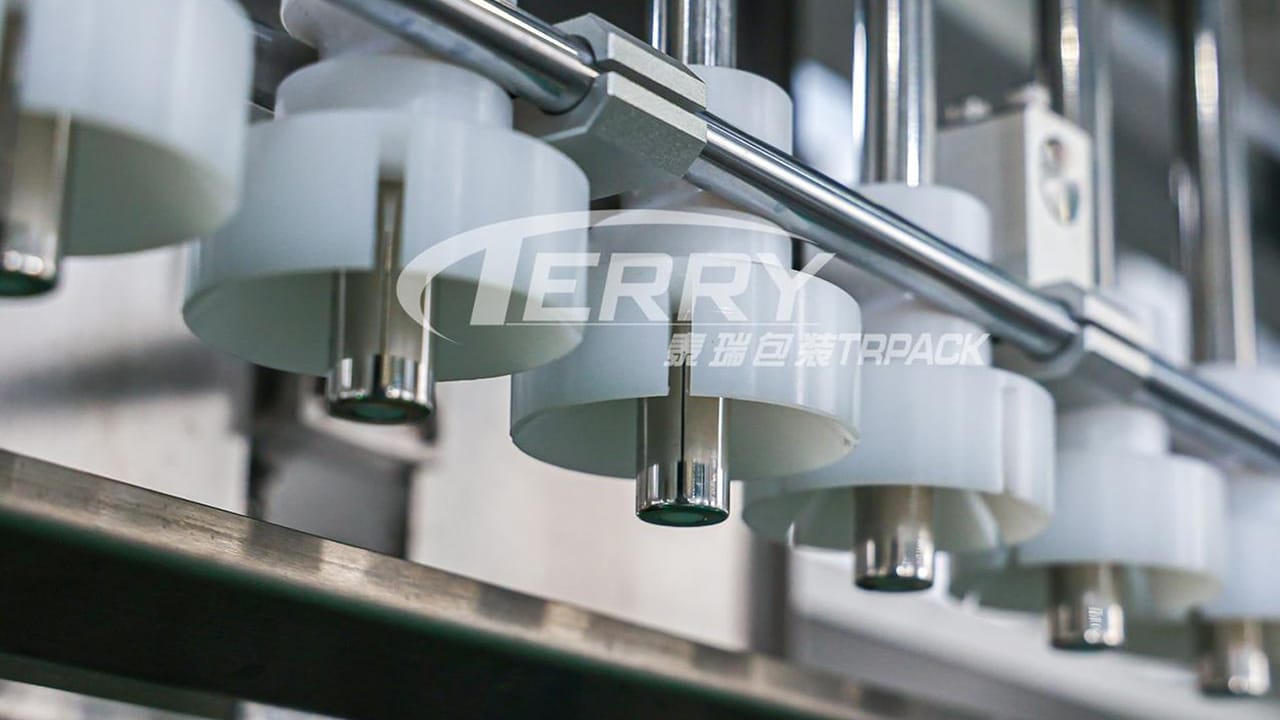

The filling nozzle incorporates an internal plug design to prevent dripping. Each set features a bottle mouth clamping function to prevent impact on the bottle opening.

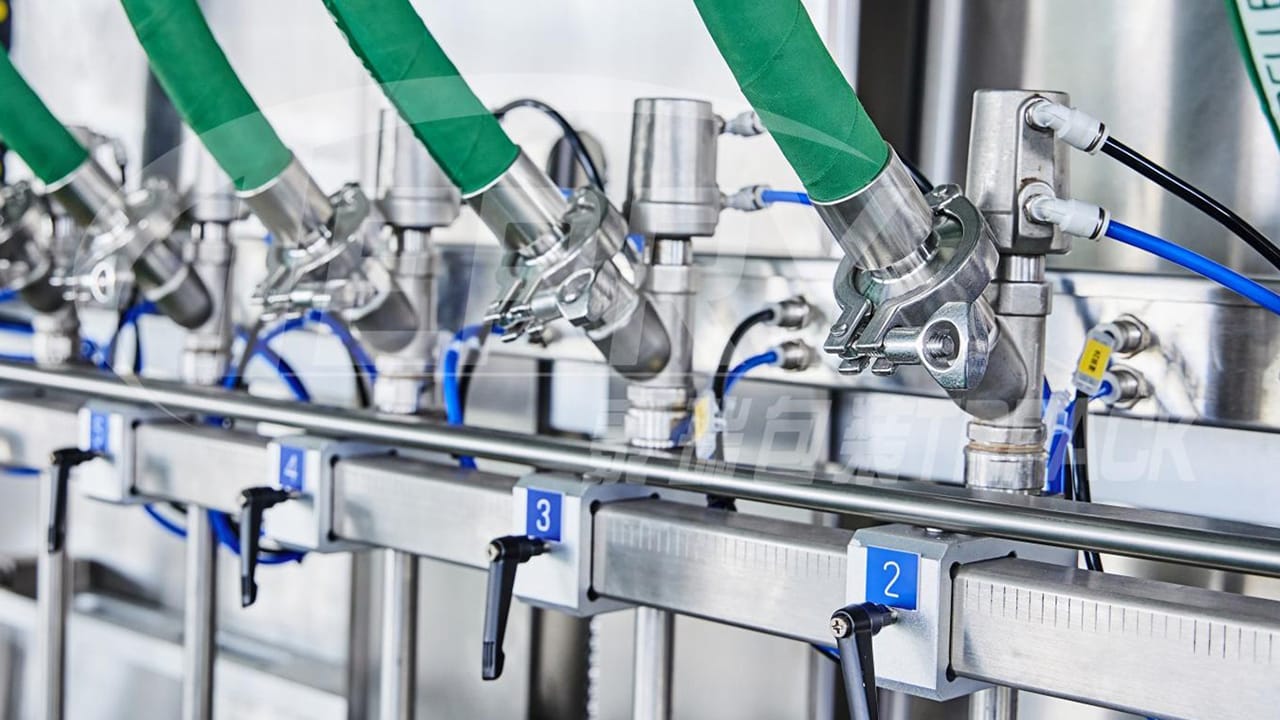

Spacing between filling heads adjusts via snap-fit components according to bottle size, offering quick and convenient adaptation.

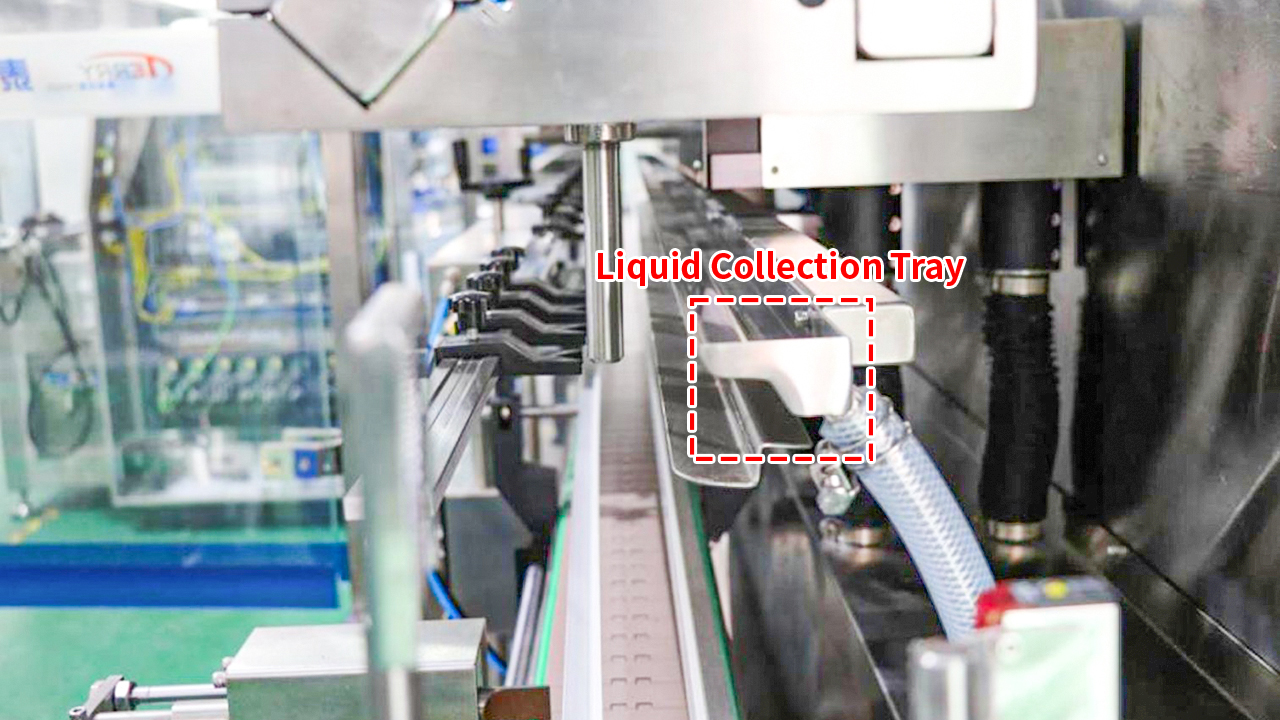

An independently pneumatic-controlled drip collection tray is installed beneath the filling head to prevent residual liquid dripping onto the bottle mouth after the filling head closes.

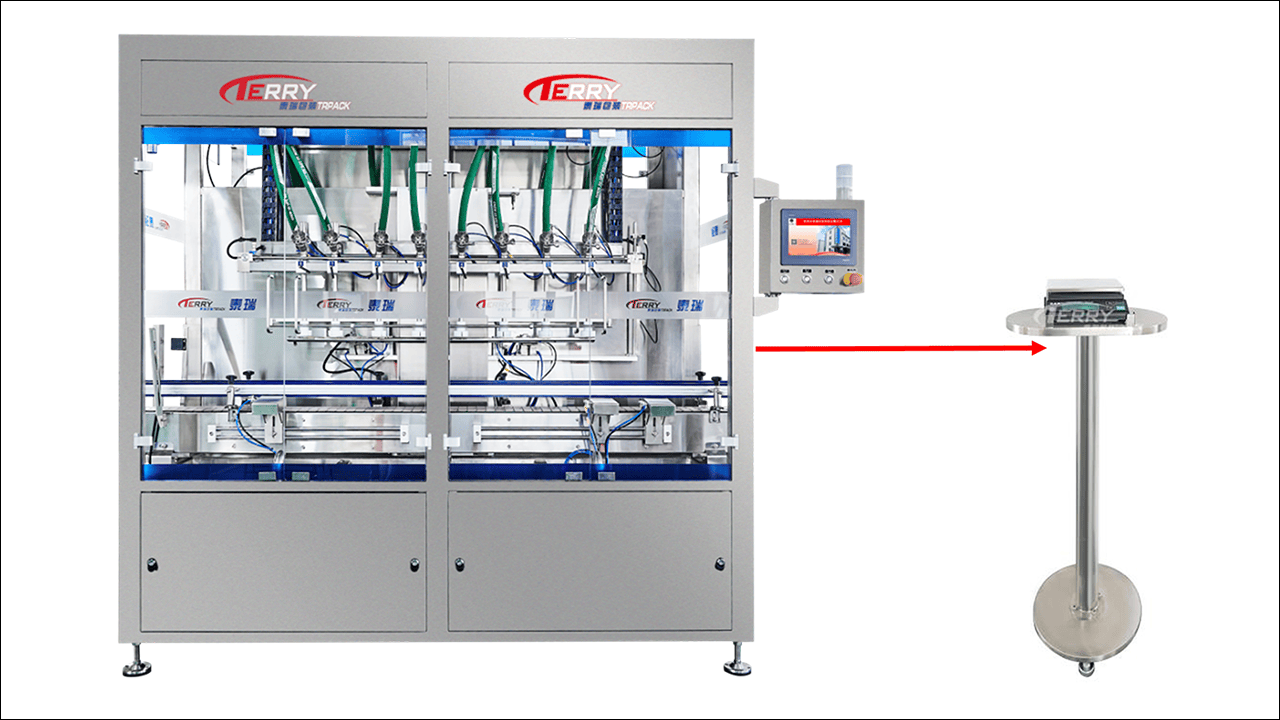

Equipped with an automatic weighing feedback system for automatic dose adjustment (used for dose calibration during setup; not for online check weighing).

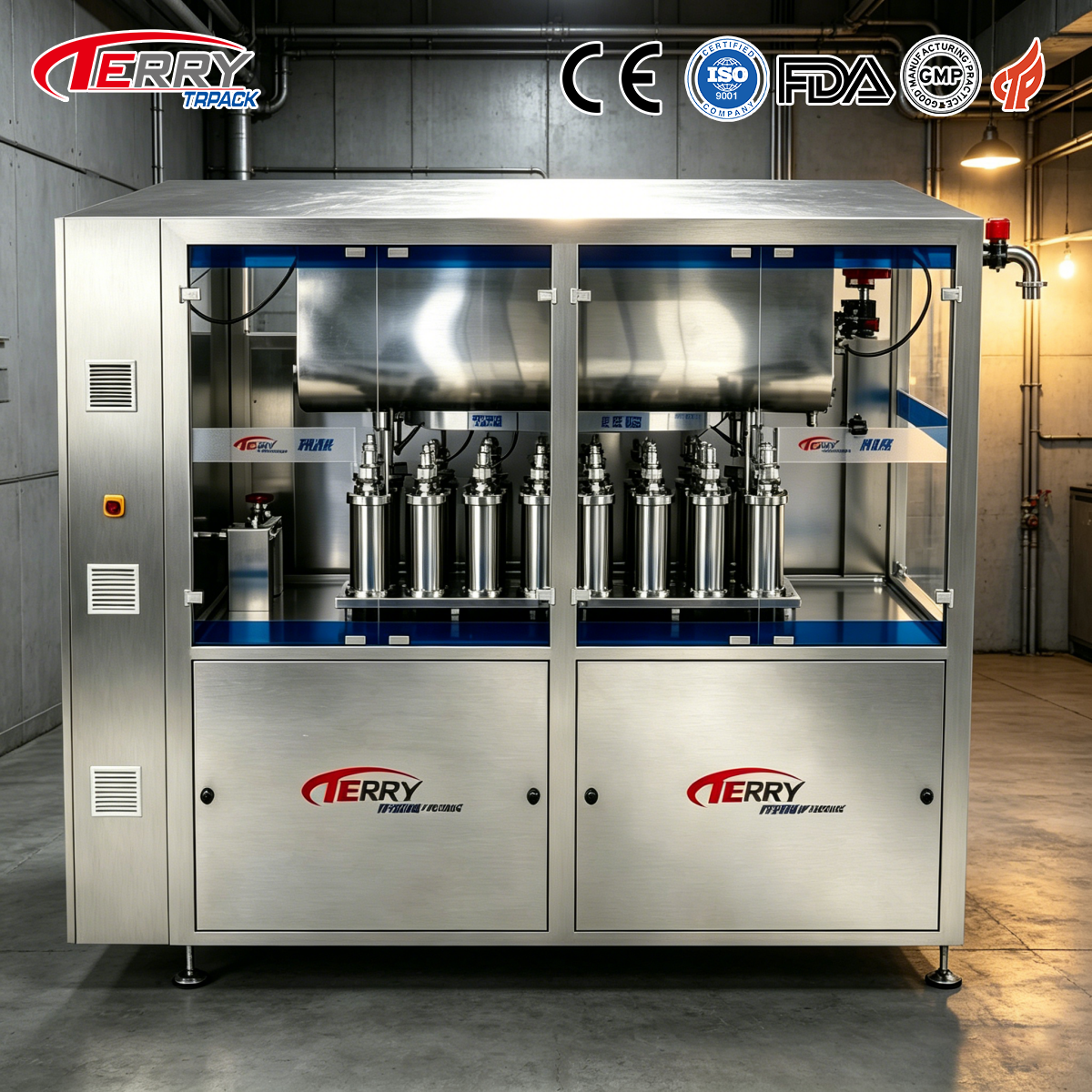

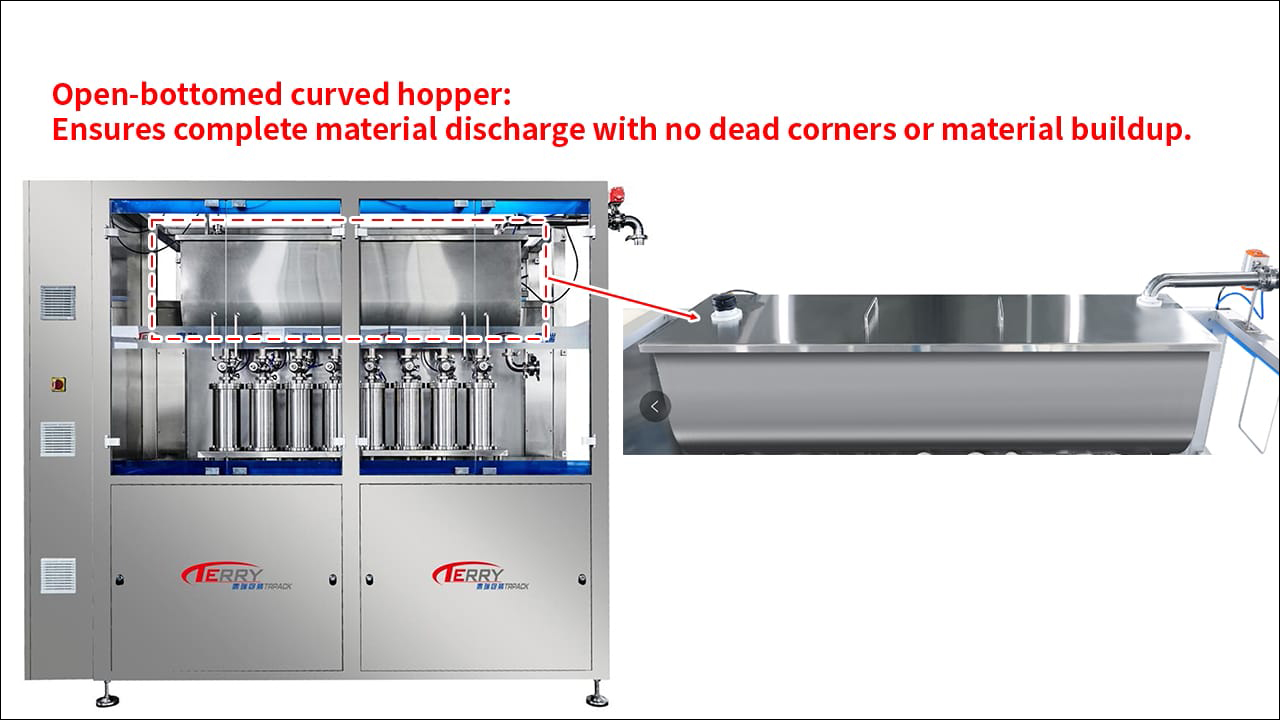

Utilizes an open-bottom curved hopper for material loading with a mirror finish for easy cleaning. Hoppers include liquid level detection devices for automatic monitoring.

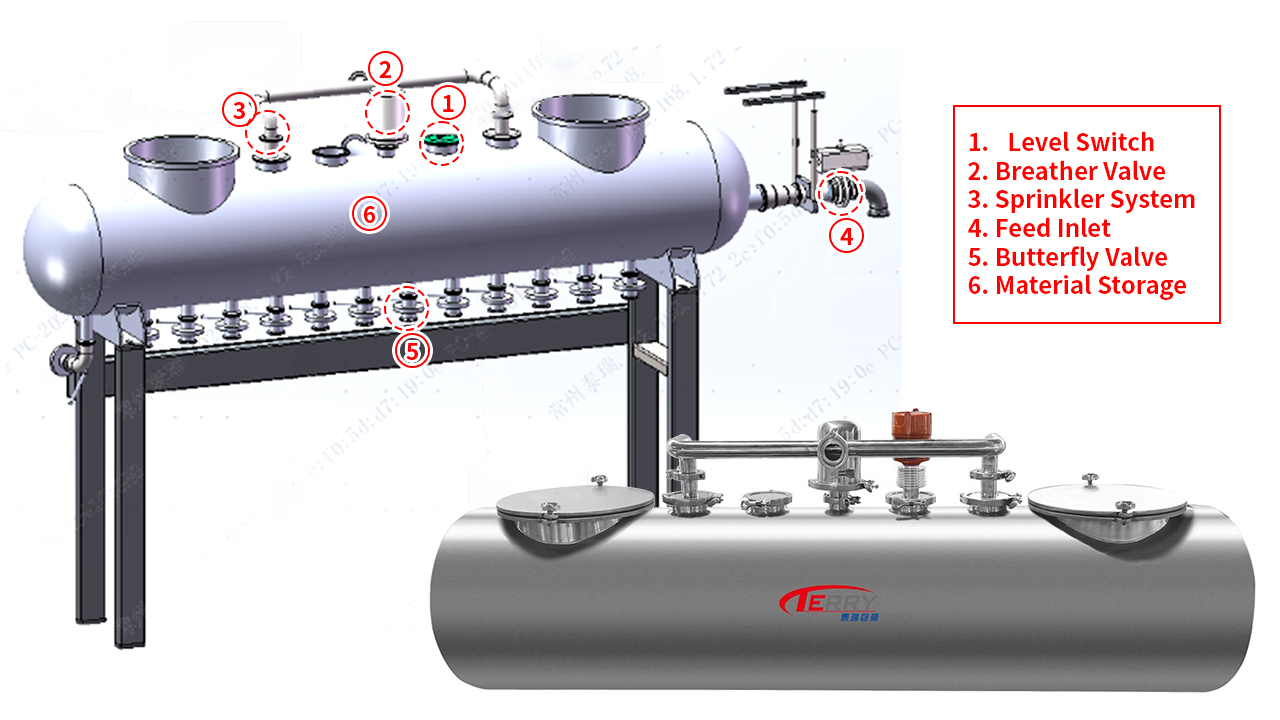

| Constituent Parts | Primary Functions |
|---|---|
| Level Switch | Ceases material replenishment at high liquid levels and alerts for replenishment at low levels |
| Breather Valve | Maintains material tank pressure equilibrium to minimize liquid evaporation |
| Sprinkler System | Online cleaning capability |
| Feed Inlet | Replenishment Channel |
| Butterfly Valve | DN40 butterfly valve for switching material flow between the tank and piston cylinder |
| Material Storage | Loads materials for filling operations |
Avg Transportation Trolley, Bottle Picking And Mold Loading Machine, Water and Lotion Line, Carton Machine. (Essence, Perfume, Toner, Hair Treatment)

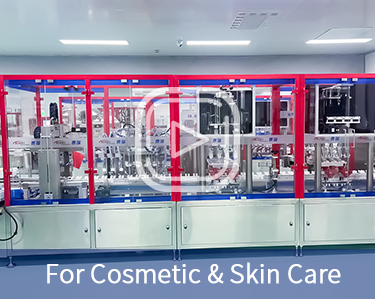

Fully Automatic Filling Lines for Lotion and Cream, Automatic Bottle Loading and Unloading Machine.

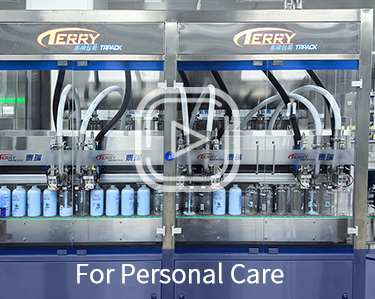

Gear Pump Filler, Continuous Cap-Securing Machine, Case Packer, Sealing Machine, Box Labeling Machine, Robot Palletizer.

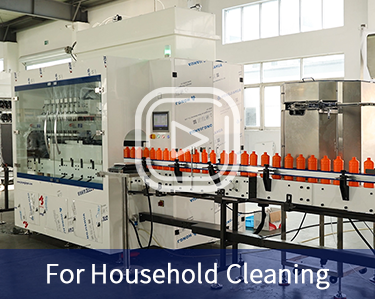

Eight-Head Tracking Anti-Corrosion Gear Pump Filling Machine, Automatic Top Cover Sorting Loading Machine. (Toilet Cleaner, Grease Remover)

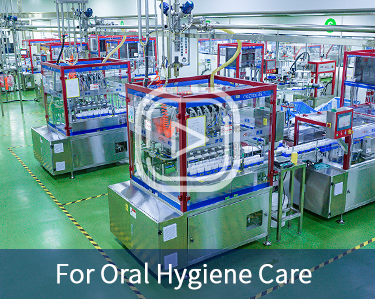

Automatic Tube Feeding Machine, Fully Automatic Turntable Machine, Filling, Capping And Sealing Integrated Machine. (Oral Spray, Oral Freshener)

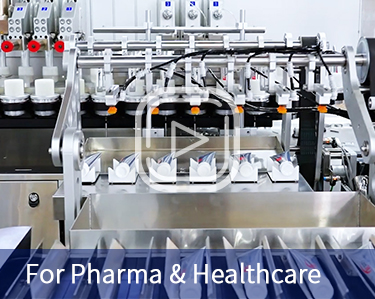

Fully Automatic High-Speed Tube Machine; Fully Automatic High-Speed Carton Machine. (Facial Cleanser, Hand Cream, Ointments)
