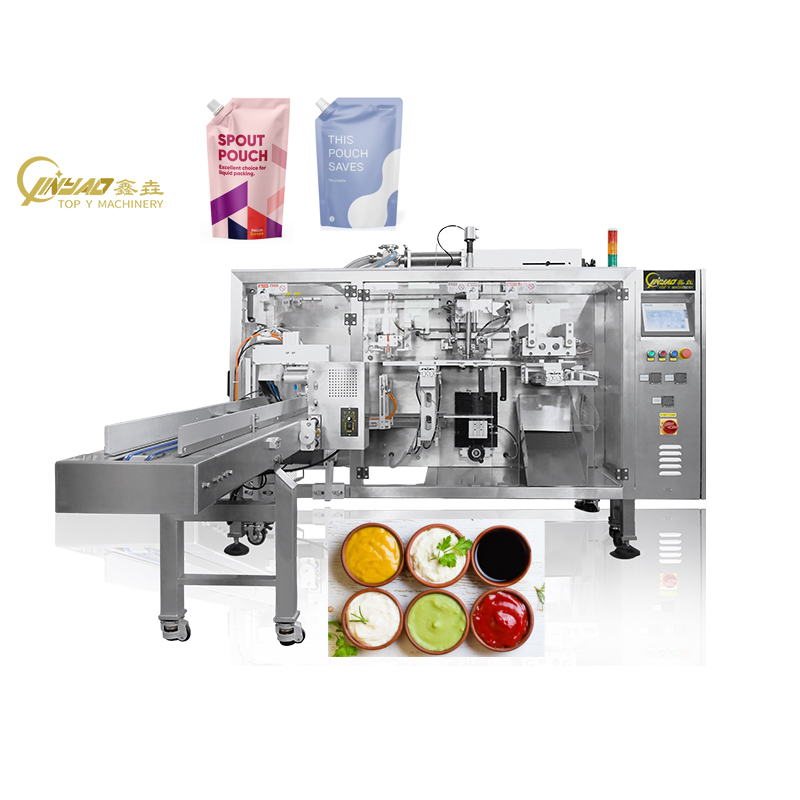

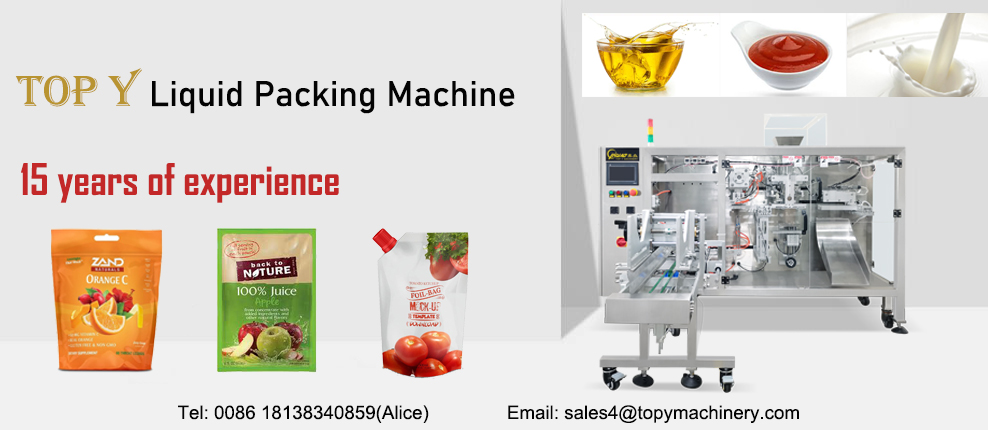

Automatic Premade Bag Stand Up Pouch Juice Liquid Packaging Machine Tomato Sauce Curry Paste Doypack Filling Packing Machine

Automatic weighing and packing system for your current and future needs! The functions of the packing system mainly are conveying, weighing, filling and bag sealing. Realize automatization, save labor and increase the output.

The flexibility of it allows us to customize the most suitable machine to meet your individual requirements!

■

A. Powder Packing Solution: Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, medicinal powder, etc.

■

B. Liquid Packing Solution: Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.

■

C. Solid Packing Solution: Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.

■

D. Granule Packing Solution: Linear weigher is specialized for granule filling such as chemical, beans, salt, seasonings etc.

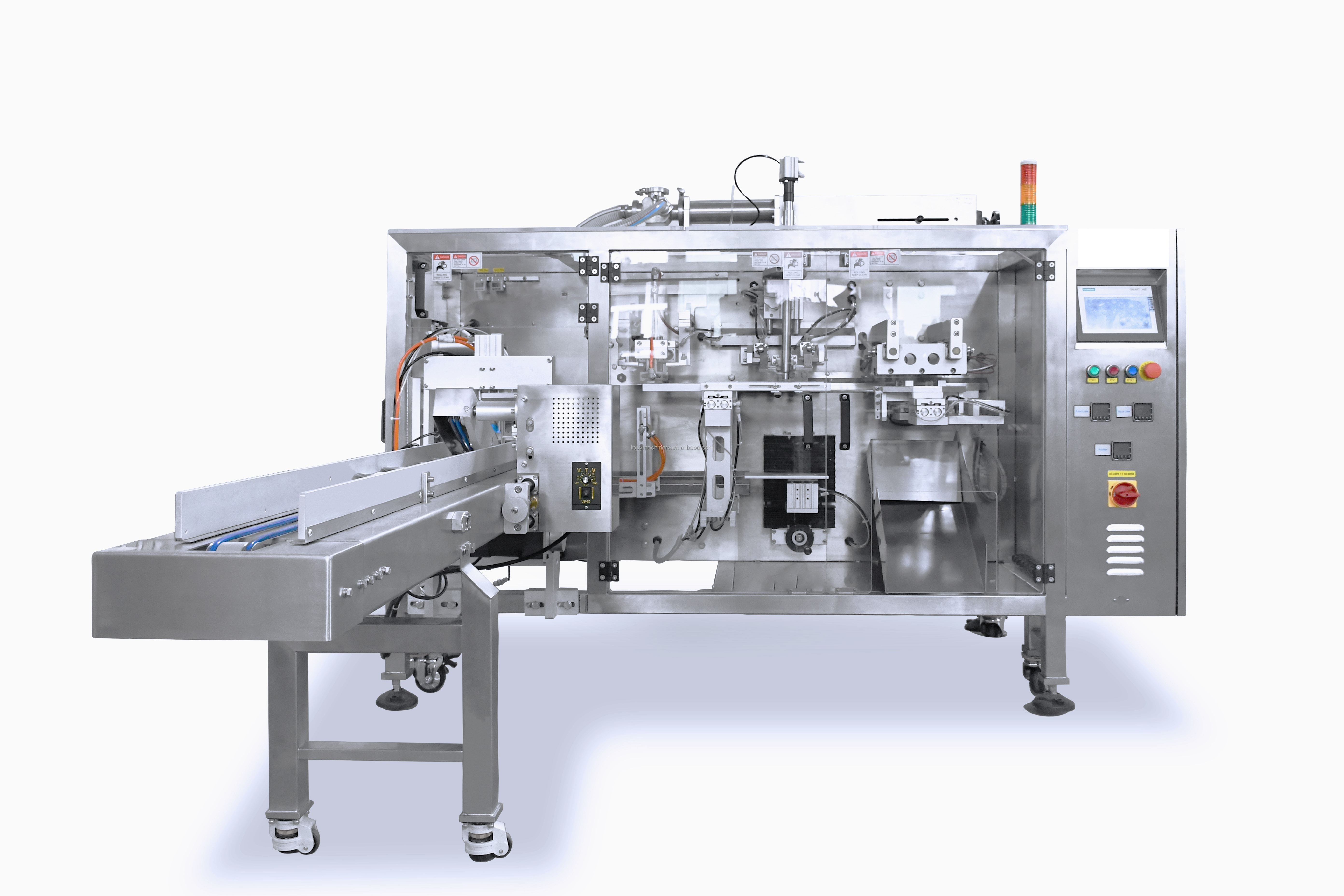

Liquid Filling and Packing Solution

Combine with the piston pump, this system can handle various liquid, like sauce, oil, juice, etc.

Weighing accuracy: 1-2%

Speed: 15-20bags/min

Material: Full SS#304(food grade)

Bag dimension: adjustable

Bag type: all kinds of premade pouched

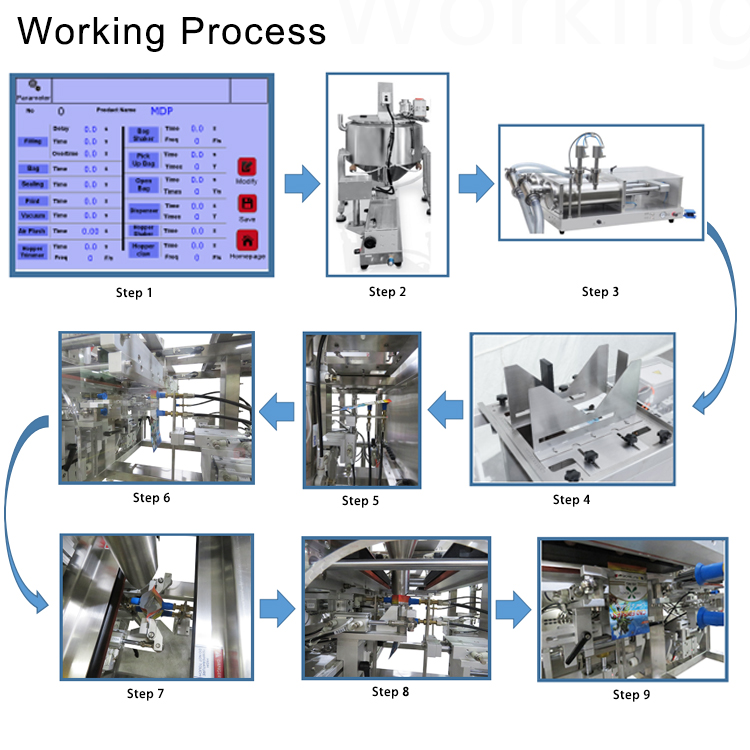

Operation Workflow

1

Set the parameters we need on HMI

2

Pour bulk products into the storage hopper manually or automatically

3

Piston pump dosing machine will dose target weight we need

4

Put bags into bag feeder

5

Zipper device open the ziplock

6

Positioning bags to the filling station

7

Bag open and sending out "request filling" signal

8

Filling machine drop down products with target weight into open bags

9

The sealing jaws seal bags automatically

Product Parameters

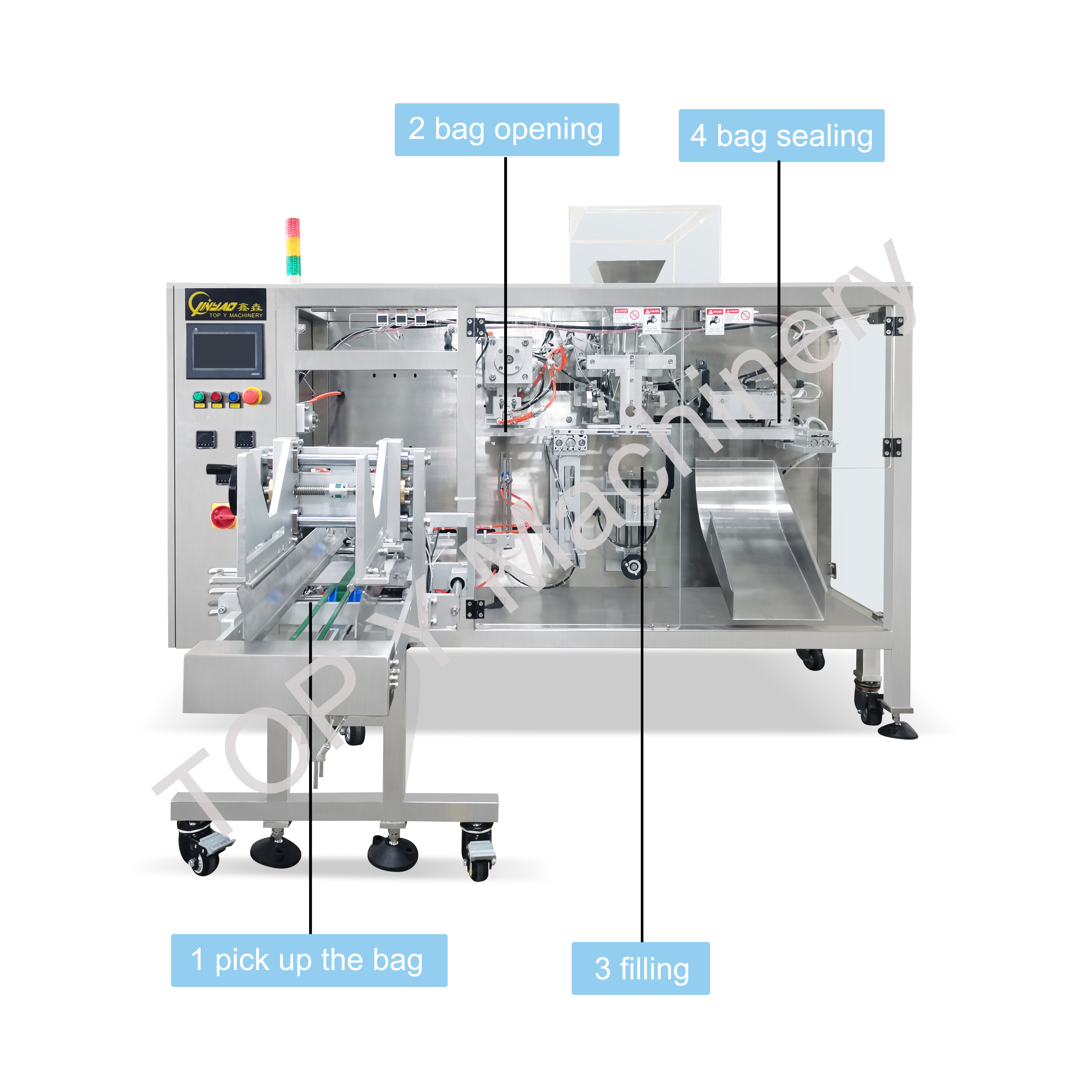

Key Features & Stations

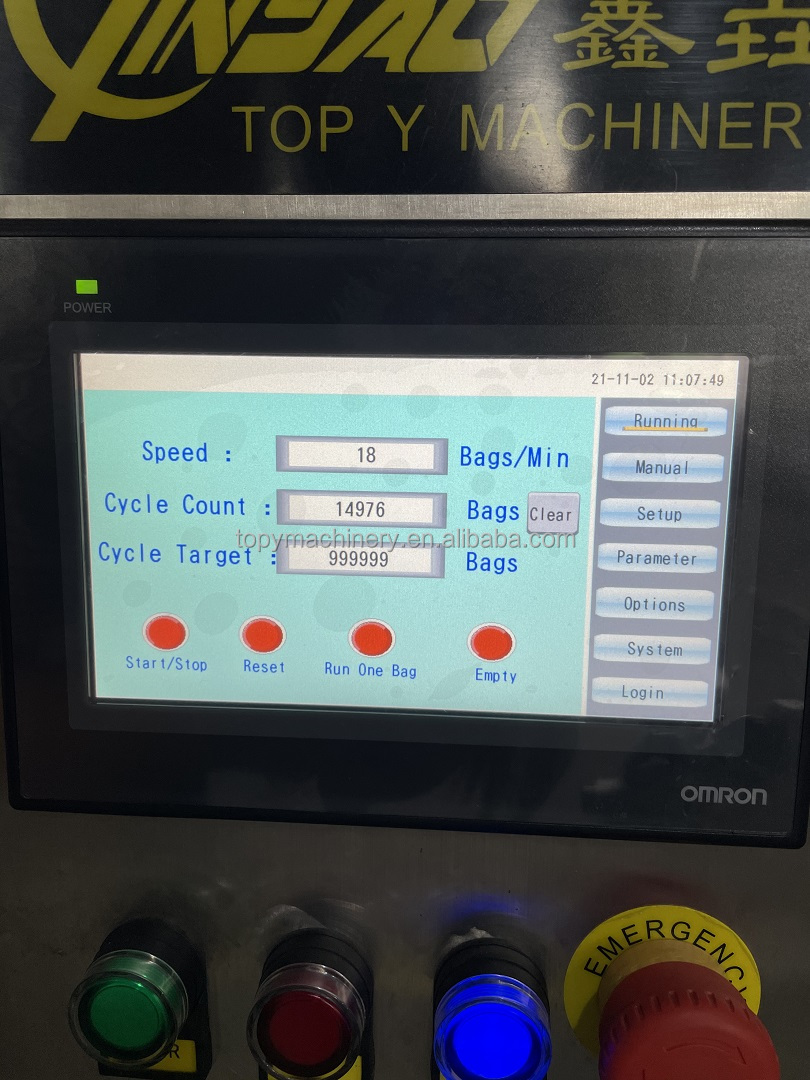

Speed

1. Highest speed can reach 20bags/min

2. It can be adjusted according to filling time

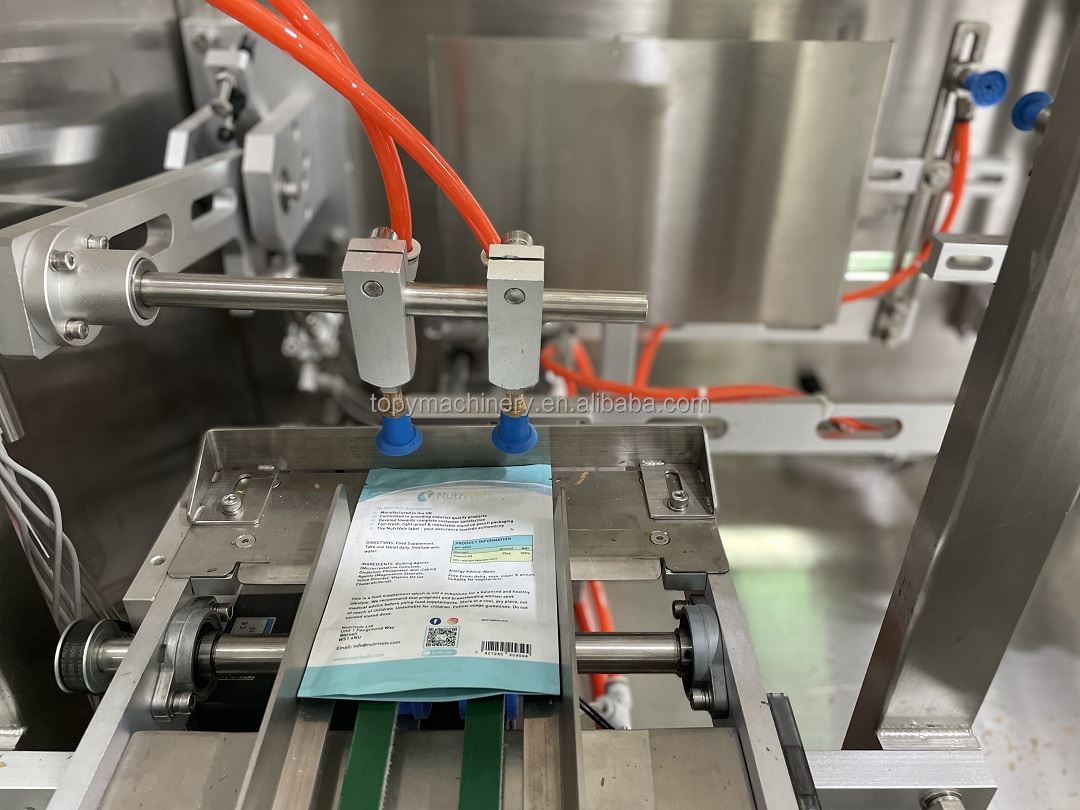

Bag feeder and bag picking up station

1. Flexible enough to fit different bag dimensions

2. Use the high quality suction cup to pick up the bag

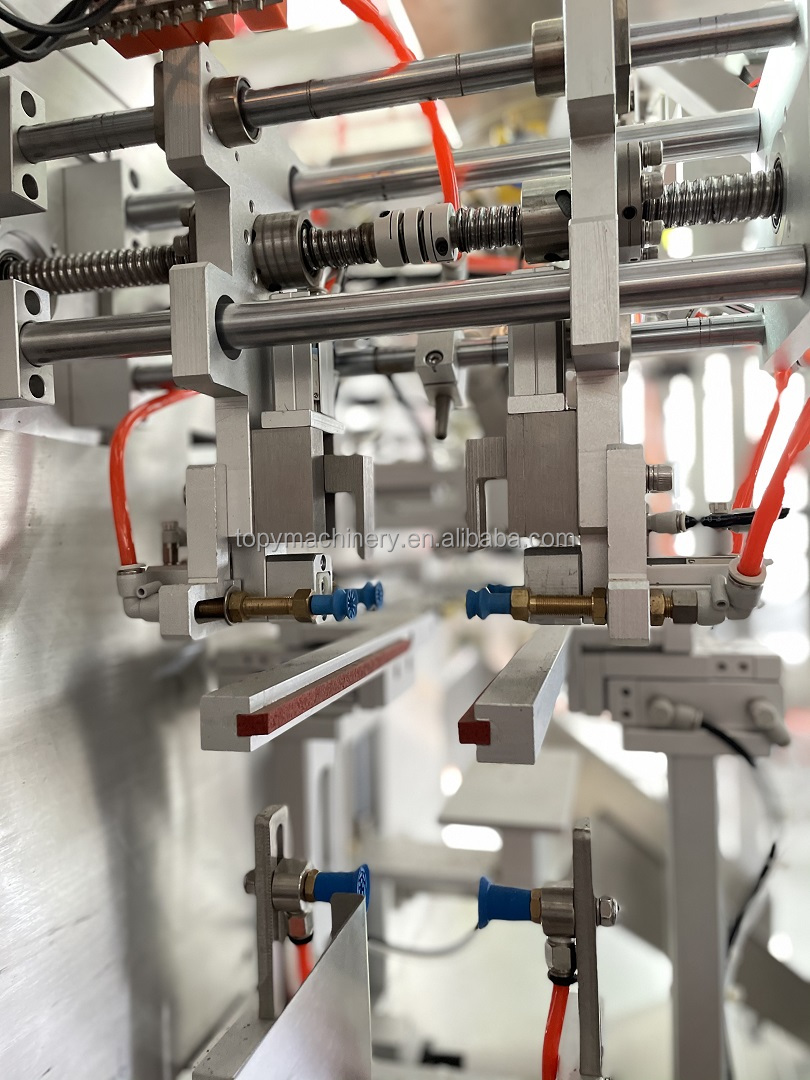

Bag opening station

1. Driven by servo motor, easy to adjust

2. Choose the suitable suction cup according to bag material

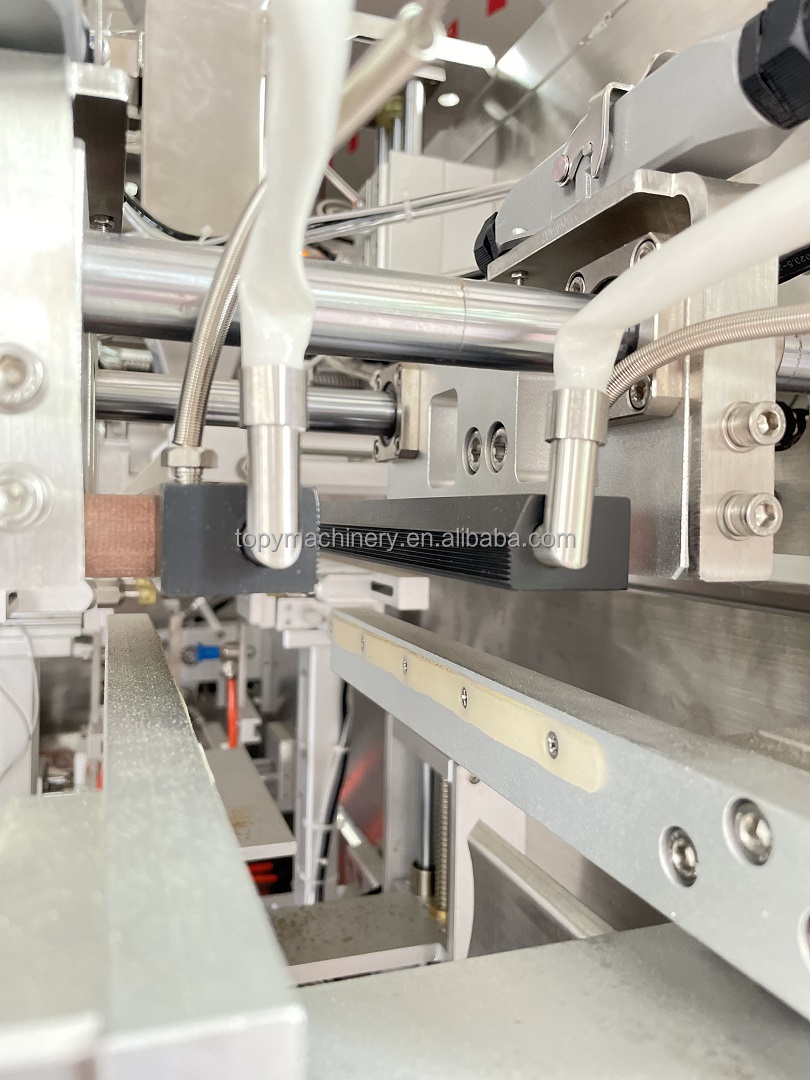

Bag sealing station

1. Adjustable temperature

2. Sealing type: heat seal/ultrasonic seal/ sewing

Specifications Table

Model No.	TOPY-MDPL1	TOPY-MDPL2	TOPY-MDPL3
Bag Width	70-180mm	100-260mm	150-300mm
Bag Length	150-300mm	150-330mm	Customized
Bag Type	Stand-up bag, pillow bag, zipper bag, box pouch
Power Supply	110V/220V/380V/415V, 50/60HZ, 2500w
Air Consumption	2.0 CFM@80 PSI
GW	400kg

Suitable Material

Free flowing liquid

Sauce

Paste with granules

Optional Bag Type

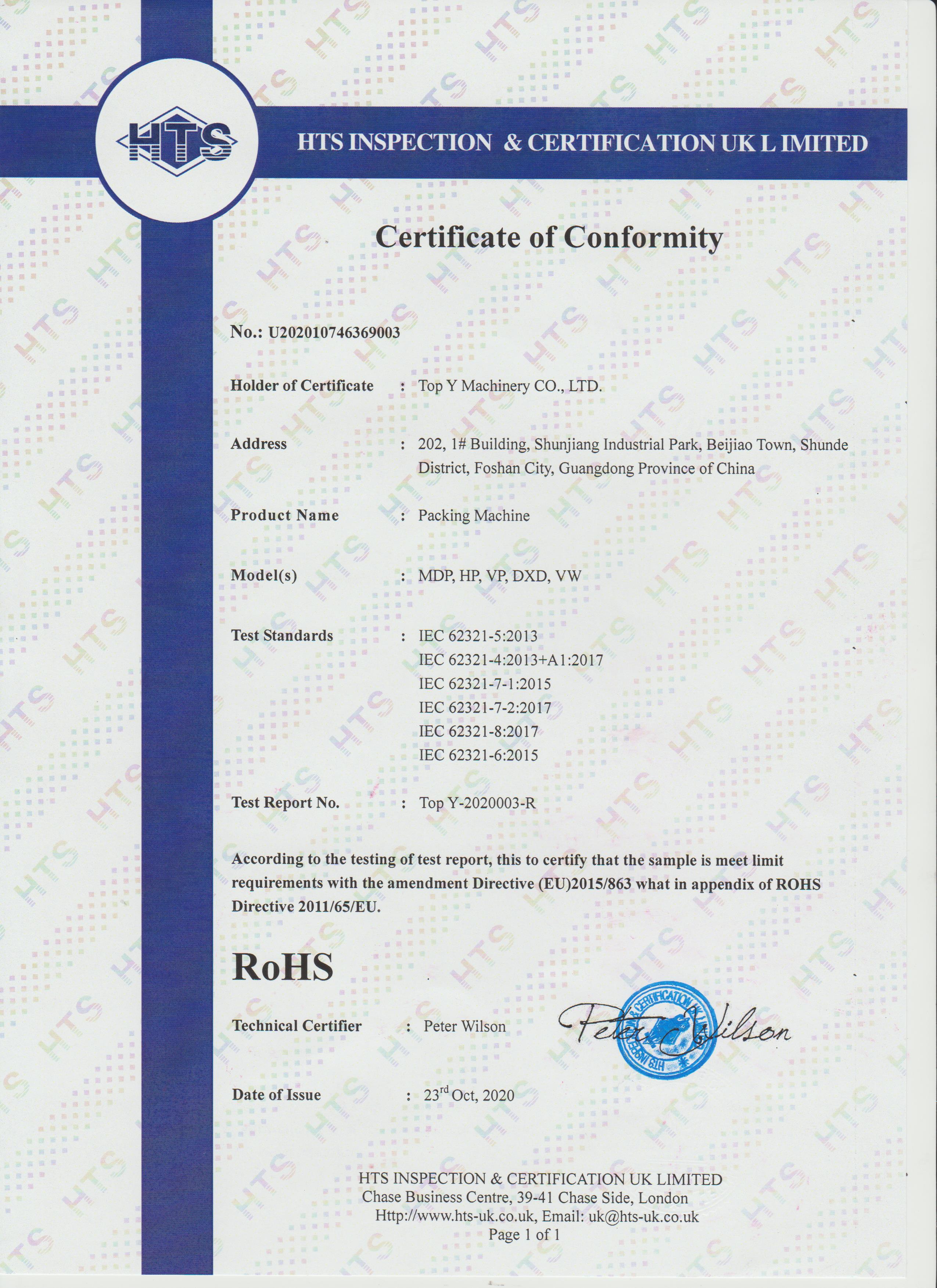

Certifications

Customers & Our Team

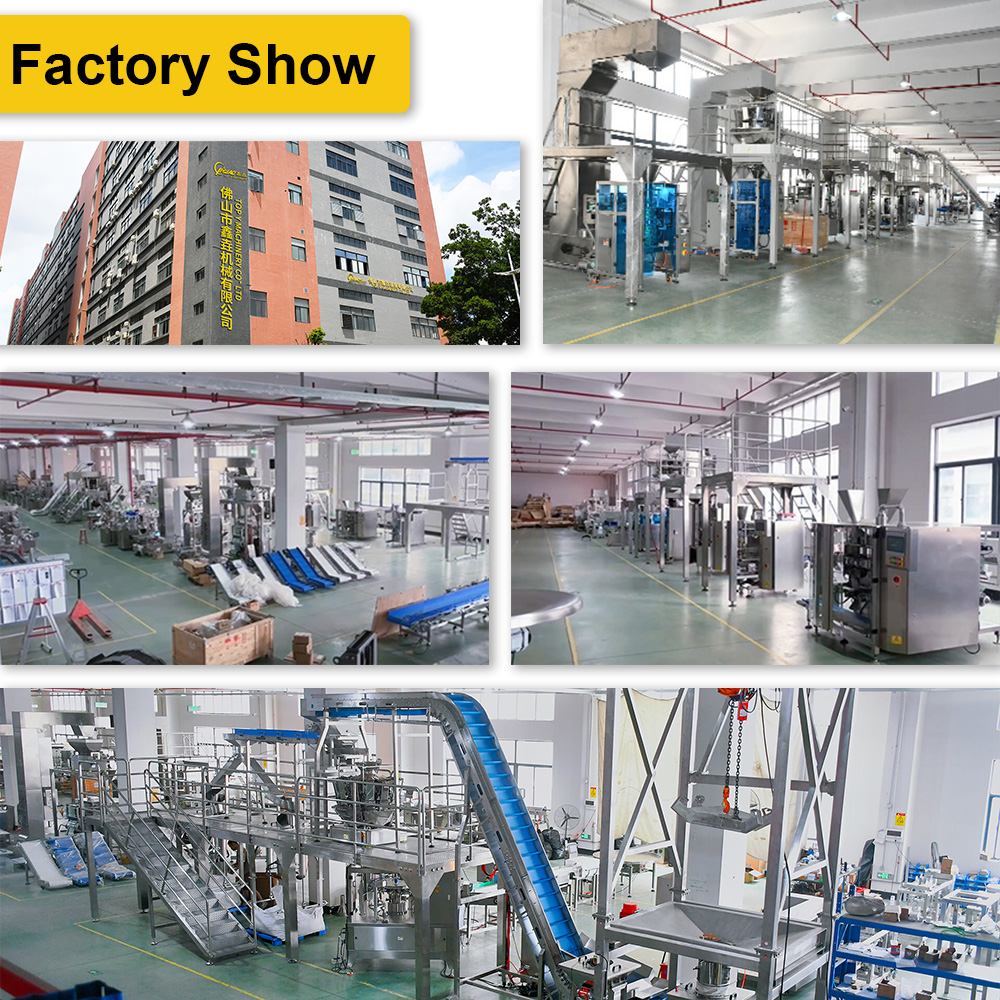

Company Profile

Packing & Delivery

Frequently Asked Questions

Q1: What products do you pack (solid, granule, flake, powder or liquid)?

For liquid we advise piston or motor pump; for powders we advise auger filler or volumetric cup filler; for solid, flake and granules we advise multihead weigher, linear weigher or volumetric cup filler.

Q2: What are the bag sizes and target weight in each pack?

For doypack machine the bag width working on is minimum 70mm and maximum bag width 380 mm.

Q3: Does your company work on OEM?

Yes, we have a professional design and technical team to handle the customization.

Q4: What’s the delivery time after the order is placed?

We arrange the shipment in 30-35 days for standard machines. It takes more days for customized machines.

Q5: How about the warranty?

The warranty is two years and we provide lifelong maintenance.

Q6: What can you provide for after-sales service?

We provide machine running video, instruction manual in English, spare parts and tools for installation. Also our engineers are available to clients' factory and technical training.
