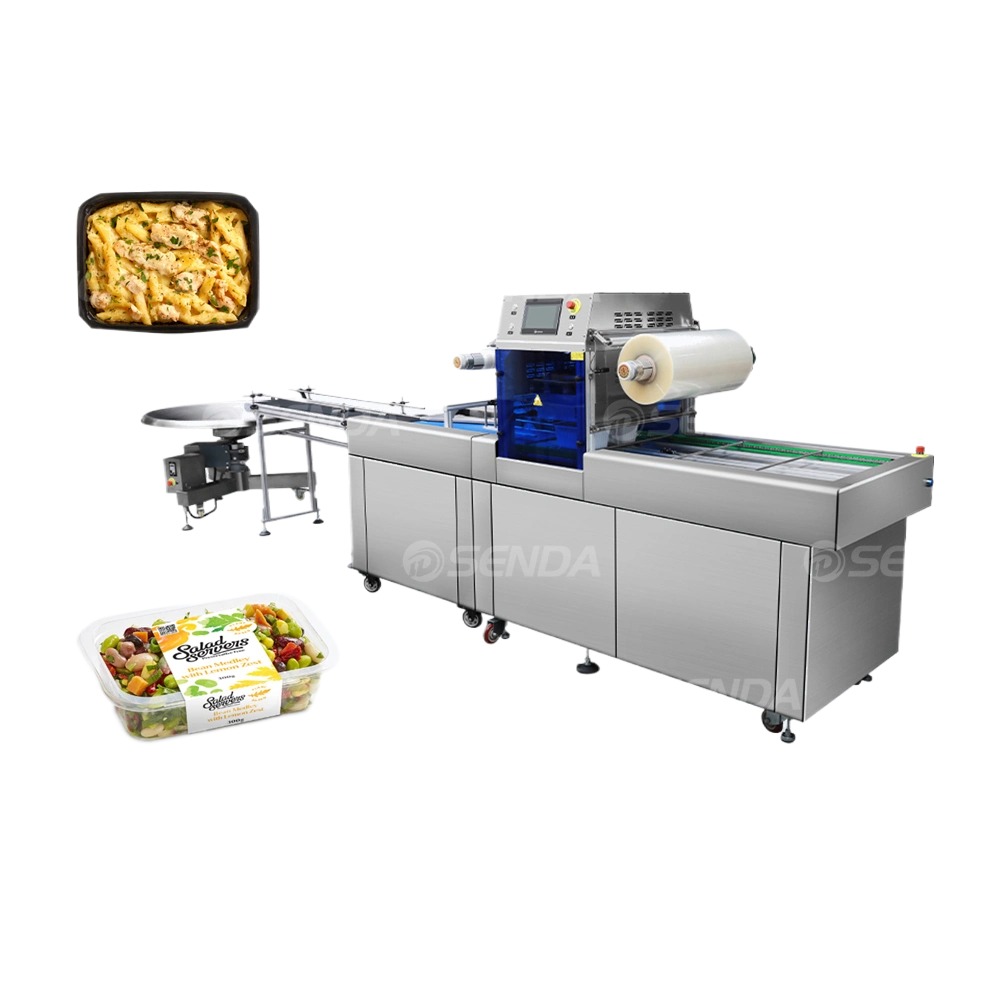

Continuous air-conditioning freshness packaging machine is a box-type air-conditioning freshness packaging machine designed for cold meat, cooked food, etc. The basic principle of this packaging is to use high barrier materials (plastic tray and capping film) to isolate the food from the outside air, and fill the tray with (2-3 kinds of gases mixed proportionally according to the characteristics of the food). So that the food packaged for a long time to maintain the original flavour and appearance, inhibit the growth of various bacteria and microorganisms. Thus prolonging the freshness or shelf life of the food.

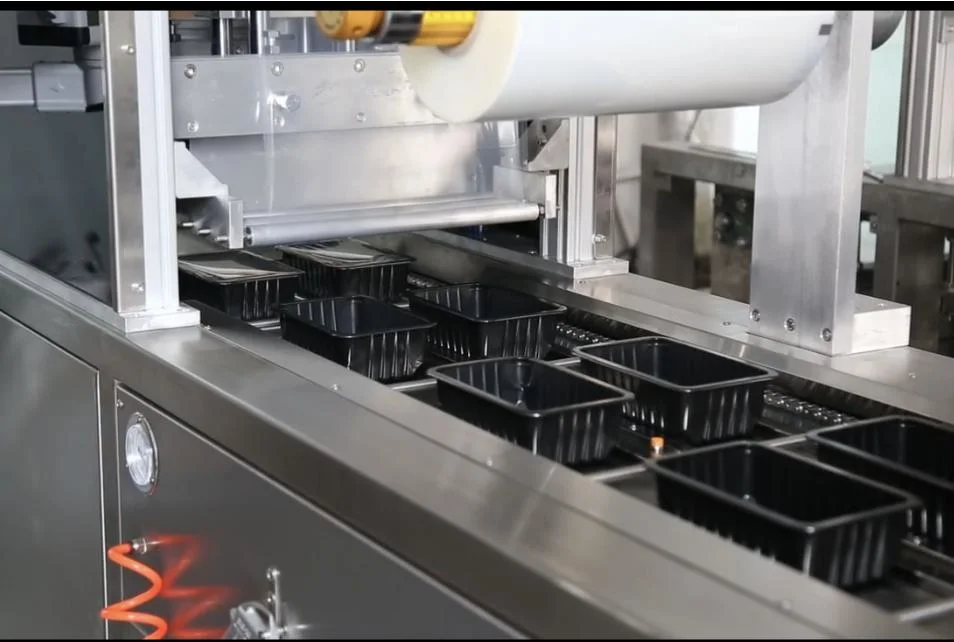

The box containing the packaged material is placed on the feeding conveyor belt. When the machine is running, the box feeding mechanism will feed the box into the mould, and the film feeding mechanism will feed the film to the box. The film mechanism sends the film to the top of the box. In the mould, the air in the box is extracted and filled with fresh gas, then heat sealed (sealing the film with the box) and sheared. The wrapped box is sent to the discharge conveyor by the box feeding mechanism. At this point, one packaging cycle is completed, greatly improving production efficiency, reducing labour and cost, and avoiding the influence of human factors.
| Maximum width of rolled film | 580mm |
| Maximum diameter of rolled film | 220mm |
| Gas displacement ratio | ≥99% |
| Packing Speed | 7-8 times/min |
| Power supply | 220V 50Hz 2.5kw |
| Equipment Air Pressure | 0.6~0.8 MPa |
| Diminish (Dimensions) | 1700*990*1490mm |
| Weight | 380Kg |
