Product Specification

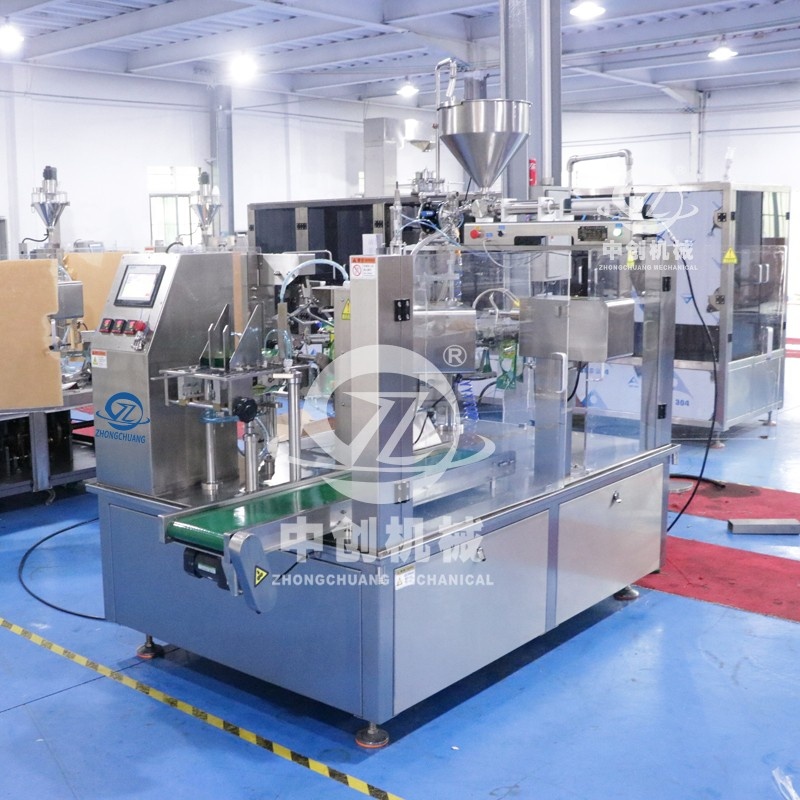

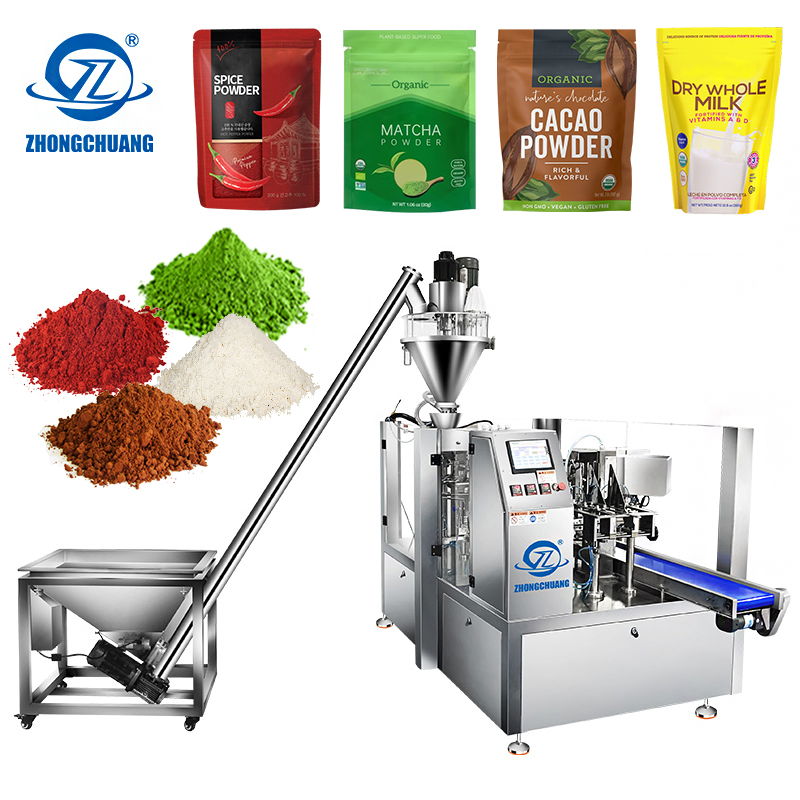

Automatic Packaging Standup Zipper Bag Doypack Filling Sealing Chilli Milk Coffee Powder Premade Pouch Food Packing Machine
Product Parameters
| Item NO. |
ZC-L200/250 |
| Dimensions |
L4000mm × W2000mm × H2100mm |
| Packing Speed |
16-60 Bags/min (depending on products character and filling volume) |
| Packing Bag Size |
L: 100-350mm
W : 60-200mm / 80-250mm |
| Weight |
1800KG |
| Air Compressed Consumed |
≤0.6m³ / min |
| Accuracy |
±1g (≤100g) / ± 1%( >100g) according to material |
| Application |
Suitable for high measuring accuracy, and brittle material packing, such as soy milk powder, flour, seasoning, spices, milk-tea powder, chili powder, turmeric, spice blends, protein powder, coffee powder etc. |
| Working Procedure |
1. Bag feeding
2. Coding
3. Opening
4. Filling A
5. Filling B
6. Heat sealing A
7. Heat sealing B
8. Forming and output
|
| Description |
1. Customized solutions recommended based on specific requirements.
2. Storage rack devices equipped to handle short line stops, ensuring continuous production line operation.
3. Prompt professional technical support and remote service availability.
|
Products Description
Application Scenarios
Suitable for powder & brittle type products, such as milk powder, spices, flour, walnut, coffee powder and so on bag-given packing.

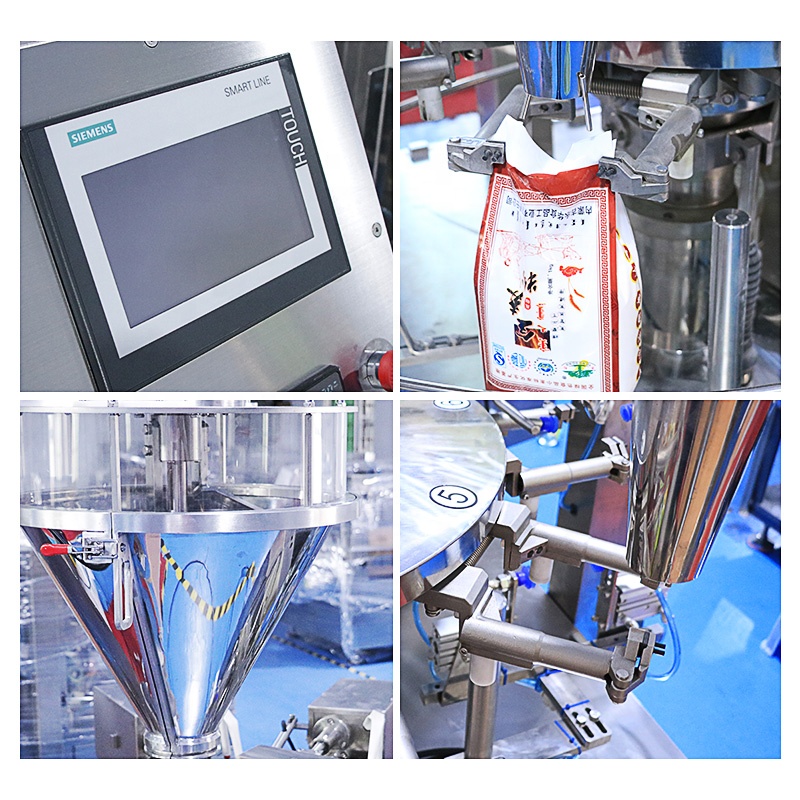

Product Overview

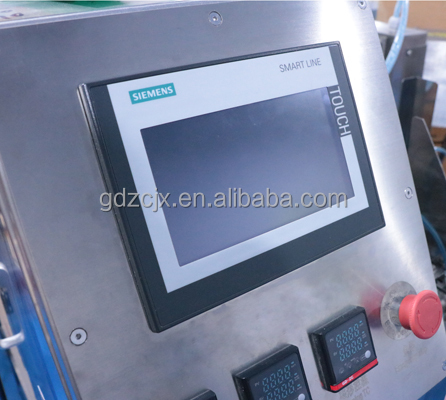

1. TOUCH SCREEN
Packing speed, temperature, capacity, bag length etc. all displayed clearly.

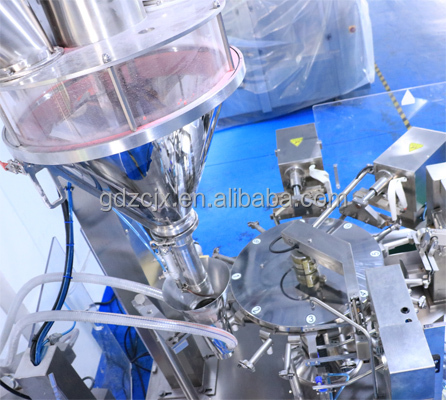

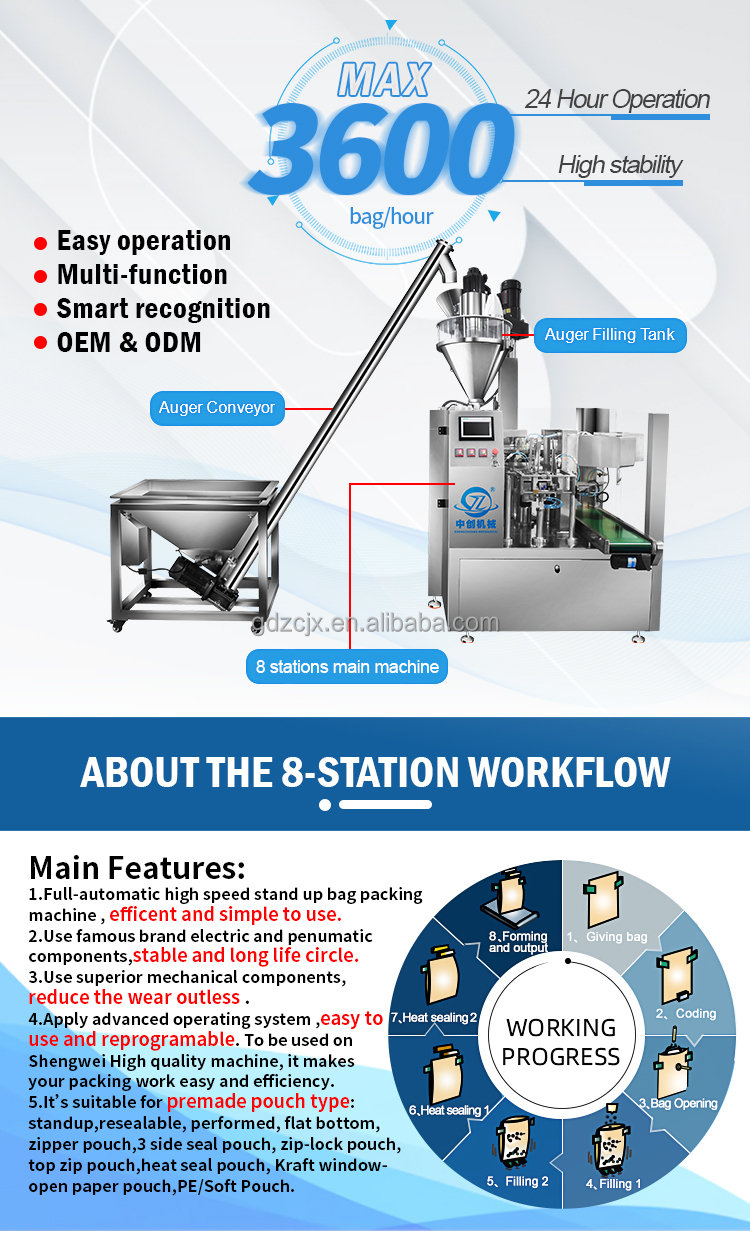

2. 8 STATIONS WORKFLOW
Eight-work station running mechanism to ensure stable and highly optimized operations.

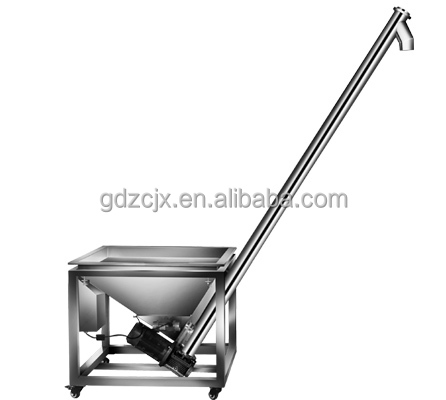

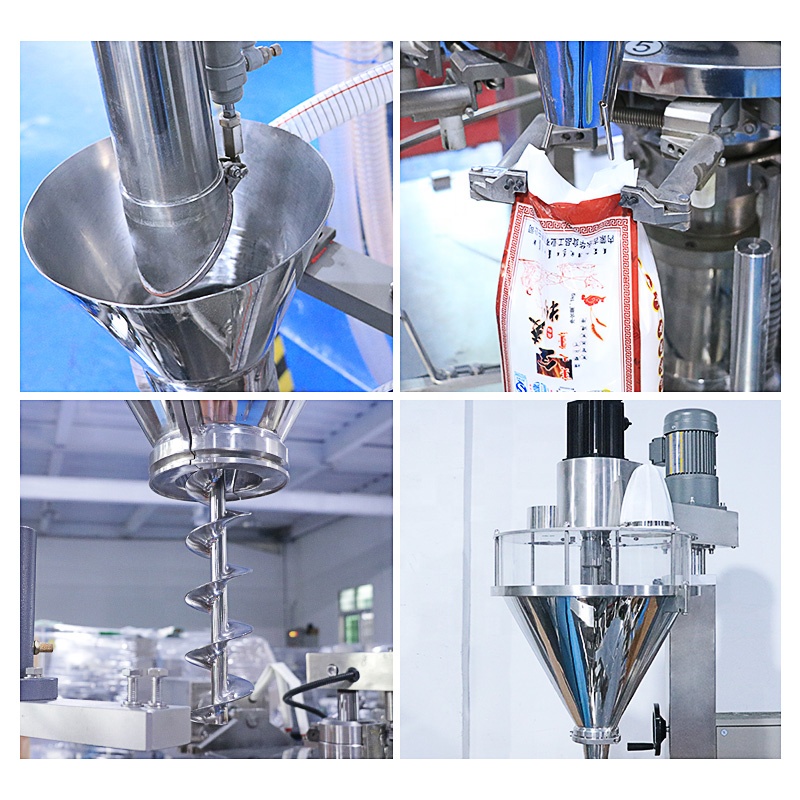

3. AUGER CONVEYOR
The complete conveyor is constructed of 304# stainless steel, fully qualified for food packing safety.

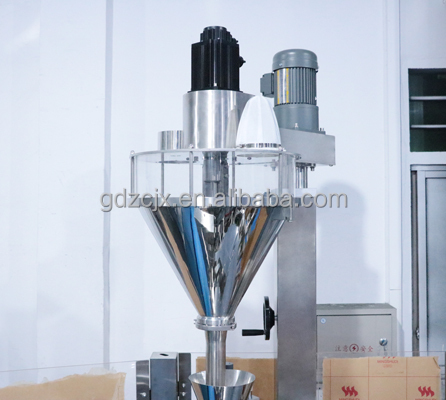

4. VERTICAL AUGER FEEDER
Perfectly engineered for high measuring precision powder feeding operations.

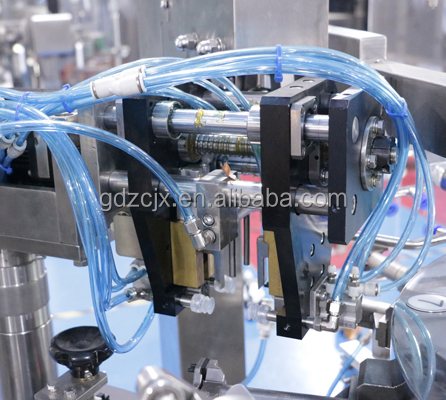

5. OPEN ZIPPER DEVICE
Specifically designed for zipper pouches to open the bag zipper automatically and reliably.

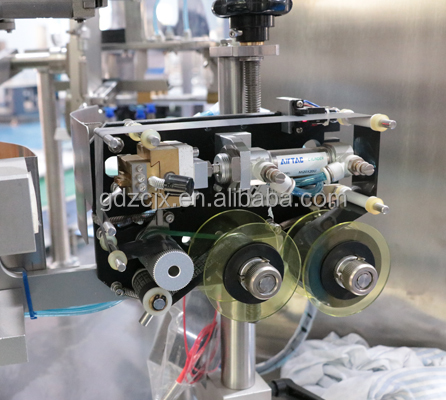

6. DATE PRINTER
Used to print manufacturer details and expiration dates, supporting up to 4 text lines.

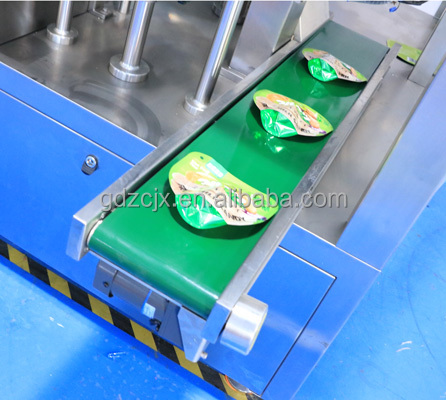

7. FINISHED PRODUCT CONVEYOR
Delivers finished packaging bags one by one automatically to the downstream station.

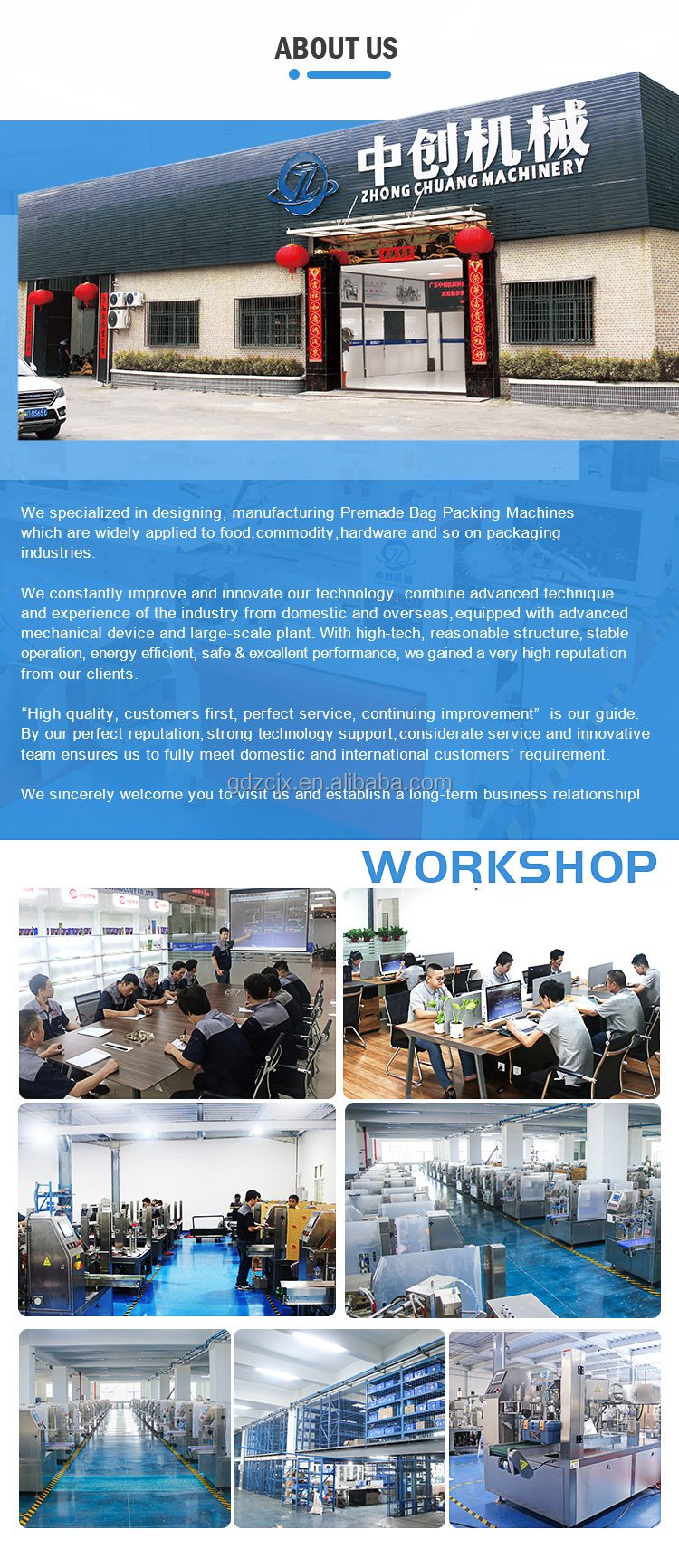

Company Profile
We are professional in designing, producing, and sales of premade pouch packing machines, pillow packaging machines, vertical packing machines, etc., which are widely used in food, commodity, hardware, and other packaging industries. Equipped with a strong development and research team, advanced production technology, and a strict machine inspection standard system, we prioritize high-quality machine innovation tailored to customer requirements. We sincerely welcome you to establish a long-term business cooperation.
Trade Details
- Lead Time: 15-20 working days after receiving deposit.
- MOQ: 1 set.
- Payment Terms: 30% deposit + balance payment before delivery by T/T, Western Union, or Cash.
- Loading Port: Major export ports in China.
Export Process
- We prepare the machinery after receiving the deposit.
- Goods are securely dispatched to the designated warehouse or port.
- Tracking references and Bill of Lading are generated for shipping.
- Consignment reaches the destination port or designated warehouse address.
FAQ
What is the main advantage of this 8-station machine compared to 4 or 6-station models?
The core advantage of our 8-station machine is significantly higher production efficiency. By increasing the number of stations, it allows for simultaneous operations like filling and sealing, theoretically boosting output by about 30% compared to a 6-station machine. It is ideal for customers with high-volume demands.
How complicated is the changeover for different products or pouch specifications? How long does it take?
We focus on making changeovers simple. The machine features a modular design and servo motor drives. Most adjustments (like clamp size and filling height) can be done by entering parameters on the touchscreen. For an experienced operator, a routine pouch size changeover can typically be completed within 20-30 minutes.
What is the machine's compatibility with packaging materials? What types of pre-made pouches can it handle?
This machine offers wide compatibility and can handle various pre-made pouches, including stand-up zipper pouches, four-side seal pouches, and multi-layered flat pouches. As long as your pouches have good opening performance and rigidity, whether PE, CPP, PET, aluminum foil composite, or kraft paper, we can provide a suitable solution.
How about the stability and durability of the machine? What brands are the key components?
Stability is our top priority. The machine features a reinforced steel frame to ensure no deformation during long-term operation. Key components like the PLC and touchscreen are from internationally renowned brands, ensuring precise control and long service life while minimizing downtime.
How do we choose the right machine type for our specific packaging needs?
Please provide us with details about your requirements, including: 1) Bag pattern/style, 2) Bag dimensions, 3) Target filling weight or volume, and 4) Product state (powder, liquid, paste, granular, or massiveness). We will recommend the best matched model.

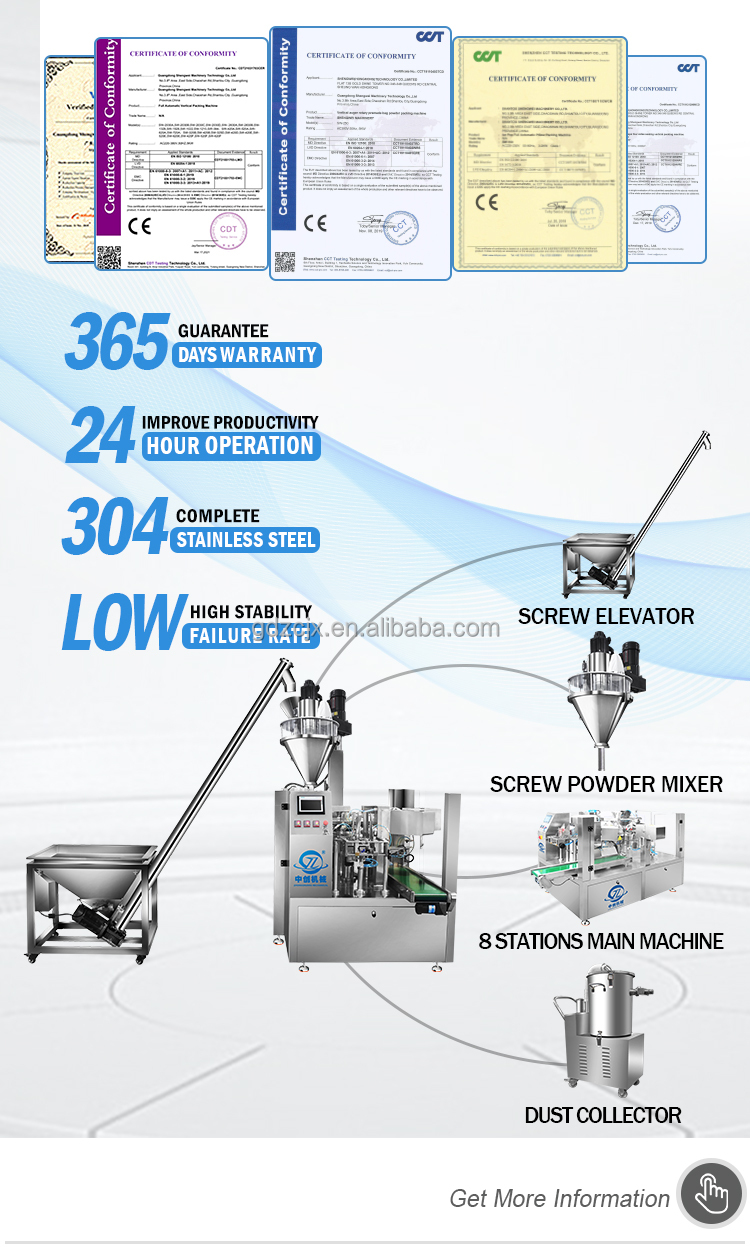

What after-sales service and quality certifications are provided?
This machine is manufactured in accordance with strict national and international standards, holding CE and ISO certifications. It comes with a 1-year warranty. We run rigorous factory testing on every unit before delivery to ensure excellent operational reliability.
