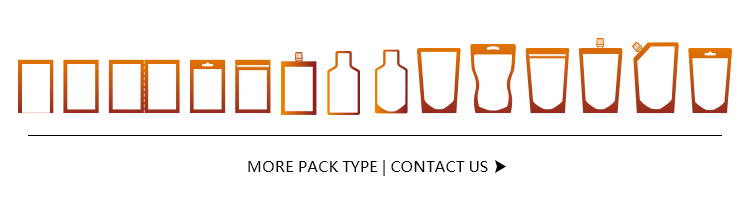

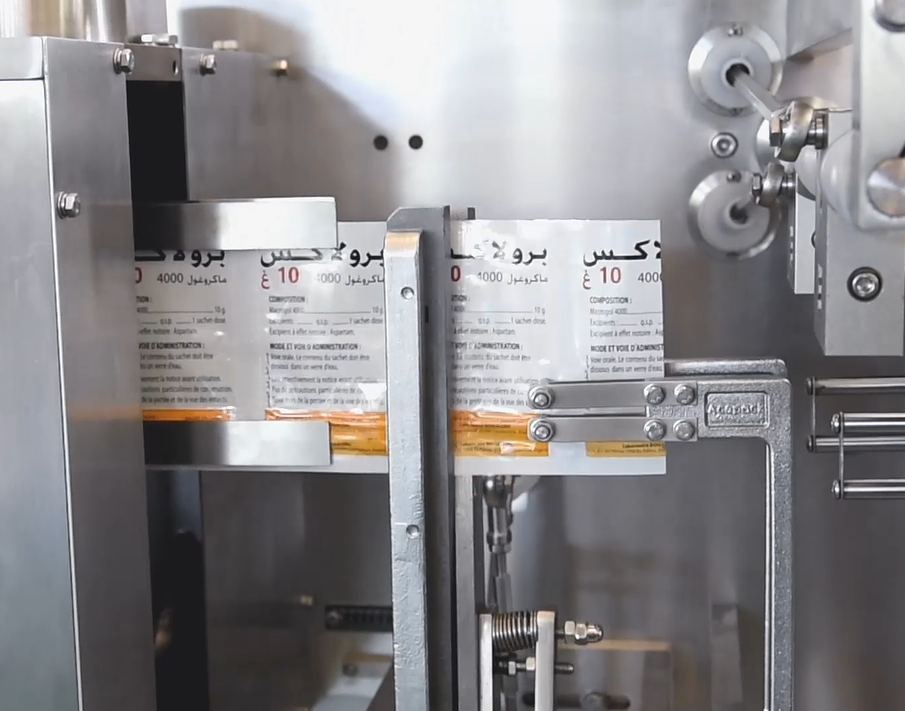

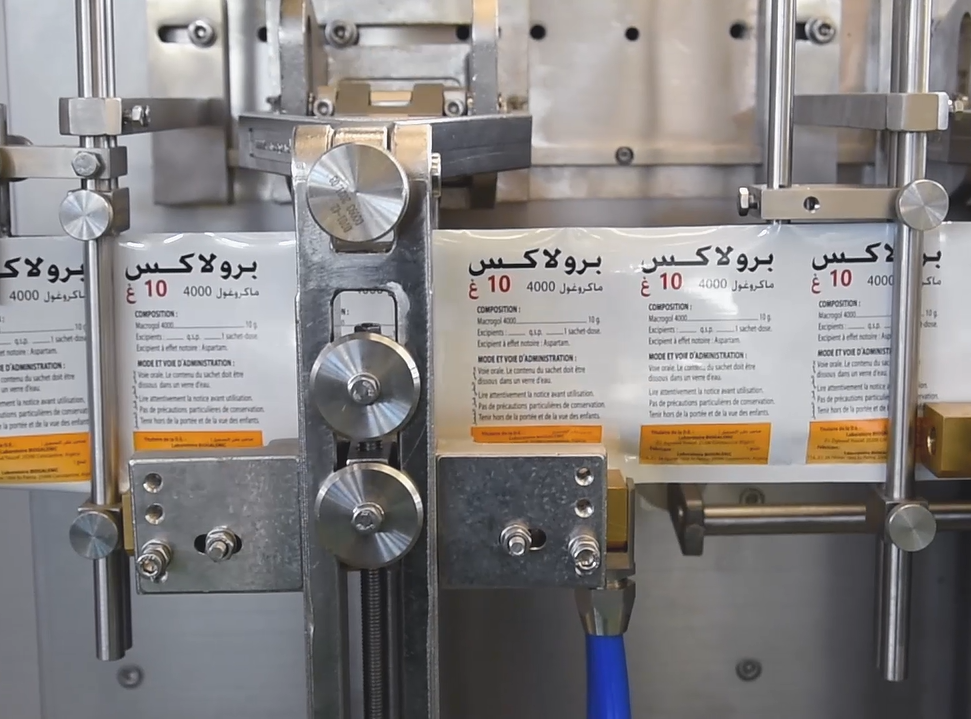

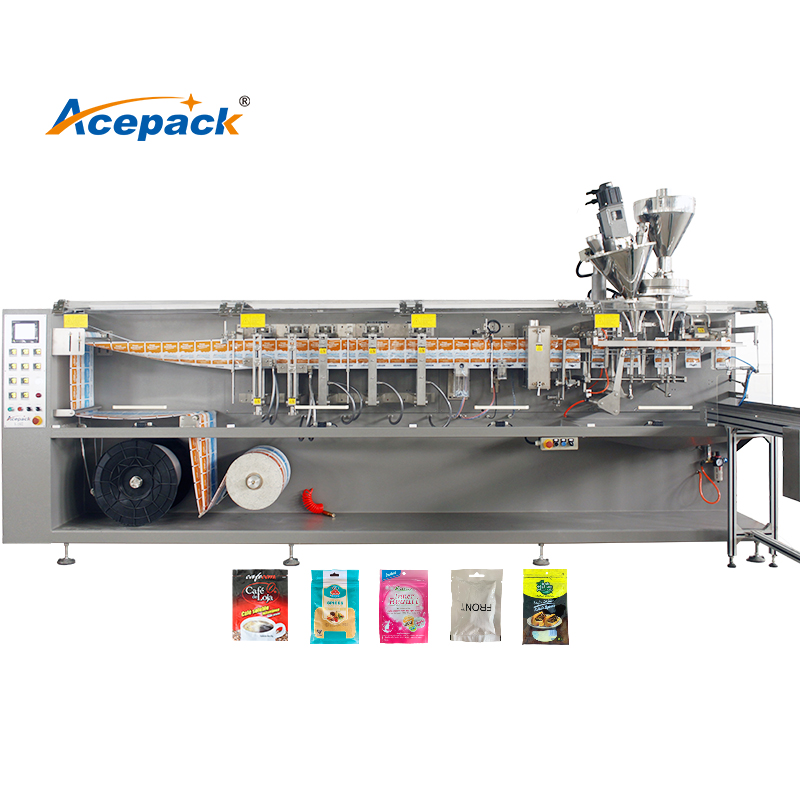

S-180Z CE Certified Horizontal Form Fill Seal Zipper Sachet Packing Machine is designed for 3/4 side seal bag with zipper packing. It can make standard 3/4 side seal sachet also with linked, top spout and as well as adding special functions like hanging hole or special shapes.
For special needs of sachet packing machine, we offer custom development. We will deliver the best solution configured according to your requirements.
| Model | S-180Z |
| Pouch Size | 50*80(min); 180*225(max) |
| Filling Capacity | 400ml |
| Packing Capacity | 40-80ppm |
| Power | 6.8KW |
| Air Consumption | 200NL/min |
| Dimension(L*W*H) | 4650mm(L) * 970mm(W) * 1500mm(H) |
| Weight | 1600kg |
| Function | automatic zipper sachet horizontal packaging machine |

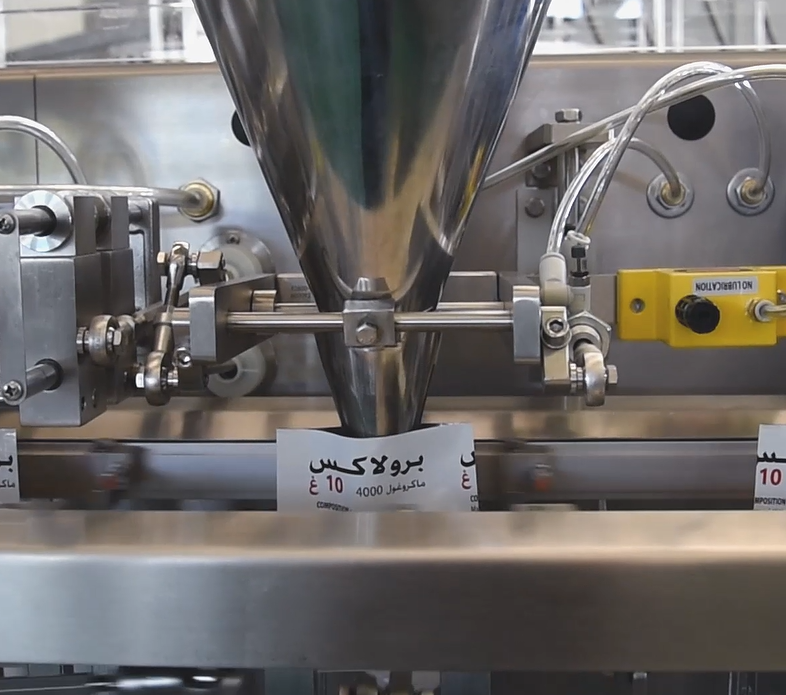

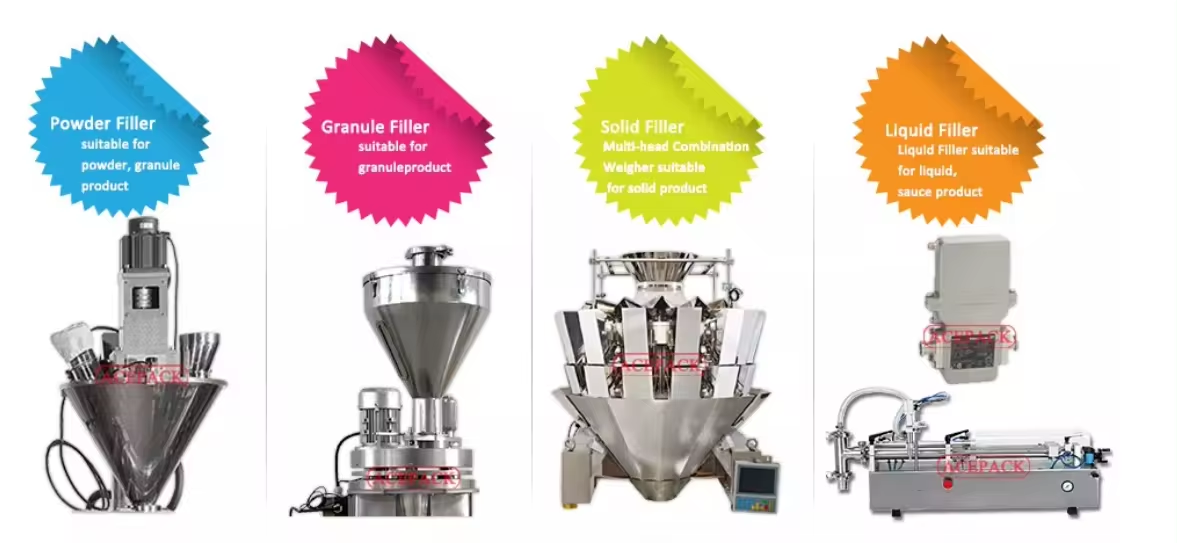

The filling system is configured according to product physical properties such as mobility, viscosity, density, volume, and dimensions.
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder etc.
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
Volumetric Cup Filler is specialized for granule filling such as chemical, beans, salt, seasonings etc.
We are convinced that strict quality control and excellent process management provide clients with reliable quality, longer service life, and favorable prices. We implement ISO 9001 Quality Management Systems. Our supply chain features full implementation of ERP management, combined with PDM, OA, and CRM systems to support advanced enterprise informationization.
We have obtained 17 invention patents, and 55 utility model and design patents.
