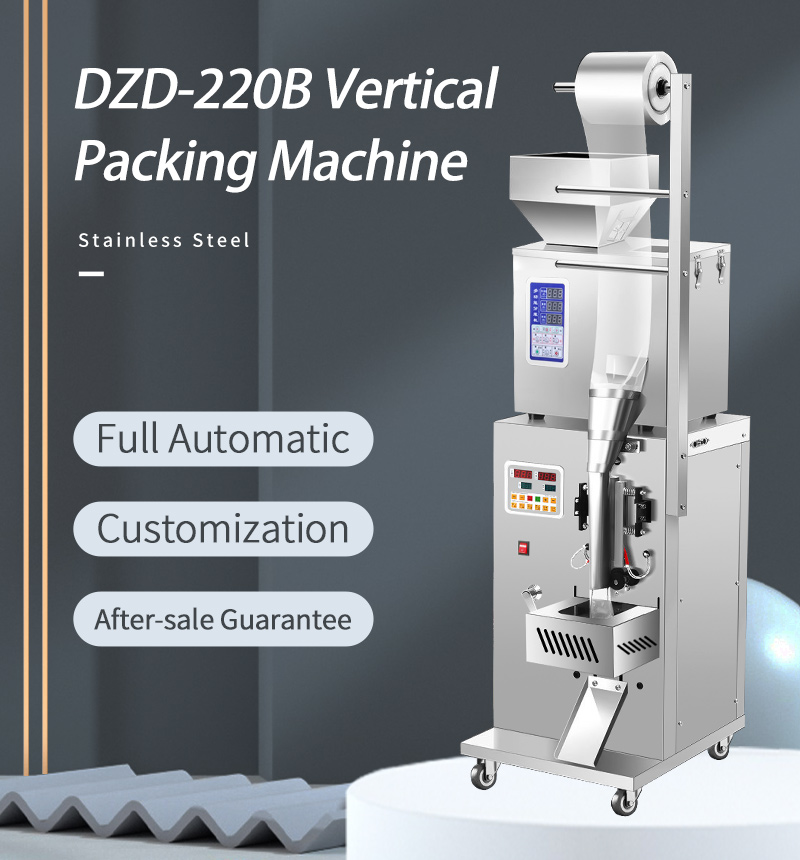

Product Specification

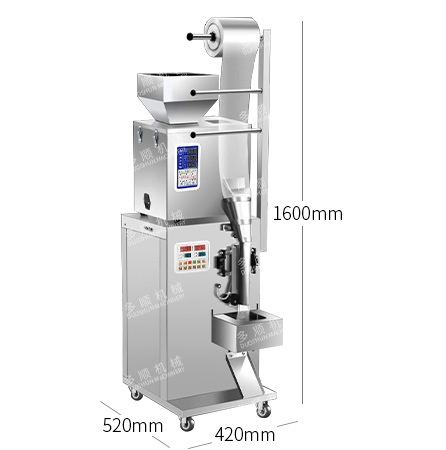

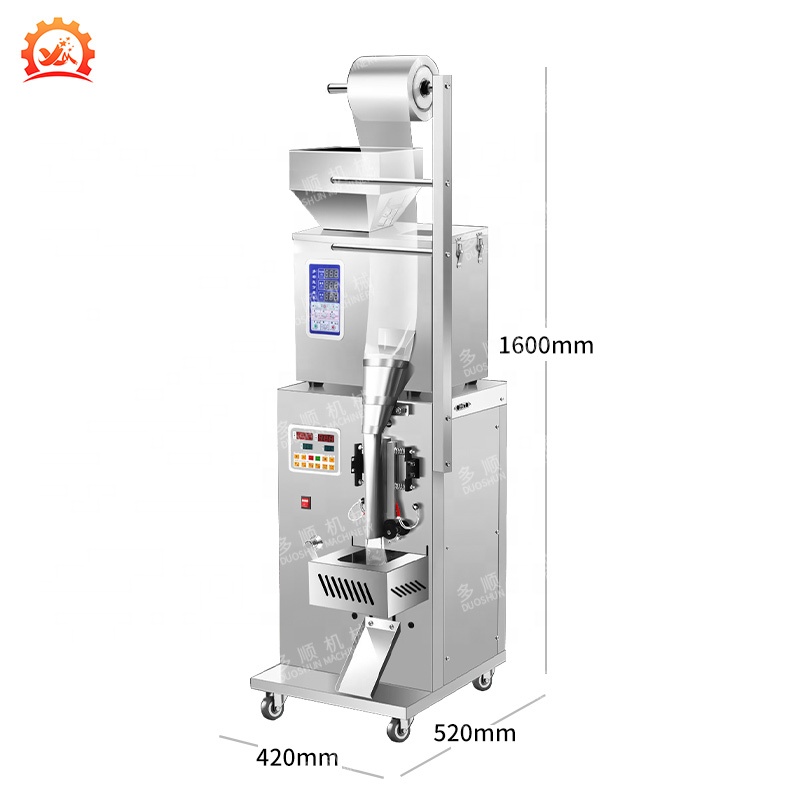

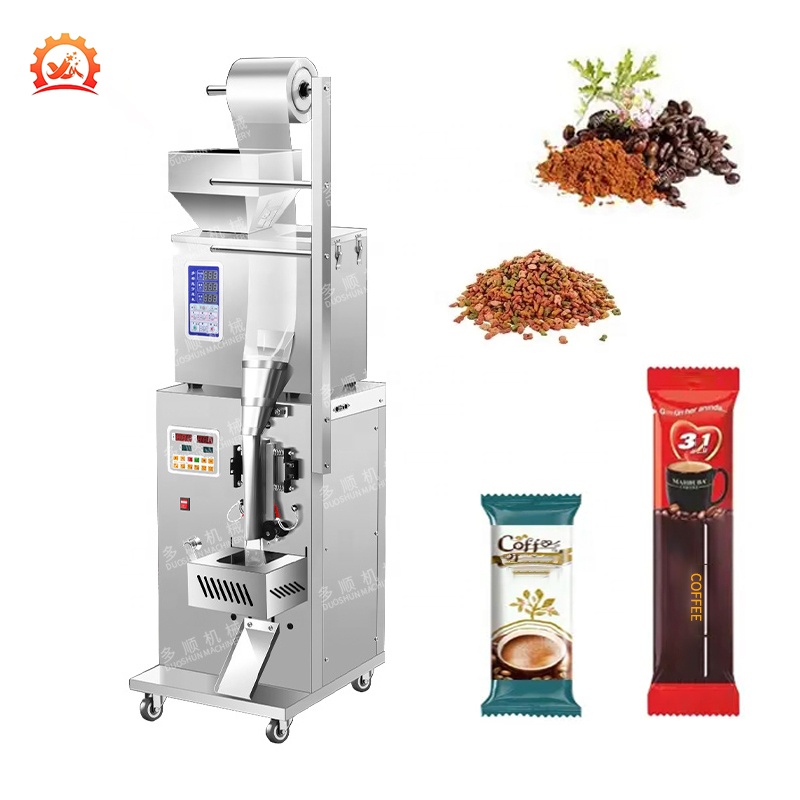

Product Model	DZD-220B
Application	Particle/Powder
Production Capacity	5-20bag/min
Packaging Weight	1-20g/1-50g/1-100g

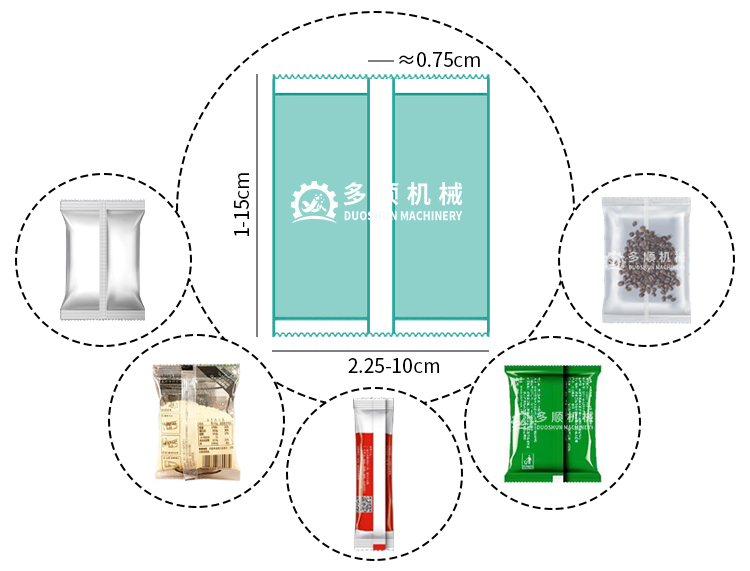

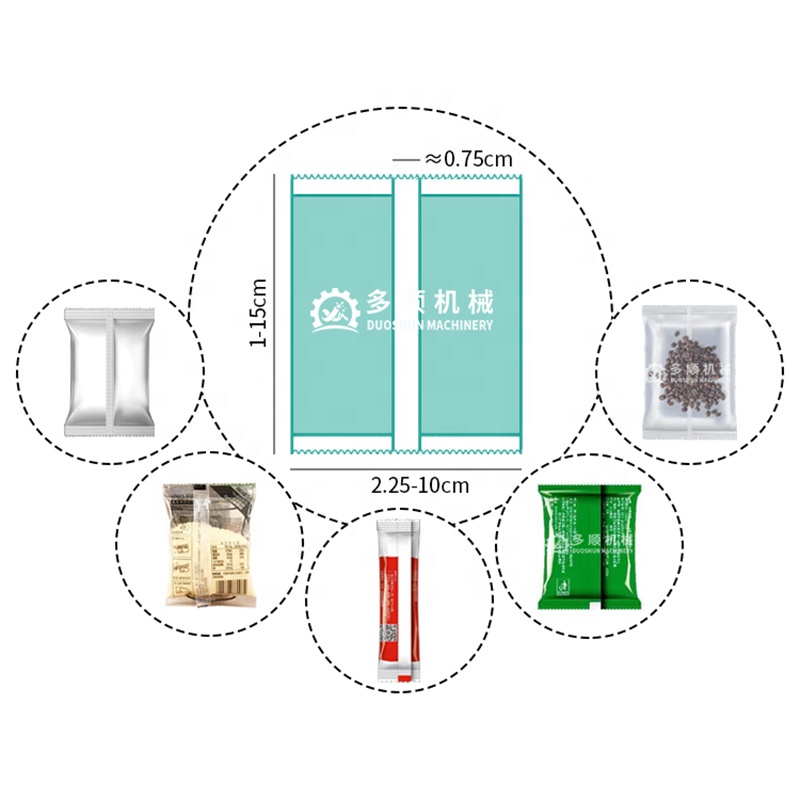

Packaging Length	1-15cm
Packaging Width	2.25-10cm (Film 6-22cm)
Packaging Accuracy	0.1-0.3g
Voltage	220V 50Hz 500W
Machine Weight	50kg

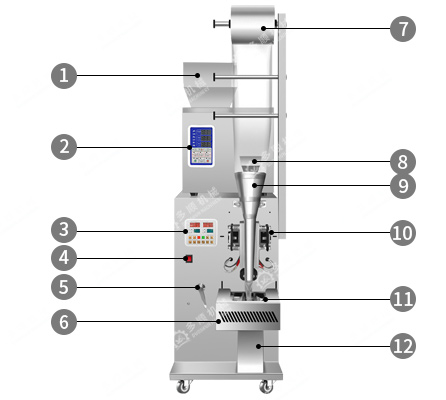

Diagram Key

• 1. feeding storage hopper
• 2. subpackage controller
• 3. sealing controller
• 4. switch
• 5. sealing locker
• 6. anti-preventing device
• 7. packaging film
• 8. feeder
• 9. former
• 10. vertical heat-seal
• 11. horizontal heat-seal
• 12. output

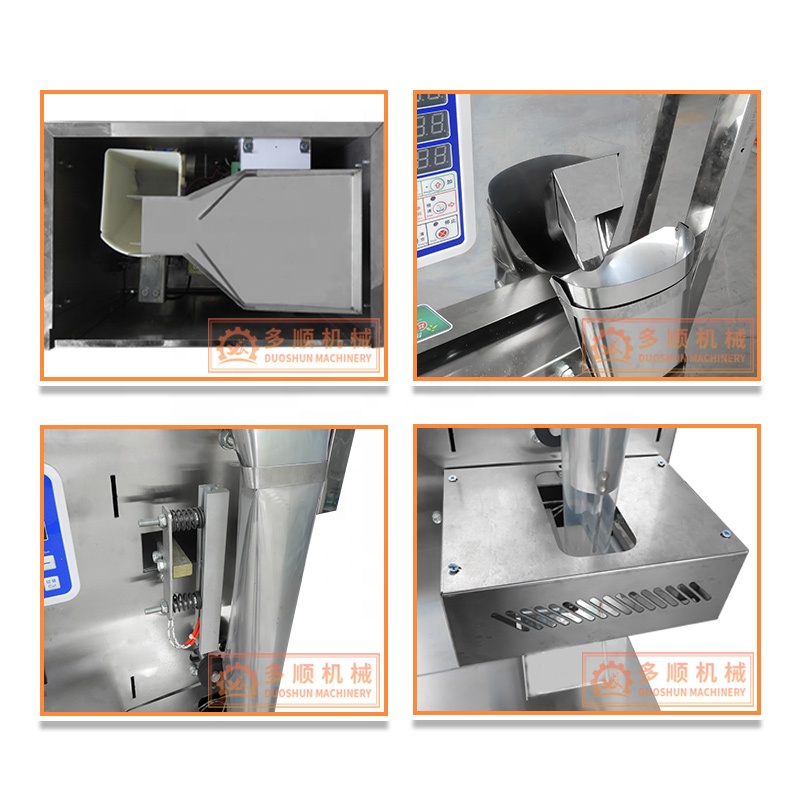

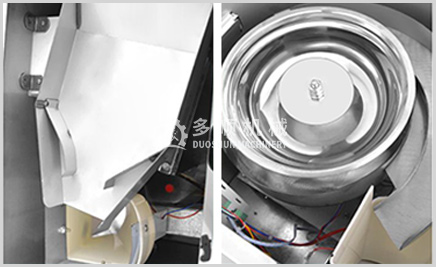

Feeding and Weighing:

Stainless steel material. Equipped with electronic scale. Accurate measurement and slight error.

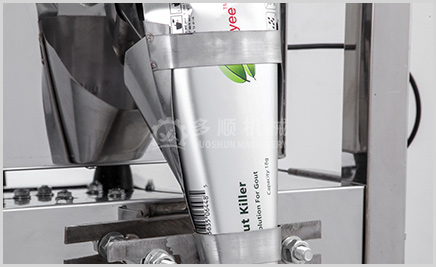

Feeder and Former:

Materials come out from the feeder after weighing. The former size can be customized. It determines the width of final product.

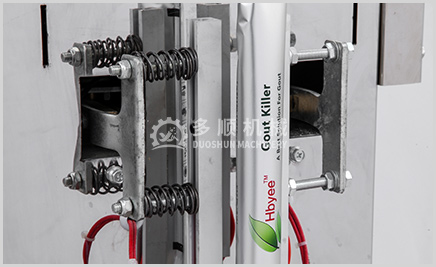

Vertical Heat-seal:

Heat seal the side of the pouch automatically. Temperature can be adjusted according to different materials.

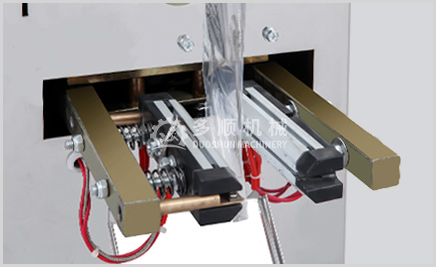

Horizontal Heat-seal:

Heat seal the top and bottom side of the pouch automatically. Temperature can be adjusted according to different materials. Then cut pouches one by one.

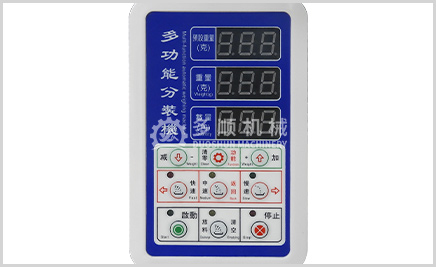

Subpackage Controller:

Control the weight of pouch, automatic and accurate. Adjust the packing speed—fast, medium, slow.

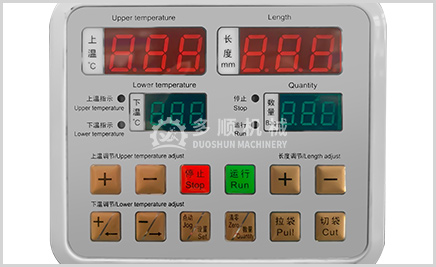

Sealing Controller:

Adjust the length of pouch. Control the temperature of sealing according to different packaging film.

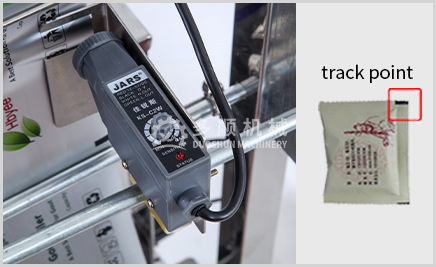

Cursor: (optional)

If the film is blank, no need for cursor. If the film is printed, the cursor help locate the track point, so each picture will be in the right position.

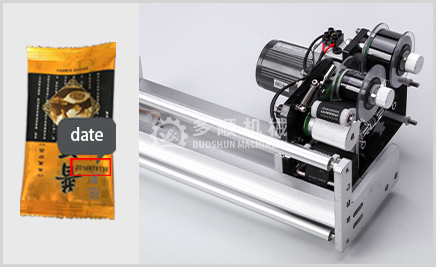

Ribbon Coding: (optional)

Print date and batch number automatically. Printing content can be customized according to actual needs.

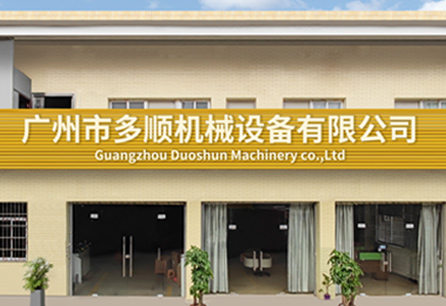

Development History

• Year 2003: Establish the first factory.
• Year 2008: Start domestic on-line business.
• Year 2014: Start foreign on-line business.

We are specialized in producing and selling packaging equipment and processing equipment for food, health care, chemical and cosmetics industries, including multi-functional packaging machine, blister packaging machine, vacuum packaging machine, grinding machine, sugar coating machine and so on.

We have been doing domestic business since 2008. In the year 2014, we started international trade for customers all over the world. Our company has various equipment and customization service that meets customers' actual needs, such as mould, voltage, plug, product appearance and so on. We have professional process and strong technical force to ensure that customers can be provided with best equipment that meets GMP requirements. All our products have CE and ISO certification. We are committed to using technology to develop better equipment, sincerely welcome domestic and foreign customers to visit us and develop long time cooperation.

Contact Us

Express the requirements whether they can be customized.

Custom Machine

Confirm machine voltage, parts, function and so on.

Custom Mould

Confirm product mould size and pattern.

Payment

Deposit or full payment, balance before delivery.

Production

Standard machine in stock, custom machine 7-30 days.

Delivery

Export packaging, sea, air, land for choice.
