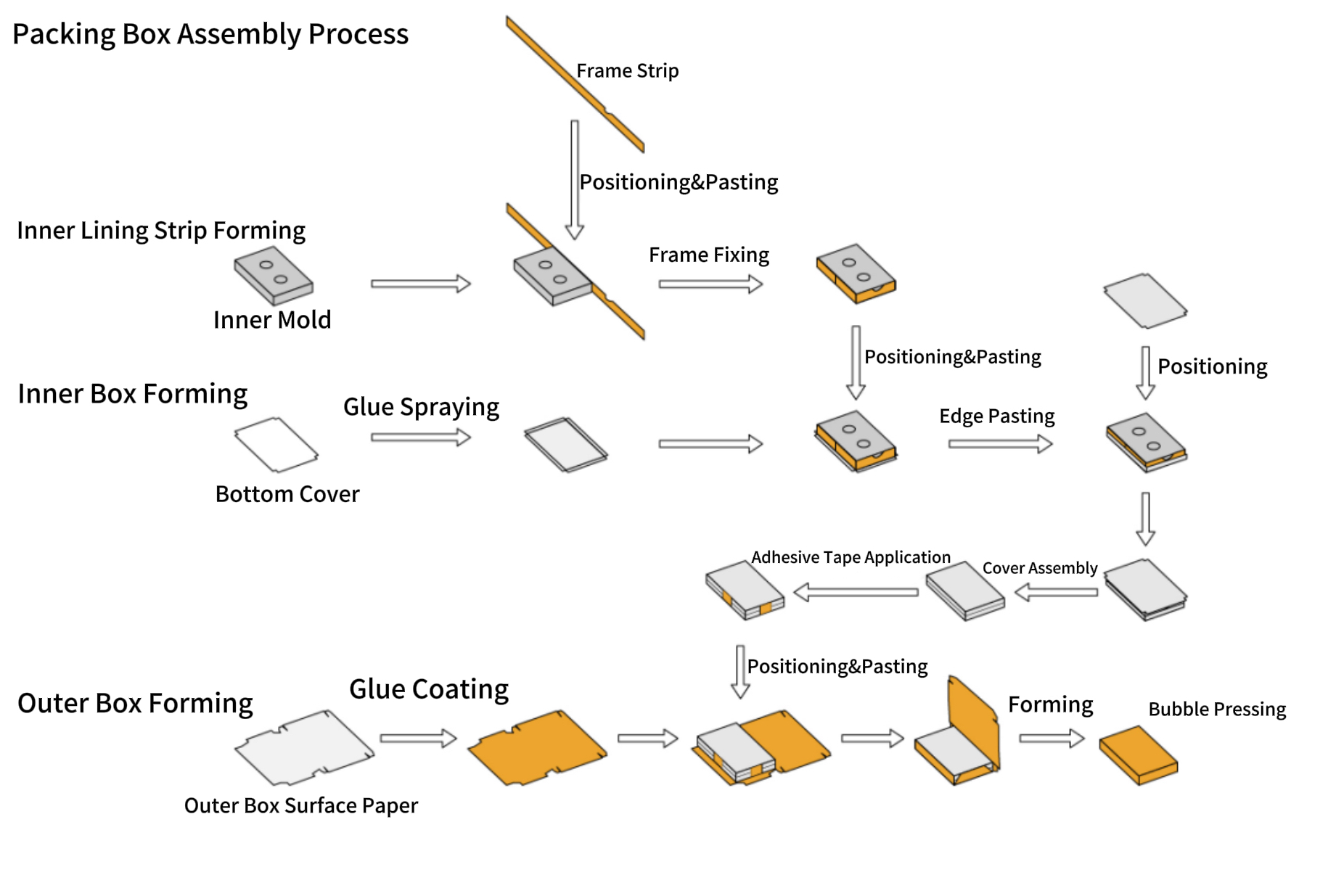

The production line consists of multiple modular units with independent functions, featuring a compact footprint, high scalability, efficient and stable operation, precise positioning, wide adaptability, and strong flexibility.
| Intelligent Boutique Small-Box Packaging Line Components | |
|---|---|
| 1. TG-CI60F | Intelligent Internal Mold Feeding Machine |
| 2. TG-CF50FI | Inner Box Forming Machine |
| 3. TG-ZL50F | Intelligent Visual Positioning Machine |
| 4. TG-ZG50F | Intelligent Anilox Roller Gluing Machine |
| 5. TG-TP50PO | Cover Paper Gluing & Packet Forming Machine |
| 6. TG-PB60F | Packet Pressing and Flattening Machine |
| Technical Specifications | |
|---|---|
| ITEMS/MODEL | TG-CF50F-EX |
| Gram weight of surface paper | 130-250 g/m² |
| Surface Paper Size Range (mm) | Length 155~300mm / Width 85~165mm |
| Finished product compatible size | Length 60~121.5mm / Width 60~105mm / Height 15~30mm |
| Positioning accuracy | ±0.1 mm |
| Production Efficiency | ≥2700pcs/h |
| Air pressure requirement | ≥98% |
| Power supply | 0.6-0.8 MPa |
| Ground bearing requirements | AC380V±10% |
| Temperature requirements for production environment | Width 600 × Length 400 mm |
| Machine Weight | 9500KG |
| Machine Dimensions | 8400*4500*2000mm |

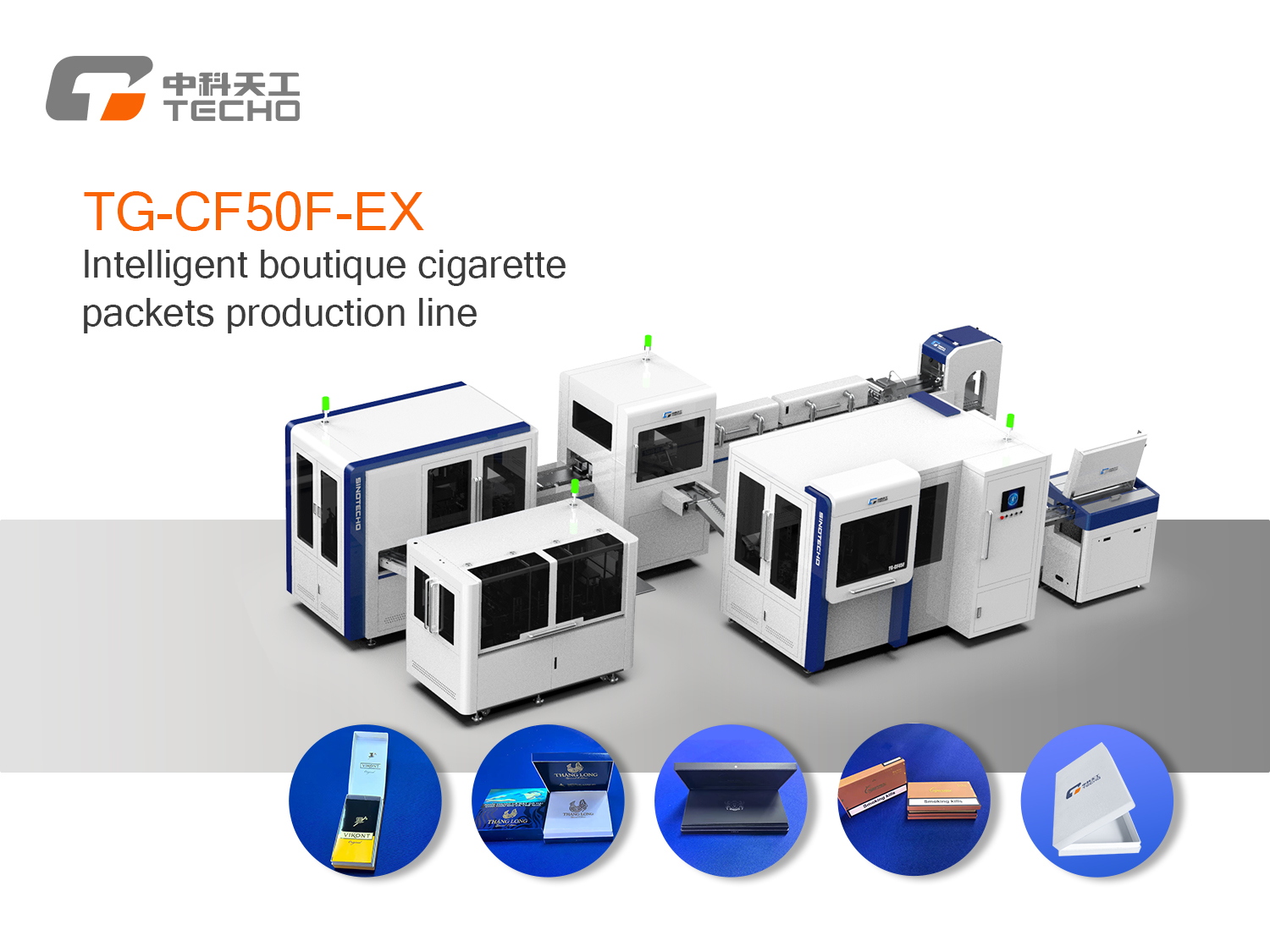

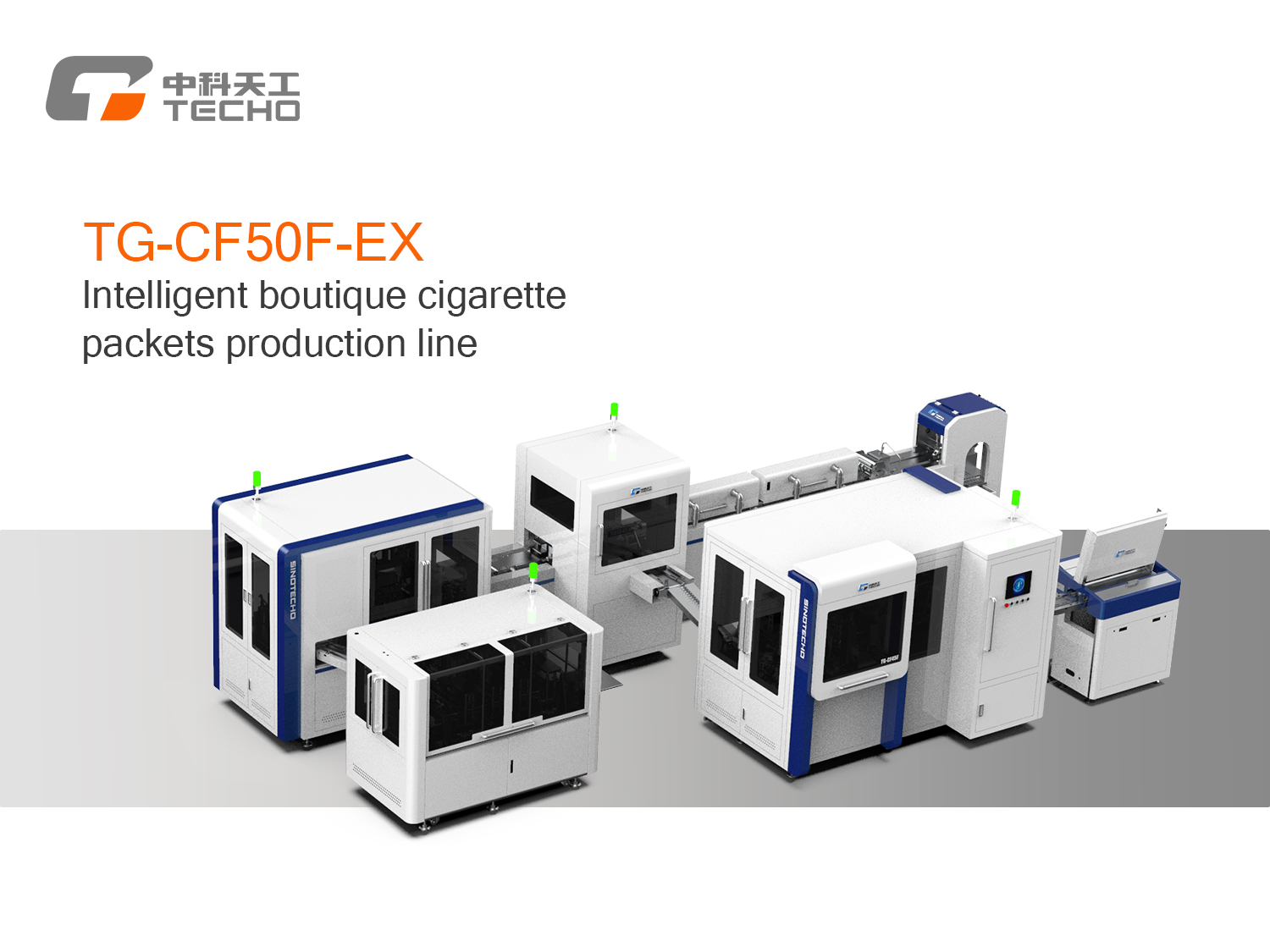

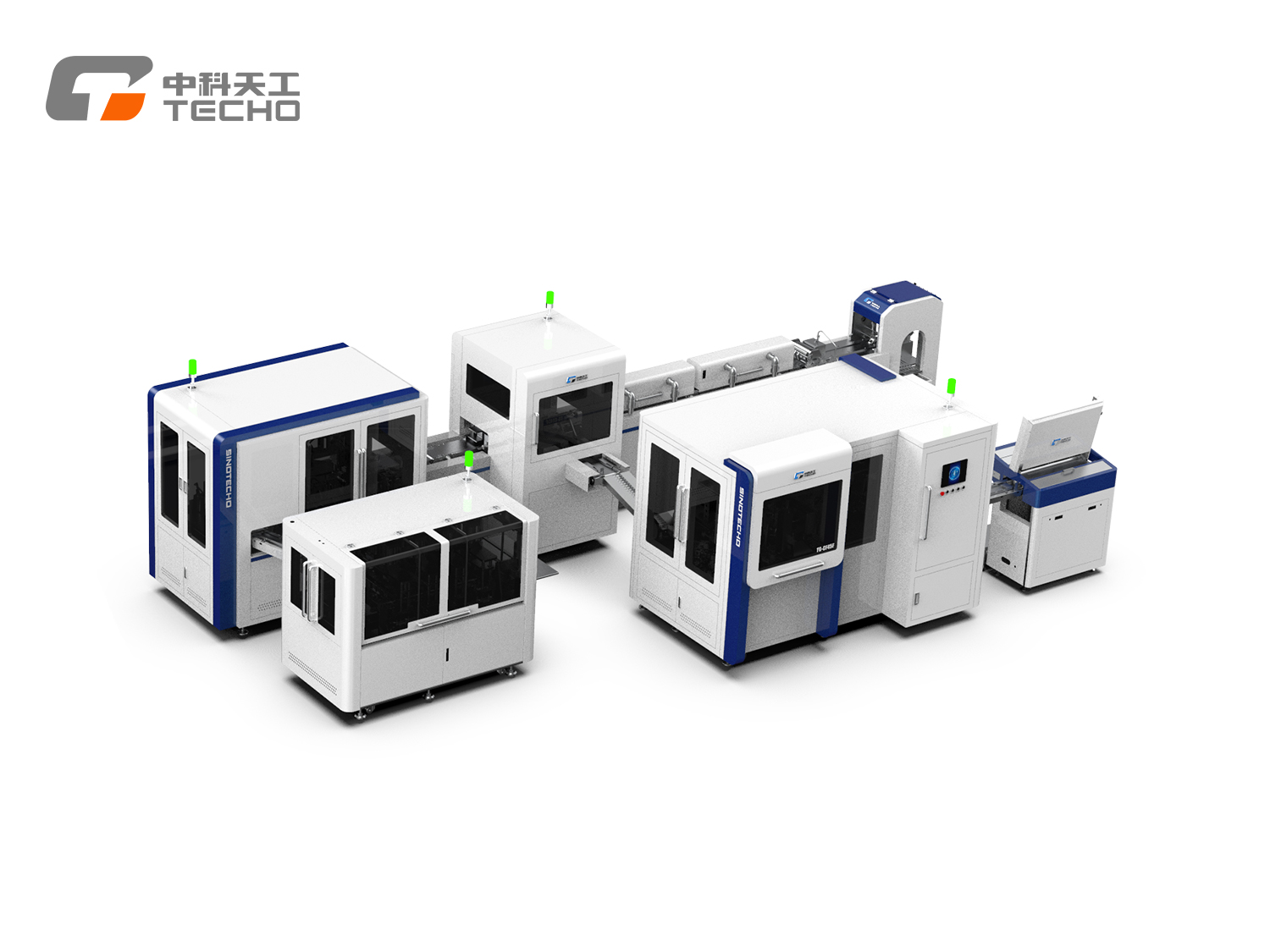

The TG-CF50F-EX Intelligent Boutique Small-Box Packaging Line features a high-efficiency production output of ≥2700 pieces per hour, ensuring rapid and stable automation.

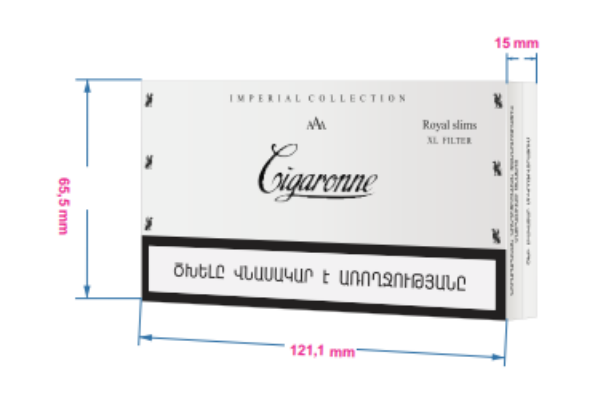

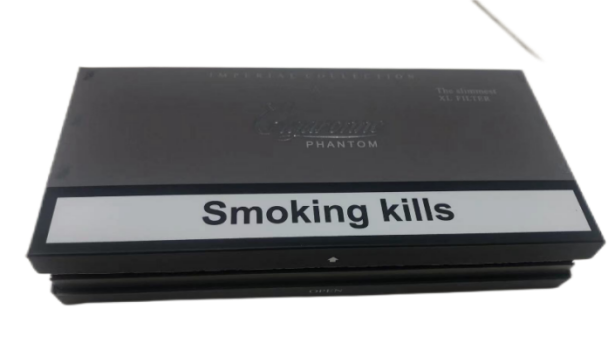

This system handles finished boxes with length ranging from 60 to 121.5 mm, width from 60 to 105 mm, and height from 15 to 30 mm.
The line incorporates an intelligent visual positioning machine that provides exceptional precision with a positioning accuracy of ±0.1 mm.

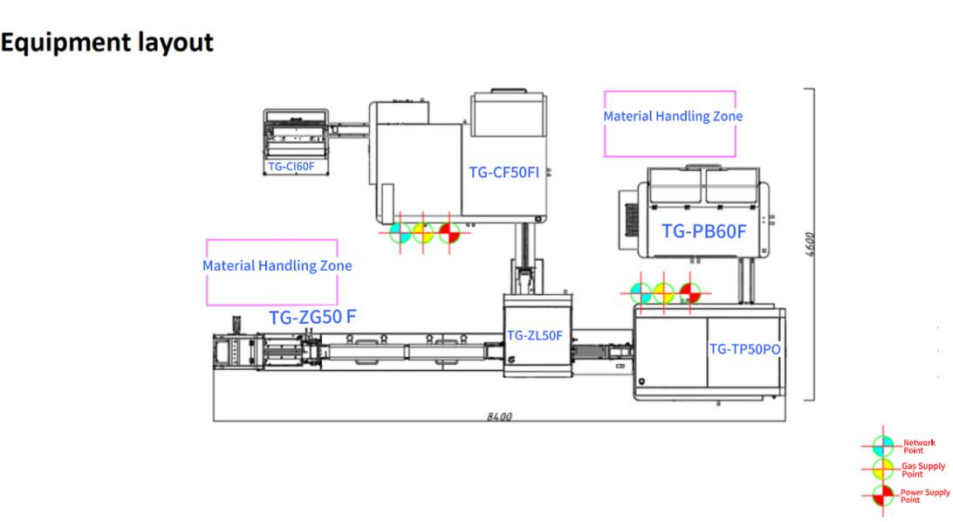

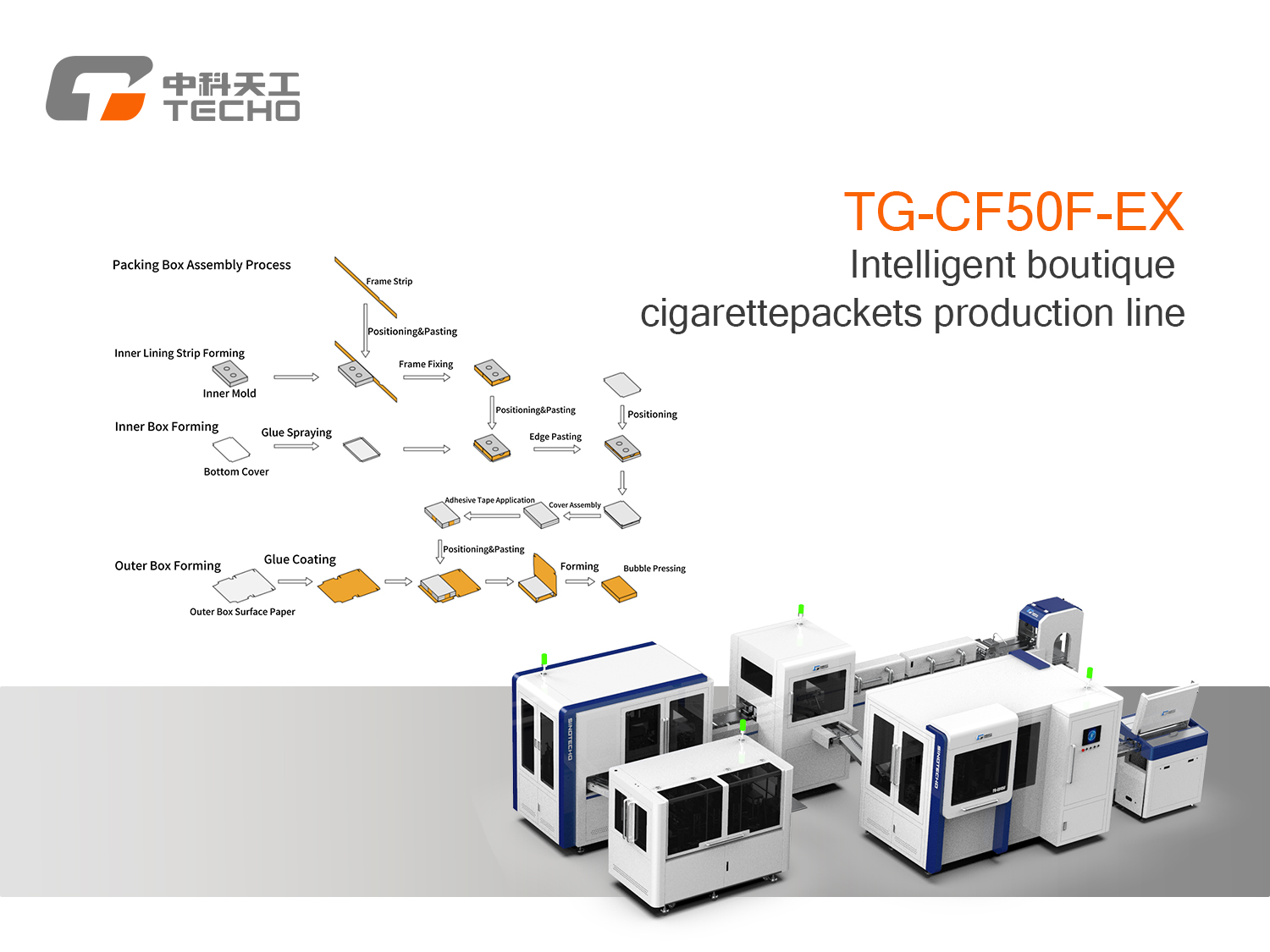

The system is composed of six modular machines: the TG-CI60F Feeding Machine, TG-CF50FI Inner Box Forming Machine, TG-ZL50F Visual Positioning Machine, TG-ZG50F Anilox Roller Gluing Machine, TG-TP50PO Cover Paper Gluing & Packet Forming Machine, and the TG-PB60F Pressing and Flattening Machine.
The machinery has overall dimensions of 8400*4500*2000mm and weighs approximately 9500KG. It requires an AC380V±10% power supply and a working air pressure of 0.6-0.8 MPa.
It is uniquely designed for premium, high-end boutique small-box packaging systems, providing flexibility from visual positioning to top and bottom box assembly.
