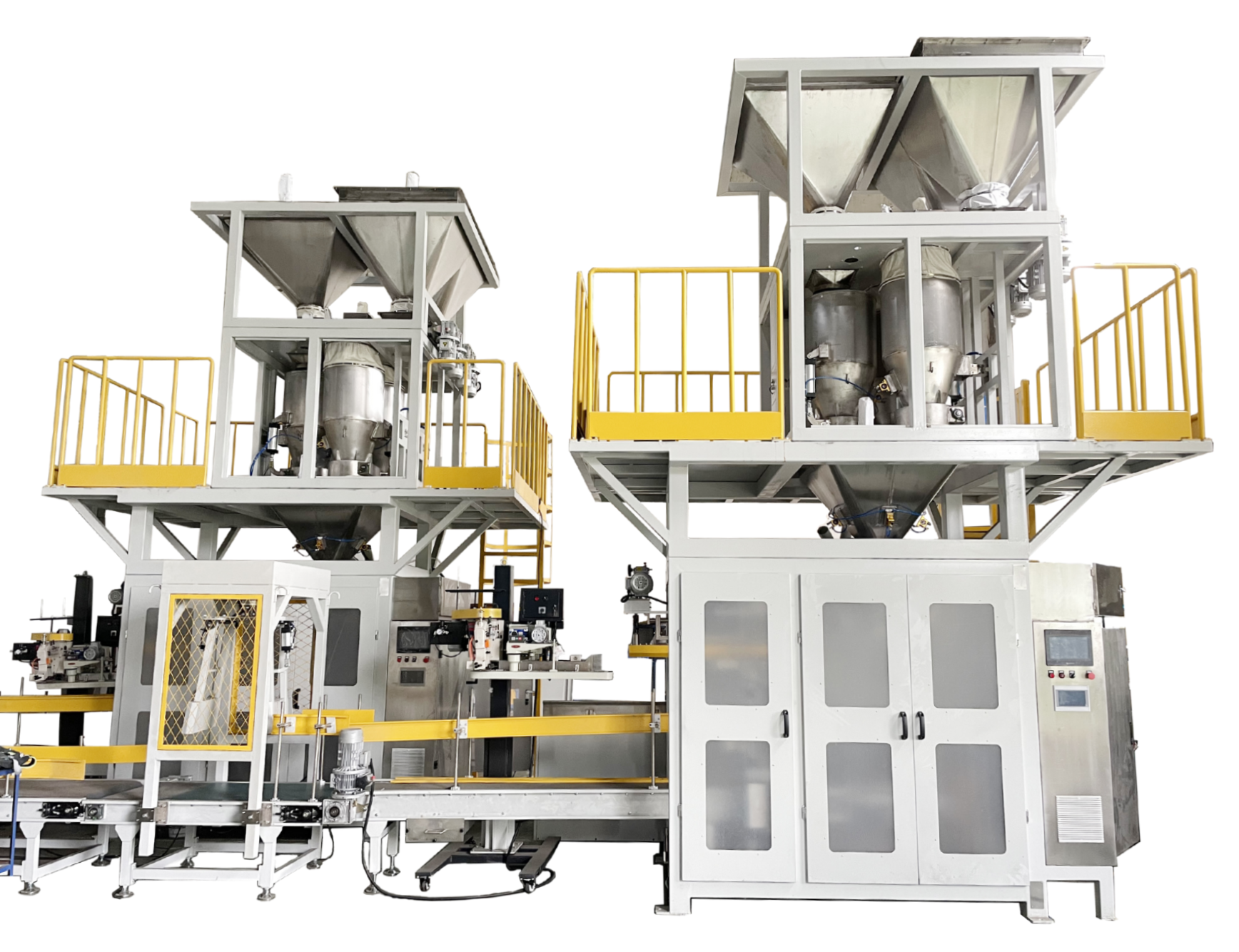

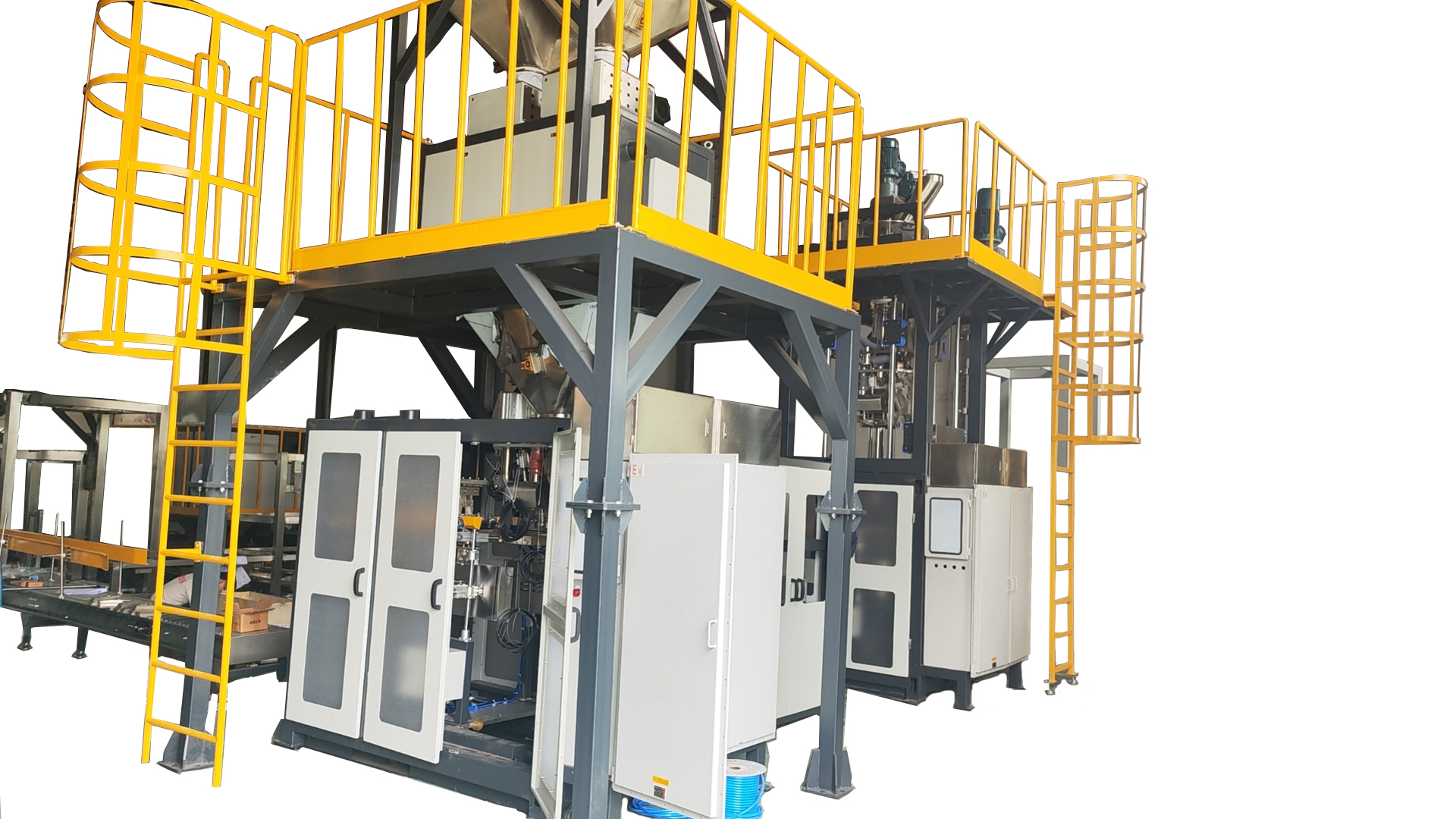

Turnkey Automatic Open-Mouth Packaging Line For 10-50kg Wheat Flour Packing Machines Customizable Packaging System
Turnkey Automatic Open-Mouth Packaging Line For 10-50kg Wheat Flour Packing Machines Customizable Packaging System
Turnkey Automatic Open-Mouth Packaging Line For 10-50kg Wheat Flour Packing Machines Customizable Packaging System
Turnkey Automatic Open-Mouth Packaging Line For 10-50kg Wheat Flour Packing Machines Customizable Packaging System
Turnkey Automatic Open-Mouth Packaging Line For 10-50kg Wheat Flour Packing Machines Customizable Packaging System
1 / 5
Turnkey Automatic Open-Mouth Packaging Line For 10-50kg Wheat Flour Packing Machines Customizable Packaging System
Turnkey Automatic Open-Mouth Packaging Line For 10-50kg Wheat Flour Packing Machines Customizable Packaging System
Turnkey Automatic Open-Mouth Packaging Line For 10-50kg Wheat Flour Packing Machines Customizable Packaging System
Turnkey Automatic Open-Mouth Packaging Line For 10-50kg Wheat Flour Packing Machines Customizable Packaging System
Turnkey Automatic Open-Mouth Packaging Line For 10-50kg Wheat Flour Packing Machines Customizable Packaging System

Turnkey Automatic Open-Mouth Packaging Line For 10-50kg Wheat Flour Packing Machines Customizable Packaging System

Send Inquiry

Product Description

Packaging Machine Overview
Machine Structure Detail
1
Using imported high-precision sensors and highly intelligent weighing controllers, it has high measurement accuracy and stable performance.
2
Automatic correction of blanking difference, automatic zero point tracking, overshoot detection and suppression, overshoot and undershoot alarm.
3
The forced execution function in the simulation state truly realizes fault self-diagnosis, and easy to do facilitates maintenance and repair.
4
With the forced execution function in manual state, once the automatic control process fails, as an emergency measure, the entire packaging process can be completed manually without interrupting the packaging operation.
5
Automatic statistics on the number and volume of packages.
6
Using pneumatic actuator, the inlet and outlet pressure of the cylinder are adjustable, making the work more reliable and pollution-free. Parts in contact with materials are made of imported stainless steel, which meets food hygiene requirements, resists corrosion and extends the service life of the equipment.
7
Safety design, pneumatic components, electrical appliances, and instruments are all protected to ensure equipment and personal safety.
Industrial Powder Packing System
Item Parameters
Product Powder
Model JLS-F50/S
Packing range Net weight: 5-50kg/bag, adjustable
Packing speed 100-200 bags/h
Feeding type Double screw auger feeding
Tolerance ±0.2-0.5%
Bag size 350-650mm wide, 630-1100mm long
Bag material Woven bag, Kraft bag, Composite film plastic bag
Sealing type Woven bag: Folding/sewing
Kraft bag: Heat sealing/sewing
Composite film plastic bag: heat sealing
Weighing type Cantilever beam
Weighing sensor HBM/METTLER TOLEDO
Sensor tolerance 0.5μv/d
Sensor working temperature -20-50°C
Sensor material Alloy steel
Control meter Touch screen
Meter temperature -10-40°C
Meter A/D ratio 120times/sec
Hopper material SUS304
Packing machine material Material contacting part in SUS304
Transition hopper SUS304, 2.5mm thick, 1m³ volume, with vibration feeding
Platform, ladle, guardrail Carbon steel with painting, 2mm thick, 100x100mm support
Pneumatic components Taiwan AirTAC
Electric components Schneider
Raw material feeding model From silo or other types by buyer supply
Feeding inlet Soft connection with cloth
Dust control 1. Reserved inlet for dust collector on feeding hopper
2. Reserved inlet for dust collector on feeder
Detailed Component View 1
Detailed Component View 2
Detailed Component View 3
Control System Setup
Packaging Application 1
Packaging Application 2
Production Process 1
Production Process 2
Final Packaged Bags Ready
Frequently Asked Questions (FAQ)
What is the packing weight range and capacity of the JLS-F50/S model?
The machine has an adjustable net weight packaging range of 5 to 50 kg per bag, with an operating speed of 100 to 200 bags per hour.
What types of bags and sealing options are compatible with this equipment?
It supports woven bags (folding/sewing), Kraft bags (heat sealing/sewing), and composite film plastic bags (heat sealing). The bag sizes accommodated range from 350-650mm wide and 630-1100mm long.
How does the machine maintain weighing accuracy?
It utilizes imported high-precision cantilever beam sensors (such as HBM or METTLER TOLEDO) along with an intelligent weighing controller. It features automatic zero point tracking, blanking difference correction, and overshoot detection to maintain a low tolerance of ±0.2-0.5%.
What happens if the automatic system experiences a control process failure?
The machine is equipped with a forced execution function in manual state. In the event of an automatic control failure, the entire packaging process can be finished manually without interrupting your packaging operation.
What materials are used in the construction of this packing machine?
The transition hopper and all parts directly contacting the product materials are constructed from premium SUS304 stainless steel to ensure durability, meet food hygiene standards, and resist corrosion.
How is dust managed during the packaging operation?
The system features a dedicated safety and environmental design, which includes a reserved dust collector inlet on the feeding hopper as well as a reserved inlet on the feeder.
