Basic Info
Model NO.
PM
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Multi-Room Feeding
Dosing Device
Capacity Cup
Filling Principle
Atmospheric Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Linear
Packaging
Cup
Packaging Material
Plastic
Material
SUS304/316
Certificate
CE, ISO, SGS
Electrics
Siemens, Mitsubishi, etc
Exchange Parts
Free
Composition
Cup Filling Sealing Machine
Power
380V or Customer Made
Capacity
800bph to 8000bph
Name
Automatic Cup Liquid Filling Sealing Machine
Control System
PLC
Transport Package
Wooden Case
Specification
4.5m*2.1m*2.5m
Origin
China
HS Code
8422301090
Production Capacity
500sets/Year Bottle Blowing Machine
Product Description

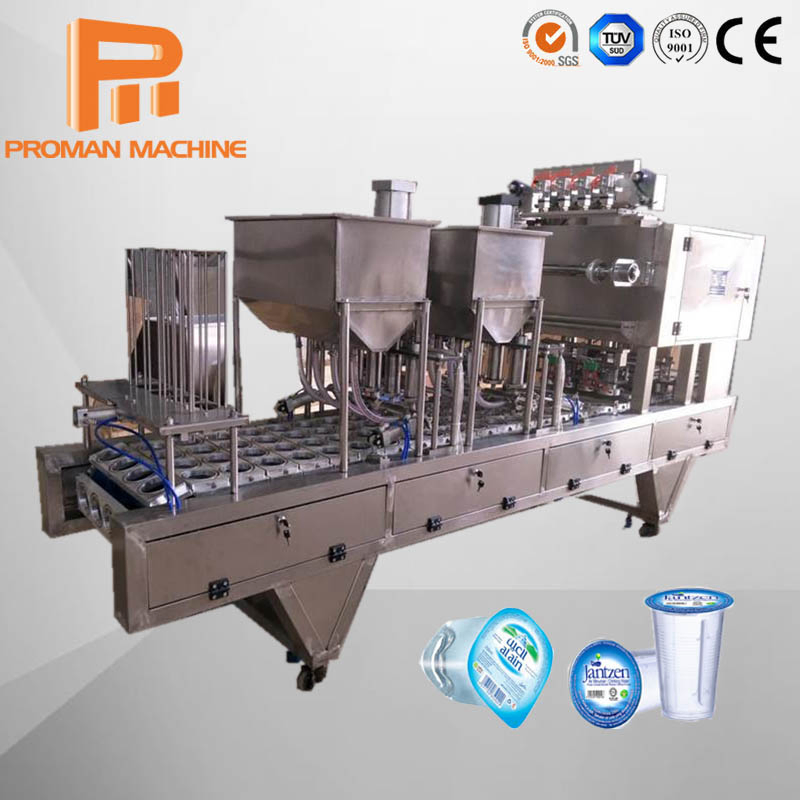

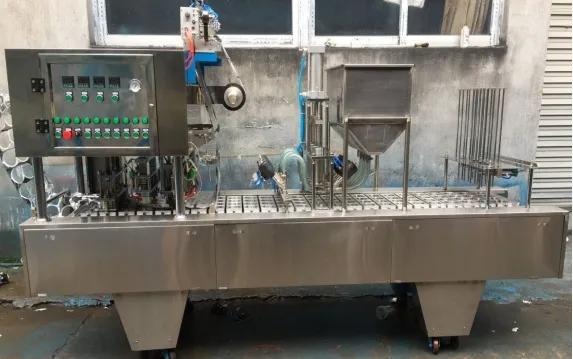

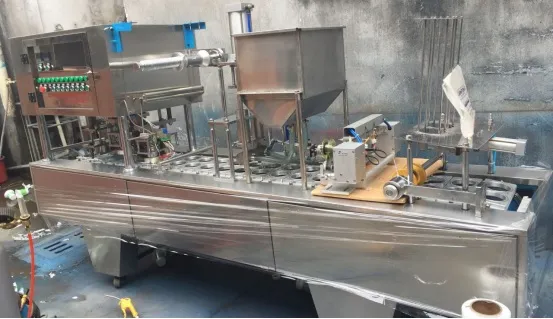

Made in China PLC Automatic Cup Water Liquid Filling Sealing Machines with UV sterilization and Auto Date Printing for Jellies, Rice Pudding and Other Puddings
Our production servo automatic cup filling and sealing machine, due to it has different specifications filling method, applicable to any different viscosity beverage, can package dry foodstuff, like peanuts, almonds, hazelnuts, seeds, etc., and can fill paste products, like jelly, milk, ice cream, butter, jam, fruit juices and mineral water, and seal the corresponding composite membrane material. According to customer's requirement, it can be installed hot code printer to print production date, lot number etc.
Flow Chart
1
Water purification system: Source water tank → Source water pump → Quartz sand filter → Active carbon filter → Ion soften machine → Fine filter → Reverse Osmosis → Ozone sterilizer → Pure water tank
2
Cup filling & packing system: Pure water tank → Cup loader → Cup filling sealing machine → Warehouse
Working Process

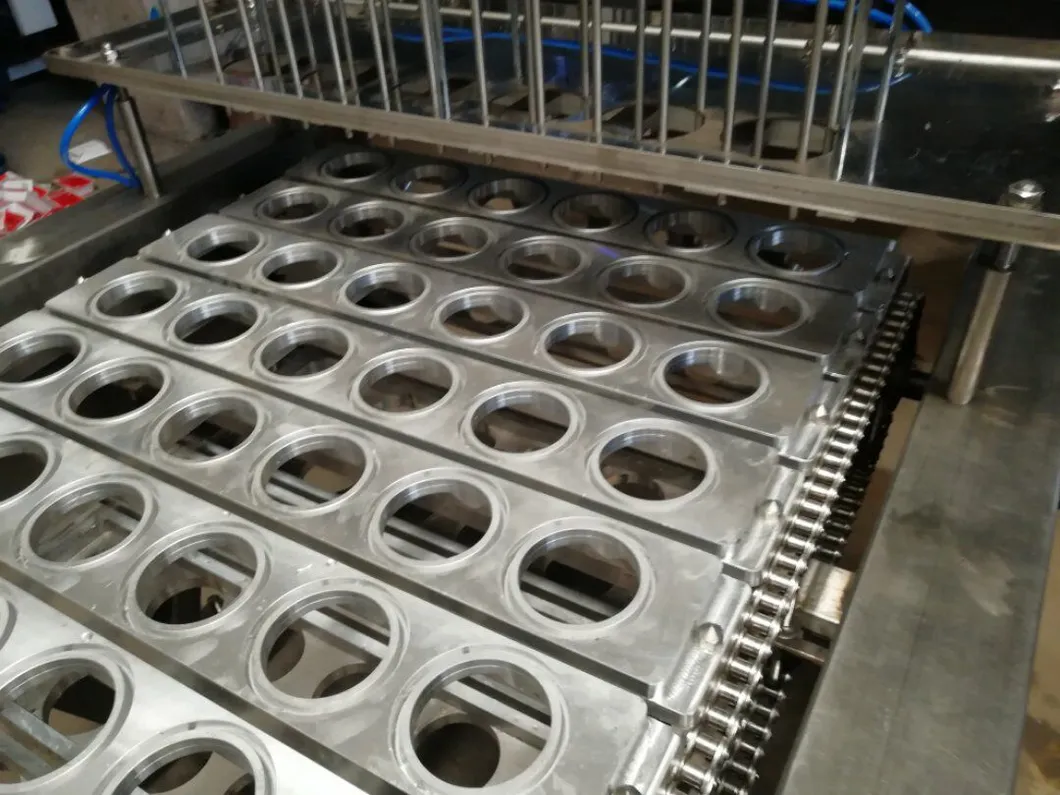

- 1# Automatic fallen cups one by one

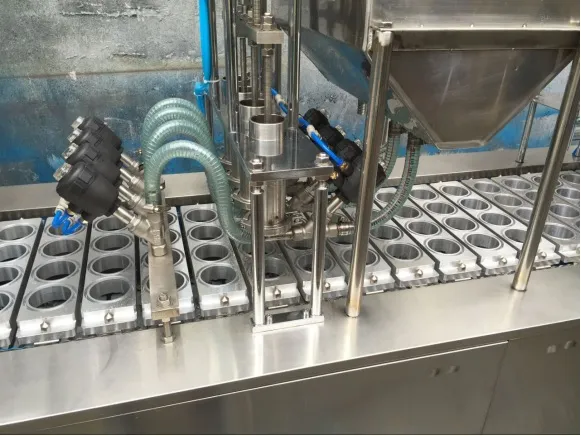

- 2# Automatic measure cup filling
- 3# Automatic UV sterilization
- 4# Automatic print dates (optional device)
- 5# Automatic twice sealing
- 6# Automatic cutting foils
- 7# Automatic recycle waste films
- 8# Automatic pushing out finished cups
| Model |
PMDP-4 |
| Filling heads |
4 heads |
| Capacity |
4800 cups/hour |
| Power |
3.8 KW |
| Max Air consumption |
0.8 m3 /min |
| Power source |
AC 380V/50HZ 3P or customized |
| Weight |
1200 kg |
| Dimension(mm) |
(L)3400*(W)860*(H)1760 |
Design Features
Beautiful & Hygienic Style
Entire machine is made of stainless steel, meeting strict food hygiene requirements with a bright, clean appearance.
Advanced Servo Control
Adopts servo motor and pneumatic transmission. Saves manpower and material resources through full-automation.
High Efficiency
The machine can fill, seal, and cut on multiple containers simultaneously for maximum output.
Photoelectric Eye Device
Tracks and fixes the location of the sealing film automatically, ensuring high precision in design alignment.
Double Sealing Structure
Equipped with a double sealing device for tight, double hot seals to guarantee quality.
Automatic Positioning System
Corrects stepper and chain transmission errors automatically so spacing remains perfectly even.
Dual-Purpose Mold template
Can process both roll film and aluminum sheet templates with precise nail guide tube alignment.
PLC Touch-screen
Integrated PLC control system with responsive touch-screen interface for highly reliable operation.
Our Service
Installation Service
When preparation conditions are finished, our fast and professional aftersales service engineer team will go to your factory to install the machine, supply operating instructions, and train your staff until they can operate the machine efficiently.
Sample Service
- We can send you the video of the running machine.
- You are welcome to visit our factory and see the machine running in person.
Customized Service
We can design the machines according to your requirements (material, power, filling type, bottle designs, etc.) with professional industrial suggestions based on our extensive industry experience.
After-Sales Support
- On-time delivery and tracking documents.
- Onsite installation support, full instruction manual, and hands-on staff training.
- Regular operation feedback requests and operational support.
- One year warranty and lifetime technical support.
- Well-trained and experienced bilingual staff (English & Chinese) ready to respond to inquiries.
- Quick technical response times for worldwide inquiries.
- All business relations are strictly confidential.
Quality Control
We operate a dedicated quality department to make sure raw materials meet technical standards and that the finished machine runs perfectly smoothly.
For more details or video demonstrations of the machine in action, please feel free to send us an inquiry.
Frequently Asked Questions
1. How can I submit an inquiry for this machine?
You can reach out through our online inquiry channels, instant messaging system, or email, letting us know your specific production needs.
2. Do you offer technical support for installation and operation?
Yes. We provide a professional team of engineers with extensive international experience for machine installation, system debugging, and staff training support.
3. What is the standard warranty period for the machinery?
We offer a 1-year product quality guarantee alongside lifelong technical support for all of our machinery.
4. What materials and products can this machine fill and pack?
It can fill products of varying viscosities including liquids (water, juice), pastes (jelly, pudding, milk, butter, jam), and dry goods (peanuts, almonds, seeds).
5. Can the sealing system handle roll film and pre-cut lids?
Yes, the machine features a dual-purpose design that is compatible with both roll films and individual aluminum sheets.
6. Can the power settings be adjusted to match local requirements?
Yes, while the standard configuration is AC 380V/50HZ, the electrical power configuration can be customized based on your facility's requirements.
