Multi-function Fast Speed Potato Chip Crisp Puffed Snack Food Nitrogen Small Vertical Fomming Filling Sealing Packing Machine

1 / 5

Multi-function Fast Speed Potato Chip Crisp Puffed Snack Food Nitrogen Small Vertical Fomming Filling Sealing Packing Machine

Send Inquiry

Product Description

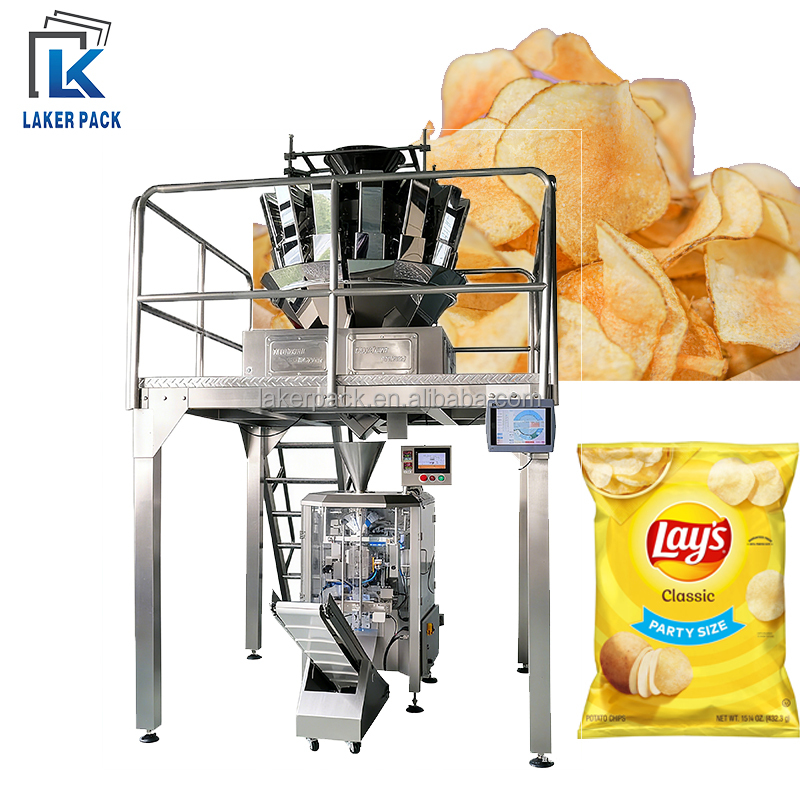

Product Overview

Entire machine design is more optimized for more convenient operation.
Compact machine structure for more stable working.
SS304 machine frame with sand blasted treatment realizes nice appearance.
Key components are specially designed, fast packing speed.
Servo controlling system: Intelligent adjustment with higher accuracy is more flexible for packing different products.

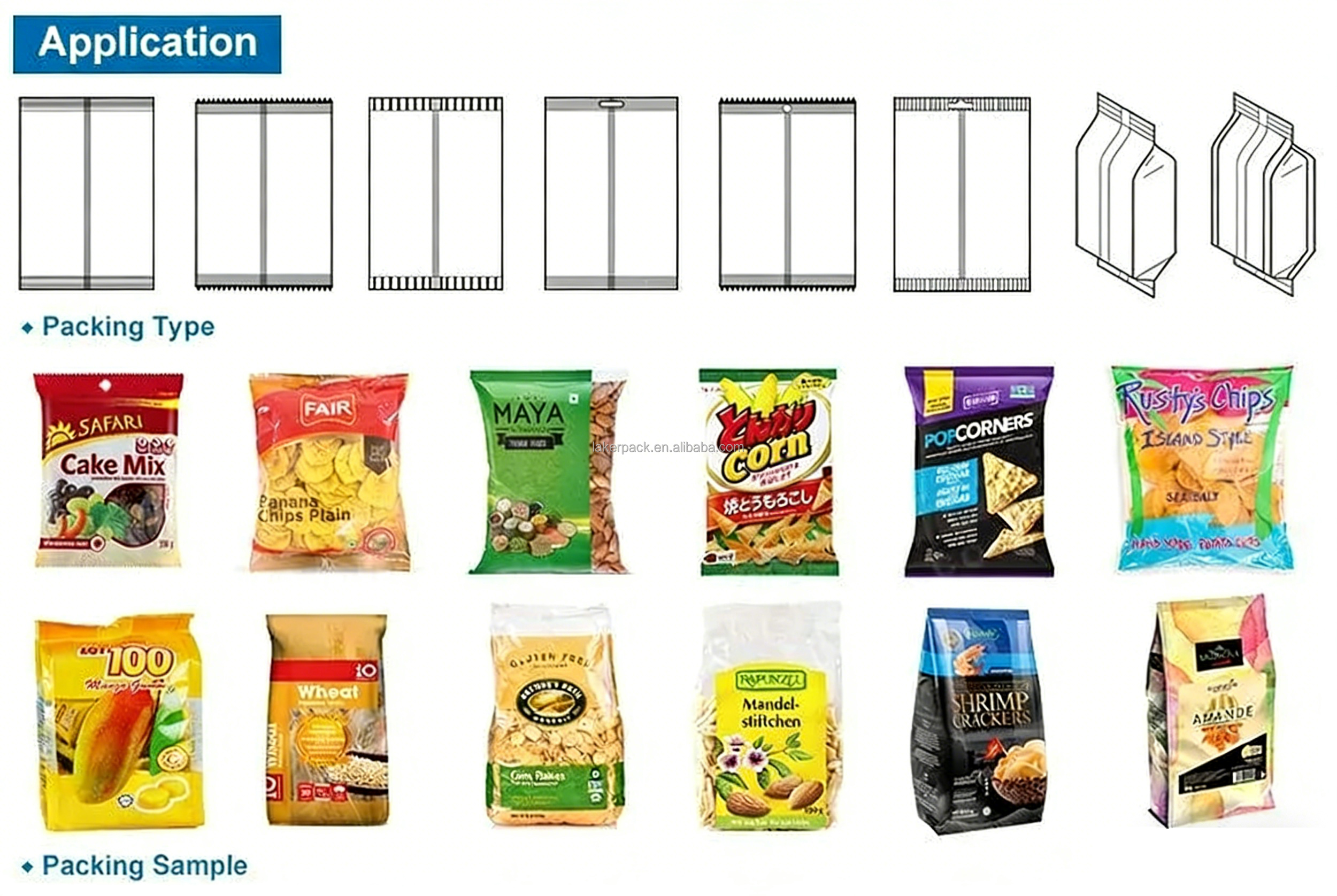

Bag types: 3 sides seal bag, pillow bag (w/o hanging hole, and chain pack option)
Filling systems: multi-head weigher, auger scale, volumetric cup filler, liquid pump and so on.

Product Specifications

Model	LKHS-320	LKW-420	LKW-520
Film Width	120-320mm	120-420mm	120-520mm
Packing size	L: 50-170mm W: 50-150mm	L: 60-300mm W: 60-200mm	L: 60-400mm W: 65-250mm
Speed	20-100 bags/min	80-150 bags/min	60-120 bags/min
Film Thickness	0.06-0.12mm	0.05-0.12mm	0.05-0.12mm
Control system	PLC + Servo + Touch screen
Measuring Range	300ml	1000ml	2000ml
Power Supply	1N+PE/50HZ/AC220V 4KW	1N+PE/50HZ/AC220V 4.5KW	1N+PE/50HZ/AC220V 4.5KW
Machine Size	90010501500mm	102012601550mm	148810801490mm
Machine Weight	About 400kg	About 580kg	About 780kg
Film Material	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/MPET/PE, PET/AL/PE, PET/PET ETC.

Option Equipments

Multi-Head Weigher

Liquid Measuring Pump

Auger Elevator

Thermal Transfer Printer

Metal Detector

Weight Detector

Collection Turn Table

Finished Product Conveyor

Products Description

Certifications

FACTORY SHOWCASE

We are a professional packaging machine manufacturer with more than 18 years experience. We concentrate on R&D, manufacturing, installation, commissioning and technical service, the products including doypack machine, roll film packaging machine, hardware packaging machine and filling machine, etc., which exported to America, Russia, Europe, Middle East, South Africa, etc., more than 30 countries and regions. The machines have been widely applied in food, agricultural products, industrial supplies, daily necessities and other enterprises. As an advanced packaging equipment manufacturer, we are committed to providing professional packaging solutions for enterprises, which can improve the production process, save labor cost, avoid secondary pollution, so that can highly improve the productivity.

Frequently Asked Questions

Are you manufacturer or trader?

We are manufacturer and we have our own design team for products design.

What's payment terms and trade terms you accept?

Usually we appreciate T/T 50% deposit, then 50% balance is paid before shipment. We could also accept LC at sight. We usually offer EXW price, but we also do FOB/CIF/CRF/DAP/DDP etc.

What kind of Transportation could you provide? And are you able to update the production process information in time after placing our order?

We provide Sea shipping, air shipping, and international express. And after confirming your order, we would keep updating the production details by emails and photos for you.

How about your after-sale service?

1. Manuals / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Our engineers & technicians are available to send to your countries for services if you agree to pay the expenditure.
4. The machine will have a two-year warranty. During the warranty period, if any parts are broken (not man-made), we will replace them for free. The warranty begins after the machine is sent out and we receive the B/L.
5. We have an independent team for after-sale service. On-site repairs or instructions are also available.

Do you accept customer Logo print and other customizations?

We provide ONE-STOP customized packaging line services, which naturally include logo customization. You only need to provide your requirements.

What film materials are compatible with these machines?

Our machines are compatible with various film materials including BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/MPET/PE, PET/AL/PE, PET/PET, and others.
