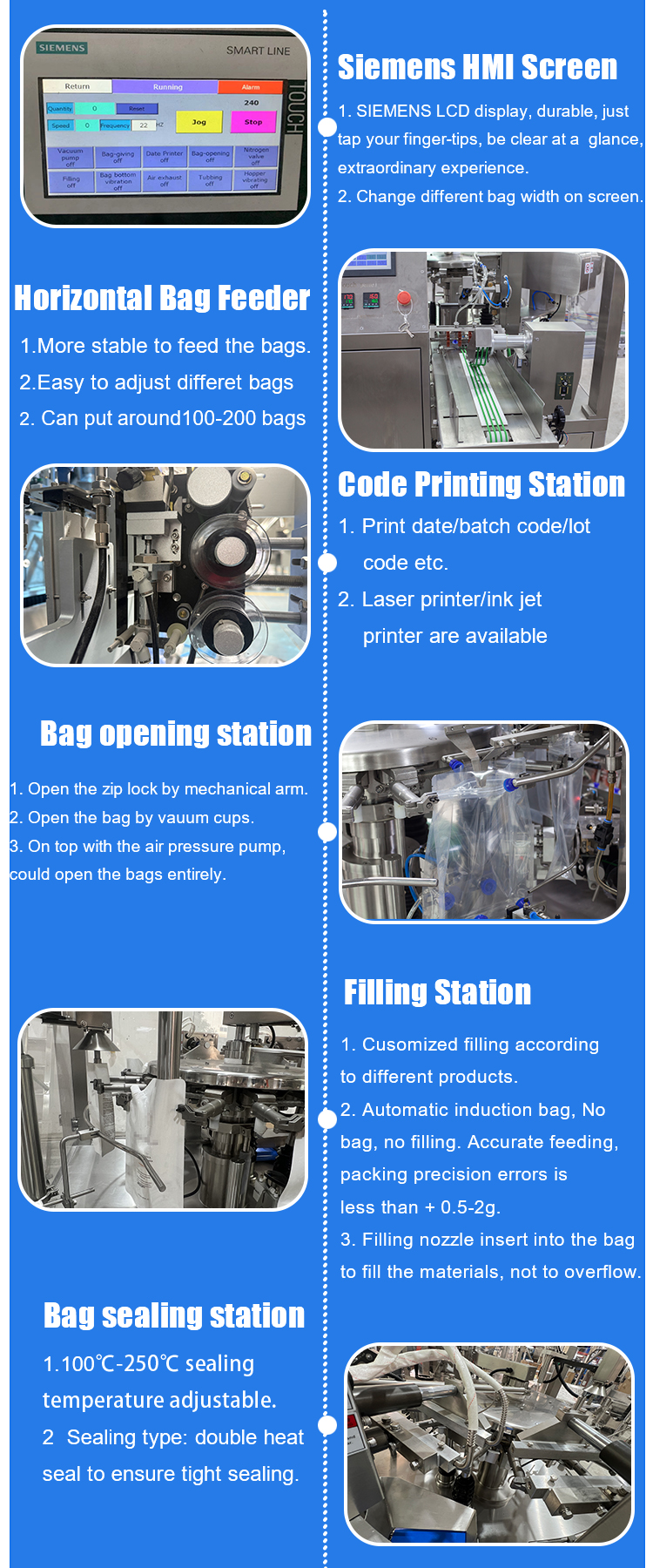

Equipped with a PLC controller, HMI system, and touch screen fault indication.
All working processes are integrated in one station, ensuring easier adjustments.
Speed can be flexibly adjusted by frequency conversion within the range.
Unmanned operation in weighing and packing; automatic alarm alerts on failure.

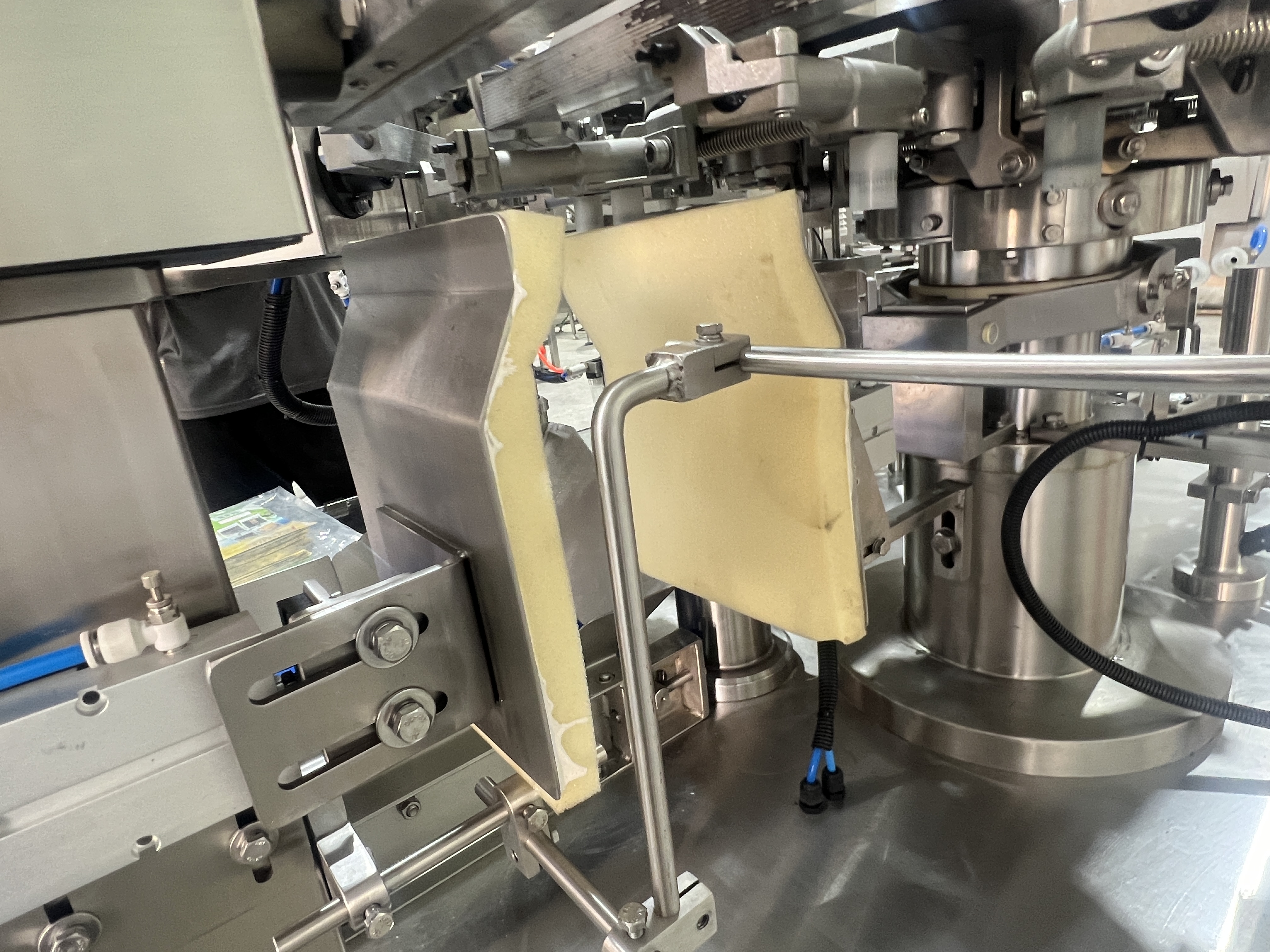

8 sets of grippers can be adjusted simultaneously via a handwheel.
No pouch or incorrect pouch opening results in no fill, no seal, and triggers alarm.
Machine automatically triggers alarm and stops when air pressure is inadequate.
Includes safety switches; machine automatically alarms and stops when guards are opened.
All parts in contact with the product are made of premium 304 stainless steel.
Imported engineering plastic bearings and oil-free vacuum pump prevent contamination.
| Model | LK8-230 | LK8-300 | LK8-400 | LK4-320 |
|---|---|---|---|---|
| Packing size | L: 150-380mm W: 80-230mm |
L: 150-380mm W: 140-260mm |
L: 150-430mm W: 180-300mm |
L: 200-500mm W: 270-400mm |
| Speed | 20-60 bags/min | 20-50 bags/min | 10-40 bags/min | 10-25 bags/min |
| Reference Weight Range | 10-2500g | 5g-2500g | 100g-5000g | 100g-5000g |
| Power | 3.75kw | 3.75kw | 3.85kw | 4.5KW |
| Power Requirement | AC380V±10%, Three phase 50/60HZ | |||
| Air Consumption | 0.4m³/min | |||
| Suitable Bag Style | Three-side Seal Bag, Stand up pouch, Corner Spout Bag, Paper Bag, Zipper Bag, Flat Bottom Pouch, etc. | |||
| Machine Size | L2300*W1500*H1400mm | L2400*W1500*H1500mm | L2460*W1730*H1500mm | L2560*W1750*H1600mm |
| Weight | 1300kg | 1420kg | 1600kg | 2000kg |
| Main Standard Accessories | 1. Bag feeding system | 2. PLC control system | 3. Bag opening device | 4. Filling system | 5. Cleaning system | 6. Hot sealing control system | 7. Output system | |||
We are a professional packaging machine manufacturer with more than 18 years of experience. We concentrate on R&D, manufacturing, installation, commissioning, and technical services. Our products, including doypack machines, roll film packaging machines, hardware packaging machines, and filling machines, are exported to more than 30 countries and regions worldwide, including America, Russia, Europe, the Middle East, and South Africa. Our packaging systems have been widely applied in food, agricultural products, industrial supplies, daily necessities, and various other sectors. As an advanced packaging equipment manufacturer, we are committed to providing professional packaging solutions that optimize production processes, reduce labor costs, avoid secondary contamination, and significantly improve productivity.
