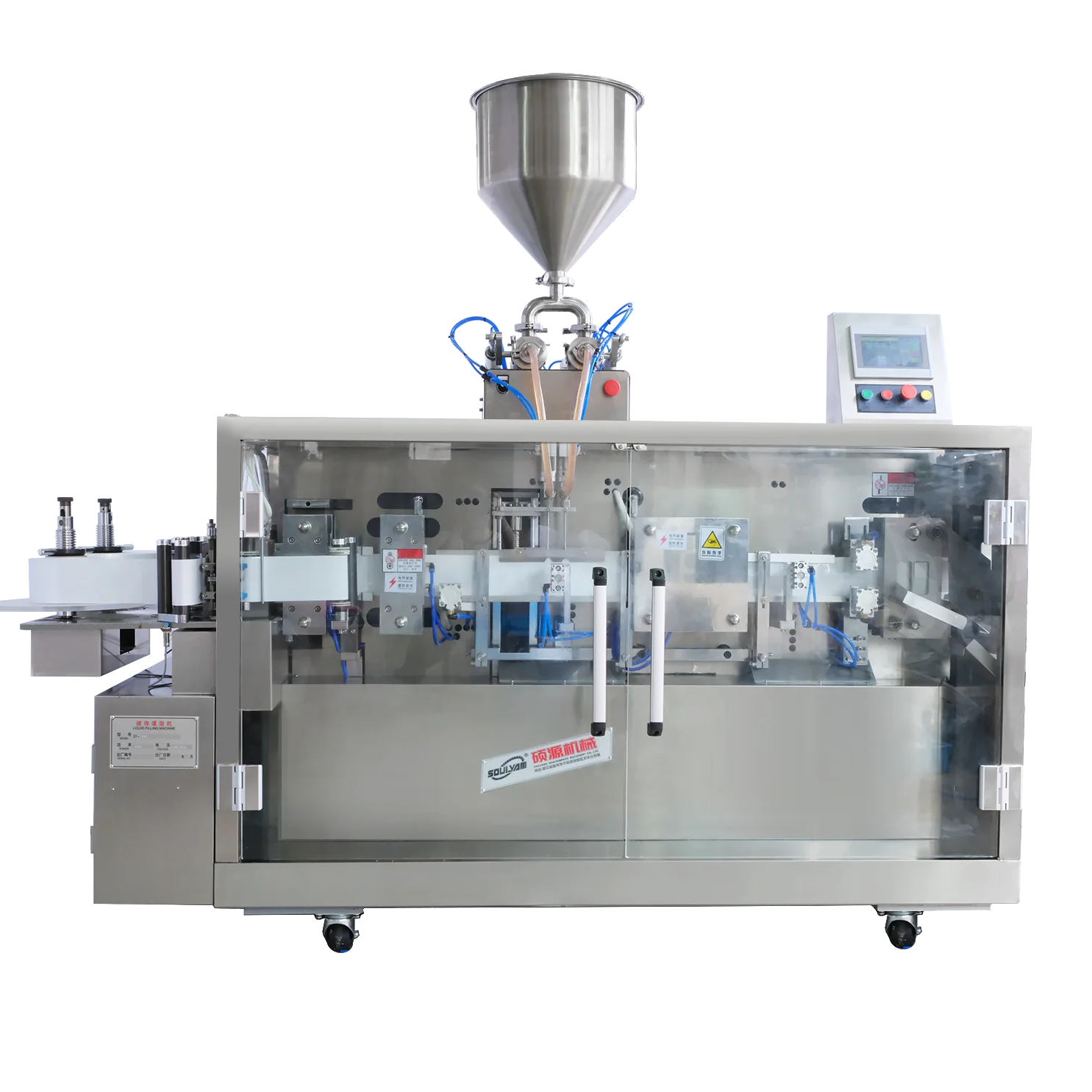

HUAYUAN Multifunctional Automatic Liquid Honey Jam Paste Snap Packs Squeeze Sachet Filling and Sealing Machine

Product Description

Packaging Machine Banner
Products Description
Main Technical Parameters
Model GSS-120
Production speed 50-100 sachets/min
Packing Material PET/AL, PET/PE, PS/PE, Transparent Film, Aluminum foil composite film
Max Packing Size 120*100mm
Filling Nozzle 2-3
Filling Volume 0.5-20ml
Power 3.2KW 380V
Overall Dimension 2400*1000*1950mm
Weight 900KGS
Performance and Characteristic

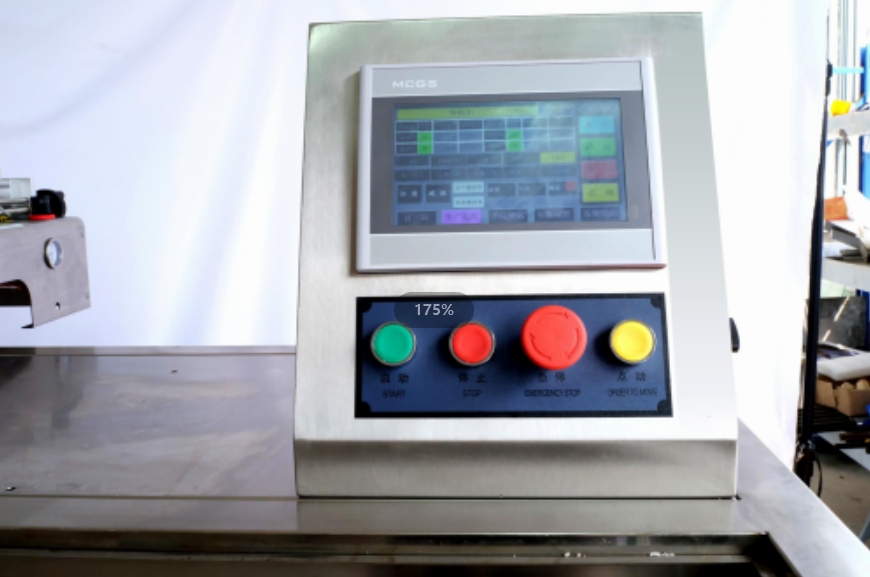

  • Adopt PLC control, stepless frequency conversion speed regulation.

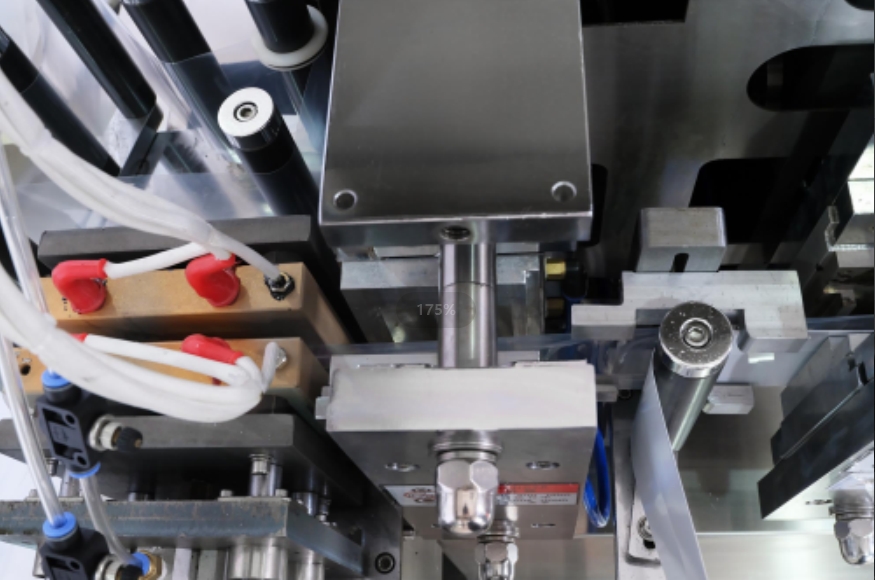

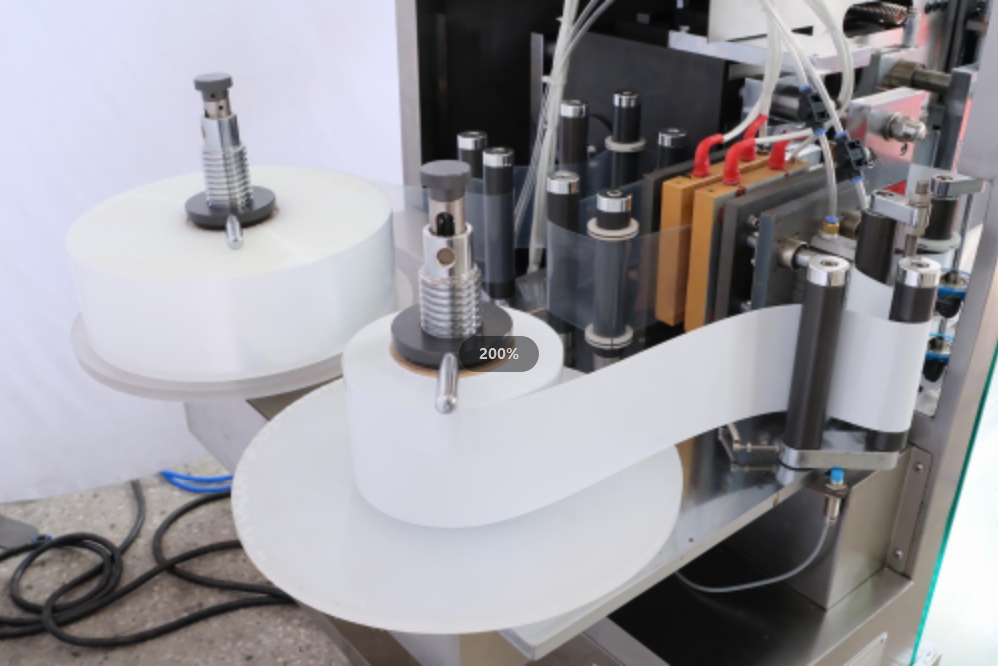

  • Unwinding, forming, creasing, heat sealing, filling, end sealing, punching.
  • Photoelectric pattern alignment function on one side, and printing date 1-5 typesetting on the other side.
  • Peristaltic pump or piston pump is used to control the filling volume, with accurate accuracy and anti-drip function.
  • The contact part is made of 316L stainless steel, and the outer cover of the machine is made of SUS304 stainless steel, which meets the GMP standard.
Packaging Machine Process
Applications
Lard, Honey, Jam Packing
Mainly applicable to: Lard, Honey, Jam, Make-up cream, Lotion.
Ketchup, Toiletries Packing
Ketchup. It can also be used in all kinds of toiletries, shampoos, and conditioners.
Sauces, Soy Sauce Packing
Various types of sauces, soy sauce, vinegar packets and so on.
Why Choose Us
Why Choose Us
Company Profile
Workshop Area 1
Workshop Area 2
Workshop Area 3
Packing & Shipping
Packing & Shipping
Certificates and QA
Customer Service Quality
PET Bottle Blowing Machine
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine. PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Blowing Machine Unit 1
Suitable for producing PET plastic containers and bottles.
Blowing Machine Unit 2
Highly efficient and versatile molding systems.
Blowing Machine Unit 3
Designed for all shapes of PET container production.
PET Blowing System
Semi-Automatic PET Bottle Blowing Machine
Suitable for producing PET plastic containers and bottles in all shapes.
Frequently Asked Questions
What materials can the GSS-120 sachet packing machine handle?
The machine is compatible with a wide range of composite films, including PET/AL, PET/PE, PS/PE, transparent film, and aluminum foil composite film.
What types of products are suitable for packaging with this machine?
It is ideal for liquid and paste materials such as lard, honey, jam, makeup creams, lotions, ketchup, shampoos, conditioners, and various food sauces.
Does this packing machine meet food hygiene and GMP standards?
Yes. All contact parts of the machine are made of high-quality 316L stainless steel, and the outer enclosure is built with SUS304 stainless steel, fully meeting GMP hygienic standards.
How is the filling volume controlled on the GSS-120?
Depending on your specific product properties, either a peristaltic pump or a piston pump is utilized to provide high-precision filling control combined with an anti-drip function.
What is the production capacity of the GSS-120?
The GSS-120 can reach a production speed of 50 to 100 sachets per minute, depending on the packing material, sachet size, and filling volume.
Is the PET Bottle Blowing Machine suitable for custom bottle designs?
Yes, the semi-automatic PET bottle blowing machine is highly versatile and suitable for producing PET plastic containers and bottles in all shapes.
