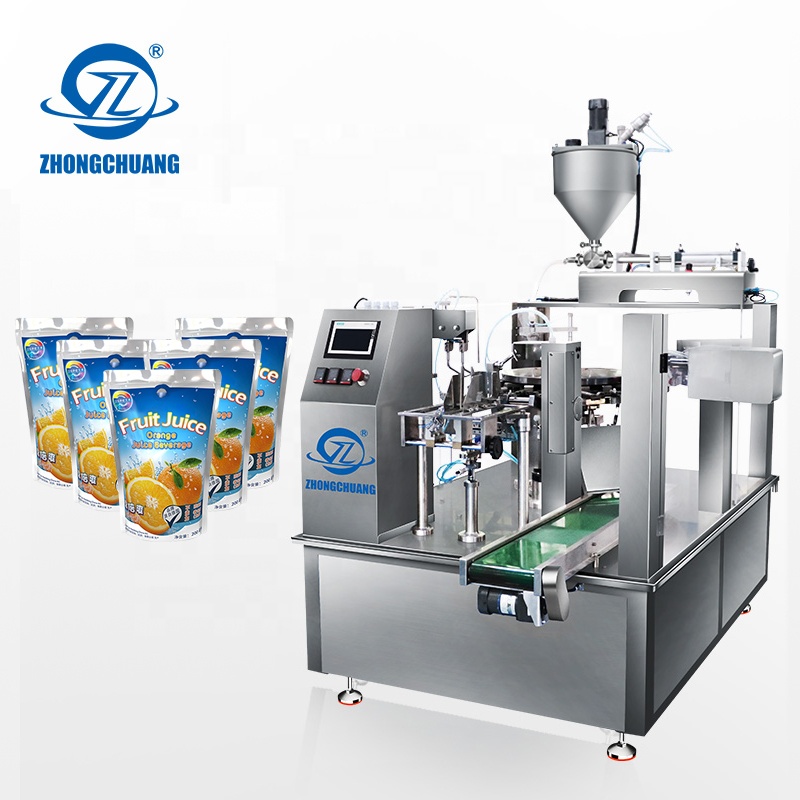

| Item NO. | ZC-Y200/250 |
|---|---|
| Dimensions | L4000mm × W2000mm × H2100mm |
| Packing Speed | 16-60 Bags/min (depending on product characteristics and filling volume) |
| Packing Bag Size | L: 100-350mm | W : 60-200mm / 80-250mm |
| Weight | 1800KG |
| Air Consumption | ≤0.6m³ / min |
| Accuracy | ±1g (≤100g) / ± 1%( >100g) according to material |

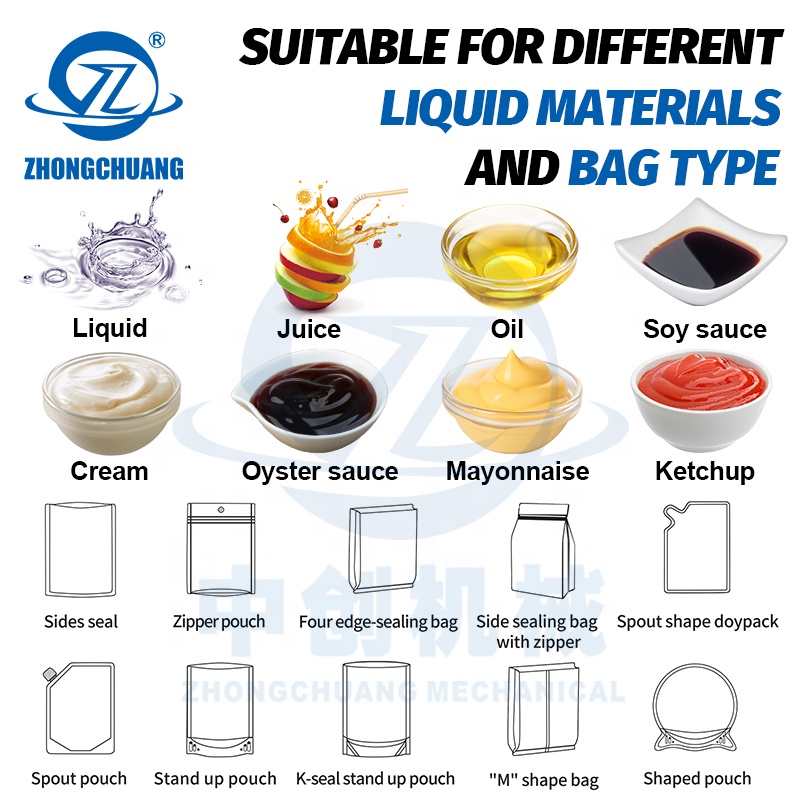

| Application | Suitable for liquid or semifluid products packing, such as beverages, juice, drinking, ketchup, sauce, soy sauce, vinegar, jam, bechamel etc. |
| Description |
1. Customized according to customer demand to recommend the appropriate configurations. 2. Storage racks device satisfies short stops, keeping the production line running continuously. 3. Attentive service support via telephone and video communication. |
Packing speed, temperature, capacity, and bag length parameters are all integrated and clearly displayed.

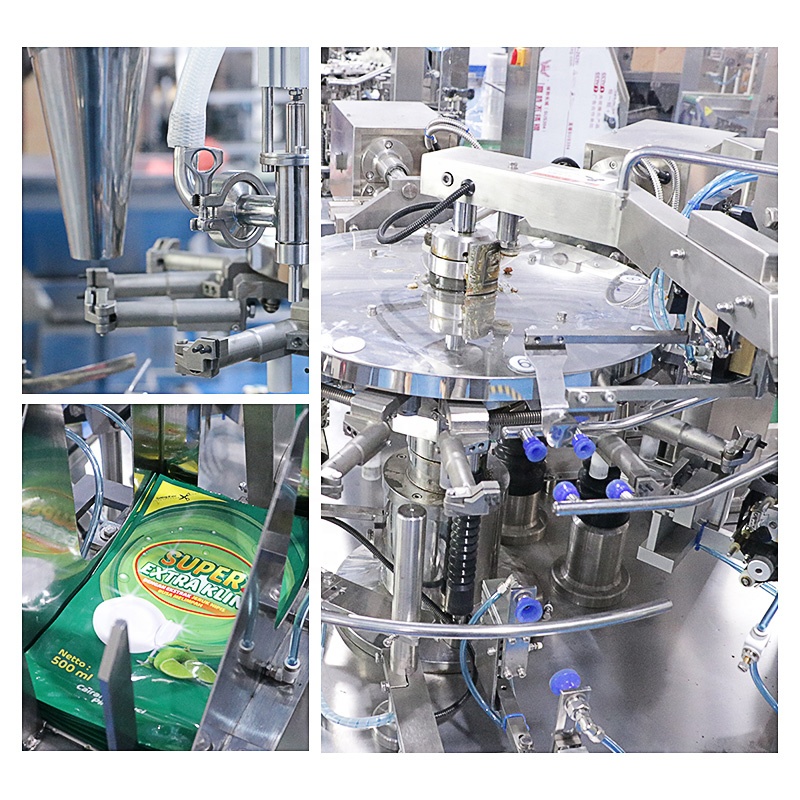

Eight-work station running ensures that each processing stage is executed stably and efficiently.

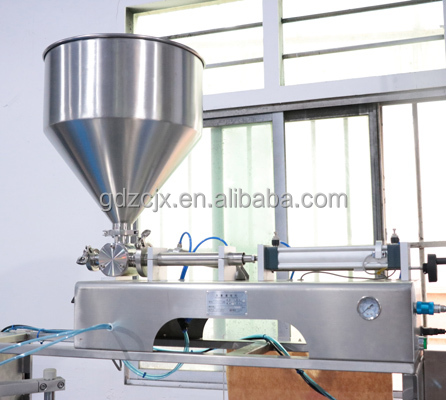

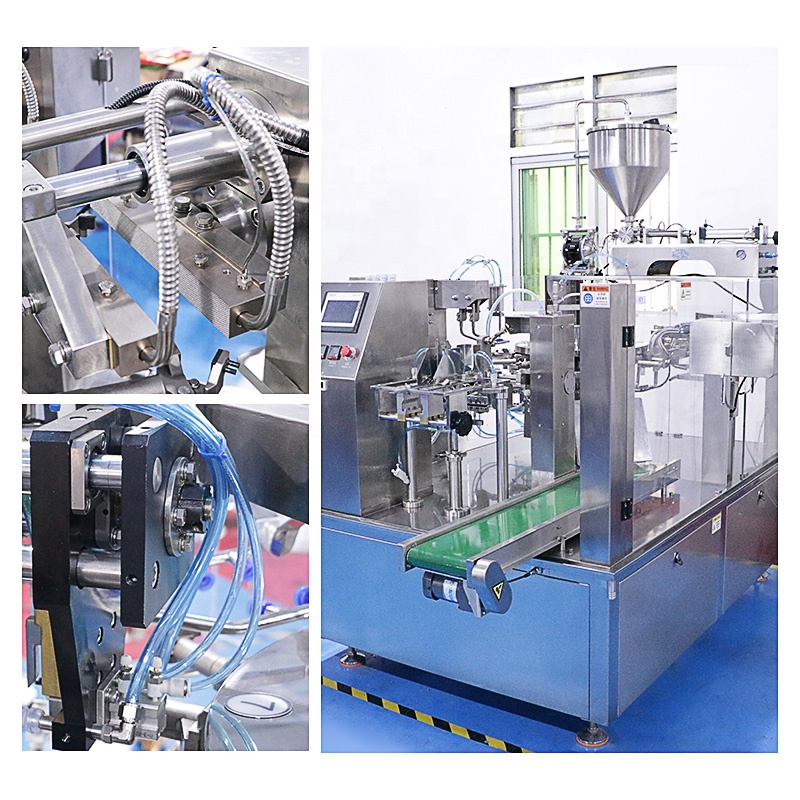

Combined with a specialized liquid pump, making it ideal for packing liquid or semifluid products.

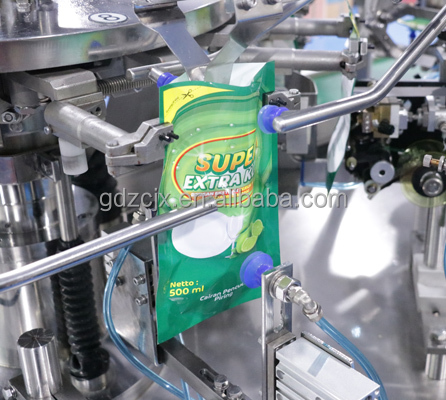

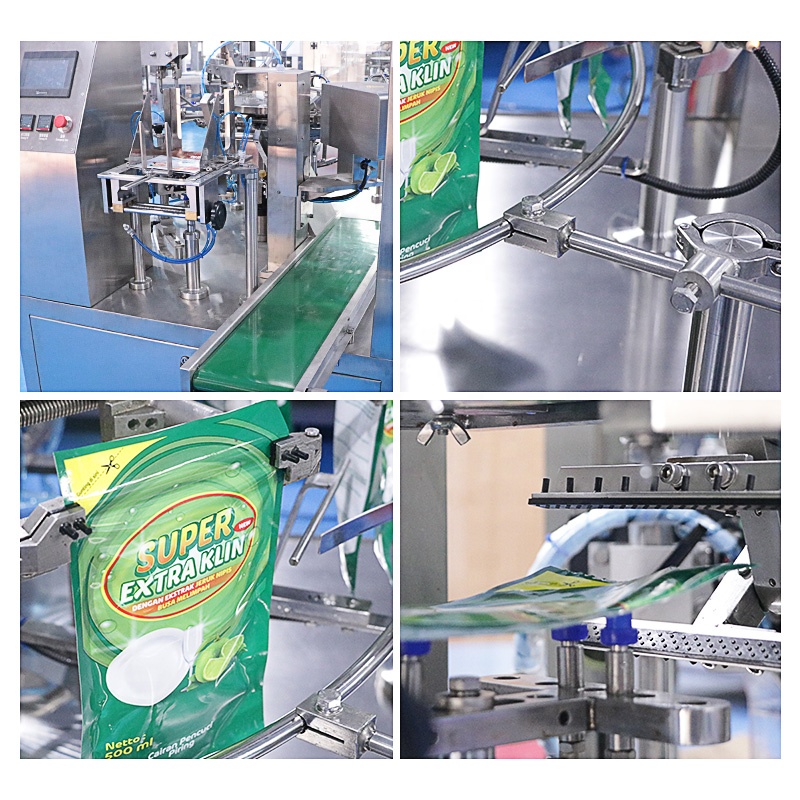

Designed specifically for zipper pouches to open the bag zipper automatically prior to filling.
Convenient for multiple packaging sizes, with fully-automatic coding, filling, and sealing functions.
Used to print the manufacture and expiration dates with support for up to 4 lines of text.
Delivers the completed, sealed package unit by unit automatically to the next processing line.

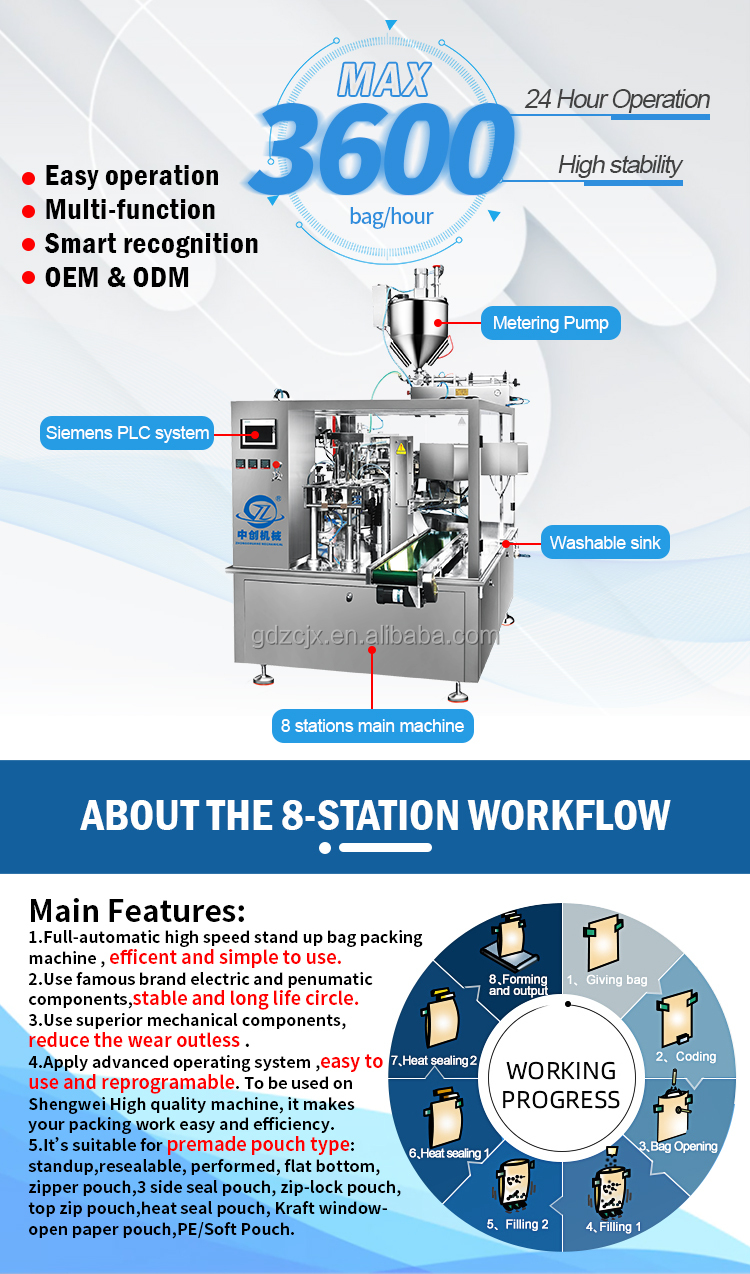

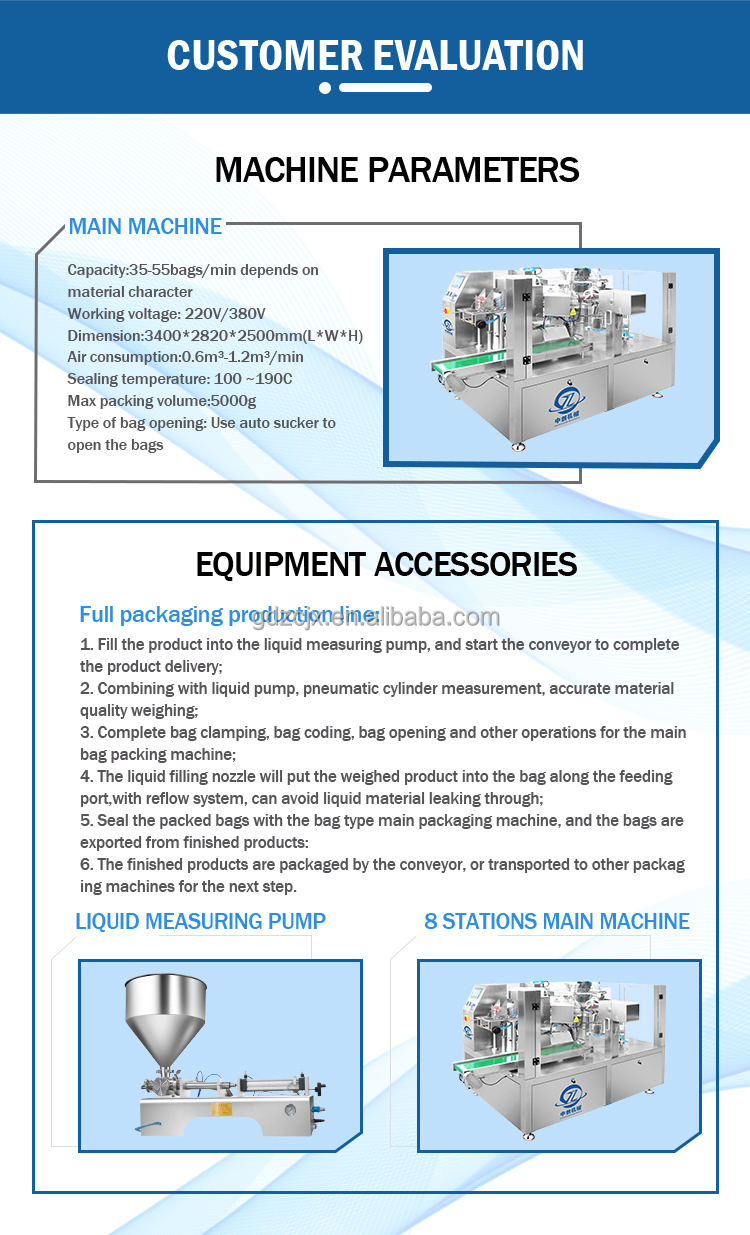

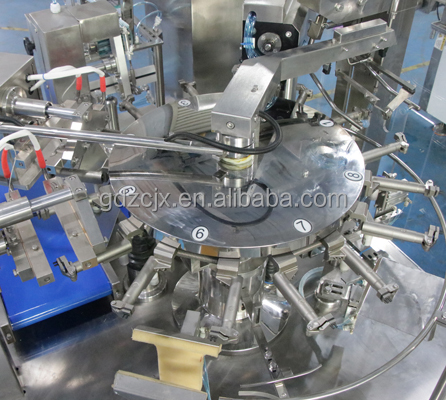

The machine operates through a systematic workflow: 1. Bag feeding, 2. Coding, 3. Opening, 4. Filling A, 5. Filling B, 6. Heat sealing A, 7. Heat sealing B, and 8. Forming & output. Materials are handled by a liquid measuring pump with cylinder measurement, utilizing a reflow system to prevent dripping or leakage.
The standard lead time is 15-20 working days after receipt of your deposit. The Minimum Order Quantity (MOQ) is 1 set. Payment terms require a 30% deposit with the balance paid before delivery via T/T, Western Union, or Cash. Port of loading includes Shantou or Shenzhen Port.
Once the deposit is confirmed, the machinery is prepared and tested. Goods are then sent to your nominated warehouse or shipping agency in China. A tracking number or Bill of Lading is provided as soon as the consignment is shipped. Lastly, the equipment arrives at your destination address or seaport.
We prioritize transaction safety and recommend using Trade Assurance methods to secure payments, guaranteeing that shipments and machine builds are fulfilled safely.
All machines are manufactured in accordance with strict national and international standards. We hold CE and ISO certifications, and every machine undergoes running tests prior to dispatch to verify performance.
Please provide: 1) Bag pattern or sample photo, 2) Bag dimensions, 3) Targeted filling weight or volume, and 4) Physical state of the product (liquid, paste, granular, powder, or solid block).
