Servo Motor Driven Cup Filling and Sealing Machine for Ice Cream/Automatic Liquid Filling Machine

Customization:	Available
Packaging:	Cups
Automatic Grade:	Automatic

Basic Info.

Model NO. MF04L

Packaging Material Film

Application Cosmetics, Drinks, Oil, Dairy Products, Hair Care Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning

Usage Outpacking

Type Filling Sealing Capping

Mechanical Properties Full Automatic Filling and Sealing Machine

Material Type Solid, Liquid

Lane 2, 4, 6, 8 Customed by Your Demand

Capacity 5000-6000 cups/Hour

Voltage 1p 220V 50Hz or 3p 380V 50Hz

Filling Volume 50-300ml

Air Pressure 0.6-0.8MPa

Transport Package Wooden Case

Specification Sealed by reel film or pre-cut Alu foil

Production Capacity 100 Sets/Year

Product Description

Servo Motor Driven Cup Filling and Sealing Machine for Ice Cream

Fully automatic linear cup filling & sealing machine can auto loading the empty cups, empty cups detecting, auto quantitative filling product into cup, automatic Alu-foil lids loading, auto lids sealing, cup capping, auto discharging the finish product to conveyor. Base on different mold quantity, its capacity from 5000-15000cups per hour, suitable for the foods, beverage, and dairy products.

Whole machine made by stainless steel 304 and anodizing aluminum, ensure it can running on bad food factory environment which has damp, steam, oil, acidity and salt etc. its body can accept the water rinsing clean.

Using high quality imported electrical parts and pneumatic parts which ensure the stable running in long time, reduce the stop and maintenance time.

Key Features

Driven system: servo motor with gearbox for the cup molds stepping running, it can moving filled cup very fast but avoid material splash because servo motor can start and stop smoothly, and also high positioning accuracy.

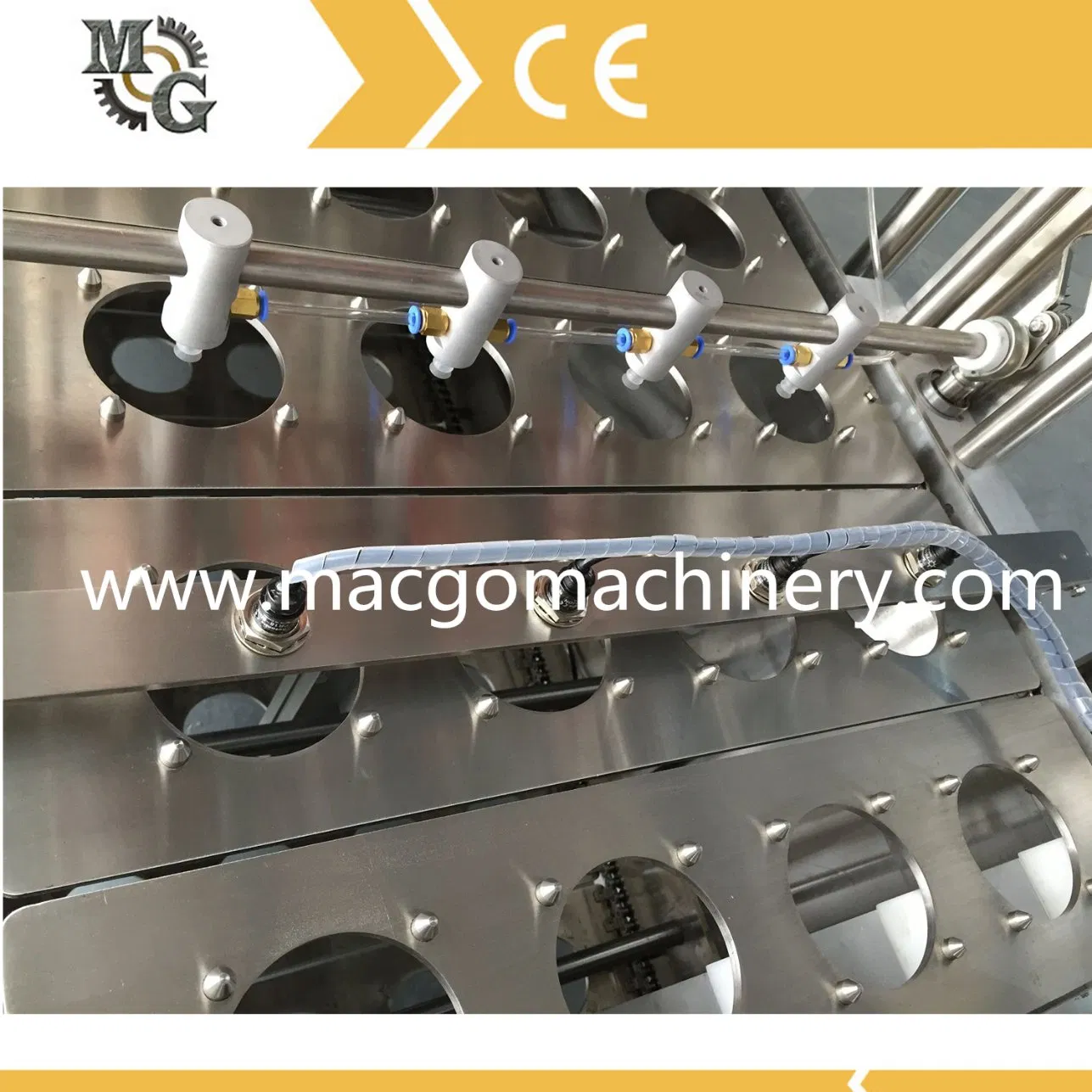

Empty cup loading function: it using spiral separating and pressing technology which can avoid the cup damage and deforming, it has vacuum sucker which guide the cup enter into mold accuracy.
Empty cup detecting function: it use photoelectric sensor or optical fiber sensor to detect the mold have or haven't empty cup, it can avoid the mistake filling, sealing and capping if the mold without the cups, reduce the product waste and machine cleaning time.
Quantitative filling function: it use piston filling and cup lifting function, no splash and leakage, the filling system also have CIP clean function (optional). The filling system accepts the heating fill (optional: heating tank and heat keeping stainless steel tube).
Al-foil lids loading system: it make up by rotate vacuum suckers and al-foil lids magazine, the vacuum suckers get the lids then rotate 90 degree and place the lid on the filled cups.
Sealing system: It has PID sealing temperature controller for each sealing mold.
Discharge system: it make up by cup lifting and pulling system, faster and stable.

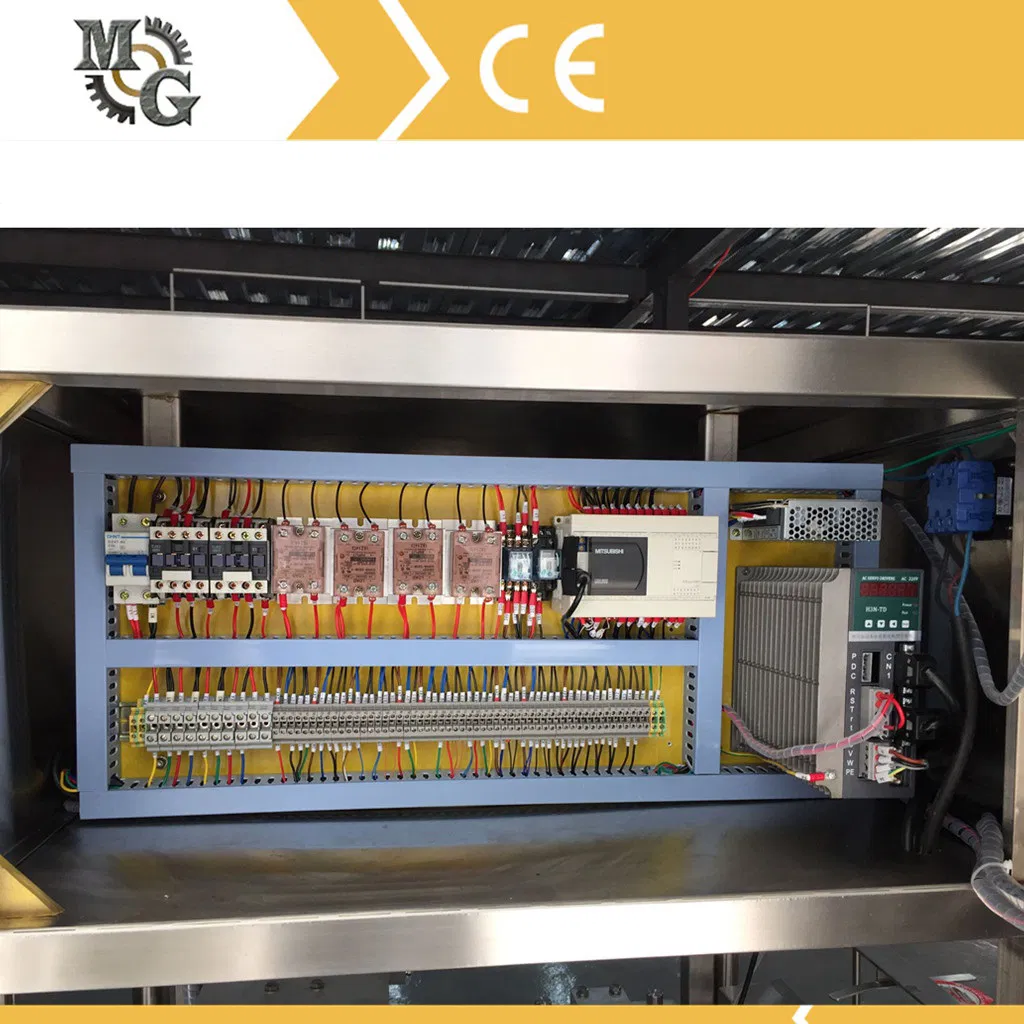

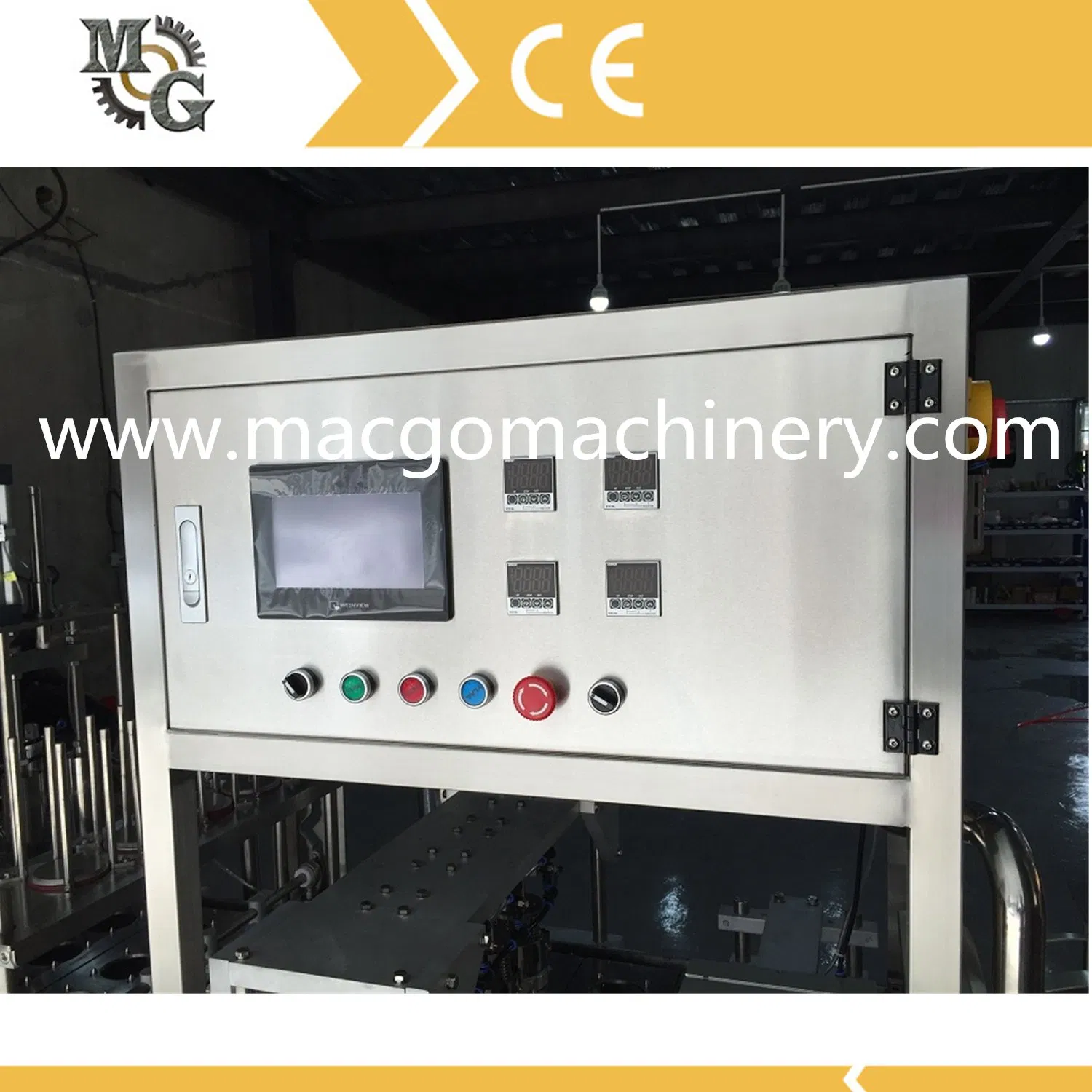

Automation control system: it make up by PLC, Touch screen, servo system, sensor, magnetic valve, relays etc.
Pneumatic system: it make up by valve, air filter, meter, pressing sensor, magnetic valve, air cylinders, silencer etc.
Safety guards: it is optional function, it makes up by PC clear plates and stainless steel, has safety switches which protect the operator.

Workflow Functions

Cup loading, cup detecting, cup filling, cup sealing, cup capping (optional), waste film collecting, date coding, discharging to conveyor.

Parameters

Parameter	Value Details
Model	MF04L
Capacity	5000-6000 cups/hour
Voltage	1P 220v 50hz or 3P 380v 50hz
Total power	3.2kw
Filling volume	50-300ml
Filling error	≤1.0%
Air pressure	0.6-0.8Mpa

Configuration

System Component	Brand Configuration
Pneumatic system	AIRTAC
Servo system	Mitsubishi
Reduce gearbox	JIE
PLC	Mitsubishi
Touch screen	WEINVIEW
PID temperature controller	Omron
Sensor	Omron, FOTEK
Low-voltage	Omron, Schneider, CHNT

Machine Overview

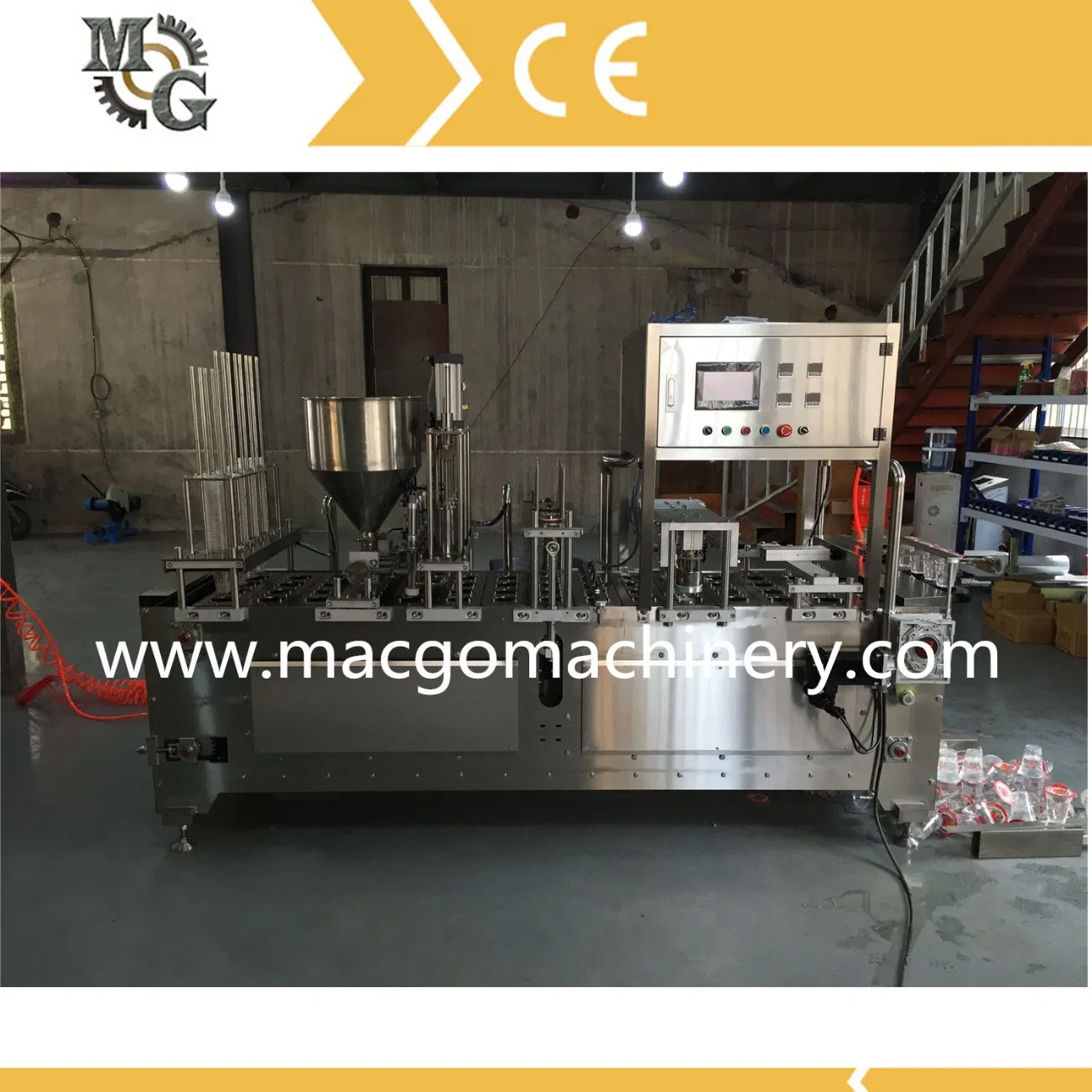

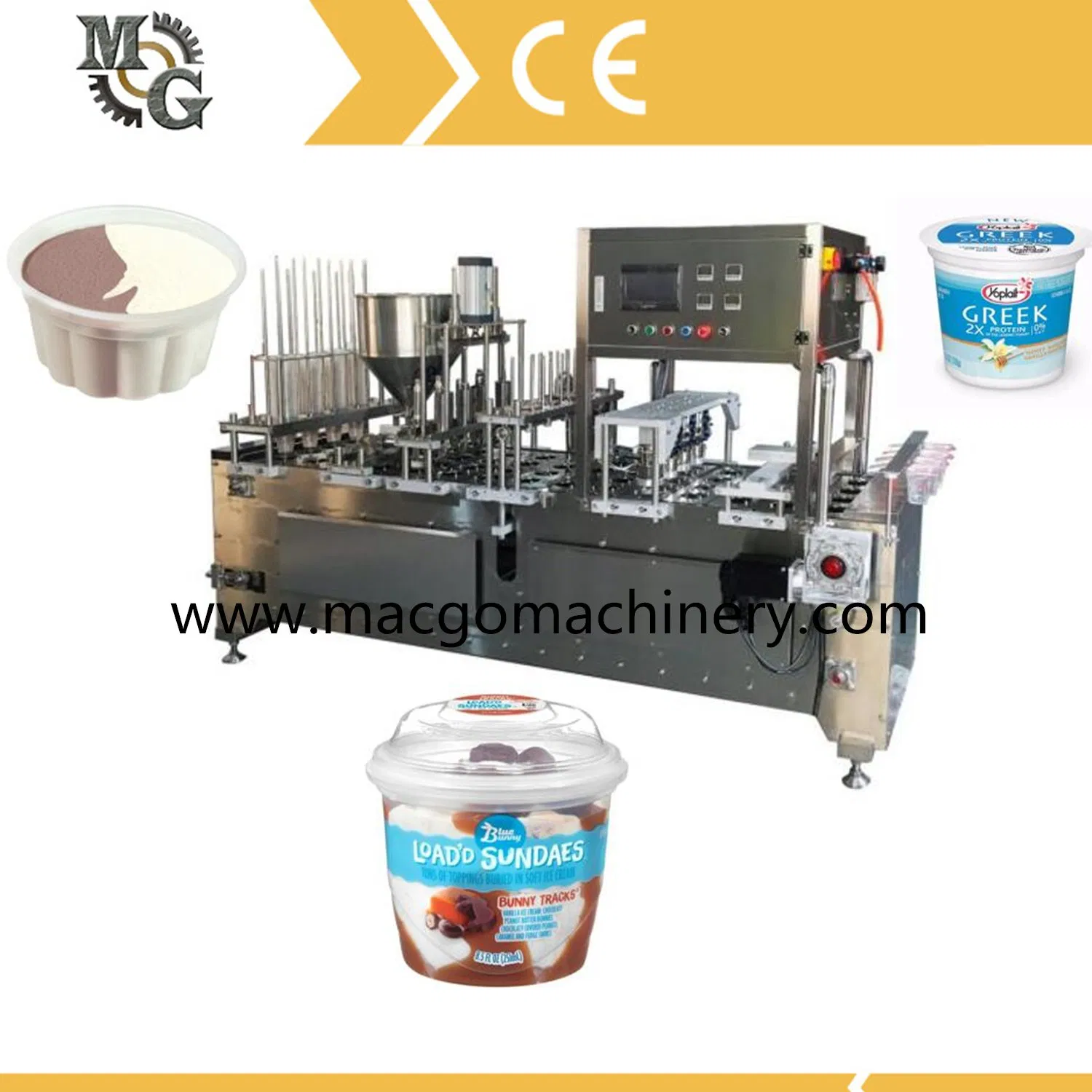

Servo Motor Driven Cup Filling and Sealing Machine for Ice Cream

Parts Detail & Product Picture

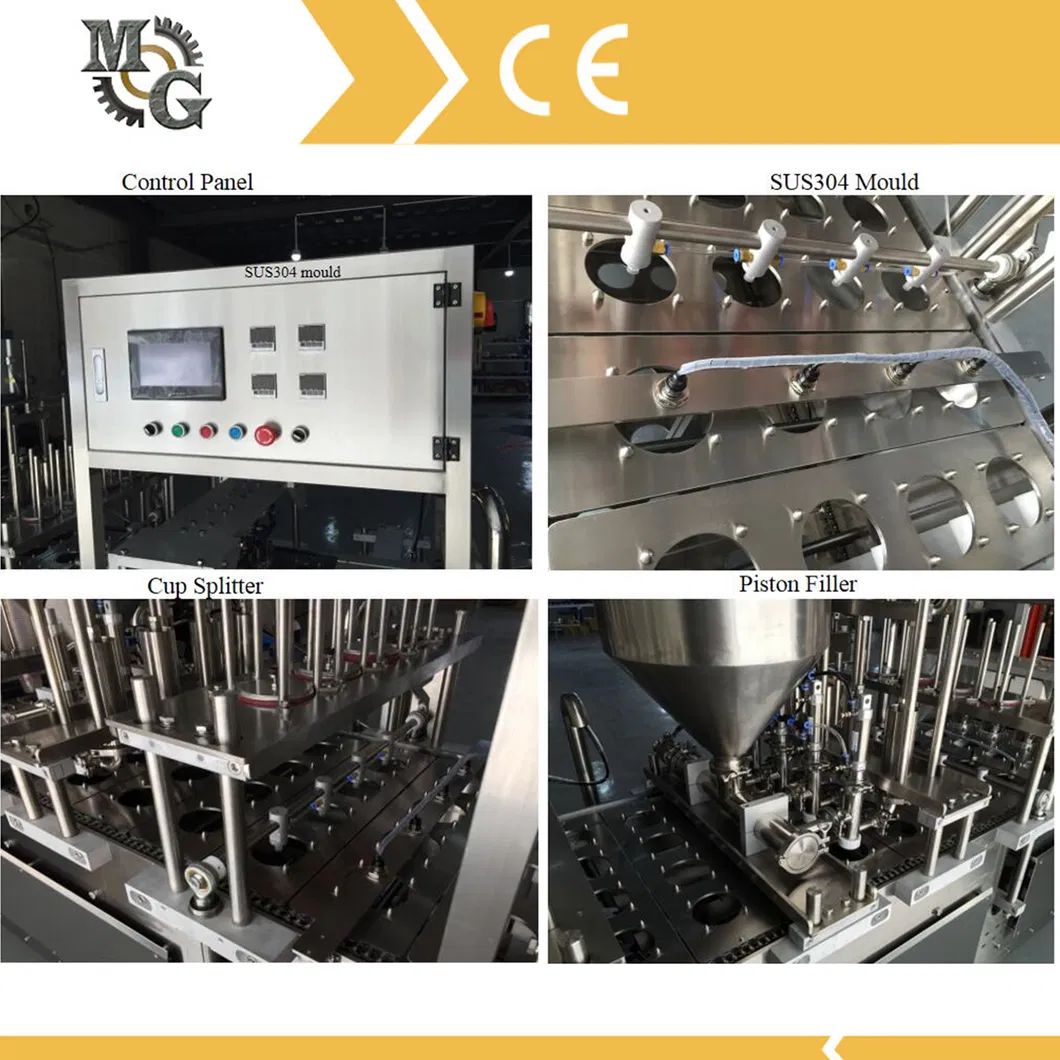

Parts Detail of Cup Filling and Sealing Machine

Our Service

Warranty Time

One year. Within this period, if spare parts damage except due to wrong operation, seller supplies spare parts for free. We can send technicians overseas for debugging; the buyer is responsible for minimum fees such as lodging and airfare.

Commissioning Services

During the installation and debugging phase, our engineers will remain on-site until you are fully satisfied with the machine's operation.

Training Services

Our engineers will train your staff on installation, commissioning, and operation. They will stay until your operators can run the machine properly.

Maintenance & Support

As soon as we receive your inquiry about a fault, we will reply within 24 hours. We provide lifelong post-sales services and supply spare parts.

Inspection Services

We welcome third-party inspection companies or inspectors to check and verify the products before shipment.

File Services

We provide comprehensive operation manuals, installation instructions, operating videos, and other necessary documentation.

Frequently Asked Questions

How to find a packing machine suitable for my product?

Please provide details on:
1. The exact product you want to pack.
2. The target size and dimension of the container/cup.
3. The target filling weight or volume per cup.
4. Your overall requirement for machine configuration and layout.

Is an engineer available to serve overseas?

Yes, engineers are available to travel for setup and debugging, with travel costs covered by the buyer. Alternatively, to save expenses, we can send you step-by-step videos and provide remote assistance.

How can we verify the machine quality after placing the order?

Before delivery, we will send you photos and test videos of your running machine. You are also welcome to arrange quality inspections yourself or via agents in China.

What is the standard warranty period for this machine?

The machine comes with a one-year warranty. During this period, replacement parts for non-operational errors are provided free of charge, backed by lifetime after-sales support.

Can the cup filling lanes and capacity be customized?

Yes, the lanes can be customized (e.g., 2, 4, 6, or 8 lanes) depending on your production needs. The standard model delivers a capacity of 5,000 to 6,000 cups per hour.

What safety mechanisms are included in the machine configuration?

The machine includes optional polycarbonate clear protective shields, stainless steel framing, and safety switch guards to ensure operator protection during operation.
