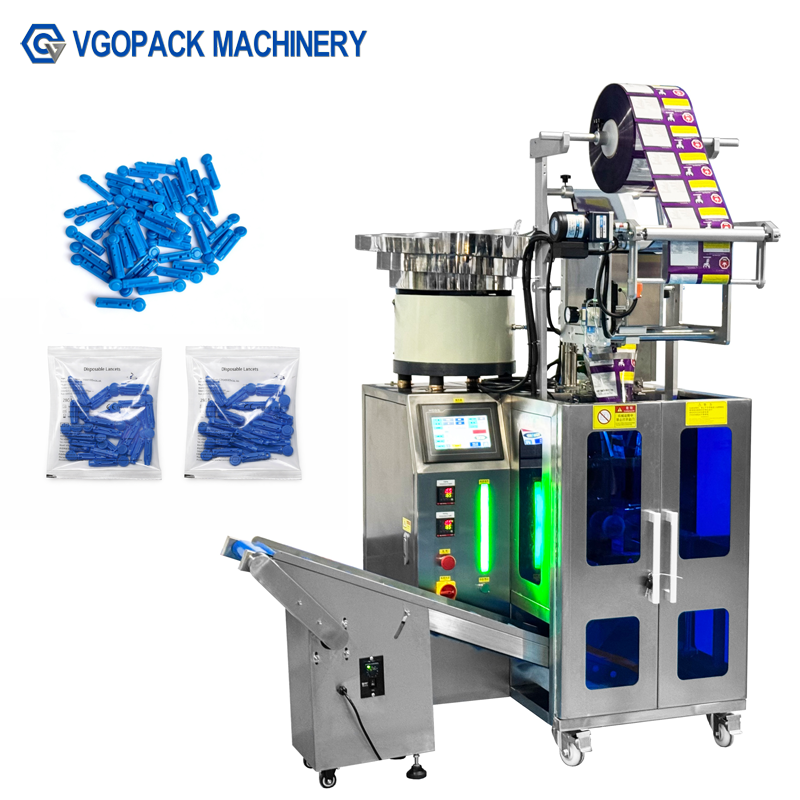

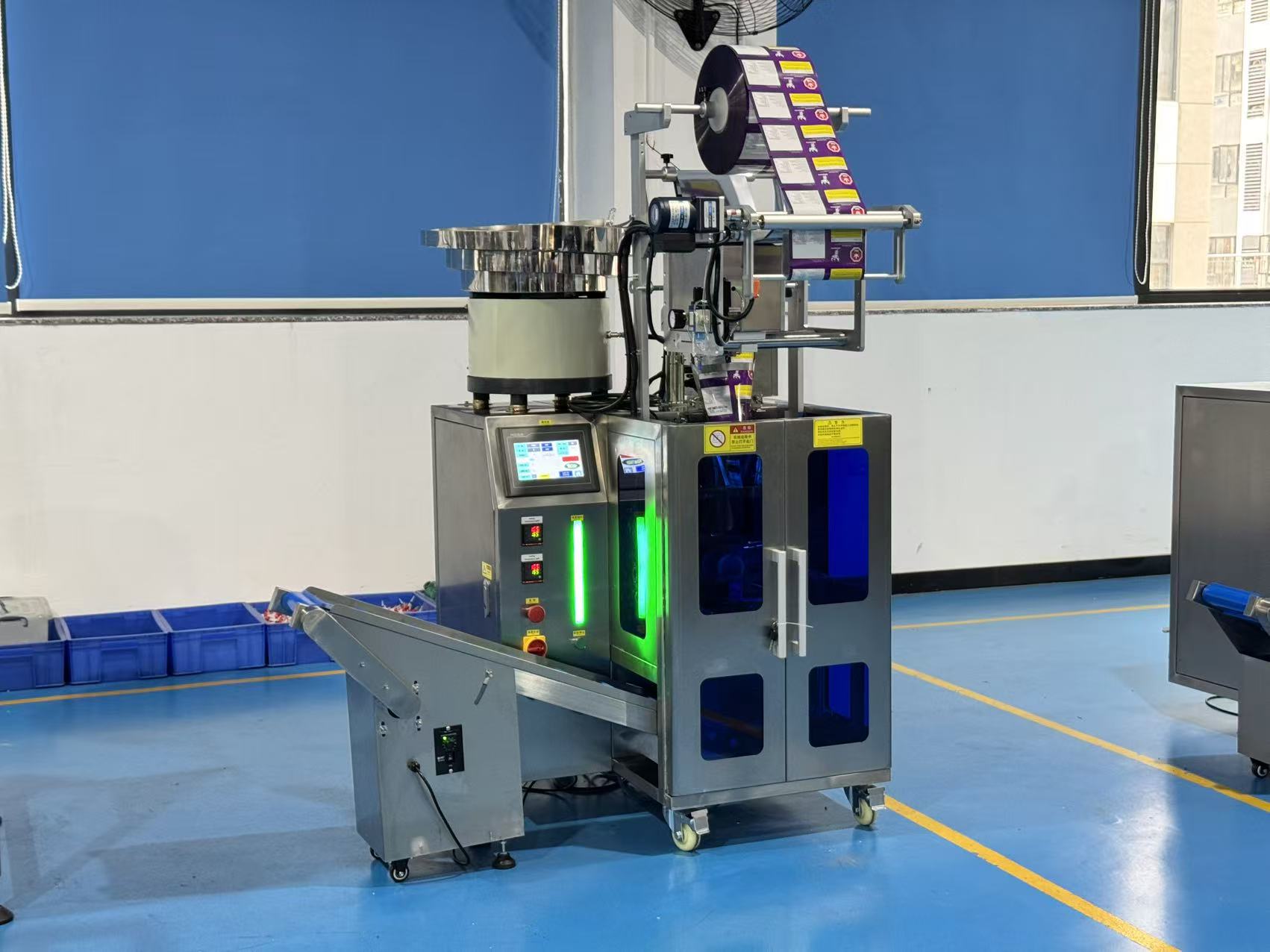

This system is suitable for a wide range of toys, plastic, food, fastener and hardware accessories products, such as screw, nut, nail, rivet, bolt, etc.
| Machine Model | VGO-V260 | VGO-V280 | VGO-V320 | VGO-V520 | VGO-P250 |
|---|---|---|---|---|---|
| Bag Style | Pillow Bag, 3 Side Seal Bag | 3 Side Seal Bag, 4 Side Seal Bag | Pillow Bag, 3 Side Seal Bag | Pillow Bag | Premade Bag |
| Film Width | Max. 320 mm | Max. 180 mm | Max. 320 mm | Max. 520 mm | Nope |
| Bag Length | Max. 280 mm | Max. 145 mm | Max. 280 mm | Max. 350 mm | 100-250 mm |
| Bag Width | 70-150 mm | 50-90 mm | 70-150 mm | 140-250 mm | 80-180 mm |
| Width of Edge | 10 mm | 10 mm | 10 mm | 10 mm | Nope |
| Packing Speed | 70-150 bags/min | 10-25 bags/min | 10-80 bags/min | 4-10 bags/min | 10-20 bags/min |
| Machine Weight | 280 kgs | 300 kgs | 300 kgs | 450 kgs | 350 kgs |
| Sealing | Straight/ Textured/ Plain | Straight/ Textured/ Plain | Straight/ Textured/ Plain | Straight/ Textured | Nope |
| Cutting | Serrated Cutter, Dense Serrated Cutter | Serrated Cutter, Flat Cutter | Serrated Cutter, Dense Serrated Cutter | Serrated Cutter | Nope |
| Dimensions (mm) | 1150 (L) × 720 (W) × 1465 (H) | 1000 (L) × 1200 (W) × 1665 (H) | 1818 (L) × 800 (W) × 1619 (H) | 4540 (L) × 960 (W) × 2750 (H) | 1100 (L) × 900 (W) × 860 (H) |
| Air Consumption | 0.4-0.8 MPa | ||||
| Packing Material | Co-extrusion PE film, Heat Sealable Laminated Film such as OPP, CPP, PE | Premade Bag | |||
| Power | Single-Phase 220V, 50/60HZ | ||||
| Machine Frame | Stainless Steel #201, Stainless Steel #304 | ||||
