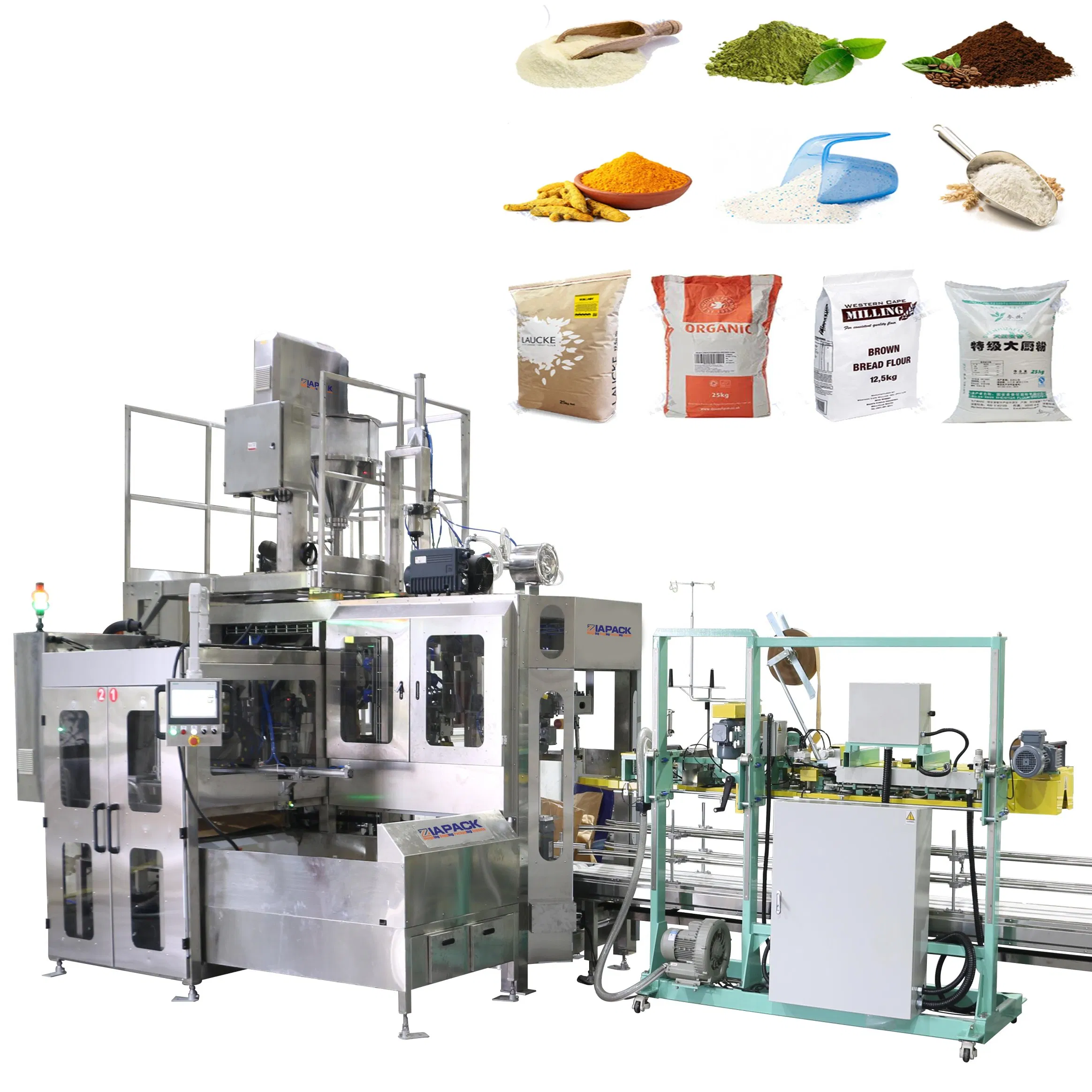

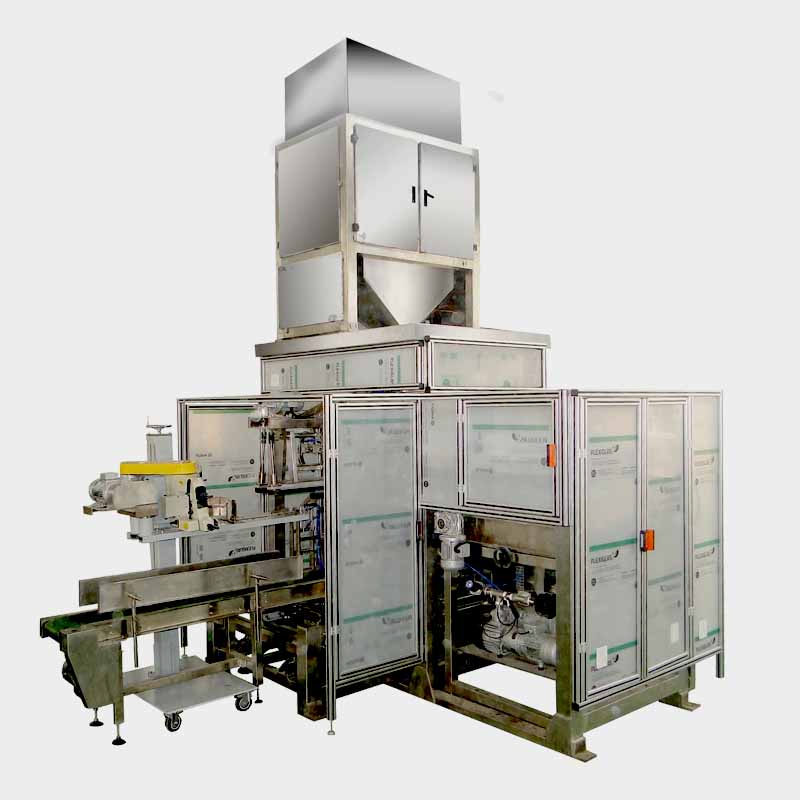

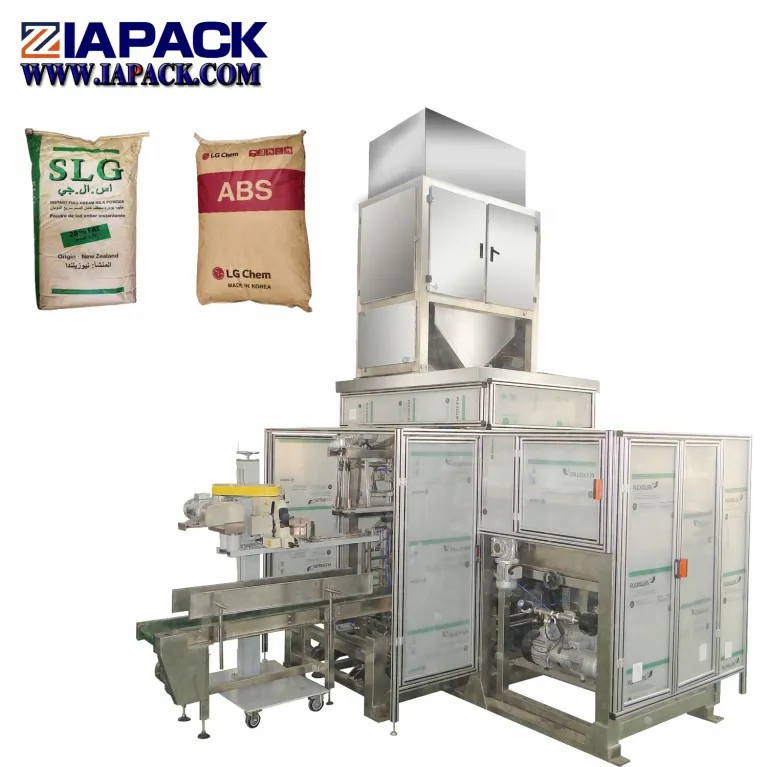

Fully Automatic Open Mouth Heavy Big PP Woven/Kraft Paper Bag Bagging Packing Packaging Line Packaging Machine for 10kg/25 Kg/50kg Rice/Pet Food/Sugar/Salt/Bean
Automatic bagging machine for 10kg/20kg/25kg/50kg granule products

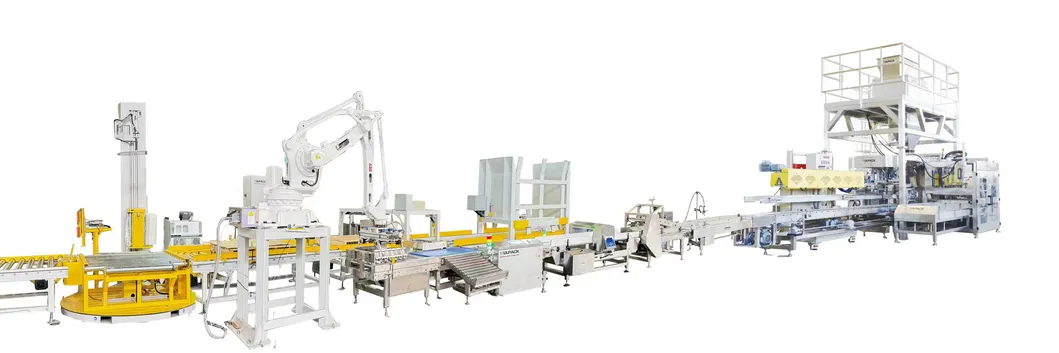

This line is special design for automatic feeding the bulk salt tablets bagging in to 25kg PE bag and PP woven bag then sealing the bag. According the client requirement we also need offer the automatic weight check and palletizing. The seller completed the design, manufacturing and supply of the production line in strict accordance with the technical requirements and combined with its own packaging line design experience in the sugar industry.

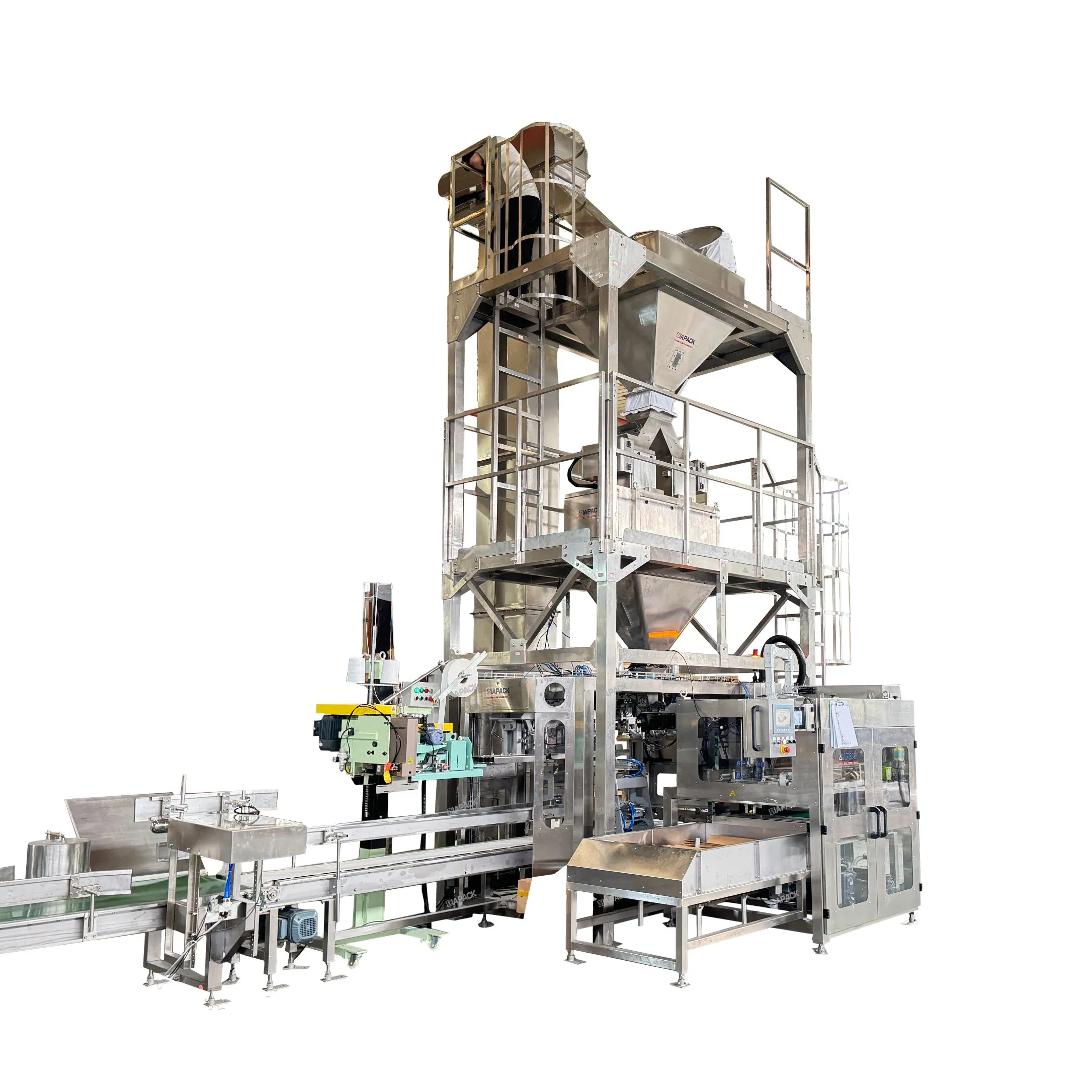

This unit consists of a bag storage bin, bag taking and sorting device, bag loading robot, bag clamping and unloading device, bag pushing device, bag mouth guide device, vacuum system and control system.
Features
Wide adaptability: The packaging machine adopts the bag picking method (taken from preparation warehouse, centered/positioned, sent forward, pre-opened, and loaded using manipulator knife insertion).
Servo motor drive: The bag loading manipulator arm is servo-motor-driven, offering faster speed, smooth bag loading, minimal impact, and longer service life compared to pneumatic ones.
Safety detection: Equipped with two proximity switches at the clamping opening to detect if the bag is fully clamped and opened, preventing material spillage.
Smart touch screen: Complete parameter configuration and status monitoring via a user-friendly touch interface. Prompts for faults allow rapid troubleshooting.
Protected components: Solenoid valves, touch screens, and weighing instruments are fully sealed, making them ideal for long-term use in dusty environments.
Premium parts: All control and executive elements are manufactured by reliable global suppliers, ensuring stable operation.
Self-diagnosis: Features built-in system self-diagnosis with audible and visual alarms to promptly flag processing issues.
Easy operation: The simple, convenient, and safe operating platform makes monitoring effortless for operators.
Technical Parameters
Size of bag making
(700-1100mm)x(480-650mm) (L*W)
Measuring range
granule material 15-50kg/bag
Measurement accuracy
±50g
Packaging speed
10-15 packs/min (difference according to the packing materials, bag size etc)
Ambient temperature
-10°C~+45°C
Power supply
10-15 Kw, 380V±10%, 50Hz
Air Consumption
compressed air 0.5-0.7Mpa
External dimensions
5700 x 2800 x 2100mm (L* W * H)
Weight
3000kg
Frequently Asked Questions
What kind of materials can the ZL25K automatic bagging machine handle?
This packaging machine is designed to handle various granule products. Typical applications include detergent granules, bulk salt tablets, rice, flour, seasonings, grains, and pet food.
What types of bags are compatible with this automatic packaging line?

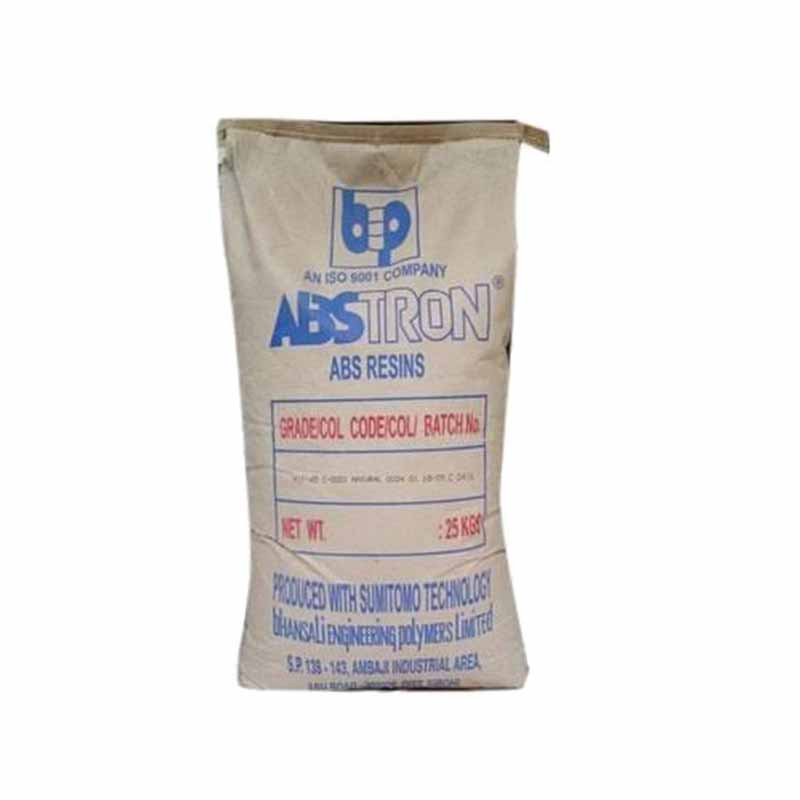

It features high adaptability and can handle several packaging bag materials, including PP woven bags, Kraft paper bags, and PE bags.
How accurate is the weighing and filling system?
The ZL25K machine supports a measuring range of 10kg to 50kg per bag (with some specific configurations handling 15-50kg), with a high measurement accuracy of ±50g to ±100g.
What is the advantage of using a servo motor for the bag loading arm?
Unlike common pneumatic manipulators, a servo-motor-driven arm operates faster and smoother. It minimizes mechanical impact during bag handling, leading to a significantly extended service life for the machinery.
Can this machine operate effectively in dusty factory environments?
Yes. All primary control systems, pneumatic solenoid valves, touch screens, and weighing instruments are sealed and protected against dust to ensure reliable long-term operations in industrial settings.
Does the machine have any safety or anti-spillage mechanisms?
Yes, the bag clamping and unloading device is fitted with two proximity switches. They verify whether the bag is fully opened and securely clamped before material release, preventing material spillage and maintaining a clean work environment.
