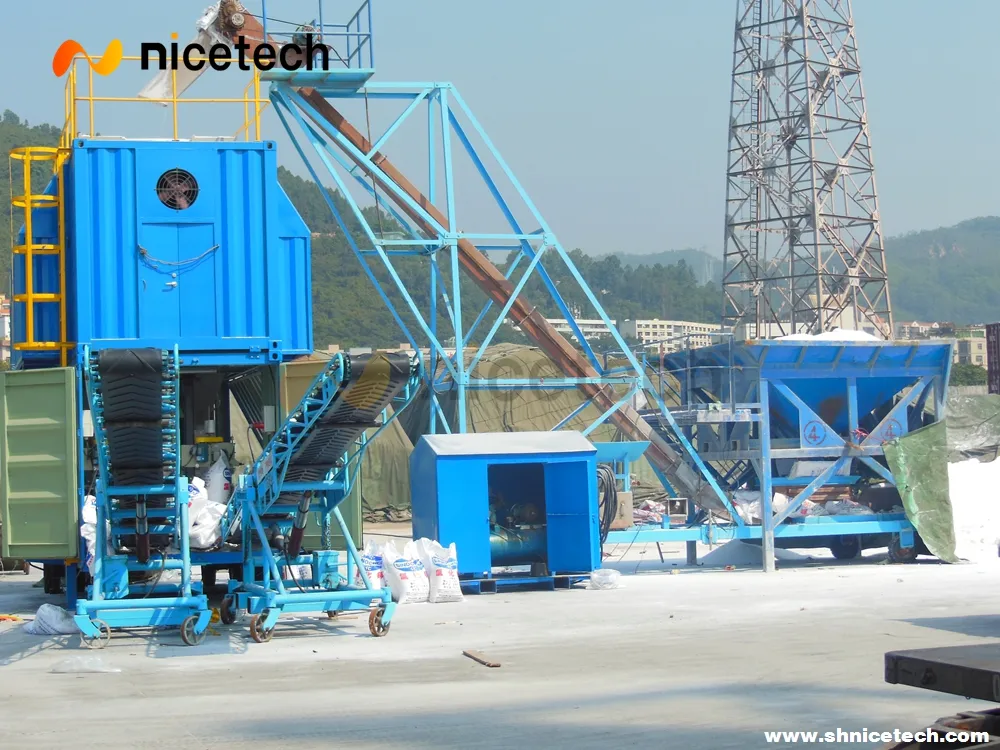

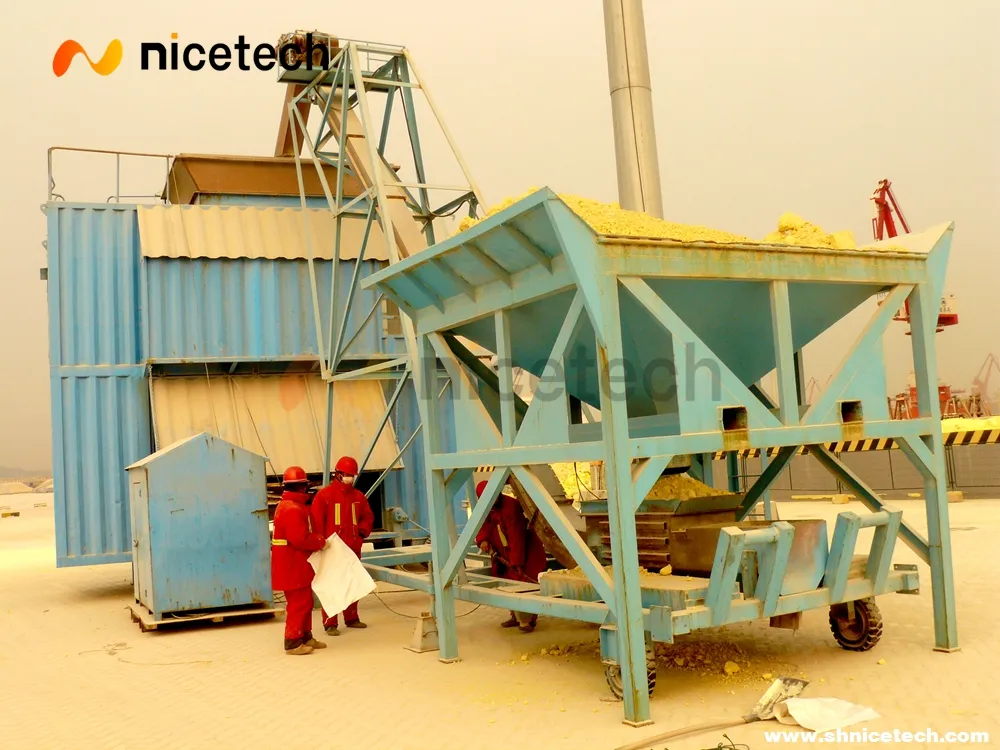

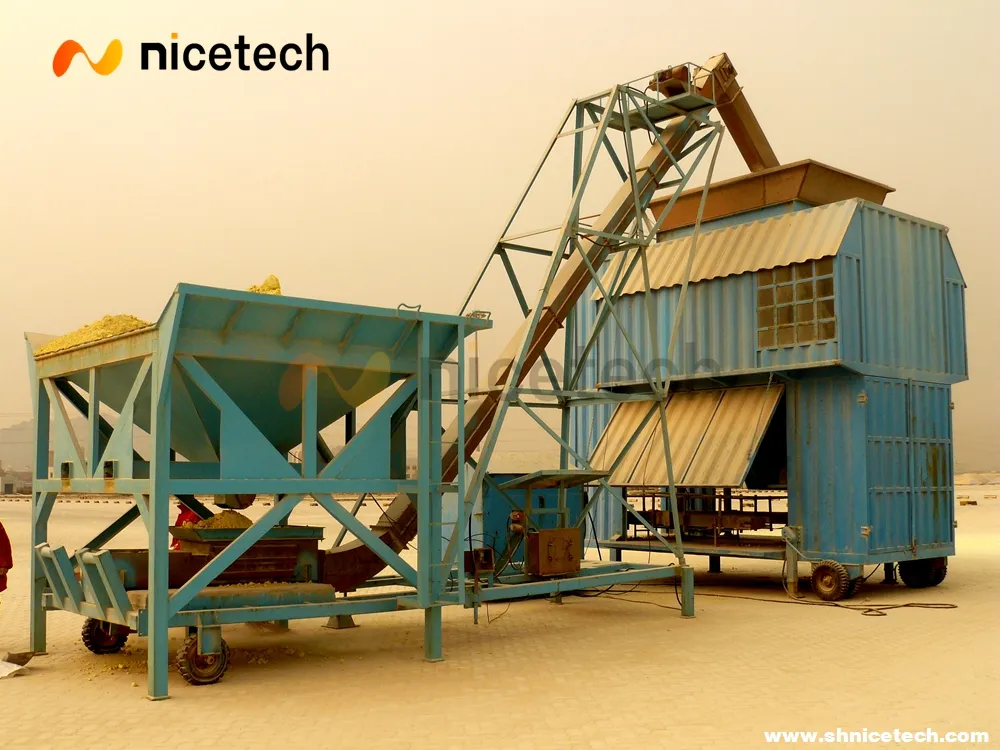

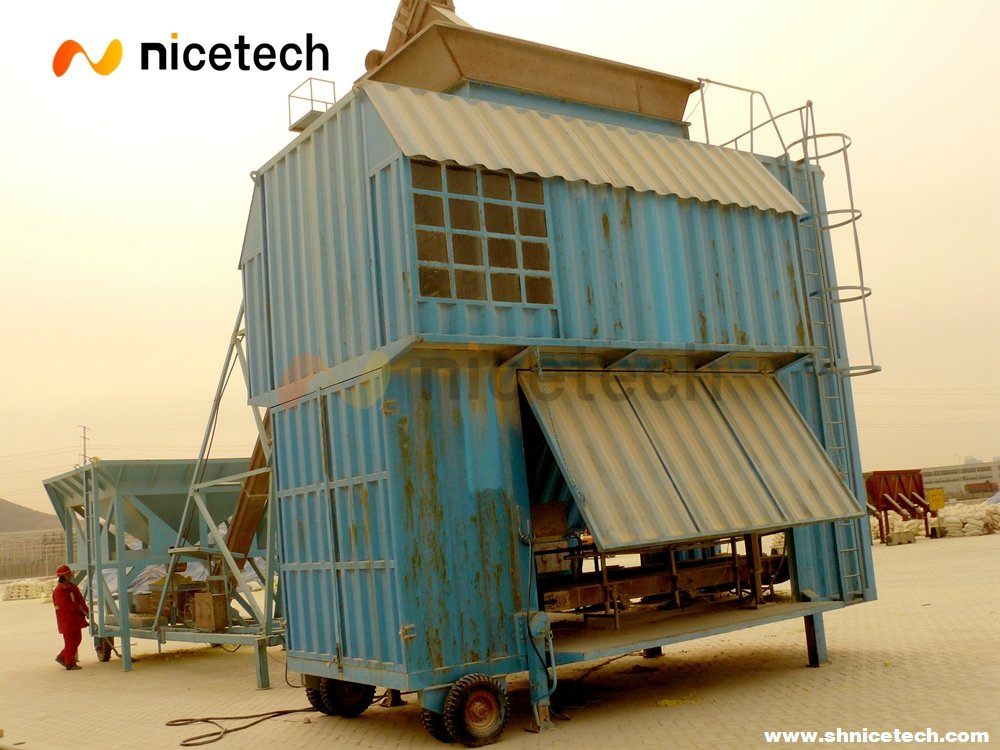

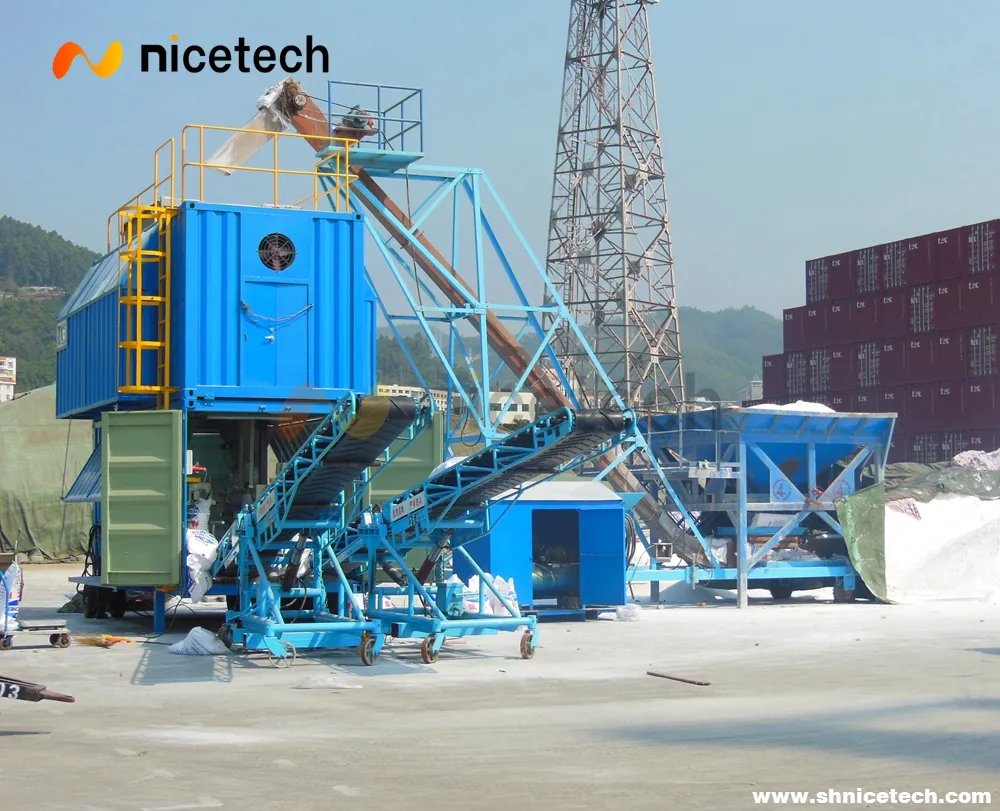

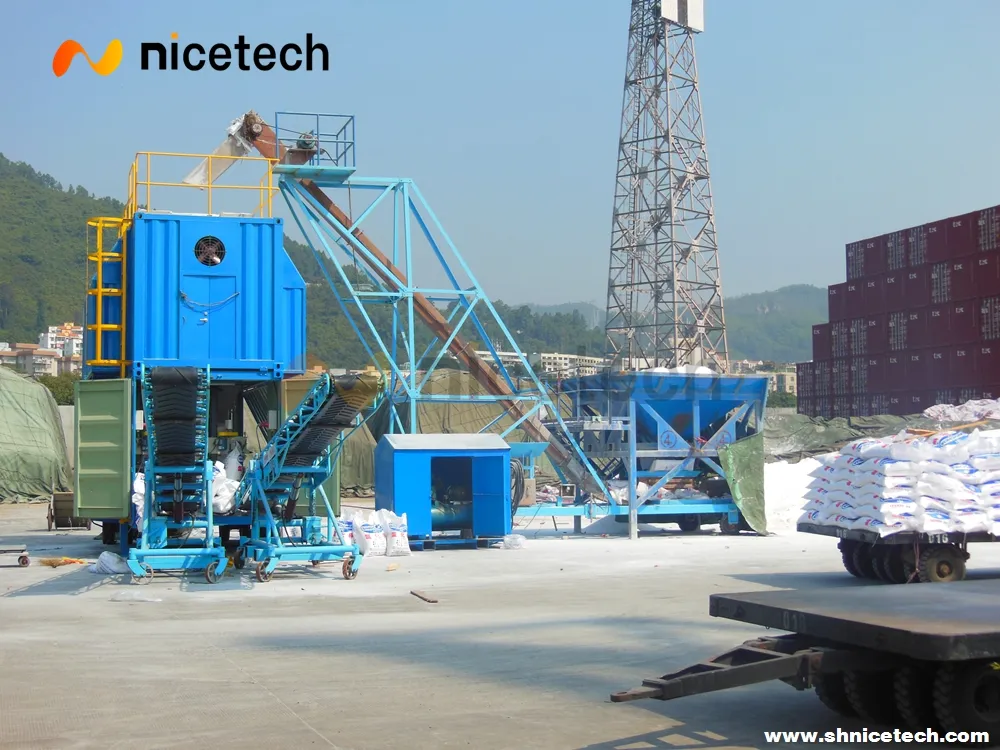

Application: Can be used on port, storage yard, warehouse and some other places.
| Model | Production Line | Weighing scale | Precision | Bag packing speed | Power source | Overall dimension |
| SHNC-1 | Single line two scales | 25:100kg | 0.20% | 12-20 bag/min | AC 380V 12Kw | two containers |
| SHNC-2 | Two lines two scales | 25:100kg | 0.20% | 24-40 bag/min | AC 380V 12Kw | or 6*3*5.8m |
| Working environment | -20ºC~+40ºC | Gas pressure | 0.55~0.65Mpa | |||
| Packing bag | open bag, pp woven bag or sacks 800-~1250(L)*500~800(W)mm | |||||
| Way of supplying | Gravity type, spiral feeding, conveyor belt feeding , vibration feeding combined | |||||
| Sensor type | Three pivot hanging type | |||||

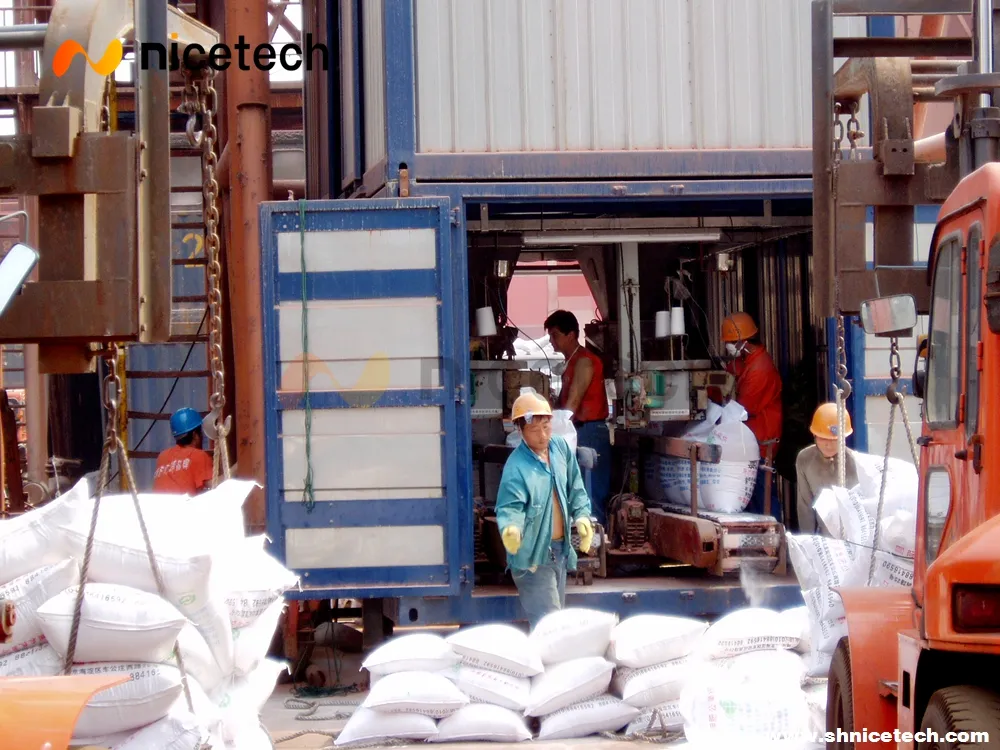

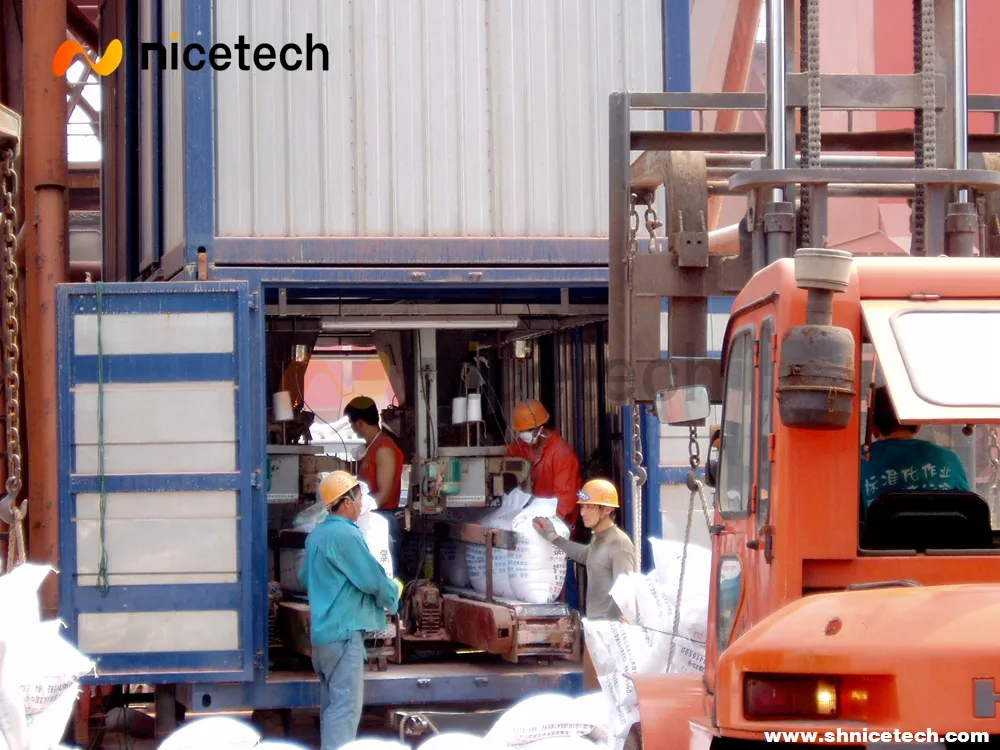

| Bagging type | Automatic quantitative weighing, artificial bagging, automatic filling , machine to sewing bag. | |||||
Yes, every customer's working condition is different. All of our products can be customized according to customers' requirements. Please give us the information as clear as you can, so we can give our best design to suit your demands.
It will be greatly helpful if you can offer us the following details:
1. What is the production capacity you require?
2. Which material is being handled?
3. What is the weight of each bag?

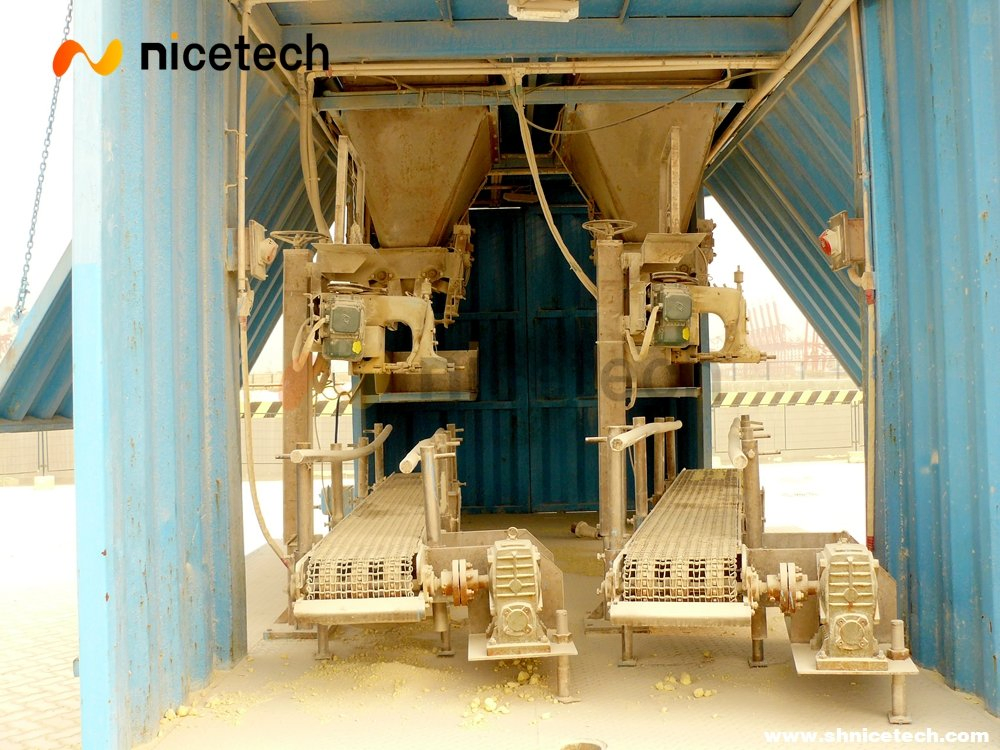

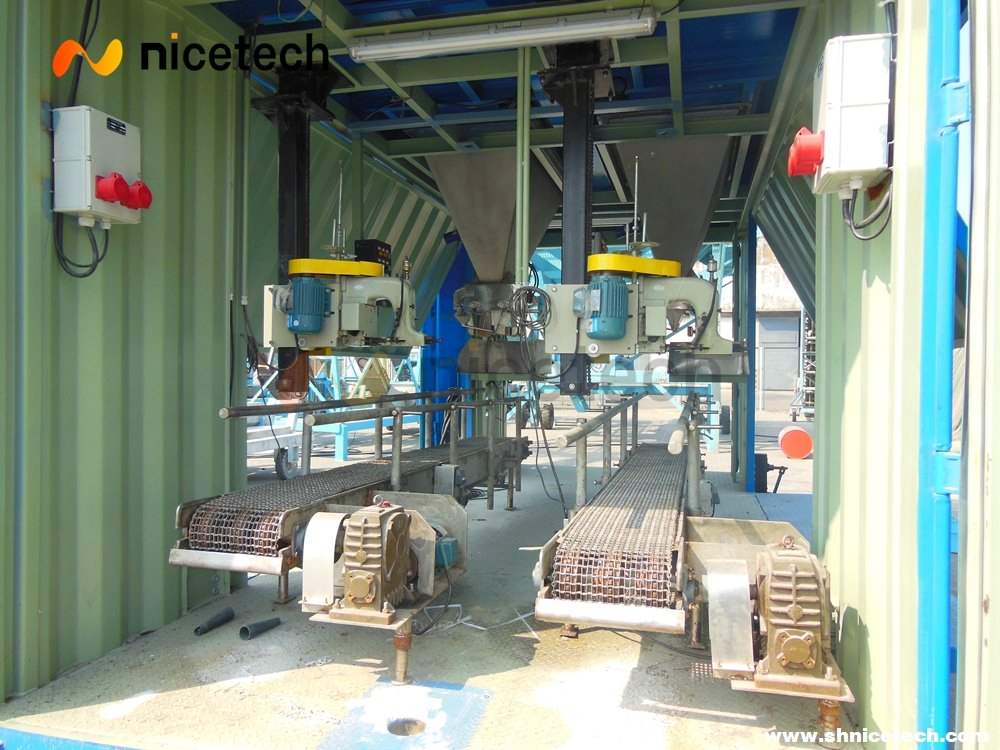

The SHNC-1 model is a single line with two scales offering a packing speed of 12-20 bags/min. The SHNC-2 model features two lines with two scales and offers a speed of 24-40 bags/min. Both support weighing scales of 25 to 100kg.
The system supports open bags, PP woven bags, or sacks with dimensions ranging from 800~1250mm in length and 500~800mm in width.
Supplying ways include gravity type, spiral feeding, conveyor belt feeding, and combined vibration feeding. Bagging processes include automatic quantitative weighing, artificial bagging, automatic filling, and machine bag sewing.
The machine requires an AC 380V 12Kw power source and a gas pressure of 0.55~0.65Mpa. It is designed to work in temperatures ranging from -20ºC to +40ºC.
