Automatic Carton Box Case Erector Milk Carton Box Making Machine Automatic Cartoon Forming Machine
Automatic Carton Box Case Erector Milk Carton Box Making Machine Automatic Cartoon Forming Machine
Automatic Carton Box Case Erector Milk Carton Box Making Machine Automatic Cartoon Forming Machine
Automatic Carton Box Case Erector Milk Carton Box Making Machine Automatic Cartoon Forming Machine
Automatic Carton Box Case Erector Milk Carton Box Making Machine Automatic Cartoon Forming Machine
1 / 5
Automatic Carton Box Case Erector Milk Carton Box Making Machine Automatic Cartoon Forming Machine
Automatic Carton Box Case Erector Milk Carton Box Making Machine Automatic Cartoon Forming Machine
Automatic Carton Box Case Erector Milk Carton Box Making Machine Automatic Cartoon Forming Machine
Automatic Carton Box Case Erector Milk Carton Box Making Machine Automatic Cartoon Forming Machine
Automatic Carton Box Case Erector Milk Carton Box Making Machine Automatic Cartoon Forming Machine

Automatic Carton Box Case Erector Milk Carton Box Making Machine Automatic Cartoon Forming Machine

Send Inquiry

Product Description

Carton Erector Banner

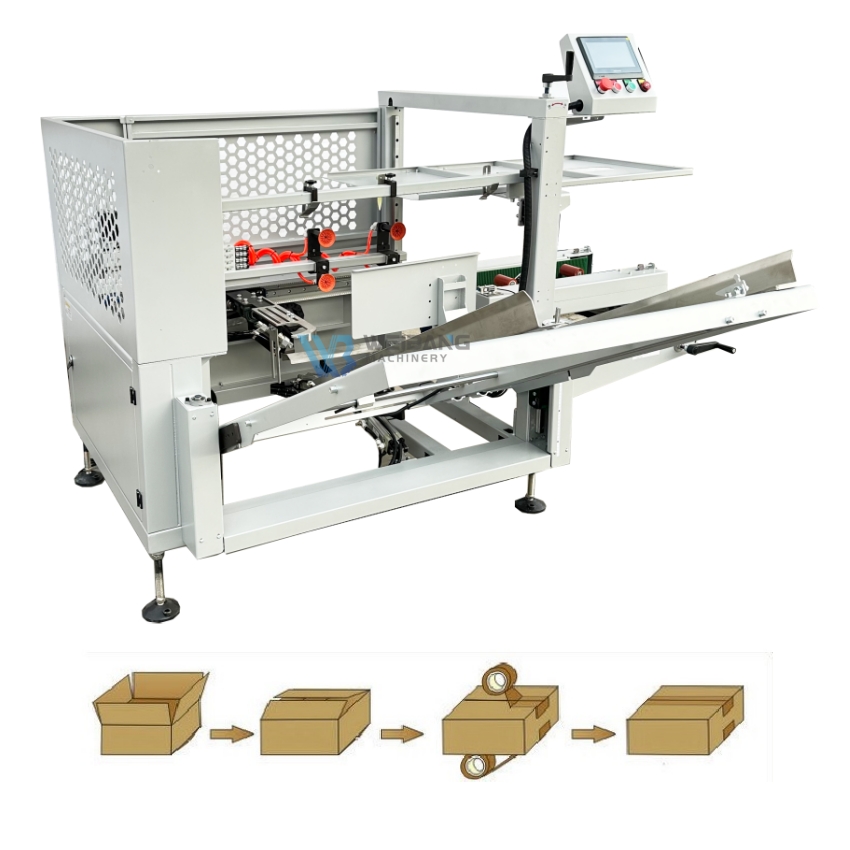

Main Machine Picture

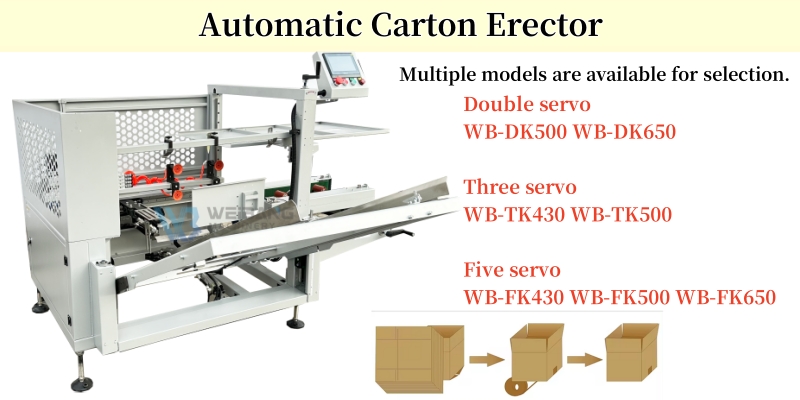

Main Machine

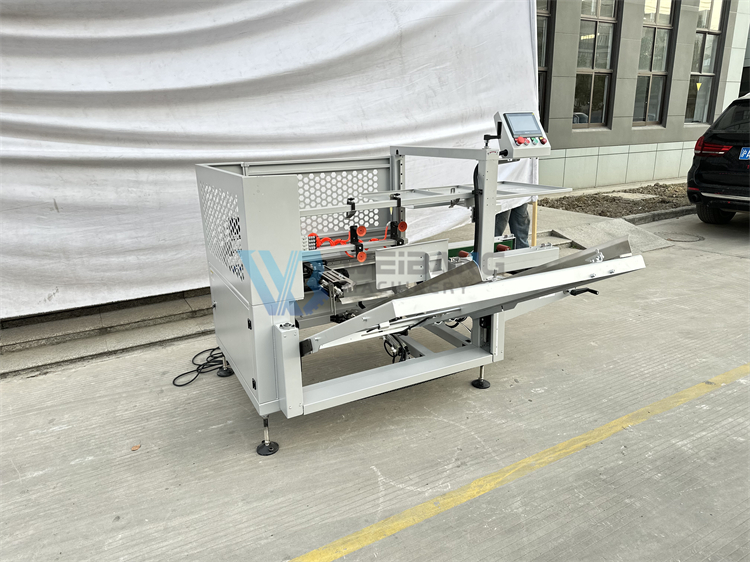

5 Servo Carton Erector Detail 1

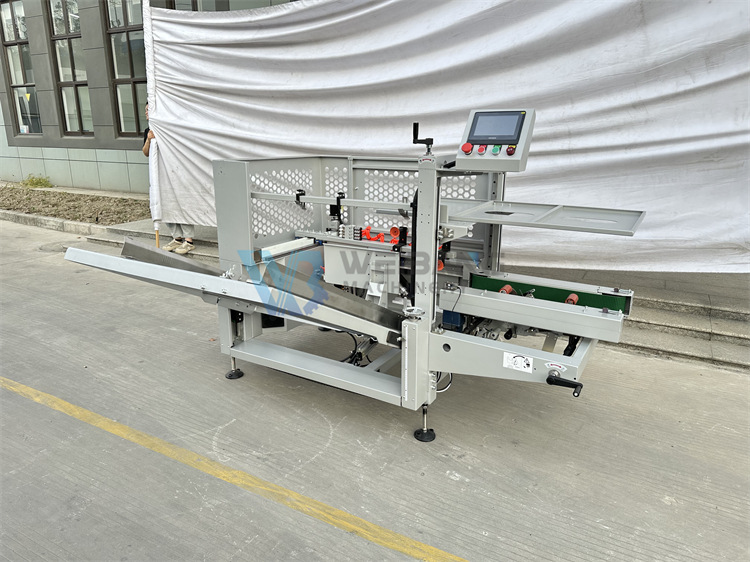

5 Servo Carton Erector Detail 2
5 Servo Carton Erector

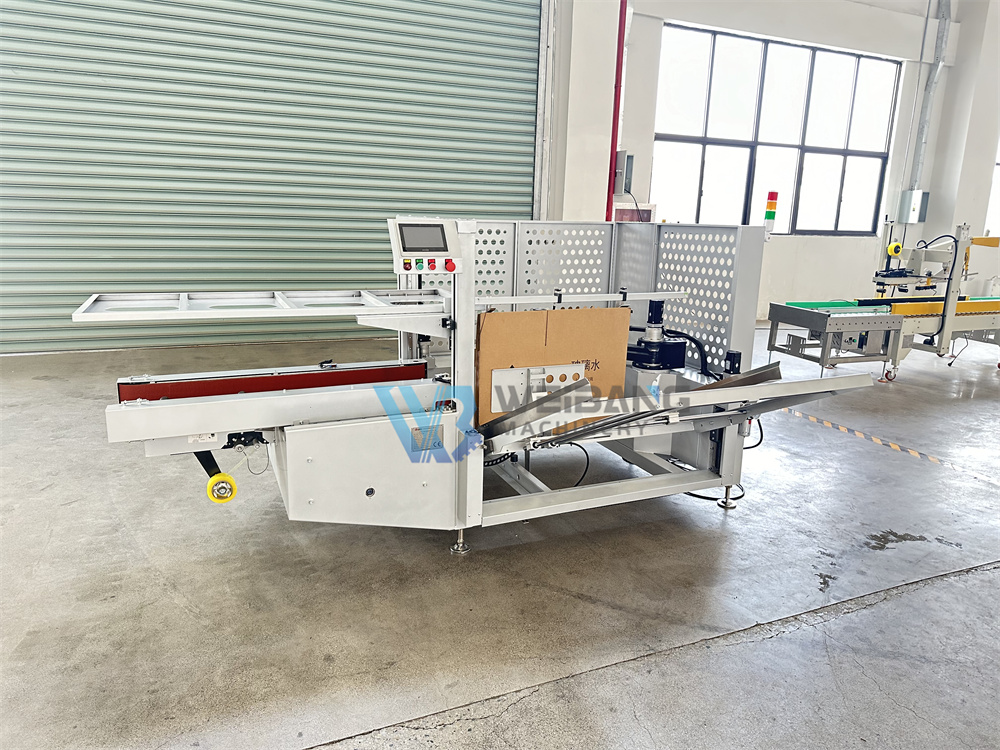

Carton Erector Component 1

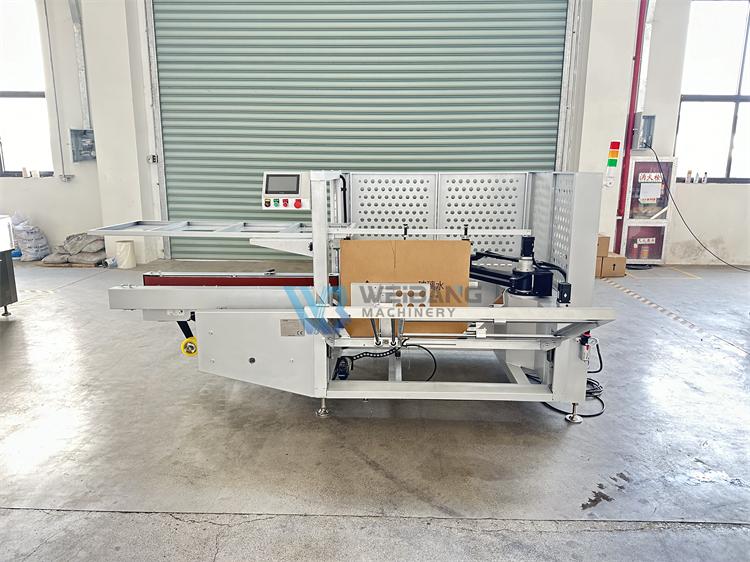

Carton Erector Component 2
Samples Display
Main Carton Samples
Sample Box 1

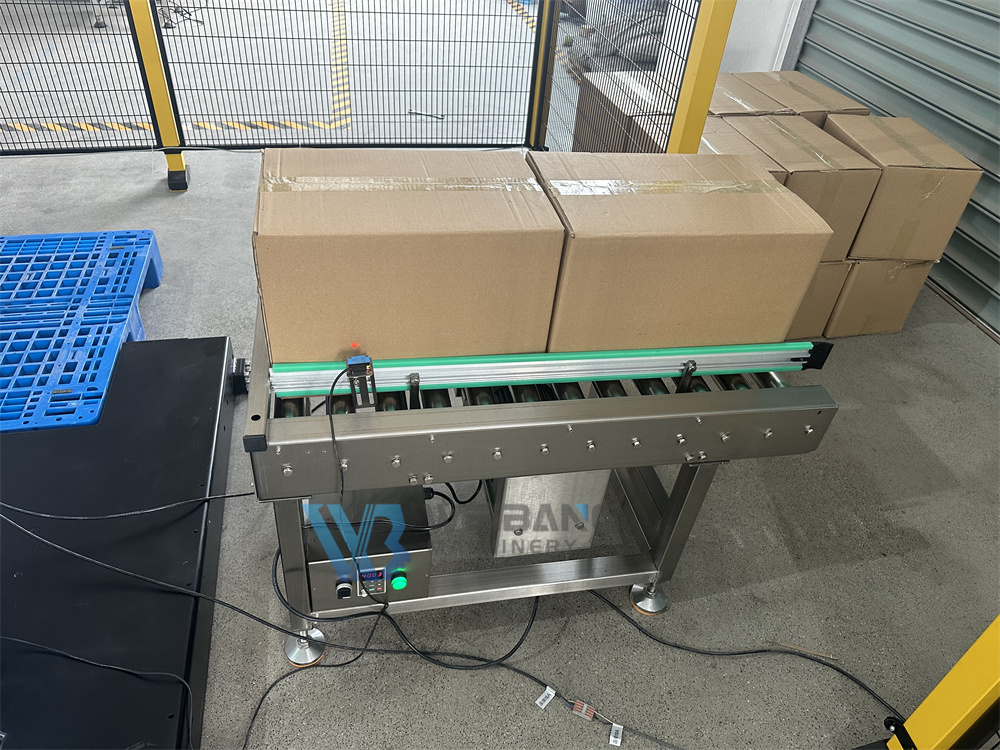

Sample Box 2
Sample Box 3
Usage and Features
Application
This machine is mainly used for opening various types of boxes automatically.
Performance Features

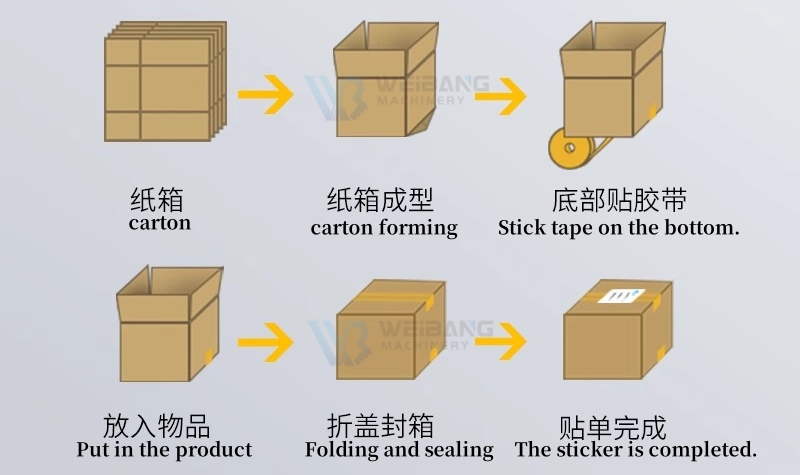

✓ Workflow: Mechanical arm picking up the box → opening the box → folding the bottom → sealing the bottom → output.
✓ PLC control, color touch screen display, machine has function of counting automatically.
✓ Adopts servo motor to open box, which ensure the box is square.
✓ Simple structure, convenient to operate and easy to maintain.
✓ Low noise, smooth operation, and does not damage the box.
✓ Adopts design of inclined unpowered box storage, can replenish boxes at any time without shutting down machine (optional).
✓ It can achieve seamless integration with all back-end devices.
✓ Main electrical components adopt foreign well-known brands.
✓ Machine frame is made of carbon steel / spray plastic material.
Technique Parameters
Model WB-DK500 WB-TK500 WB-FK500
Servo quantity 2 3 5
Working speed 5-15 pcs/min 5-25 cartons/min 5-30 cartons/min
Carton size L280-500mm / W150-400mm / H150-400mm
Suitable tape size W: ≤ 60mm W: ≤ 50mm W: ≤ 48mm
Total power 1.0 KW 2.1 KW 3.0 KW
Air supply 0.6-0.8 Mpa
Voltage 1 Phase 220V, 50/60Hz
Machine weight 350kg 620kg 620kg
Machine dimension L2000 × W1900 × H1400mm L2600 × W2000 × H1400mm L2600 × W2000 × H1400mm
Machine Details

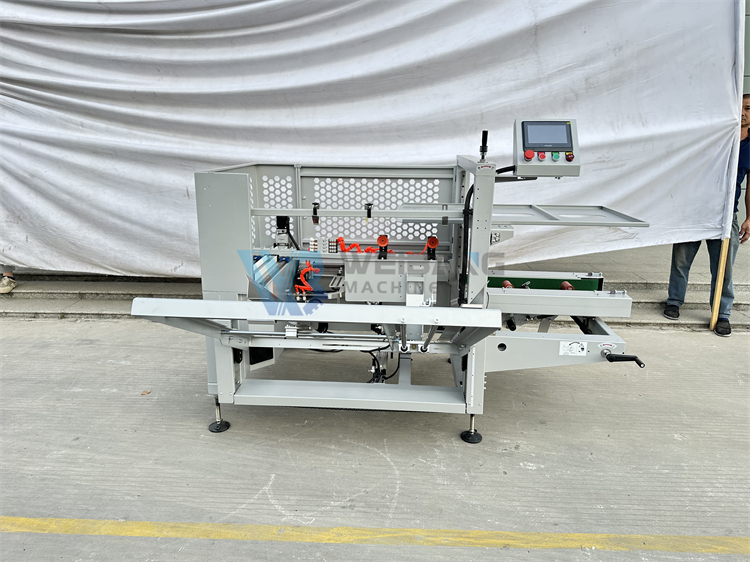

Machine Structure Detail

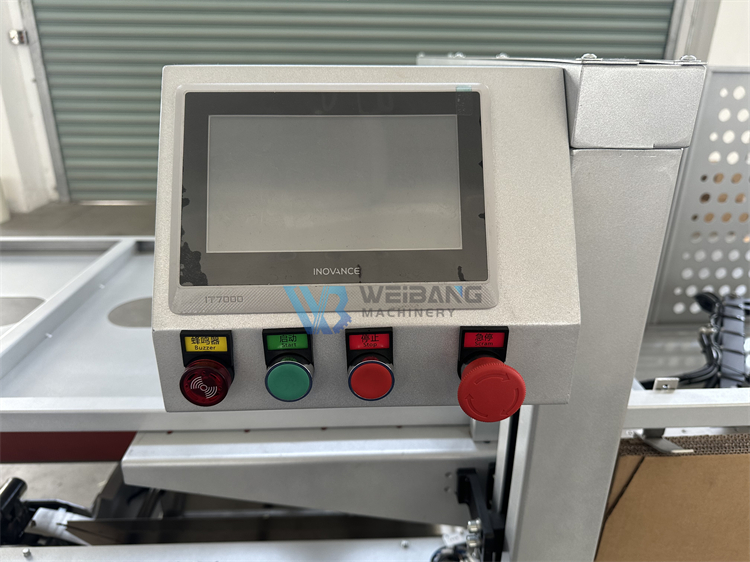

Touch Screen
Touch screen

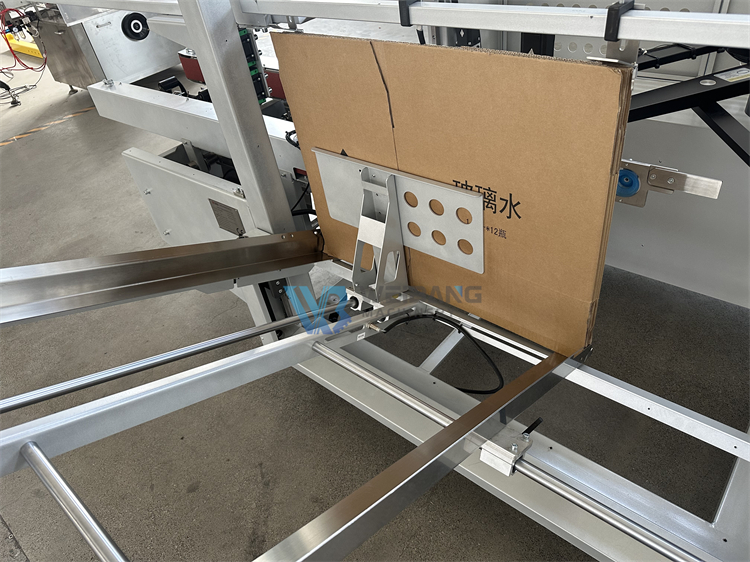

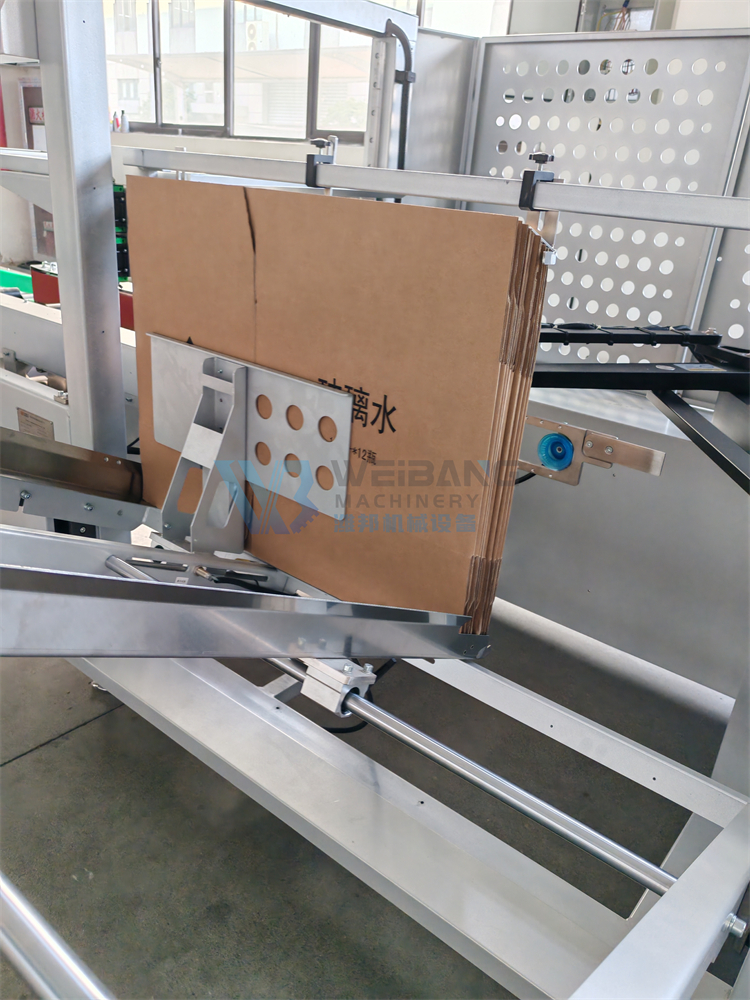

Carton Holder
Carton holder--auto feeding carton

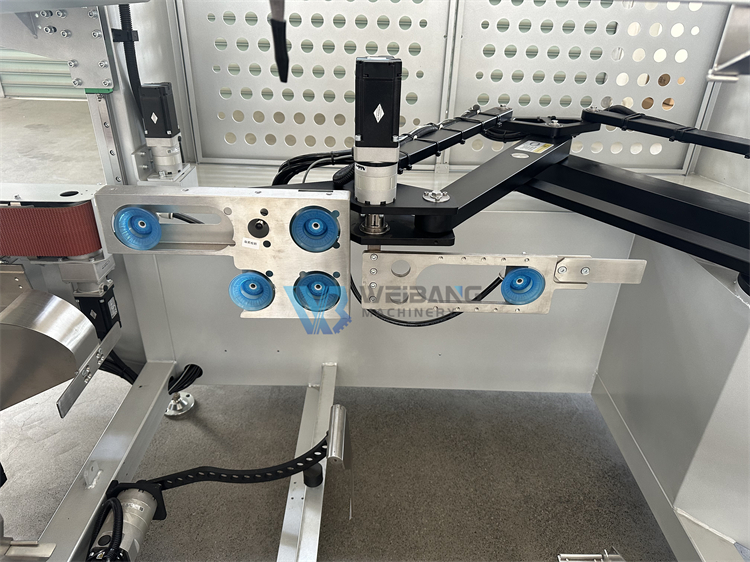

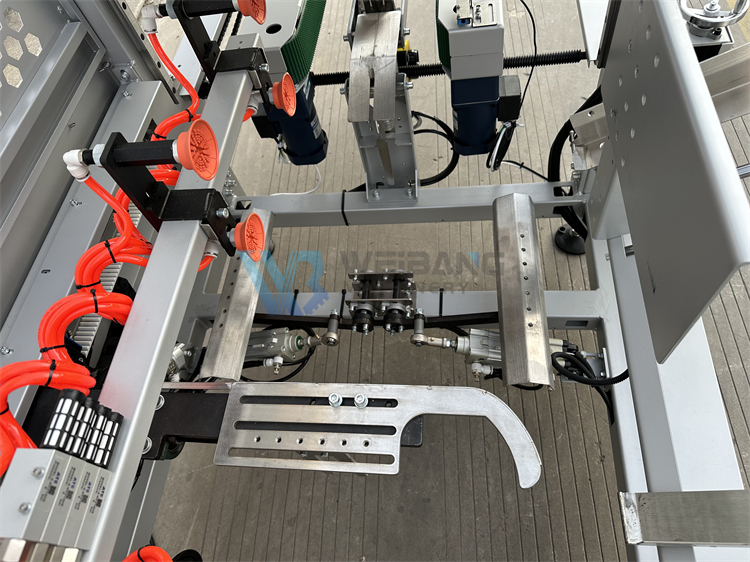

Carton Suction
Carton suction

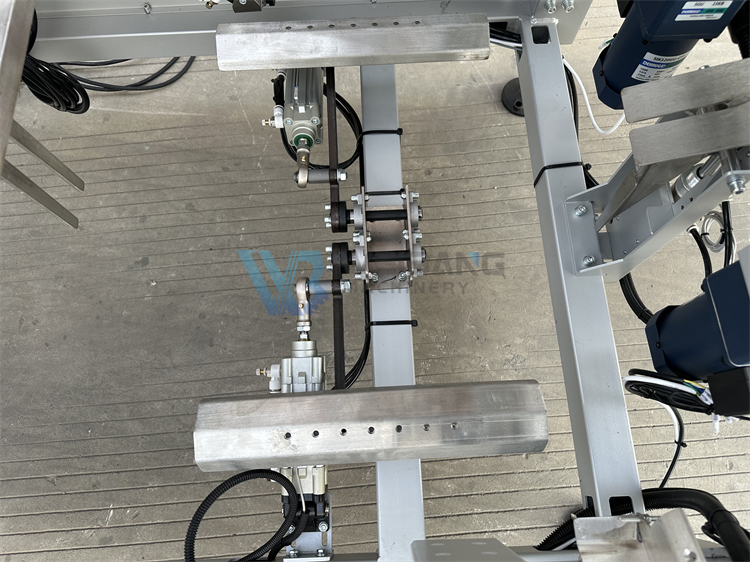

Opening Carton
Opening carton

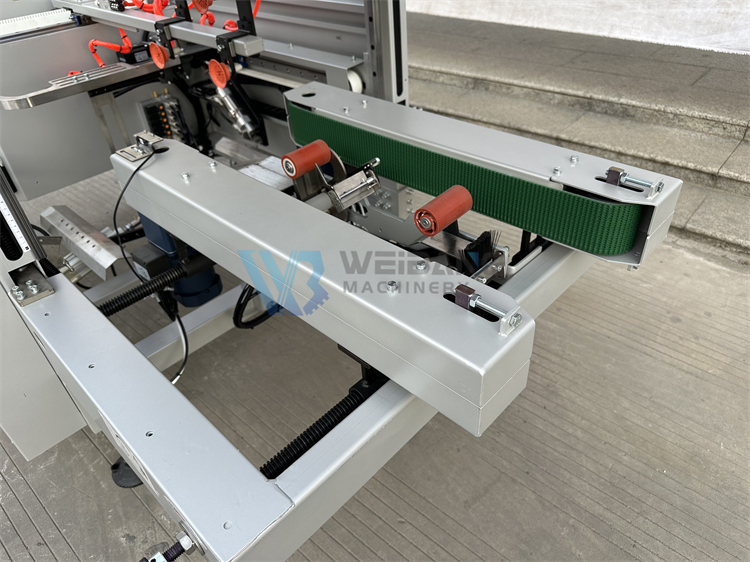

Bottom Taping Device
Bottom taping device and exit
Carton packing solution: palletizer robot, roller conveyor, carton folding and sealing machine

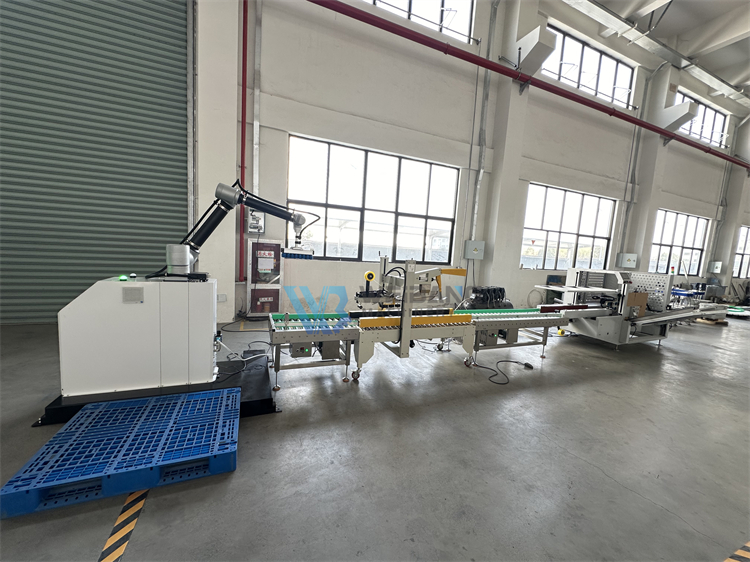

WB-FK650 Carton Erector
WB-FK650 carton erector (5 servo motor - Fast speed, Large-sized box)

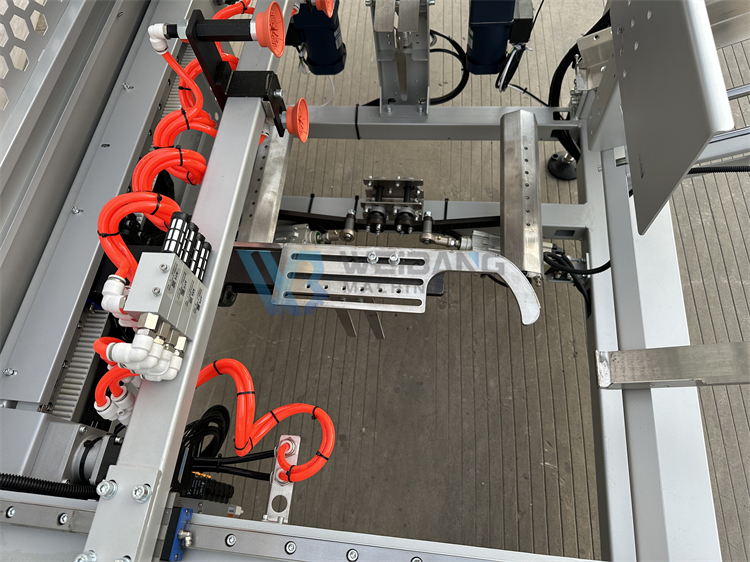

Inner Mechanism 1

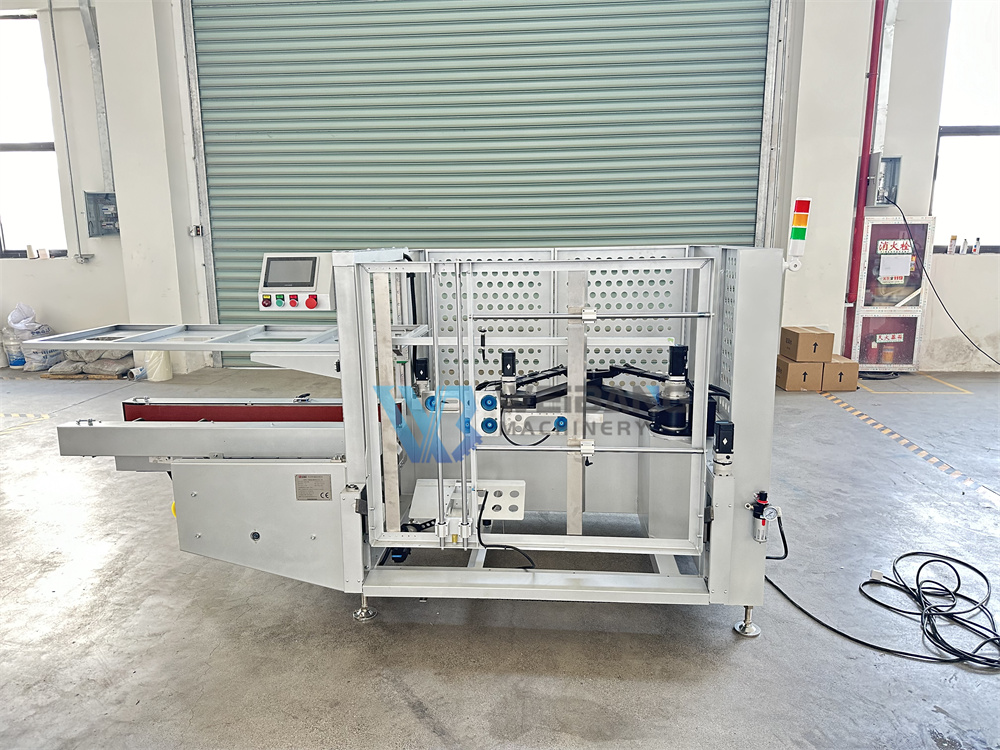

Inner Mechanism 2

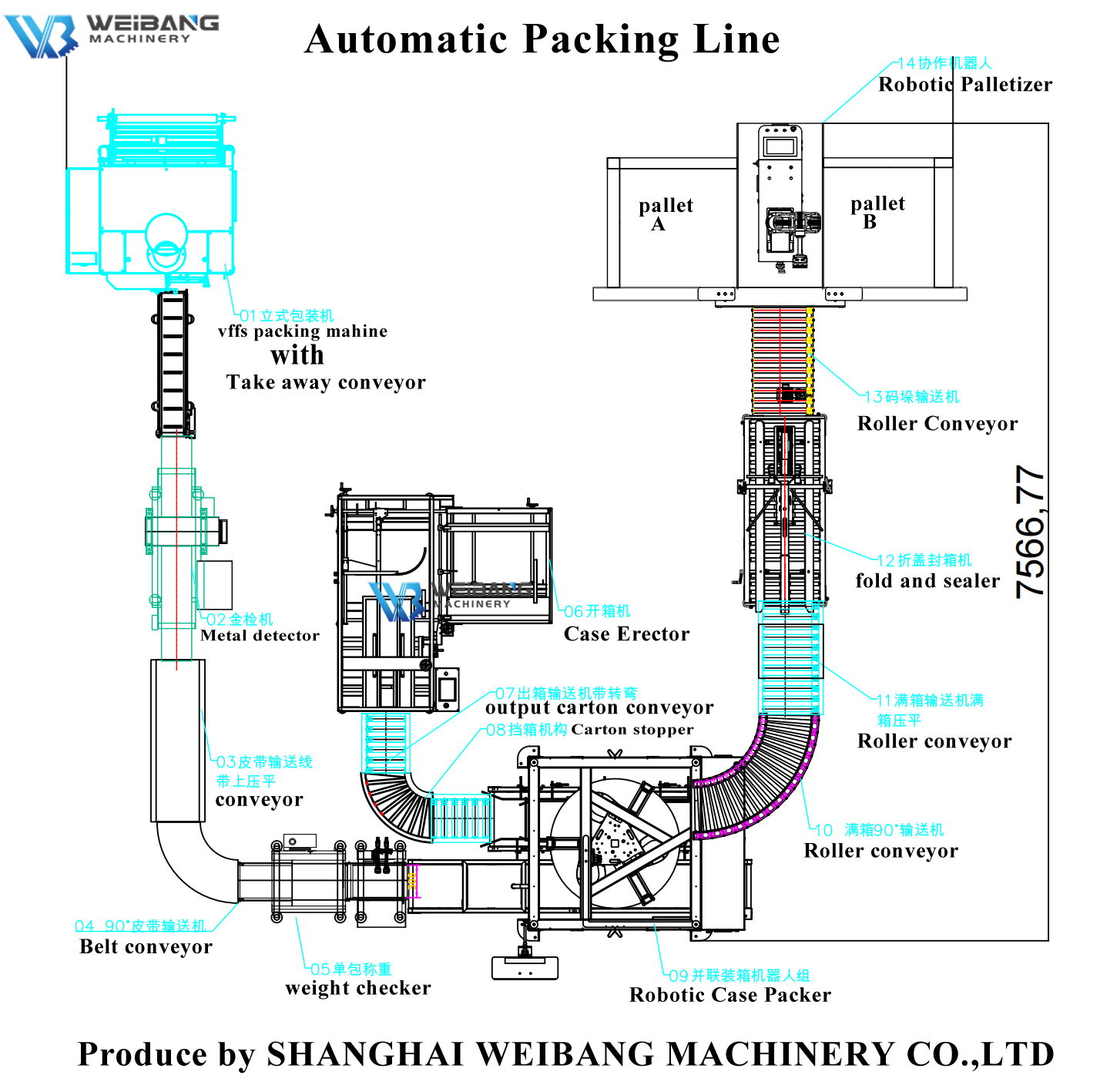

Erector Operation Diagram
Recommended Equipment

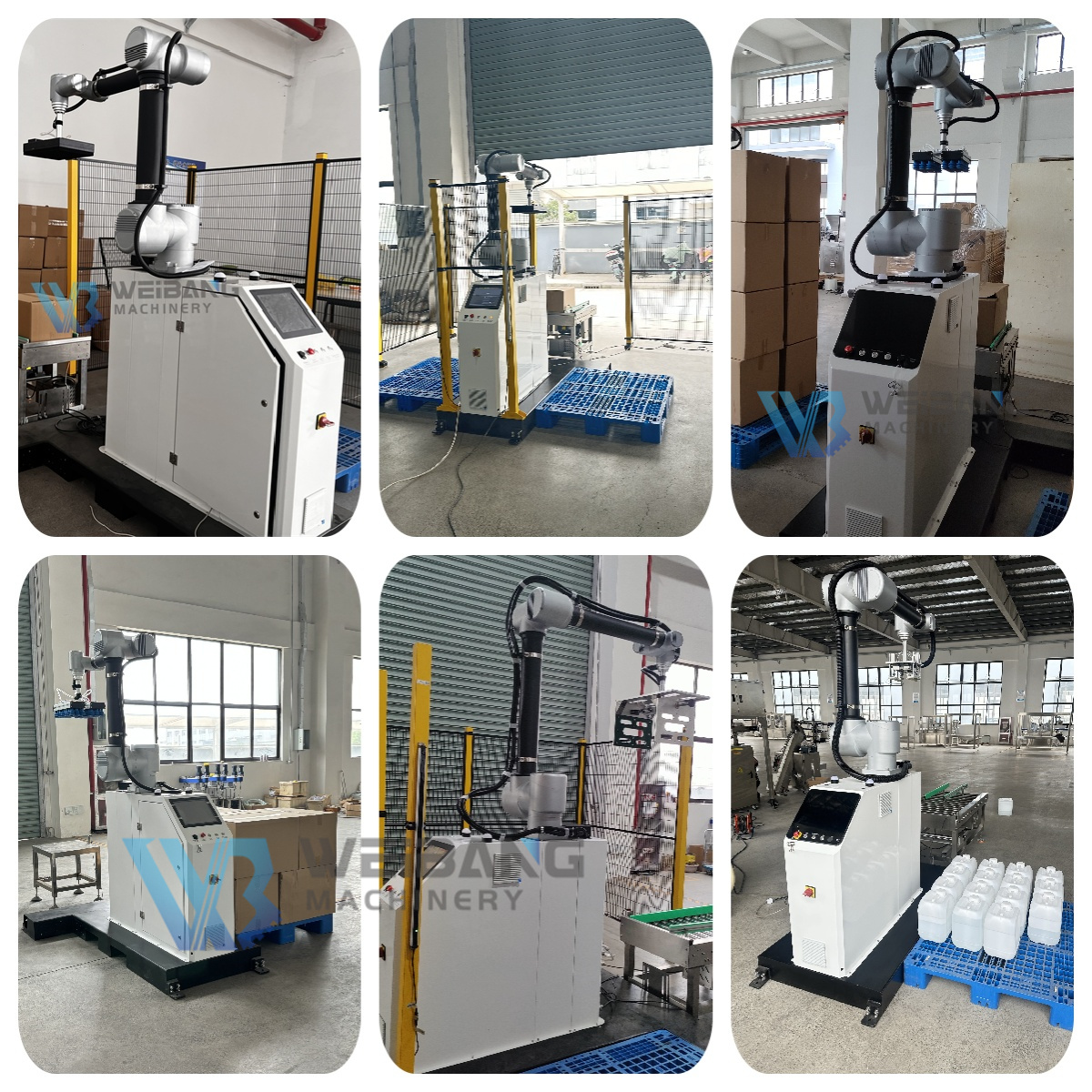

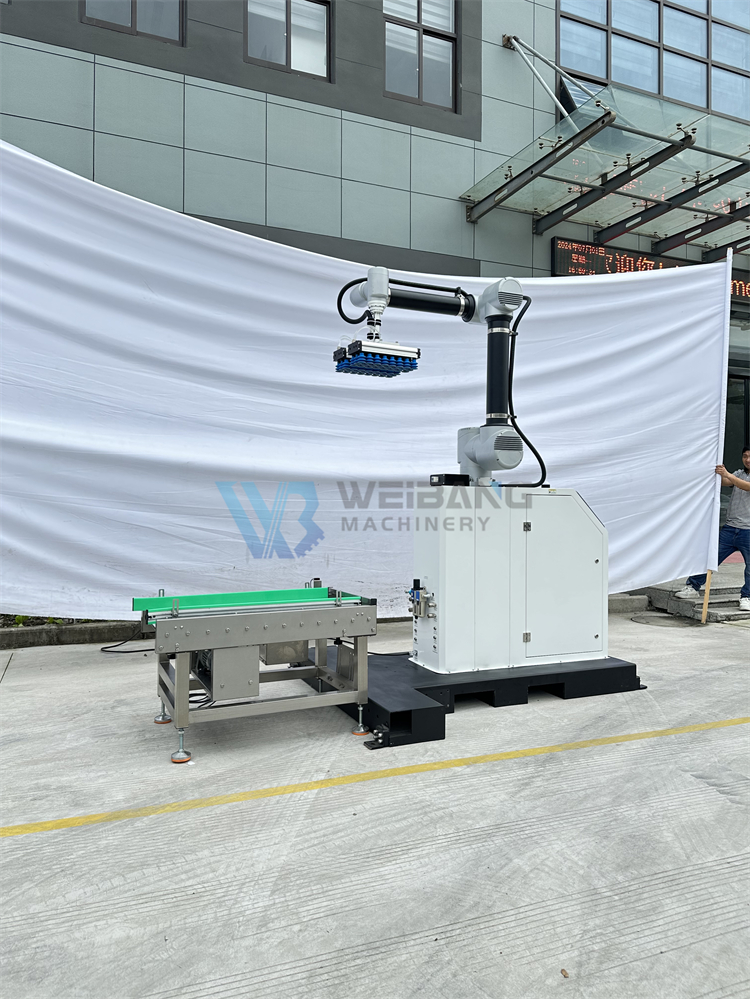

WB-MD20 Palletizer Robot
WB-MD20 Palletizer Robot

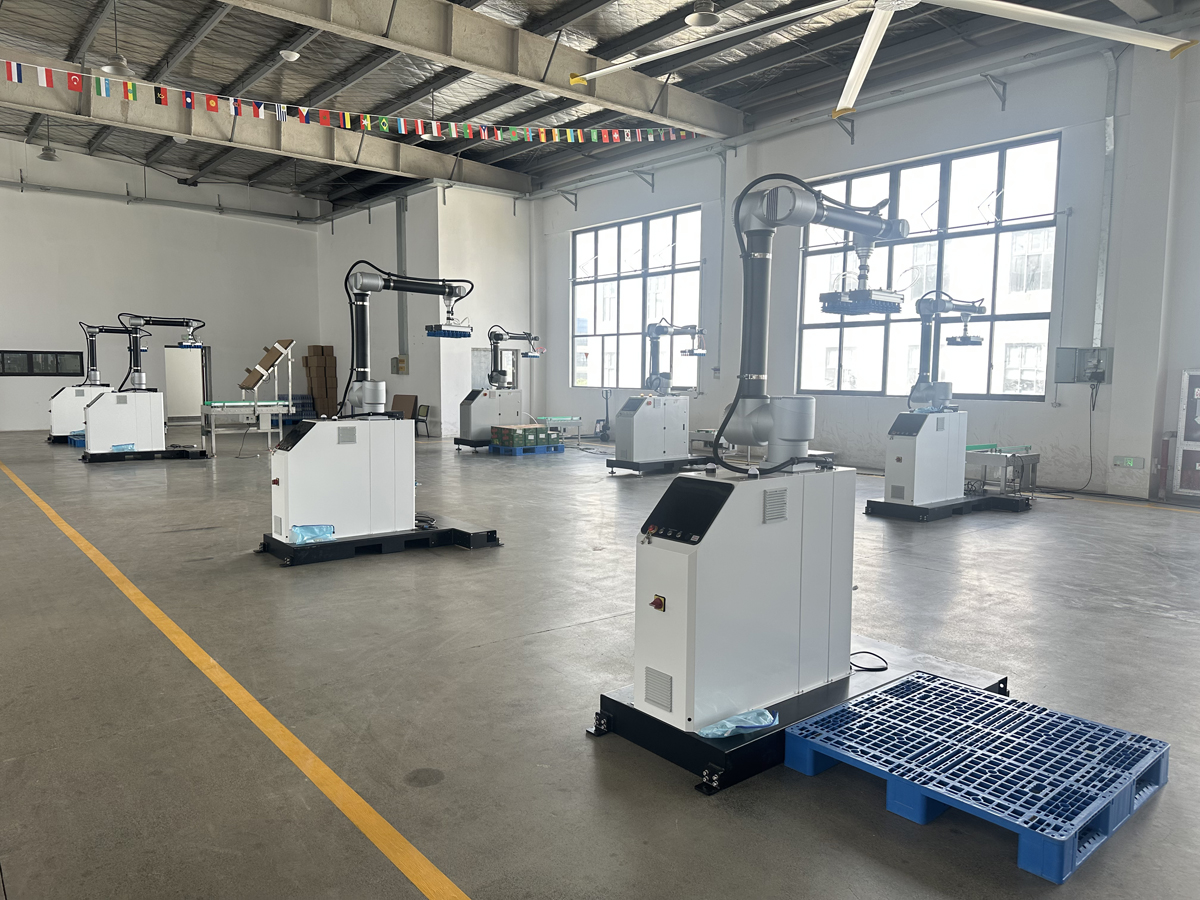

Robot Palletizer Area 1
Robot Palletizer Area 2

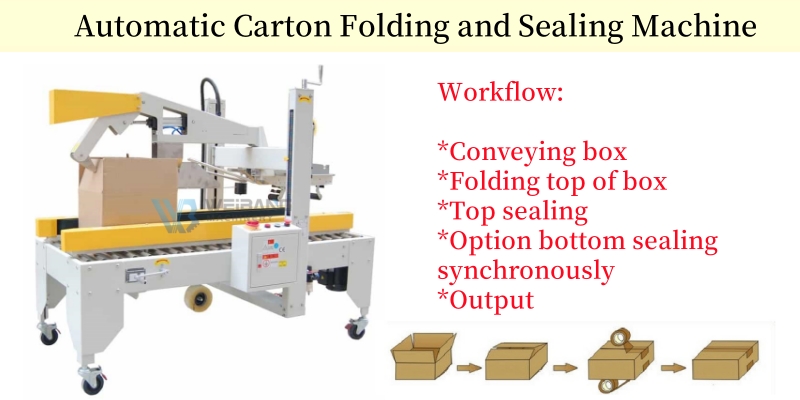

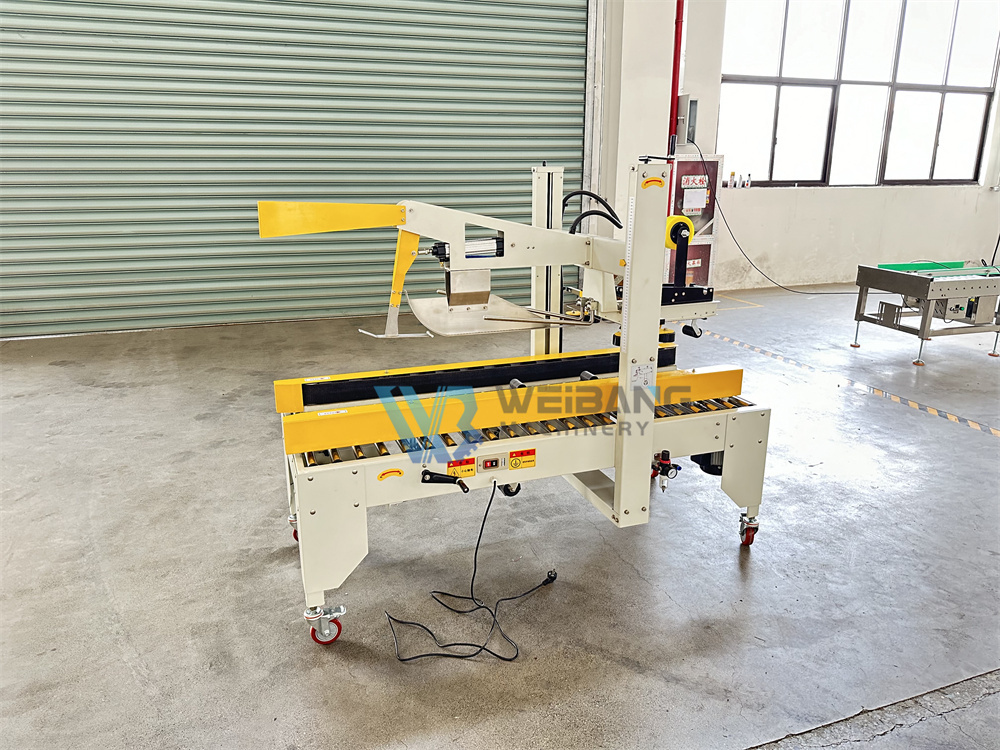

WB-ZF5050 Carton Folding and Sealing Machine
WB-ZF5050 Carton Sealing Machine

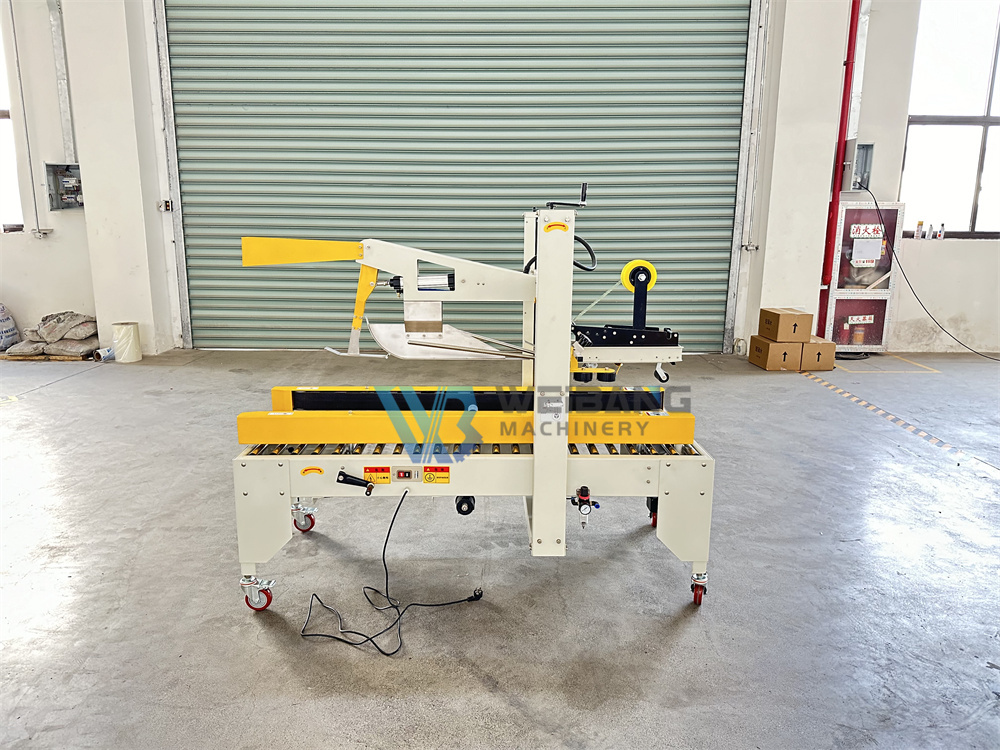

Sealing Section 1
Sealing Section 2

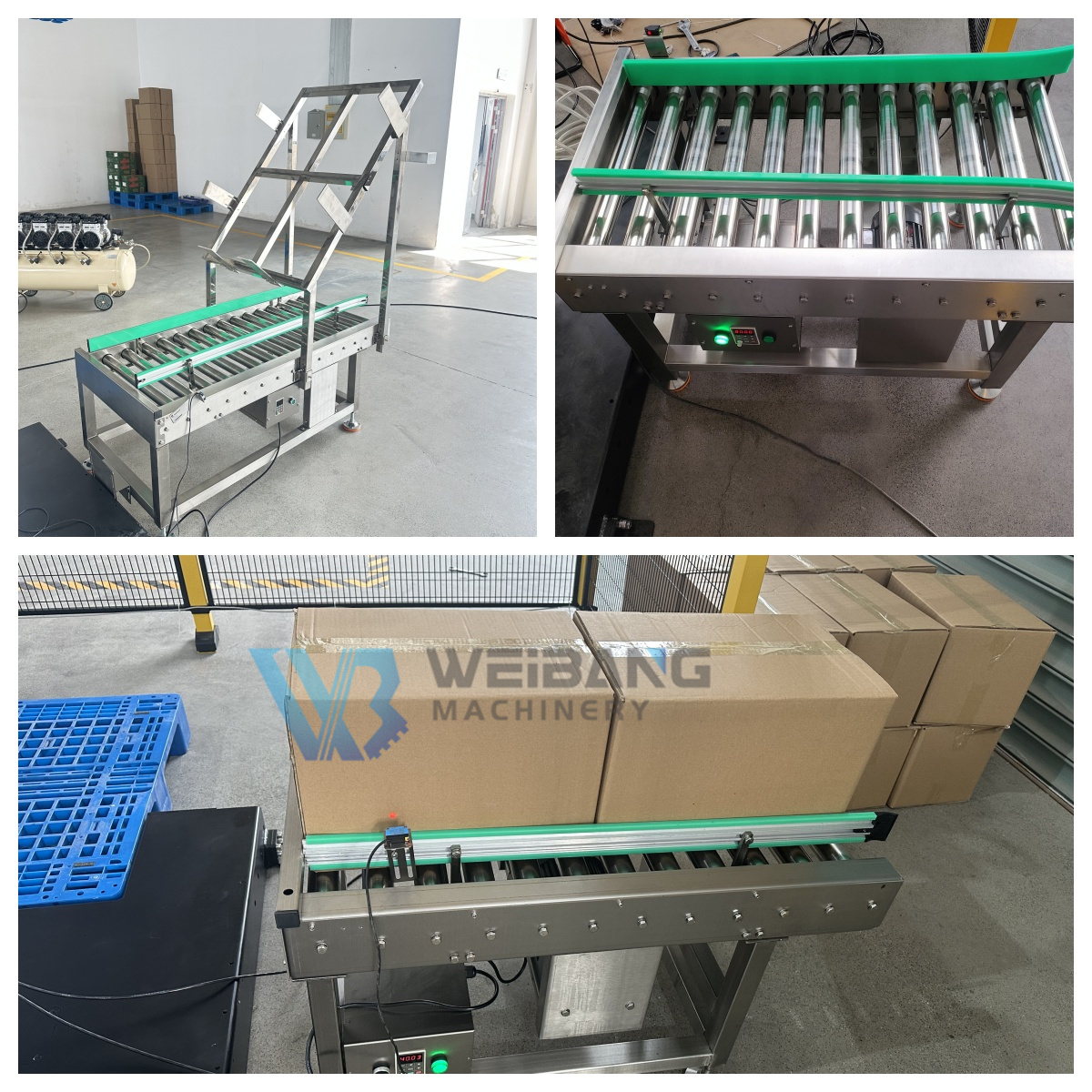

Conveyor Belt
Conveyor Belt
Automatic Grab Type Carton Box Packer Machine
Automatic Grab Type Carton Box Packer

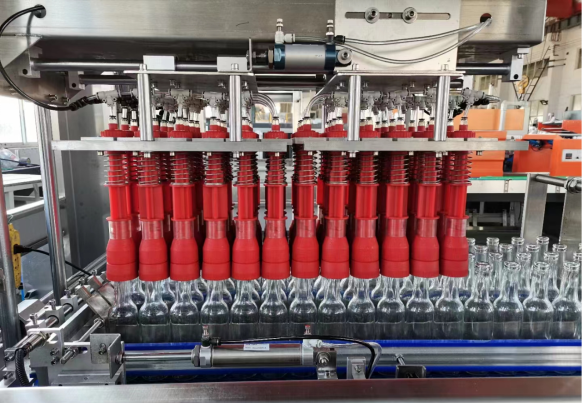

Grab System Detail

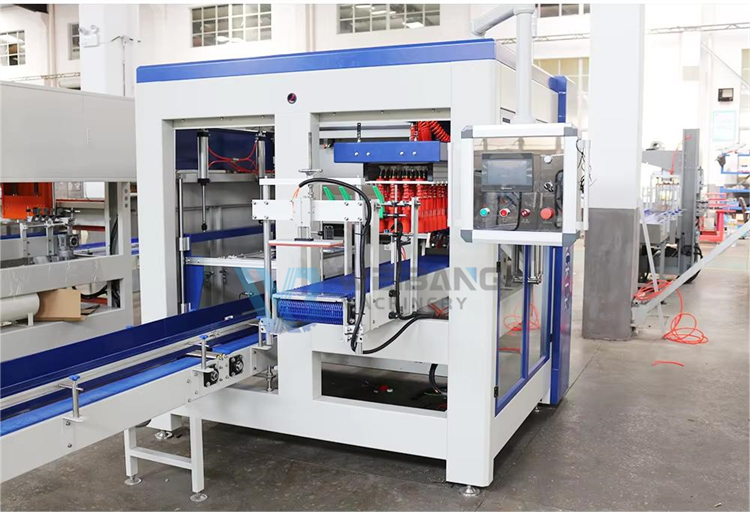

Carton Packing Line
Manufacturing and Facilities
Factory Overview
Facility Image 1

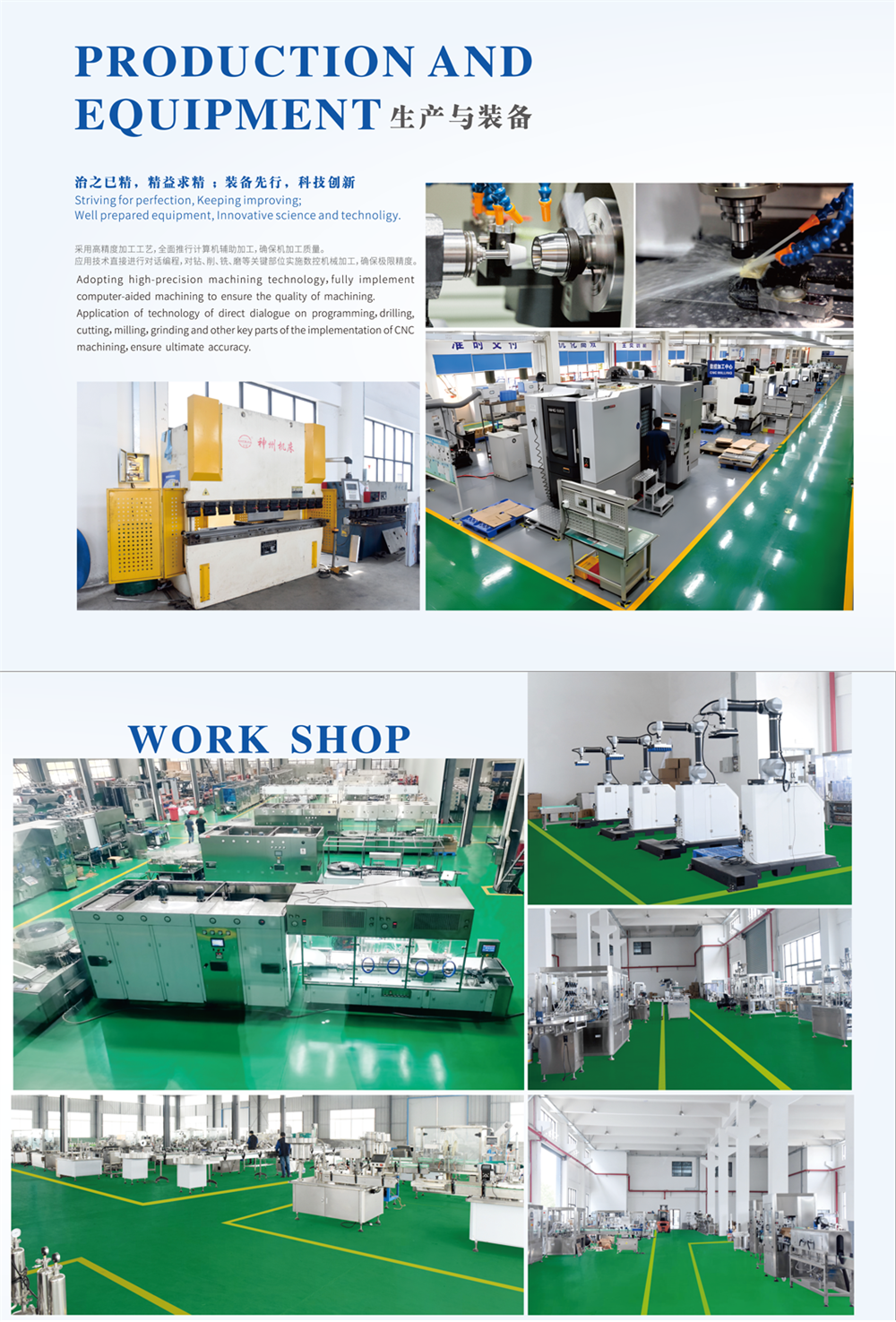

Facility Image 2
Facility Image 3
Facility Image 4
Facility Image 5
Facility Image 6
Certifications
CE Certification Document
ISO Standard Certification
Frequently Asked Questions
Are you a factory or trading company?
We are a professional manufacturer of Vertical packing machines, horizontal packing, and bottle filling machines. At the same time, we are also a trustworthy supplier of other packing equipment, including tea bag packing machines, wet wipes fold and packing machines, yogurt cup filling and sealing machines, labeling machines, shrink sleeve labeling machines, box cartooning machines, metal detectors, inkjet printing machines, mixing tanks, and hard candy packing machines.
Is a trade assurance order accepted?
Sure, we are happy to conclude trade assurance orders, which warranty your quality, on-time delivery, and payment protection.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set.
How long is the lead time?
Standard machines take around 10-25 days after deposit payment.
What is your warranty and after-sale service?
We offer a one-year warranty and lifelong after-sale service. Technical services and online support are also fully available.
Which is the nearest sea port for shipping?
Shanghai Port is the nearest port. However, we can deliver the goods to any port as requested.
