Product Description

Automatic Carton Box Packing Machine

WB-120WZ High speed and economical

Details Images

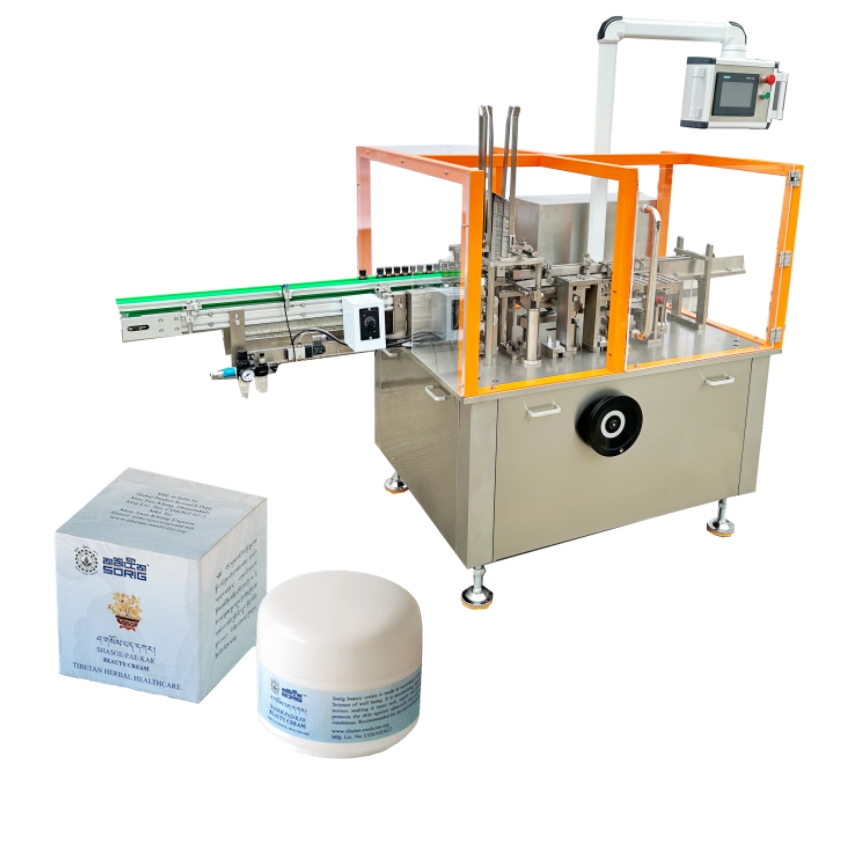

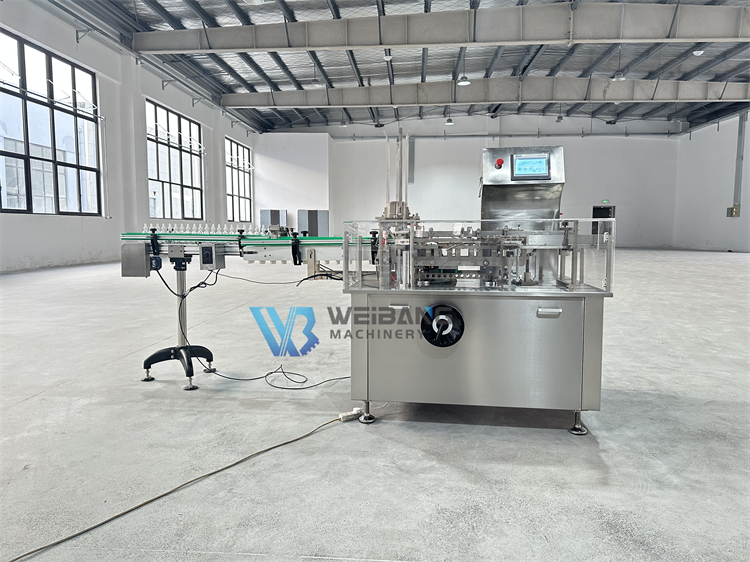

Automatic carton box packing machine overview

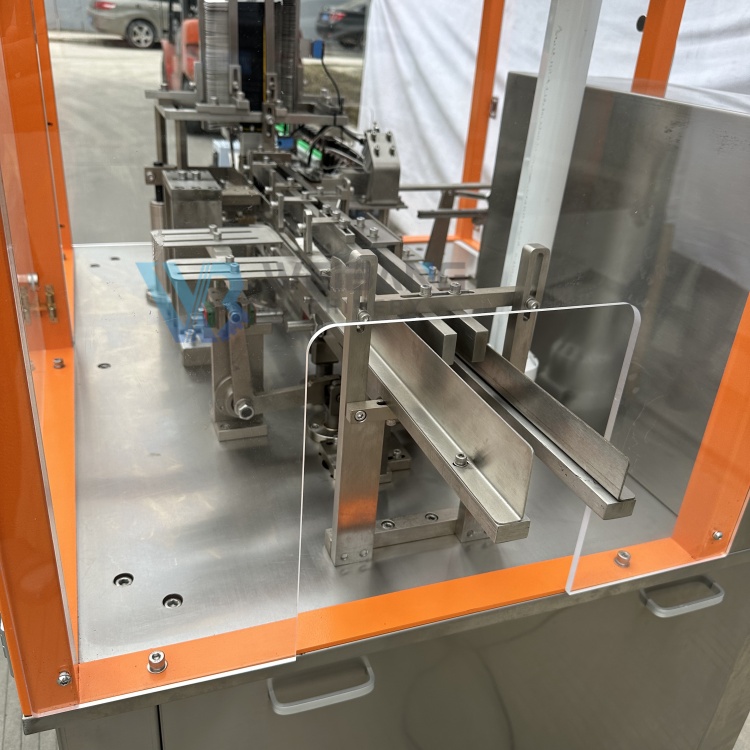

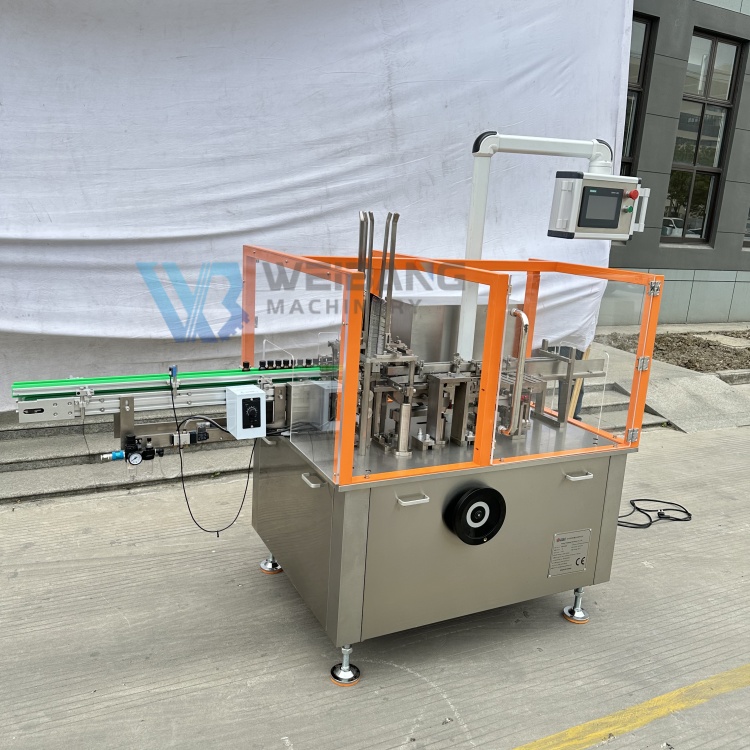

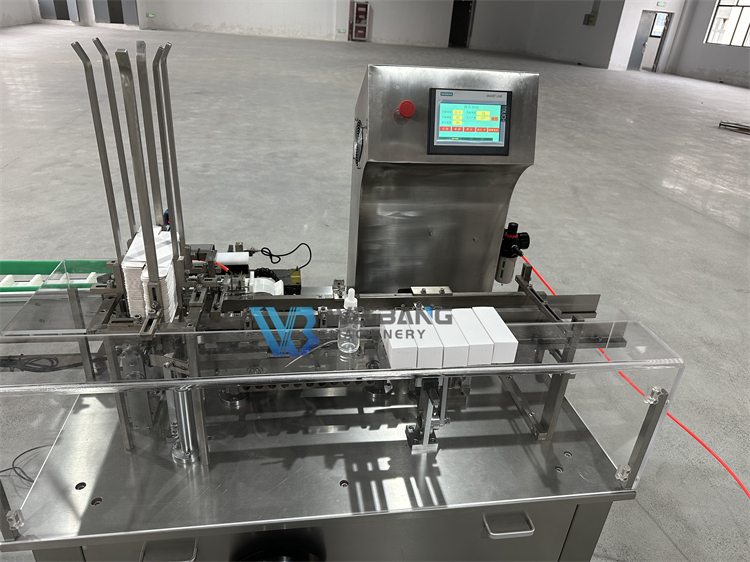

Cartoning machine with cover

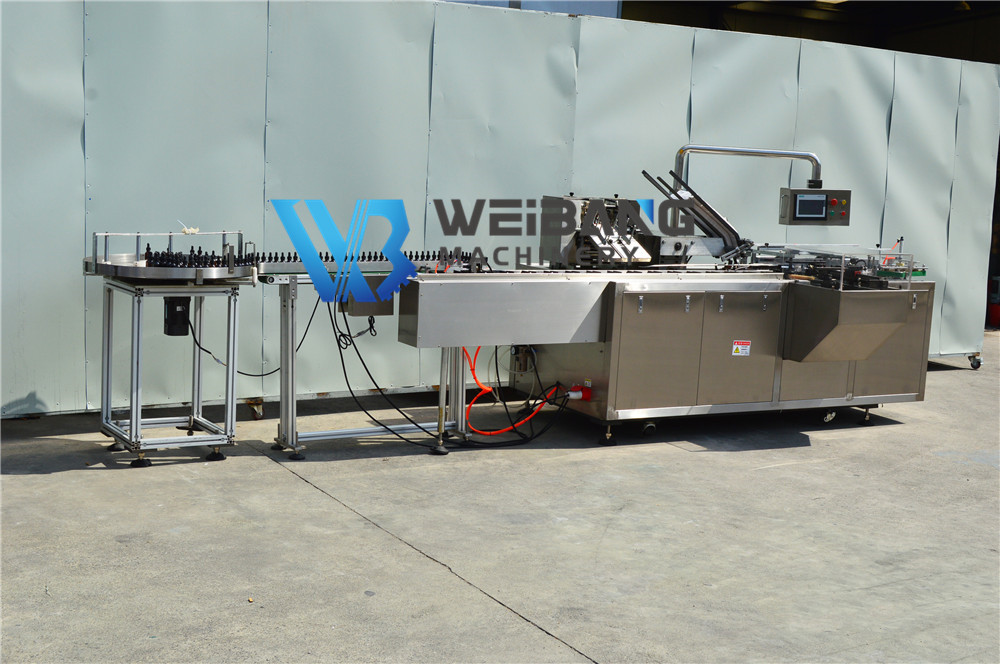

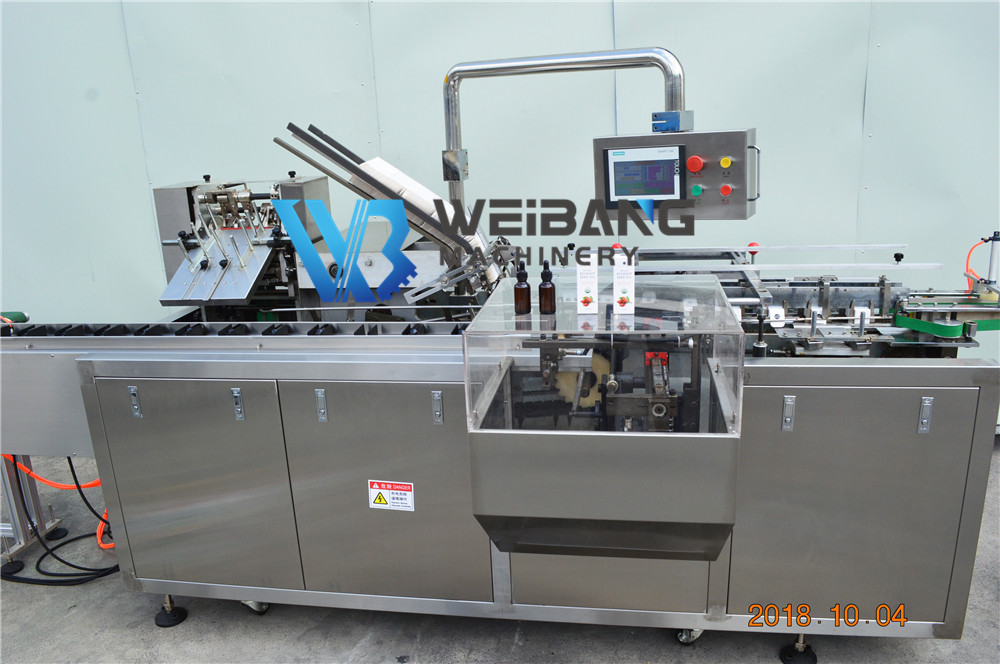

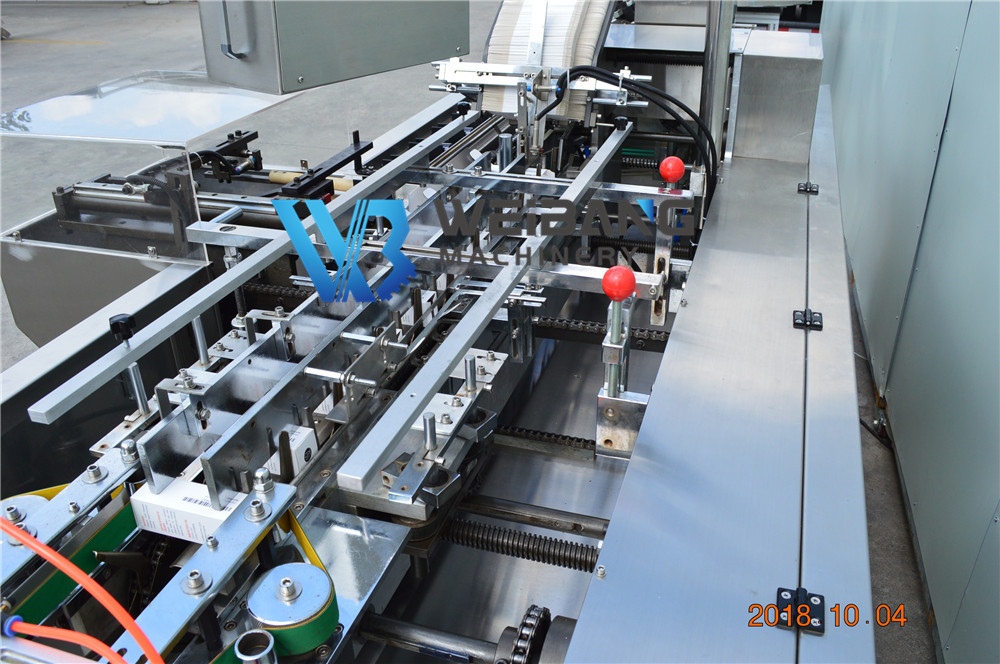

WB-80WZ premium version is suitable for a variety of bottles

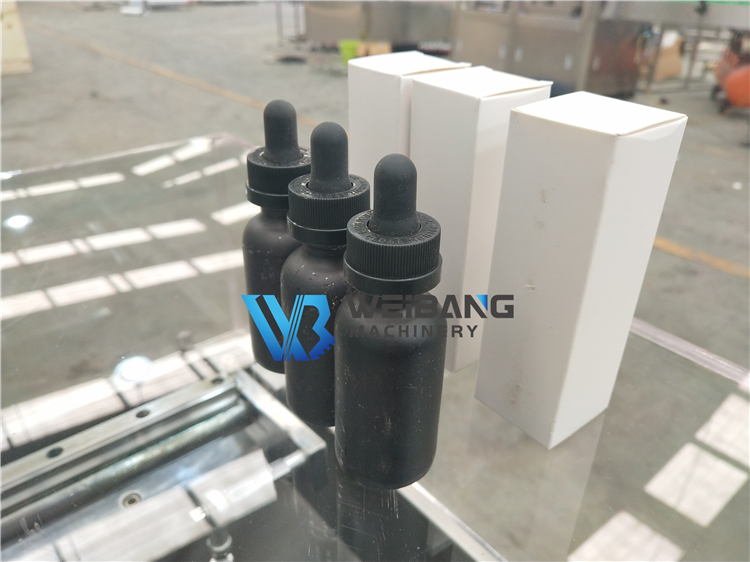

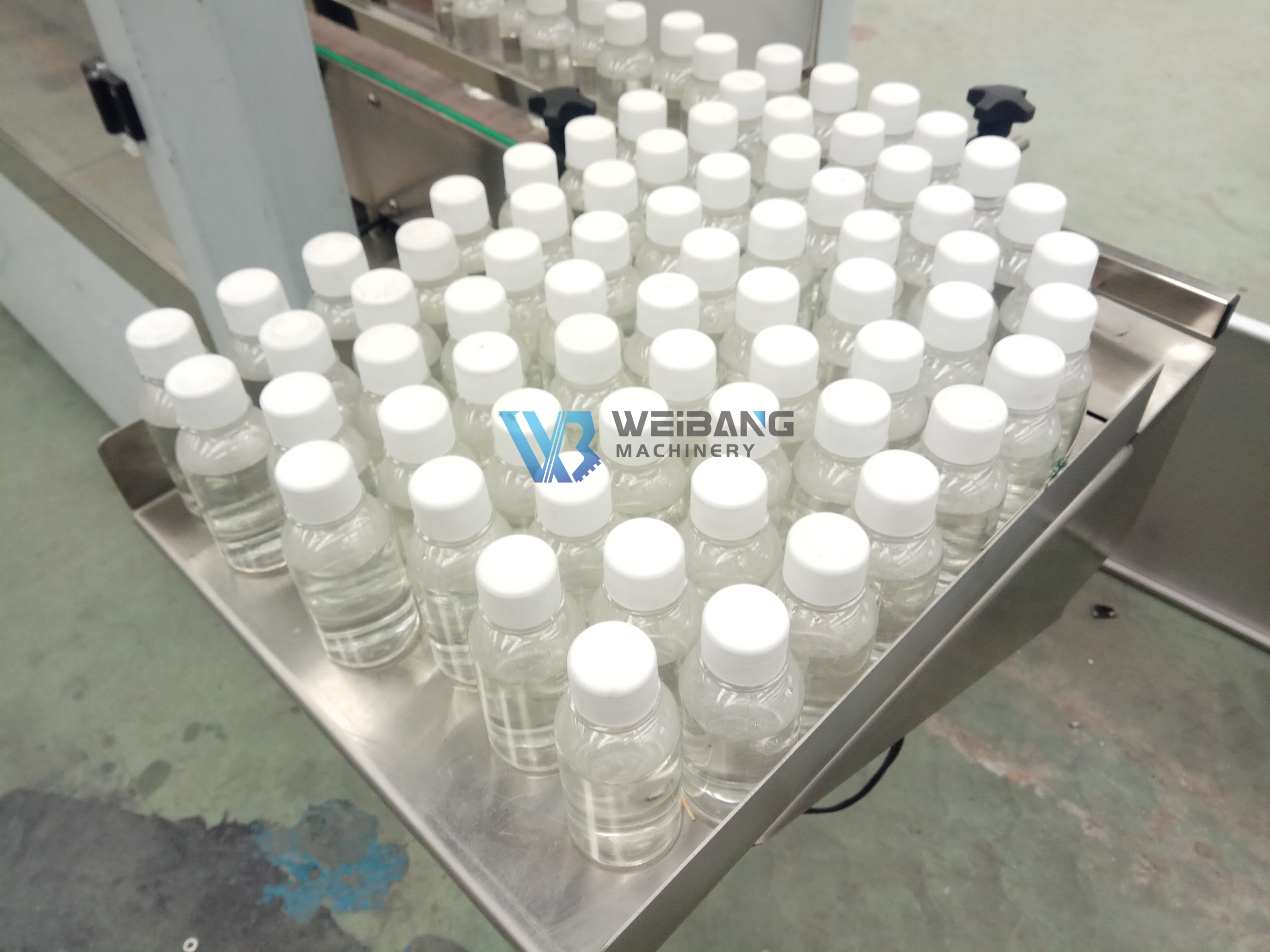

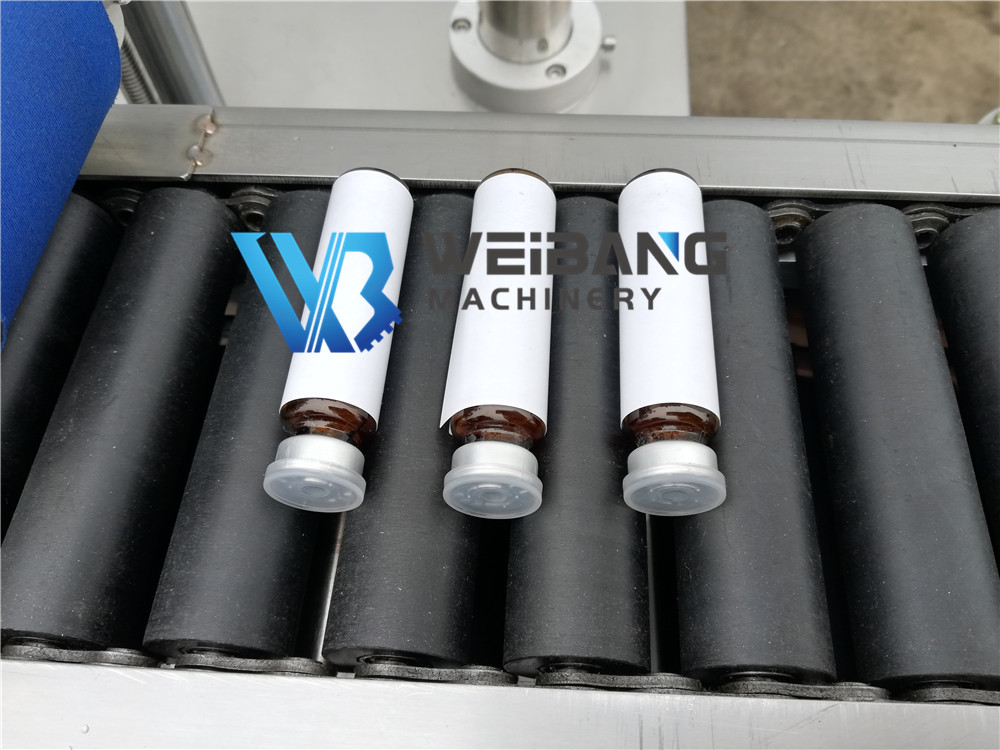

Sample

Usage & Performance Features

Usage: This machine is suitable for Gorilla bottle, eye drops bottles, food, soap sachet and other similar items of automatic cartoning.

We use high-quality stainless steel to make machine shell, the working surface closed by the plexiglass doors and windows, in strict accordance with the "GMP" standard to be innovative design.
With no leaflet automatic rejection function; automatically stop when product into carton is not in place or no carton.
Easy to replace the different specifications of the product.
PLC control system, color touch screen display, the machine has an automatic count, fault alarm function.

Technical Specification Parameters
Model	WB-120WZ
Capacity	100-120 cartons/min
Power supply	1ph, 220V/3ph, 380V, 50/60Hz
Main motor power	2.5 KW
Gas consumption	5-20L/min (Pressure 0.6Mpa)
Press air	0.5-0.8 Mpa
Carton paper	250-300g (white card) or 300-350g (gray card)
Carton Specification	L 45-85mm x W 28-53mm x H 28-53mm
Instruction book	Folding range	Customized
Instruction book	The number of folding	1-4
Net weight	About 1000kg
Overall Dimension	L3500xW1100xH1600mm

Machine details

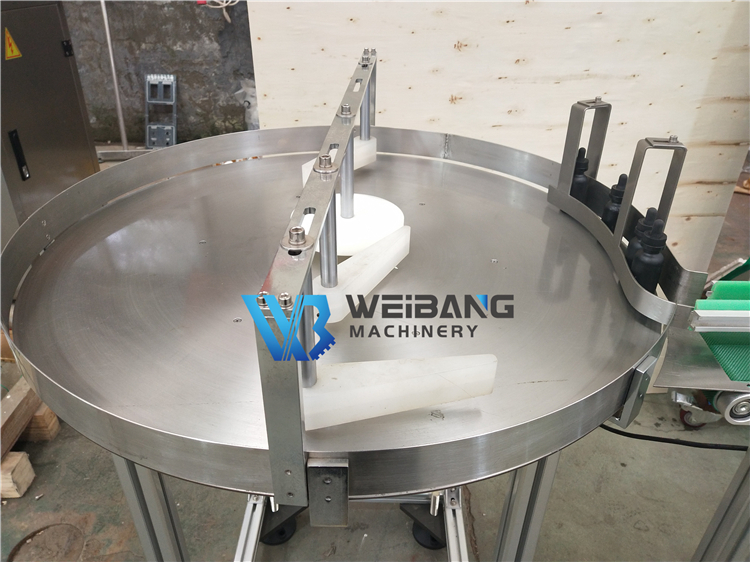

Bottle feeding table

connect with filling machine

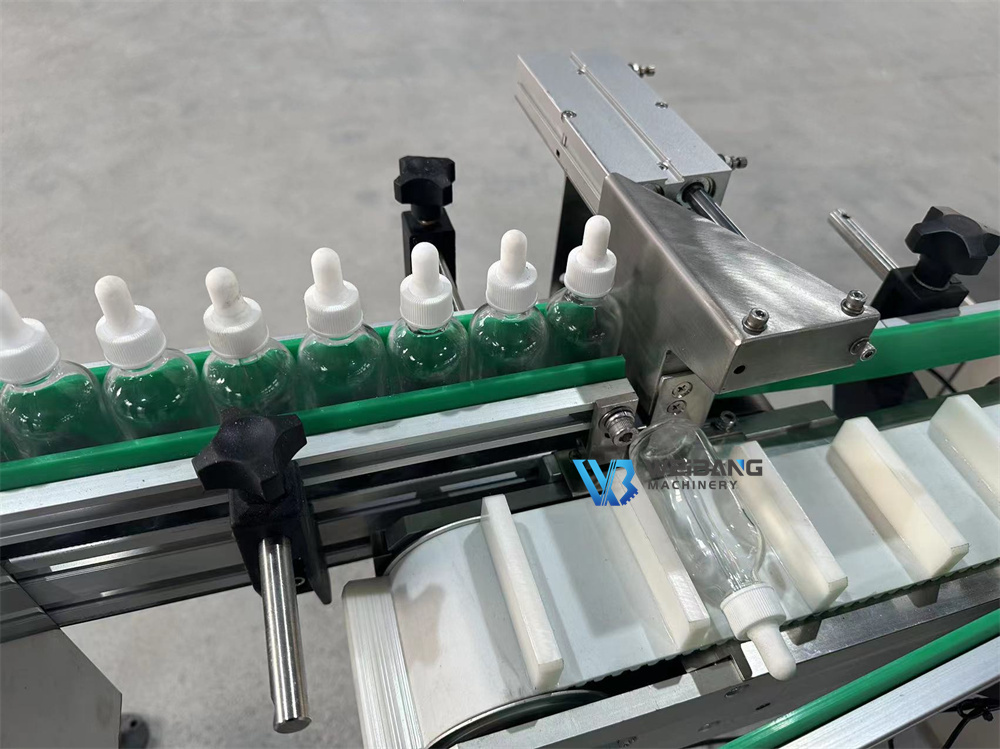

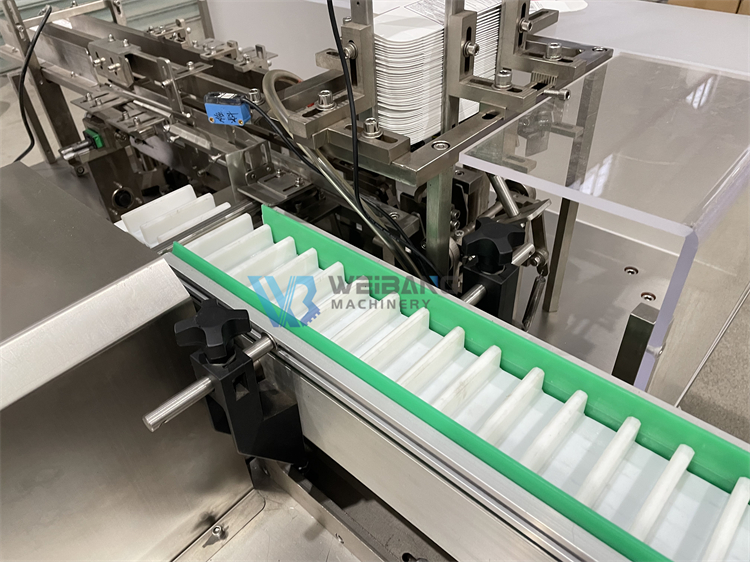

Belt conveyor

transfer bottle from vertical to horizontal/lying

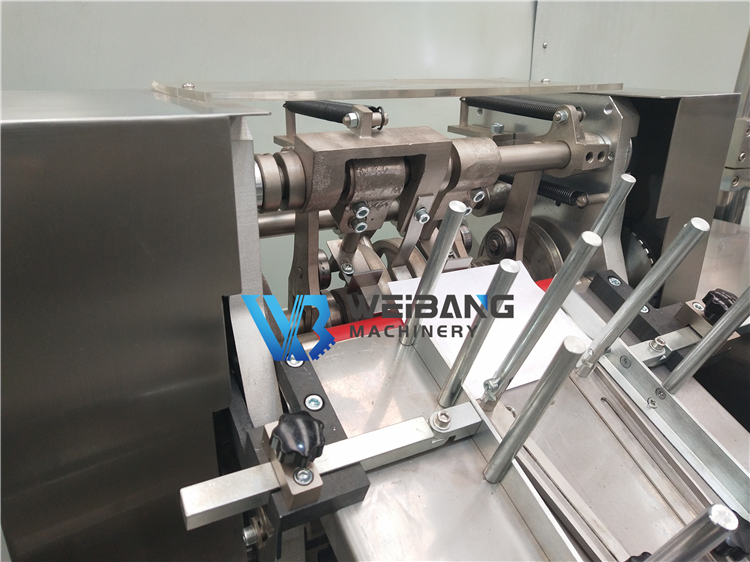

Instruction feeder

Size can be adjusted

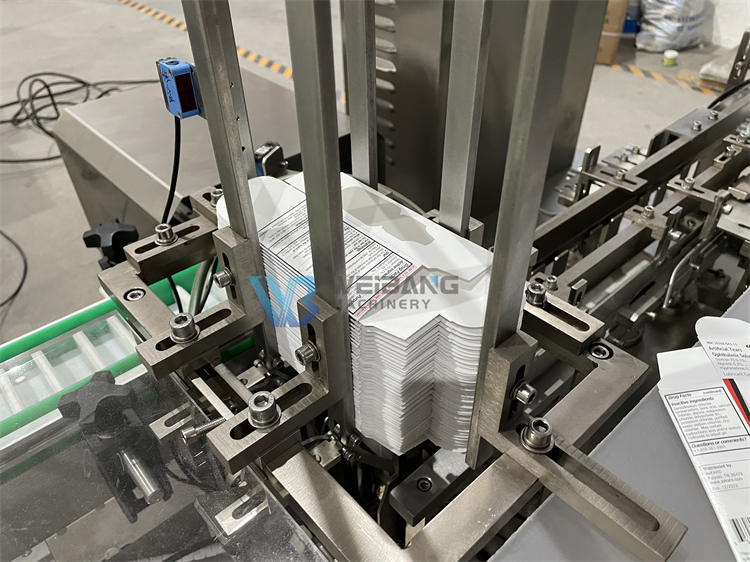

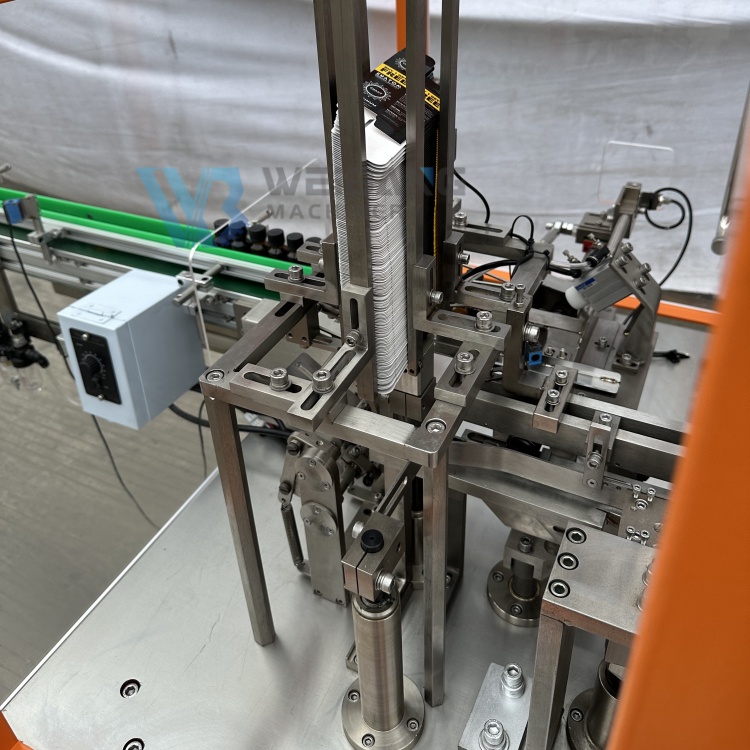

Carton feeder

Size can be adjusted

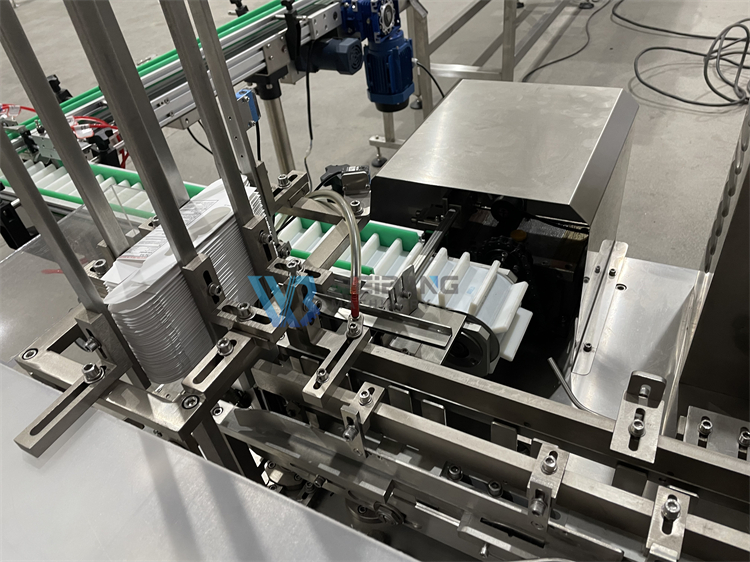

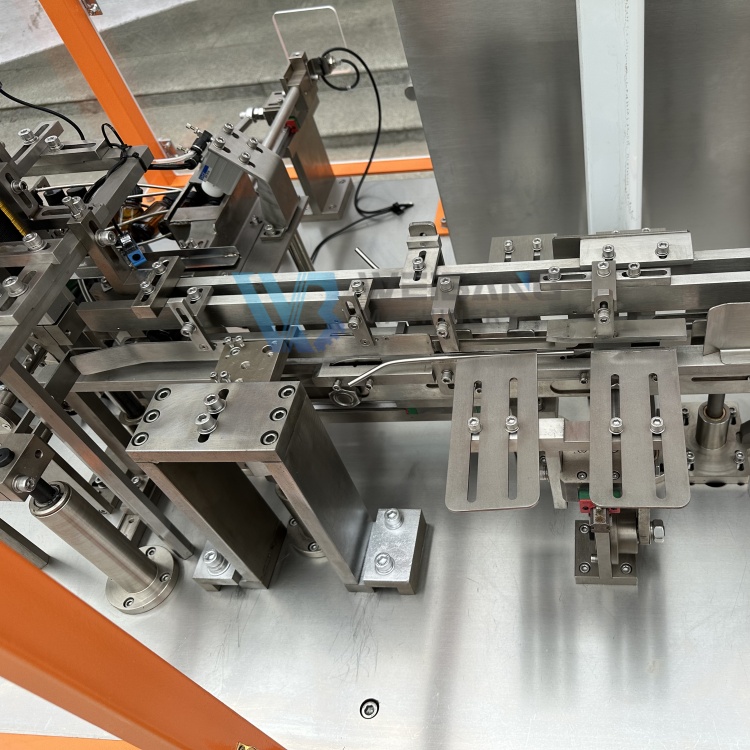

Push bottle into carton box

with Instruction

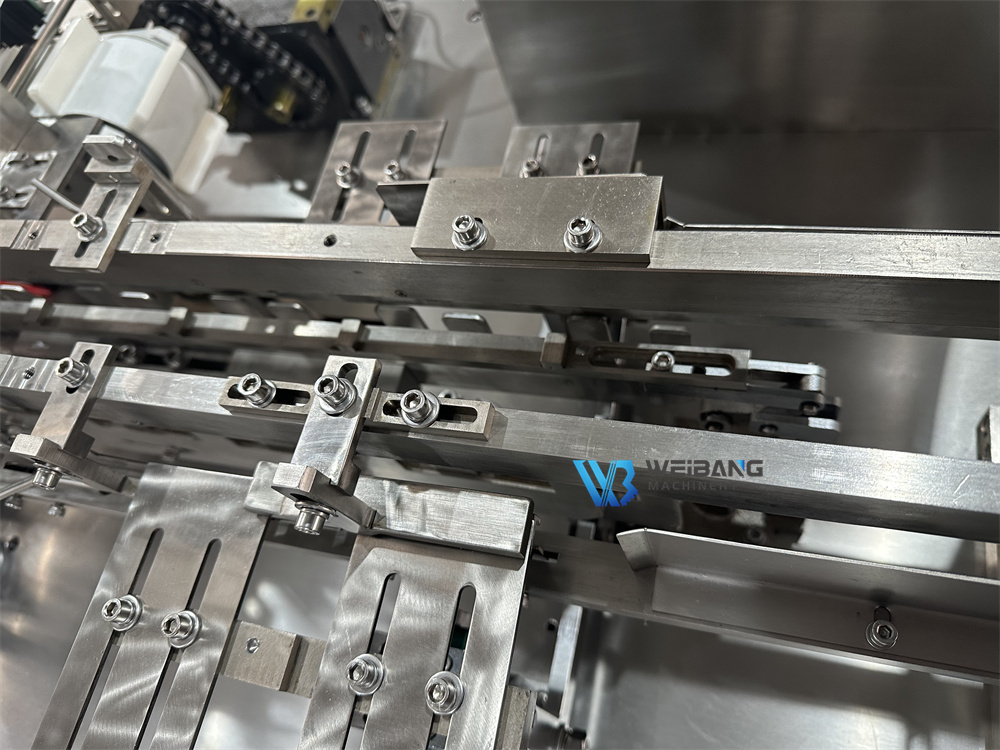

Fold and seal the carton

Efficient closing mechanism

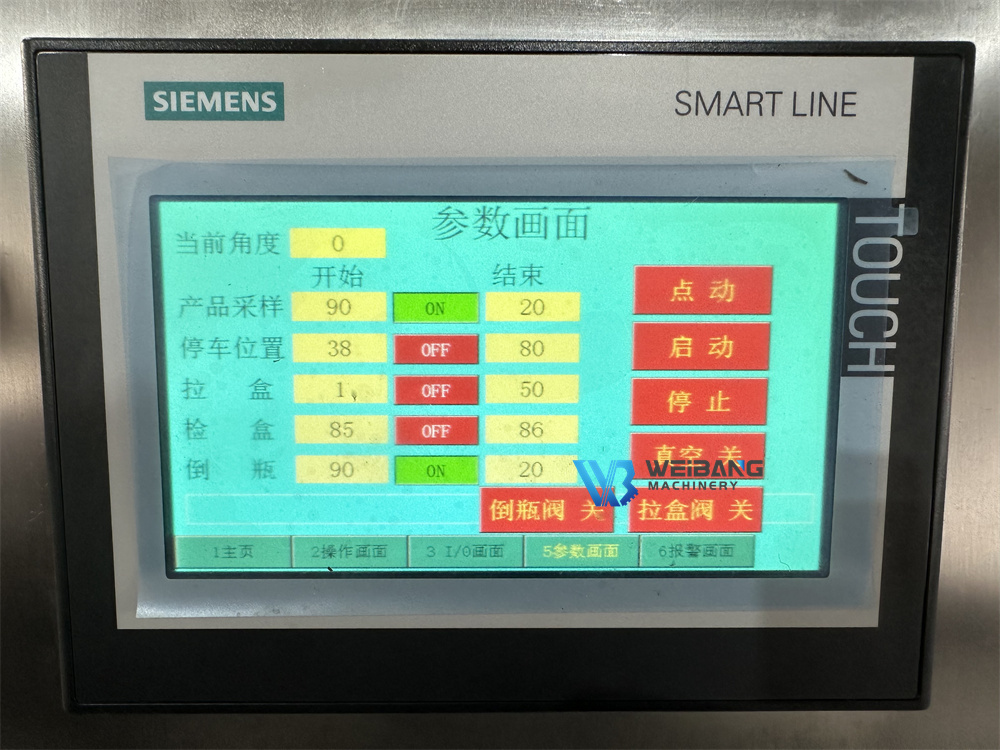

Touch screen display

Easy system monitoring and PLC configuration

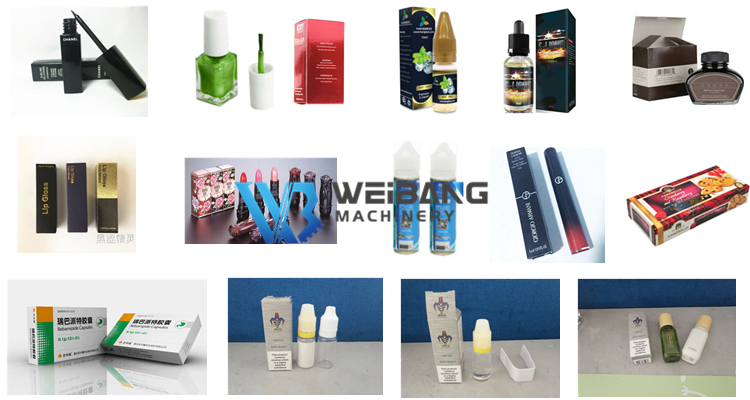

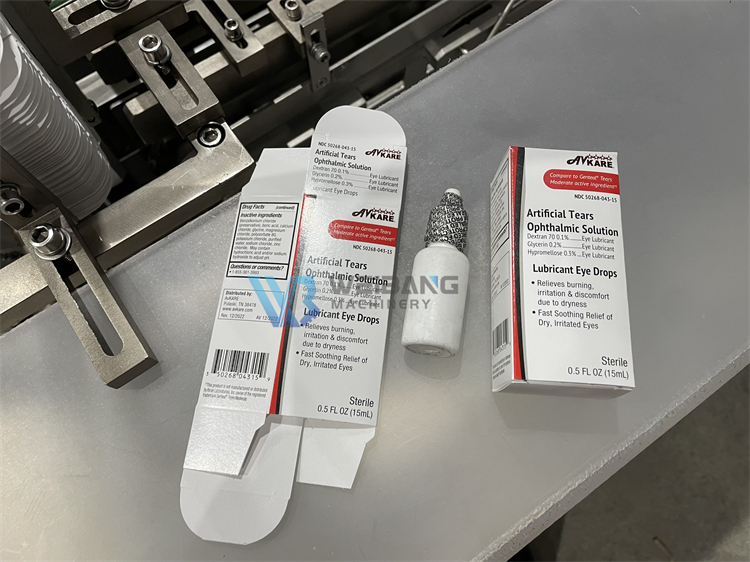

Finish sample

Polished finished carton output

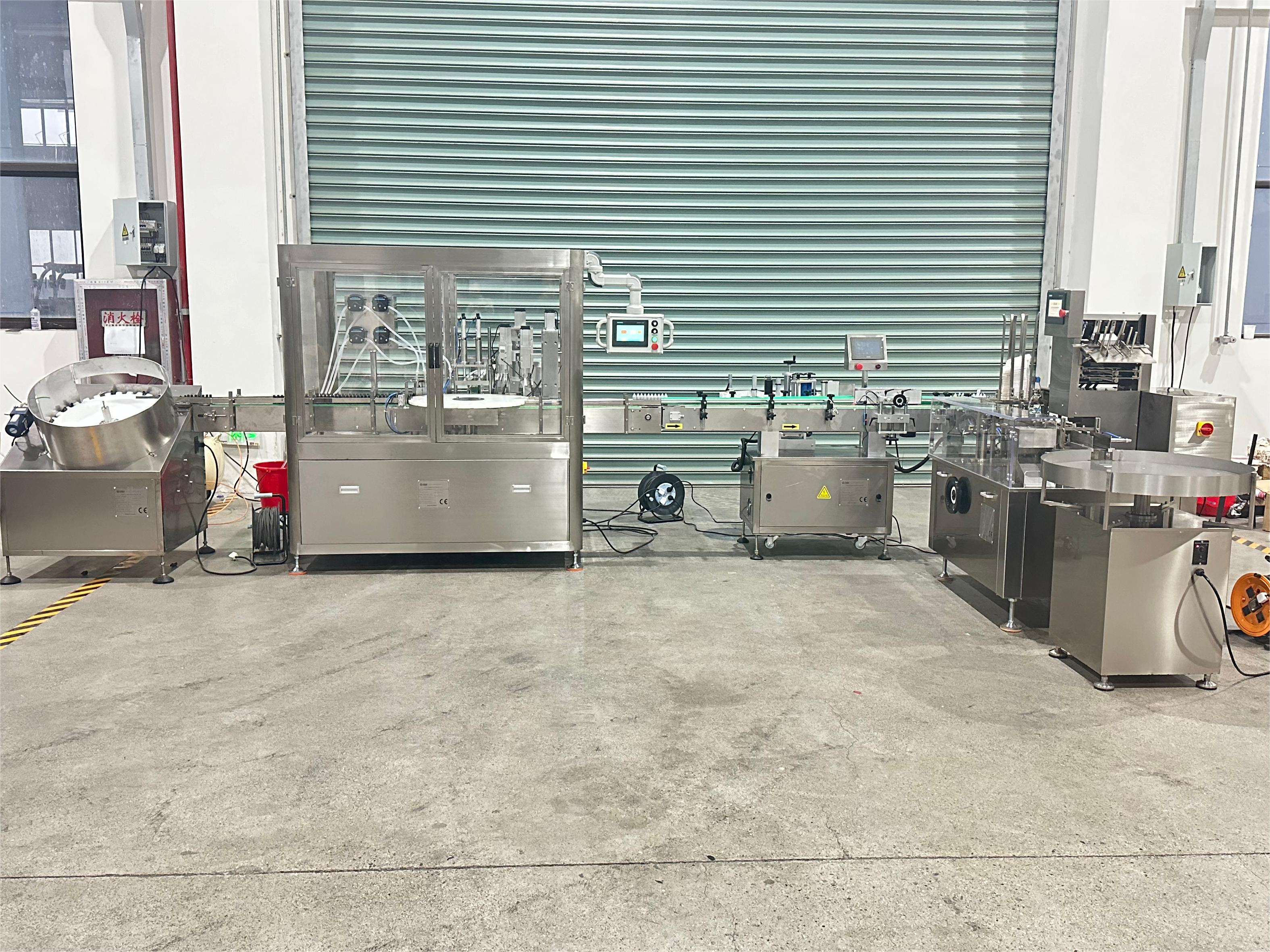

Automatic filling capping + labeling + cartoning line

Related Machines

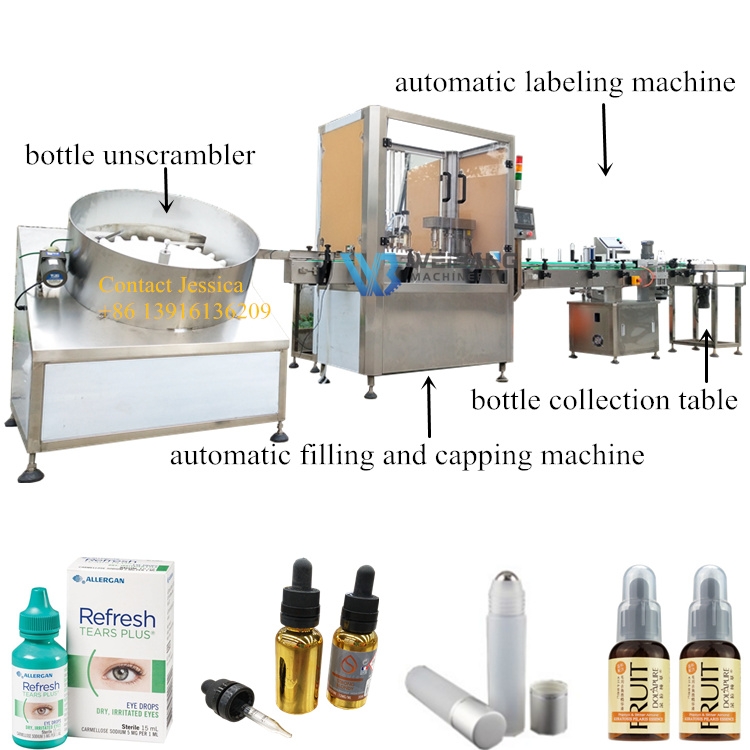

Automatic filling and capping machine

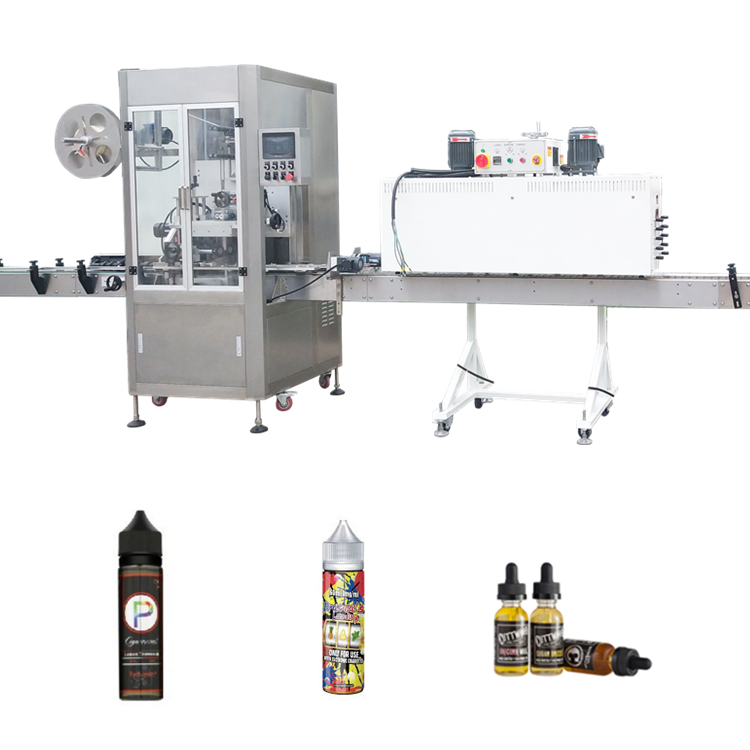

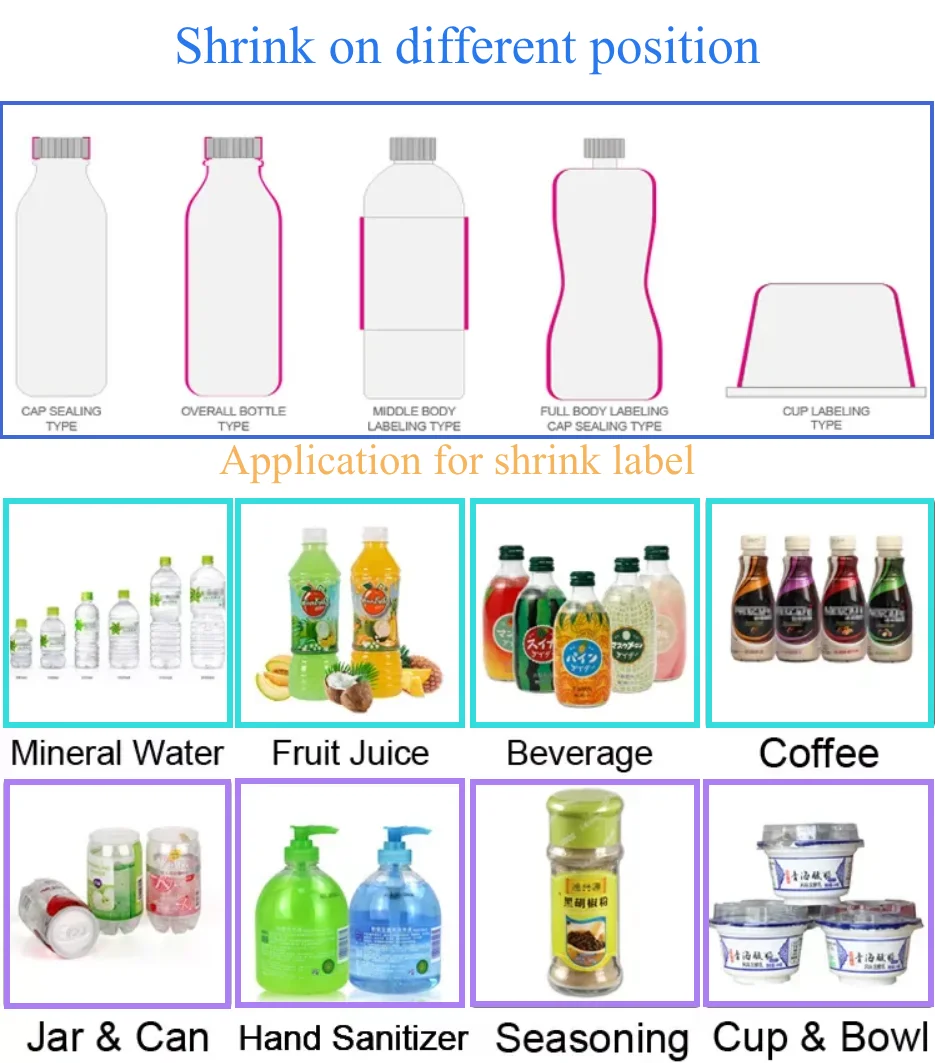

WB-TB200 automatic sleeve label shrink machine

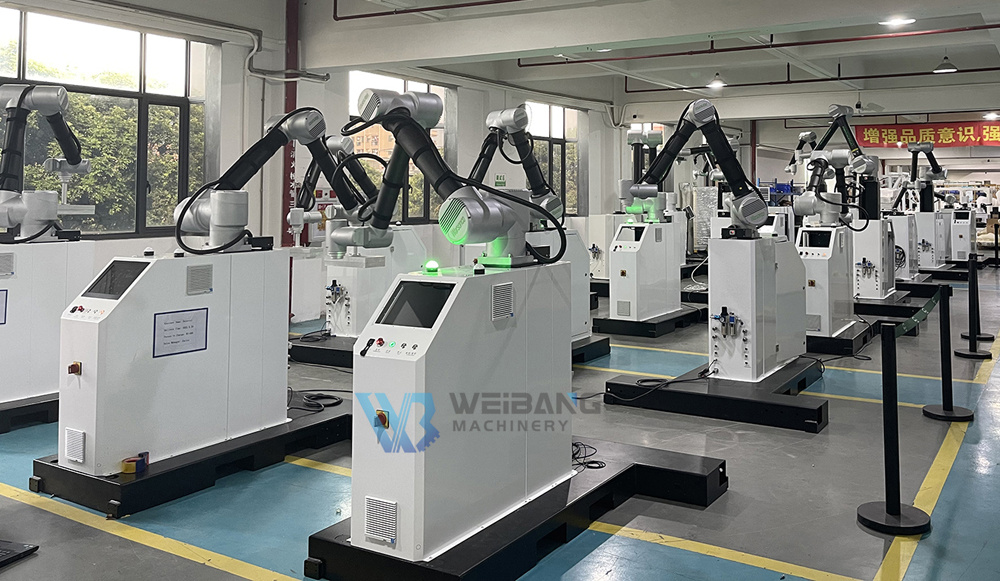

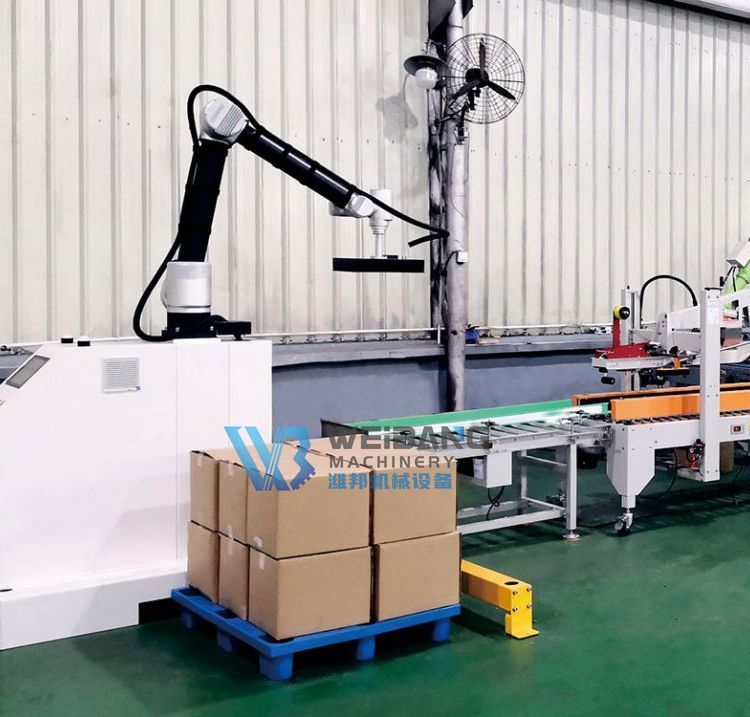

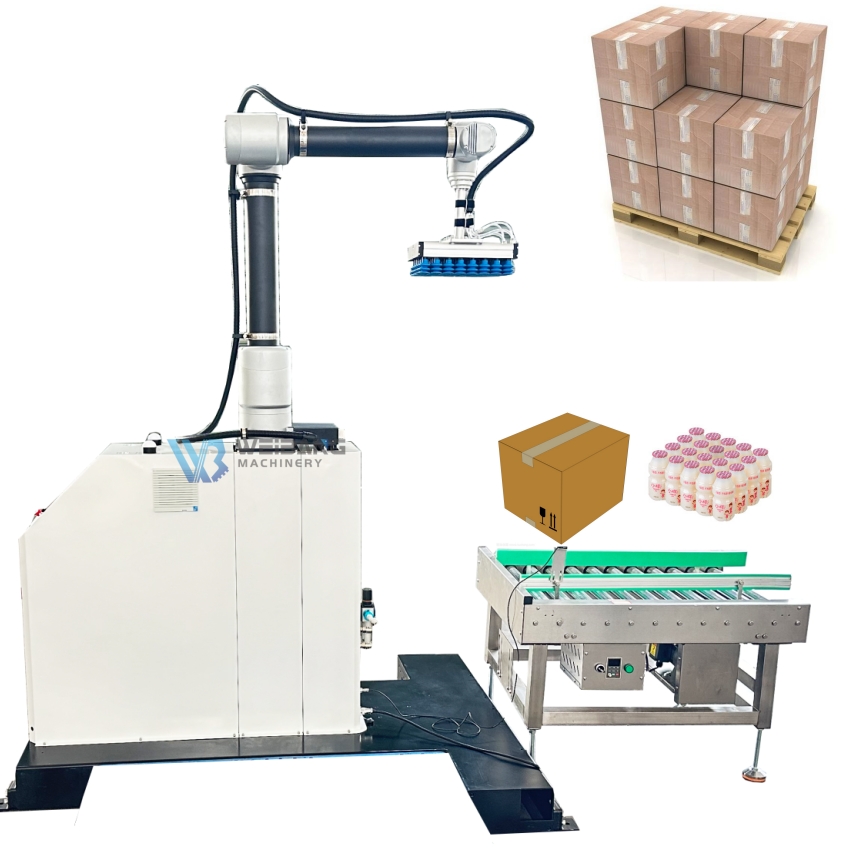

WB-MDJ16/20/30 palletizer robot

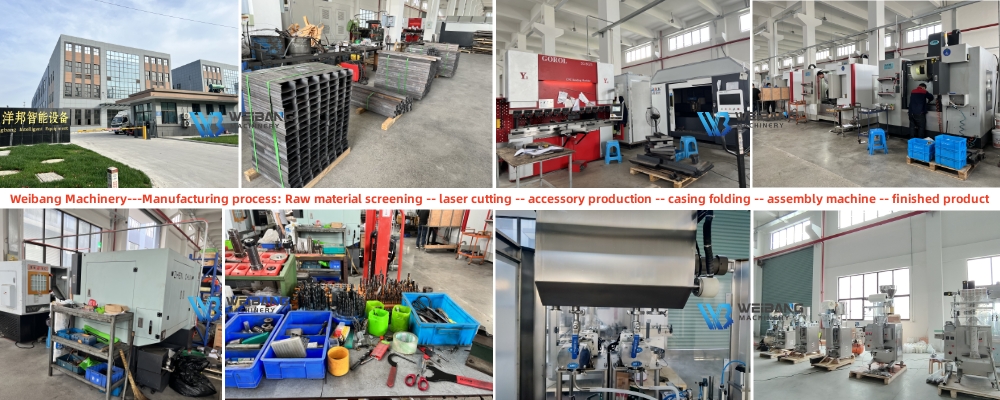

Factory & QC Show

Frequently Asked Questions (FAQ)

What types of products can this automatic cartoning machine pack?

This automatic cartoning machine is highly versatile. It is suitable for Gorilla bottles, eye drops bottles, food items, soap sachets, and other similar products requiring automatic carton box packaging.

What is the production capacity of the WB-120WZ cartoning machine?

The WB-120WZ model has a high-speed production capability, packing between 100 to 120 cartons per minute, depending on the carton size and specific product specifications.

Does the machine support custom leaflet insertion?

Yes, it features an instruction book feeder with a customizable folding range. The machine supports 1 to 4 folds, automatic feeding, and will automatically reject cartons if no leaflet is loaded.

What safety mechanisms are built into the machine?

The machine shell is constructed from high-quality stainless steel and enclosed by plexiglass doors and windows. It features automatic rejection for missing leaflets, and will automatically stop if the product is not properly positioned in the carton.

How easy is it to switch between different carton sizes?

The machine is designed for efficiency, allowing operators to easily replace and adjust parts for different product specifications. Adjustments to the instruction and carton feeders can be made quickly to fit new sizes.

What system controls are integrated into the packing machine?

The machine integrates a reliable PLC control system along with a color touch screen display. This interface provides access to automated carton counting, real-time diagnostic reports, and system fault alarms.
