| Technical Specifications | |
|---|---|
| Model | CB-520PM |
| Max width of roll film | ≤520mm |
| Bag sizes | L(100-400)mm / W(100-250)mm |
| Packing speed | 5-55 bags/min |
| Packing material | OPP/CPP, OPP/PE, PET/PE, PE |
| Consumption | 6-8kgf/cm², 0.15m³/min |
| Power and voltage | AC200V, single phase 50-60Hz, 3.5KW |
| Total weight | 720KG |
| Dimension | L(4105) * W(2457) * H(3750) mm |
The equipment is made of 304 stainless steel that meets food QS and pharmaceutical GMP hygiene standards, and is equipped with safety features in line with enterprise safety management requirements.
The independent temperature control system ensures accurate temperature control, resulting in beautiful and smooth sealing.

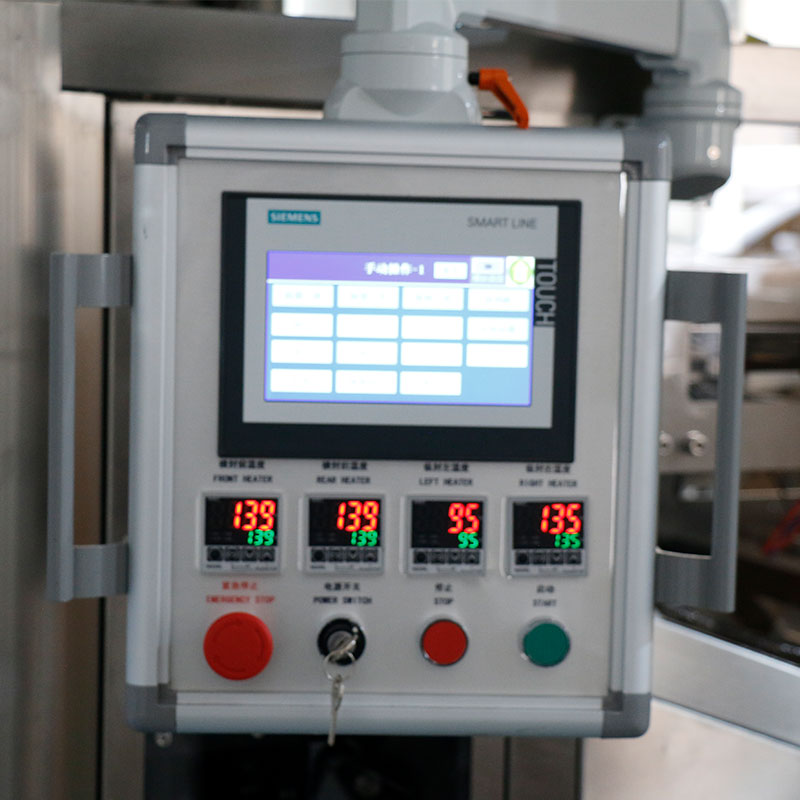

The equipment uses servo motor film pulling, PLC control, and touch screen control for automatic control, resulting in high reliability, intelligence, speed, and efficiency.
The double-belt film pulling system and color code control system can be automatically adjusted through the touch screen, simplifying the operation of sealing and incision deviation correction.
The touch screen interface stores various packaging process parameters for different products, allowing for easy switching between products without the need for manual adjustment.
The equipment can be tailored to meet the specific needs of different food and pharmaceutical products, making it highly adaptable and versatile.
Your product picture, your product size (length, width, height, weight, etc.), packing type (Back seal / quad seal / 3-side seal / 4-side seal, etc.), and your product samples (for testing).
The contact food/material parts are made of 304# stainless steel. The machine body can be 304# stainless steel or carbon steel.
One former can make one bag width, and the bag length can be adjustable within a range. It should be ordered an extra former if you want to make the other bag width.
Yes, we have a professional design and technical team to accept customization.
We usually can arrange shipment after 30-40 working days, but it depends on the quantity of the products.
We provide a 13-month warranty starting from the issue date of the bill of lading. We also provide machine testing videos and pictures before delivery, an English manual, some free spare parts, installation in clients' factories, and technical training.
