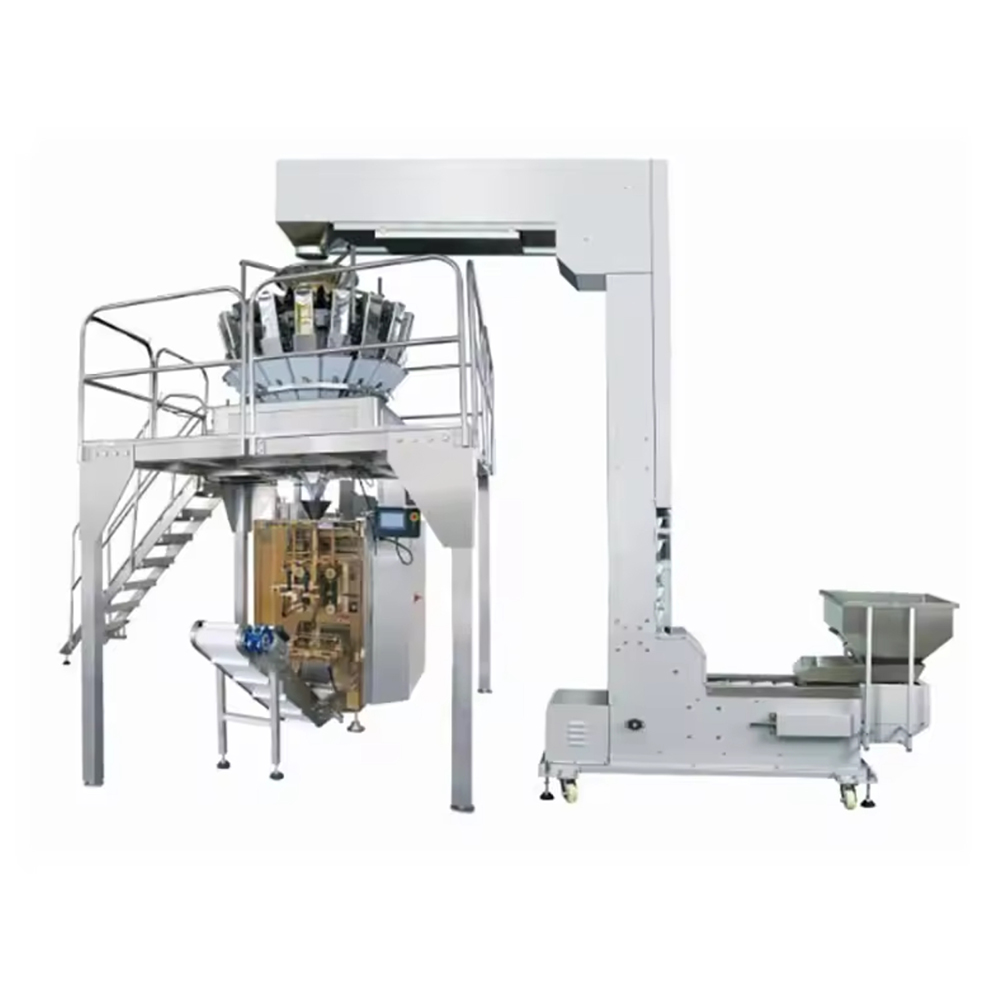

Range of configuration: The machine can be supported by auto weighing machines, meter glass dosing machines, manual batch conveyors, and spiral dosing machines. It features an extensive packaging range, suitable for packing various items such as grains, blocks, bars, powder, etc.
| The Whole Packing System Technical Specification | |
|---|---|
| Product Name | CE/ISO9001 standard rice noodle/snack food/bean packing system |
| Capacity | Up to 80 bags/min (according to quality of wrapping and supplies) |
| Accuracy | ≤±1.5% |
| Bag Size | (L) 50-300mm | (W) 90-200mm |
| Film Width | 420mm |
| Bag Type | Pillow bag, gusset bag |
| Main Machine Weight | 700KG |
| Film Thickness | 0.04-0.09mm |
| Package Material | BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/PE, etc. |
| Air Consumption | 0.8Mpa, 0.5m³/min |
| Total Power | 2.2KW |
| Voltage | Four wire three phase 380V 50/60HZ |
| Air Compressor | Not less than 1 CBM |
| Total Height | 3.8 m |
| Technical Parameters | |
|---|---|
| Capacity | 80 bag/min |
| Bag Size | (L) 50-300mm | (W) 90-200mm |
| Bag Type | Pillow bag / Gusset bag |
| Max Packaging Film Width | 420mm |
| Thickness of Film | 0.04-0.09mm |
| Air Consumption | 0.8Mpa, 0.3m³/min |
| Main Power / Voltage | 5.6KW / 380V 50/60HZ |
| Dimension | L1900 * W1180 * H1550mm |
| Weight of Switchboard | 700kg |

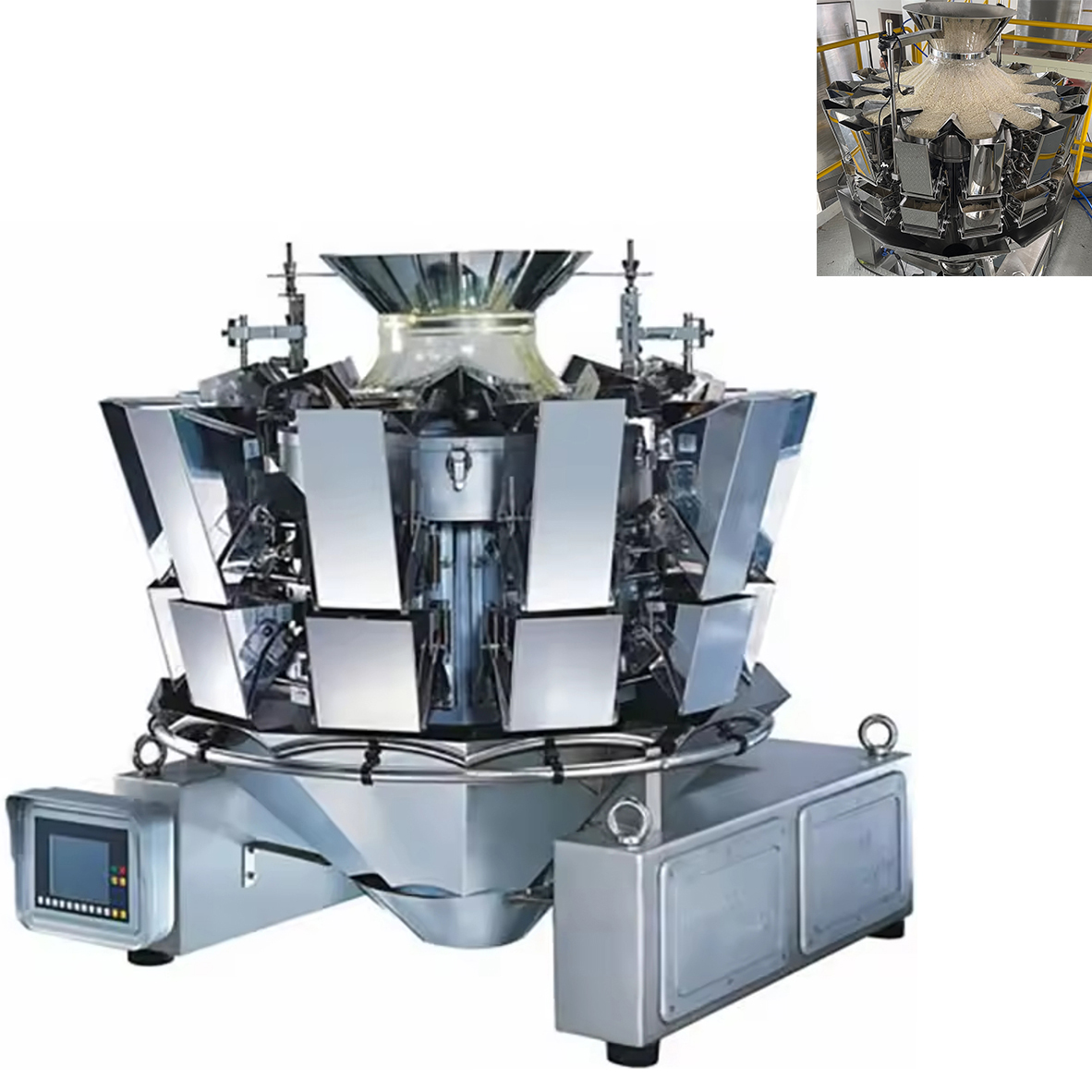

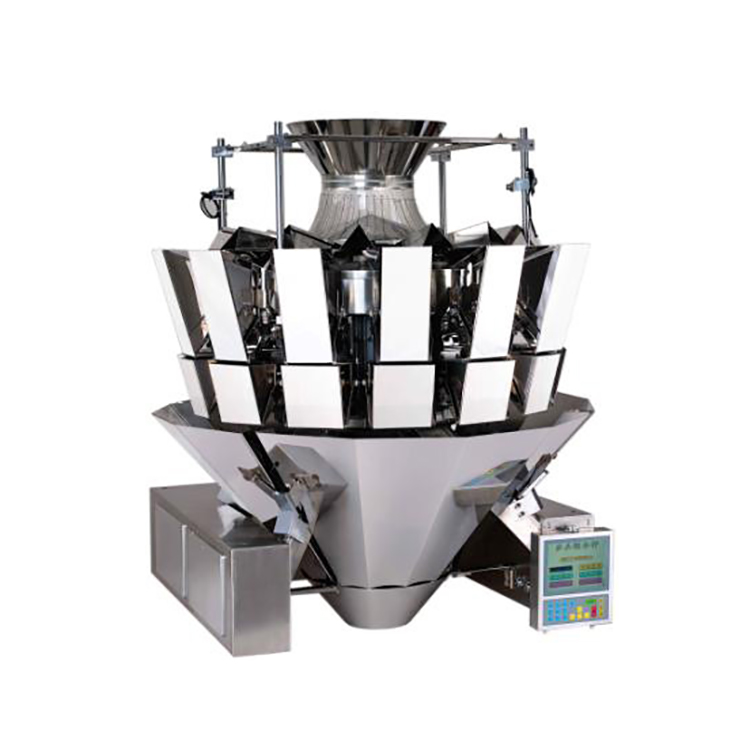

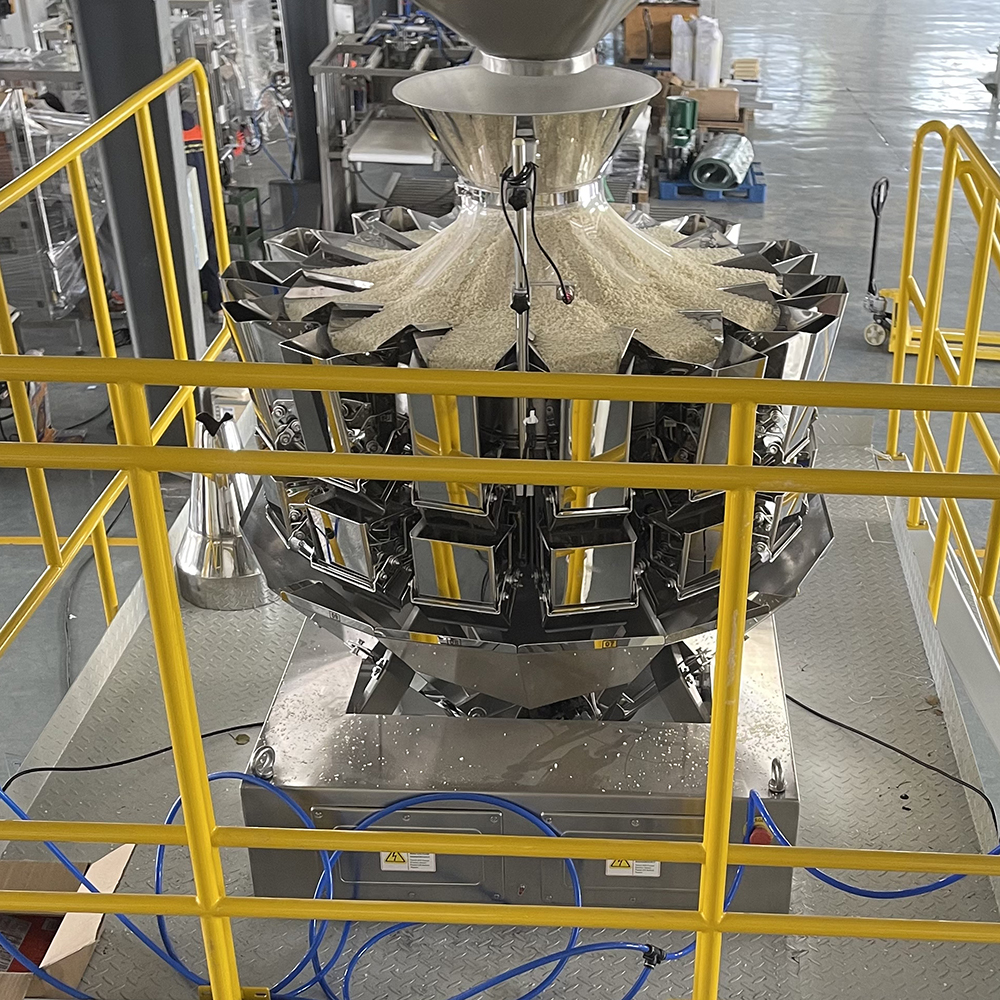

Suitable for high-speed weighing of granules, slices, rolls, or irregular shape products such as candy, seeds, jelly, fries, coffee beans, peanuts, puffed food, biscuits, chocolate, nuts, yogurt, pet food, and frozen foods. It is also highly suitable for weighing small metal and plastic parts.
| Specifications (Model: MD14) | |
|---|---|
| Measuring Range | 10-2500g |
| Accuracy | 0.5-2000g |
| Max Speed | 80 bags/min |
| Hopper Volume | 1.6L |
| Hoppers Quantity | 14 |
| Touch Screen Size | 10 inch |
| Driving System | Stepper motor |
| Material Structure | Stainless Steel 304 (S/S 304) |
| Voltage | 110/220V, 50/60 HZ |
| Power | 2.0KW |
| Weight | 689KG |

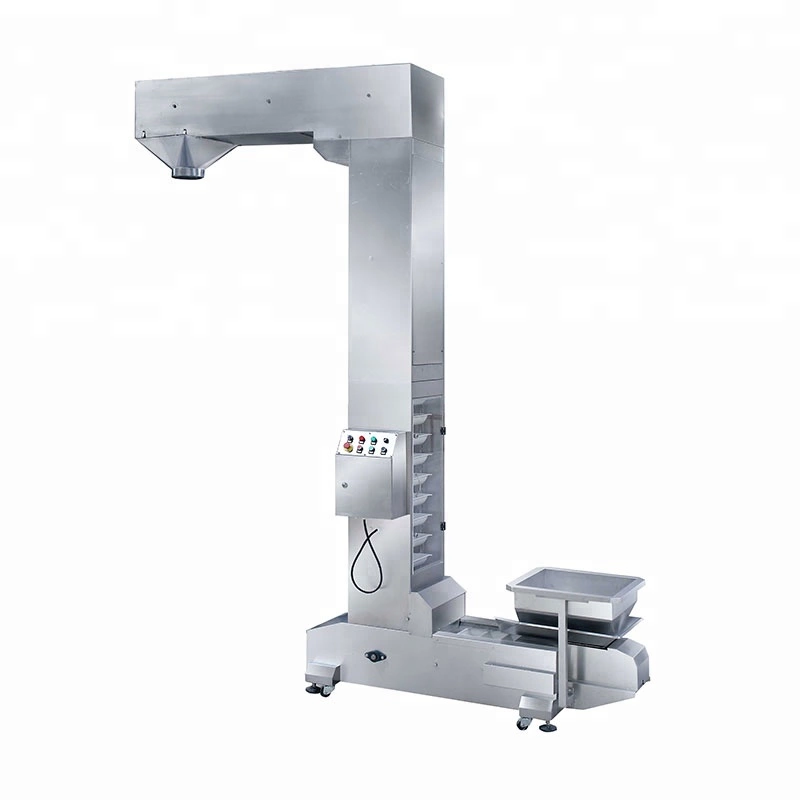

Features: The conveyor is applicable for vertical lifting of grain material in corn, food, fodder, and chemical industries. The hopper is driven by chains to lift. It is designed for vertical feeding of grain or small block materials and offers a large lifting quantity and height.
| Conveyor Specification | |
| Lifting Height | 4.2m |
| Lifting Speed | 0-17m/minute |
| Lifting Quantity | 5.5CBM/hour |
| Power | 750W |
| Voltage | 380V |
| * Specifications customized; Material: carbon steel plastic-spray or stainless steel. The parts contacting food are food grade plastic. | |

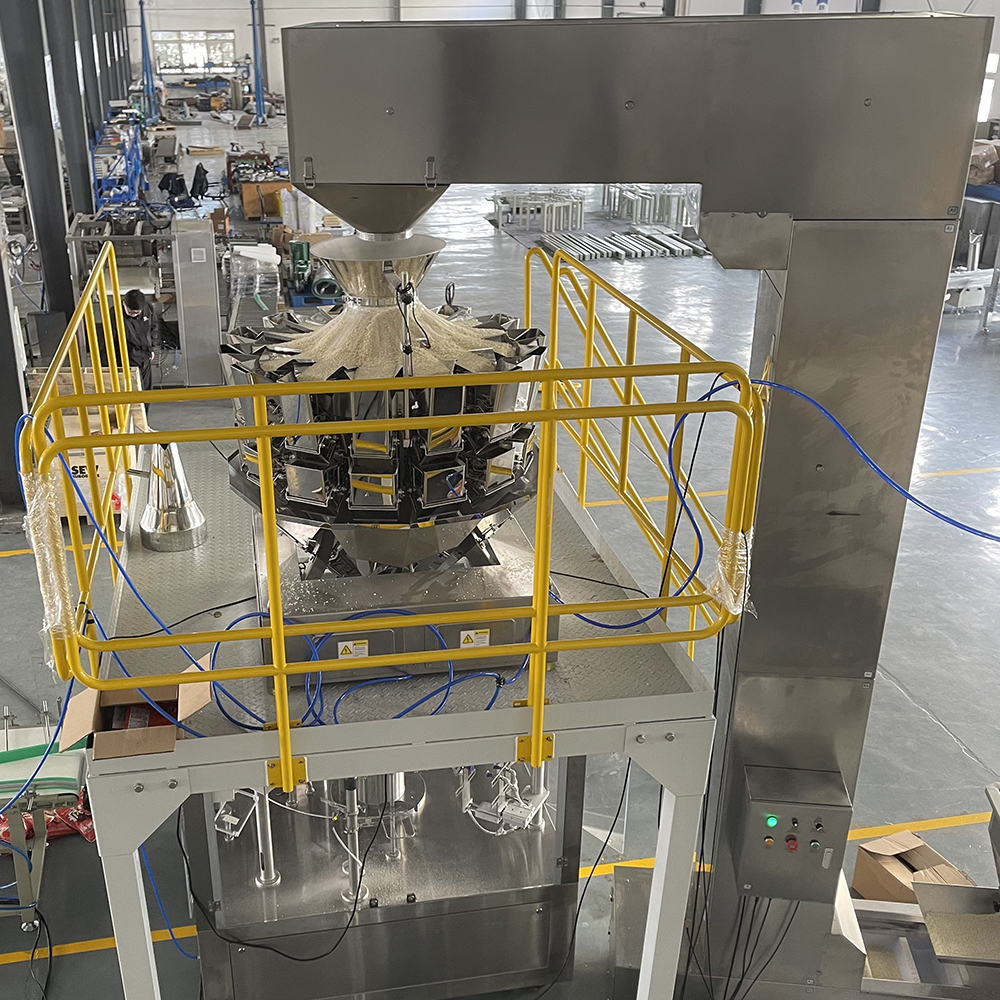

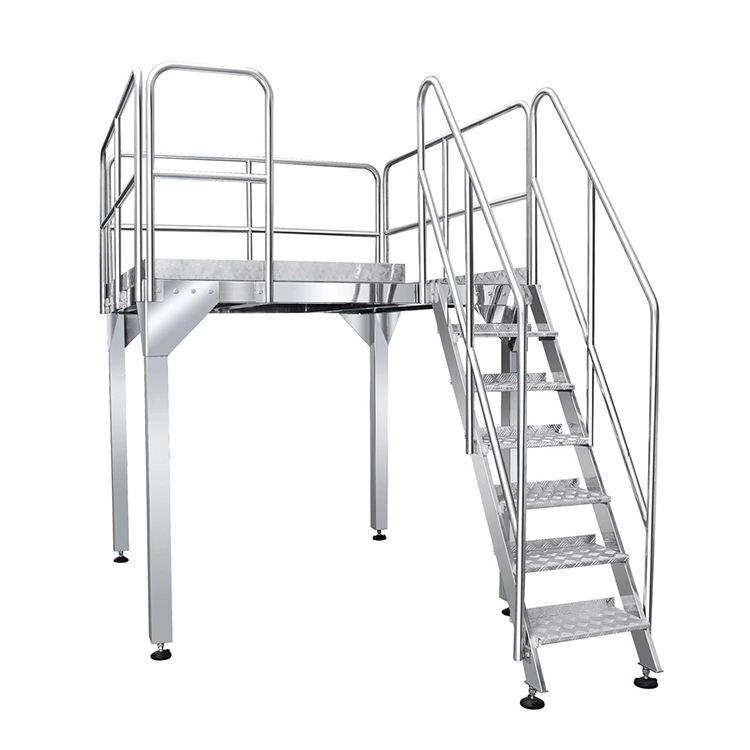

Feature: The supporting platform is solid and will not affect the measurement accuracy of the combination weigher. The table board utilizes a dimple plate design, which is more secure and helps avoid slipping.
Specification: The size of the supporting platform is customized according to the model and type of the machines.
With more than 20 years of experience in grain dryers, packing machines, and palletizing robots, the manufacturer features strong R&D strength, with a staff of over 500 people, including more than 60 technology and research personnel.
Founded in 2003, the company is a professional packing machine, conveyor, and palletizing robot manufacturer. The company is specialized in the packing palletizing line research and development, production, sales, and service as one of the High-tech enterprises.
The existing staff is more than 300 people, including technology, research, and development personnel more than 60 people. The company's research and development institutions cover automation technology, electronic technology, mechanical design, and other fields, forming a strong development capability of a high-quality talent team.
The company successfully developed full automatic, semi-automatic, and automatic packing machines to form a complete set of automated assembly line products. They are widely used in the chemical industry, building materials, food, beverages, beer, automatic logistics, and other industries.
