10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
1 / 5
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag

10-50kg Dry Mortar Bagging Machine with Valve Bag

Customization: Available
Automatic Grade: Automatic
Application: Cleaning, Detergent, Cosmetics, Dairy Products, Rice, Flour
Send Inquiry

Product Description

Basic Specifications

Model NO. BCS-50
Type Filling and Sealing Machine
Forming Species Bag Moulding
Forming Function Filling
Driven Type Electric
Material Type Powder
Packaging Cartons
Packaging Material Composite Materials
Automation Automatic
Condition New
Processing Dose, Filling
Product Flour, Chemical Powder
Usage Dry Mortar Packing
Capacity 300-360bags/Hour
Packing Range 5-50kg
Feeding Type Low Pressure Air
Transport Package Woodbox
Specification CE
Trademark NW
Origin Jiangsu
HS Code 8422303090
Production Capacity 200PCS/Year

Product Description

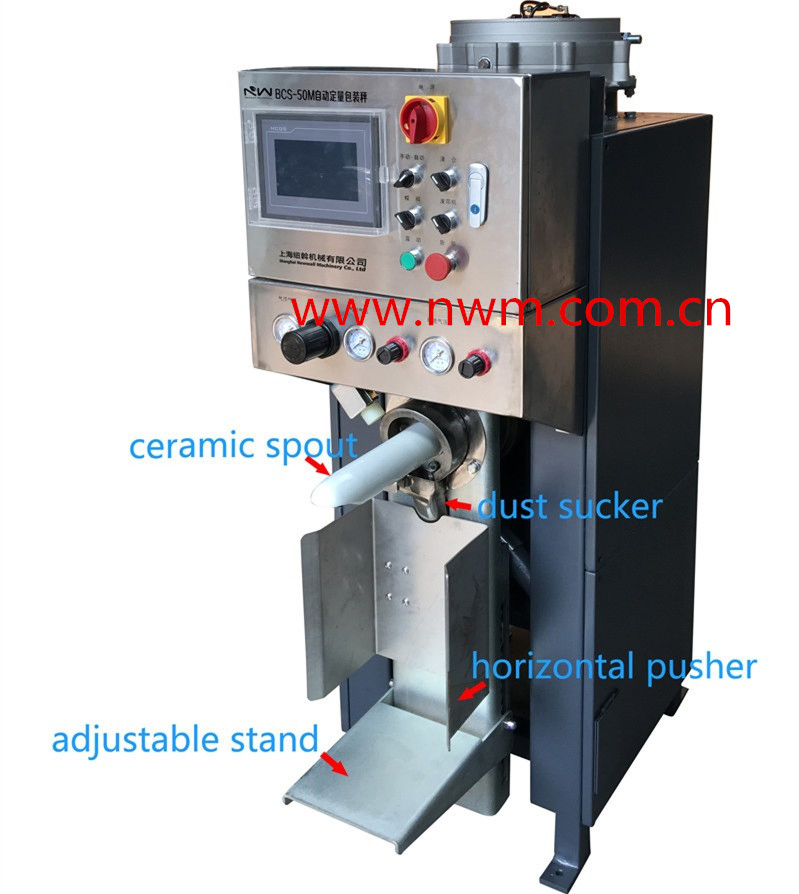

Valve Bag Packer

The BCS-50M automatic dosing valve bag packer represents a new generation of packing technology. It features four distinct patents designed to optimize efficiency and durability:

Low air pressure pulse conveying
Super wearable airfloating device
Automatic adjust double stroke gate valve

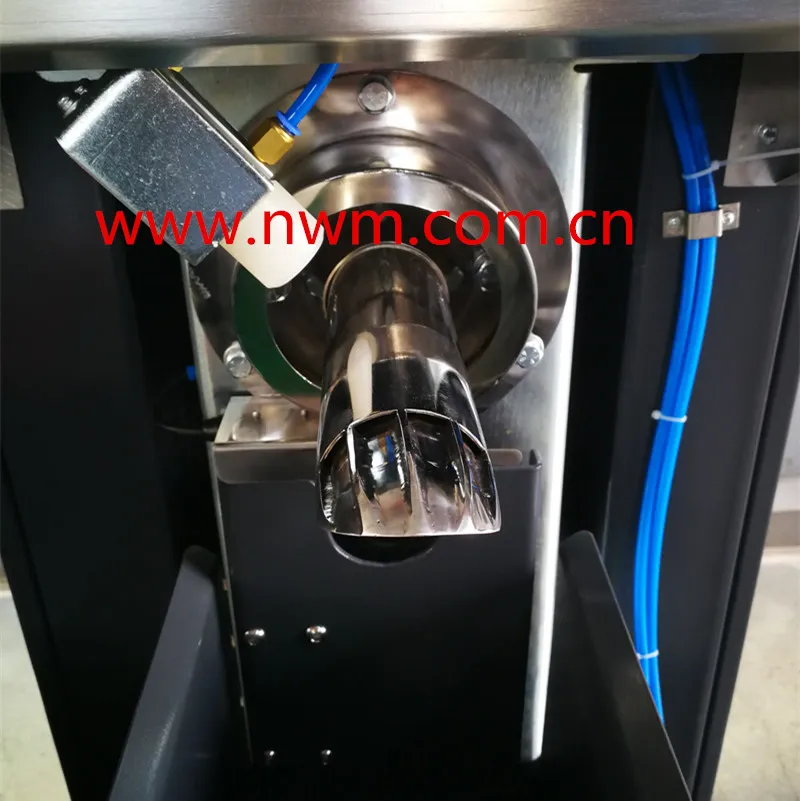

Ceramic spout

This packer is highly suitable for packing a wide range of raw materials, including industrial micro-powder, powdery pigment, chemical powder, flour, food additives, and all types of dry mortar.

10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag

Technical Parameters

Capacity 5-7 bags/min (Note: varies based on material characteristics)
Precision Level ±1%
Packing Range 5-60kg
Material Inlet Size Φ300mm
Ceramic Spout Size Φ63mm
Valve Bag Mouth Size ≥Φ70mm
Max. Aggregate Granular Size 5mm
Working Environment 0-40ºC, Humidity ≤90%RH (no dew)
Working Power AC220V/50HZ
Voltage Fluctuation Range -15% ~ +10%
Frequency Fluctuation Range ±2%
Working Air Source Pressure ≥0.5Mpa, Air consumption: 0.2m³/min
Dust Collection Air Volume ≥2000m³/h
Standard Outline Dimensions 1000mm(L) x 550mm(W) x 1500mm(H)

Main Component Brands

Part Name Brand / Material / Specification
Air cylinder Airtac
Magnetic valve Airtac
Electric component Schneider
Control unit Toledo
Touch panel Kunlun tongtai (China)
Pneumatic butterfly WAM, Italy
Electric control box SUS304
Surface treatment Whole machine electrostatic spray; Mobile parts are galvanized

Frequently Asked Questions (FAQ)

What types of materials is this machine suitable for?
This valve bag packer is ideal for packaging various raw materials, including industrial micro-powder, chemical powder, powdery pigments, flour, food additives, and all categories of dry mortar.
What patented technologies are integrated into this machine?
The machine features four key patents: low air pressure pulse conveying, a super wearable airfloating device, an automatically adjustable double stroke gate valve, and a highly durable ceramic spout.
What is the packing weight range and capacity?
The packaging range supports weights from 5kg up to 60kg. It can output approximately 5 to 7 bags per minute (translating to a capacity of about 300 to 360 bags per hour), though this rate depends on the specific material characteristics.
What are the air source and power requirements?
The system operates on AC220V/50HZ power. It requires a working air pressure source of ≥0.5Mpa, with air consumption of about 0.2m³/min. Additionally, it supports dust collection systems with an air volume of ≥2000m³/h.
Which brands are used for the main control and mechanical components?
The machine utilizes premium components from industry-recognized brands: Airtac for the air cylinder and magnetic valve, Schneider for the electric components, Toledo for the control unit, Kunlun Tongtai for the touch panel, and WAM (Italy) for the pneumatic butterfly.
What is the overall material and structure protection of this machine?
The electric control box is constructed of durable SUS304 stainless steel. The whole machine undergoes an electrostatic spray finish for superior surface protection, and all mobile mechanical components are galvanized to extend operational life.
