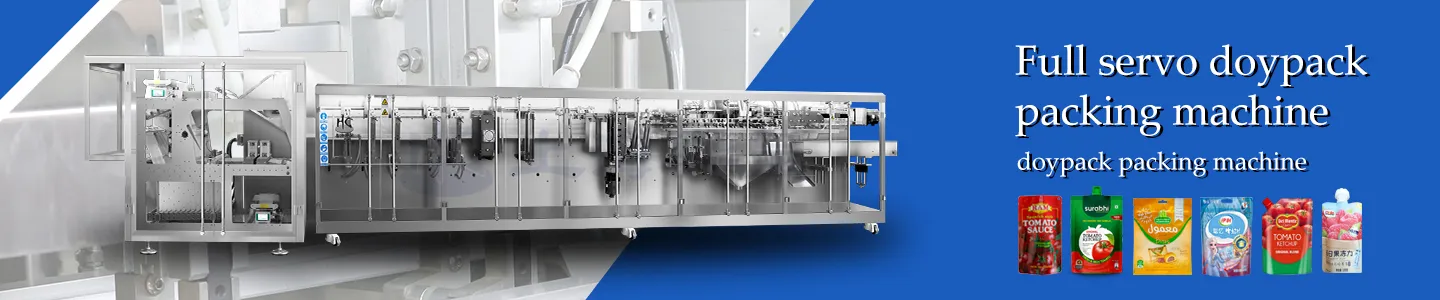

Horizontal Roll Film Forming Spout Doypack Filling and Sealing Machine

The HC-SP series is designed for doypacks with spouts, featuring capabilities to create hanging holes and special customized shapes.

Adopting advanced Euro technology adapted for high efficiency, this system delivers exceptional machine quality at competitive costs. Our horizontal Form Fill Seal (HFFS) doypack machines integrate forming, filling, and sealing into a singular, streamlined process. Filling occurs through the open-top portion of the pouch to ensure precision and clean seals.

We offer a wide range of Horizontal Form Fill and Seal machines, customized to fit diverse production requirements. Based on modular frame construction, the design consists of three independent functional modules: unwinder, pouch forming, and dosing-sealing. Pouches and sachets created with HFFS technology offer significant cost savings compared to pre-made packaging alternatives.

Key Advantages

Intuitive HMI Display: Includes built-in instruction manual and easy troubleshooting guide.
Parallel Motion Bars: Vertical sealing bars utilize parallel motion to improve sealing quality and simplify routine maintenance.
Full Servo Motion Control: Smart servo-control system allows independent operation across different stations, yielding high reliability and low maintenance.
Walking Beam Transport: Beams and mechanical grippers secure and carry pouches smoothly through forming, filling, and closing stations.
Multi-Step Sealing: Optimized processes ensure reliable, leak-free, and professional seal quality.
Versatile Filling Options: Fully engineered to support both hot and cold filling configurations.

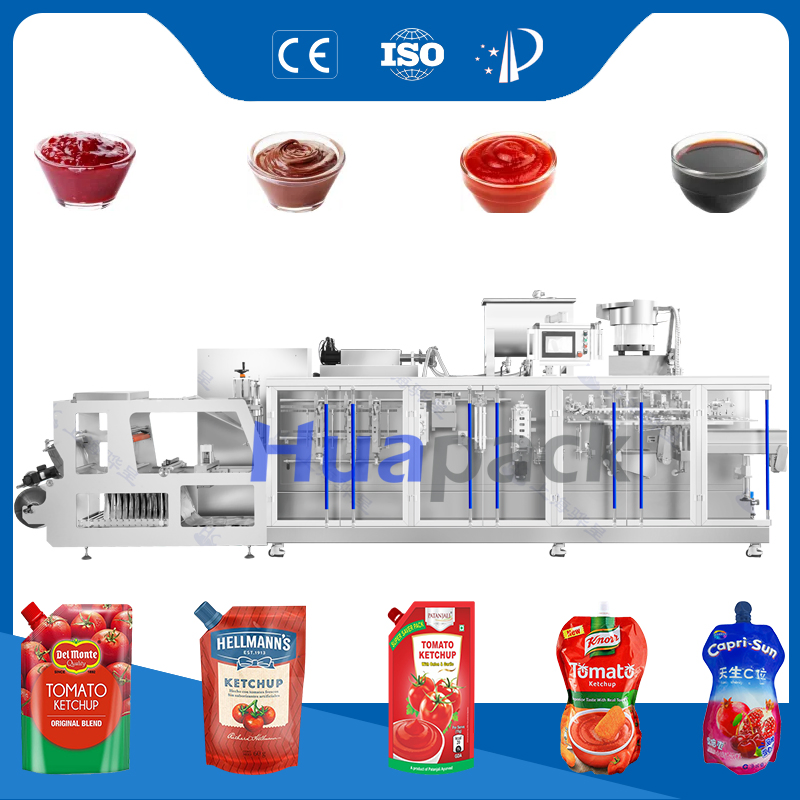

Doypack Spout Filling Packing Machine Production View

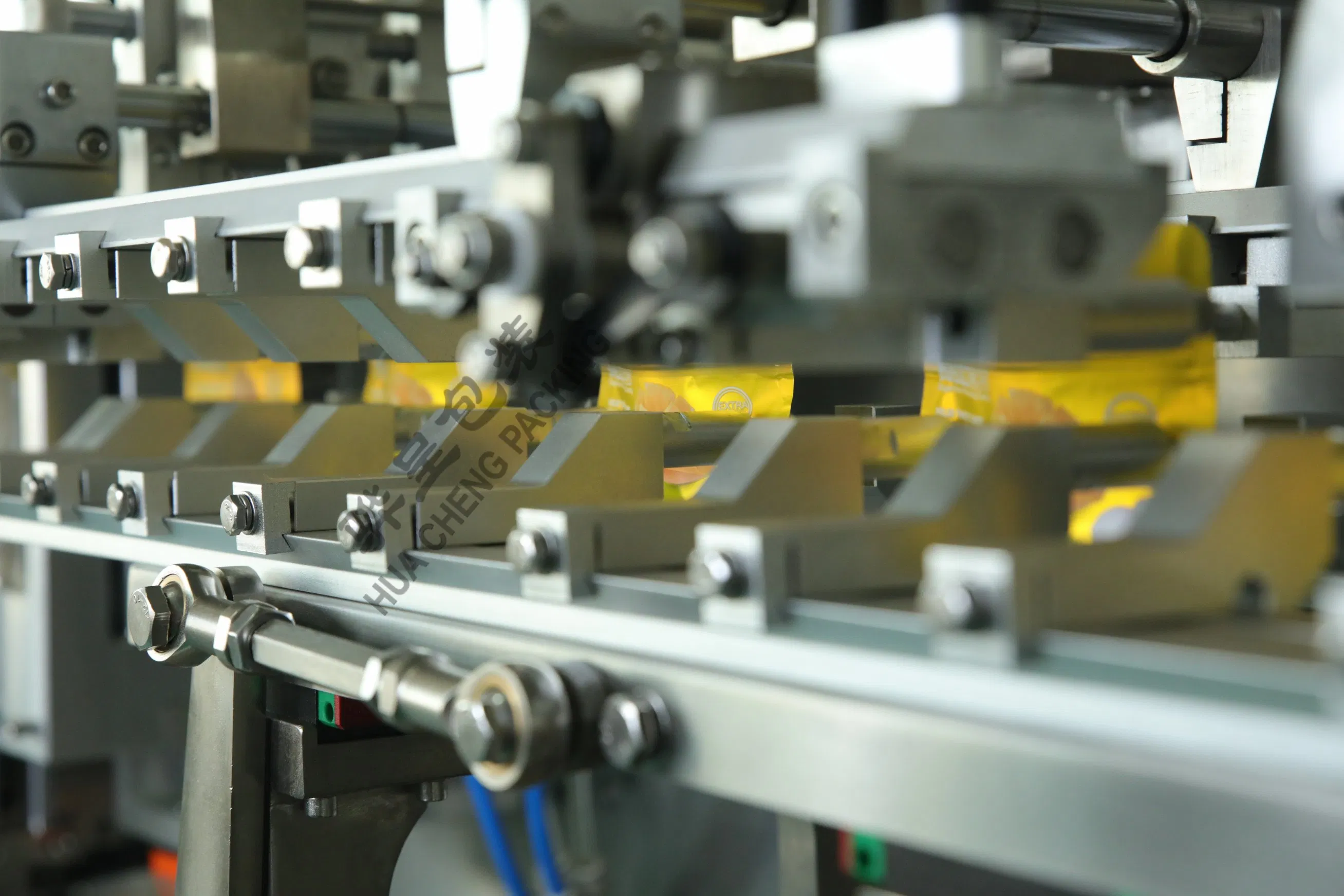

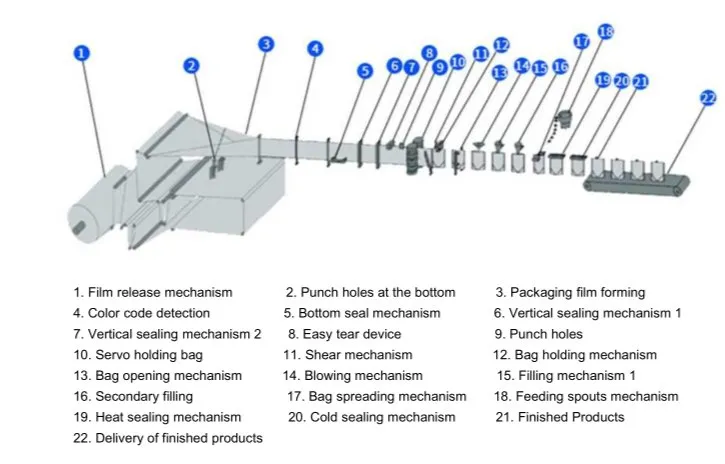

Doypack Spout Filling Packing Machine Detailed View

Core Components & Technology

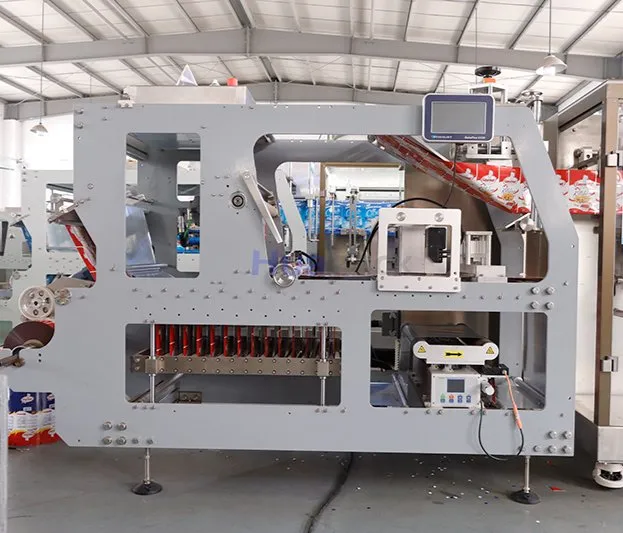

Independent Film Unwind Unit

Air expansion shaft fixes the roll for easy loading/unloading
Powerless roller with low resistance and high concentricity
Multi-layer floating rollers control tension and prevent film drop
Independent film release motor
Limit sensors control the start and stop of unwinding

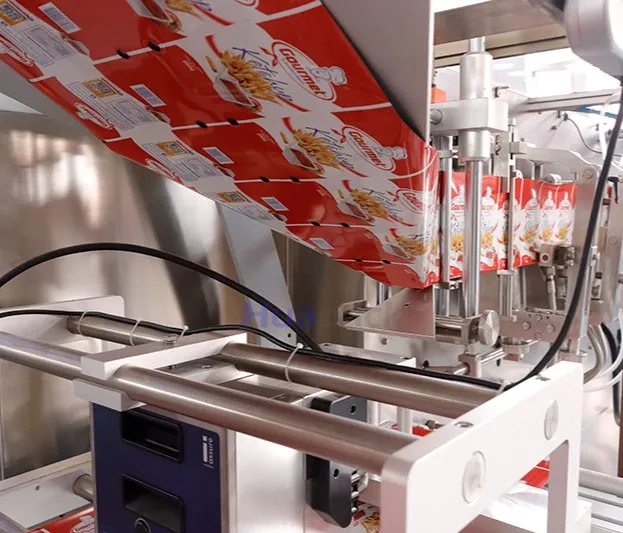

Multi-Specification Molding Device

Featuring a popular advanced layout, this device enables convenient switching between multiple product specifications. It delivers high forming precision with zero film misalignment.

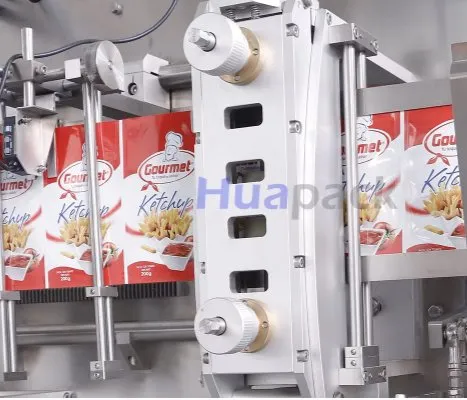

Servo Advance System

Digital specification switching is simple and fast
Stable pouch advance with minimal deviation
High torque capacity suitable for large volume pouches

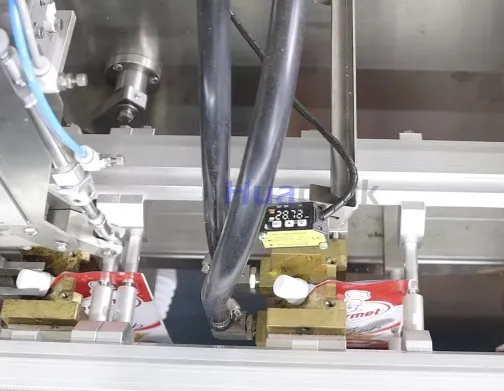

Spout Function

Consistent, clean spout sealing with excellent appearance
High-strength sealing prevents leakage
Auto-adding spout mechanism with custom-made station

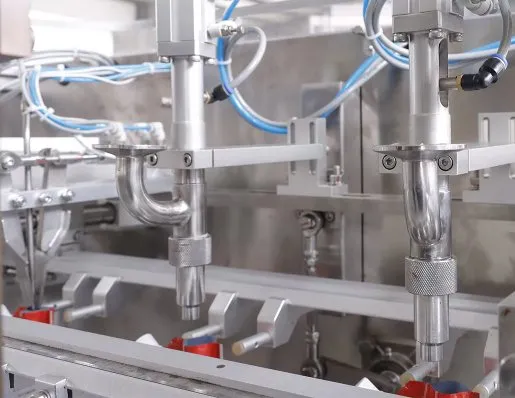

Dosing Units

Dosing units for liquids are available with various nozzles for different product types. Features a hygienic design with easy-to-dismantle clamp systems. Compatible with volumetric dosing units, multihead weighers, and piston pump fillers.

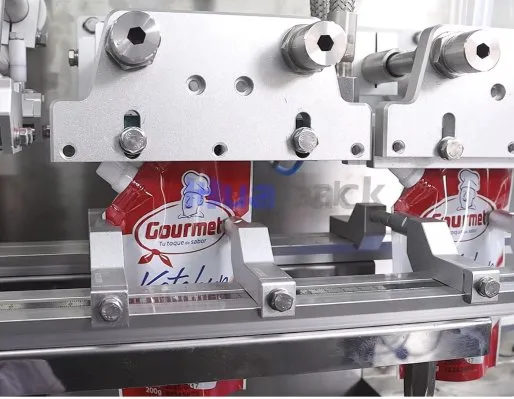

Independent Sealing Device

Stronger seals and reduced risk of leaks
Enhanced pouch aesthetic and sealing stability
Timely shaping prevents the pouch mouth from stretching
Prevents heat-related creasing after pouch release

Technical Specifications

Model		180SP	180SDP	240SP	240SDP	280SP	280SDP	330SDP
Pouch Size (mm)	Min	80*130	70*110	90*130	90*125	90*140	90*125	90*125
Pouch Size (mm)	Max	182*250	90*225	240*300	120*250	280*300	140*250	165*250
Filling Volume	ml	1000	300	2000	500	3000	500	700
Packaging Speed	ppm	≤60	60-120	≤60	60-120	≤50	60-100	60-90
Machine Size	mm	65009701450	69009701450	72009701460	72009701460	800012001800	850011001460	950011001460
Machine Weight	kg	2000	2100	2300	2500	3400	2500	2500
Power	kw	8	8.8	9	9.8	9.5	9.8	15.8
Air Consumption	l/min	300	400	400	400	650	650	650

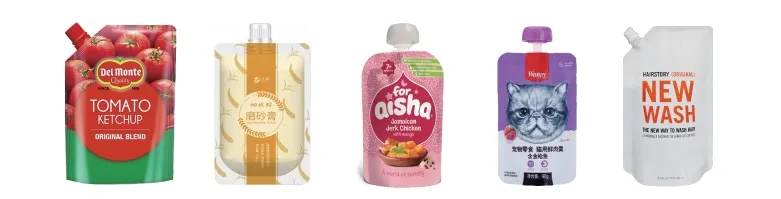

Pouch Samples

Applicable Products

Various food and beverage products suitable for dosing

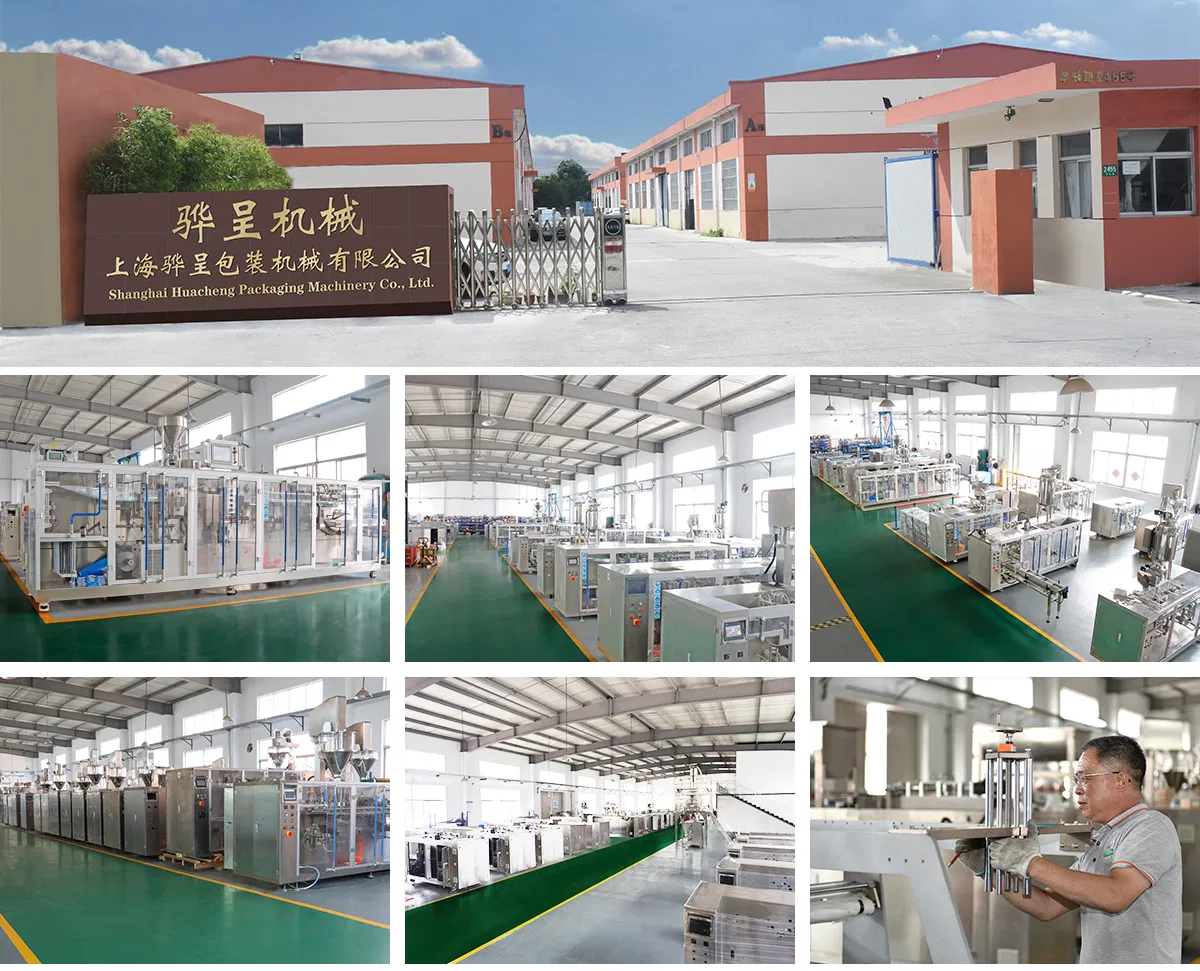

Production Facility

Quality Certifications

International Quality and Compliance Certifications

International Exhibitions

Participation in global packaging exhibitions

Global Customer Footprint

Customer site installations and feedback map

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a specialized manufacturing factory. Customers are warmly welcome to visit our production facilities.

What kind of bags can your packing machine process?

Our packing machine processes doypacks (stand-up pouches) and sachets (flat bags). Optional modules support adding zippers, spouts, and custom shapes.

What types of products can your machines package?

Our systems pack various product forms including powders, granules, liquids, and items with irregular shapes.

What is the production and output capacity of the machines?

We offer simplex models (35-80 ppm), duplex models (60-160 ppm), and quadruplex models (160-180 ppm) to meet various output requirements.

What is the typical lead and delivery time?

Delivery times depend on the model selected. Standard models typically require 45-60 days, while custom-designed units require additional production time.

What kind of warranty and after-sales service do you provide?

We provide a one-year machine warranty and one year of spare parts, along with 24/7 online technical support. OEM and customized requests are welcome.
