Show samples check size, settle down the model machine (our machine pack different type such as tray, film)
Checking details like spare parts and optional device then place the order. Customer send 50% deposit and we produce the machines.
We concern the production of the machines and send the pictures or video to customers. Once the machine is ready, customers send sample tray or sample film for testing. After test OK and send the video to customers, then customer sending the balance.
We received the amount Booking shipment and pack with wooden case. Deliver the goods to the customers.
Customer received the machine, kindly read the operation instruction book and contact us for video guide until the machine running smoothly.
We will be online 24 hours. All the machines guarantee for one year.

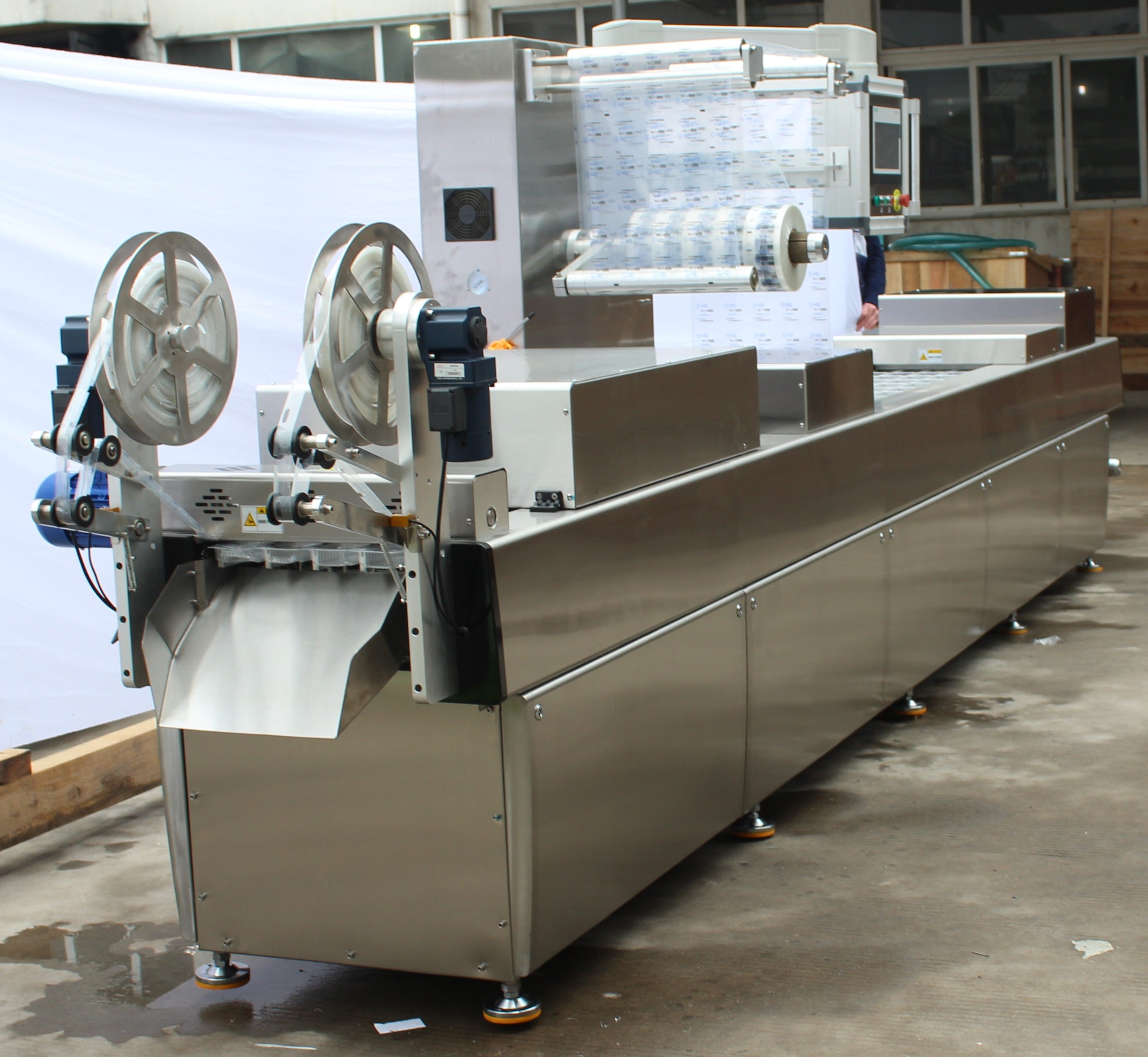

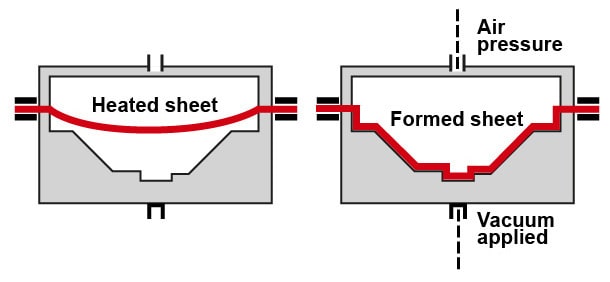

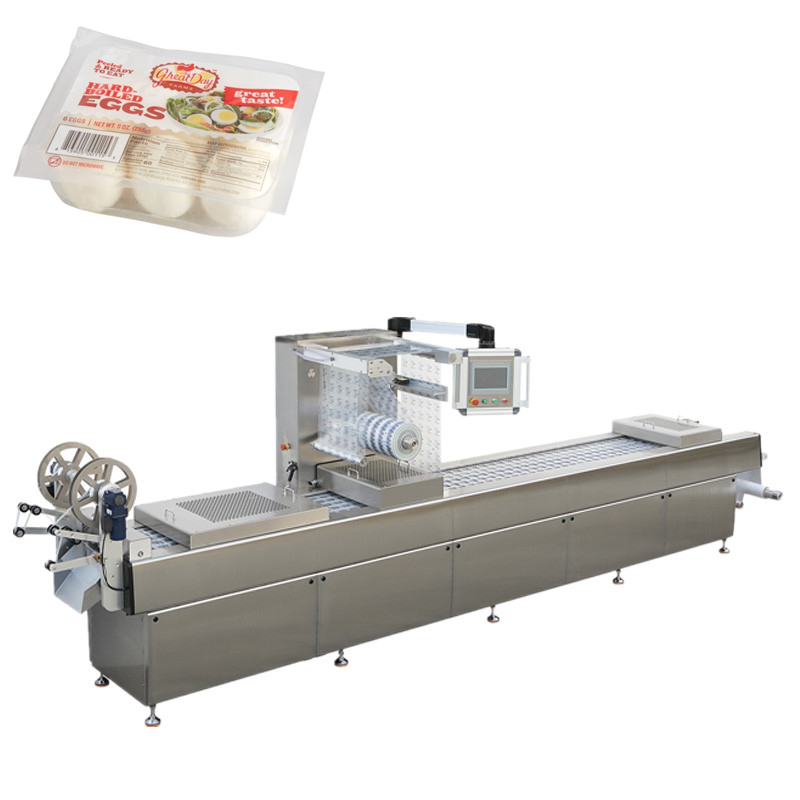

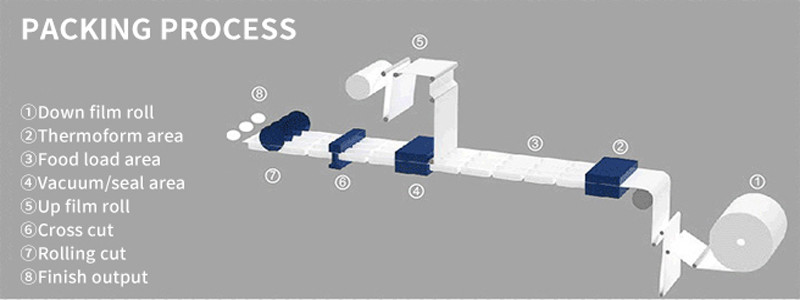

This machine is based on thermoforming technology, which heat and forming the bottom of the package from a roll of plastic film which is multi-layer co-extruded film. It is highly integrated with package forming, loading area, automatic liquid filling, vacuum sealing, printing, trimming. It reduce the risk of contacting insanitary source.

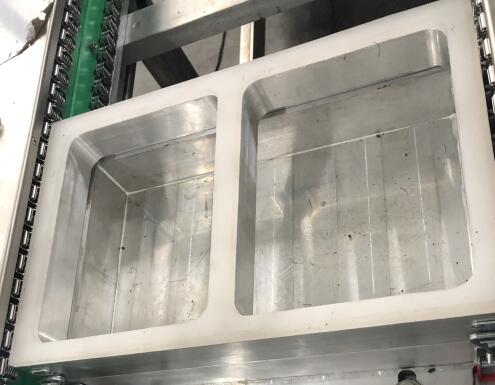

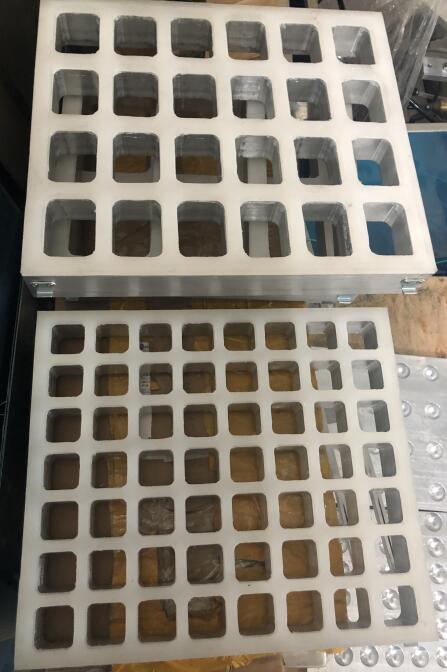

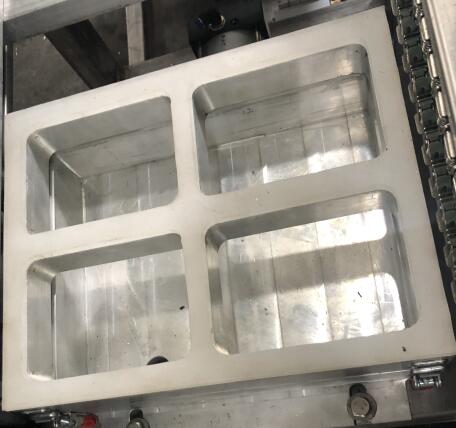

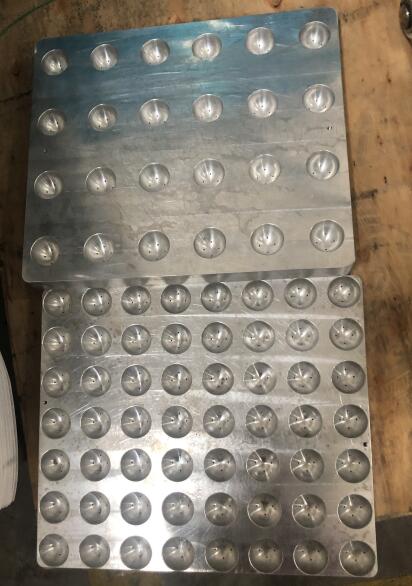

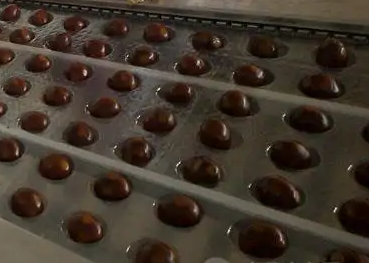

Different mold can make different shape and products. The mold is customized. Please check the mold show:
| Model No.: | DLZ-520T | DLZ-420T | DLZ-320T |
|---|---|---|---|
| up film width/thickness | 492mm/0.8-0.12mm | 392mm/0.8-0.12mm | 292mm/0.8-0.12mm |
| down film width/thickness | 522mm/0.8-0.25mm | 422mm/0.8-0.25mm | 322mm/0.8-0.25mm |
| Cooling water | more than 0.15mpa | ||
| Voltage | 380V/50HZ/18KW | 380V/50HZ/16KW | 380V/50HZ/14KW |
| Over size | 6600*1180*1880mm | 6150*1080*1880mm | 5380*965*1880mm |
| Weight | 2015kg | 1820kg | 1580kg |
| Vacuum pump | Busch 200m3/h | Busch 200m3/h | Busch 100m3/h |
| Price | 37143USD | 32857USD | 30714USD |

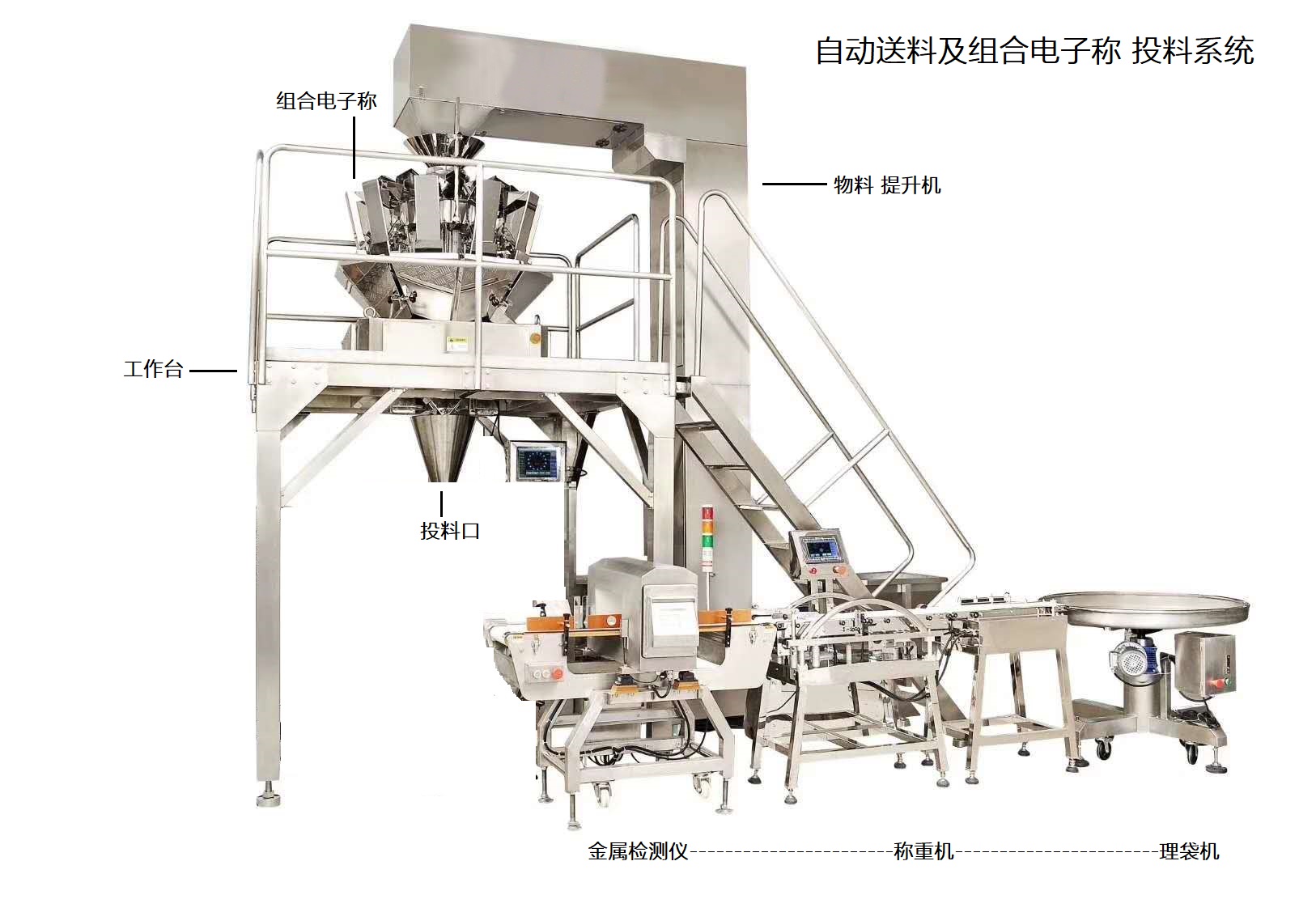

This system can save a lot of labor. It can auto weight and deliver the products into the thermoformed shape and finish packing.

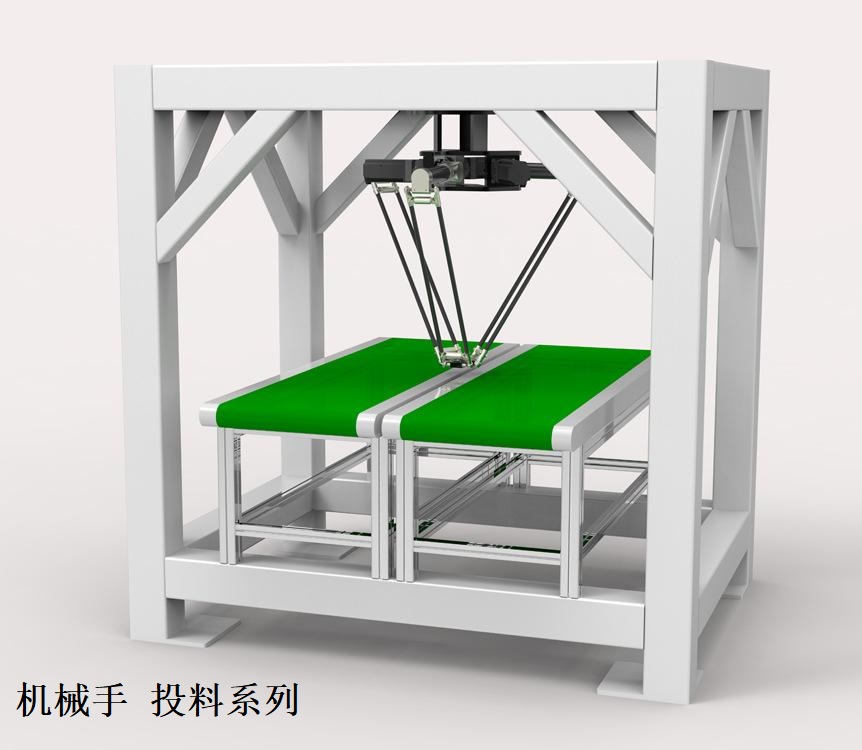

It can move precisely to put the products into the position of the thermoforming shape.

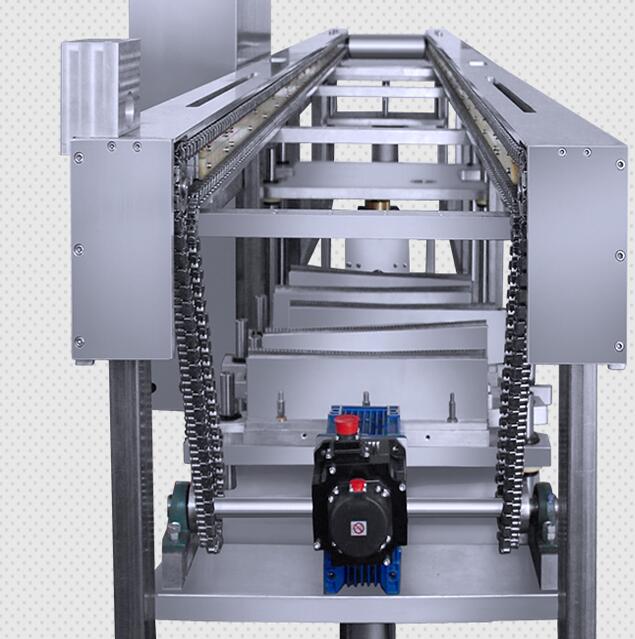

304SS machine body + Alloy frame. It ensures the machine is corrosion-resistant, has a nice building and stable performance under wet environments. Precise and humanized arc-shaped body frame.

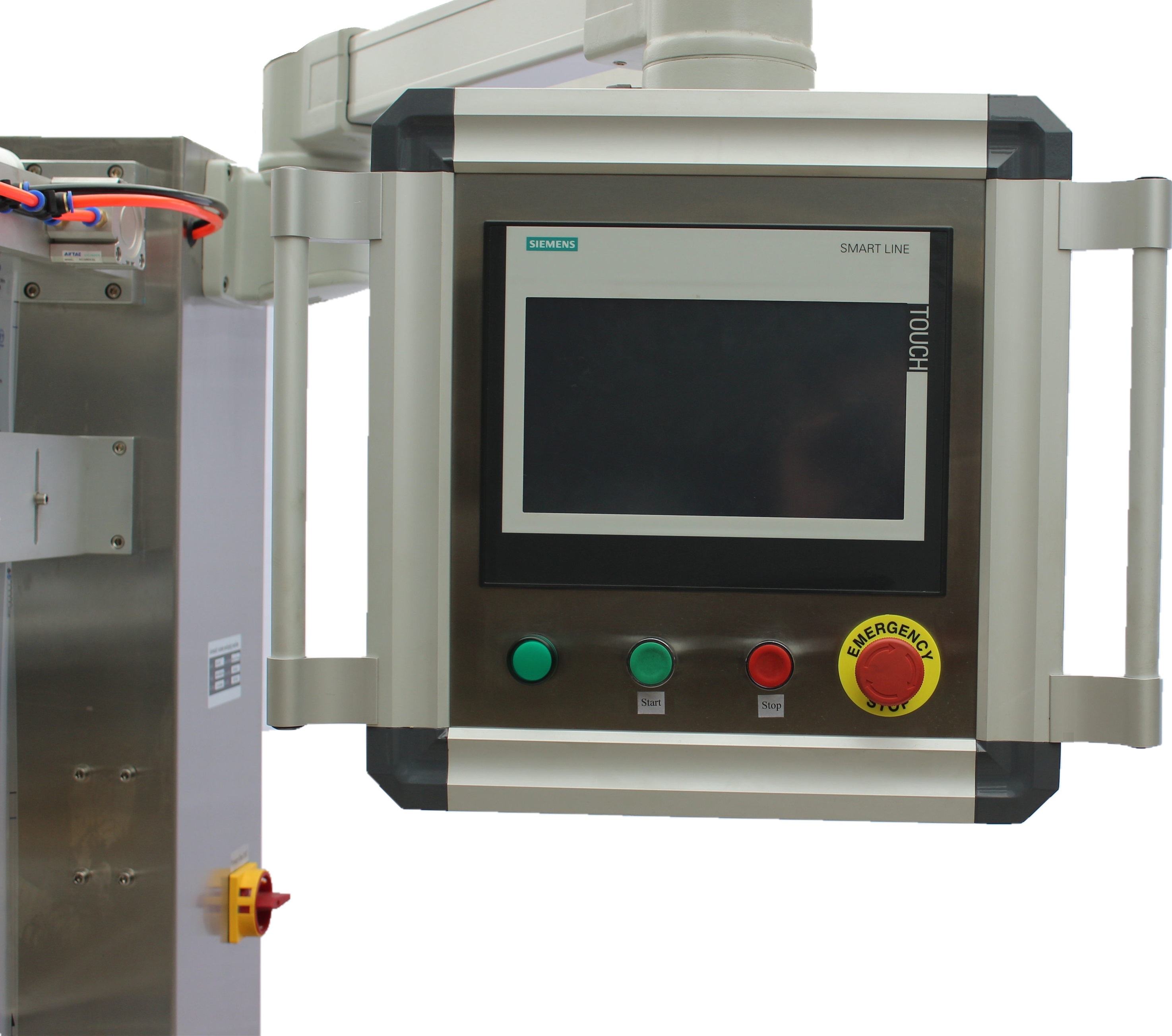

Japan IDEC PLC + Taiwan brand WeinView touch screen. Easy to set and read all data. It is precise and stable to set up and choose different working models.
German brand vacuum pump with 100m3/h. It supplies high vacuum degree, low noise and works very well for a long lifetime.

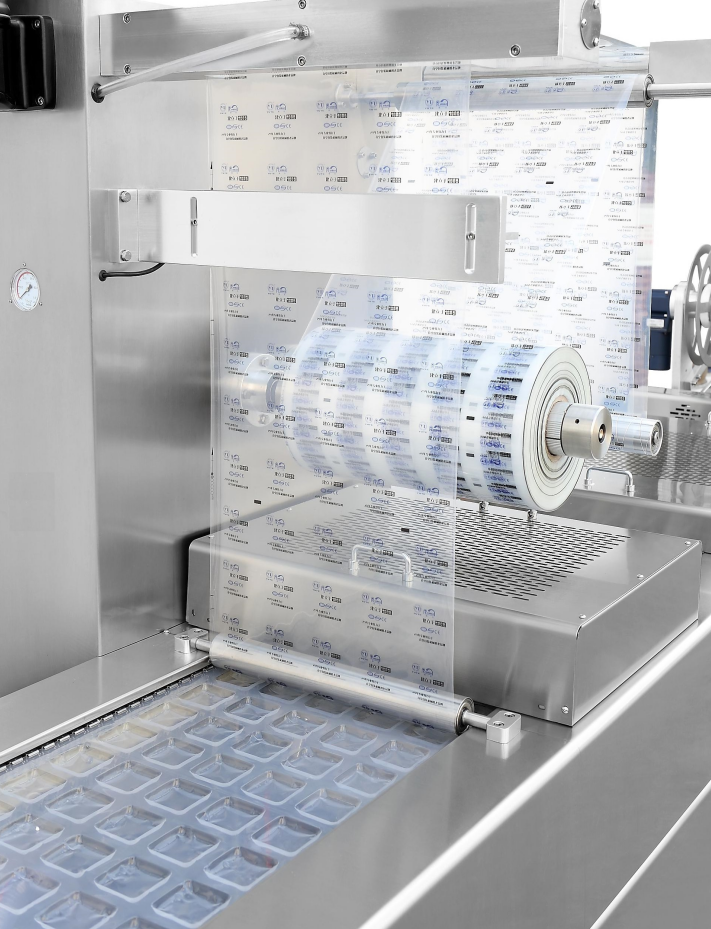

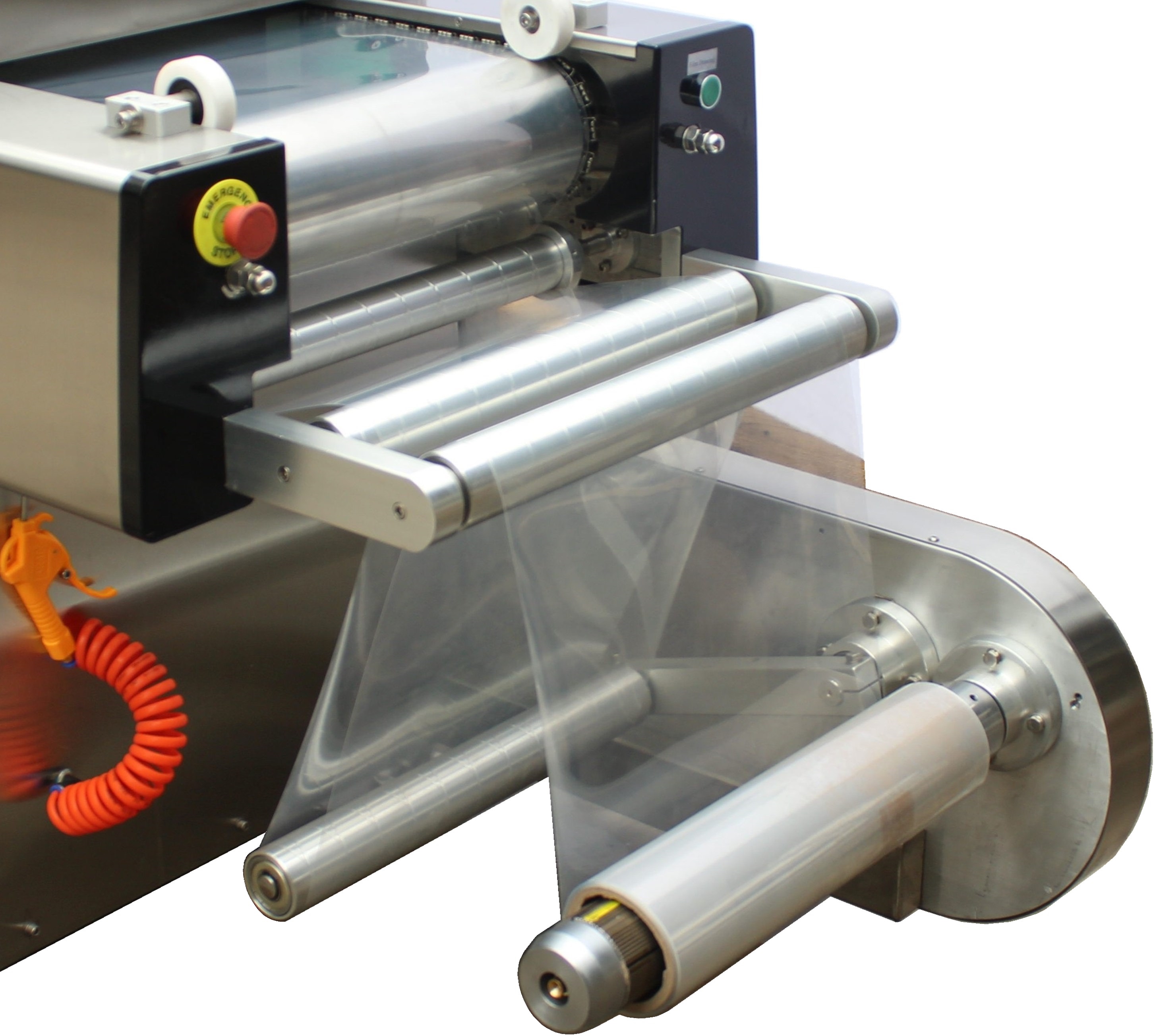

Air shaft type film feeding device. Japanese Panasonic sensor tracks, detects, and corrects alignment of film and trays. Sanitary design.

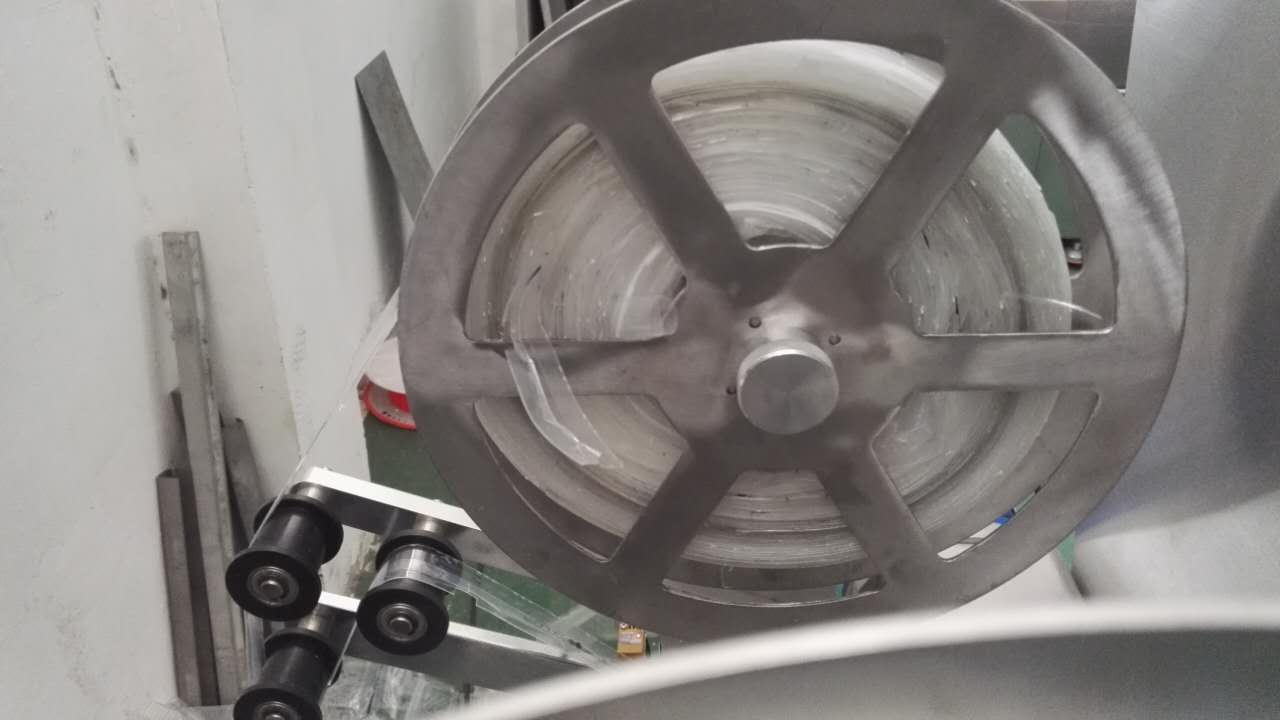

Recycling scrap film system uses air shaft technology to gather scrap film automatically and efficiently.

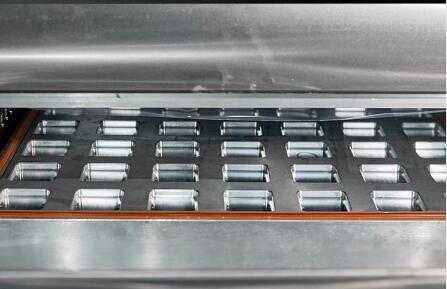

By easily replacing the mold, the machine supports packaging for different sizes and shapes of products.

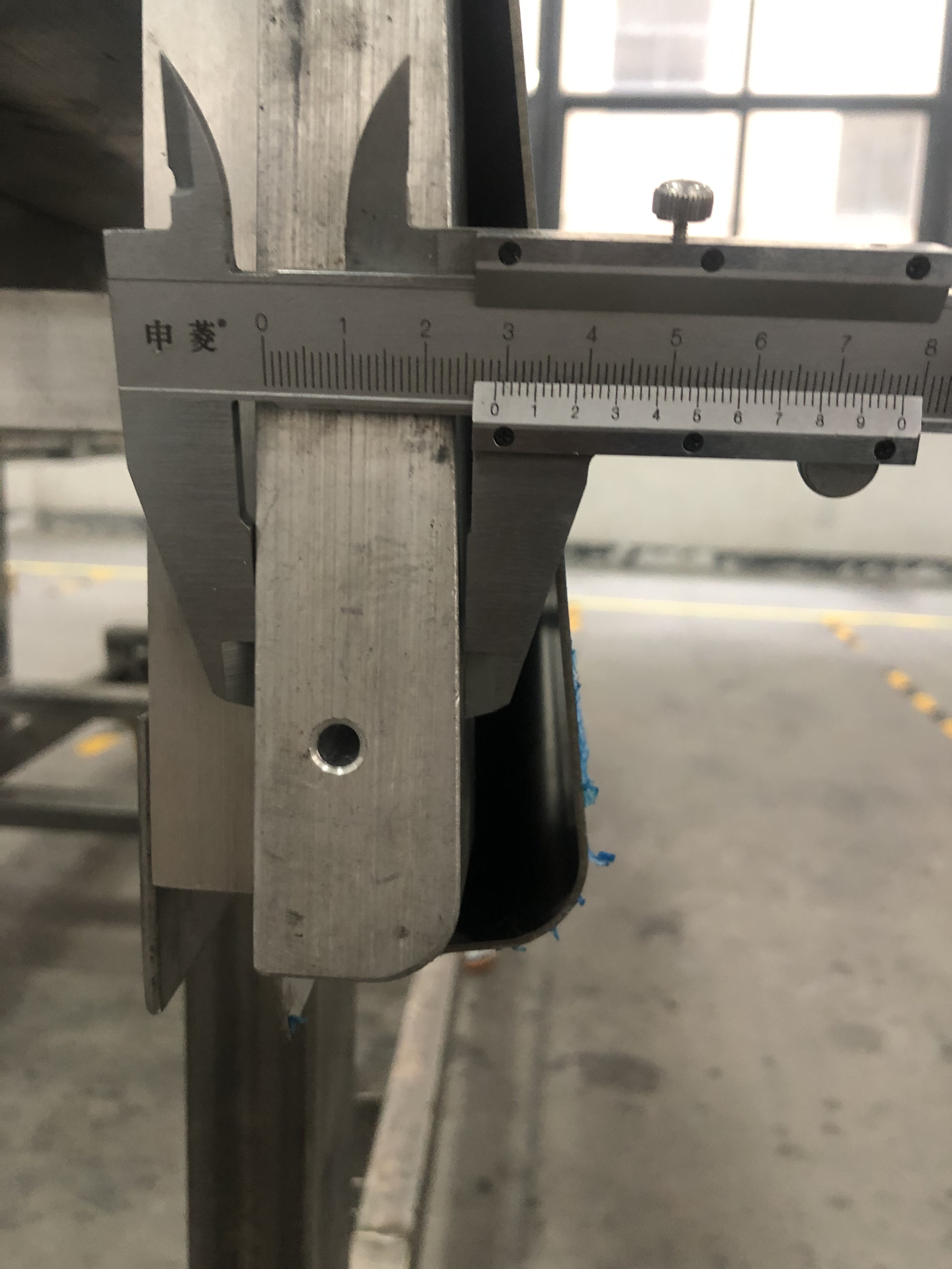

The frame body thickest parts are 2.87m. Constructed of food-grade 304# Stainless Steel for ultimate safety.

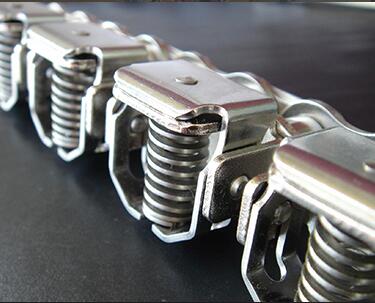

Stainless steel chains are 304#. Highly durable, anti-corrosion, and provides high precision during movement.
Quality bearing from German FALA brand. They are flexible, durable, features small friction and high load-bearing ability.

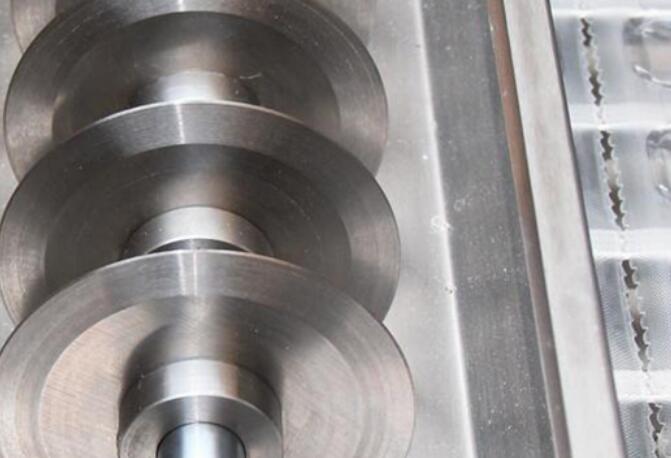

Designed to meet cutting requirements for different shapes and film thicknesses. Quality cutting materials used.
Special moving system for ink-jet printers. Allows flexible print head movement to print dates on different packs.
The conveyor system is controlled by a Japanese Fuji servo system, delivering high performance and ultimate precision.
Export Wooden Carton Packing
