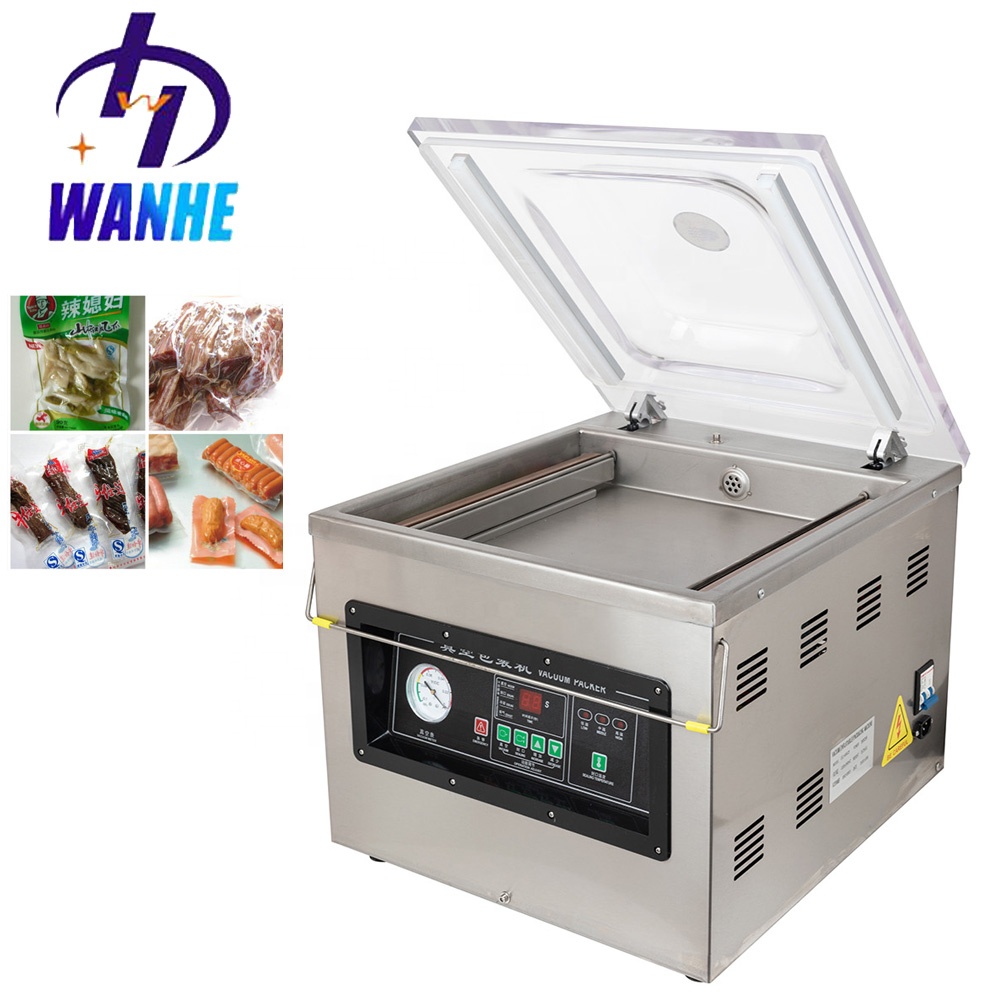

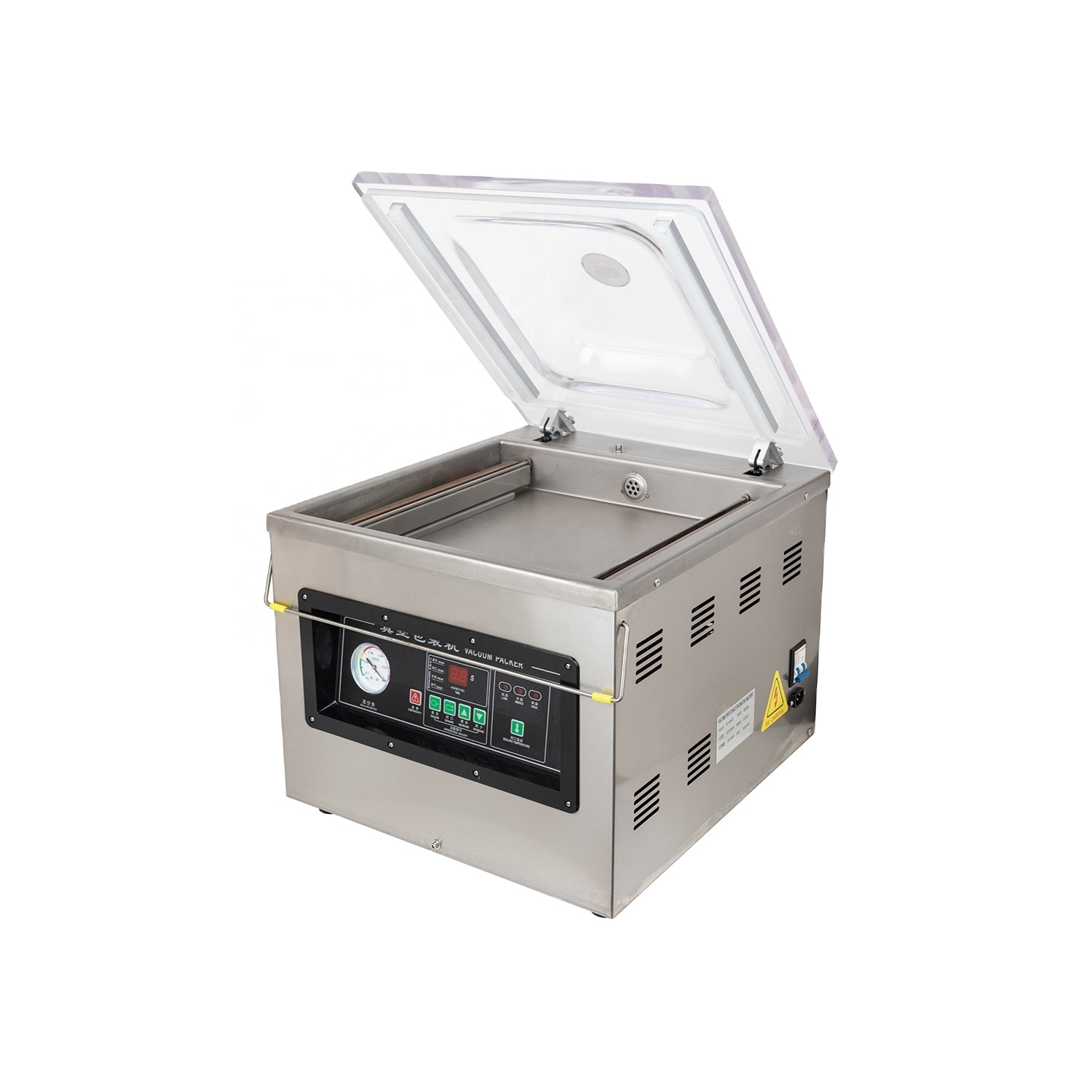

WANHE DZ500 Electric Semi-Automatic Vacuum Packaging Machine For Film And Textiles Rice Bean Thermoforming Shaping
WANHE DZ500 Electric Semi-Automatic Vacuum Packaging Machine For Film And Textiles Rice Bean Thermoforming Shaping
WANHE DZ500 Electric Semi-Automatic Vacuum Packaging Machine For Film And Textiles Rice Bean Thermoforming Shaping
WANHE DZ500 Electric Semi-Automatic Vacuum Packaging Machine For Film And Textiles Rice Bean Thermoforming Shaping
WANHE DZ500 Electric Semi-Automatic Vacuum Packaging Machine For Film And Textiles Rice Bean Thermoforming Shaping
1 / 5
WANHE DZ500 Electric Semi-Automatic Vacuum Packaging Machine For Film And Textiles Rice Bean Thermoforming Shaping
WANHE DZ500 Electric Semi-Automatic Vacuum Packaging Machine For Film And Textiles Rice Bean Thermoforming Shaping
WANHE DZ500 Electric Semi-Automatic Vacuum Packaging Machine For Film And Textiles Rice Bean Thermoforming Shaping
WANHE DZ500 Electric Semi-Automatic Vacuum Packaging Machine For Film And Textiles Rice Bean Thermoforming Shaping
WANHE DZ500 Electric Semi-Automatic Vacuum Packaging Machine For Film And Textiles Rice Bean Thermoforming Shaping

WANHE DZ500 Electric Semi-Automatic Vacuum Packaging Machine For Film And Textiles Rice Bean Thermoforming Shaping

Send Inquiry

Product Description

Product Description

DZ(Q) series single chambers vacuum (aeration) packaging machine, As long as you press the vacuum case's lid, the machine will automatically complete the orderly assumed processes of vacuum extraction or aerate the orderly assumed processes of vacuum extraction or aerate the inner gas,sealing, printing, cooling and aeration. The packed products can be prevented from oxidation, going mould, insects or getting damp, thus can be kept fresh in a prolonged storage period. we can Make machine base on your requirement.
DZ series single chamber vacuum packaging machine

Specification

Model DZ-300 DZ-400/2F DZ-500
Voltage 220V/50HZ 220V/50HZ 220V/50HZ
Power of pump 0.18 kw 0.9 kw 0.9 kw
Heat-sealing power 0.4 kw 0.75 kw 0.75kw
Lowest absolute pressure 0.1 pa 0.1pa 0.1pa
Volume of vacuum case 390*325*100mm 420*440*130mm 520*520*130mm
Sealing strip size 300*10mm 400*10mm 500*10mm
Number of heater 1 2 2pcs
Exhaustment of vacuum pump 6.48m3/h 20m3/h 20m3/h
Material of vacuum case and hull ss304 ss304 ss304
Dimension 485*385*370mm 540*490*500mm 650*580*560mm
Weight 45kg 65kg 71kgs

Product Details

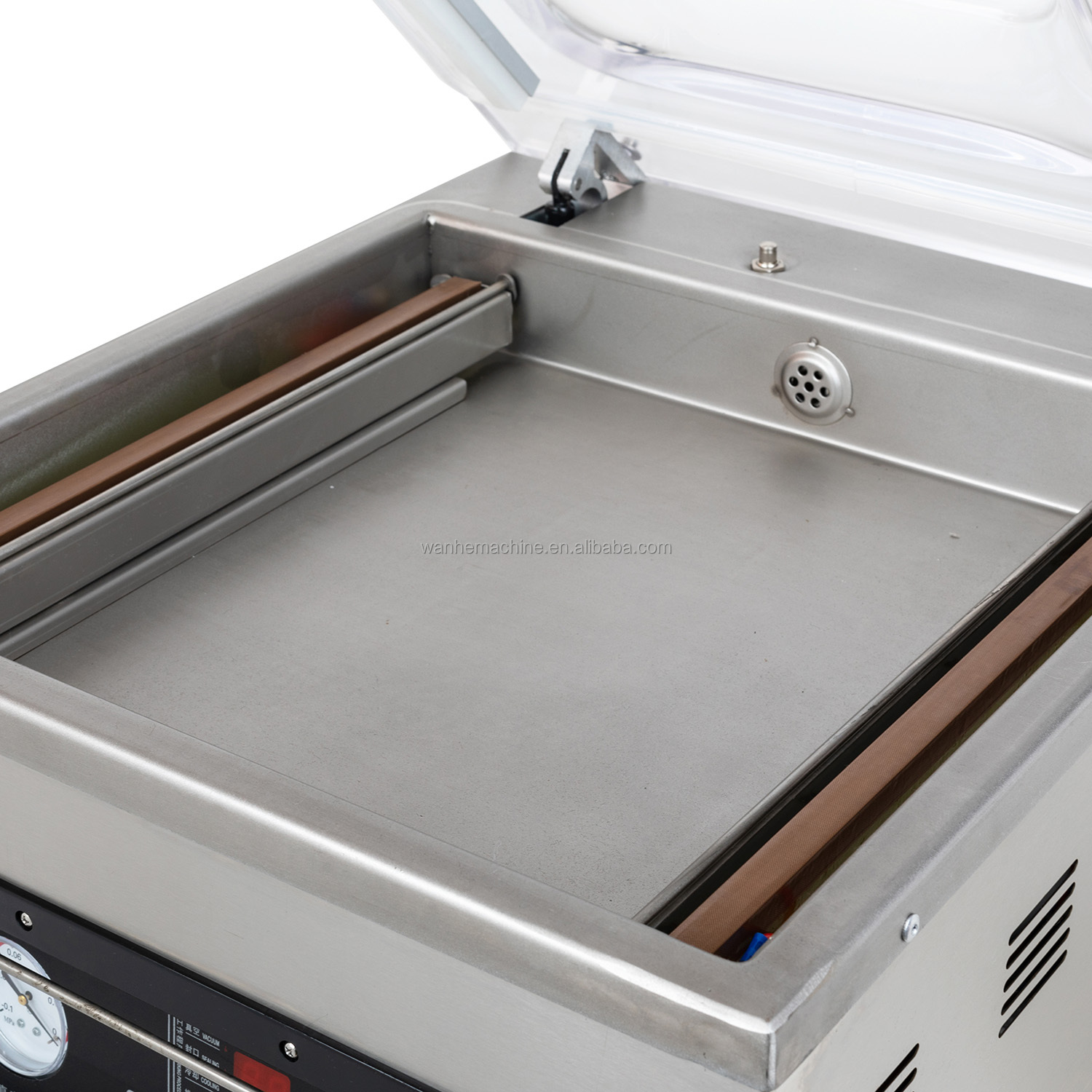

304 stainless steel detail
304 stainless steel Vacuum room do with sand blast

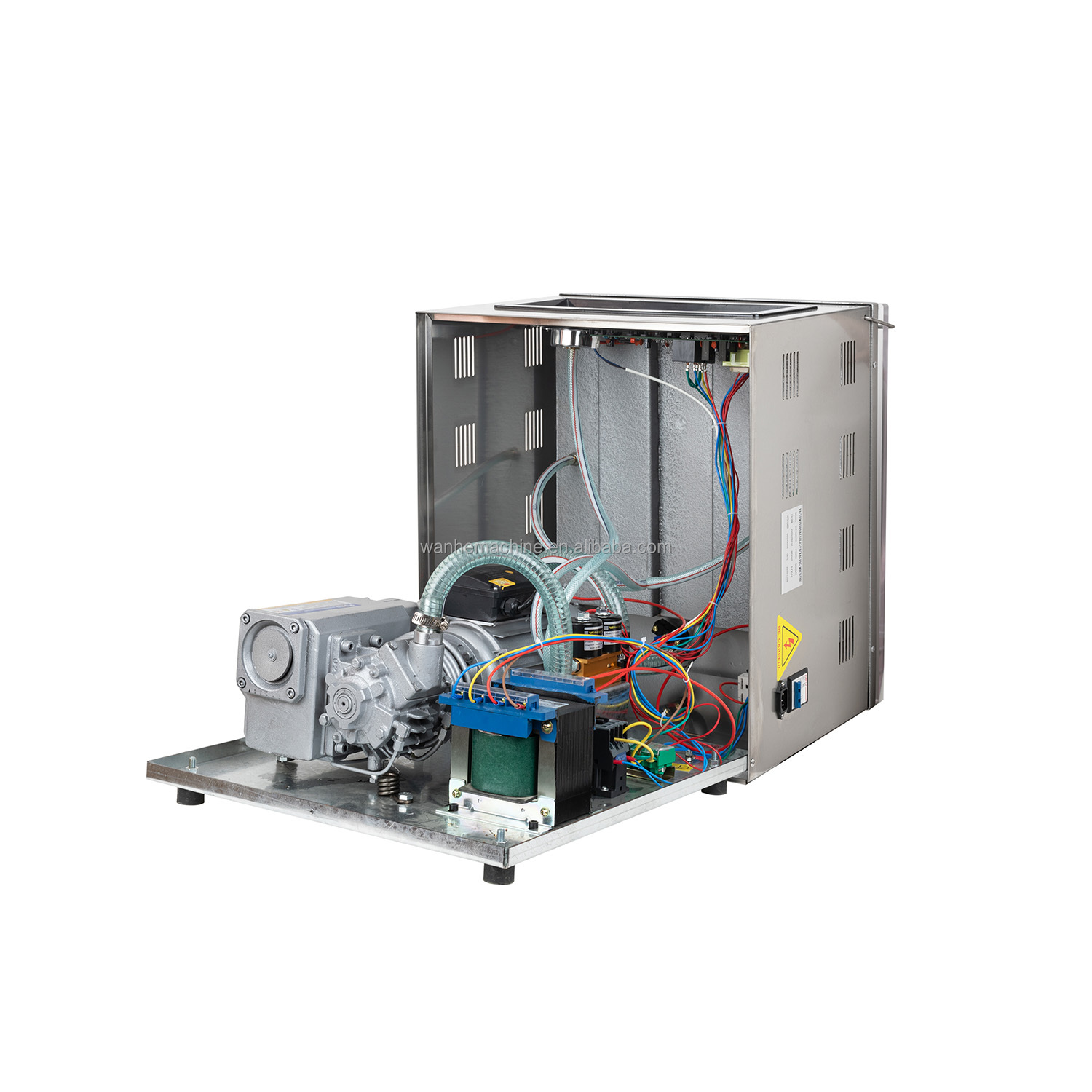

Machine inside structure
Machine inside structure 20 cbm/hour pump
Suitable vacuum dry and wet material

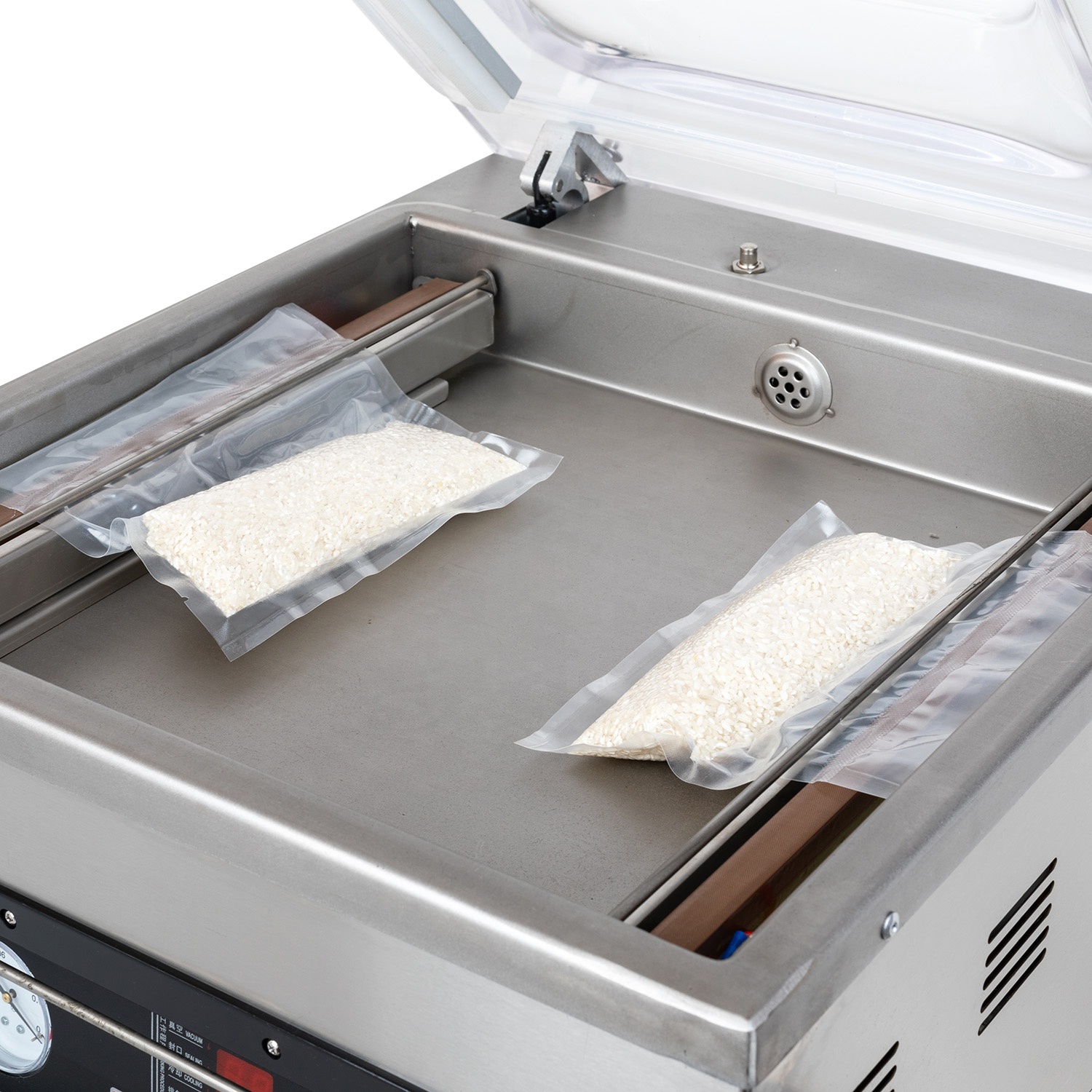

Vacuum packing sample
Vacuum material packing sample

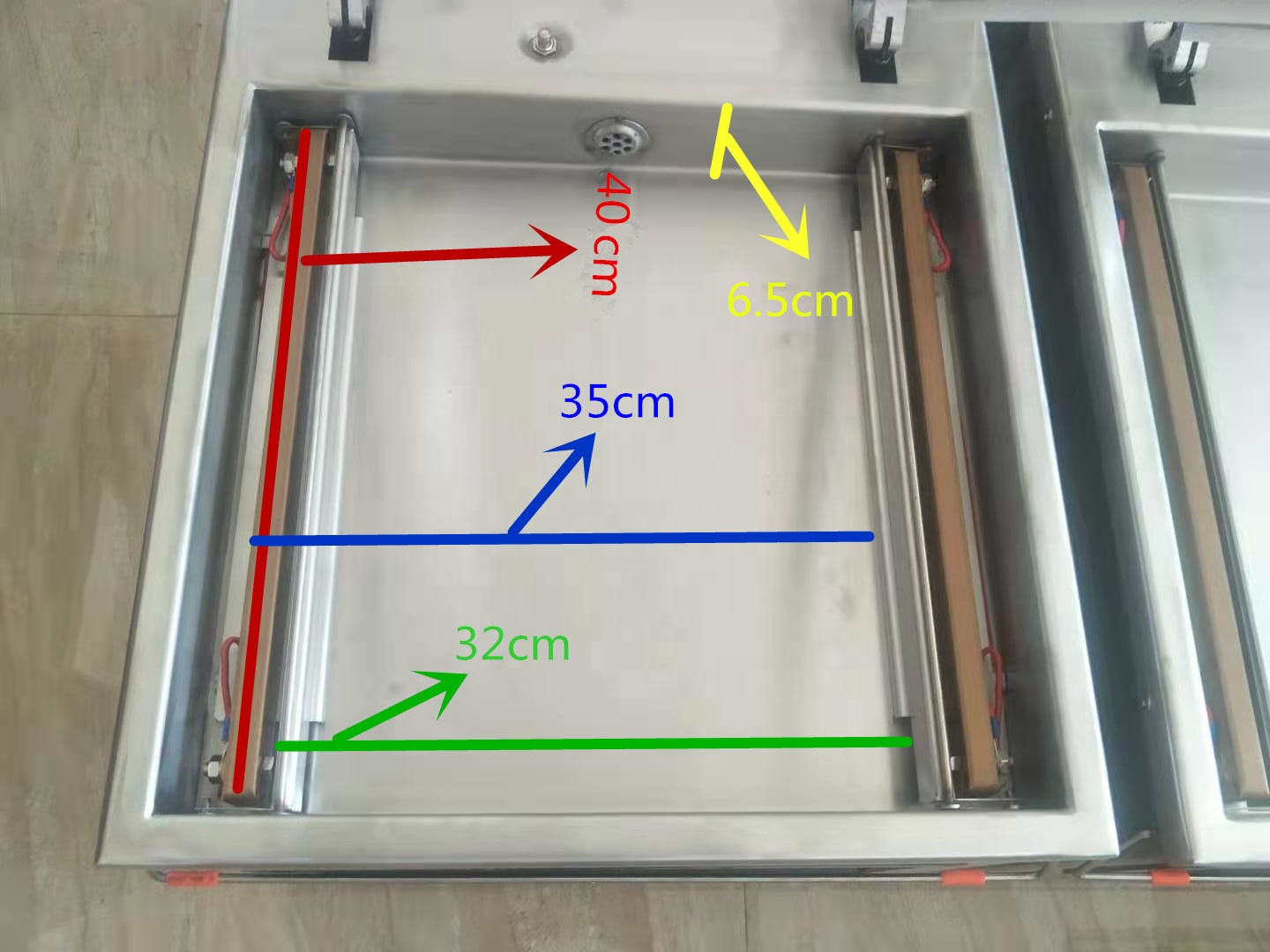

Sealing size detail
Sealing size: 400*10mm 2 sealing bars

Customer Feedback

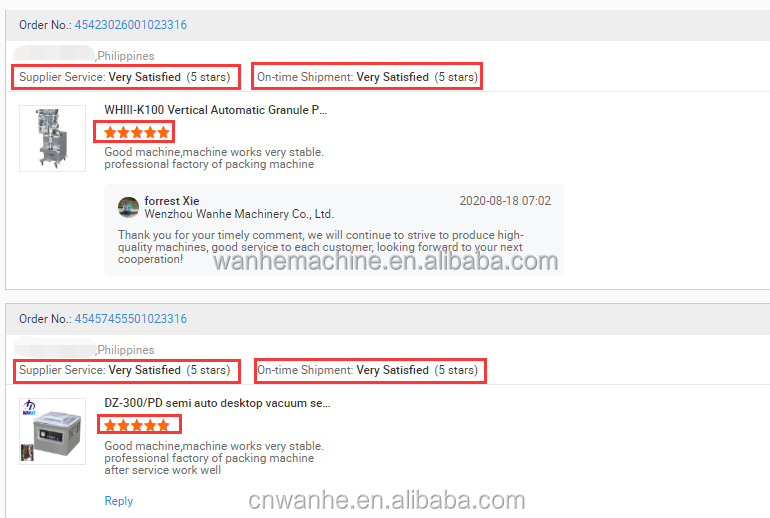

Customer Feedback Screenshot 1

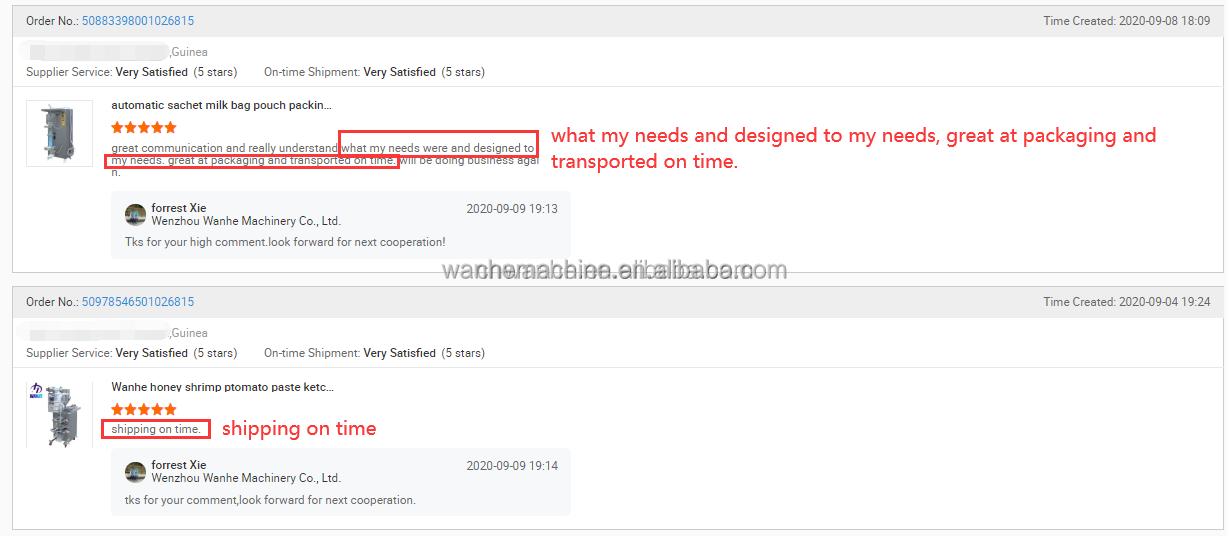

Customer Feedback Screenshot 2

Factory Profile

Factory Overview

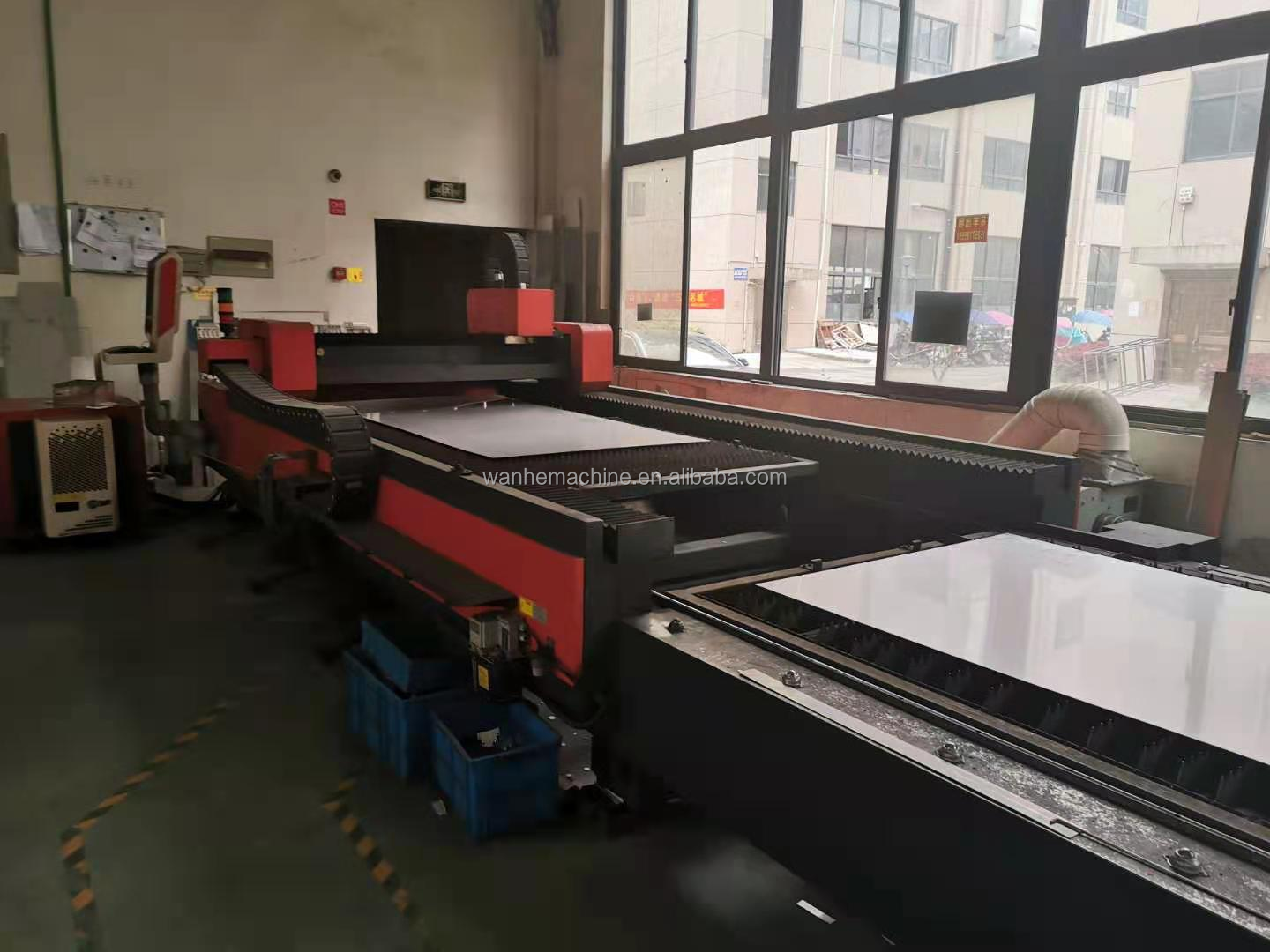

Factory Workshop 1

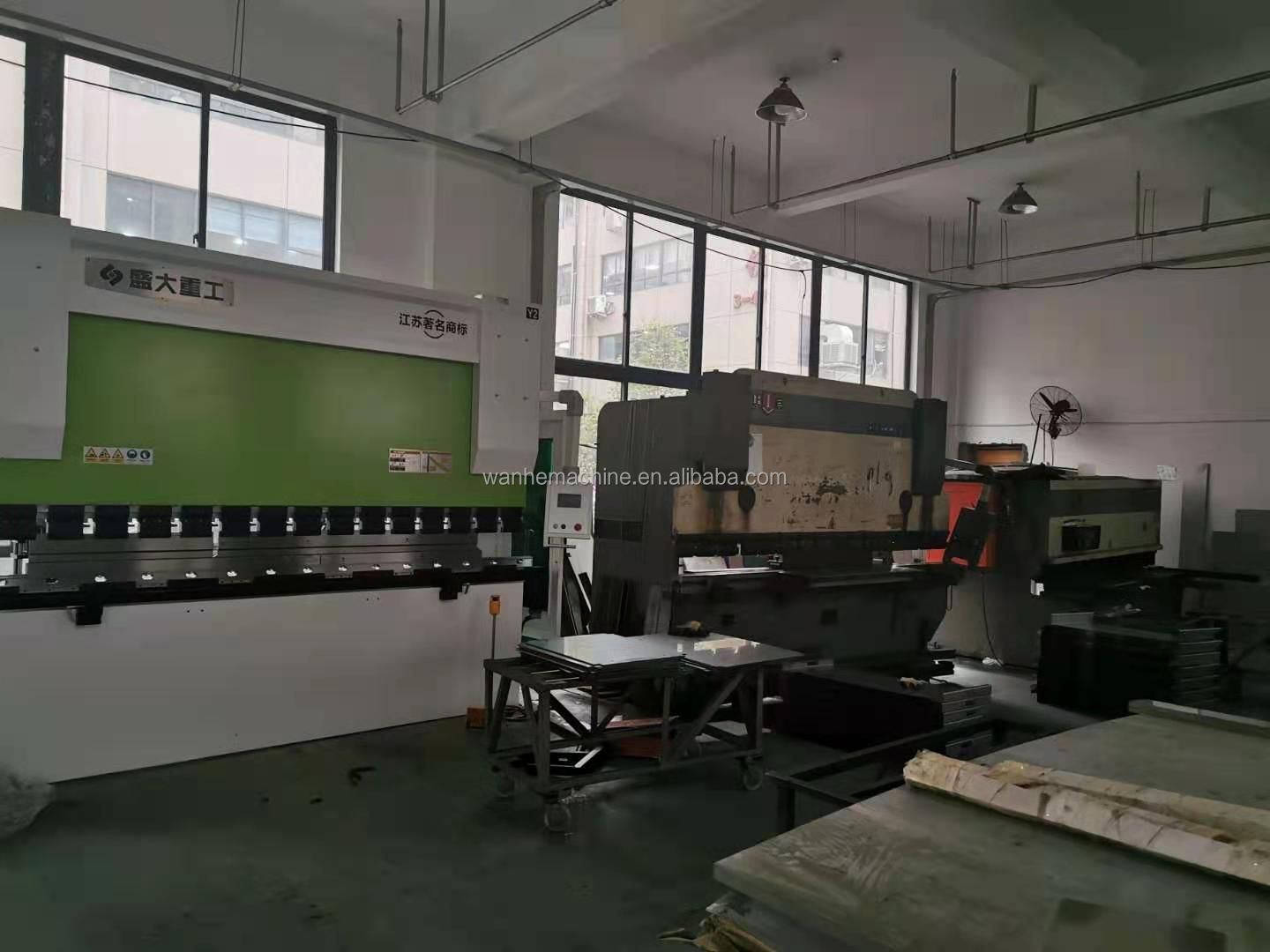

Factory Workshop 2

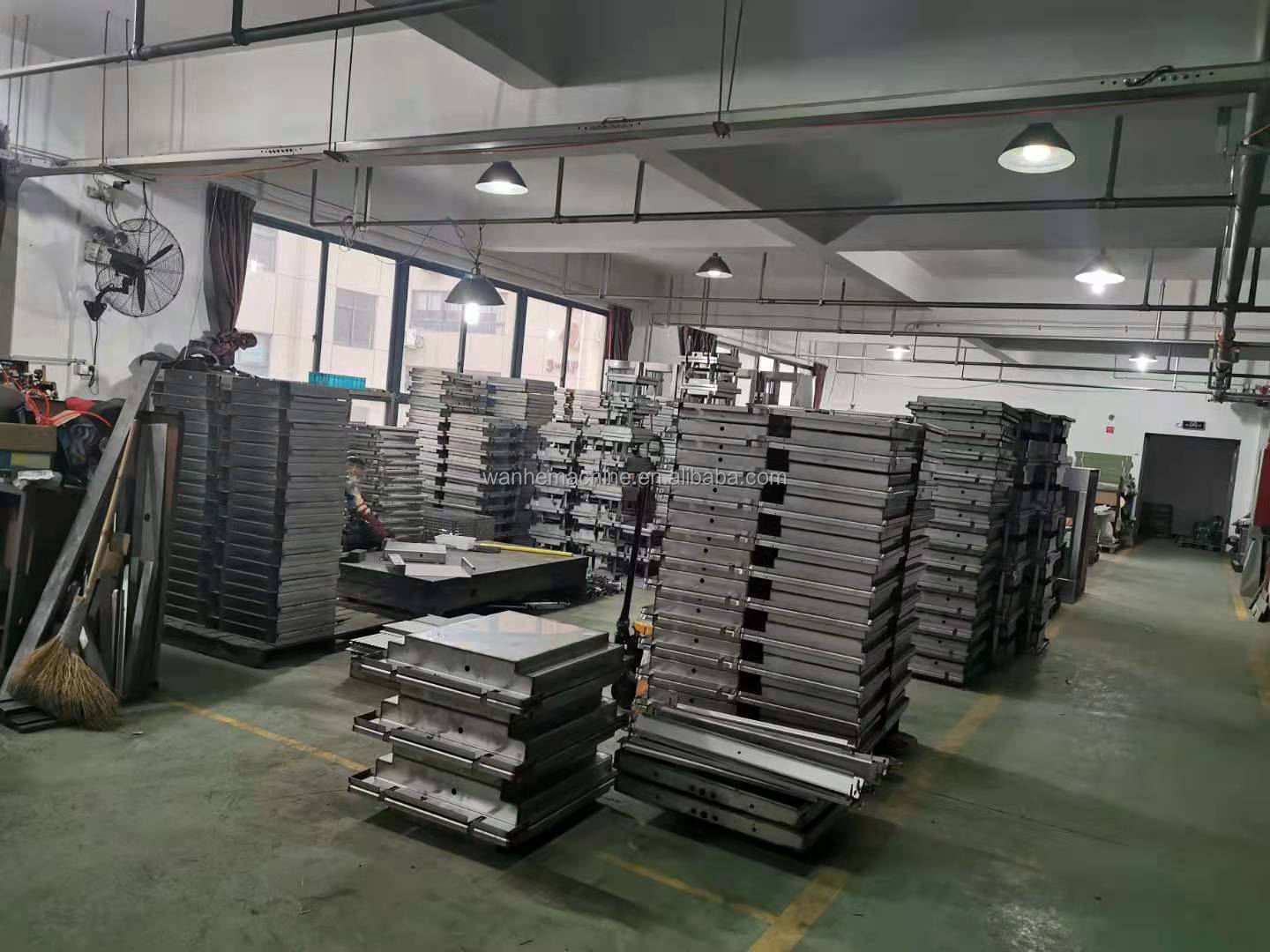

Factory Workshop 3

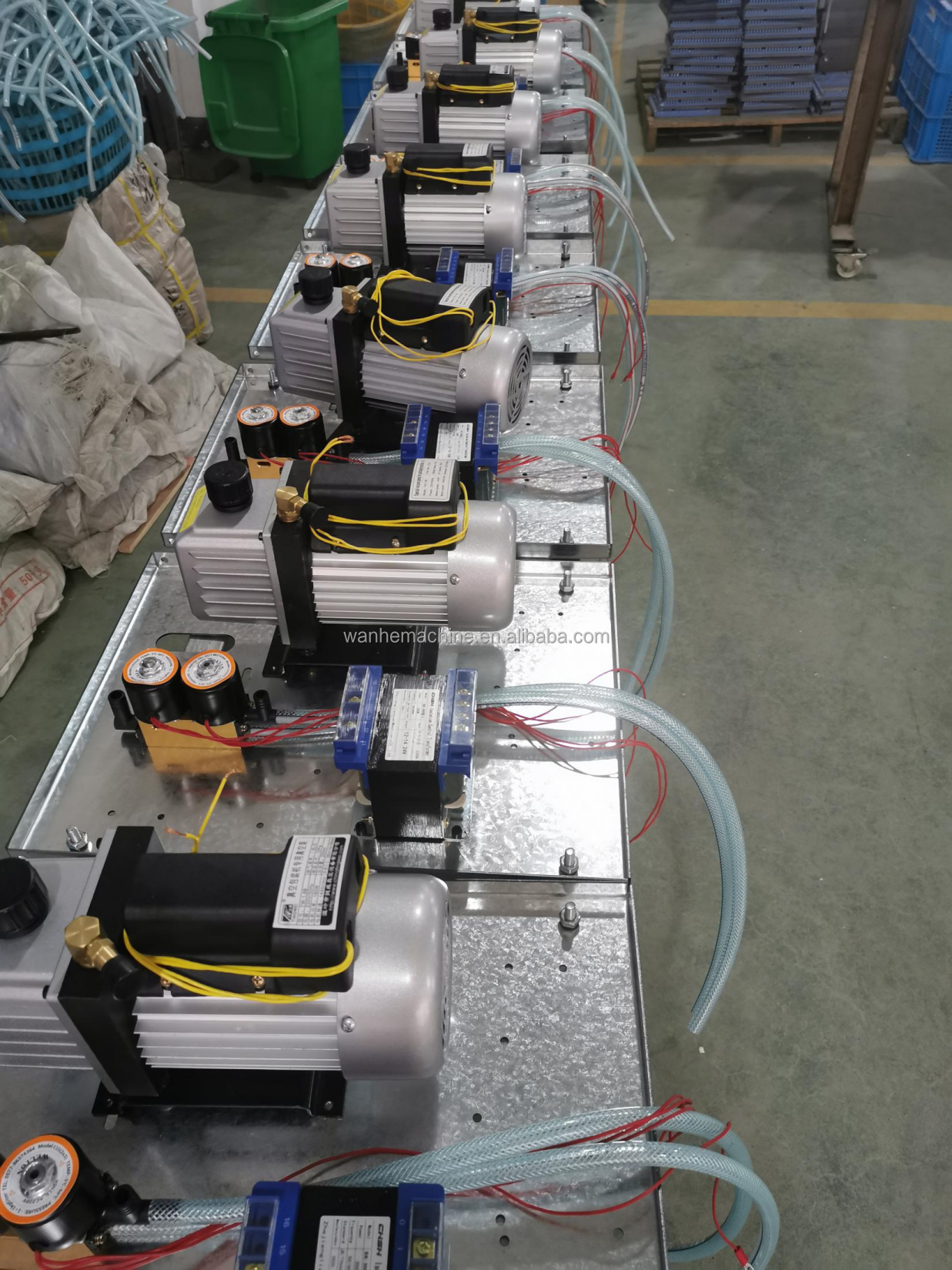

Production Process 1

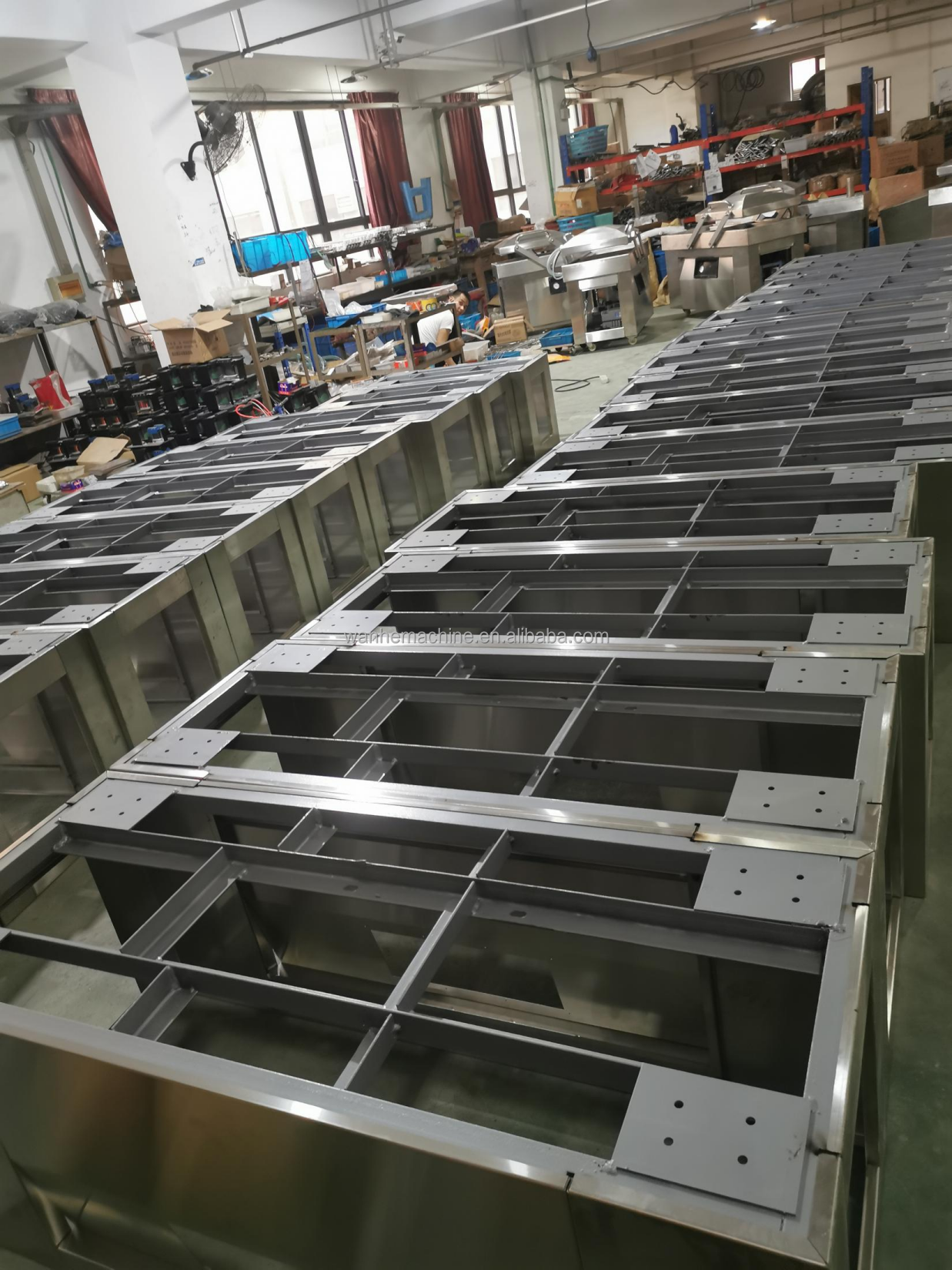

Production Process 2

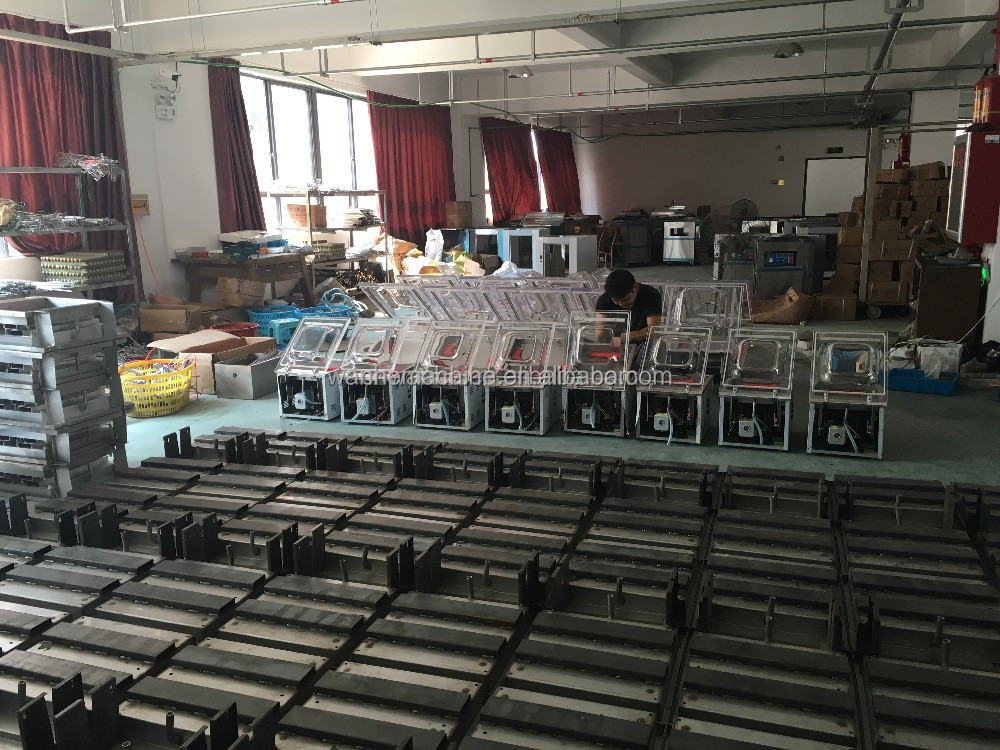

Production Process 3

Packing & Delivery

Export machine packaging
Export machine 20 years
Advice us loading request, let's working together with you

Company Profile

Company Certificate or Display 1
Company Certificate or Display 2
Company Certificate or Display 3

Frequently Asked Questions

What materials are the DZ series vacuum case and hull made of?
The vacuum case and hull are constructed with high-quality SS304 stainless steel, which ensures durability and hygiene, with the vacuum room treated by sand blasting.
Are these vacuum packaging machines suitable for wet products?
Yes, the machines feature a powerful 20 cbm/hour pump (on models DZ-400/2F and DZ-500) and are designed to be suitable for packaging both dry and wet materials.
What is the lowest absolute pressure the vacuum chamber can achieve?
All three models (DZ-300, DZ-400/2F, and DZ-500) are capable of achieving a lowest absolute pressure of 0.1 pa.
How does the automatic packaging process work?
Once you press down the vacuum case's lid, the machine automatically and orderly executes the pre-set processes, including vacuum extraction (or aeration of inner gas), sealing, printing, cooling, and aeration.
What are the sealing sizes and heating element configurations for each model?
The DZ-300 has a sealing strip size of 300*10mm with 1 heater. The DZ-400/2F has a sealing strip size of 400*10mm with 2 heaters. The DZ-500 has a sealing strip size of 500*10mm with 2 heaters.
