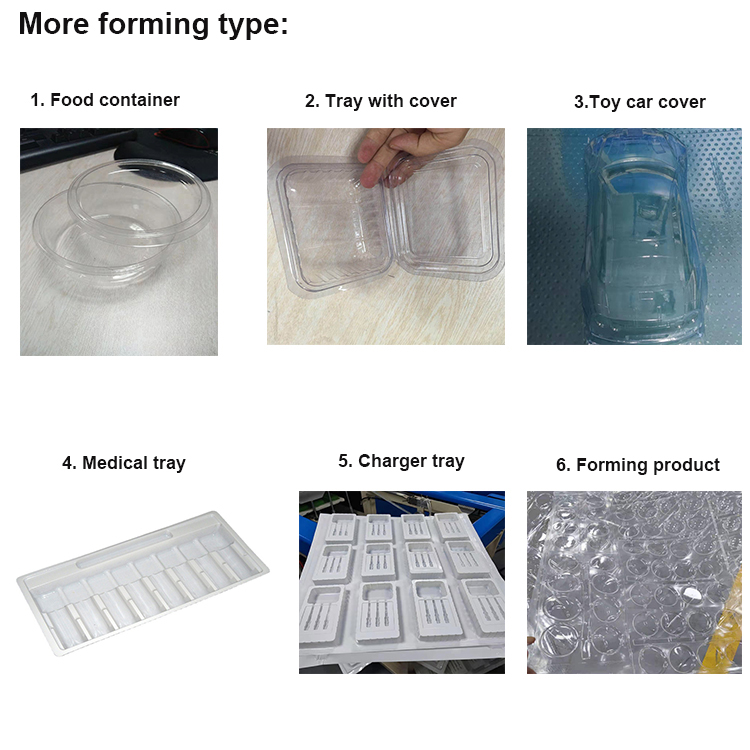

Application

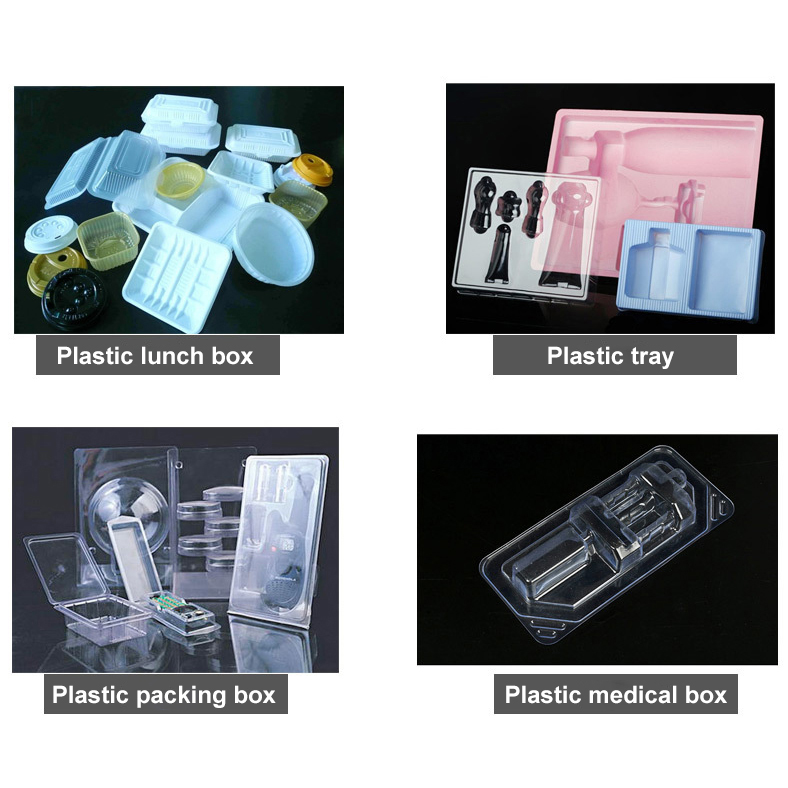

- Plastic packaging industry: blister packaging, plastic, batteries, toys, gifts, hardware, home appliance, electronics, stationary, decoration.
- Food packaging industry: disposal lunch boxes, fruit trays, biscuit boxes, egg trays, moon cake trays, cake plastic packaging boxes.
- Pharmaceutical industry: pill packaging, tablet packaging, oral liquid packaging tray.
- Cosmetics: blister packaging tray, toiletries packaging tray, etc.

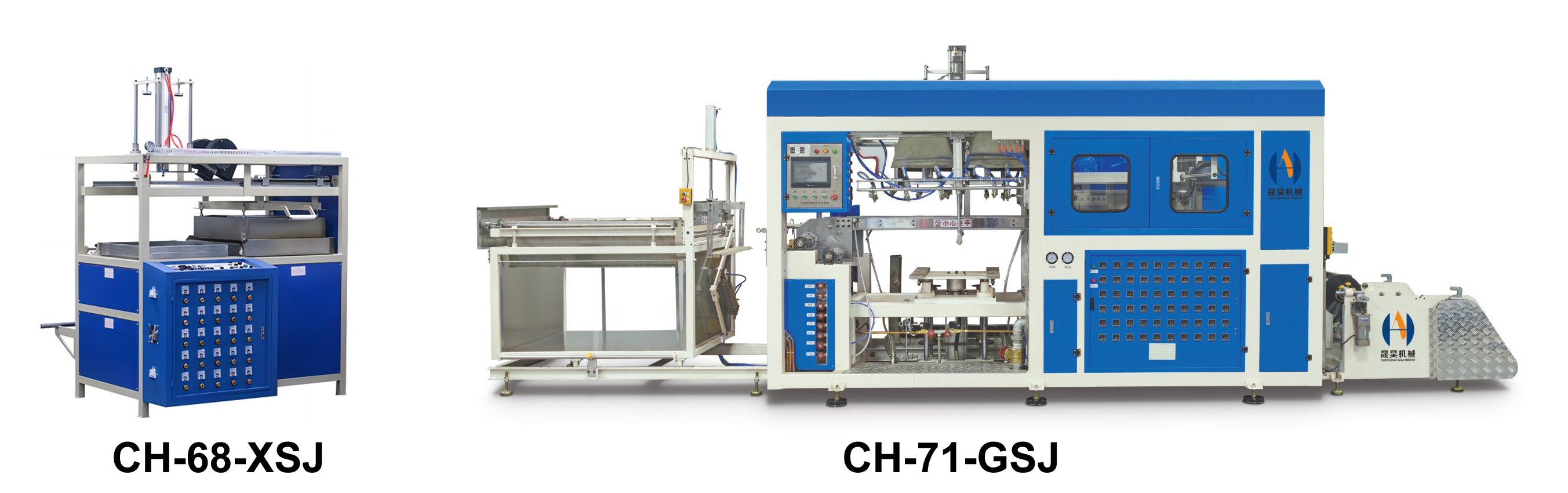

| Specification / Feature |
CH-68-XSJ |
CH-71-GSJ |
| Forming Length (mm) |
610 |
1220 |
| Forming Width (mm) |
560 |
710 |
| Forming Height (mm) |
150 |
200 |
| Roll Material width (mm) |
610 |
760 |
| Power (Kw) |
12.5KW |
27KW |
| Speed |
120-180 Moulds/h |
220-480 Moulds/h |
| Cooling Mode |
Air Cooling |
Water Cooling |
| PLC Control |
Customized, on extra cost |
Included |
| Digital temperature Setting Control |
Customized, on extra cost |
Included |
| Robot hand rise/fall |
Not Included |
Included |
| Width Adjustable |
Customized, on extra cost |
Customized, on extra cost |
| Heating Oven With Move |
Manually |
Automatic |
| Material |
PVC/PET/PETG/GAG/PP/PS |
| Material Type |
Sheet / roll, thickness: 0.1-1.5mm |
| Standard |
CE ISO Certificate |
| Operations Mode |
Pneumatic |
Pneumatic, PLC + Touch Screen |
| Machine Weight |
500KG |
3000KG |
| Machine Size |
L1800*W1500*H 2200mm |
L7600*W2500*H 2600mm |

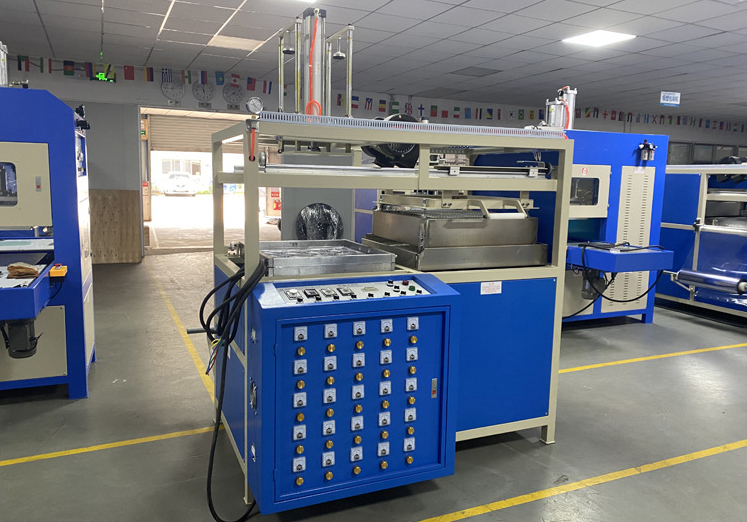

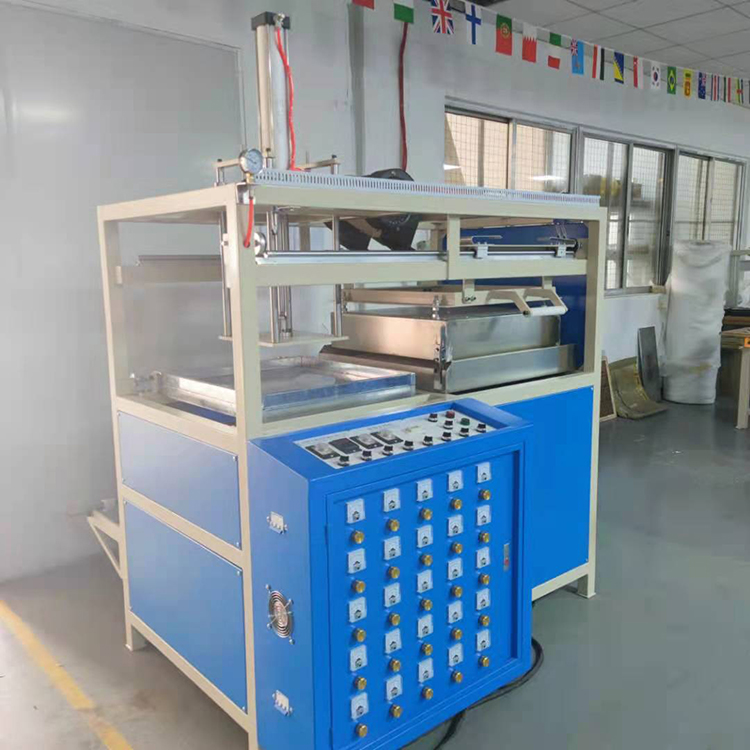

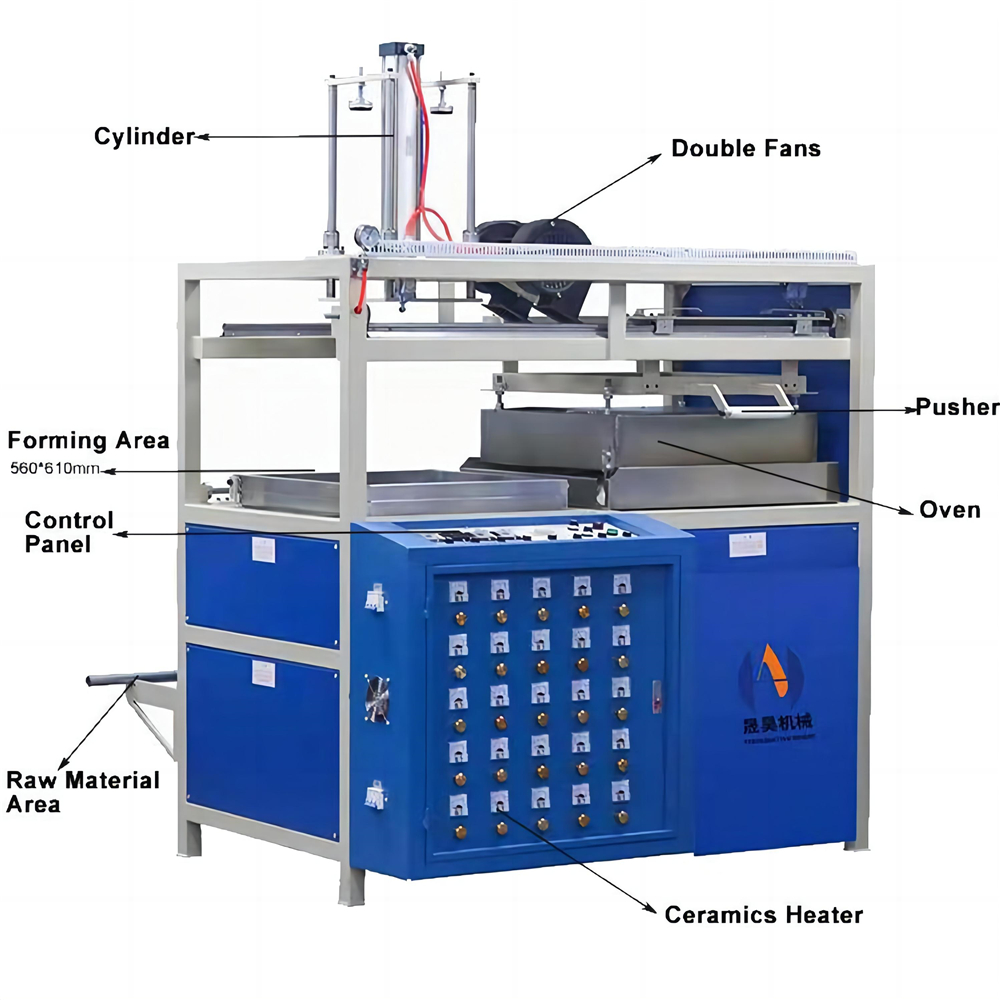

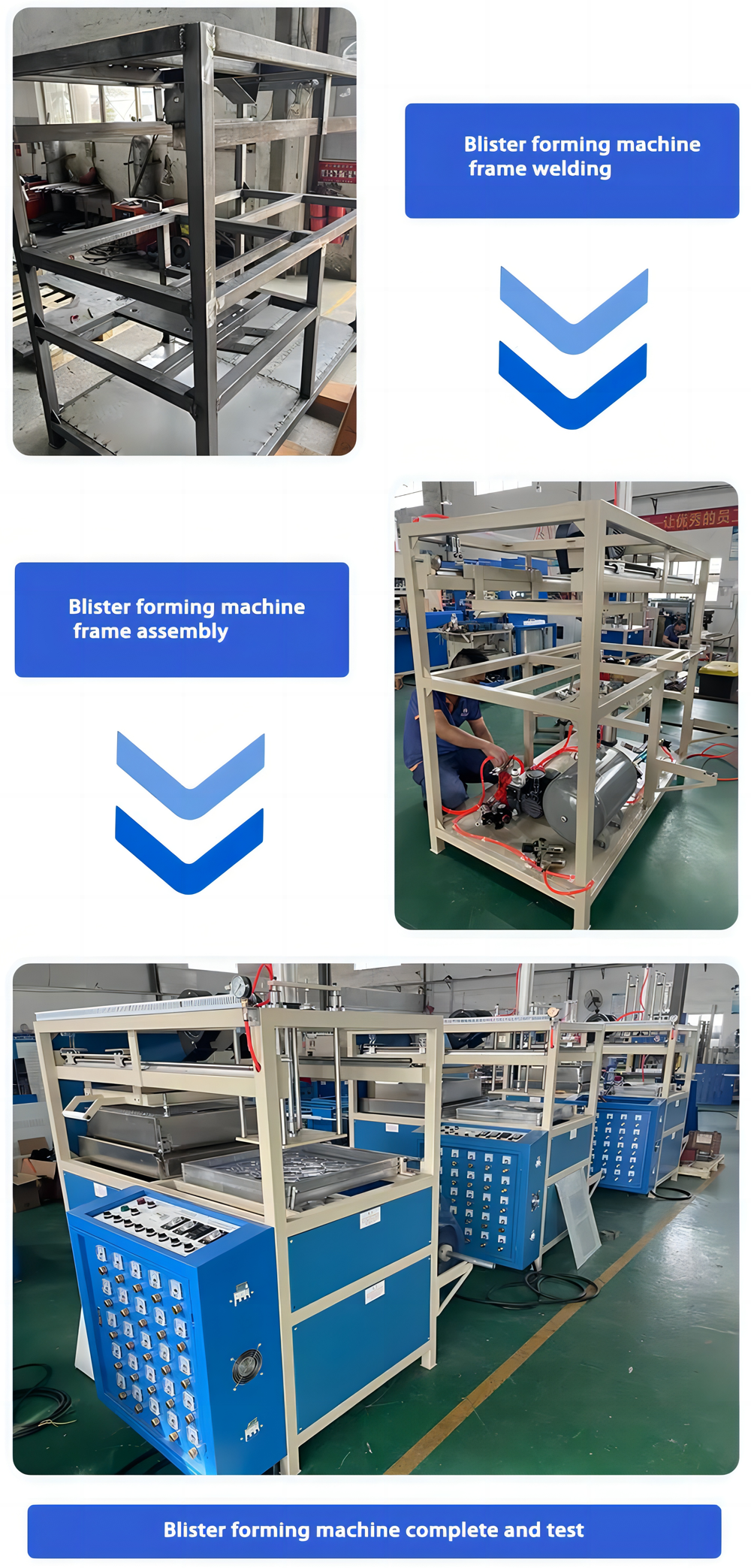

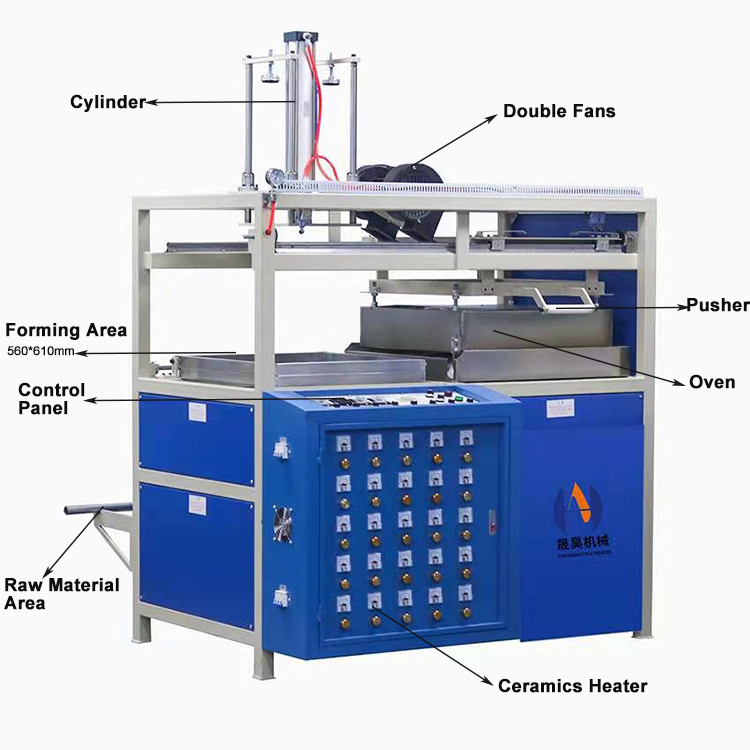

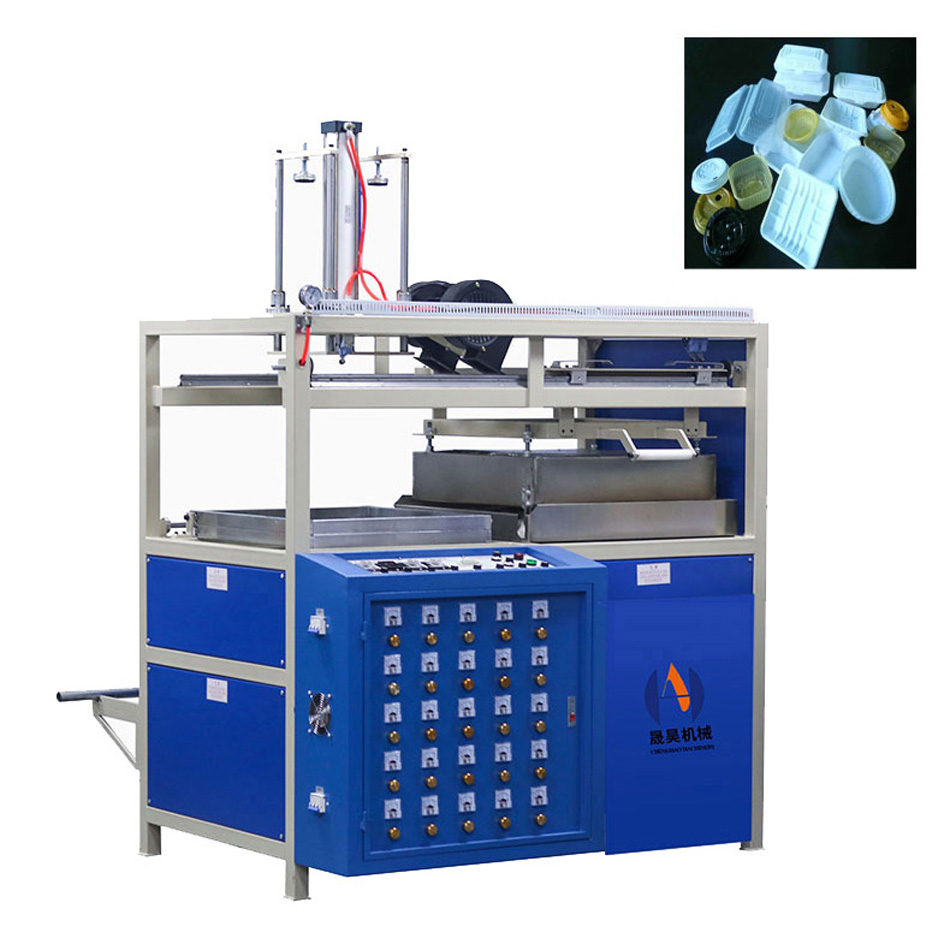

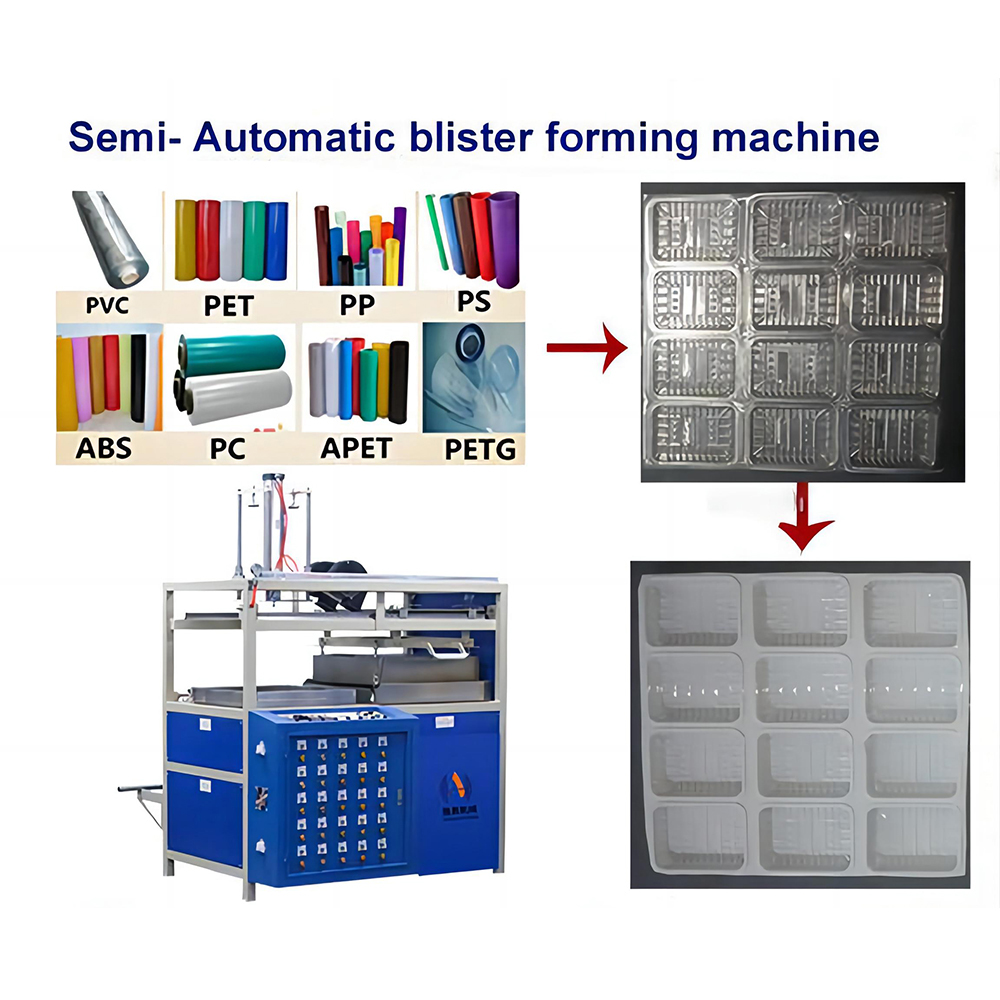

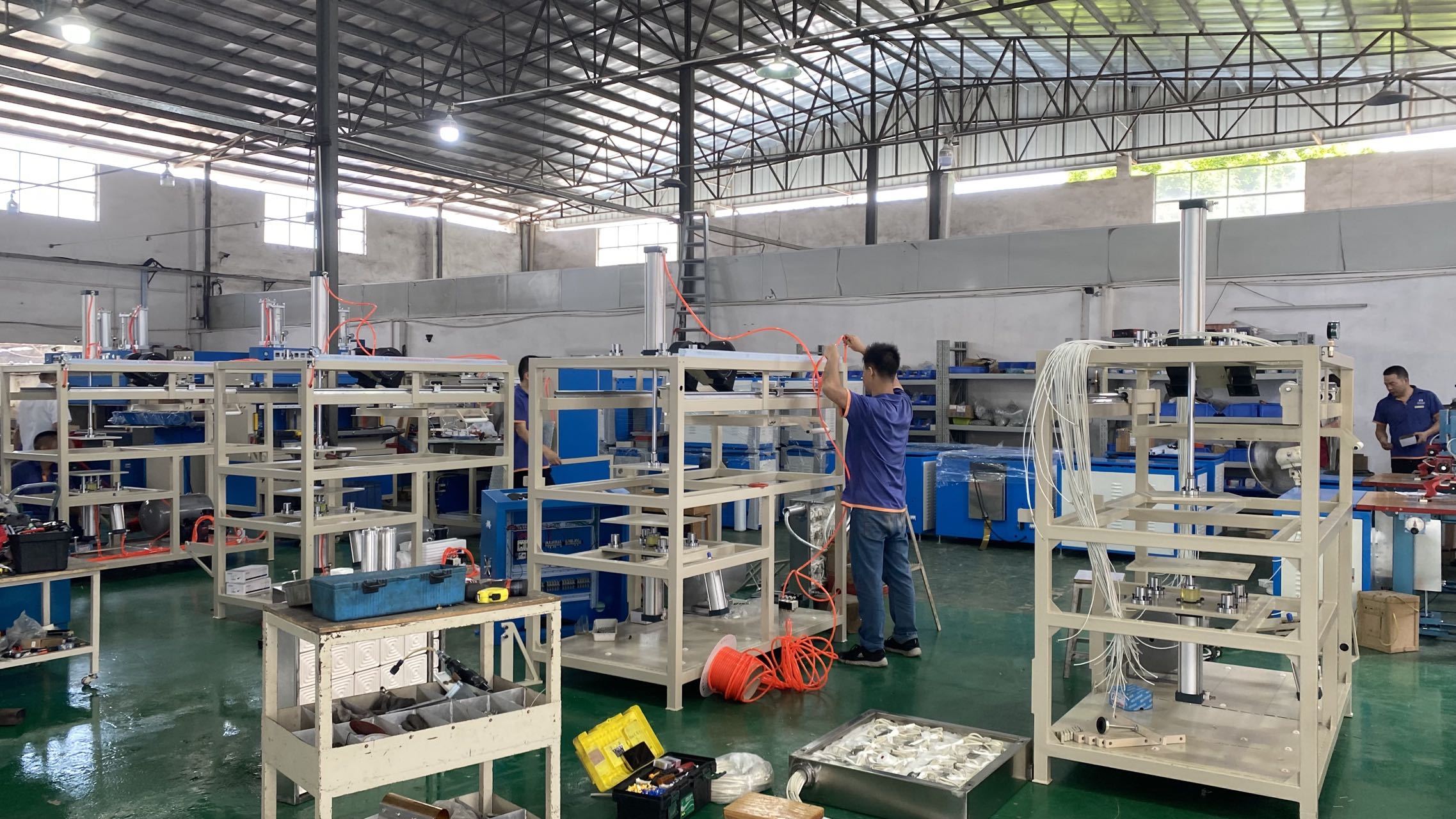

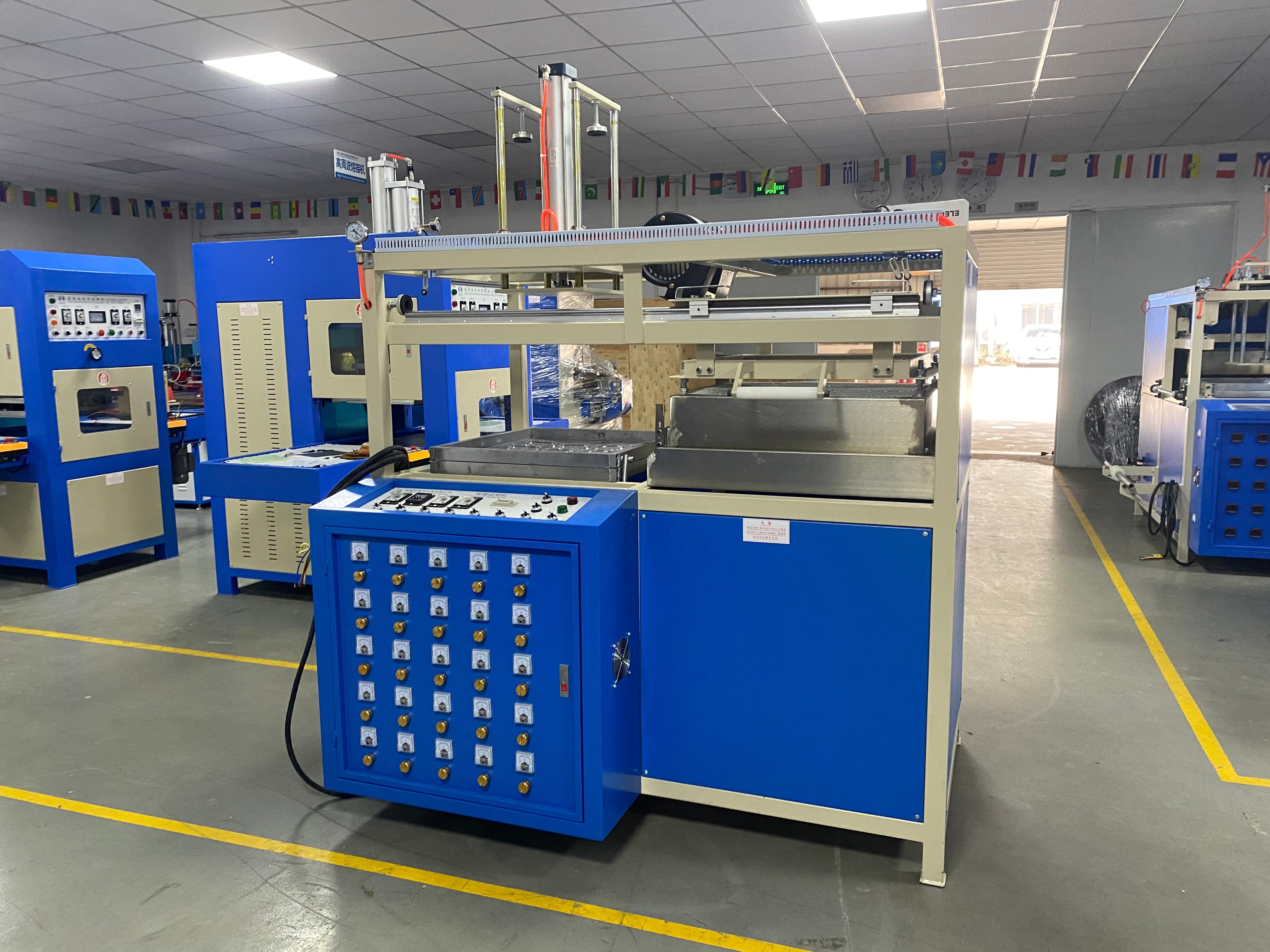

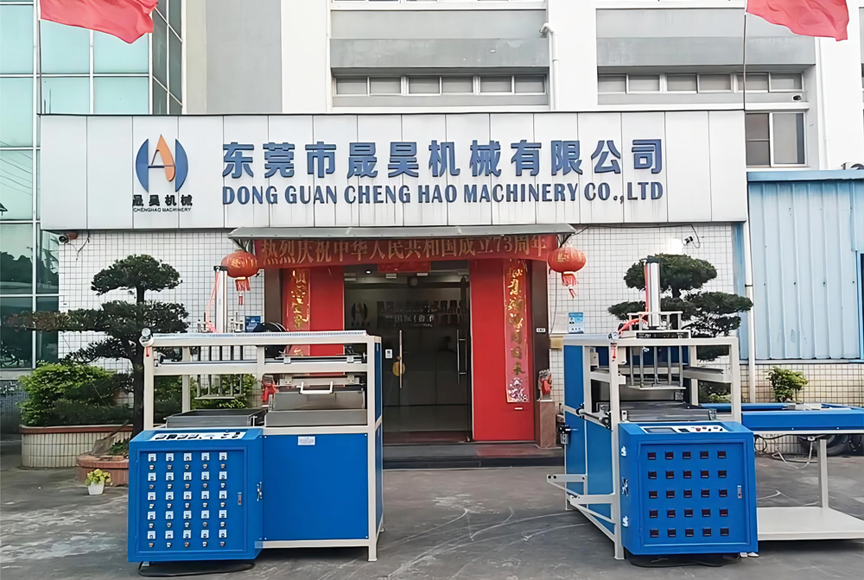

CH-68-XSJ Machine's Detail
1. Introduction of Vacuum Forming Machine
-
1
This machine is manual. Just after placing the plastic sheet onto the frame, then heating, forming, cooling, can be done manually.
-
2
The control board is near the operator, so it can be operated easily, greatly improve the efficiency of production.
-
3
The far infrared ceramic heating elements can control every single block heater temperature, more power-saving features, and reducing production cost.
-
4
The furnace is guided manually.
-
5
The cooling system is independent of cold water.
-
6
This machine can form all kinds of blisters just to replace mould.
2. Working Processes of Vacuum Forming Machine
Carry materials manually
→
Clamp materials
→
Move material into oven
→
Soften material
→
Take material to forming area
→
Bubble blow before vacuum
→
Auto vacuum start
→
Fan cooling
→
Separate model & material
→
Take material out
3. Principles of Vacuum Forming
The technology of Vacuum Forming is a method for thermo-forming. It is a method of using the thermoplastic sheet to make an opening of the housing of the article. Cut the plastic sheet into special size first, and then heat and soften the sheet through the huge pressure difference on both sides of the sheet or mechanical pressure, this can make the sheet attached with the surface of the mould after heating and deform, next through cooling and shaping, the sheet can be vacuumed into various shapes of cover, plastic trays, bubble shell etc.
The technology of vacuum forming relied on vacuum force which can make the sheet achieve tensile deformation. The vacuum force is easy to be realized, grasped and controlled, so it is the earliest thermal forming method, which is widely used currently.
4. Main Features
-
1
Independent temperature control system: Adopting dense, plate and special far infrared ceramic heating brick to assemble the machine. It can reach the exact temperature within 5 minutes. Steady temperature can assure high quality of the product when use PVC, PET or other environmental materials. Also, it can save more power than a traditional machine, using the time of cooling and demolding after forming to heat the material, so it will not influence the forming speed.
-
2
Adopting solid-state temperature controller, which has independent, automatic voltage regulator function, when the external voltage changes in a range, it can ensure a stable temperature.
-
3
The electric furnace is equipped with a cylinder to push, and it has an electromagnetic valve buffer system, so this can make the electric furnace stable and durable.
-
4
The machine has complete functions like "delay vacuum, vacuum, vacuum with the wind, Spray, cooling wind", all these can make it convenient and for workers to operate it accurately in actual production, and ensure the perfect vacuum forming process in the best time for high technology products.
-
5
Equipped with an auto spray mould-release agent, the machine has two functions: vibration demould and mould blowing, so this can make it easy for the formed sheet to release from the mould.
-
6
Die blowing function: die into the mould and blow, make the film formation or summon up, then forming a more perfect product.
-
7
Precise positioning function of clip, ensure the material placed at the exact position.
-
8
The cooling fan is controlled by an inverter, the volume of the wind can be adjusted easily.
-
9
Quick die change function (Automatic Locking); Intelligent temperature control system, servomechanical transmission system, imported electrical control system, etc.

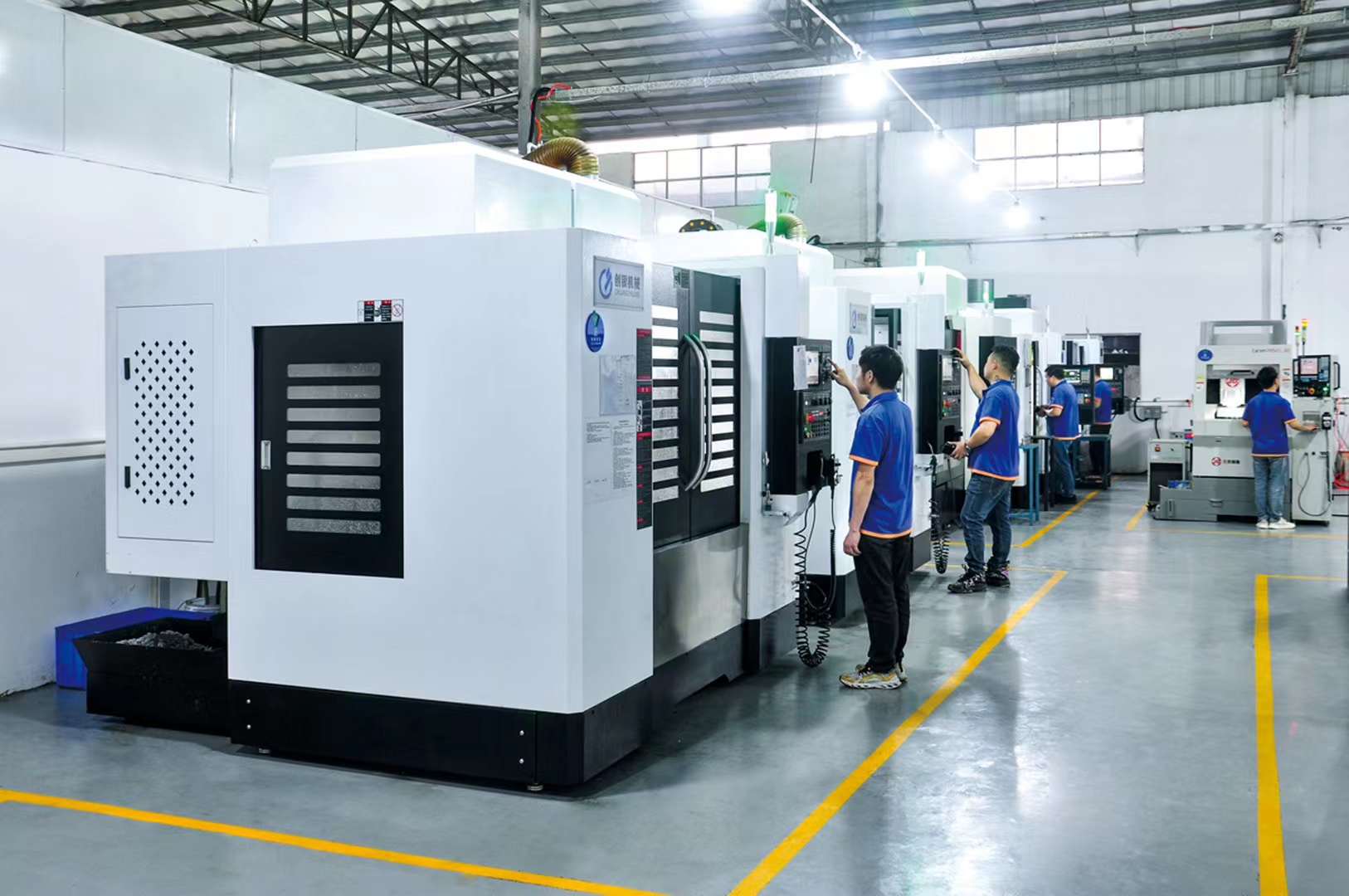

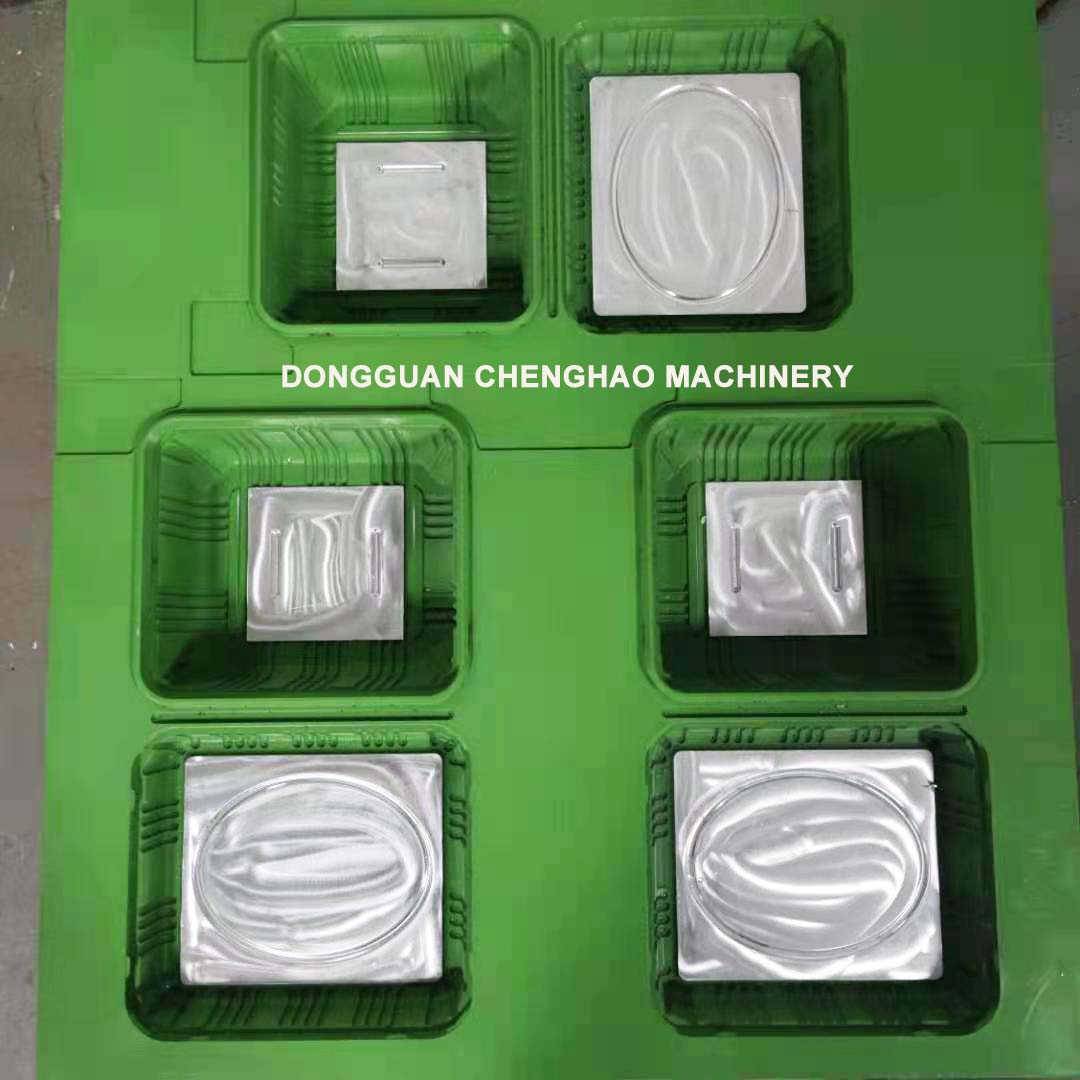

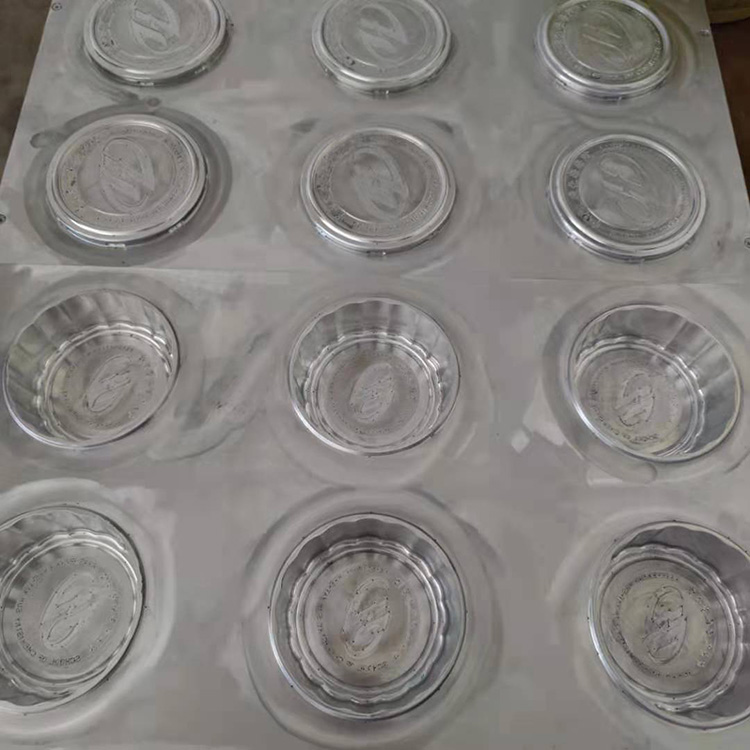

Mould Workshop & Mould Showing

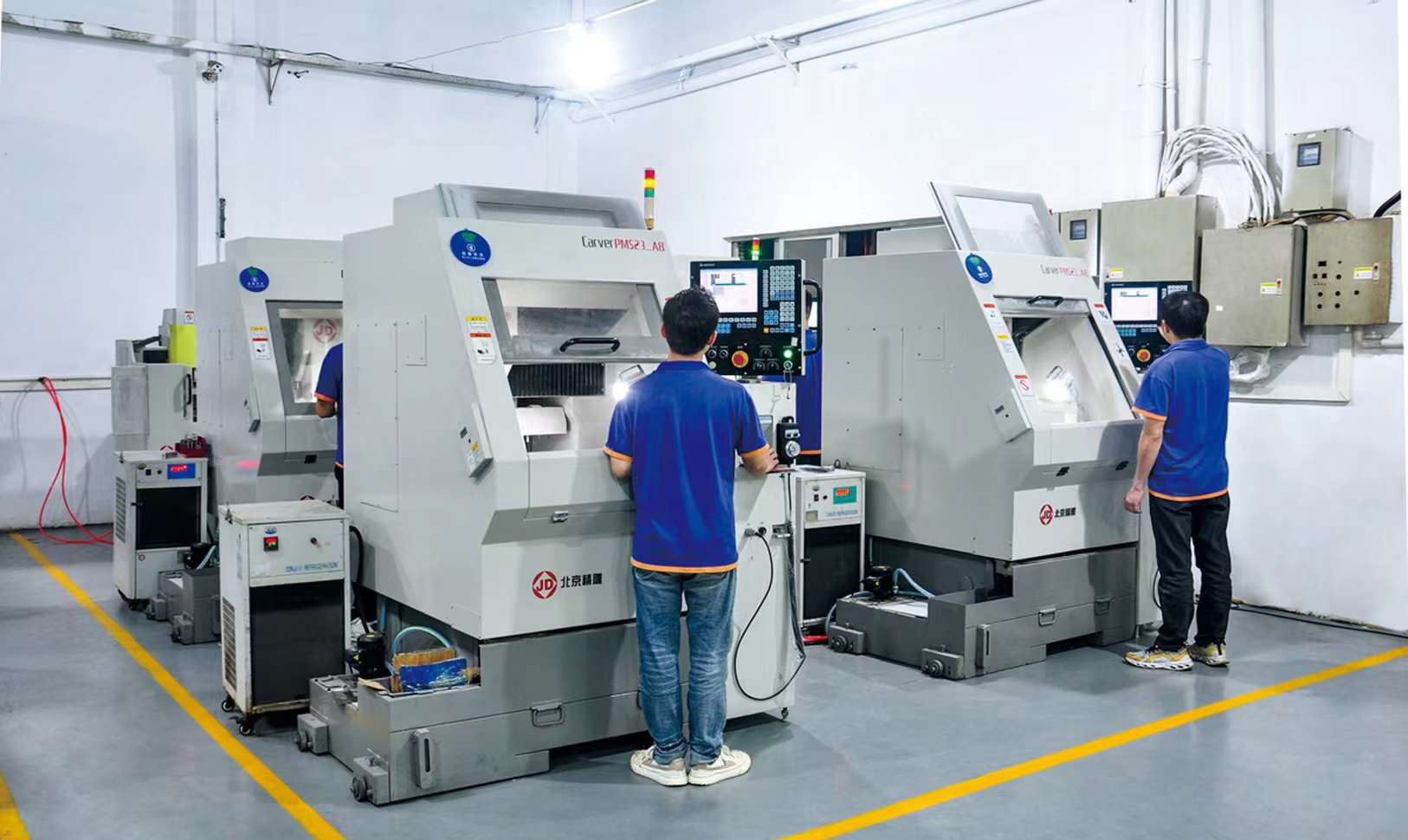

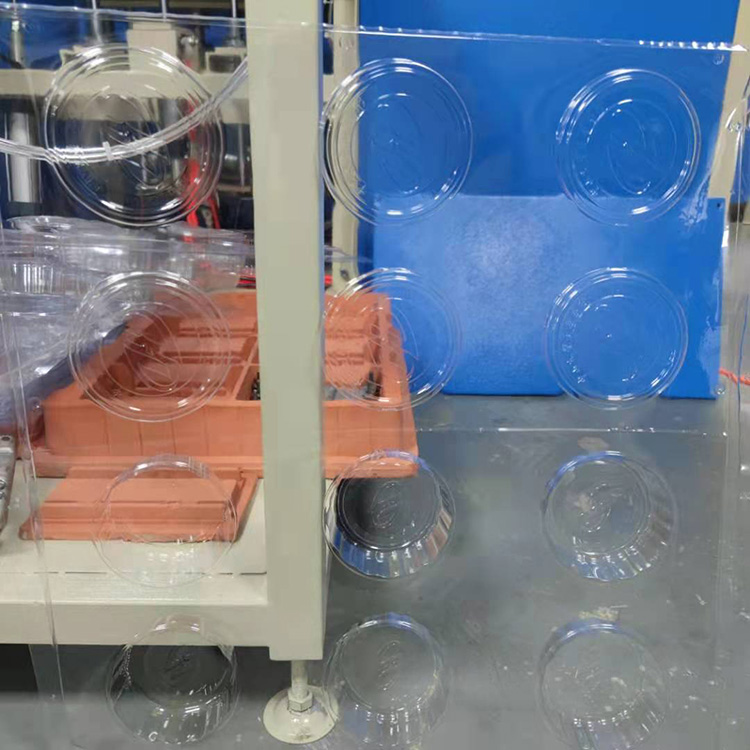

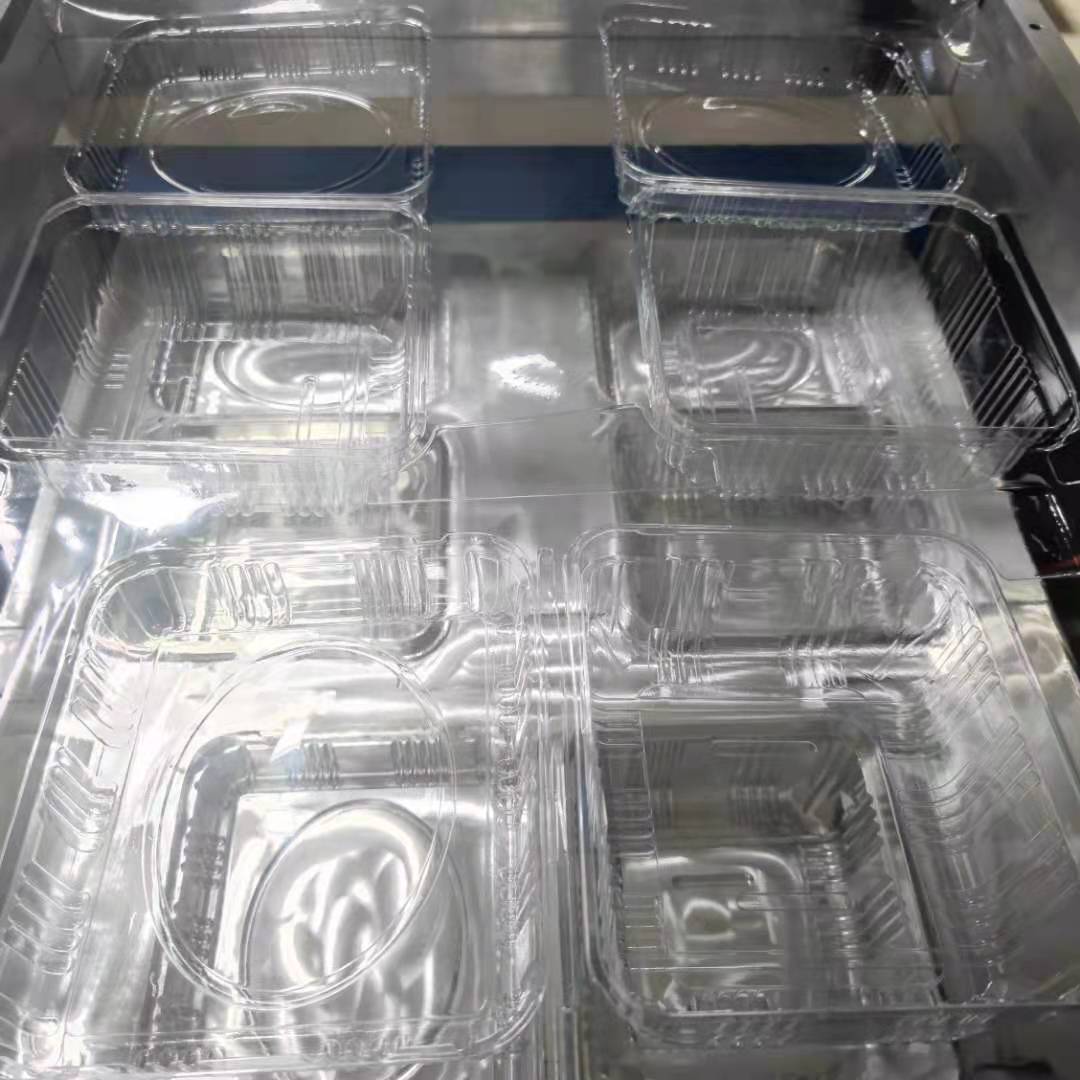

We have our own mold department and can make our own molds. Also, the molds are made of CNC engraved.
About Our Company
Our company was established in 2007, located in the "factory of the world" city. We have been committed to high frequency welding machine, high frequency packing machine, ultrasonic welding machine, plastic thermoforming machine and so on.
Also, we have more than 17 years of technical experience in this industry and our machines are exported to more than 70 countries and regions, well received by customers all over the world.
Customer Visiting
Customers from Saudi Arabia
Customers from Argentina
Customers from India
Customers from Pakistan
Customers from Thailand

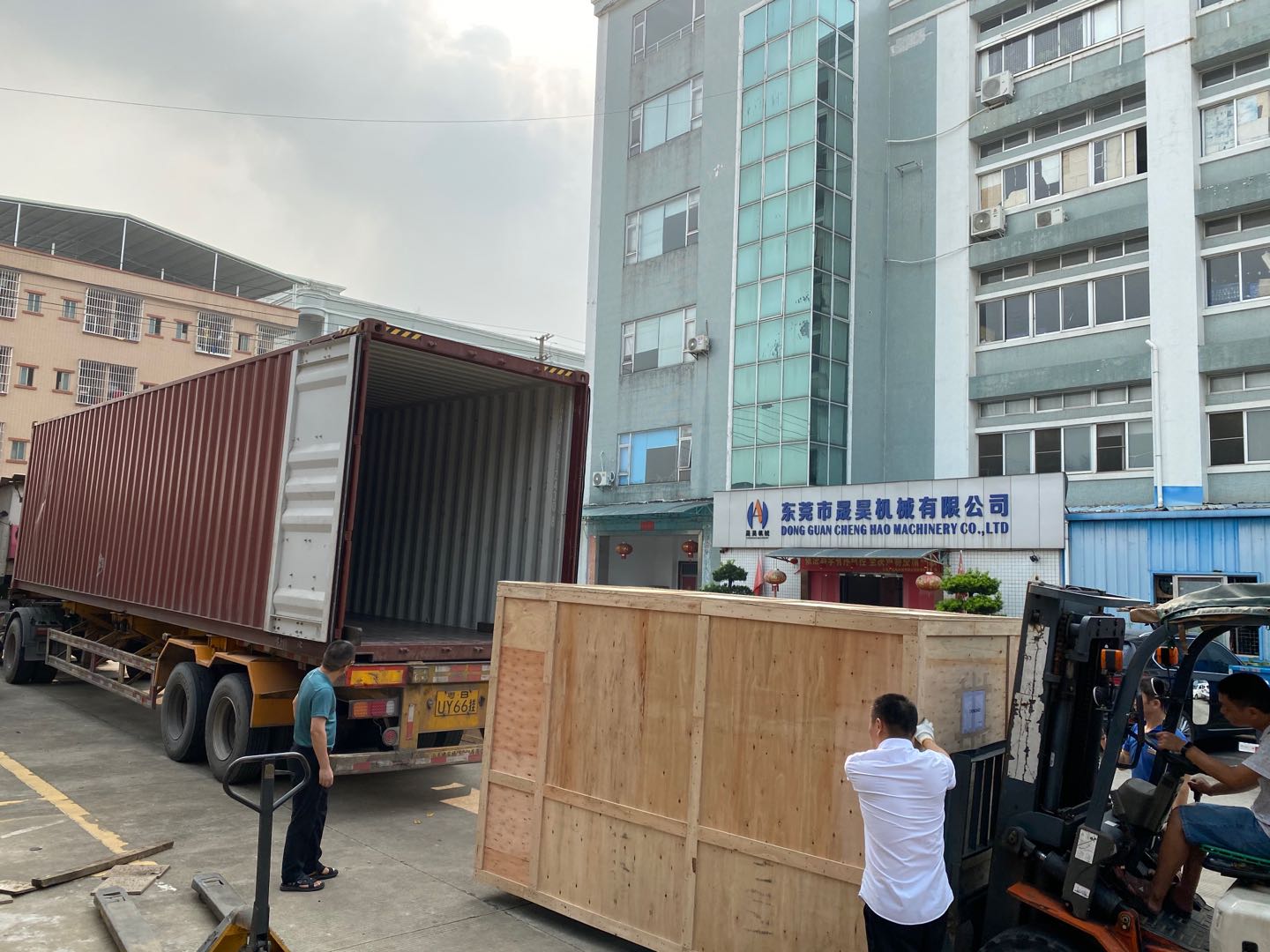

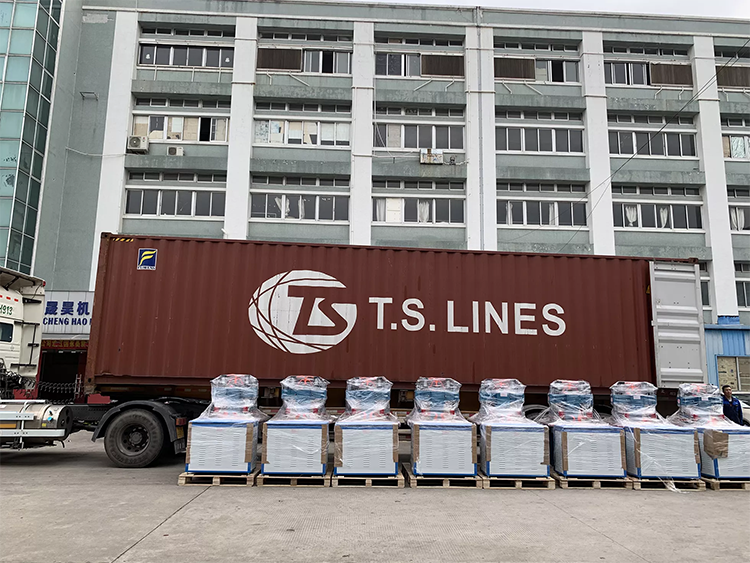

Shipping Machine To All Over The World
to France
to Vietnam

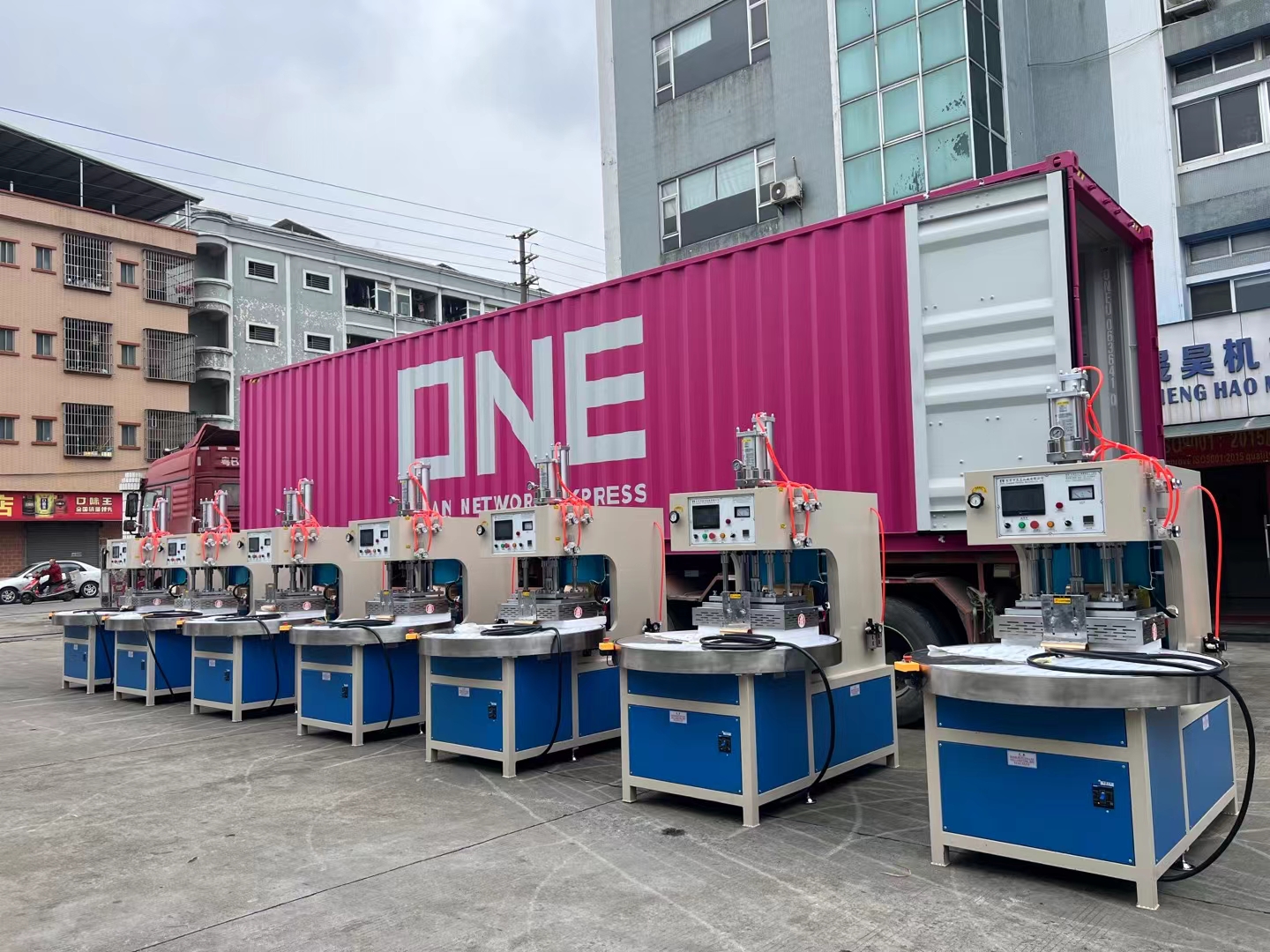

to Pakistan
to South Africa
to Australia
to Peru
FAQ
Are you a trading company or a manufacturer?
Yes, we are a factory. All machines are made by ourselves and we can provide customized services according to your requirements.
How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. If the goods are not in stock, it is 15-20 days, depending on the quantity.
What about your warranty?
Our warranty is 1 year. Machine parts can be replaced for free within 1 year if broken (excluding man-made damage).
What are your terms of payment?
Payment <= 1000 USD, 100% in advance. Payment >= 1000 USD, 30% T/T in advance, balance before shipment.
What plastic materials can be processed on your vacuum forming machine?
Our machines are compatible with various thermoplastic sheets including PVC, PET, PETG, GAG, PP, and PS with thicknesses ranging from 0.1mm to 1.5mm.
Do you offer technical support for installation and operation?
Yes, we provide technical guidance, remote support, and user manuals to help you set up and operate the machines effectively.
