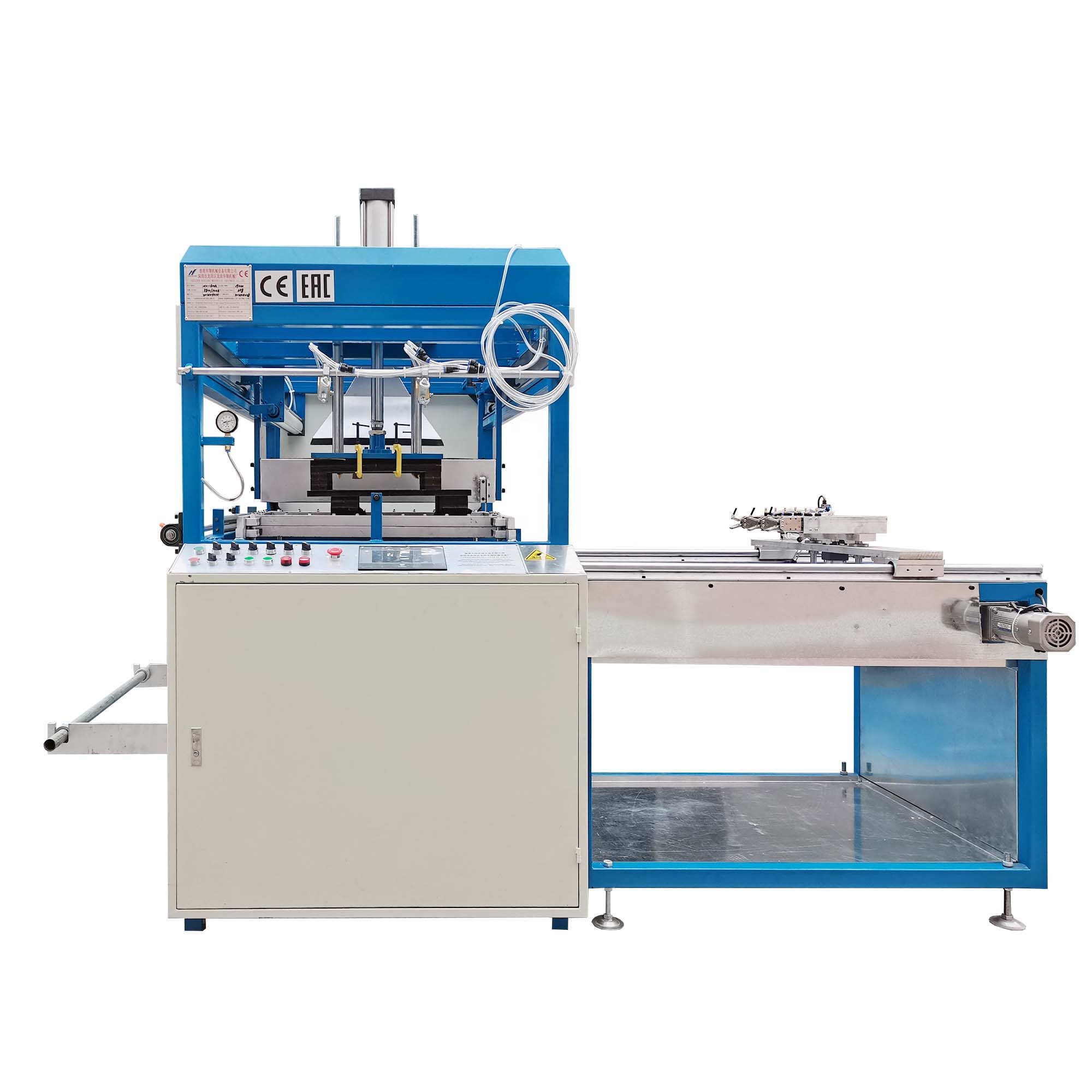

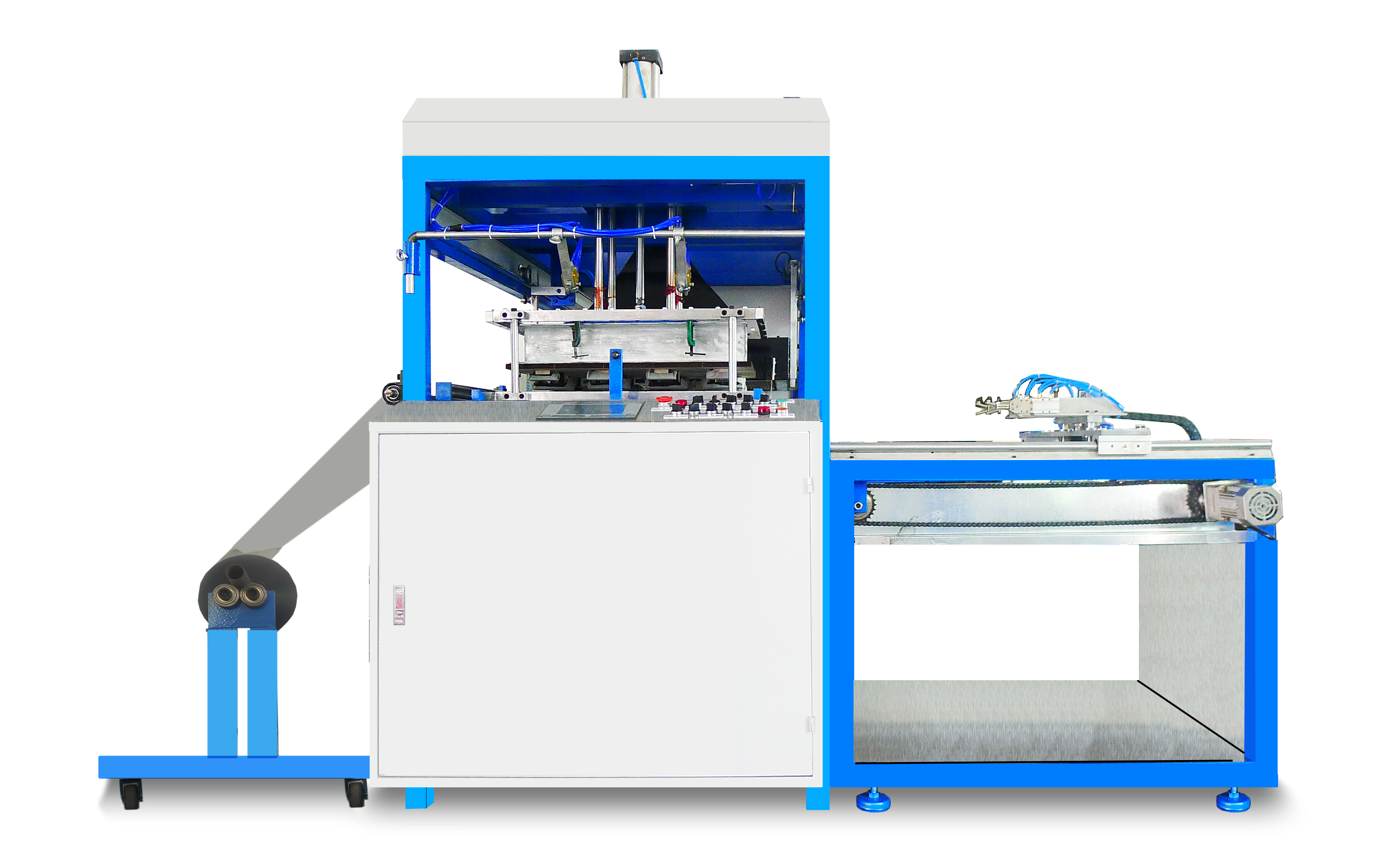

HX-600 series is user friendly machine with the power and capability to form demanding shapes and materials, Price-performance ratio for automatic production class machines. Efficient heat management, ease of use, compact and accessible price are instrumental to the internationally successful by many companies.

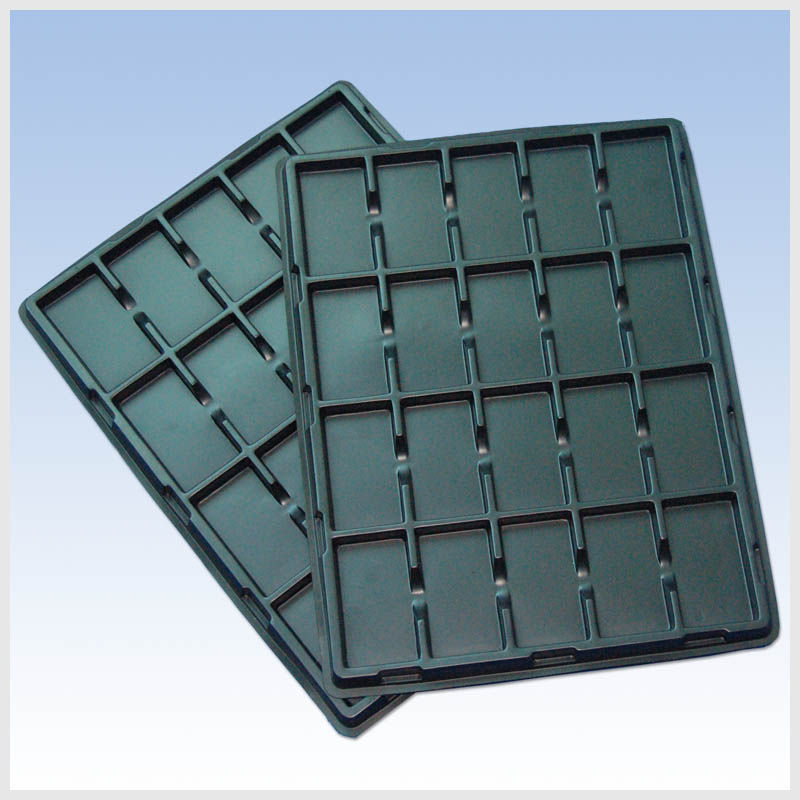

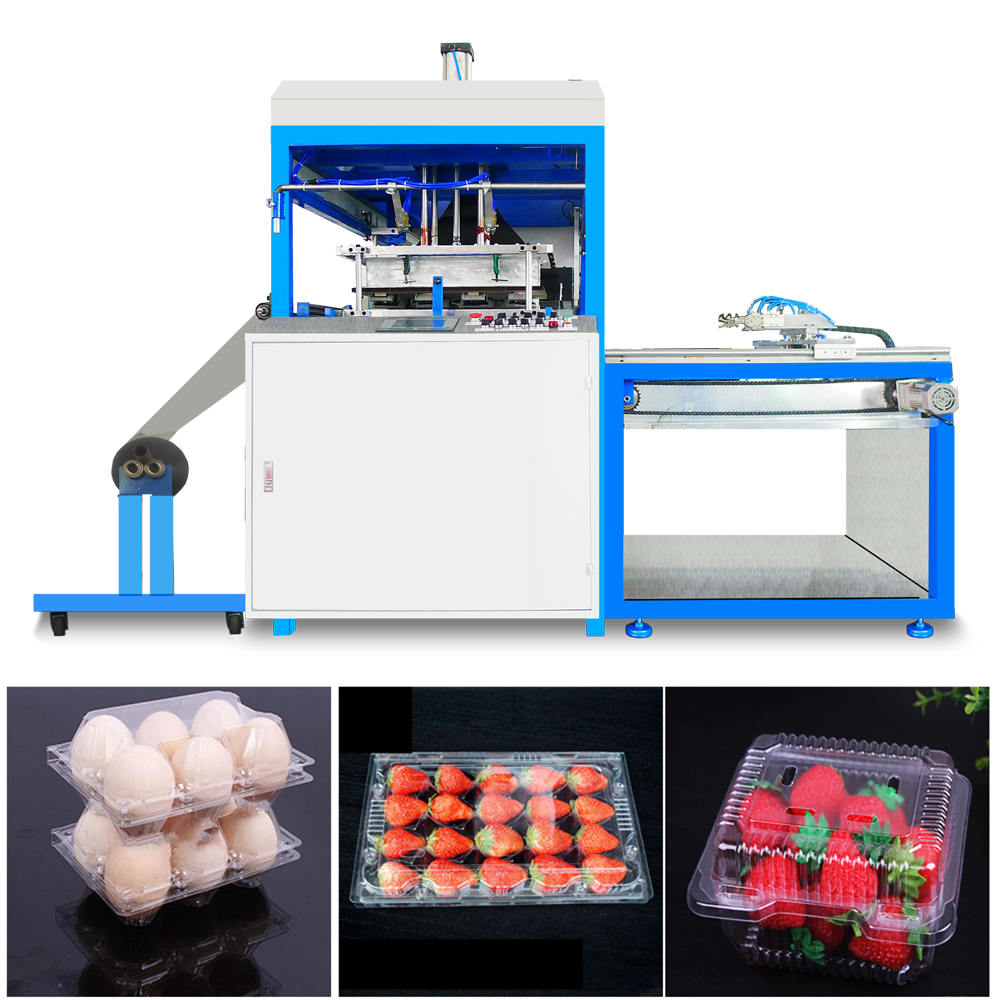

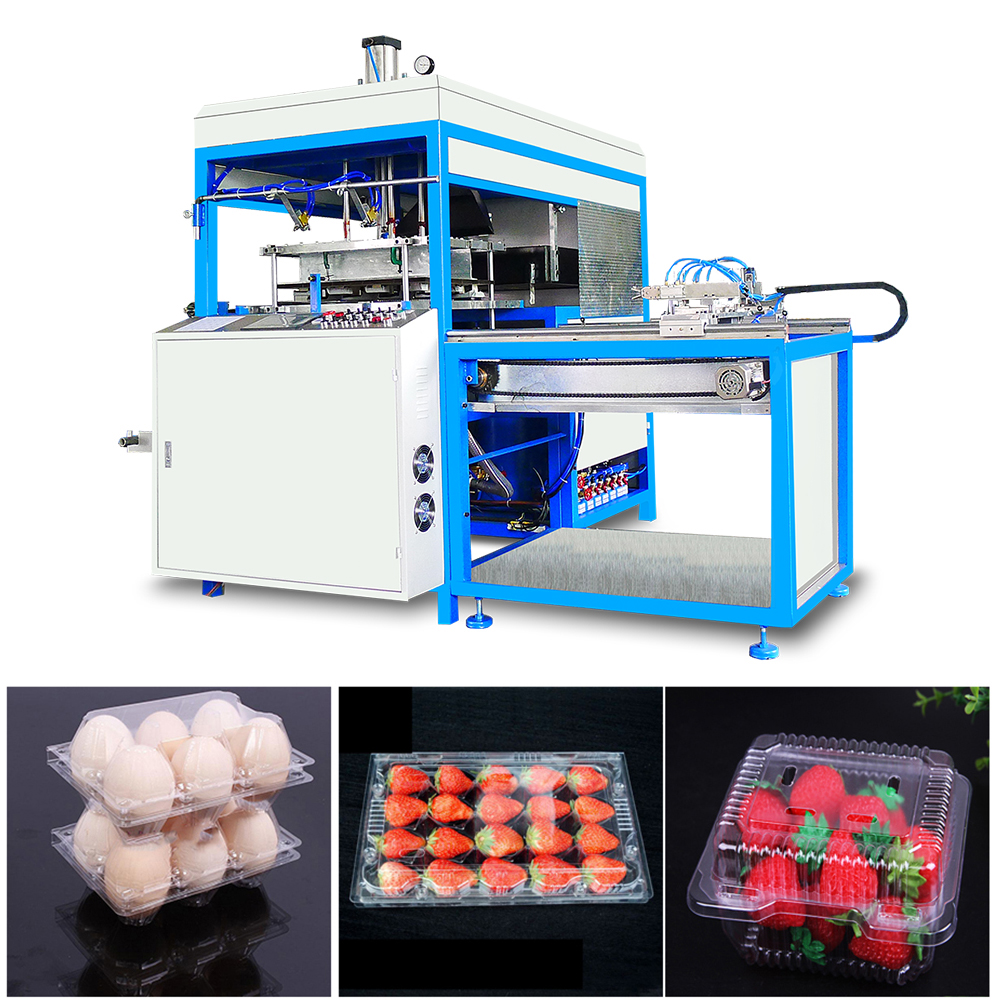

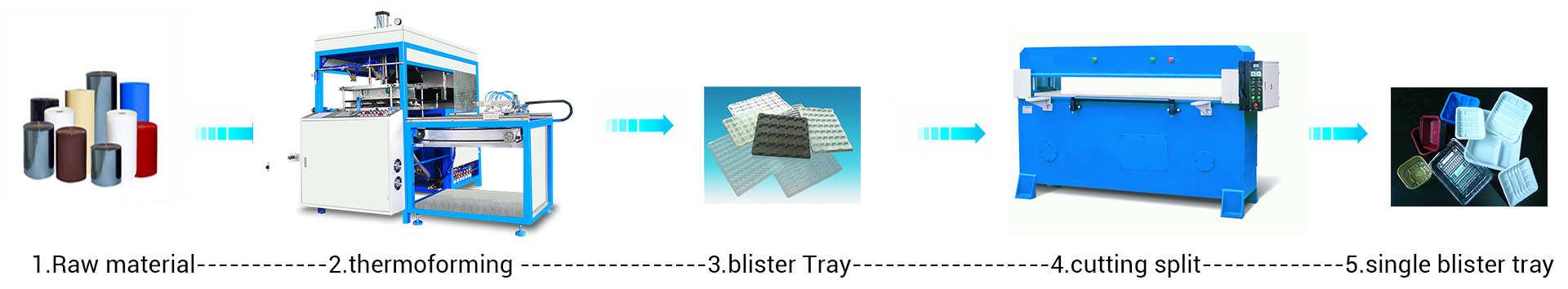

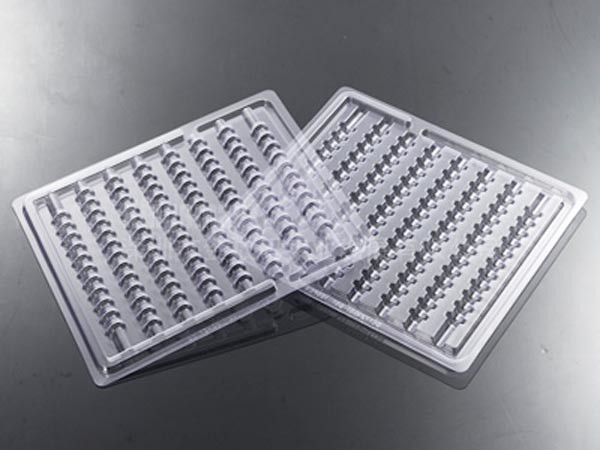

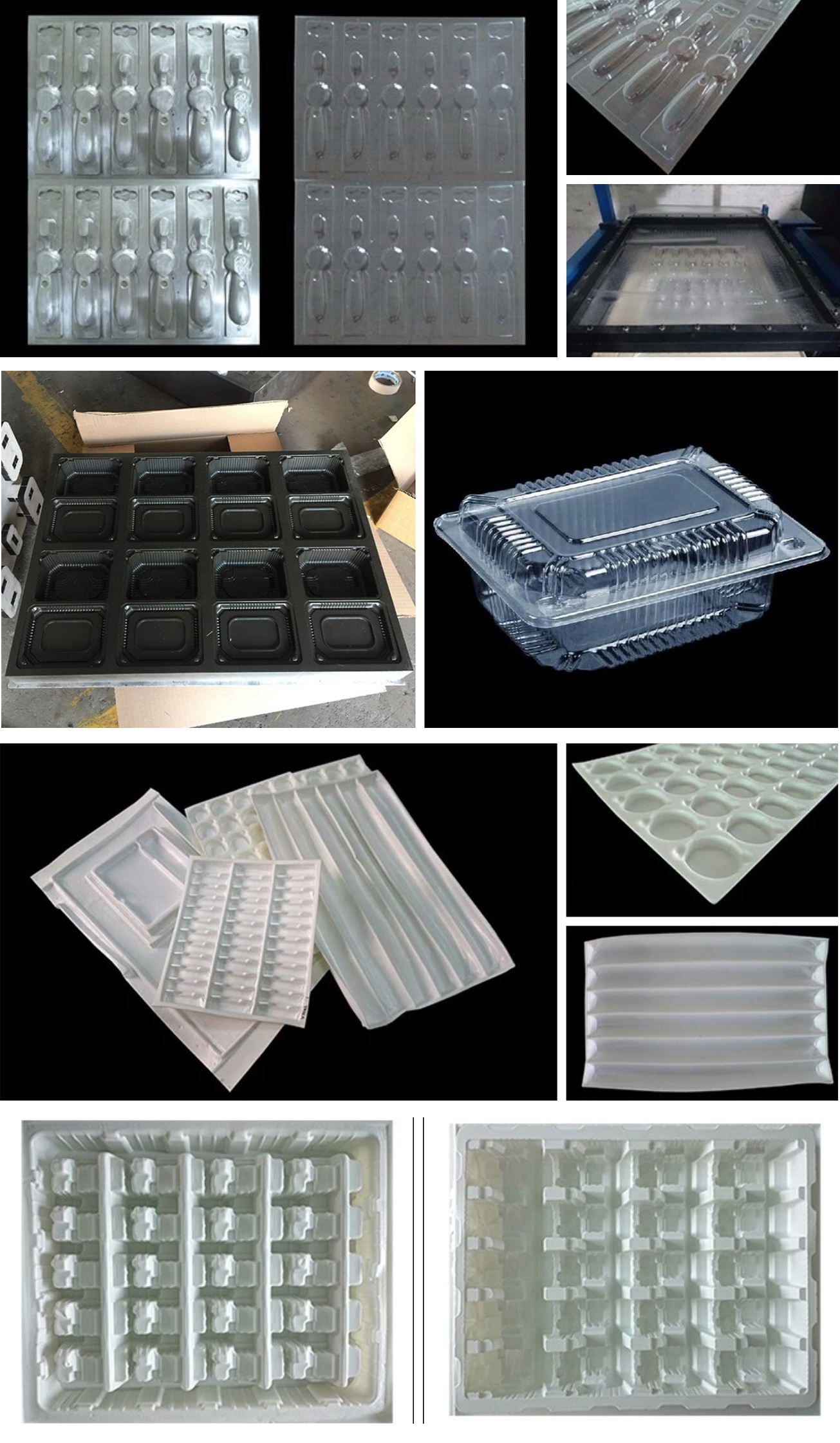

Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.
Bigger forming size, adjust mold table, more powerfully vacuum pump
Hot sales machine, Suitable various packing blister, etc production.
Economic model for power cost saving.
| Model | HX-600A | HX-600B | HX-600C |
|---|---|---|---|
| Forming Length (mm) | Max.720 | Max.610 | Max.610 |
| Forming Width (mm) | 410-560 (Adjustable) | 560 | 560 |
| Roll Material width | 460-610 (Adjustable) | 610 | 610 |
| Heater(pcs) | 30 * 650w | 25 * 650W | 25 * 600w |
| Heating Power (Kw) | 19.5Kw | 16.2Kw | 15Kw |
| Vacuum Pump(M³) | 100 | 63 | 40 |
| Cooling Fan | √ | √ | √ |
| Upper mold | √ | √ | N/A |
| Digital Temperature Control | √ | √ | N/A |
| PLC Control | √ | √ | N/A |
| Robot hand rise/fall | √ | √ | N/A |
| Mold table with cooling | √ | N/A | N/A |
| Mold table with width Adjustable | √ | N/A | N/A |
| Spray Gun(pcs) | 4 | 2 | N/A |
| Material | PET, PVC, PP, PS, ACRYLIC, ABS | ||
| Material type | Roll or Sheet, thickness: 0.1-2.0 (mm) | ||

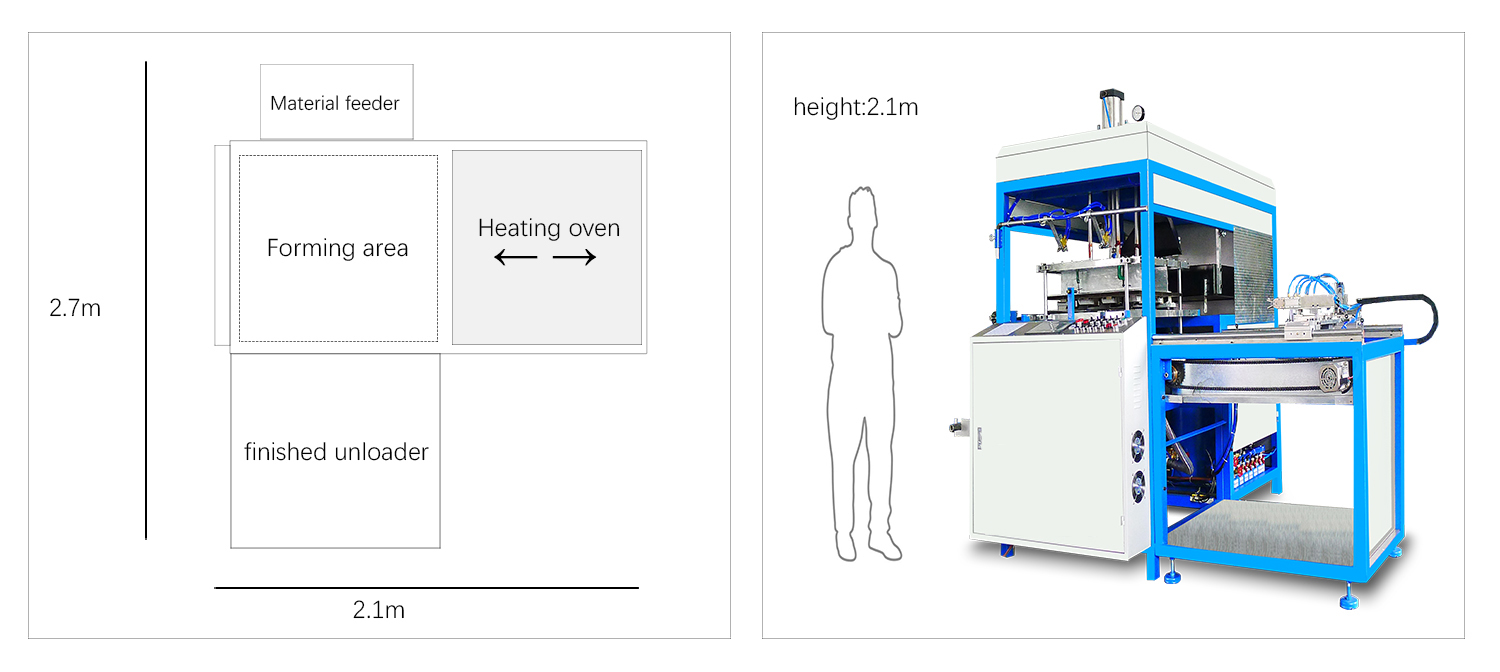

| Machine Size (meters) | L2.5×W2.1×H2.1 | L2*W1.5*H2.1 | L2*W1.5*H2.1 |
| Machine Weight(Kg) | 650 | 650 | 500 |
Brand: CHNT, OMRON
Original: Chinese, Japanese

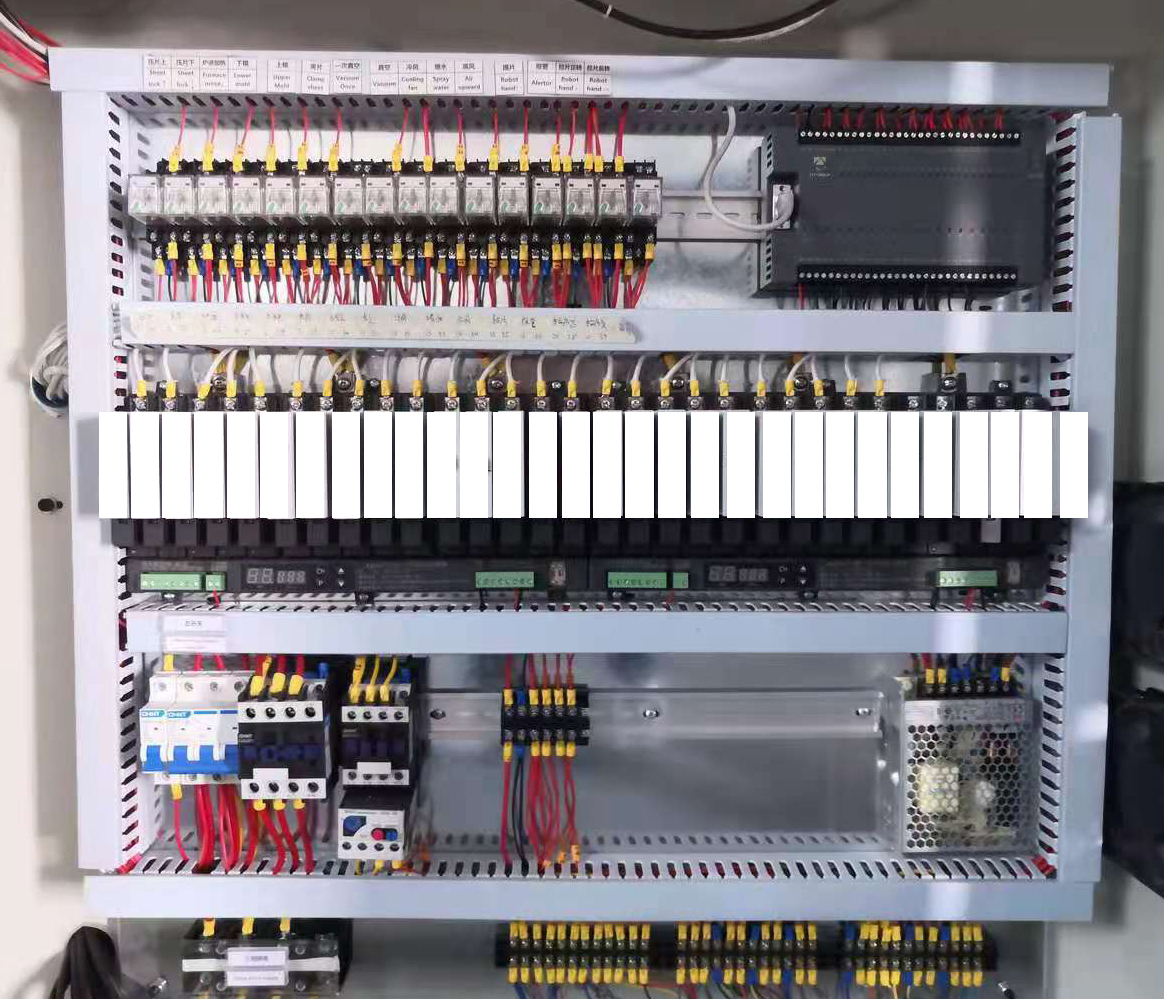

The switch, electricity meter of the meter box are set in separate area; The floor box provides a plurality of facilities, such as vacuum and electricity; High quality accessories.

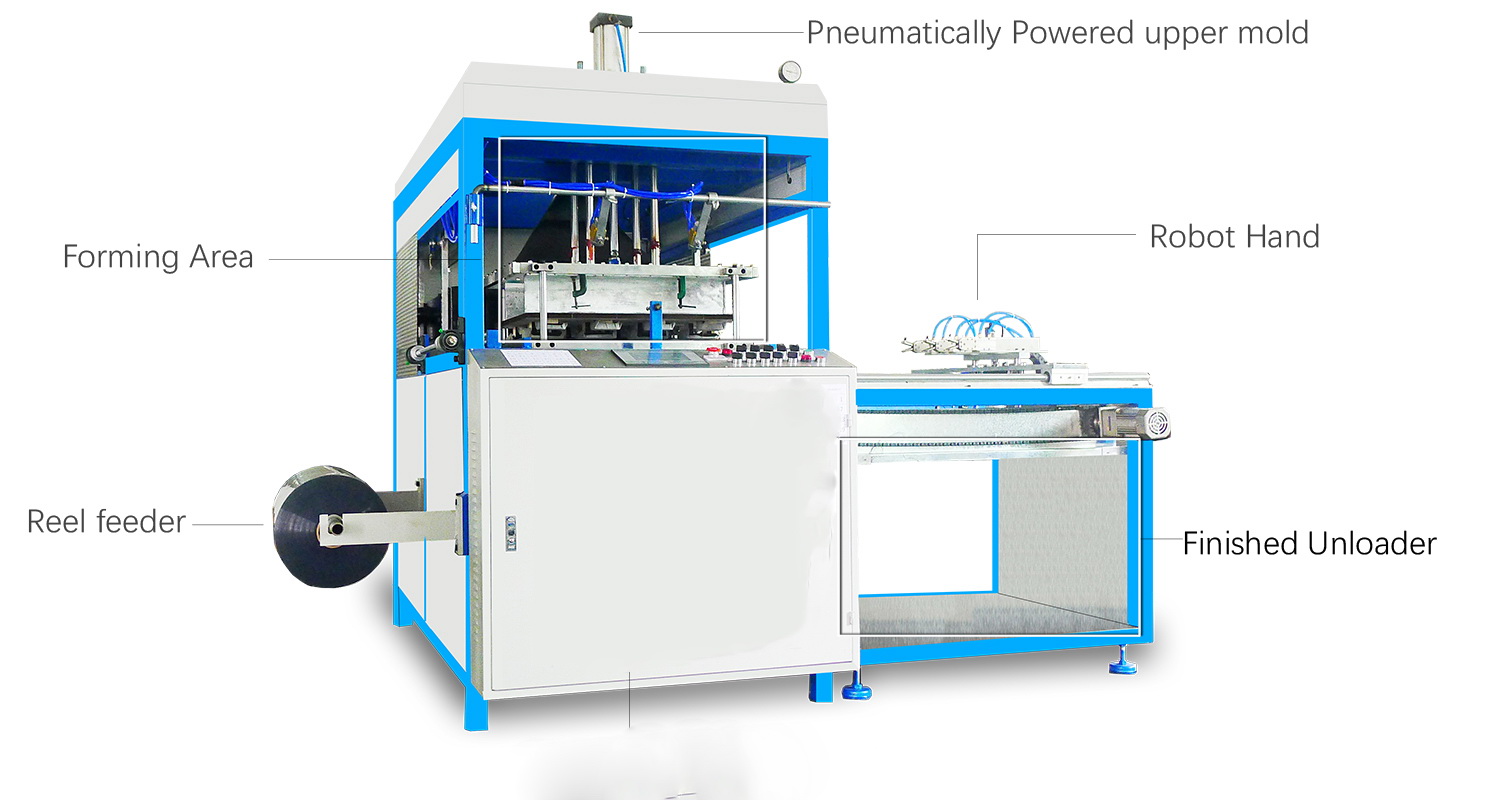

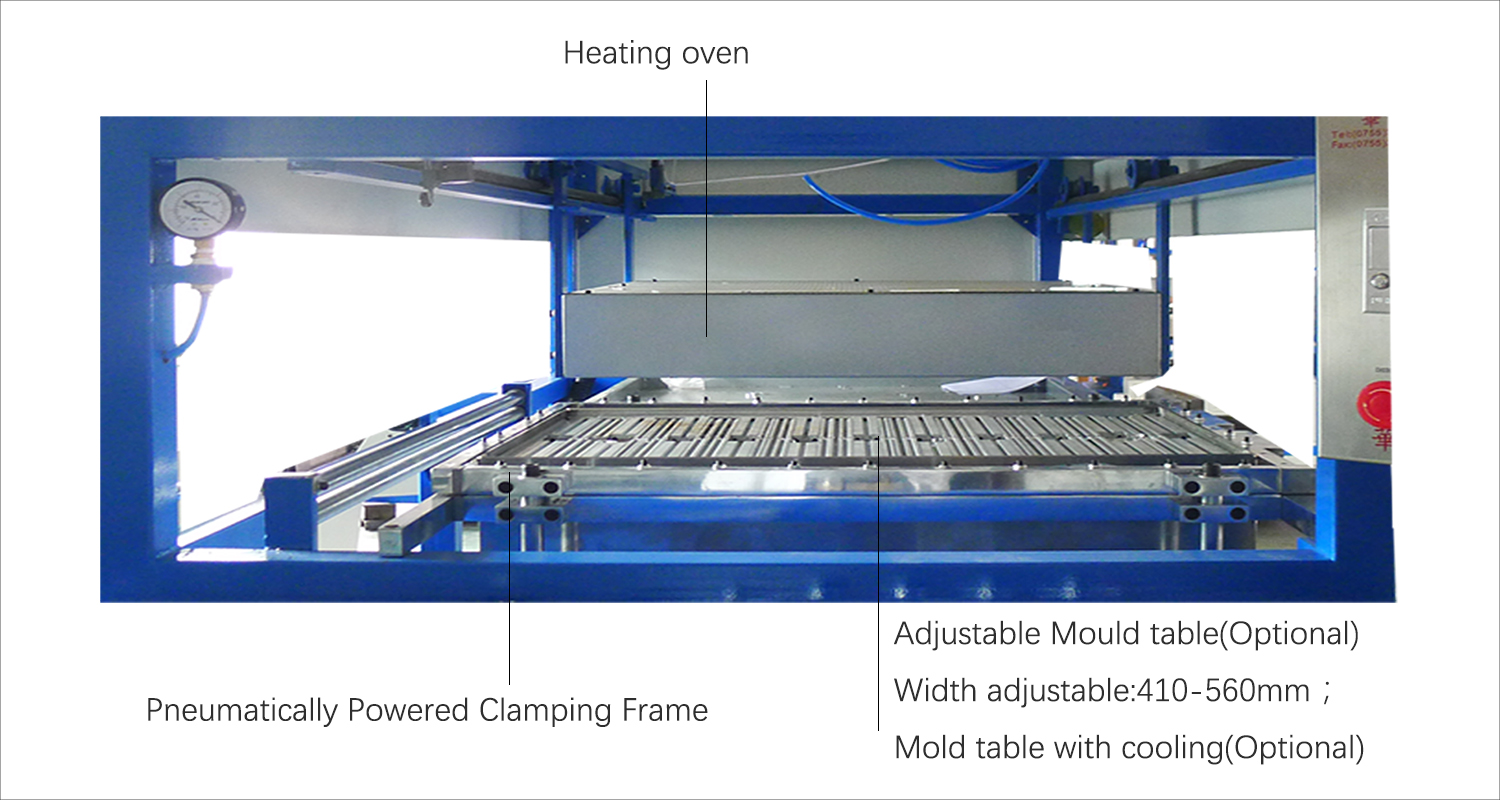

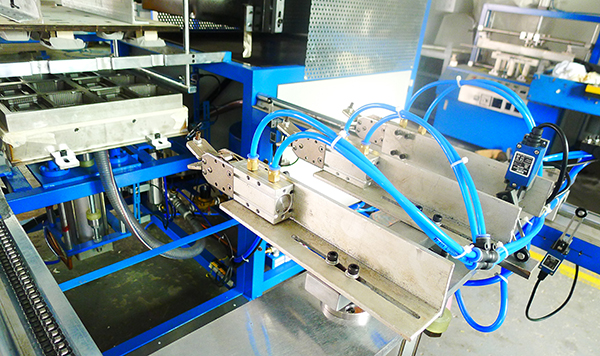

Good use for the taller products, make sure the blister tray not locked by frame; sheet clamp x3, sheet catch stable.

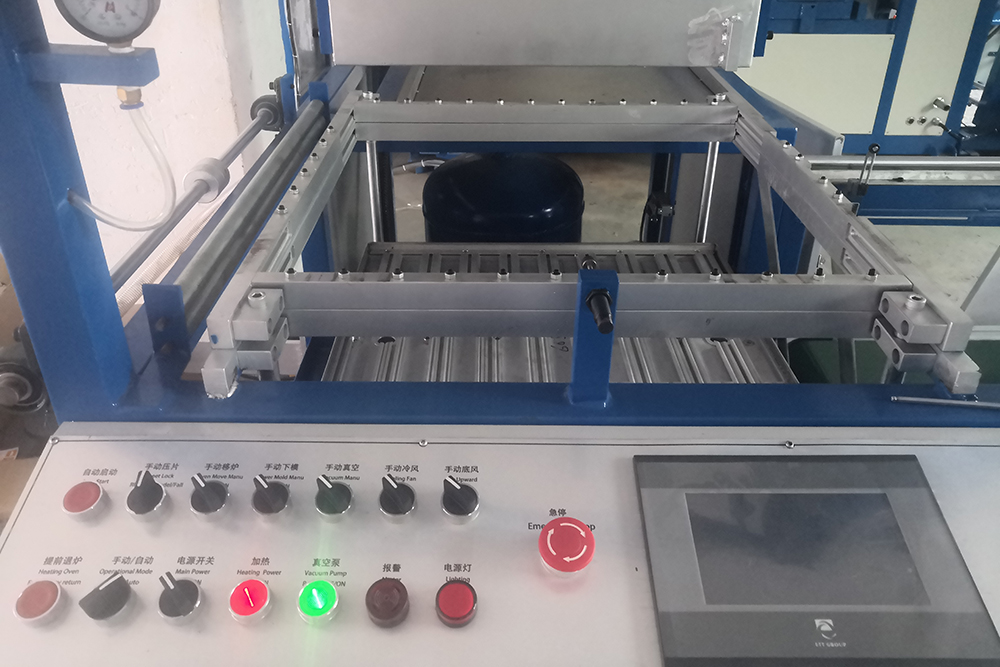

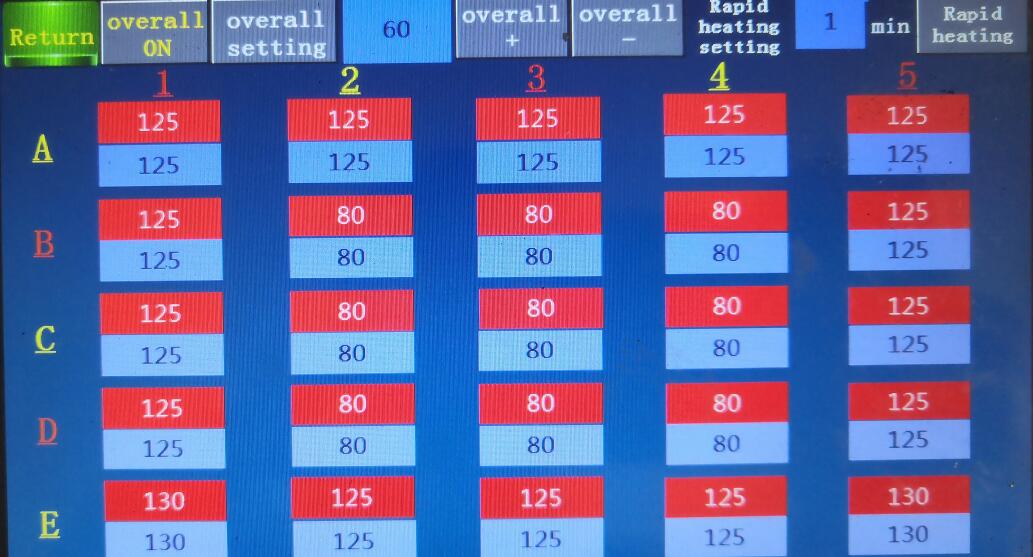

Includes two kinds of control mode such as PLC mode and press-button control.

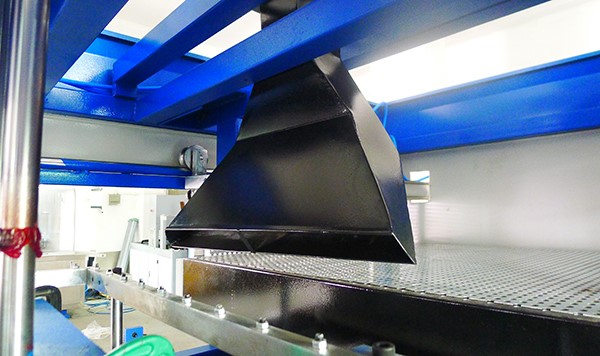

Compared with other types of engine's cooling fan-driving system, our cooling system is more reasonable.
HX-600A & B feature PLC control. HX-600C features micro control.

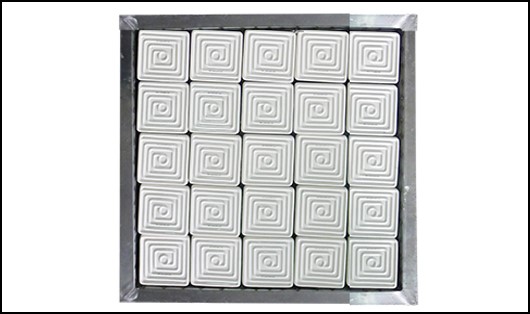

25/30 pcs Ceramic Heaters; Power: 16kw or 19Kw (every 0.6kw); Heater size: 12cm*12cm; Save 10% power compare with competitors.
Brand: Chinese Brand (Optional)
Original: Optional

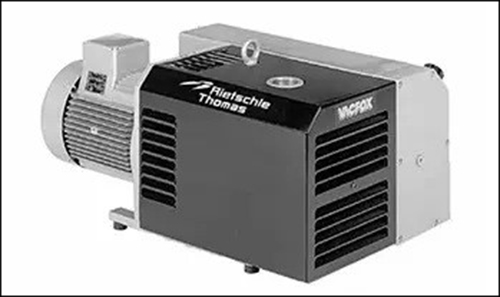

Configurations available: 100m³, 63m³, 40m³, 20m³.

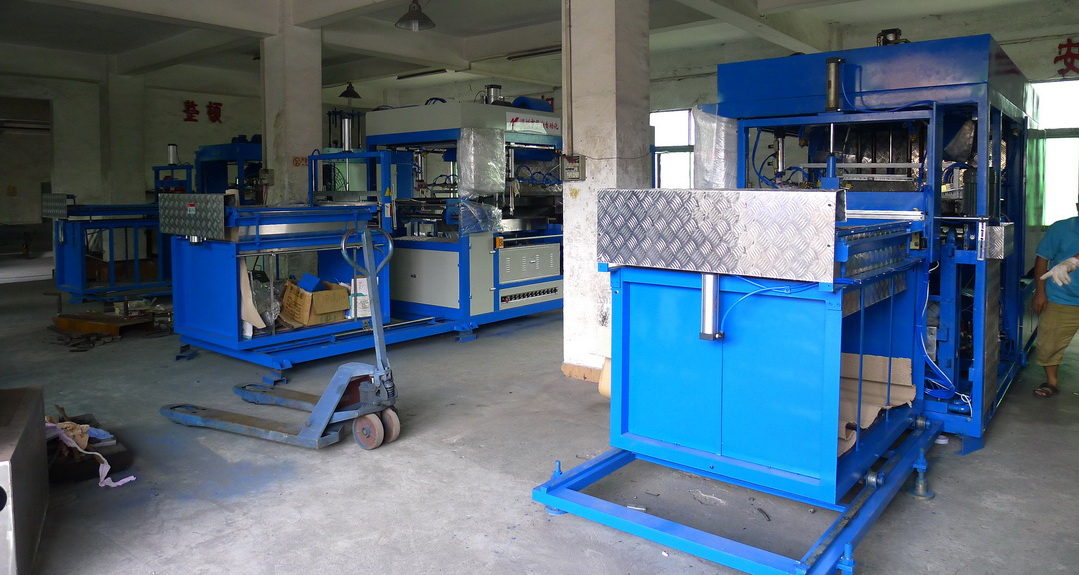

We are a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the professional enterprise that specializes in the production of Vacuum Forming/Thermoforming Machine. Our machines are used a lot in plastic forming, plastic packaging field.
Q1: What about your material?
Q2: The size of your sample: length, width and thickness?
Please note that we reserve the right to amend any details contained in this brochure where and when applicable and without notice.
