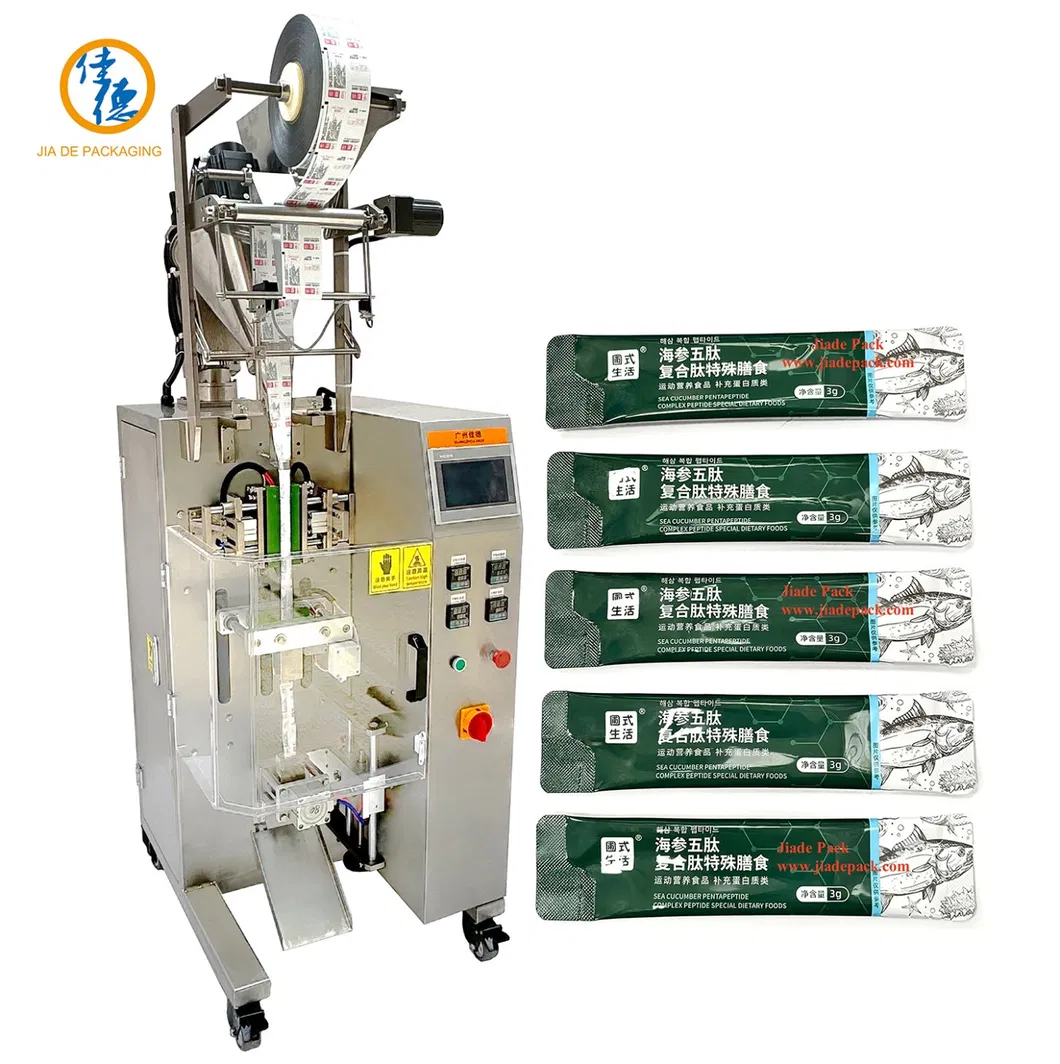

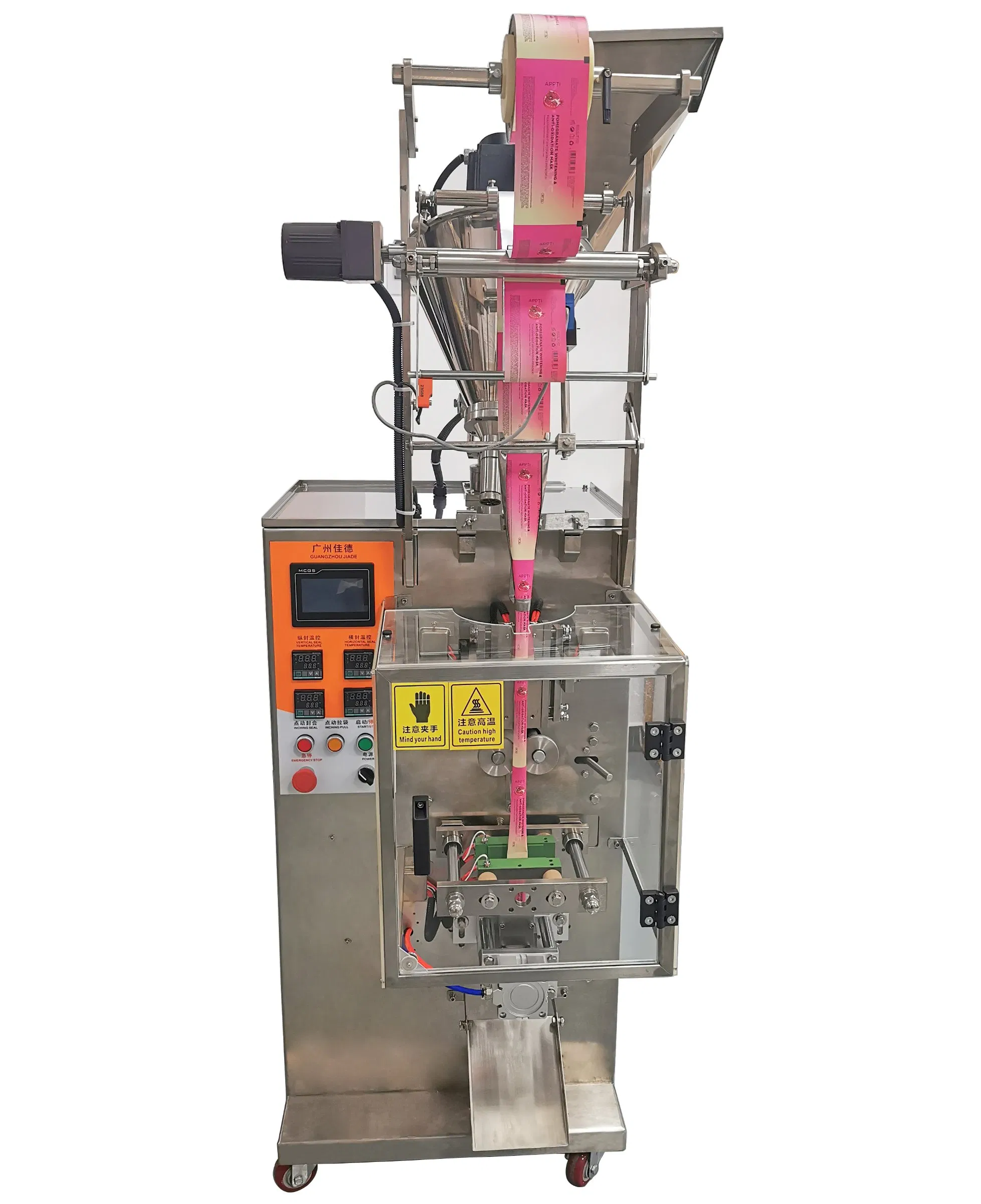

Usage: Automatic Packaging For All Kinds of Powder Materials In Foodstuff Industry, Cosmetic, Chemical Industry, and Pharmacy Industry. Suitable for milk powder, protein powder, legume powder, cosmetic powder, tea powder, medical powder, and related powder products.
Main Features: Weighs, fills, prints dates (Manufacturing Date/Expiry Date/Lot Number), makes bags, seals, cuts easy-tearing notches, cuts off, and counts automatically. The machine gives a signal and stops automatically once the preset quantity is reached.
| Parameter | Technical Specifications |
|---|---|
| Model-Type | JD-BF50-RL |
| Dimension of Machine | (L)700 * (W)850 * (H)1820 mm |
| Weight | Net: 200KG; Gross: 280KG |
| Machine Material | Food Grade Stainless Steel 304 |
| Filling System | High Accuracy Auger Filler |
| PLC Control System | Imported Fatek PLC Control System |
| Color Touch Screen | MCGS Color Touch Screen |
| Weight Measuring Range | Auger filling range customized based on your filling weight (e.g., 0.5-3g, 3-10g, 10-25g, 10-30g, 20-50g, 50-100g) |
| Accuracy | ±0.5 - 1% |
| Sealing Type | Hot Seals |
| Bag Size | (W)25-100 mm ; (L)40-180 mm |

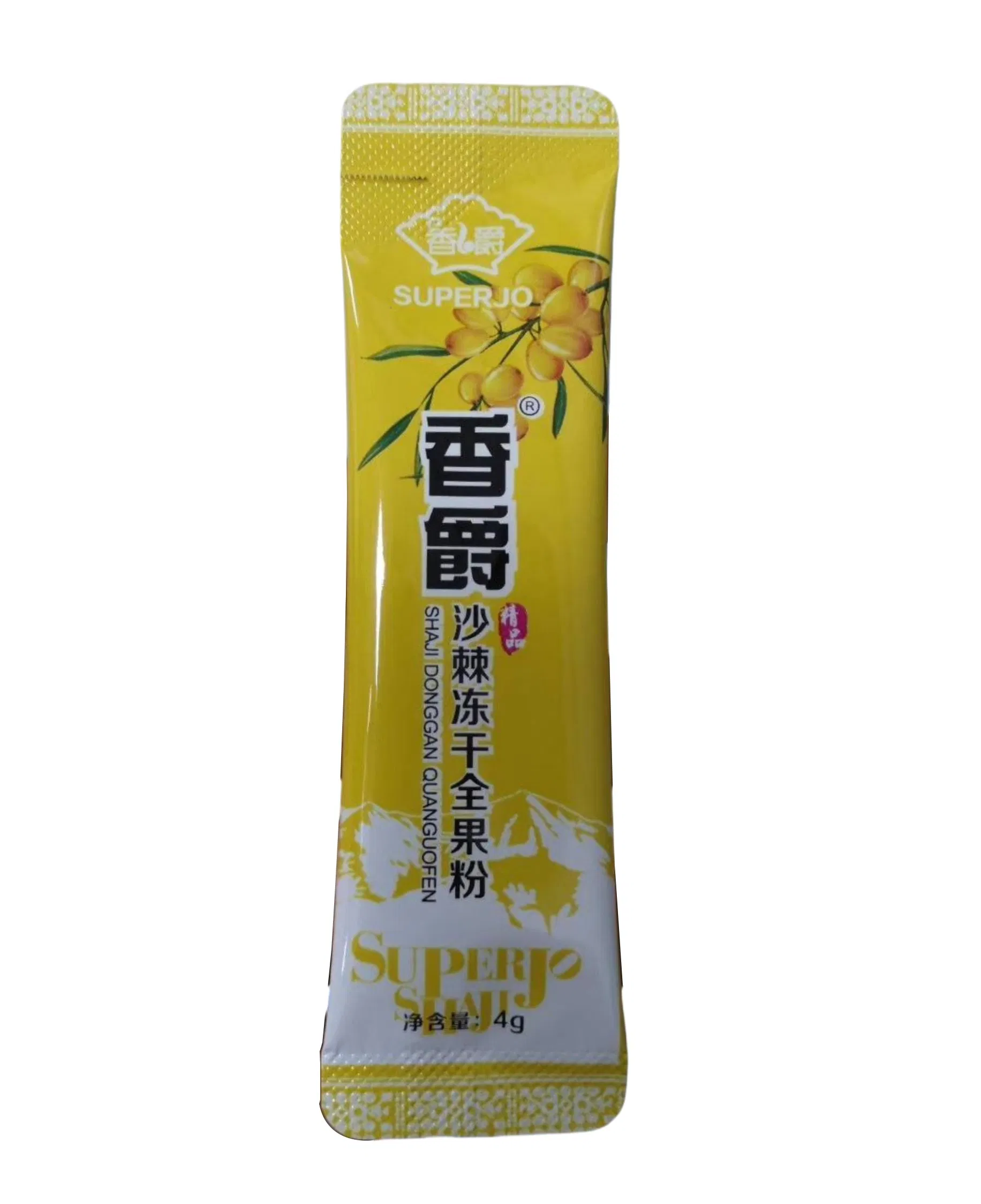

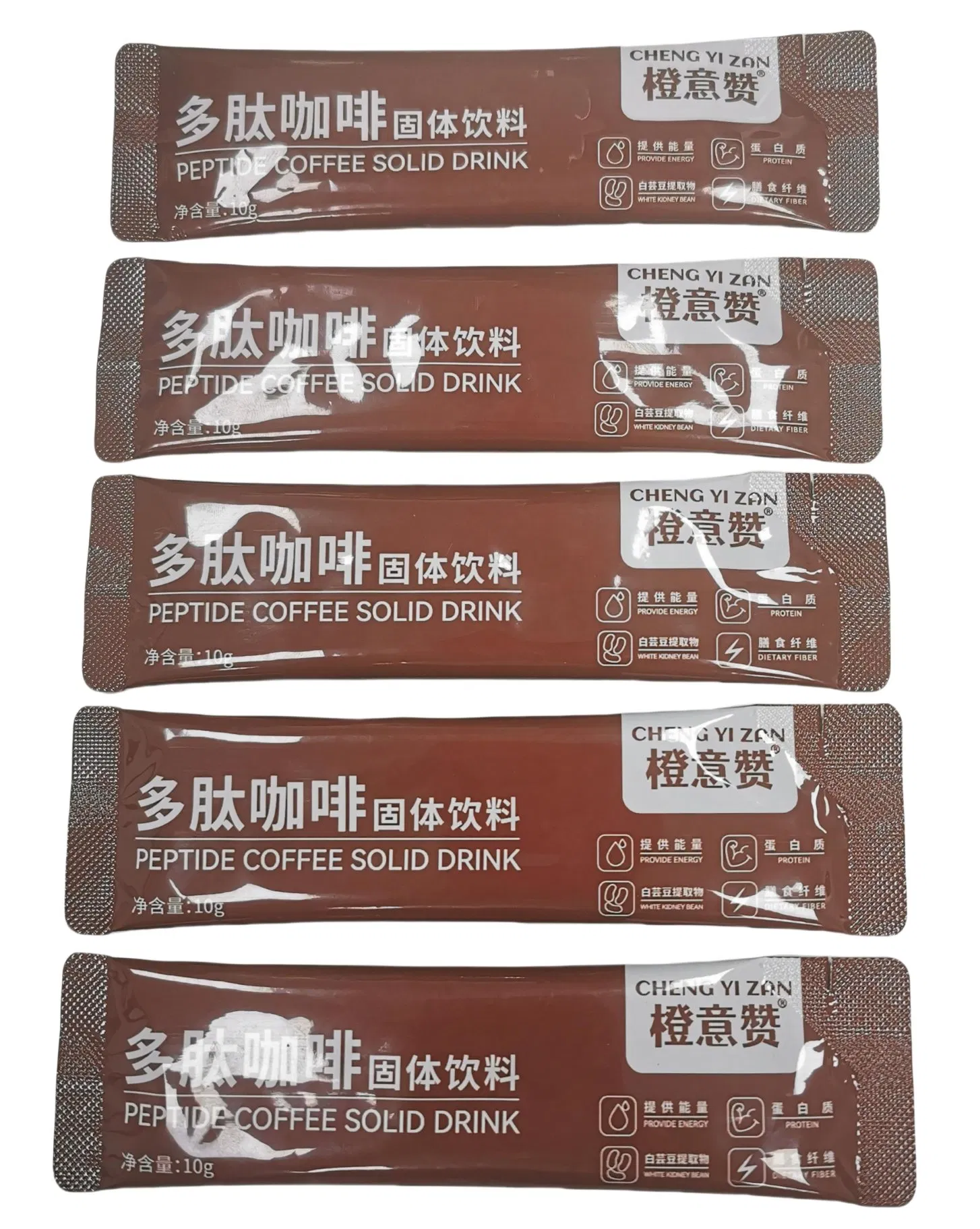

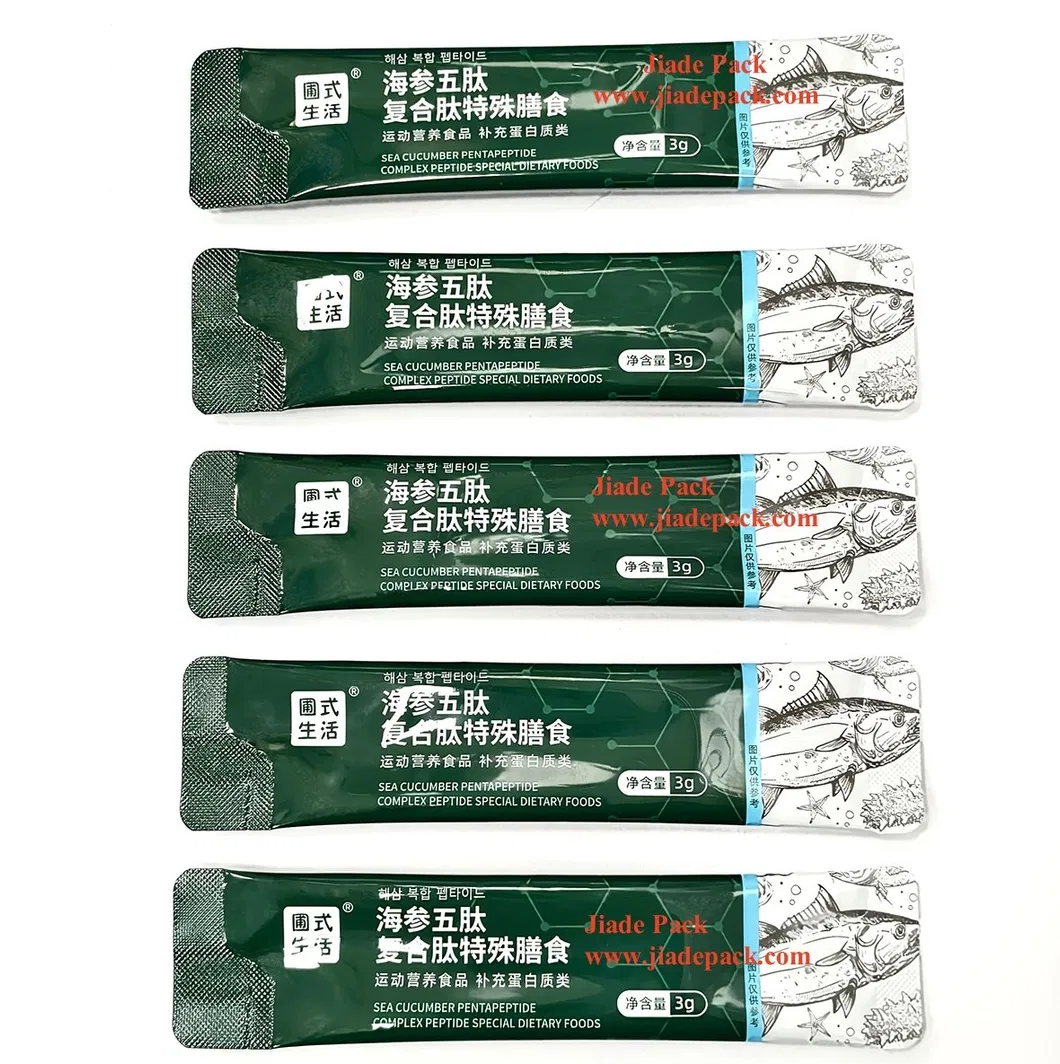

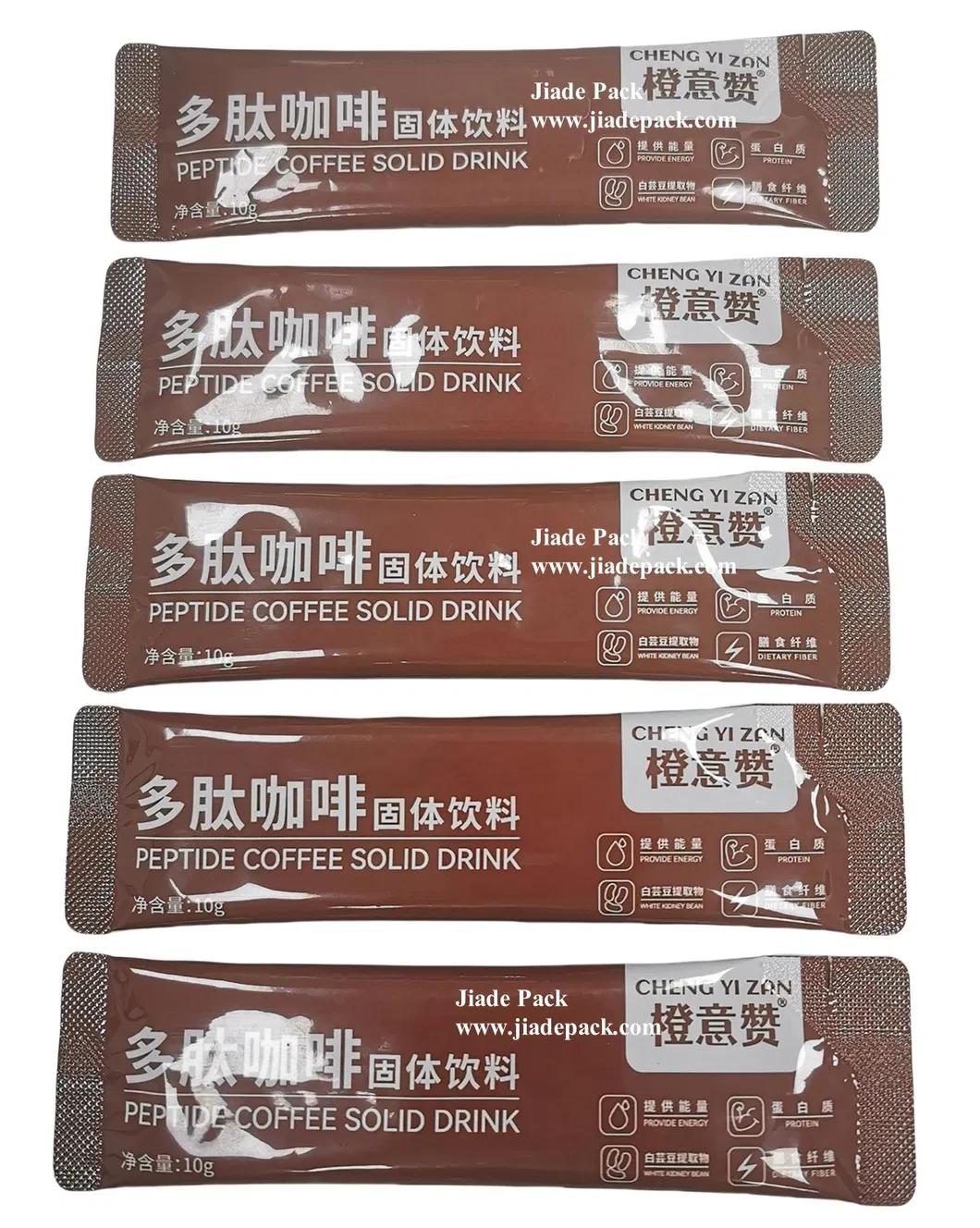

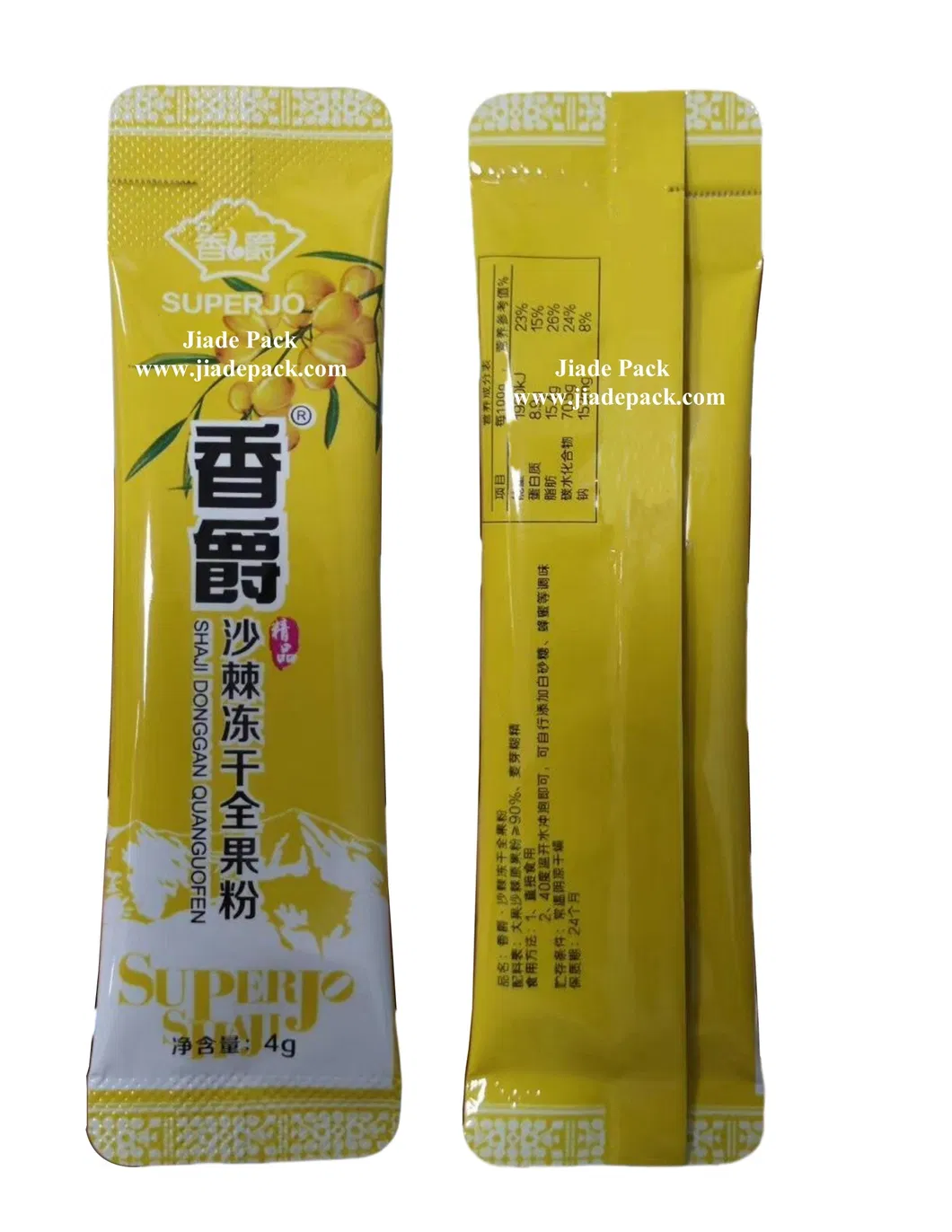

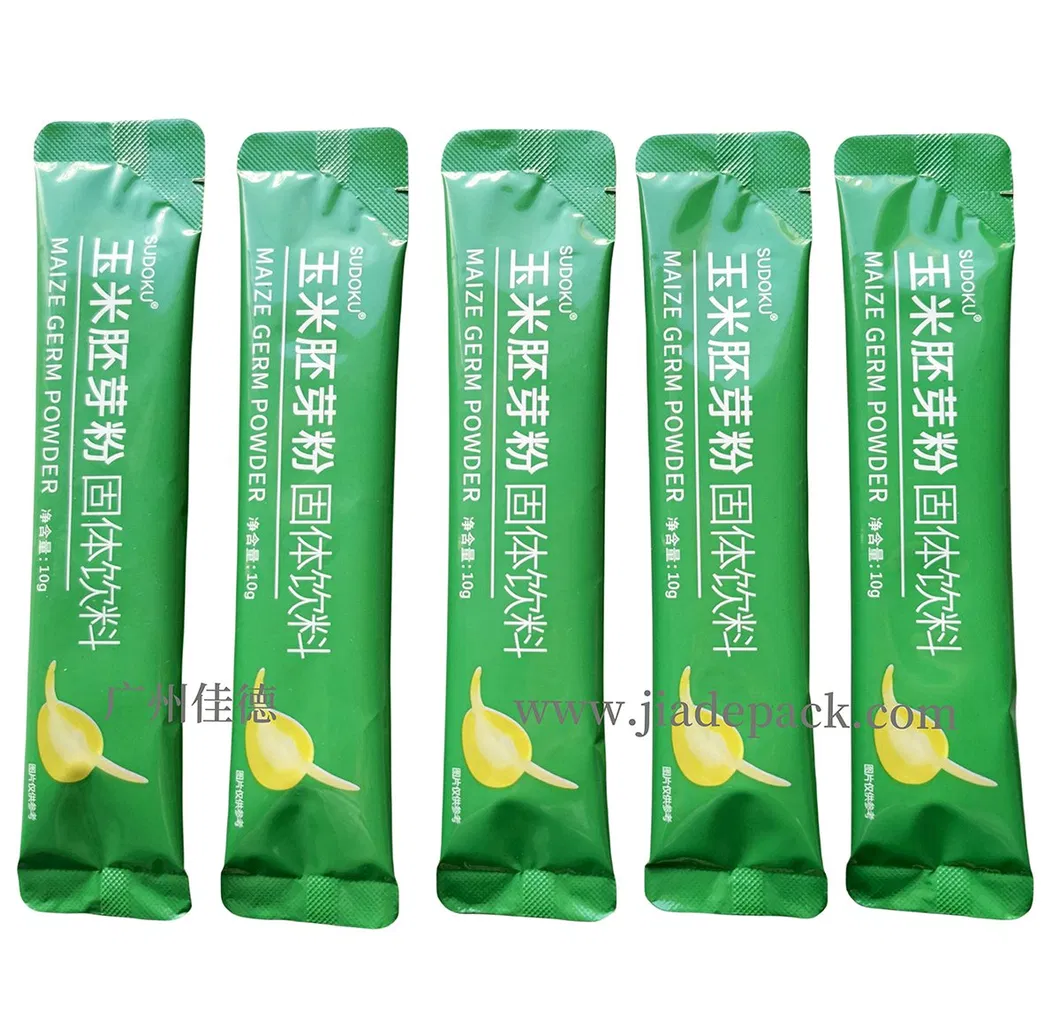

| Bag Type | Back Side Sealing Rounded Edge With Easy-Tear Notch |
| Max. Roll Film Width | 220mm |
| Notch Type | Round Corner With Easy-Tear Notch |
| Capacity (Bags Per Minute) | 30-70 Bags/Minute (Depends on filling weight, volume, bag size, and material nature) |
| Output (Bags Per Hour) | 1800-3000 Bags/Hour |
| Power Supply & Voltage | 1.1 KW |
| Temperature Controller | 105-145 Celsius Degree (Sealing Temperature) |
| Driving Way | Pneumatic + Electric |
| Air Consumption | 0.6Mpa, 0.25CBM/min |
| Main Feature | Automatic weighing, filling, date printing (with optional printer), forming bags, sealing, easy-tear notch cutting, cutting off, and automatic shutdown upon reaching preset count. |

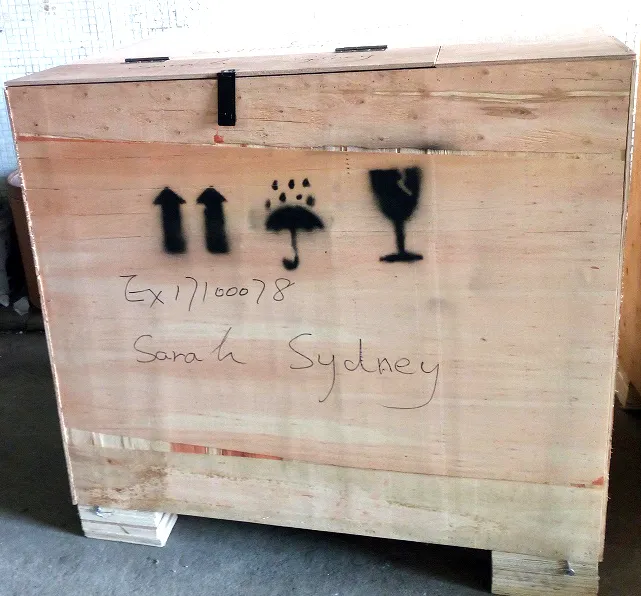

By Air Package

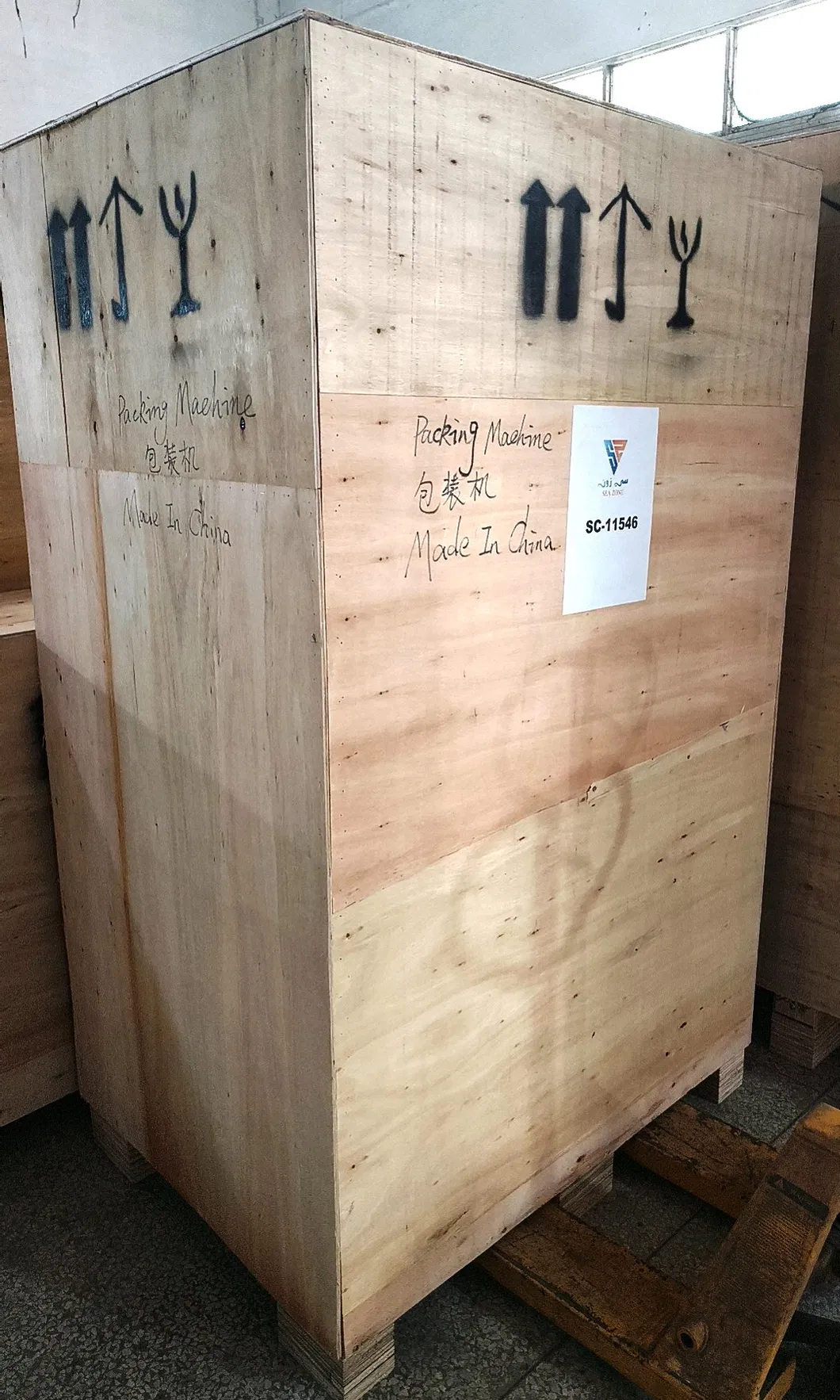

By Sea Shipping Package

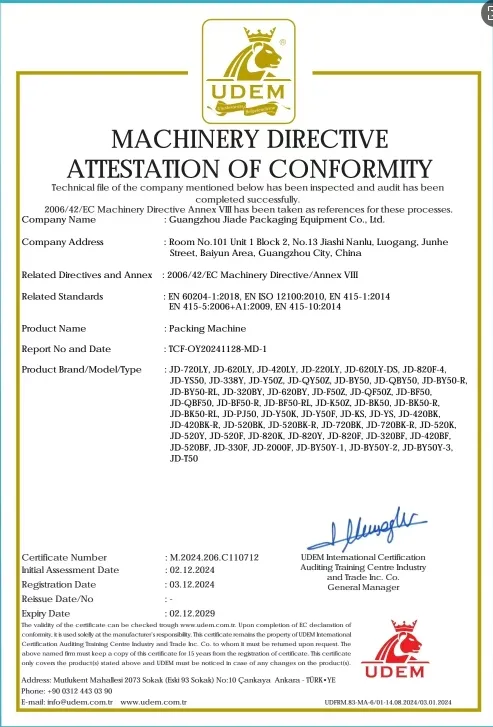

CE Certificate
Q1. How do I choose the most suitable packing machine?
A: It depends on the products you wish to package, the weight of the package, and your preferred bag type and sizing.
Q2. What is the Minimum Order Quantity (MOQ)?
A: The MOQ is 1 set.
Q3. Is the machine easy to operate?
A: Yes. Every machine is fully adjusted before shipping. We also provide an operation manual and video guide to assist you in operating the machine easily.
Q4. What is your payment term?
A: Our standard payment terms are a 50% deposit, with the remaining balance paid before delivery.
Q5. What transportation options are available?
A: Shipping is available by air, sea, or rail. If this is your first time importing and you require assistance, simply share your delivery address and we will calculate the freight options for your reference.
Q6. How are parts repaired or replaced if they break down?
A: We provide targeted repair videos and will send new replacement parts (free within the warranty period). For specialized queries, we provide technical assistance remotely or can dispatch overseas engineer services if required.
