| Machine model | MF-350 | MF-240 |
|---|---|---|

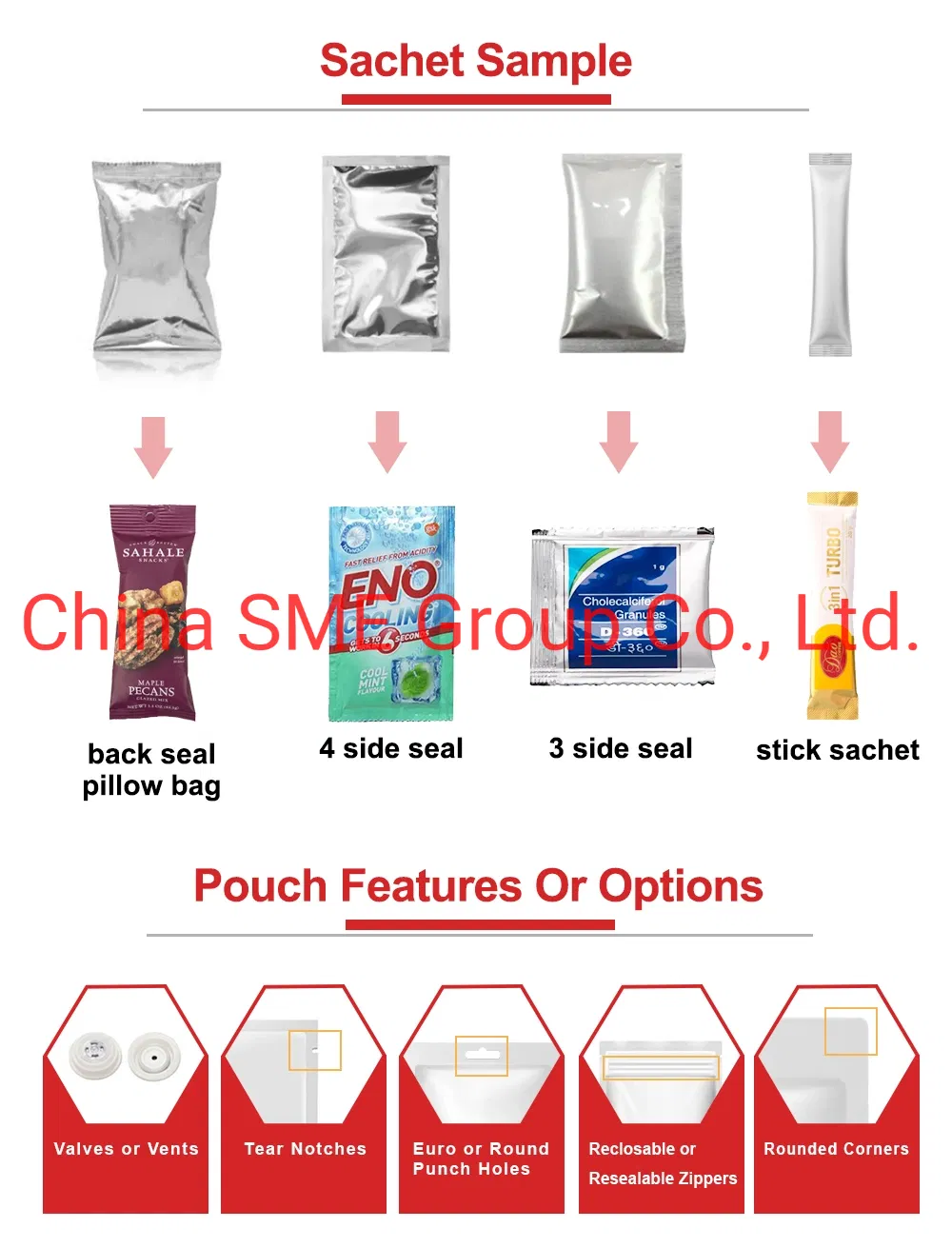

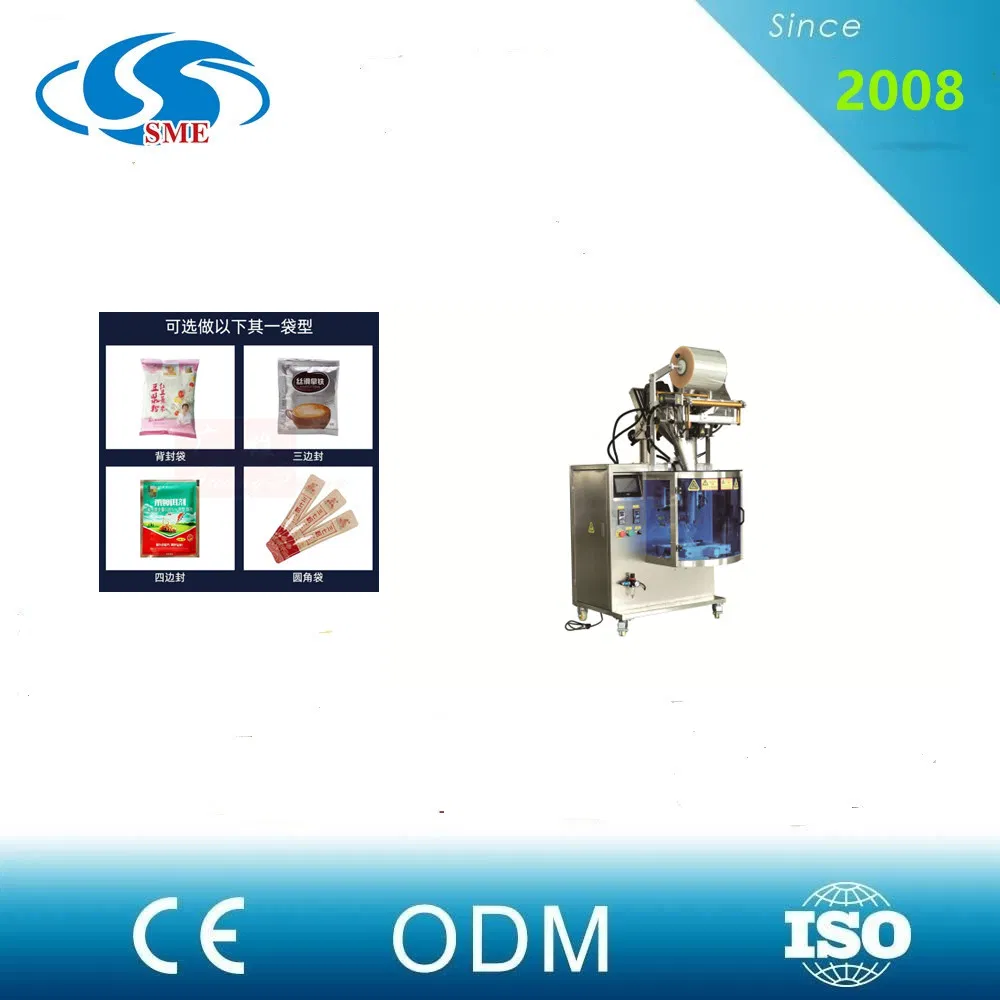

| Bag shape | Pillow bag / Stick sachet / Back Sealing / Edge sealing / 3 side sealing / 4 side sealing | |
| Packing speed | 20-60 bags/min | 125-70 bags/min |
| Packing capacity | 10-500g/bag | 5-100g/bag |
| Roll thickness | 0.04-0.08mm | |
| Roll diameter | Max: 300mm | |
| Roll width | 50-350mm | 50-240mm |
| Bag width | 15-163mm | 25-120mm |
| Bag length | 40-220mm | 40-200mm |
| Power Specification | 220V/50HZ/1.8KW | 220V/50HZ/1.2KW |
| Gusset device | Nitrogen charging device |
| Chain bag | Vibrating device |
| Punching device | Sealing device |
| Exhaust/Inflatable devices | Easy tear device |
| PE film sealing | Bag support device |
| Anti-Static electricity | Evacuating device |
| Horizontal seal cooling blowing device | Film rectify deviation adjust device |
| No. | Control Part | Brand |
|---|---|---|
| 1 | Display Screen | XINJE |
| 2 | PLC | XINJE |
| 3 | Stepping motor | LICHUAN ELECTRICAL |
| 4 | Temperature Control List | Yatai |
| 5 | Photocell | OETAI |

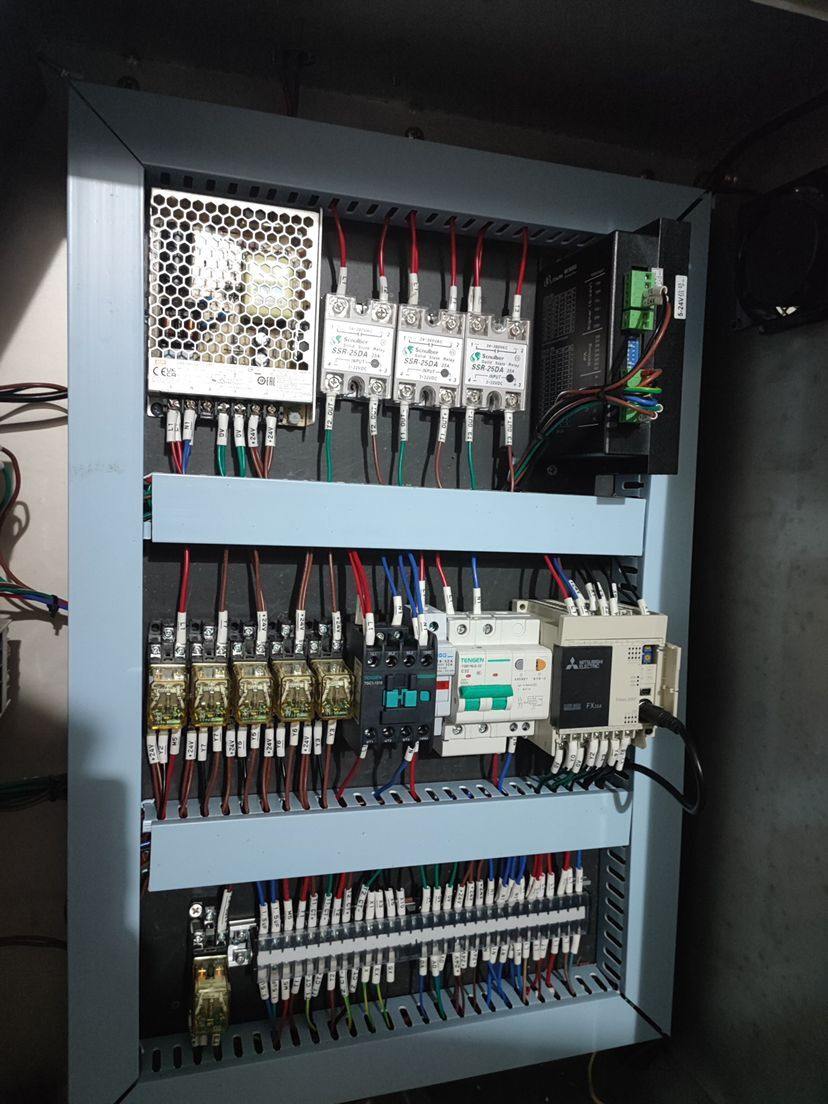

| Electrical Part | ||
| 1 | Intermediate Relay | Omron |
| 2 | Solid State Relay | PEKEELEC |
| 3 | Film-drawing Motor | Teco |
| 4 | Stepper driver | LICHUAN ELECTRICAL |
| 5 | AC contactor | CHNT |
| 6 | Fuse | ZHENGRONG |
| 7 | Thermocouple | Keyang |
| Power Part | ||
| 1 | Approach switch | CNTD |
| 2 | Emergency stop button | Schneider |
| 3 | Power (3.6A) | Ming Wei |
| Wiring & Printing Parts | ||
| 1 | Aviation plugs | WEIPU |
| 1 | Date coder | Nanyun |
| Pneumatic Parts | ||
| 1 | Cylinder | AirTAC |

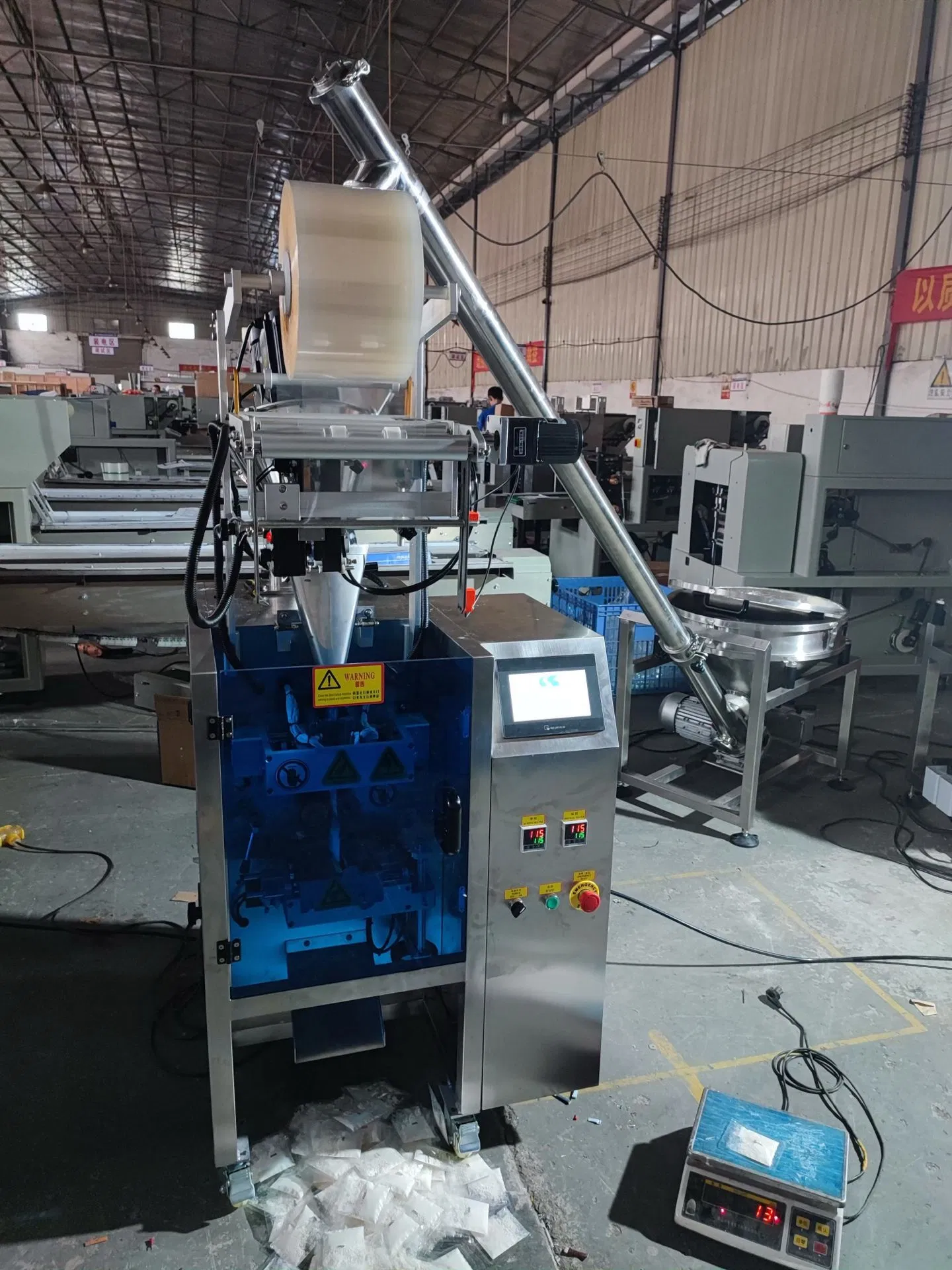

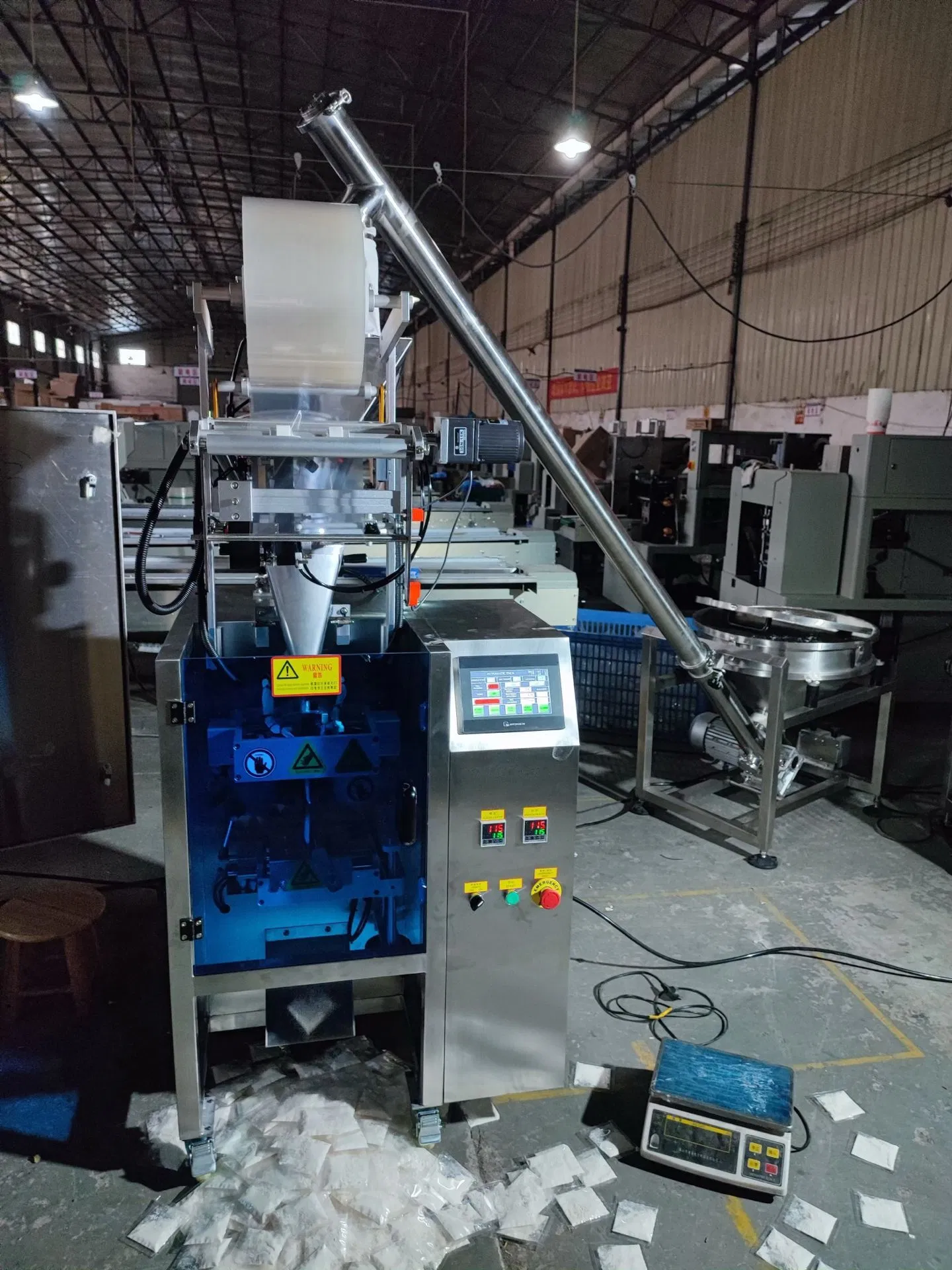

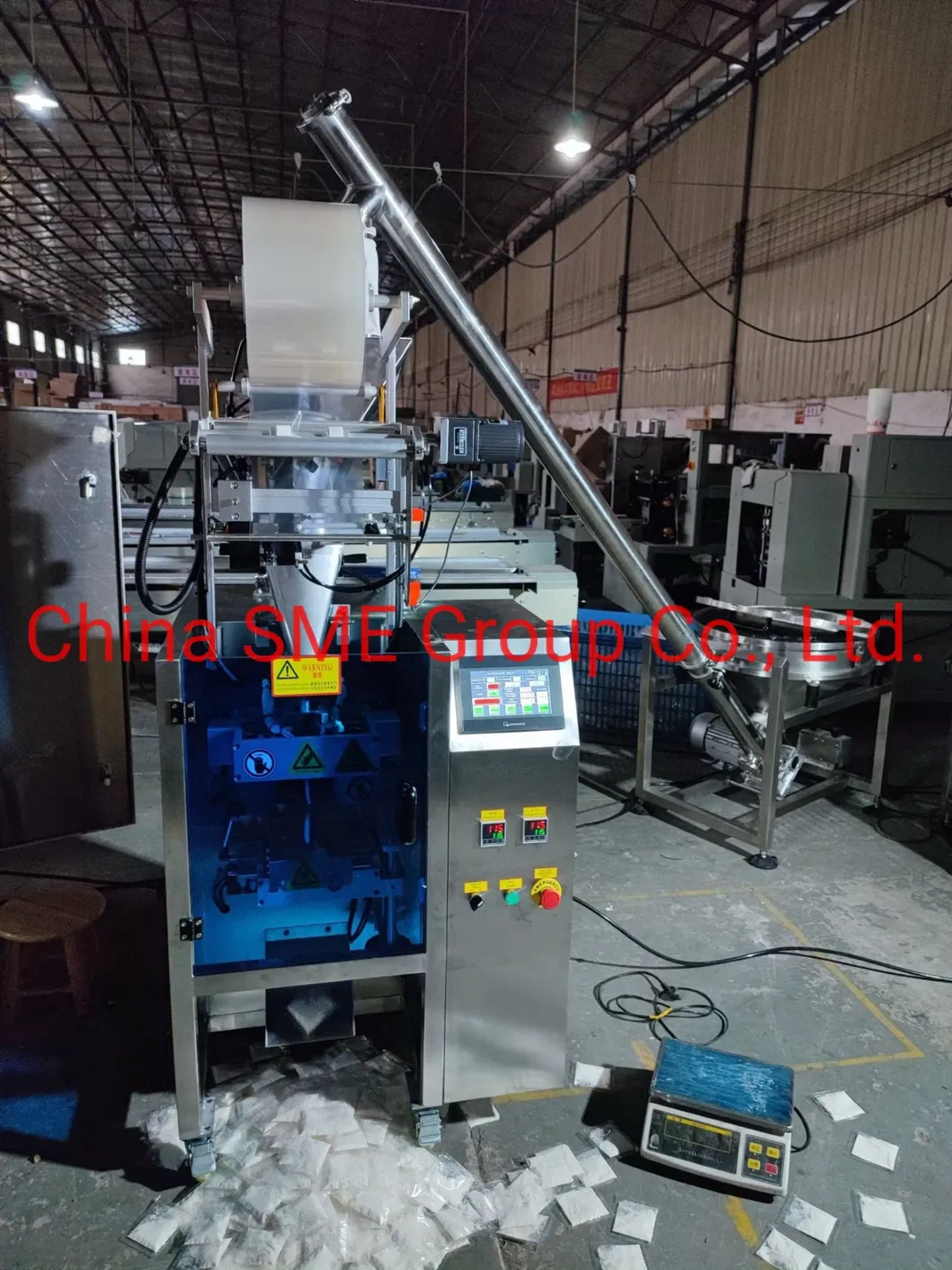

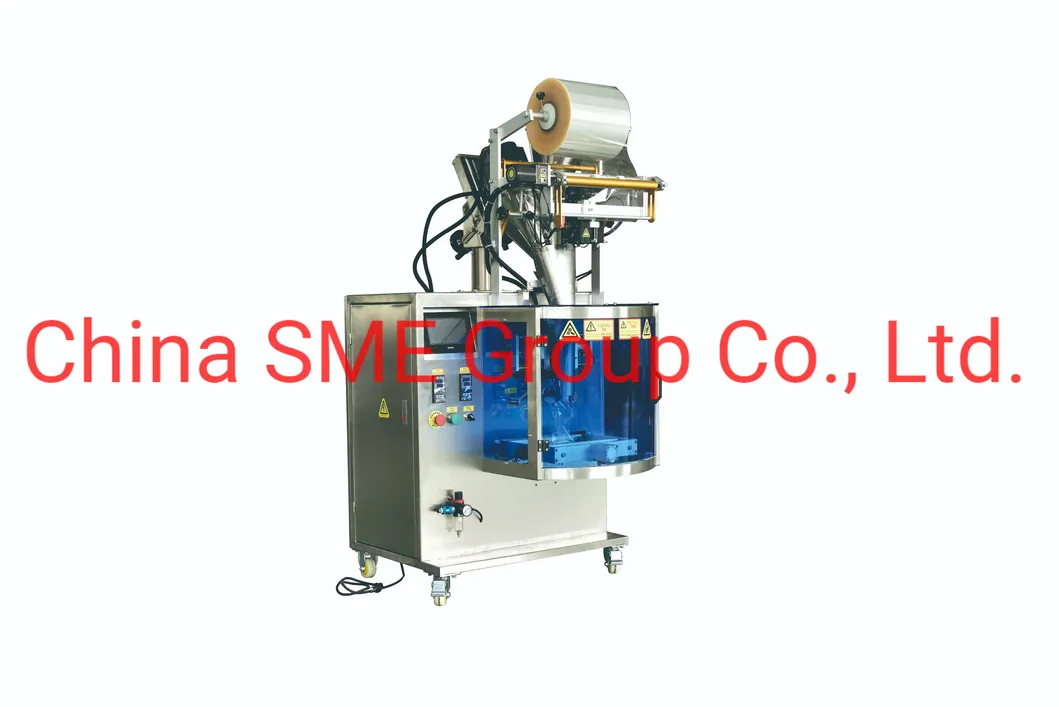

Suitable for non-stick materials, such as liquid powder, bean powder, flour, pepper powder, feed powder, milk powder, coffee powder and other powder materials packaging.

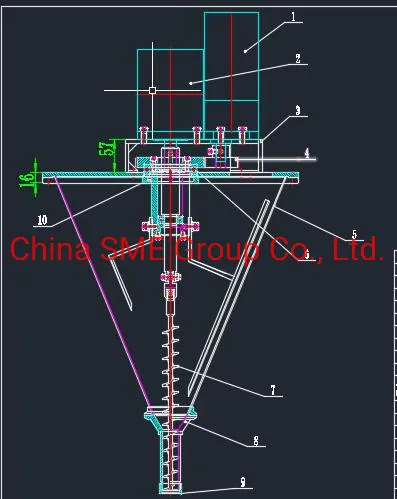

High precision of ±2%, weight can be adjusted. Constructed with high quality SUS304 stainless steel measurement parts to measure the weight of each bag automatically.

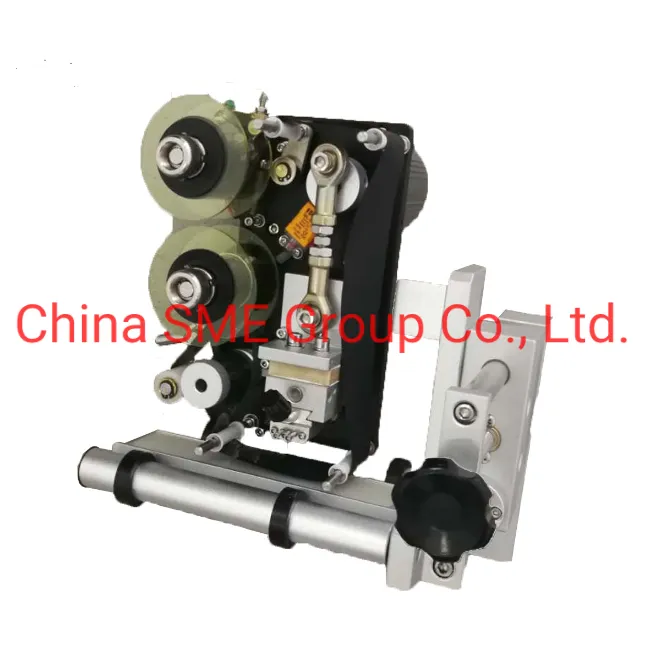

A reliable date printer is available to be equipped on this machine for printing production dates and lot numbers directly on the bags.

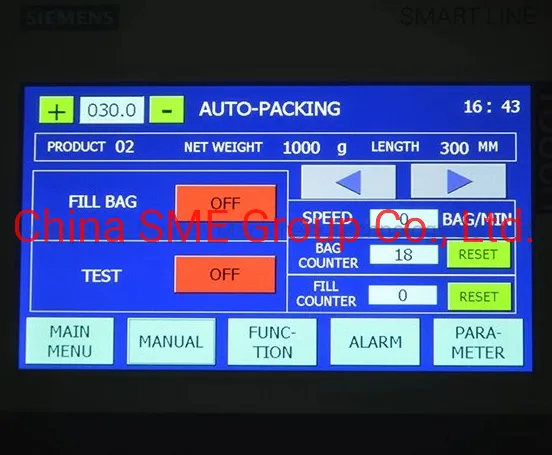

The display screen is super sensitive and intelligent, used for various debugging processes. Features support for multiple languages and standard configurations.

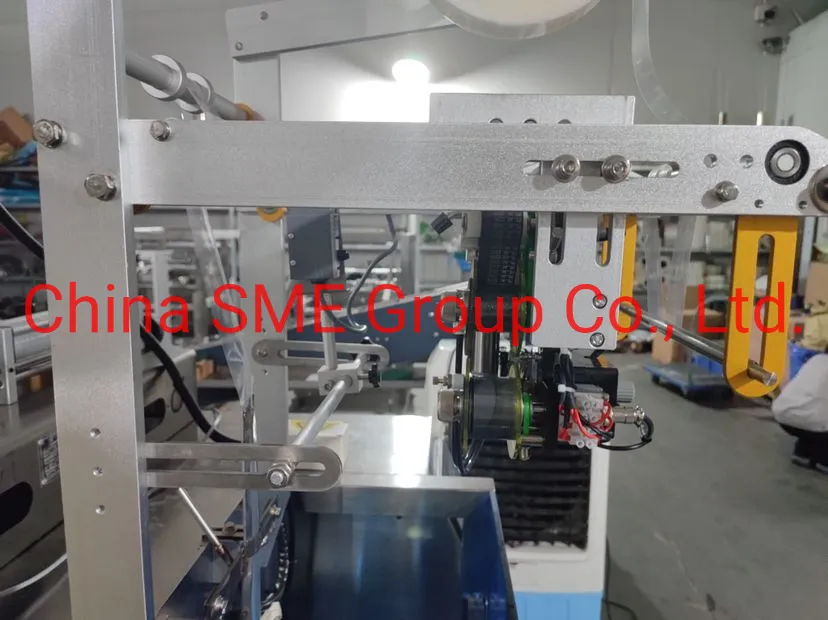

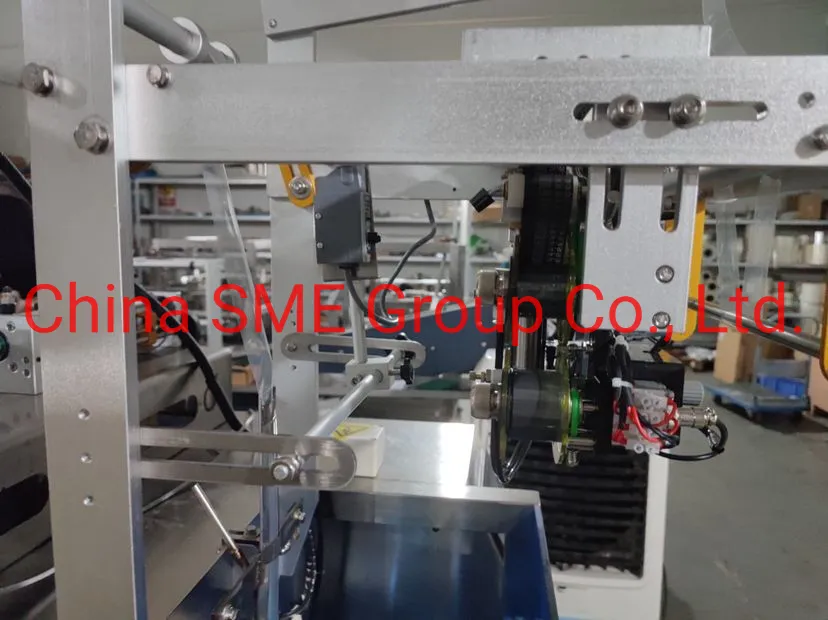

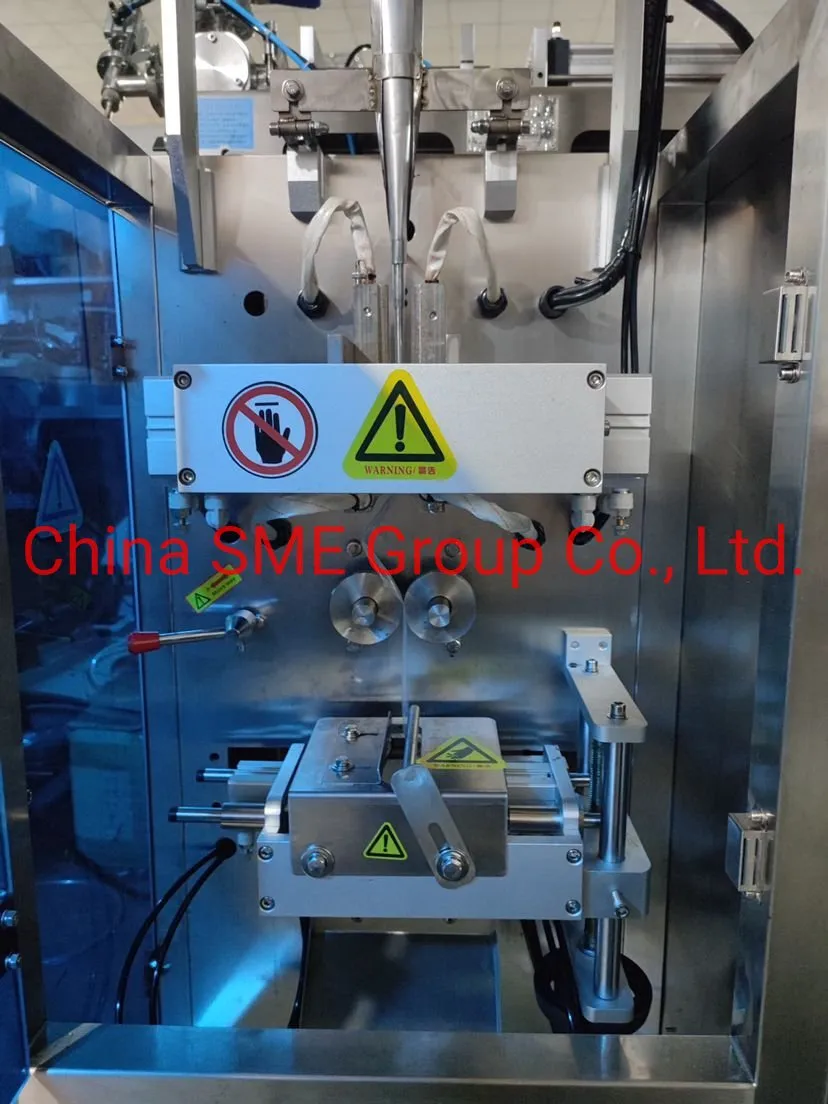

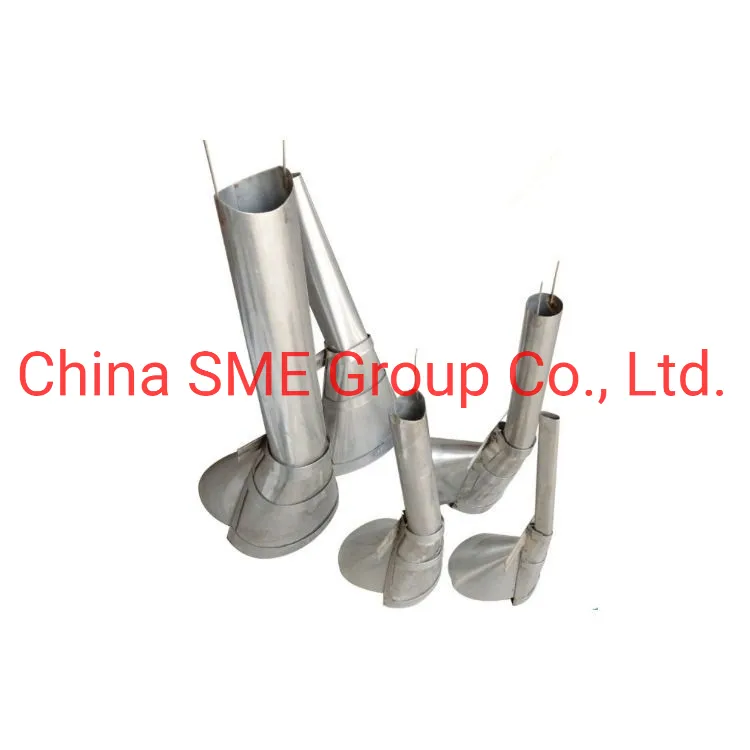

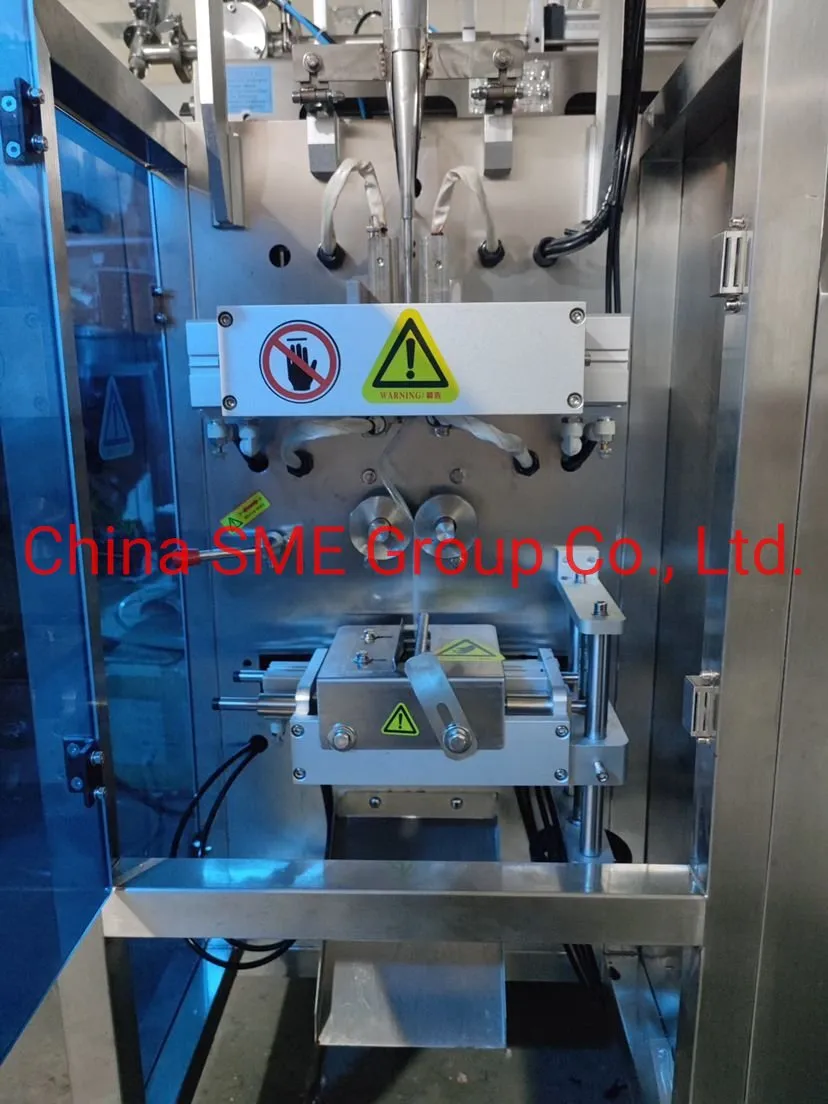

Articulated bag former structure, ensuring high accuracy, speed, clean cutting, and perfect sealing of bags.
We are a leading manufacturer in the field of front-of-line packaging devices since 2008. In the past 13 years, our company has targeted technology development, precise manufacturing, professional marketing, satisfied technical support, and OEM solutions. We offer Flow Packing Machines, Vertical Packing Machines, Metal Detectors, Weight Checkers, and Weighers to fit the needs of different industries.
Due to continuous efforts in the field of end-of-line packaging devices, our machinery has obtained CE certificates and ISO 9001 certificates, showing our emphasis on safety and quality, resulting in successful sales in Asia, America, Africa, and beyond. We look forward to establishing long-term and mutually beneficial partnerships with more agents and distributors worldwide.
We provide robust wooden packaging compliance for exports. We strictly execute standard shipping processes ensuring the safest transportation on all custom routes.
