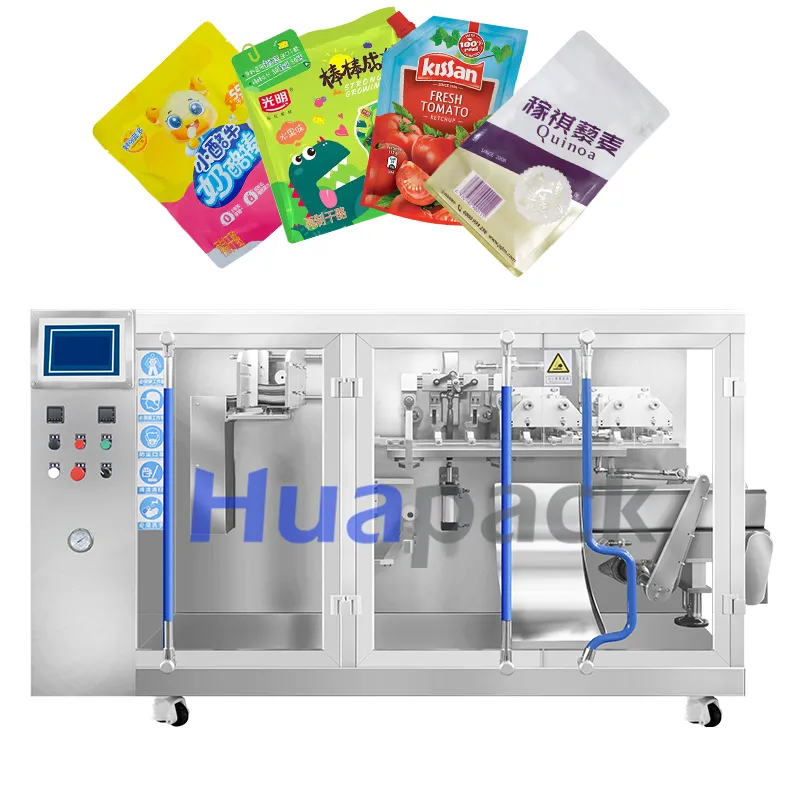

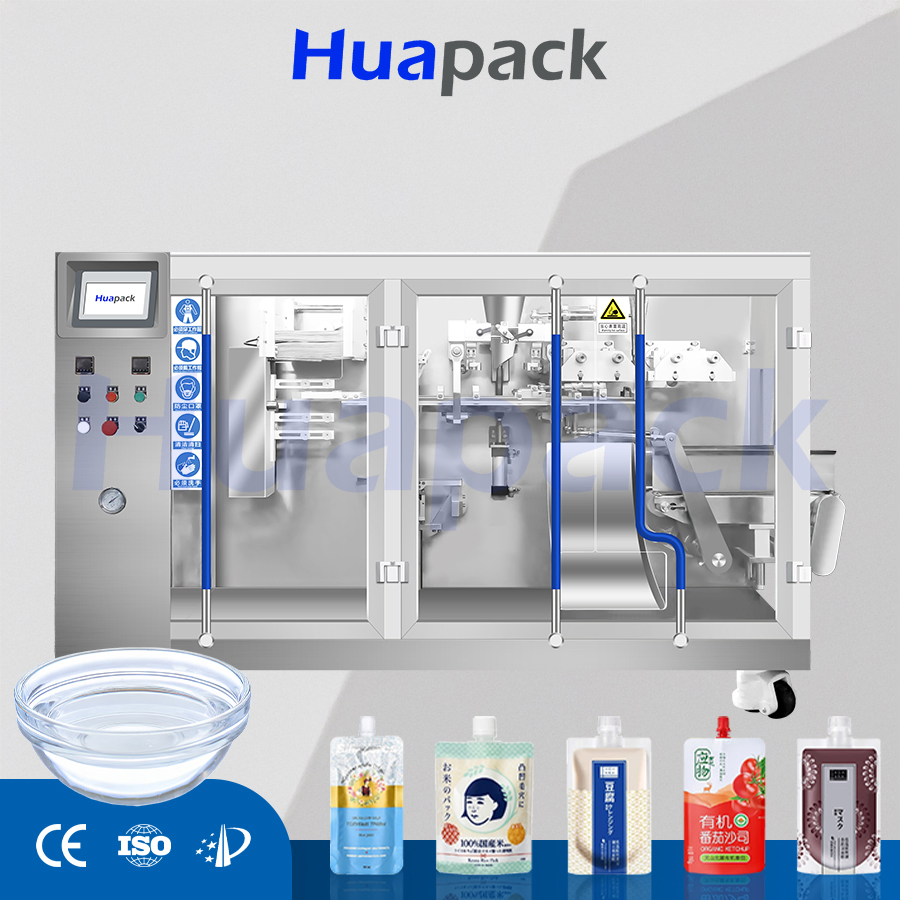

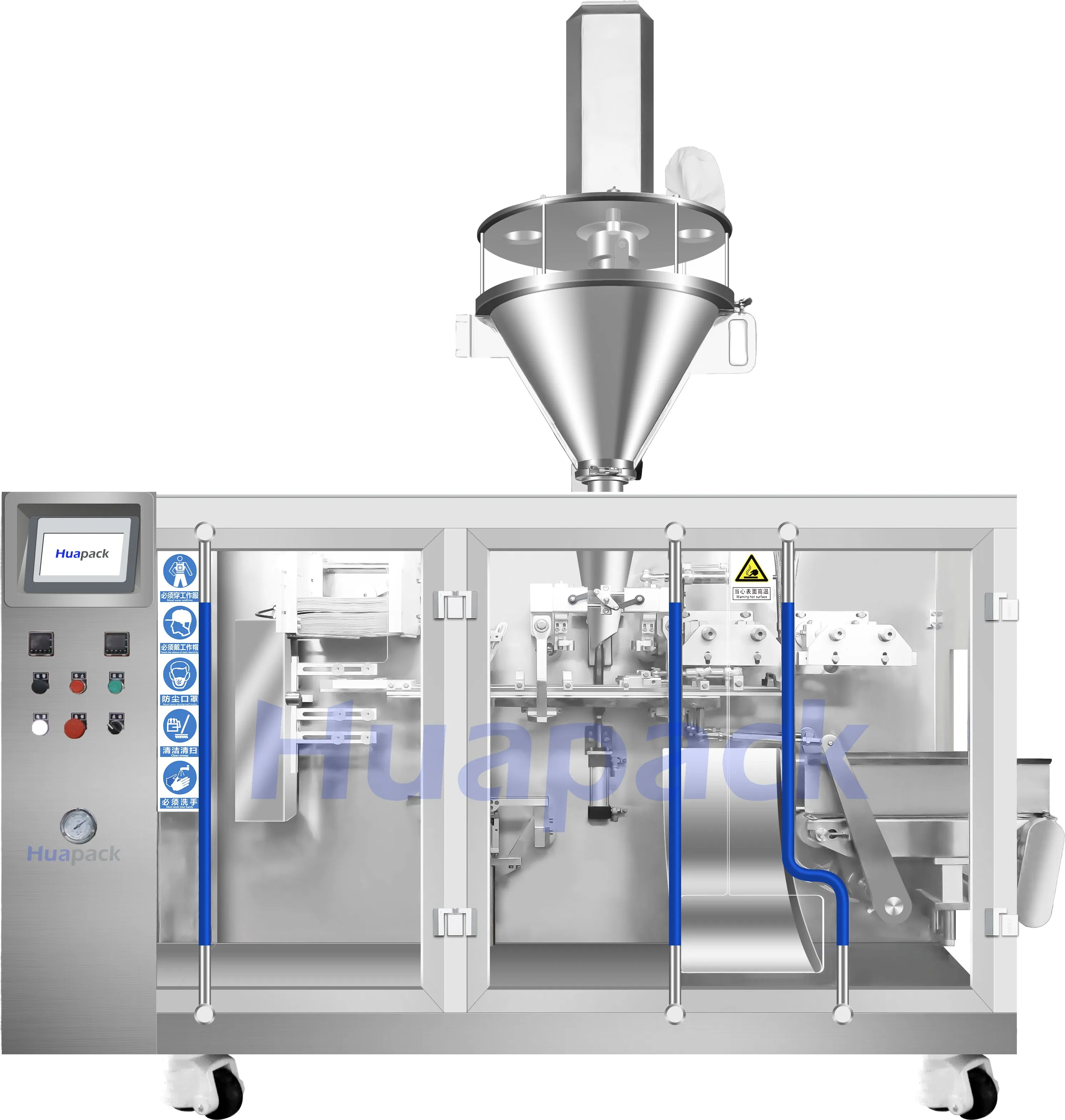

HC-GN series is engineered in a simplified design with Linear module to fill Pre-made pouches from top and sealing in same machine. It is equipped with a stainless steel, low maintenance and easy to change sizes, which moves the pouches through the station in a continuous motion.
HC premade pouch packing machine has the wide range of different sizes and shapes in the market. Our machines cover all the applications and are customized to be adapted to our customers' needs.
The design is based on the modular frame construction, composed of three independent modules: bag picking and dosing-sealing.
| Model | 240NG-5 | |
|---|---|---|
| Pouch Size(mm) | Min | 70*130 |
| Max | 240*350 | |
| Filling Volume | ml | 2000 |
| Packaging Speed | ppm | ≤40 |
| Machine Size | mm | 1960*1100*1250 |
| Machine Weight | kg | 800 |
| Power | kw | 2.3 |
| Air Consumption | l/min | 300 |
| Additional Configuration & Optional Features | |
|---|---|
| 1. Coding | Cold press code or touch code form, date QR code, bar code can be realized |
| 2. Easy notch | Easy notch cutting |
| 3. Hanging hole | Round hole or euro hole |

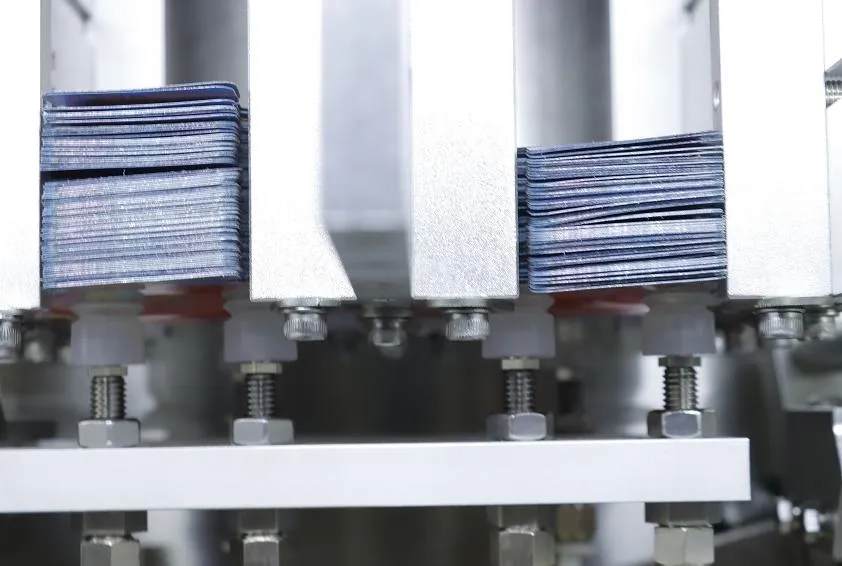

| 4. Paging bag feeding | Independent bag picking device to realize automatic bag taking from multi-bag boxes, suitable for big bags, zipper bags and other bag shapes |

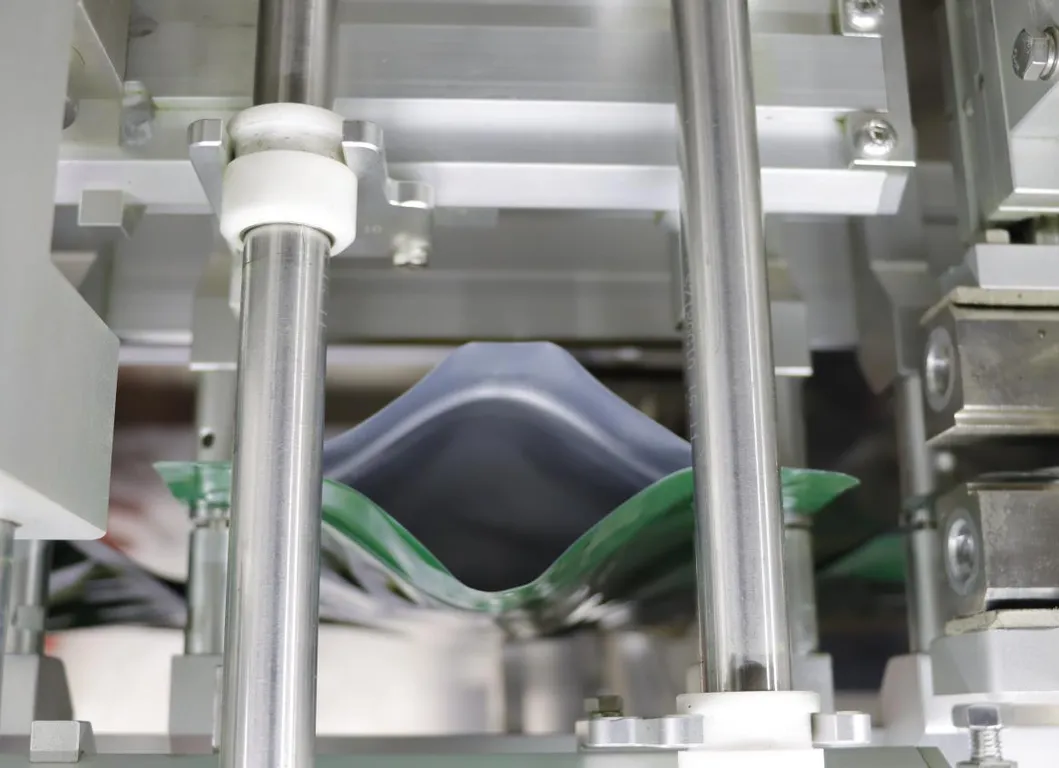

| 5. Zipper open (optional) | Increase the zipper opening station for zipper pouch |
| 6. Top spout (optional) | Adding top spout inserting station |
| 7. Corner spout (optional) | Adding corner spout inserting station |
| 8. Double time filling | Increase the speed by double-head filling for big package |
| 9. Bag support | Adding bag support for big package |
| 10. Conveyor | Select the finished product conveyor belt to transport |

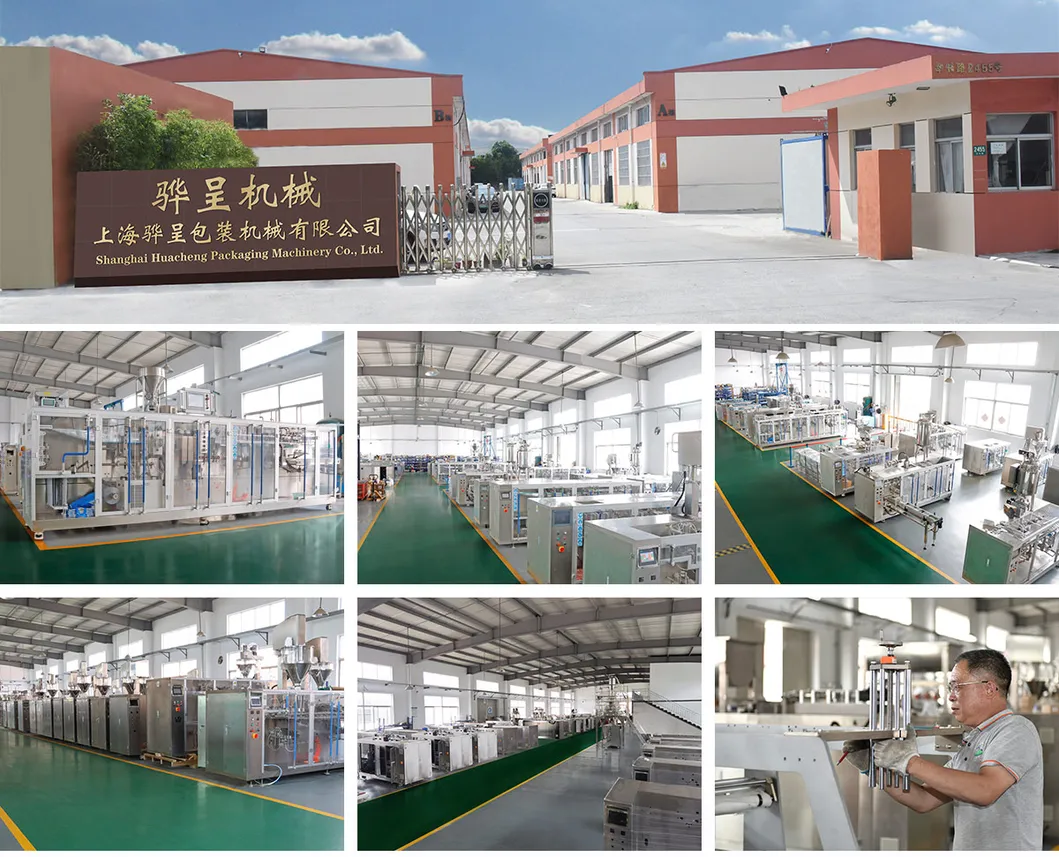

We are a technical-driven company in the manufacturing of horizontal sachet and pouch packaging machinery, bottle filling lines for a wide range of different sectors, like retail food & Beverages, pharmaceutical, cosmetic or chemical products, in many other applications, working from rollstock or pre-made pouches.
Our strong knowledge of this industry allows us to provide optimal customized solutions to each customer with the highest level of features, and the finest quality & Innovative packages.
We are committed to running our business in a sustainable way. And we sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
