Nexa Machine
1 / 5
| Model NO. | JW-MC361005-1 |
| Automatic Grade | Automatic |
| Application | Dairy Products, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour |
| Type | Filling and Sealing Machine |
| Forming Species | Bag Moulding |
| Forming Function | Filling, Seal |
| Driven Type | Electric |
| Material Type | Grain |
| Packaging | Bag |
| Packaging Material | Plastic |
| Model | Jw-Mc361005 |
| Identify Code | Jw-Mc361005-1 |
| Heads No. | 10 |
| Weighing Range | 2-200g |
| Accuracy | X(0.5) |
| Max Speed | 65p/M |
| Hopper Volume | 500ml |
| Film Width(mm) | 140-360 |
| BGA Size(mm) | 60-250(L) X 60-170(W) |
| Transport Package | Wooden Crate Package |
| Specification | Stainless Steel |
| Production Capacity | 800 Set /Year |
| Package Size | 130.60cm * 105.90cm * 192.00cm |
| Package Gross Weight | 550.000kg |

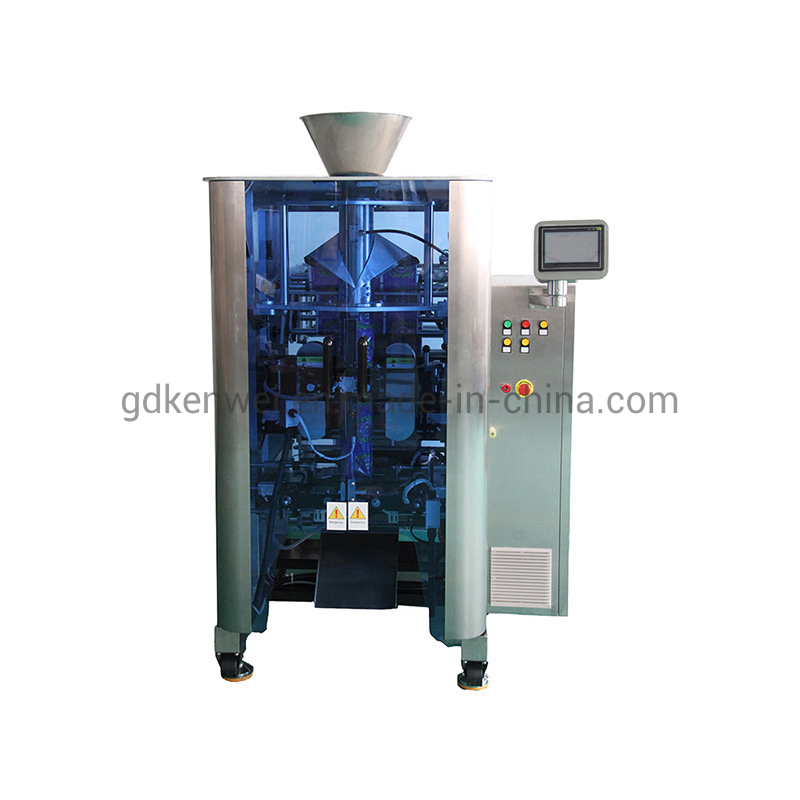

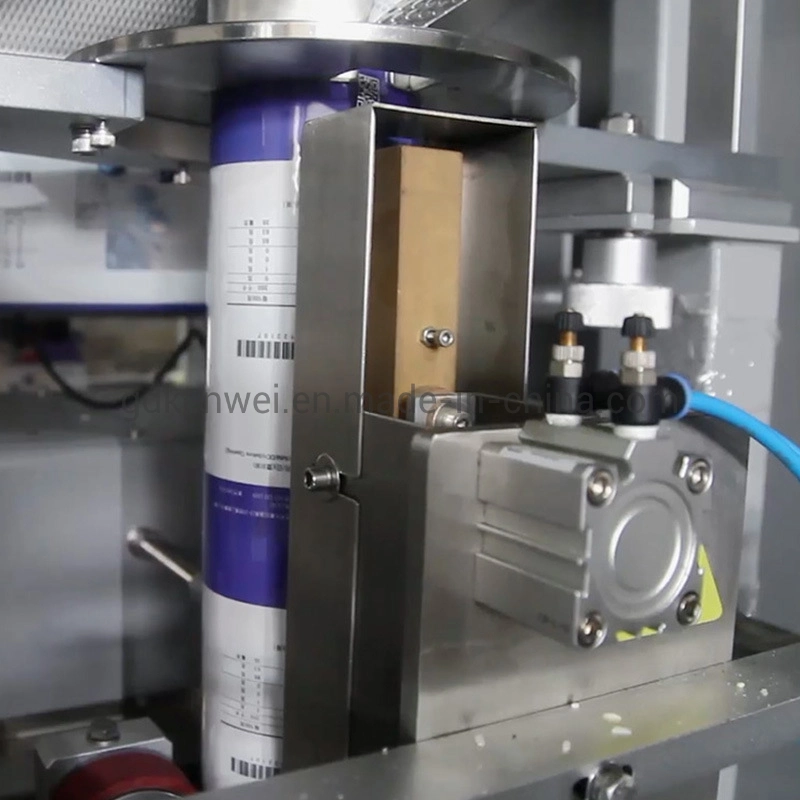

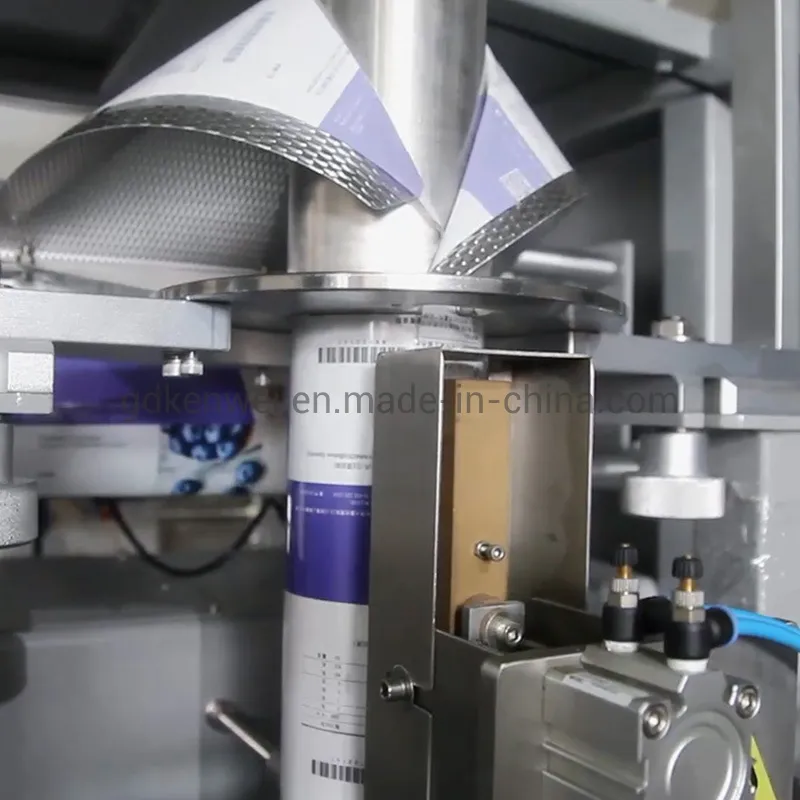

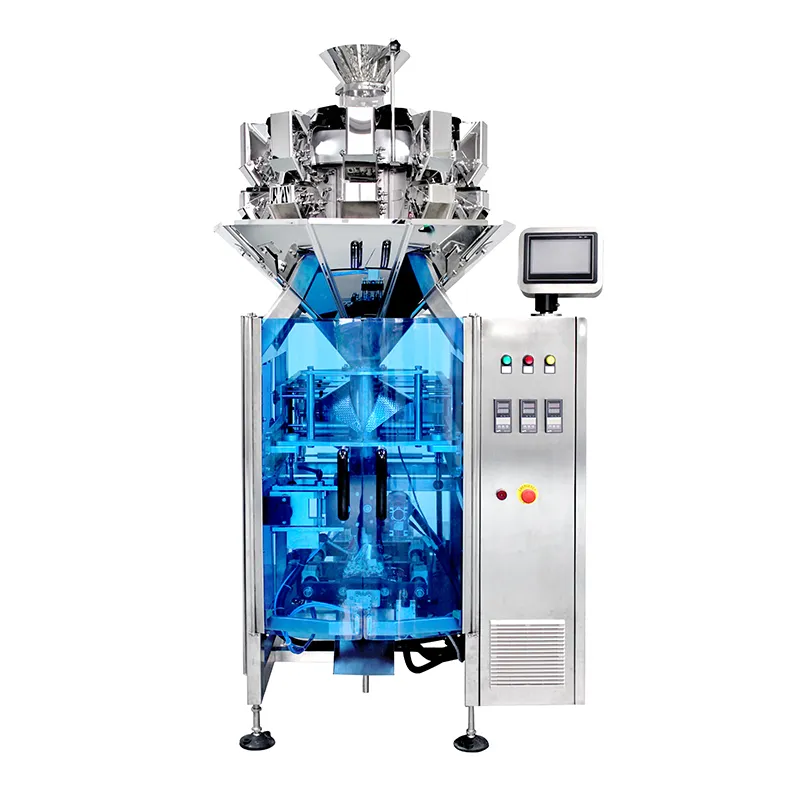

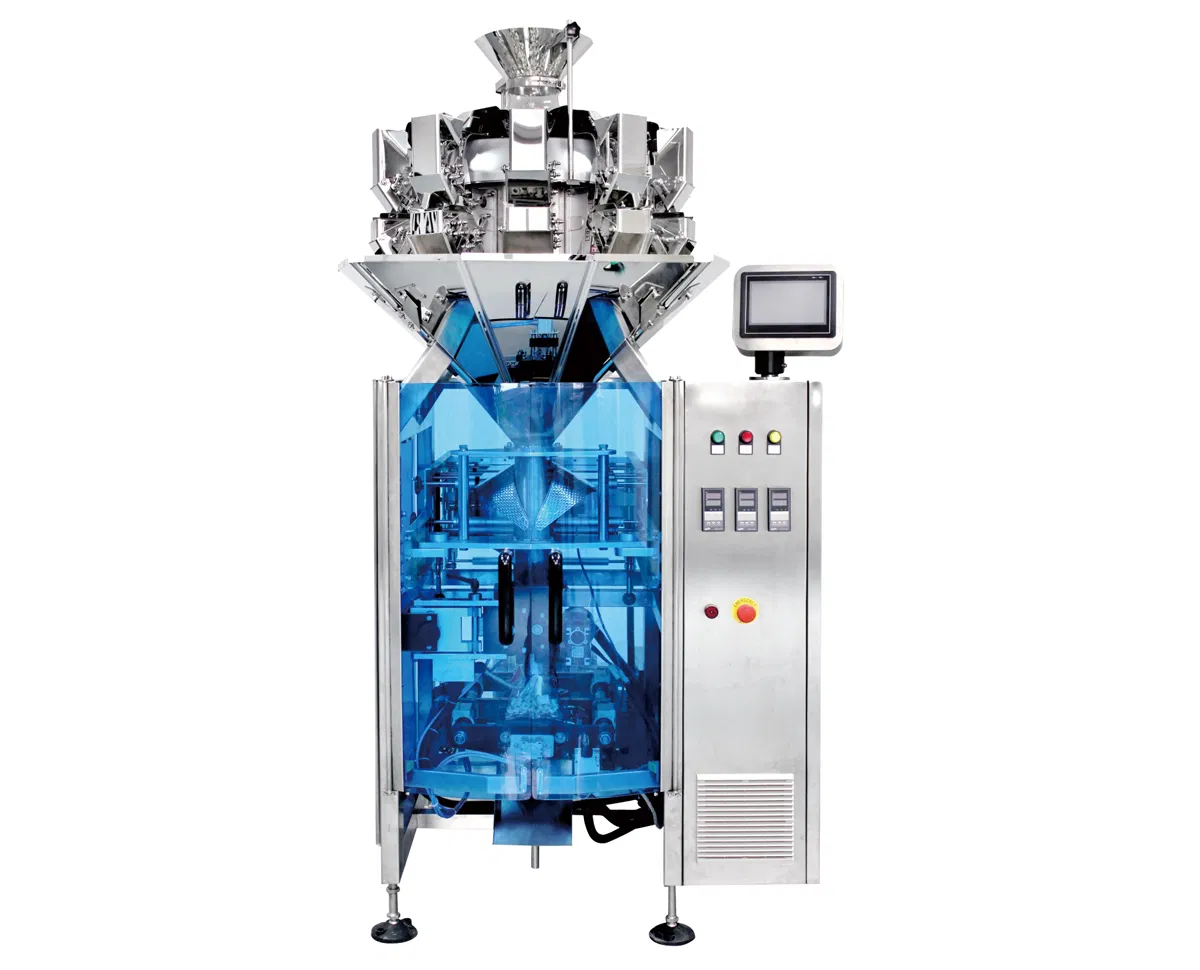

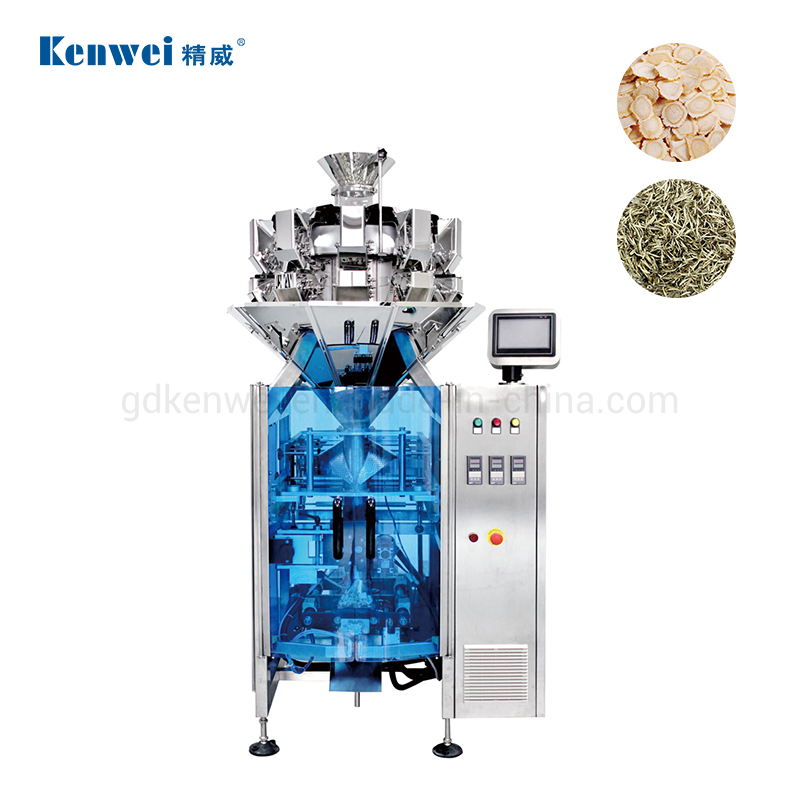

Sealing Pouch Full Automatic Vertical Packing Machine with 10 Heads Multihead Weigher Packaging Machinery for Wrighing and Packaging Granule Powder Materials
It is suitable for weighing small granules such as seeds, tea, coffee beans, etc.
Bag type: Pillow bag, Gusset bag, Side seal bag.
Film type: A variety of laminated films, single-layer PE film
Film thickness range: 0.04mm~0.15mm.
Gusset device, Nitrogen charging device, chain-bag device, Vibrating device, Punching device, customerized Sealing, Exhaust/Inflatable devices, Easy tear device, PE film sealing, Bag support device, Anti-Static electricity device, vacuum device, Horizontal sealer cooling, Film rectify deviation.
| Model | JW-MC361005 | JW-MC361405 |
|---|---|---|
| Identify Code | JW-MC361005-1 | JW-MC361405-1 |
| Heads No. | 10 | 14 |
| Weighing Range | 2-100g | 2-200g |
| Accuracy | X(0.5) | X(0.5) |
| Max Speed | 65P/M | 100P/M |
| Hopper Volume | 500ml | 500ml |
| Film Width | 140-360mm | 140-360mm |
| Bag Size | 60-250(L)*60-170(W) | 60-250(L)*60-170(W) |
| Packing Speed | 65Bags/min | 100Bags/min |
| Film pulling driven by | Servo Motor | Servo Motor |
| Horizontal sealing driven by | Air Cylinder | Servo Motor |
| Power requirement | 220V/3.8KW/50/60HZ | 220V/4.75KW/50/60HZ |
| Gas consumption | 0.4m³/min | 0.15m³/min |
| Machine size | 1306(L)*1059(W)*1902(H)mm | 1325(L)*1071(W)*2025(H)mm |
| Machine weight | 550kg | 600kg |
We will help you customize an appropriate weighing and packing solution based on your requirements and specific circumstances.
We will send professional technicians for on-site installation and commissioning upon request.
We provide long term maintenance service, any maintenance parts are free within the warranty period and only charge parts expensed if your warranty has expired.
We offer free technical training for our clients to fully master correct product maintenance techniques.
We design custom production lines for our clients according to specific weighing and packing products, output, packing styles, factory area and other factors.
Our company is currently a large production base of multihead weighers. As a professional manufacturer, we devote to R&D and manufacturing of multihead weighers, linear weighers, check weighers, metal detectors with high speed and high accuracy. We also provide customers with complete automatic weighing and packaging systems to meet the various customized requirements.

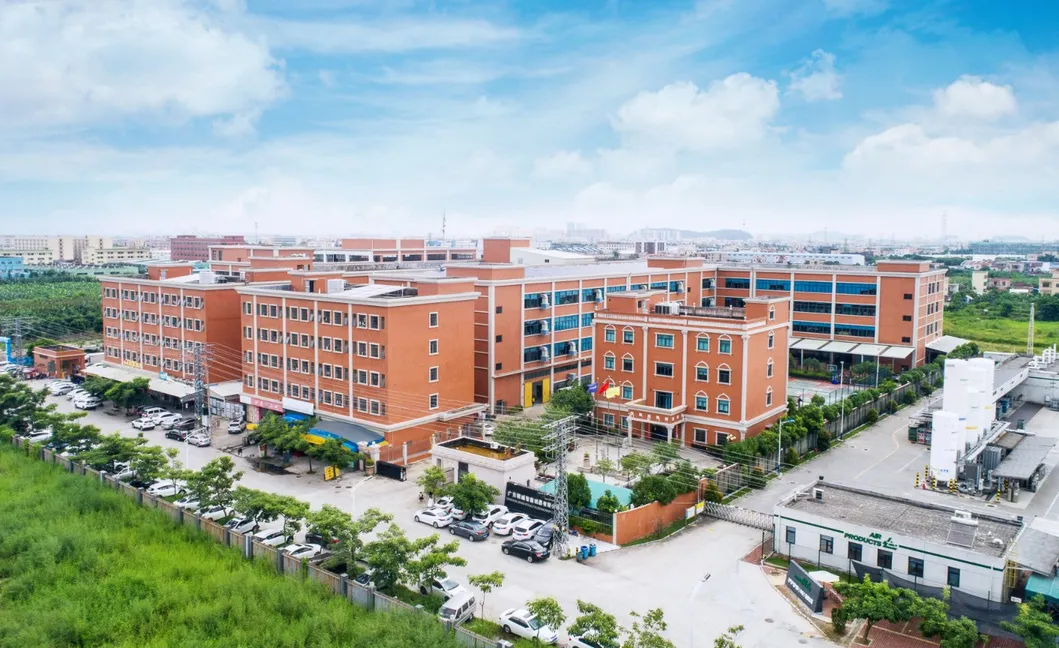

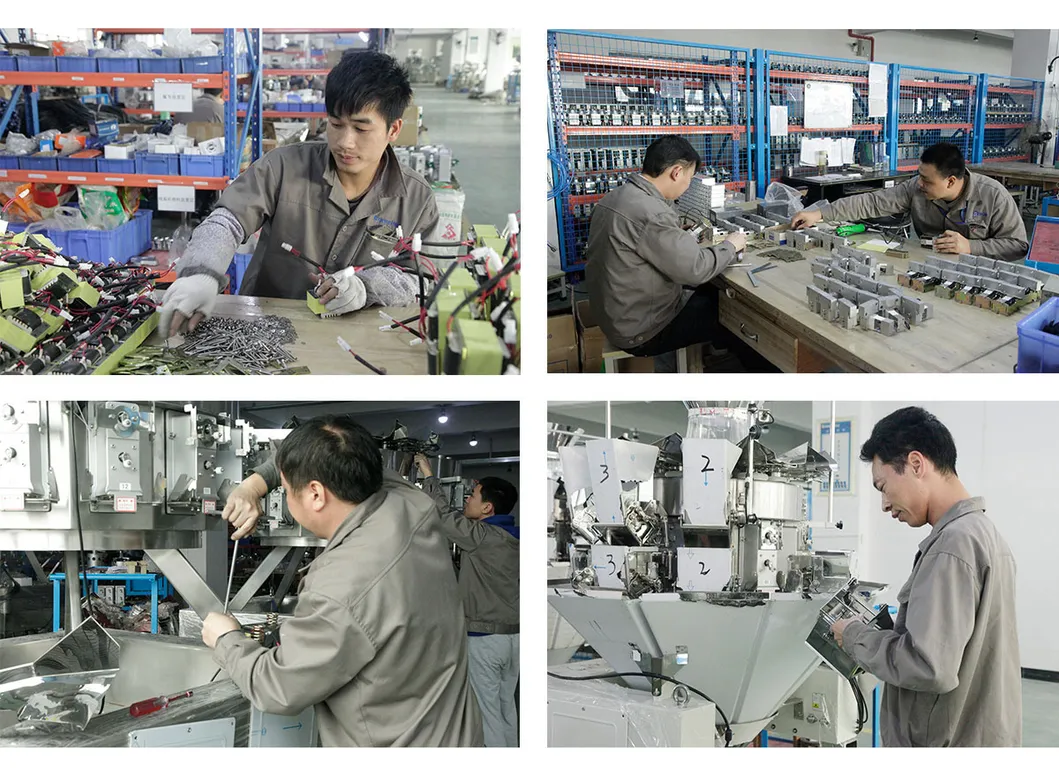

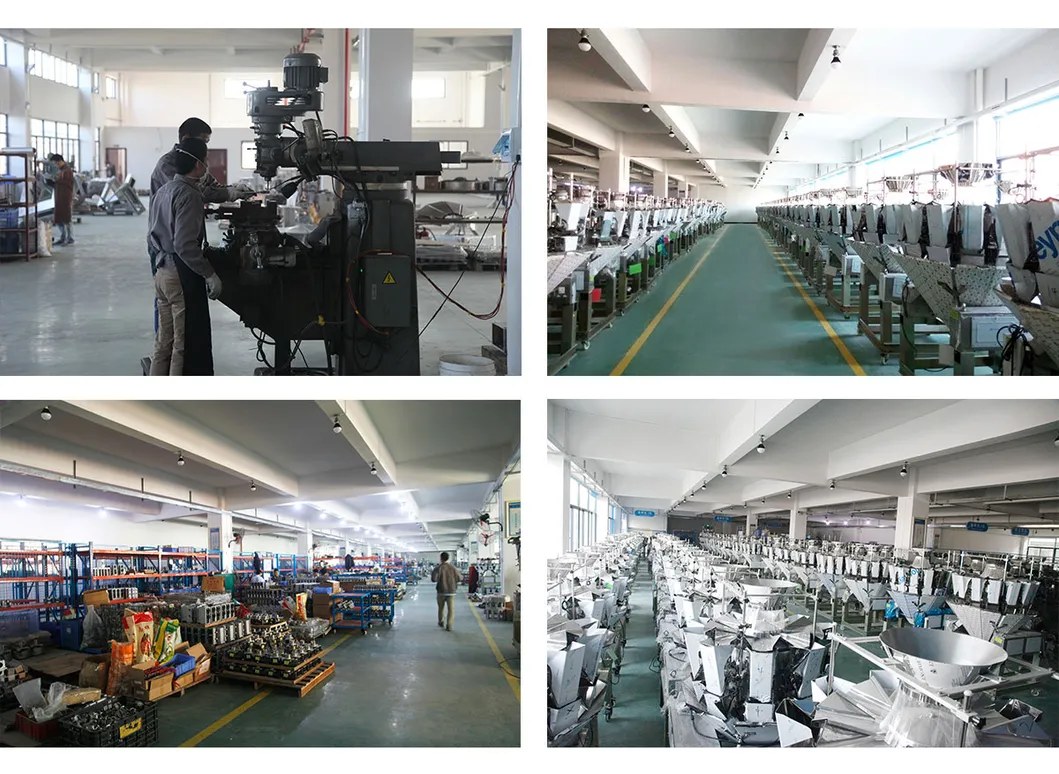

Our factory owns a modern workshop of over 21,000 square meters with an annual production capacity of more than 5,000 sets of multihead weighers. We have a high-quality team where professional technicians make up more than 30% of the workforce, featuring comprehensive capacity from design and development, manufacturing, marketing, installation and commissioning, technical training, after-sales services, and automatic weighing packaging system customization.
