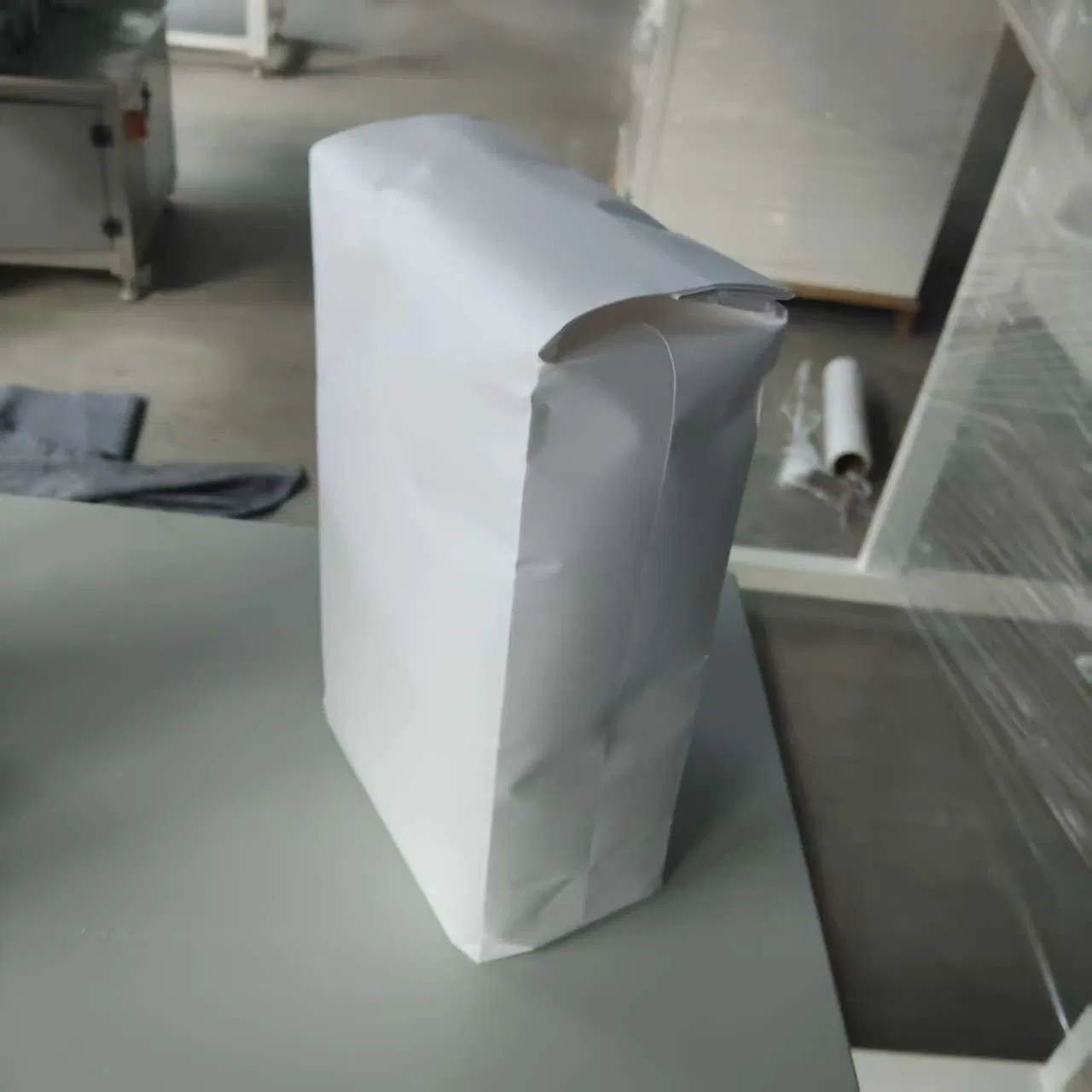

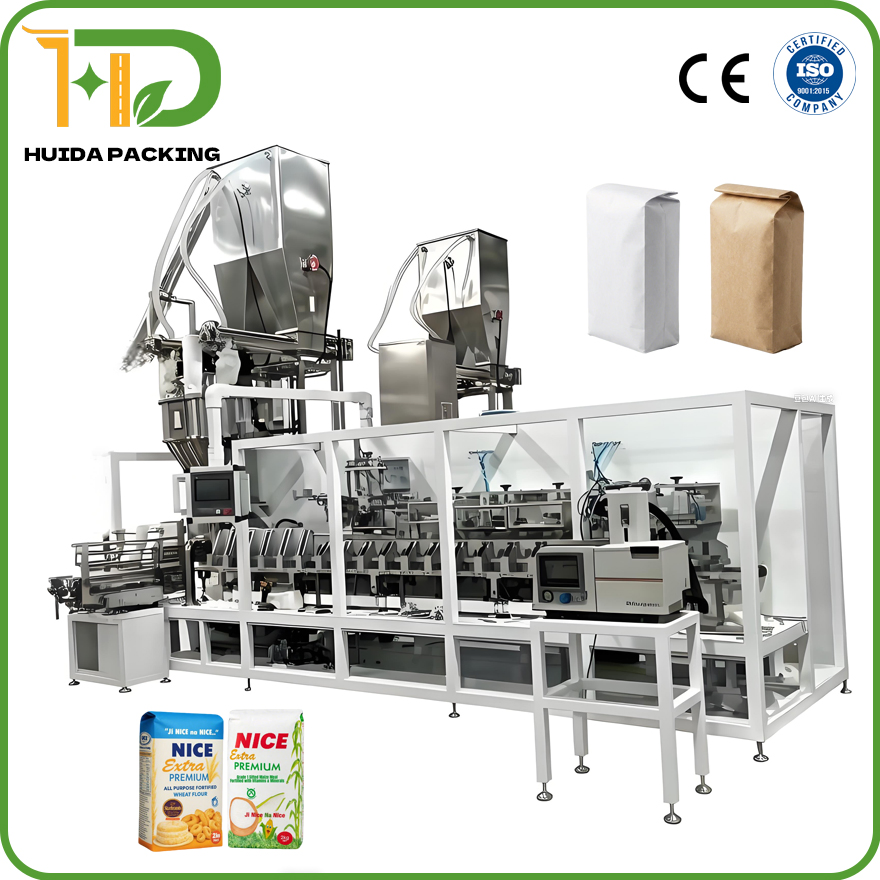

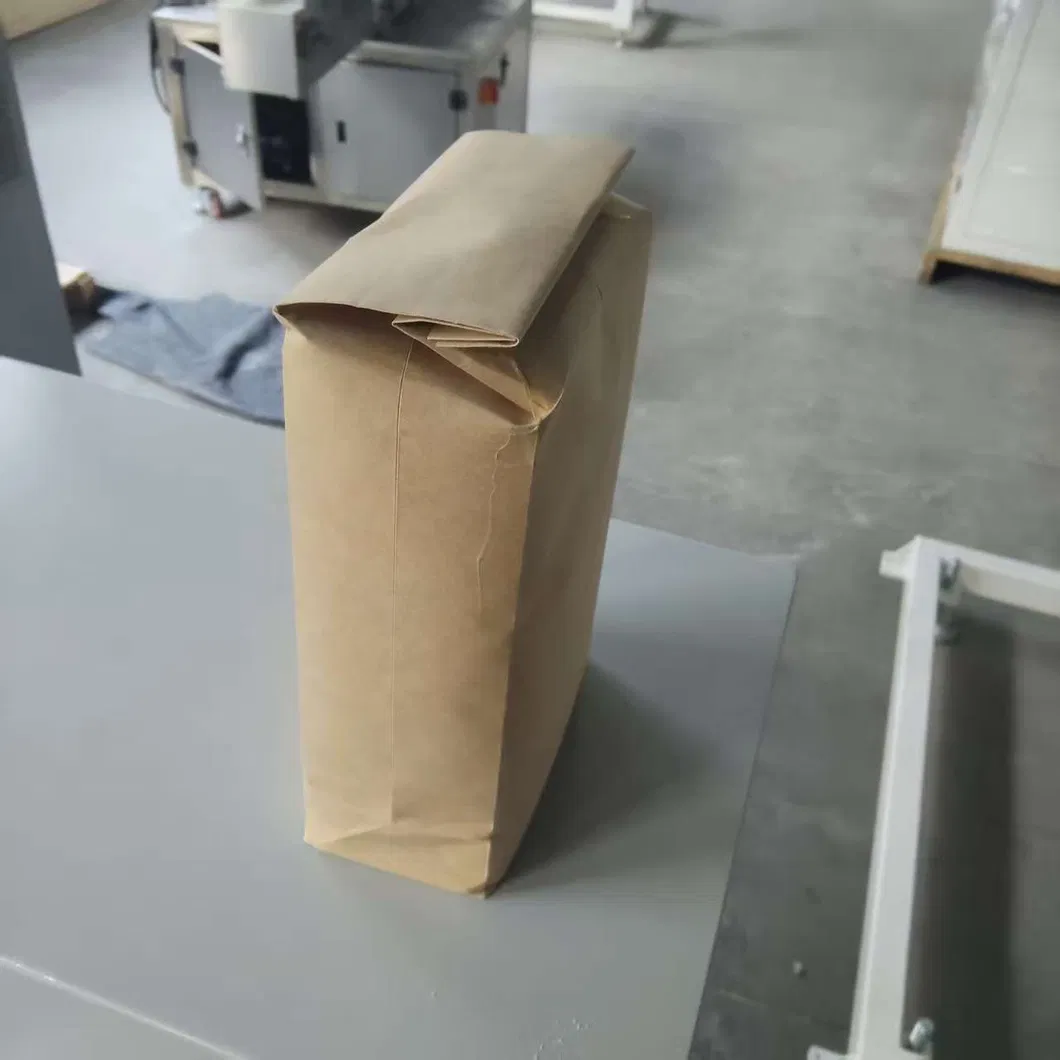

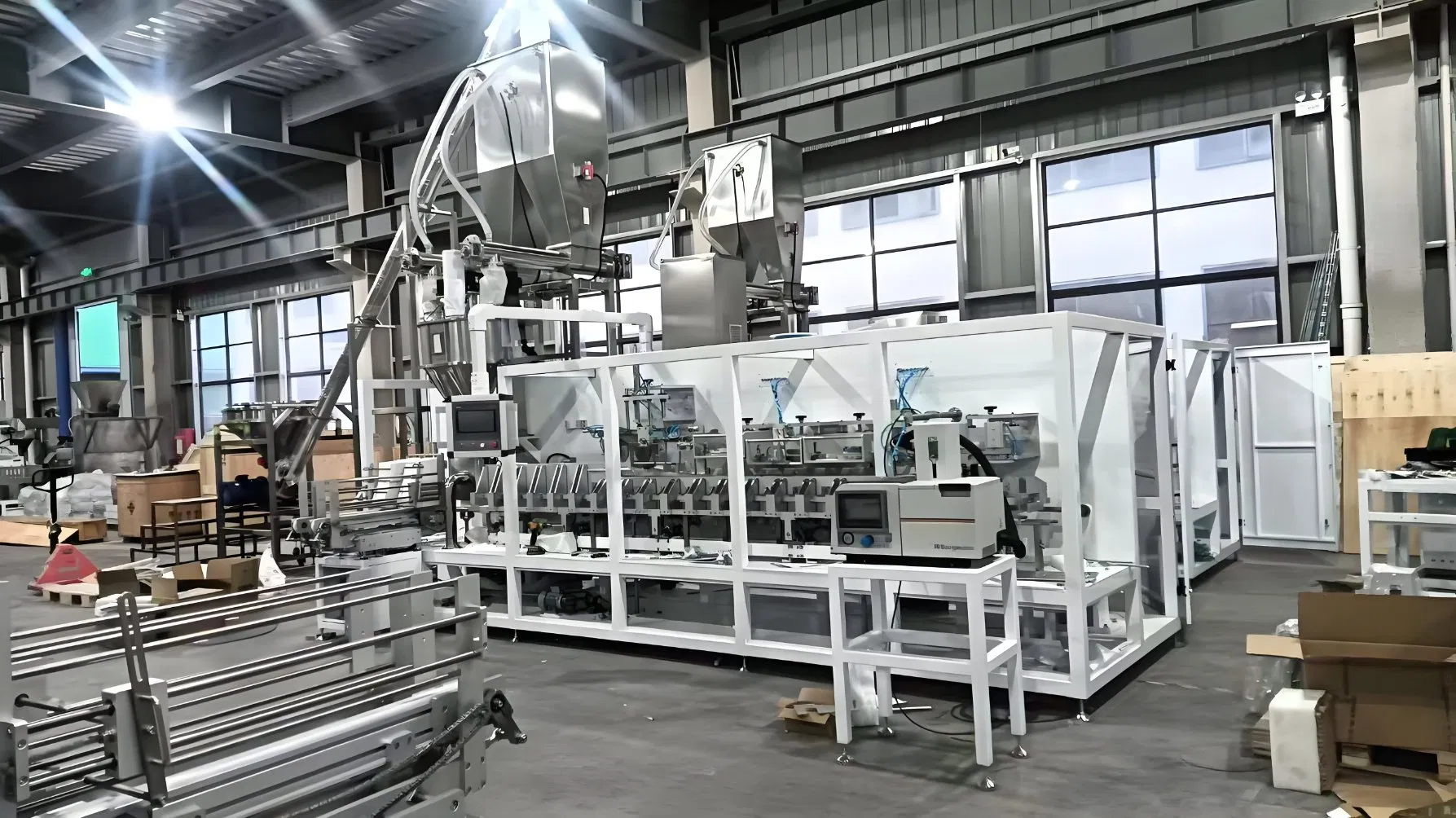

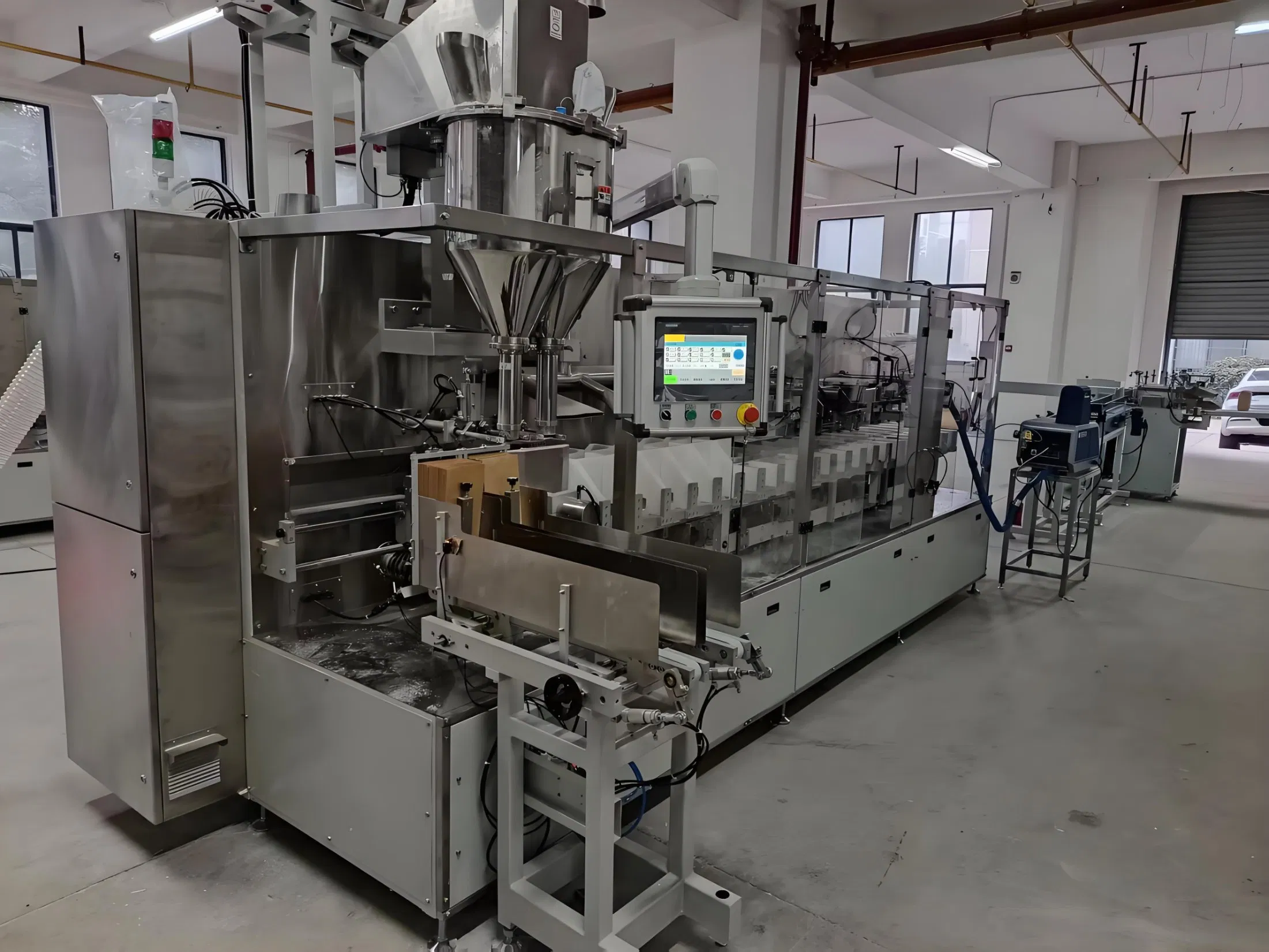

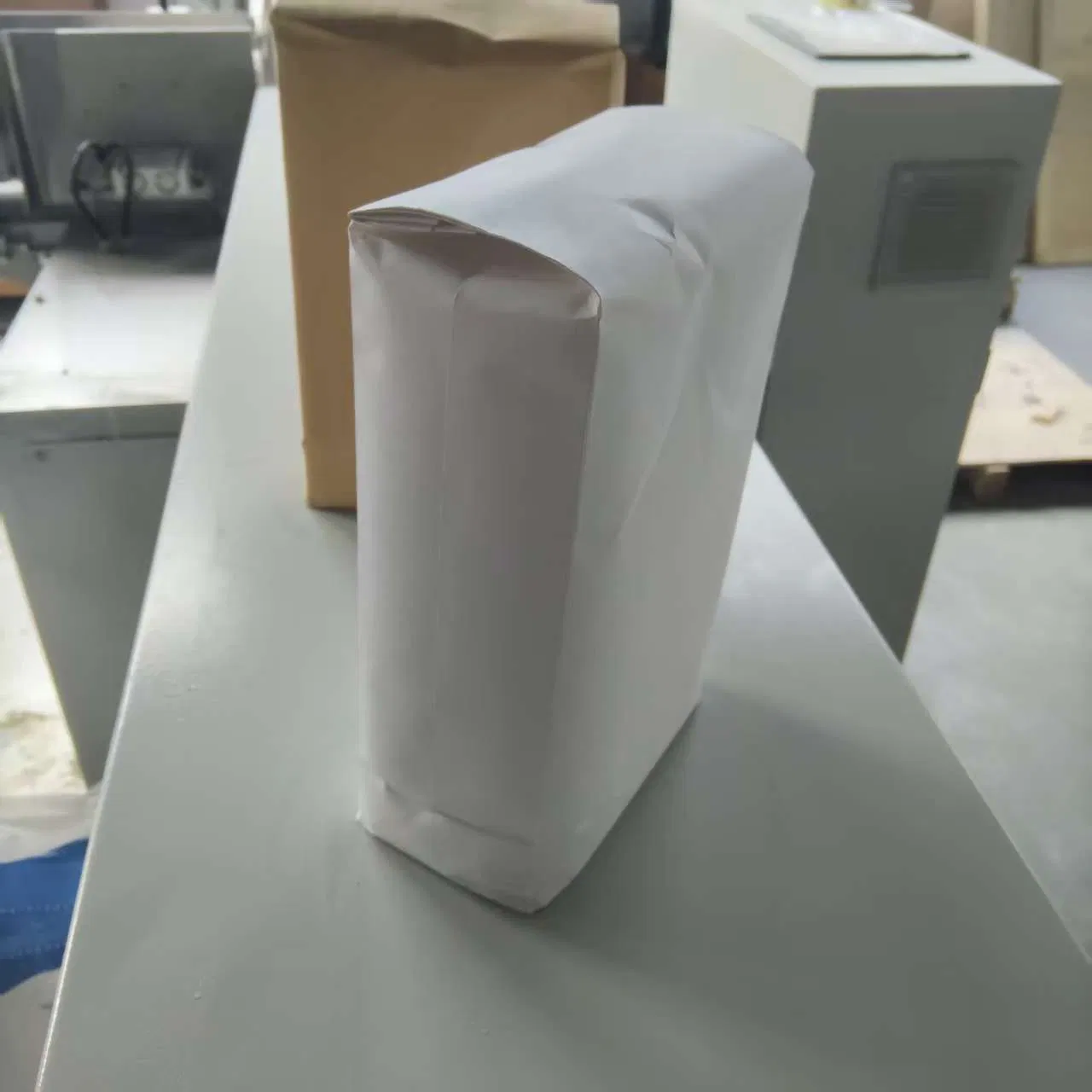

The 1-5kg Flour Kraft Paper Bag Packing Machine is a highly efficient and fully automated solution designed for precise and stable packaging of flour and powder materials. Engineered with advanced auger filling technology, this machine is ideal for producing neat, compact brick-shaped bags widely used in the food industry.
To enhance automation and efficiency, the machine can be integrated into a complete packaging line with:
This fully automated setup significantly reduces labor costs while improving packaging consistency and production efficiency.
This packaging machine is widely used for wheat flour, corn flour, and other powder materials in the food and agricultural industries. It is especially suitable for manufacturers requiring high-quality, dust-free, and hygienic packaging solutions.
We specialize in advanced powder packaging solutions, offering customized equipment tailored to different industries. With strong technical support and global export experience, we ensure reliable performance, high efficiency, and long-term value for your production line.

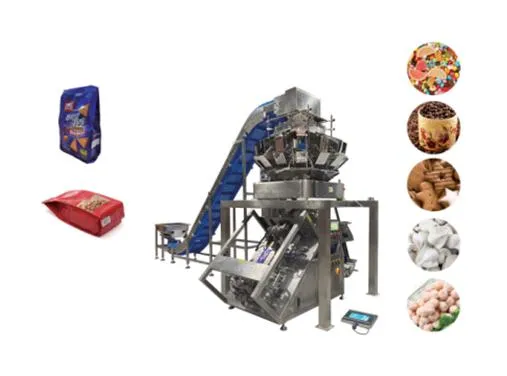

Suitable for the quantitative packaging of a variety of irregular materials, such as snack foods (potato chips, rice crackers, candies), nuts (walnuts, pistachios, hazelnuts, etc.), frozen foods (dumplings, shrimp, frozen vegetables), and various other materials with irregular shapes such as granules, chunks, and balls.

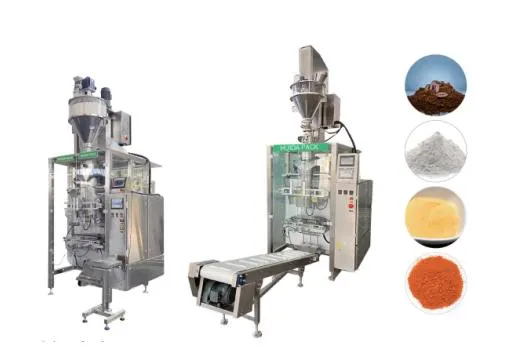

This unit combines a CJSL2000 auger weighing machine and a 5000D/5000B/7300B/1100 vertical filling packaging machine. It is designed specifically for measuring and packaging ultrafine powders that tend to generate heavy dust during the process.
Offers integrated metering, bag-making, packaging, sealing, printing, and counting. Equipped with advanced level switches, anti-static systems, and dust extraction devices for optimal performance in packing rice flour, milk powder, coffee powder, and building materials.
Supported Bag Types: Pillow bag, gusset bag, and die-cut bag.

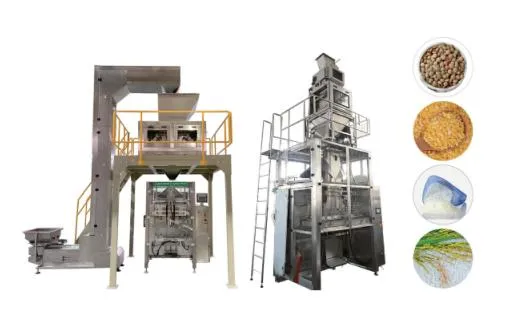

This integrated unit comprises a vertical filling packaging machine, servo-driven scale (or CJS2000-F weighing machine), and a bucket elevator, executing weighing, bag-making, edge-folding, filling, sealing, printing, punching, and counting.
Features servo motor-driven timing belts for both film pulling and horizontal sealing. Highly adjustable and easy to maintain. Suitable for granular packing of rice, beans, salt, sugar, and similar materials.
Supported Bag Types: Pillow bag, gusset bag, and die-cut bag.
This unit consists of a volumetric cup filling system and a VFS5000 vertical packaging machine. Designed to package small particle size materials with uniform specific gravity weighing under 1kg, such as salt, beans, sugar, and rice. For salt packaging, all material contact parts are upgraded to 316L stainless steel.
Specifically designed for metering and filling high viscosity cream and paste materials. Adopts a servo rotor metering pump and can be equipped with an insulated storage hopper and transfer heating pipes to maintain flow.
Features automatic bag-making, packaging, and a memory function for up to 100 product specifications. Perfect for red bean paste, ketchup, mayonnaise, peanut butter, and more.
| Model | Bag Size(mm) | Metering Range | Measuring Accuracy | Packaging Speed(bags/min) |
|---|---|---|---|---|
| VFS5000D | (80-300)x(80-200) | 100-1000g | 0.2%-0.5% | 30-70 |
| VFS5000B | (100-350)x(100-250) | 200g-2000g | 20-60 | |
| VFS7300B | (100-460)x(100-350) | 1000g-5000g | 10-50 | |
| VFS1100 | (300-650)x(300-550) | 5-10kg | 5-15 | |
| VFS1500 | (300-1000)x(350-750) | 10-25kg | 3-8 | |
| VFS1700 | (200-1000)x(500-850) | 10-50kg | 2-5 |
| Model | External Dimensions (LxWxH)mm | Type of Bag | Range of Bag Width (LxW)mm | Packaging Speed (bags/min) | ID of Reel | Max OD of Reel | Compressed Air | Power Supply |
|---|---|---|---|---|---|---|---|---|
| VFS5000A5 | 2455X1230X1660 | Quad bag, bag with hole punching | Front face: 50-190 Side face: 50-90 Corner seal: 5-8 Bag length: 100-350 Max material width: 520 |
15-55 | Φ75mm | Φ450mm | 0.6MPa 350 L/min | 380V 50-60Hz 3kW |
| VFS7300A5 | 2550X1420X1930 | Front face: 60-260 Side face: 60-120 Side seal: 5-10 Bag length: 100-460 Max material width: 730 |
2-45 | Φ75mm | Φ450mm | 0.6MPa 0.36L/min | 380V 50-60Hz 3kW |
| Model | Bag Size(mm) | Metering Range(g) | Measuring Accuracy | Packaging Speed(bags/min) |
|---|---|---|---|---|
| VFS5000DS | (80-300)x(80-200) | 100-1000g (cup volume based on density) | 1% | 50-70 |
| Model | Bag Size(mm) | Metering Range | Measuring Accuracy | Packaging Speed(bags/min) |
|---|---|---|---|---|
| VFS7300GY | (100-480)x(100-350) | 100-5000g | ≤ 0.5% | 8-25 |
| VFS1100GY | (300-650)x(300-550) | 5-25kg | ≤ 0.5% | 3-8 |

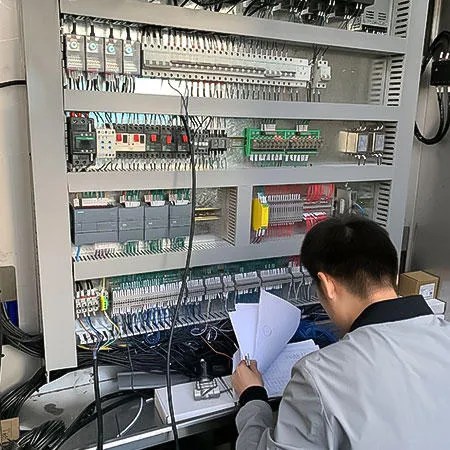

Over 20 years of industry experience and a highly skilled team supporting product manufacturing, R&D, and sales, ensuring our technology remains aligned with market trends.
All equipment and components pass strict safety checks. Compliant with international standards and fully certified for secure, worry-free operation.

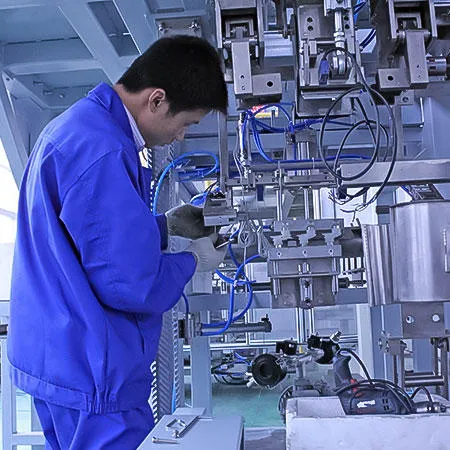

Strict quality control from raw materials to final output. Supported by over 50 utility patents, 10 development patents, and a dedicated in-house research laboratory.
Our products pass exhaustive testing under multiple certification systems. Premium materials combined with advanced machining guarantee excellent long-term durability.

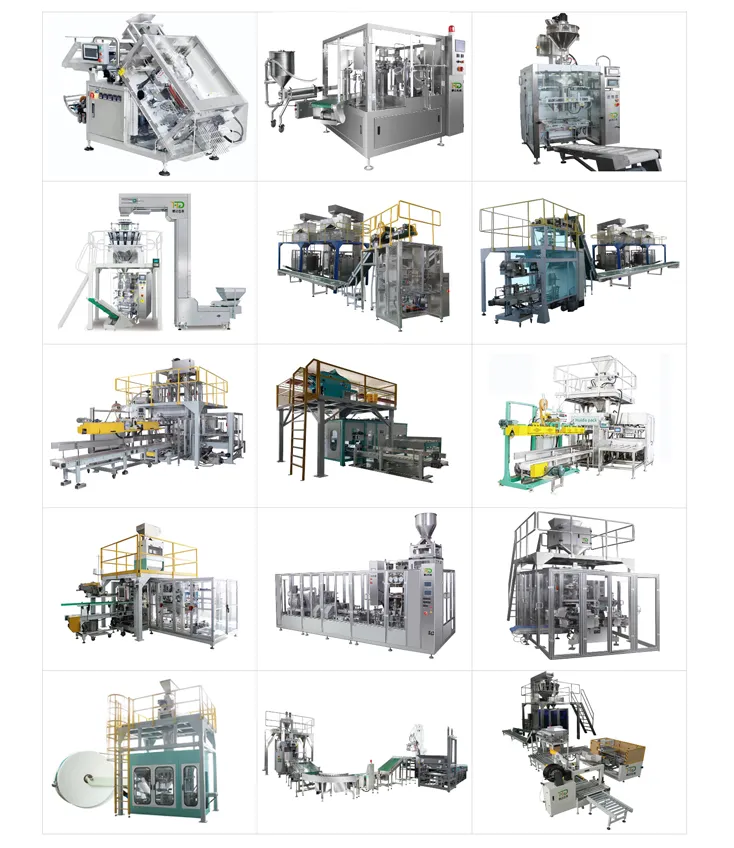

A broad array of equipment categories and custom configuration options to serve unique industrial demands and product configurations.

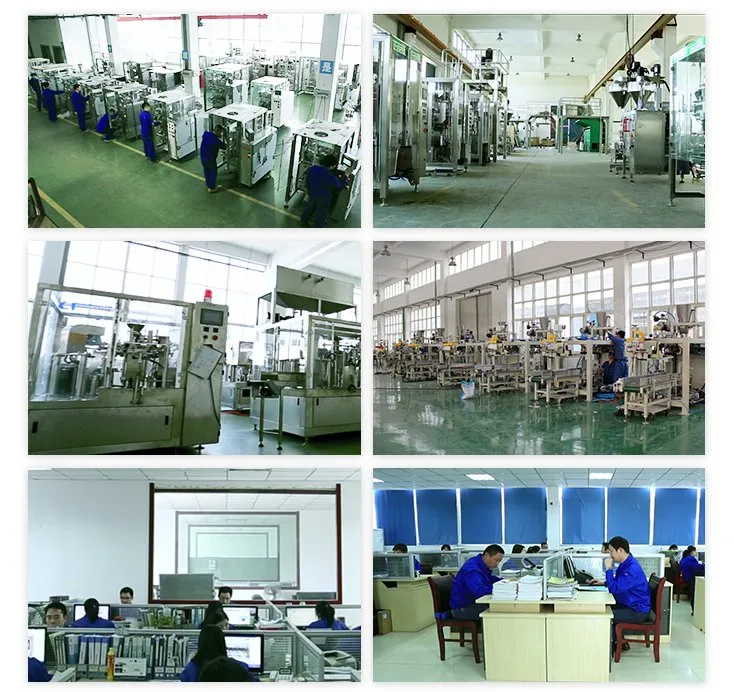

Direct production and distribution out of our dedicated base, allowing us to offer optimal pricing, direct technical support, and responsive after-sales service.
