Instant Coffee Powder Sachet Packing Machine Packaging Machine

Customization:	Available
After-sales Service:	All Machine Life
Warranty:	One Year

Send Inquiry

Product Description

Overview
Product Description
Certifications
FAQ

Overview

Basic Info.

Model NO.	DXD-BK480
Type	Volumetric Filling Machine
Automatic Grade	Fully Automatic
Material Type	Granular
Filling Valve Head	Multi-Head
Feed Cylinder Structure	Multi-Room Feeding
Dosing Device	Capacity Cup
Filling Principle	Measuring Cup
Packaging Container Lifting Structure	Pneumatic Lifting
Structure	Linear
Packaging	Bag
Packaging Material	Composite Materials
Certification	CE; SGS
Filling Capacity	1-50g
Machine Contact Material	SS316 Stainless Steel
Bag Form	Stick Sealing Bag
Packing Material	Granule Material
Machine Cover	SS304 Stainless Steel
Max Film Width	480mm
Packing Speed	30-60times/Min/Line
Transport Package	Wooden Case
Specification	(L)1400mmX(W)1800mmX(H)2500mm
Origin	China
HS Code	8422303090
Production Capacity	50-100set/Year

Packaging & Delivery

Package Size	1400.00cm * 1800.00cm * 2500.00cm
Package Gross Weight	2000.000kg

Product Description

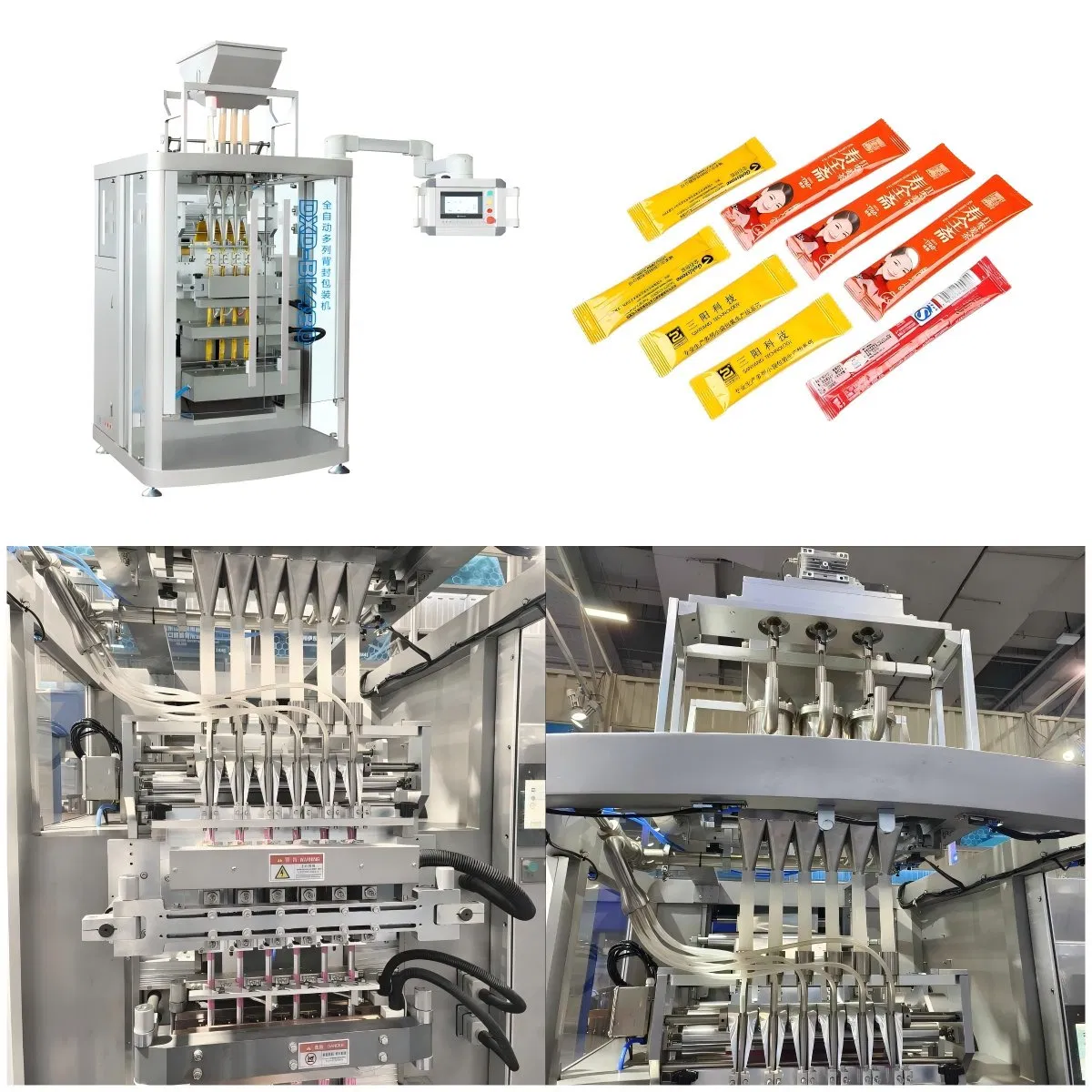

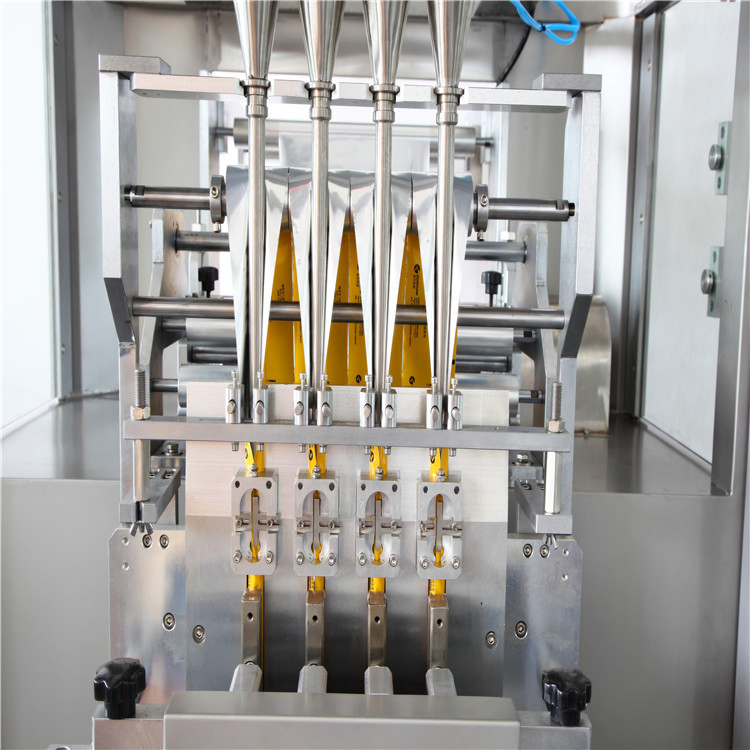

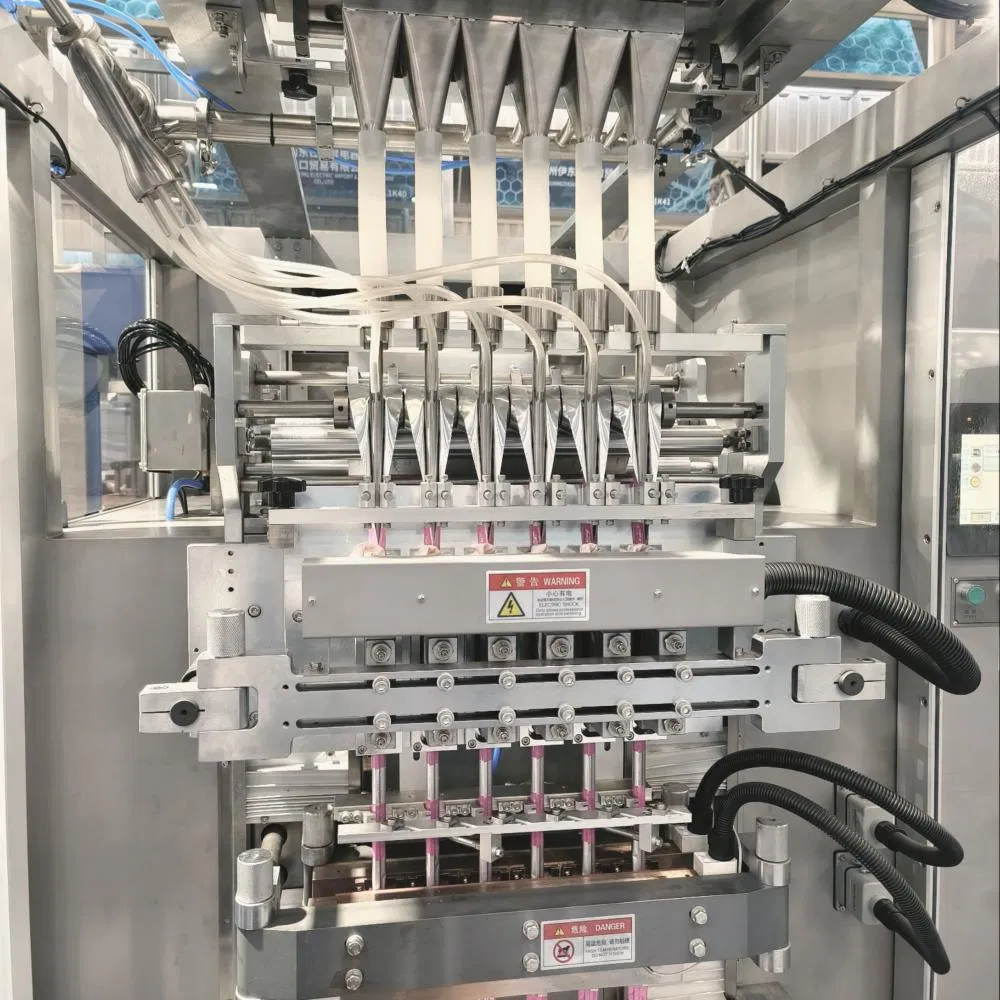

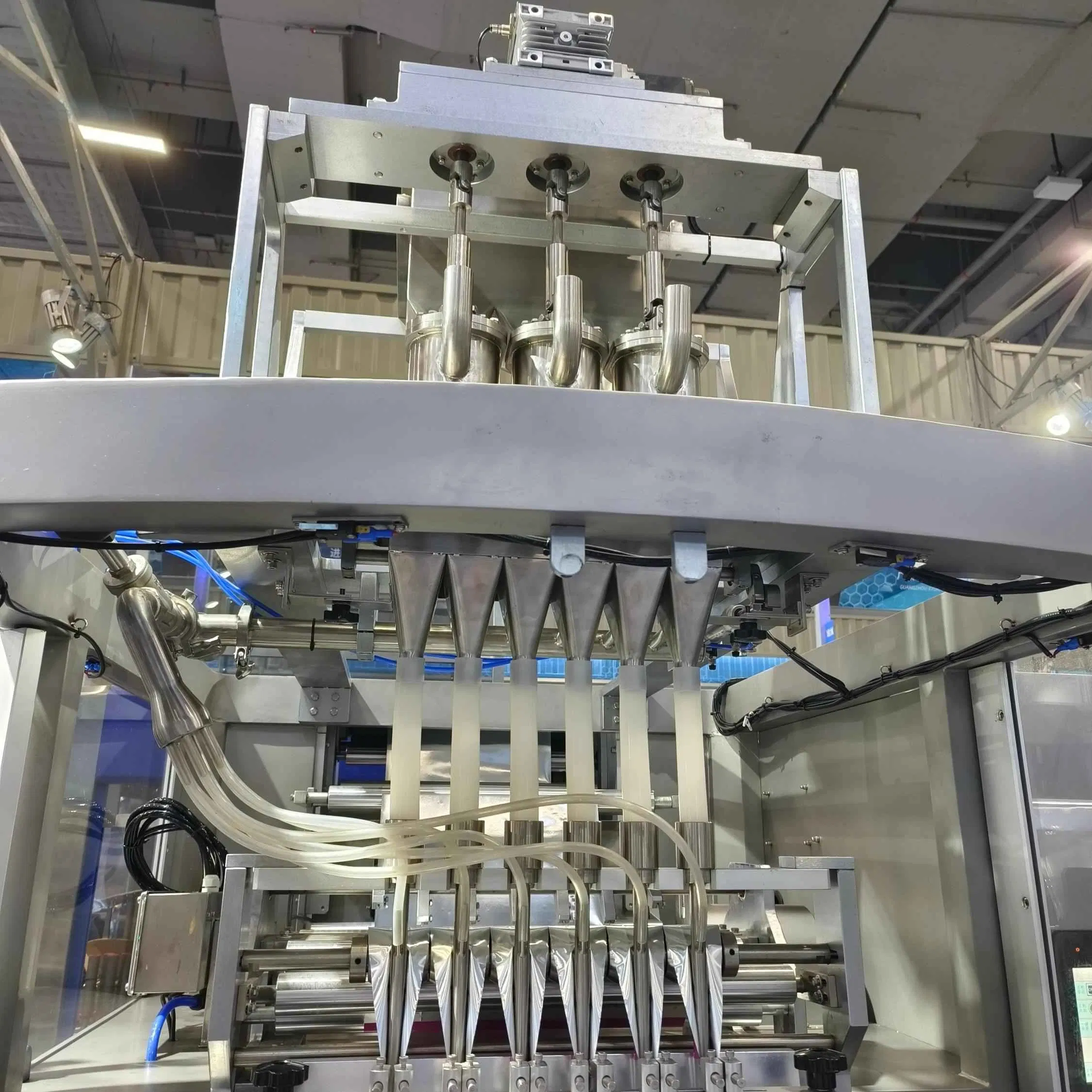

DXD-BK480 Instant Coffee Powder Sachet Packing Machine Packaging Machine

Characteristics:

Advanced performance, high strength, low noise, compact structure, stable operation, easy maintenance, long service life.
The whole machine adopts PLC control, servo tracking synchronous linkage, reliable performance, convenient operation, high degree of automatic control.
High degree of automation: from longitudinal cutting, longitudinal sealing, transverse sealing, filling, printing, notch cutting, cross cutting, until the finished bag output can be completed at one time.
Adopt the combination sealing knife as sealing mould. Back sealing, upper and lower transverse sealing alternating multiple times once sealing. Sealing tightly, high packing speed, pouch shape smoothly, delicate appearance, high packing efficiency.
Quick and convenient adjustment. The bag length can be adjusted without changing the mould. Vertical seal, transverse sealing, filling, cutting and other implementing agencies can be adjusted through the man-machine interface.
Filling measurement accuracy. In the case of powder materials, it is specially designed to push and pull the whole metering plate, and each bag can be adjusted conveniently and accurately.
In the forming process of the packaging bag through the PLC control, so that each actuator can be accurately automatic positioning.
Photoelectric tracking system is adopted to ensure the automatic calibration of the packaging bag, and has the function of automatic counting.
Strong adaptability to the package material, the sealing temperature of the machine has the function of automatic control, and the control precision is high (about 1°C). Can adapt to a variety of packaging films, such as PET/AL/PE, PET/PE, NY/AL/PE, NY/PE, etc.
Additional features can be added, such as choice of cutting machine, dashed knife, serrated knife, etc. Typing code can be selected ink wheel printer, etc., and various alarm requirements.

Usage:

This machine is suitable for the medium and small bags automatic packing in the medicine, food, daily chemical industry and so on. Such as: small pills, granules, coffee, sugar, salt, monosodium glutamate, small granular pharmaceutical preparations, etc.

Specifications Table

Model	DXD-BK480
Lanes number	4 lanes
Packing material	GRANULE
Packing speed	20-30 bags/min/lane (according to detail material)
Filling capacity	1-50gram/bag
Packing film	PET/AL/PE, PET/PE, NY/AL/PE, NY/PE etc
Bag size	L: 40-170mm
Bag size	W: 24-60mm
Film width	Max. 420mm
Sealing type	Back sealing stick type bag
Power supply	380V 50HZ 3P 4 W (do as customer's request)
Power	9KW
Air consumption	0.8MPA 0.8m3/min
Dimension (mm)	1800X1300X2500
Weight	1800KG

Key Components & Processing Features

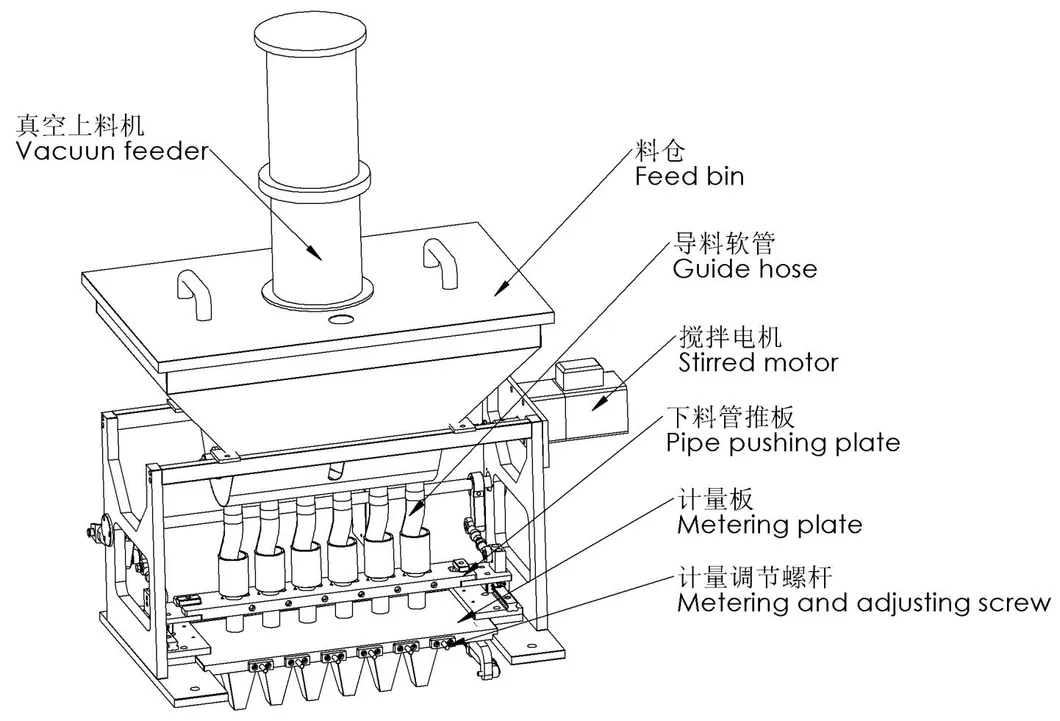

Machine adopts the most advanced sheet feed in the current volume is used. This type of feeding machine is mainly used for filling materials such as particles and small pellets, and has fast running speed, high precision, easy adjustment, and convenient disassembly and washing characteristics.

Each row is equipped with repeated push-pull feeding, the metering can be adjusted independently, the metering accuracy is high, and each row of bags can be conveniently fine and accurate metering adjustment.

Transverse sealing device

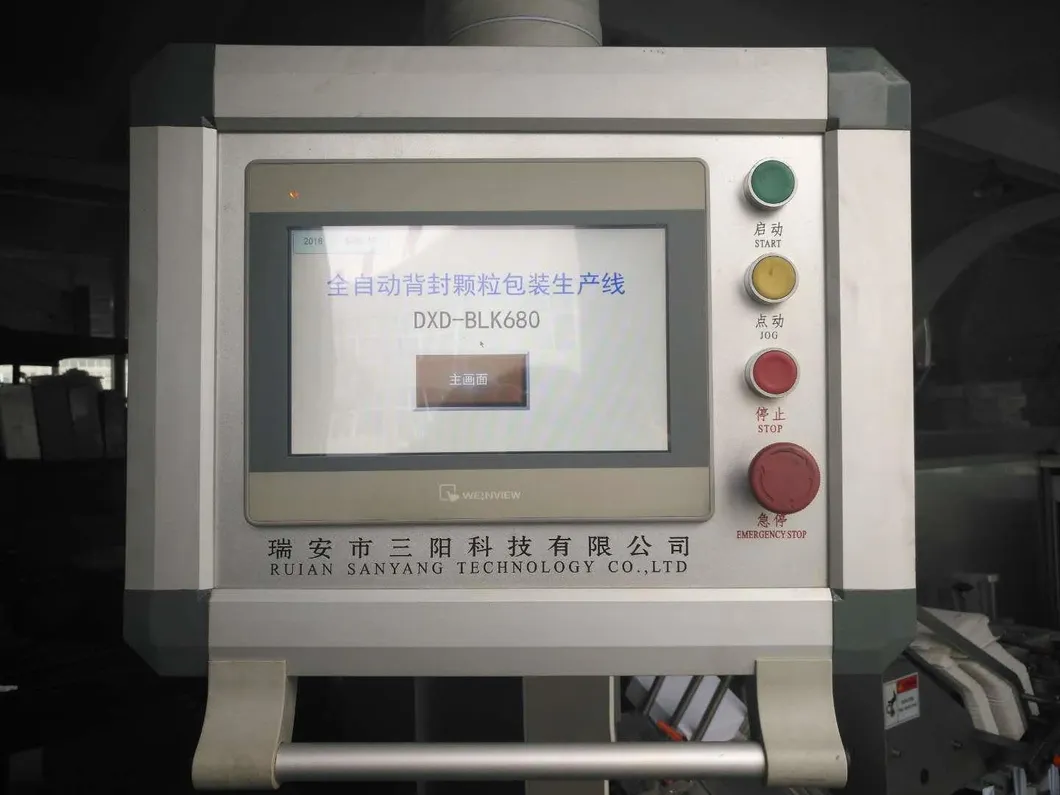

Touching screen showing English and Chinese language for export.

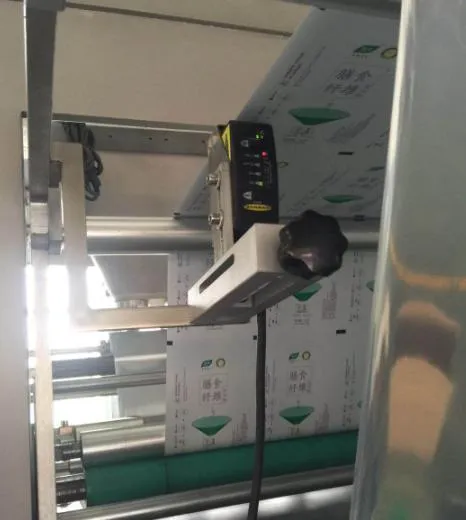

Left and right correction, photoelectric version device. Using PLC control, servo motor drive, photoelectric tracking, automatic correction system to ensure packaging bag double-sided printing pattern alignment.

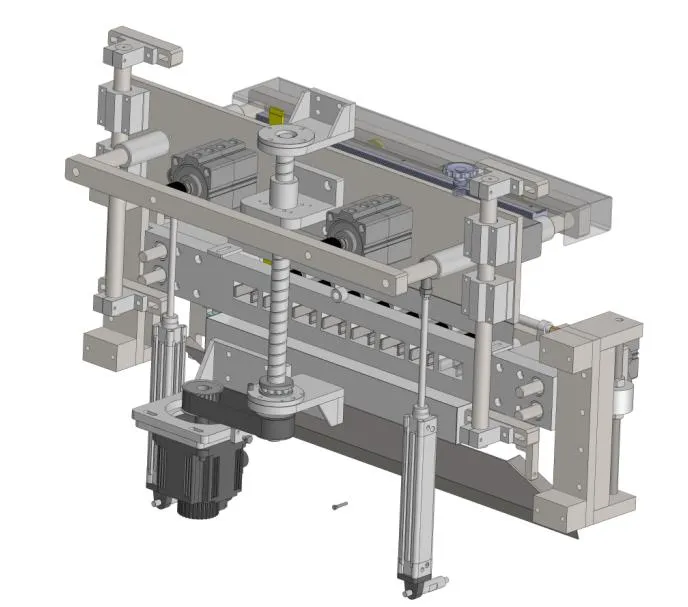

The horizontal seal is driven by a servo motor to drive the screw rod, which improves the accuracy of the bag length error and the noise is smaller.

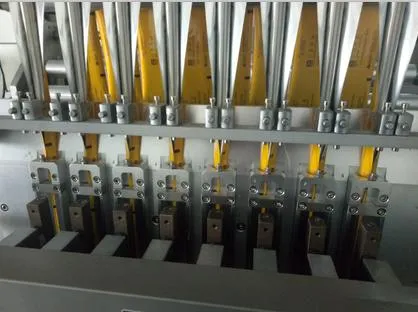

Longitudinal sealing

Batch numbers are available in a variety of ways: usually by hard pressing one side of the steel, another side of the silica gel to make the steel characters clearer, while ensuring the sealing performance of the transverse seal. You can also use spray code, laser code and ribbon code.

Transverse cutting knives can be used in the following ways: flat cutting, irregular cutting, fillet cutting and tooth profile cutting.

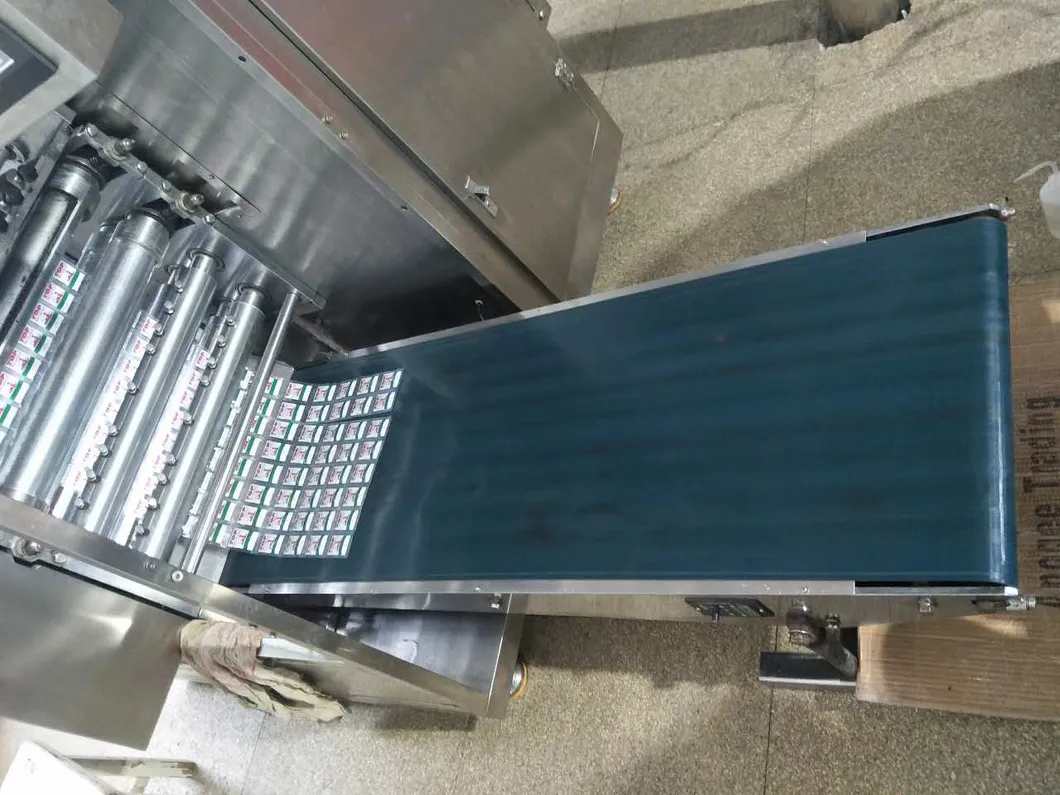

Exit Conveyer

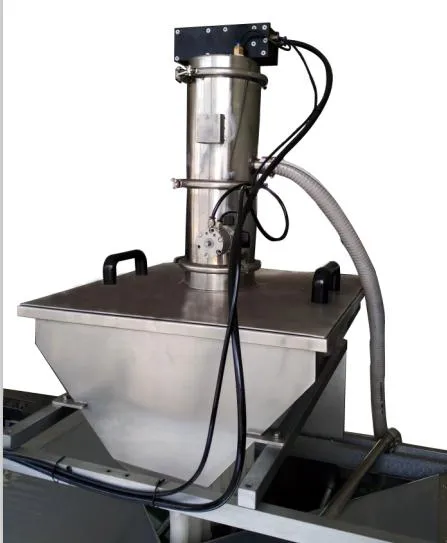

Vacuum feeder----Automatic material loading device: the place between cover and hopper can be sealed and convenient for opening; the cover have a material feeding opening with the diameter of 80mm, which can connect with the feed opening of vacuum appending machine for automatic appending (the model of vacuum material loading machine is QVC-2).

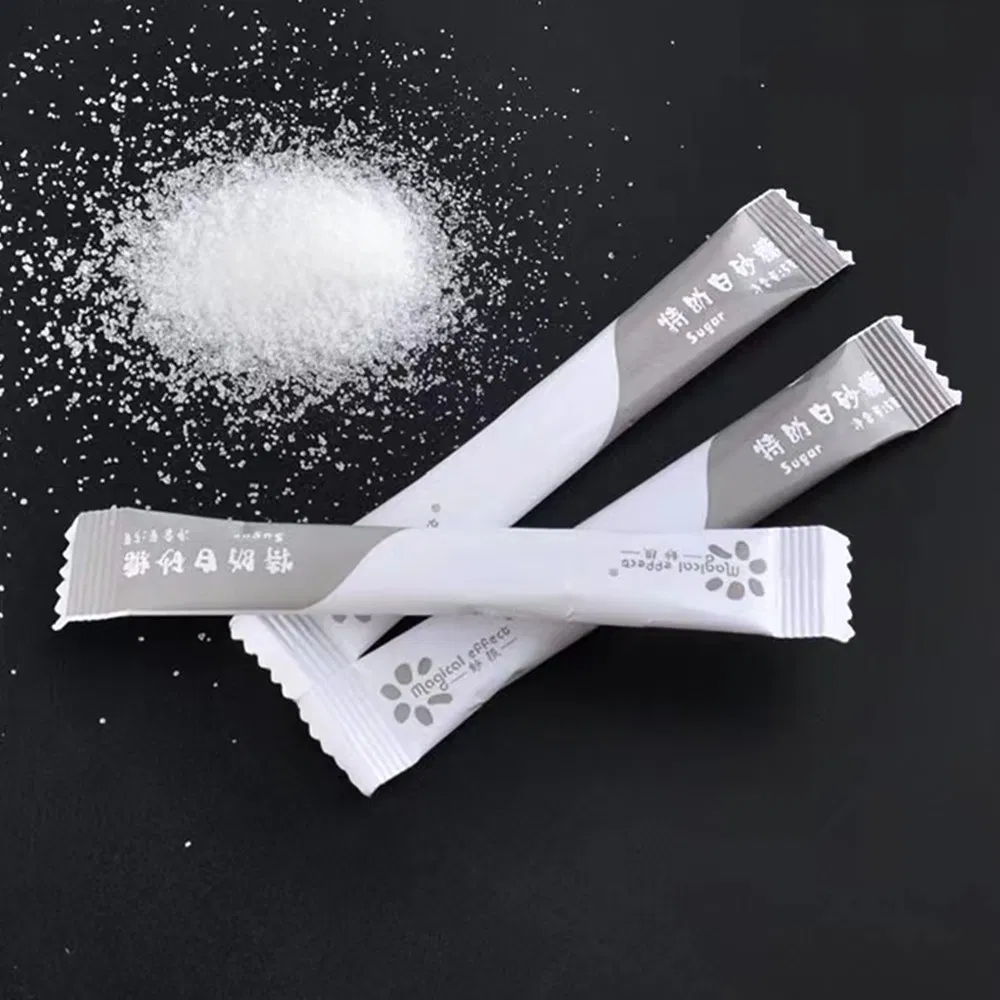

Sample Showcase

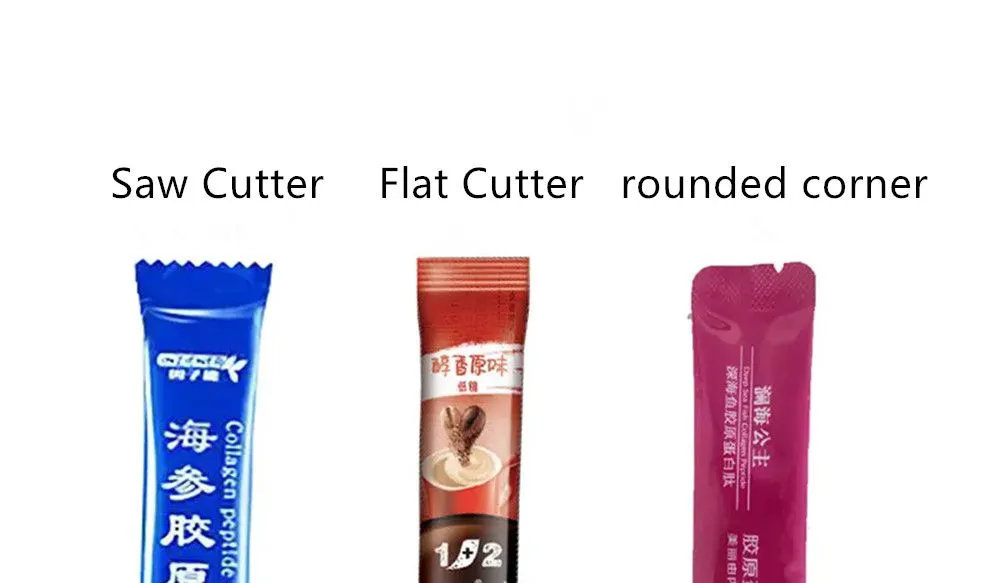

Different cutter Type

Certifications

FAQ

Q1: What are the main applications of these packing machines?

A1: Our packaging machines are designed according to custom requirements and are highly suitable for packing powder, granules, liquids, and pastes into small sachets/pouches.

Q2: How do you handle installation and operator training?

A2: There are two main ways:
1. Customers can send their technicians to our factory for free training on adjusting and operating the machine.
2. We can dispatch our engineers abroad to complete the installation and train your workers at your facility.

Q3: What actions should be taken if the machine malfunctions or does not work properly?

A3: Generally, basic troubleshooting solutions can be found in the manual. If the problem persists, please contact our after-sales service department or the sales representative by email or phone. We will respond within 24 hours.

Q4: Can we invite your engineer to our factory to resolve machine problems when necessary?

A4: Yes, we can dispatch engineers to service your machine at your site. Customers are responsible for visa costs, round-trip tickets, accommodation, and a daily labor rate of 100 USD.

Q5: What are your accepted payment terms?

A5: We accept TT (Telegraphic Transfer) and irrevocable 100% LC. For TT payments, a 30% down payment is required before production, with the remaining 70% balance paid prior to shipping setup.

Q6: What is the typical delivery timeframe?

A6: Generally, the delivery time is around 50-60 days after receiving the down payment for a single set packaging system, depending on specific customer requirements.
